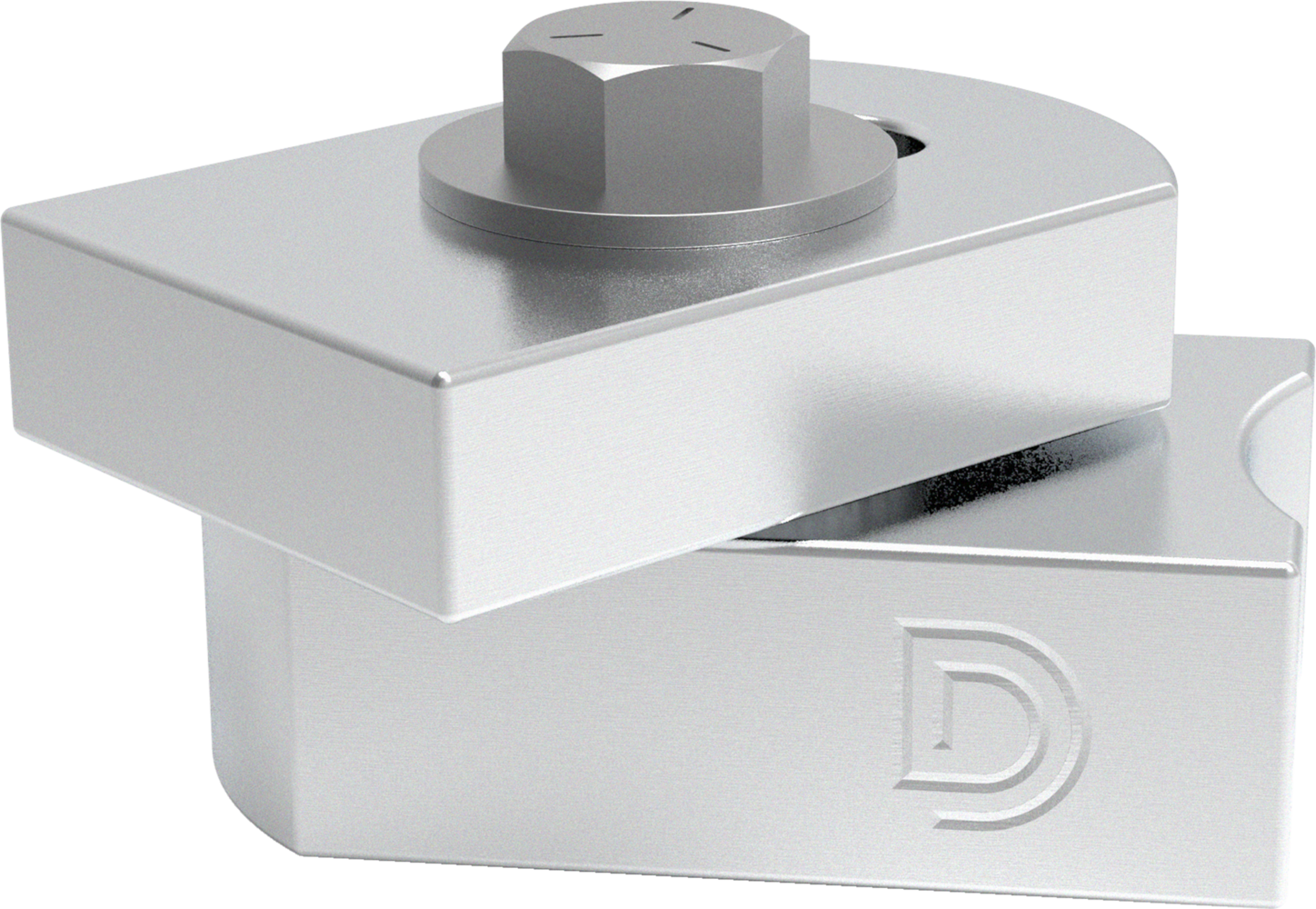

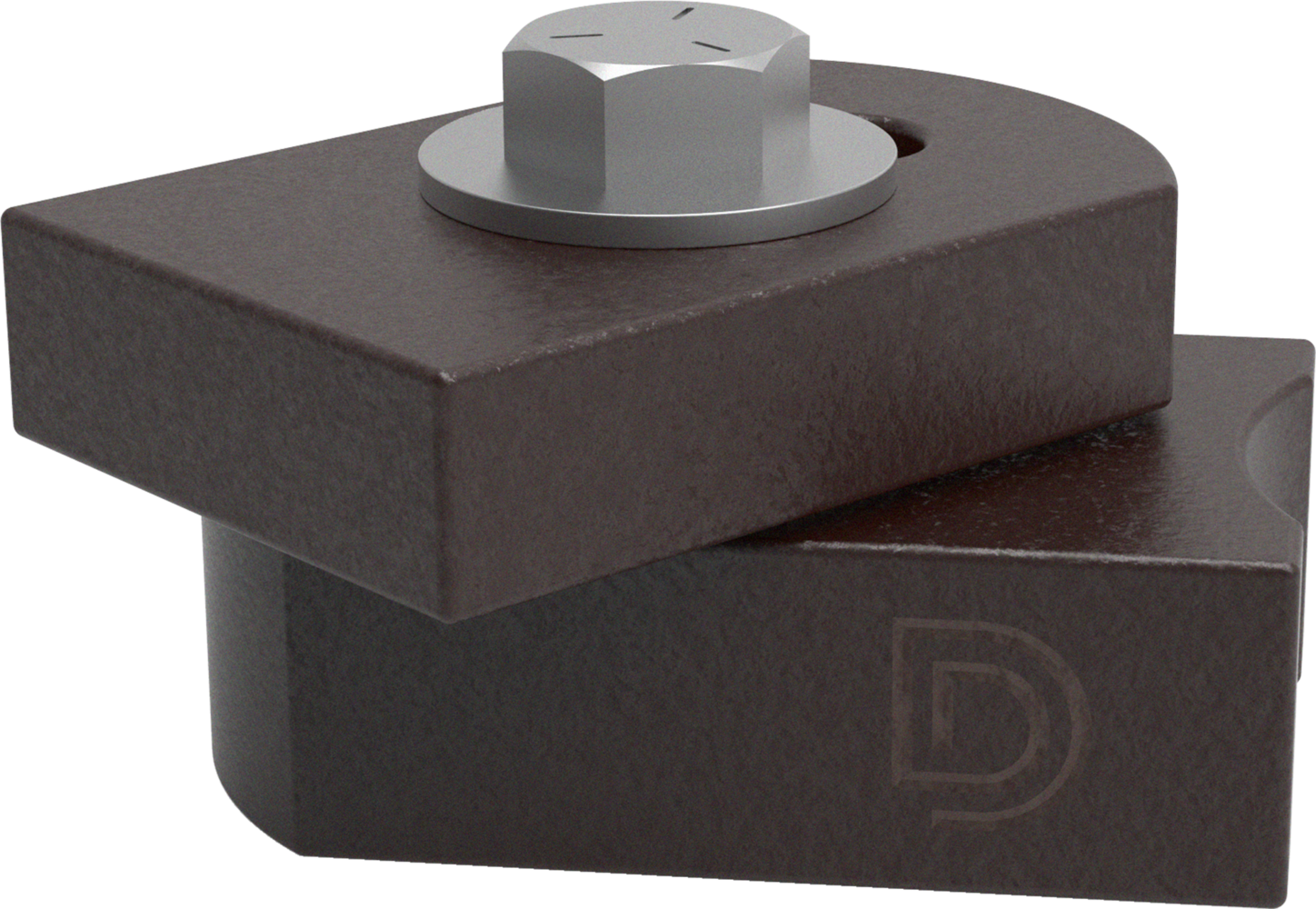

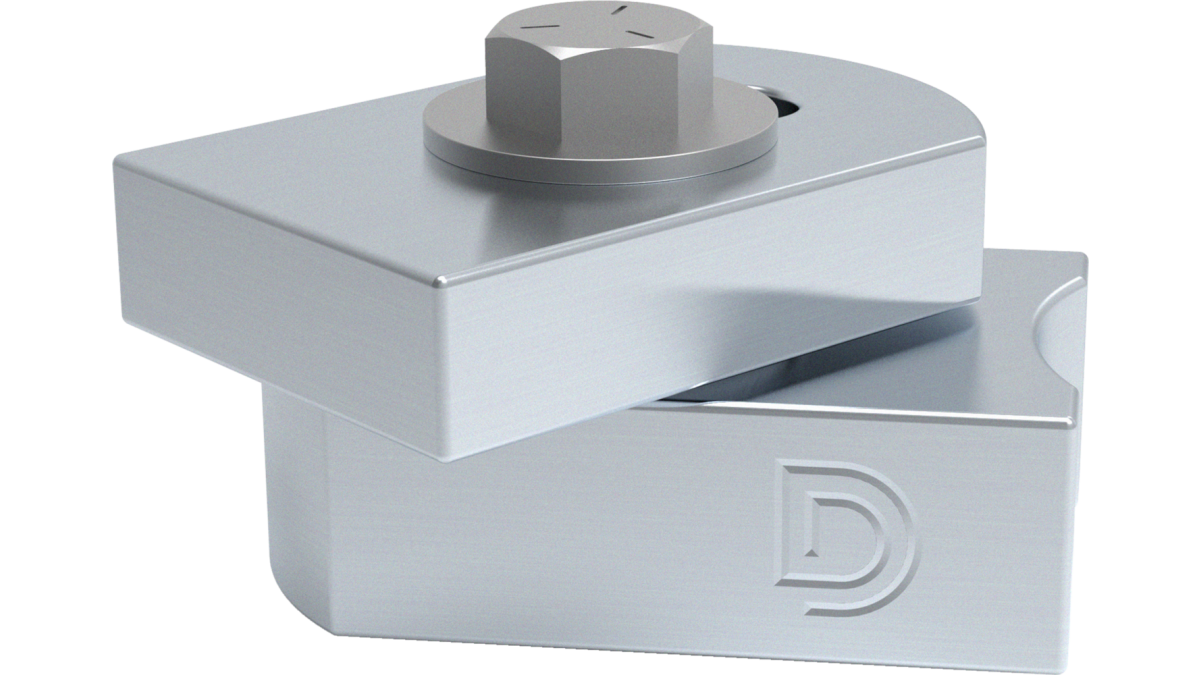

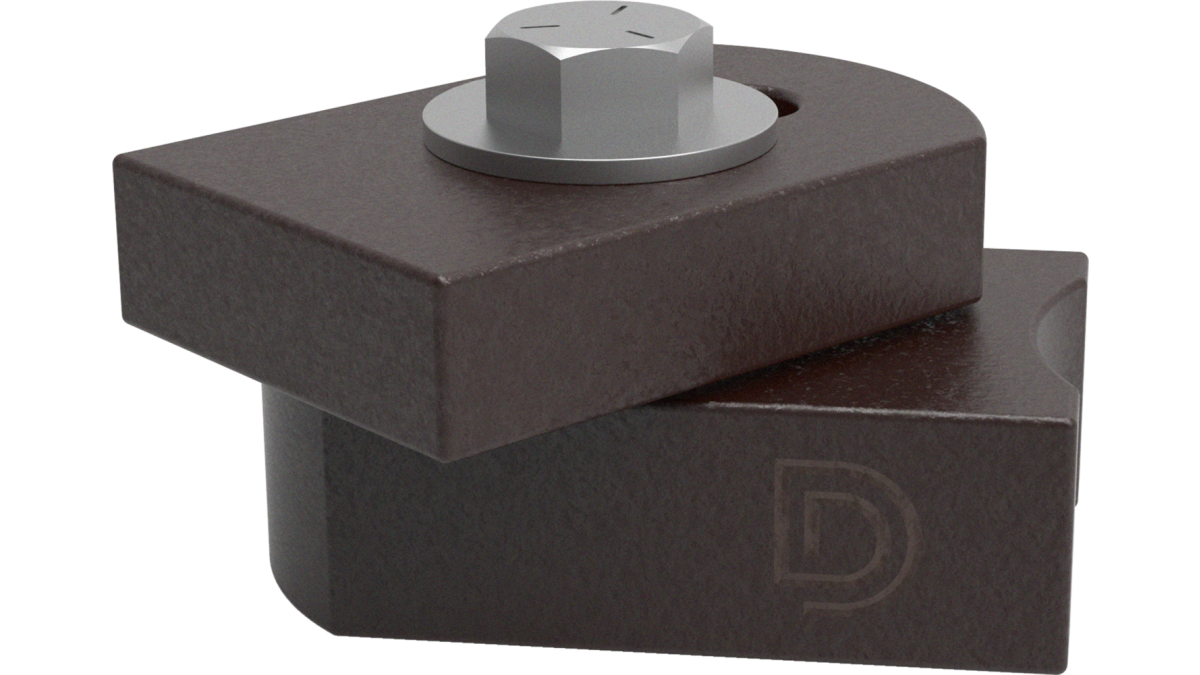

D&D Technologies Shut it® Baby Badass Gate Hinge
Description

Shut it® Baby Badass Gate Hinge is made with the same BadAss technology as the big hinges, but designed for the lighter side. The Baby BadAss models are the perfect gate hinge for high-end pedestrian gates and low usage drive entry gates that are welded to steel end posts in the field.

  • Product Codes: CI3600-CI3620-CI3650-CI3670
  • Gate Type: Non Self-Closing
  • Gate Material: Aluminium, Steel/ Ornamental Iron
  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square, Square to round
  • Min Post Size: 38mm
  • Ideal Gate Gap: 64-76mm
  • Fixing Method: Weld On
  • Colour/ Finish: Raw, Zinc, Rusted
Key Features

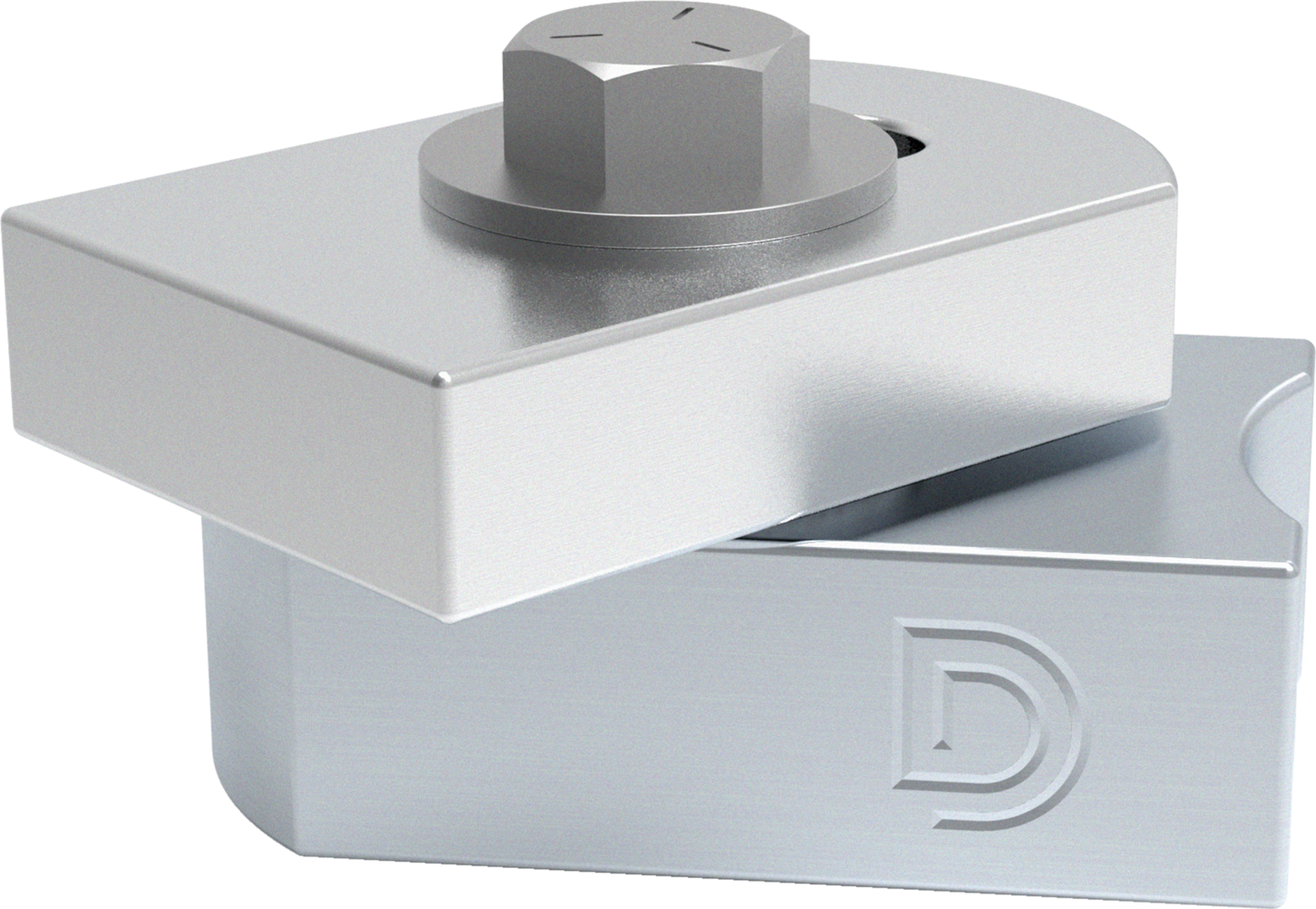

  • Available in Steel, Rusted, Aluminium and Steel/Aluminium Combo
  • Lighter gate weight option to Original BadAss
  • One sealed maintenance-free bearing (no greasing)
  • Up to 13mm of horizontal adjustment
  • Ideal for square or round post installations
  • Load rating per gate: 230kg
  • Maximum gate weight: 140kg
Scope of Use

Non self-closing gate hinge. Ideal for high-end pedestrian gates and low usage drive entry gates that are welded to steel end posts in the field.

  • Pedestrian Gate
  • Driveway Gate — single or double
  • Pet Gate
  • Playground Gate
  • Public/Commercial Gate
  • Automated/Electric Gate
  • Security Gate
  • Privacy Gate

Installation:

  • Approx Gate Size: 2m H x 3m W
  • Gate Frame/ Post Shape: Square to Square, Square to round
  • Min Post Size: 38mm
  • Ideal Gate Gap: 64-76mm
  • Fixing Method: Weld On
Limitations on Use
  • Load rating per gate: 230kg
  • Maximum gate weight:140kg
Other Performance Attributes
  • One sealed maintenance-free bearing (no greasing)
