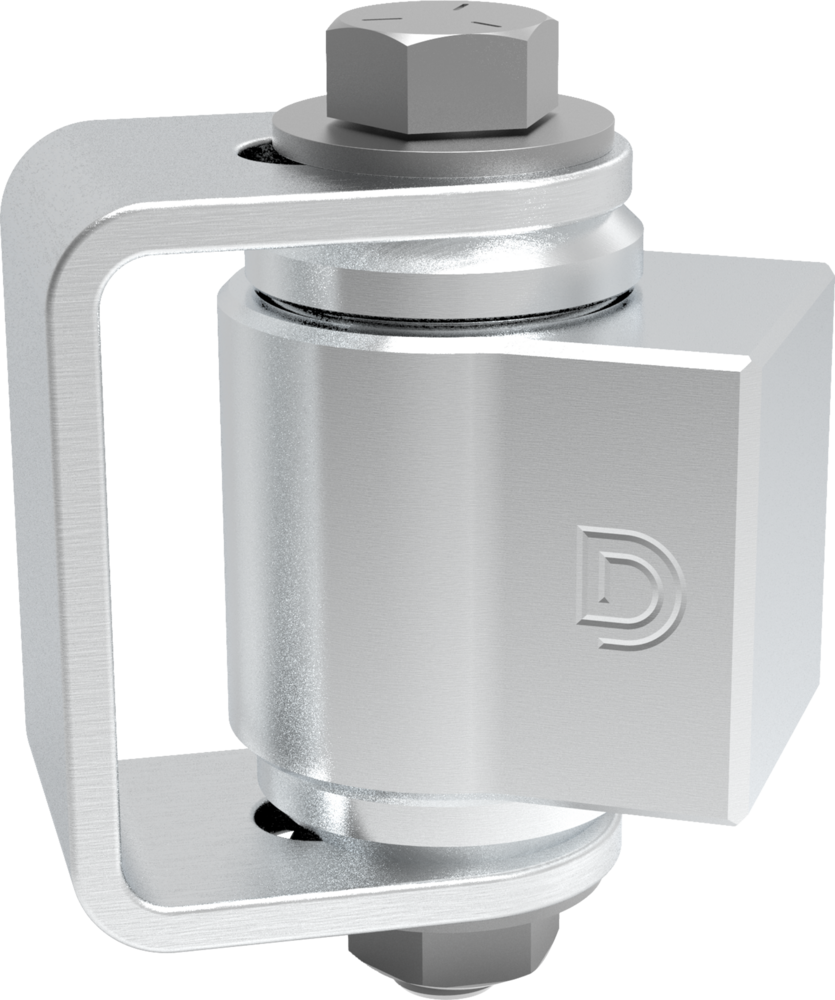

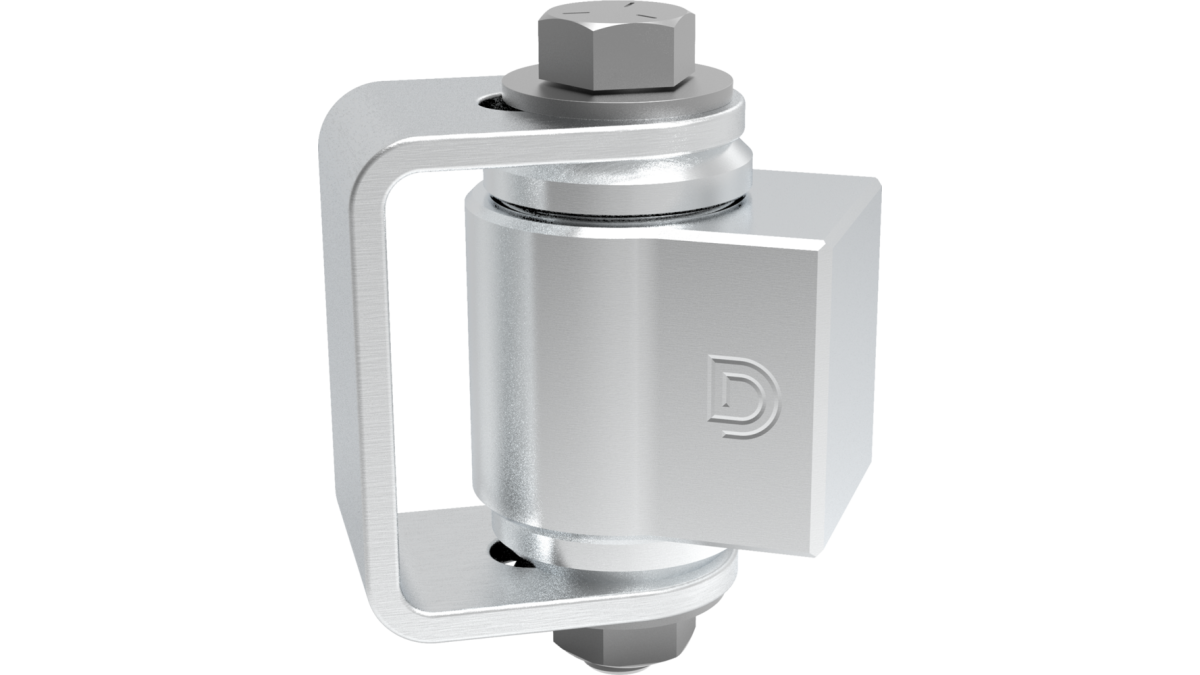

D&D Technologies Shut it® Aluminum Badass Gate Hinge
ASSA ABLOY
All products
shutit badass aluminum ci3400 etch ddtech
Description

The aluminium Badass Gate Hinge is CNC machined to the tightest tolerances in the industry. Due to Shut it® unique bushing design The Aluminium BadAss, like all other Shut it® gate hinges, produces near frictionless movement with maintenance-free usage.



Key Features
  • Two sealed maintenance-free bearings
  • Adjustable bracket for precise installations
  • Perfect for that high-end installation
  • Ideal for flat post installation
  • Load rating per gate: 450kg
  • Maximum gate weight: 270kg
Categories
Hinges, Drawers and Runners Fencing, Walling and Gates
Ranges
Gate Hardware
Scope of Use

Gate Application - Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate

Other Performance Attributes
  • Product Code - CI3400
  • Gate Type - Non-Self-Closing
  • Gate Material - Aluminium
  • Approx Gate Size - 2m H x 3m W
  • Gate Frame/Post Shape - Square-to-Square
  • Min Post Size - 38mm+
  • Ideal Gate Gap - 64-76mm
  • Fixing Method - Weld-On
  • Colour/ Finish - Raw

ASSA ABLOY specialise in door opening solutions, dedicated to satisfying end-user needs for security, safety and convenience.
