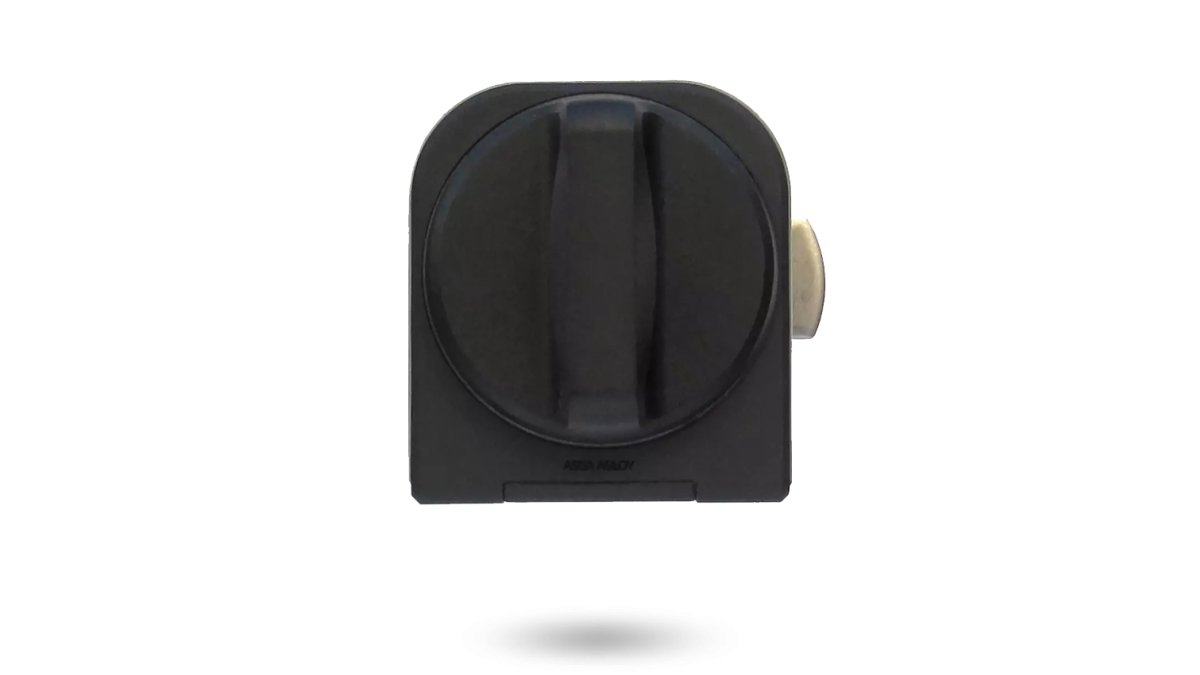

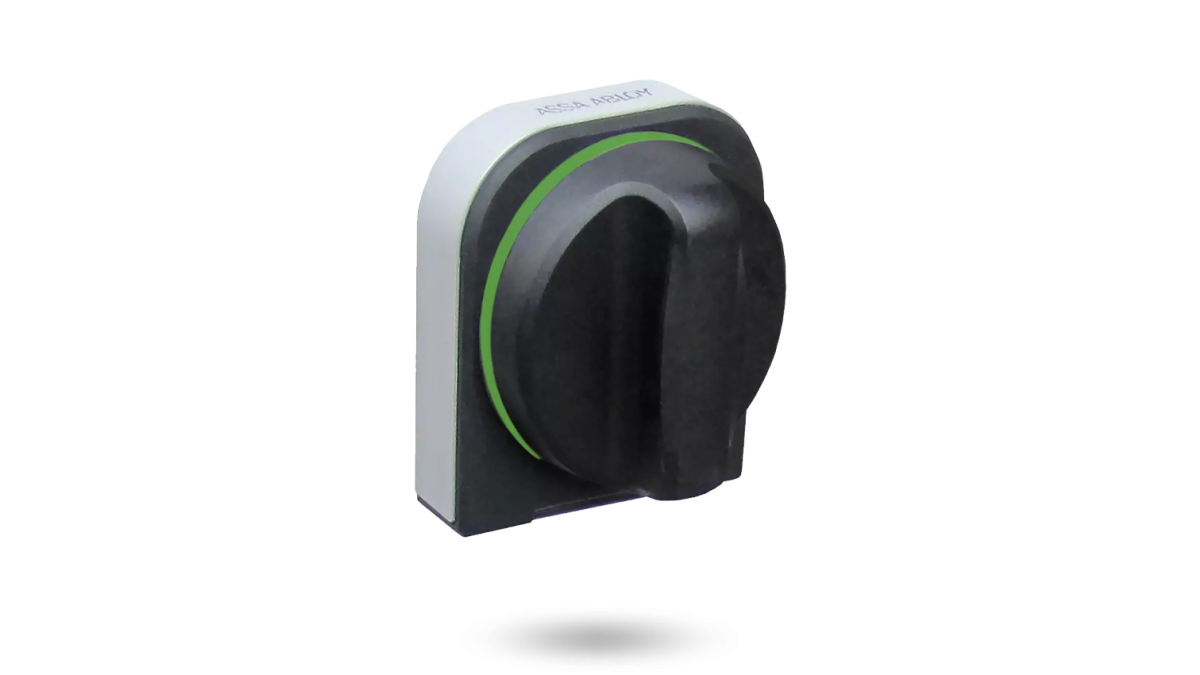

Aperio KL100 Cabinet Lock
Description

The Aperio® KL100 is a new wireless access solution for lockers, cabinets and drawers, bringing improved security to valuables.

Access control should not stop at doors. In shared spaces, valuables and other personal items deserve the same protection as offices, treatment rooms or server racks. Many access solutions are limited to the door environment. This is where the new Aperio® KL100 comes in as it integrates seamlessly with more than 100 access control systems.

Managing the security of additional access points outside a security system increases risk, complexity and workload. The battery-powered Aperio KL100 solves this problem. It secures lockers, cabinets, cupboards and drawers. Almost any small opening quickly becomes an integral part of an access control system.

An Aperio KL100 fitted at these points gives personal valuables, medicines, sensitive documents, retail stock, sports kit and more, the security they deserve. It deters unauthorised access and theft.

With two different lengths and several CAM options, the KL100 is a straightforward retrofit solution. It suits almost any locker, cabinet or drawer, whether wooden or metal. Powered by one battery, this wireless lock consumes very little power, it only “wakes up” when a credential is presented and needs no specialist maintenance.

In line with every device in the Aperio range of battery-powered locks, this protection does not require the hassle or inflexibility of physical keys.

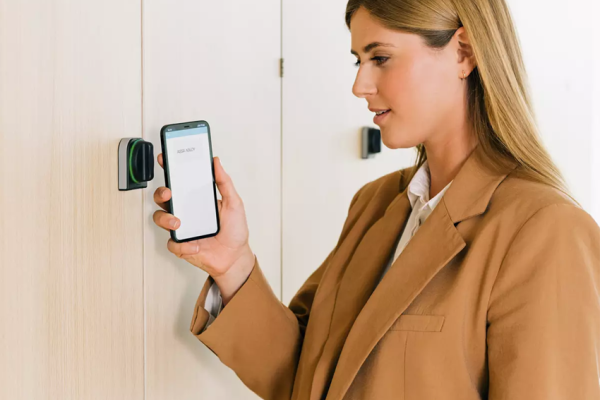

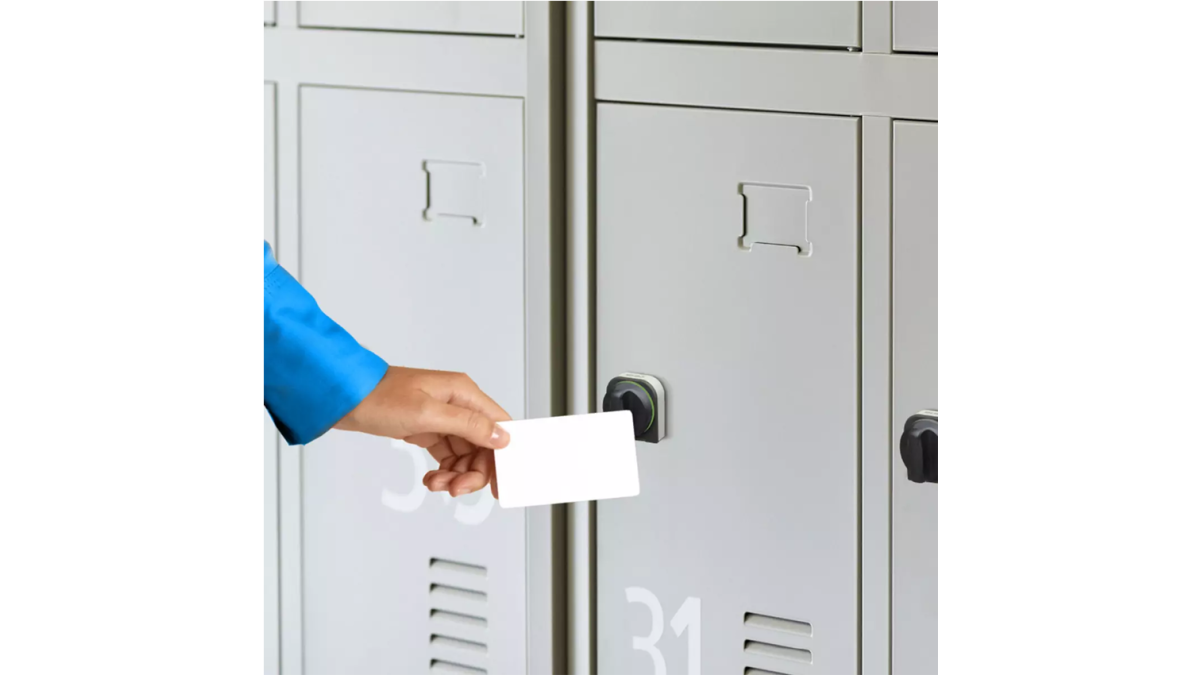

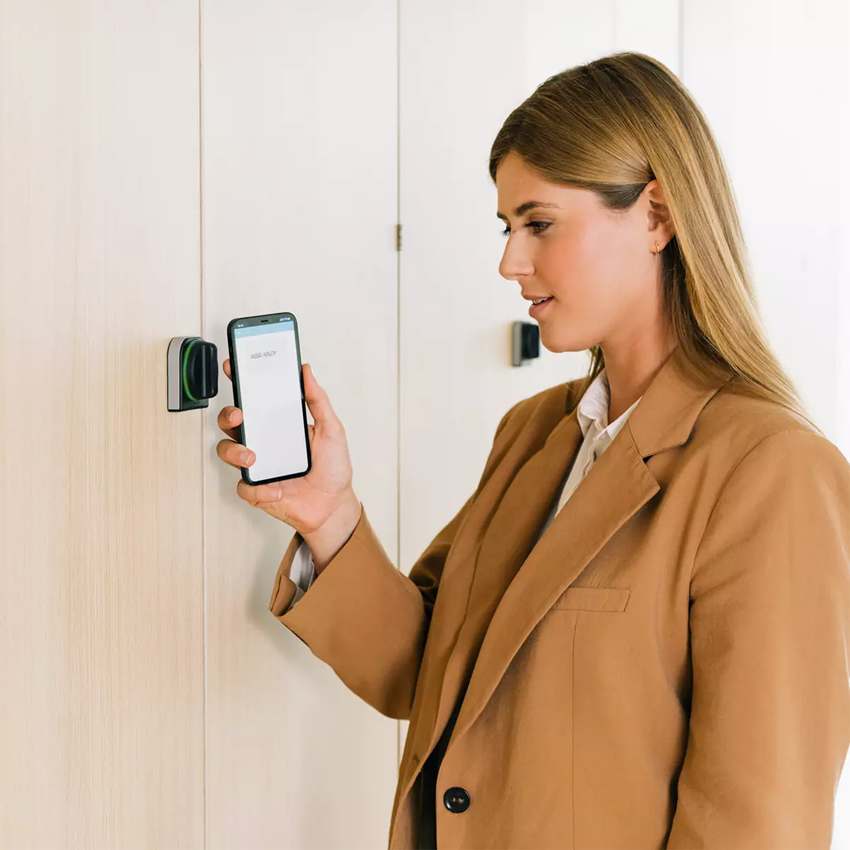

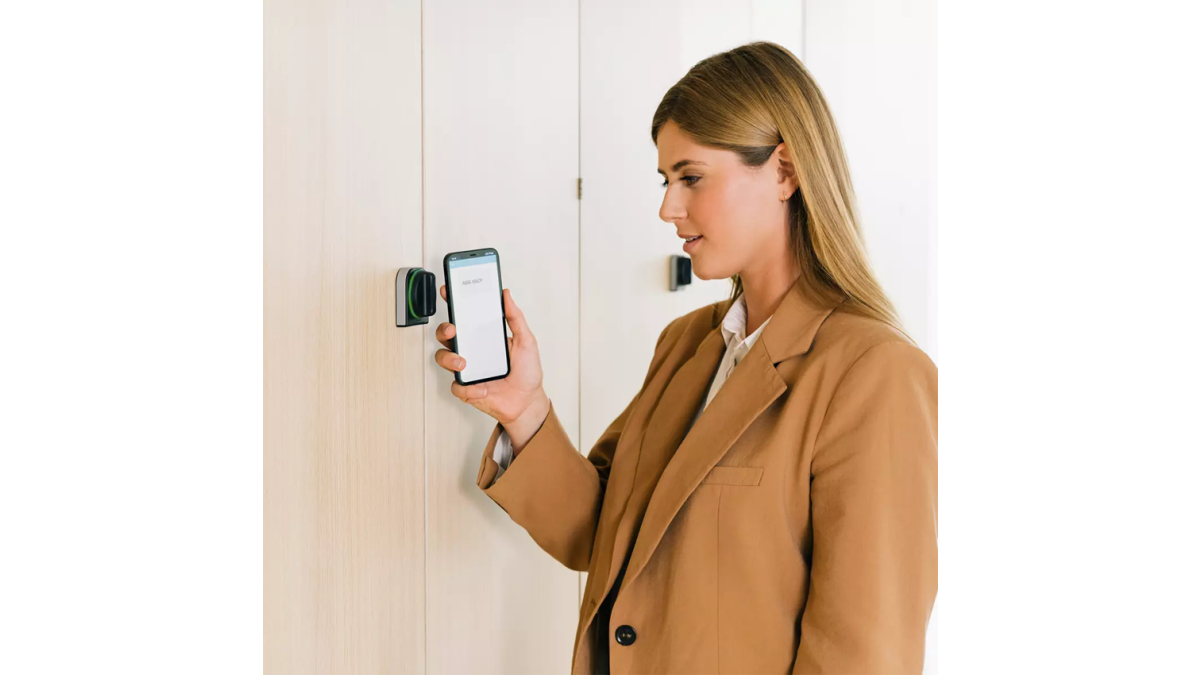

An Aperio KL100 can be operated with mobile keys via Bluetooth Low Energy and NFC, as well as smartcards and fobs using all major RFID technologies. For added user convenience, the device accepts multiple credential technologies simultaneously, in parallel, so security managers can roll out mobile keys at their own pace.

Easy hardware integration for greater efficiency and convenience. The Aperio KL100 is designed for minimal disruption to furniture. A tiny footprint and wire-free operation ensure it’s fitted quickly without causing damage or visual impact.

Yet within this small package is a powerful device which integrates seamlessly with any new or existing access control and security system — from over 100 different manufacturers and counting. Existing user credentials do not need to be replaced.

A KL100 may be connected Online, Offline or via OSS compliant integration — and switched between them at any time. Online management enables real-time control over every KL100 lock, with easy access rights administration and instant availability of audit trails for any opening or user — which makes incident investigation fast and accurate.

The Aperio KL100 Locker and Cabinet Lock joins a family of trusted wireless, battery-powered devices which includes cylinders, escutcheons, handles, security locks, server rack locks and more. With its contemporary, low-profile design and power provided by a single, standard lithium battery, the KL100 is the modern choice for securing any site’s valuables and sensitive small spaces.

Key Features
  • Cable Free

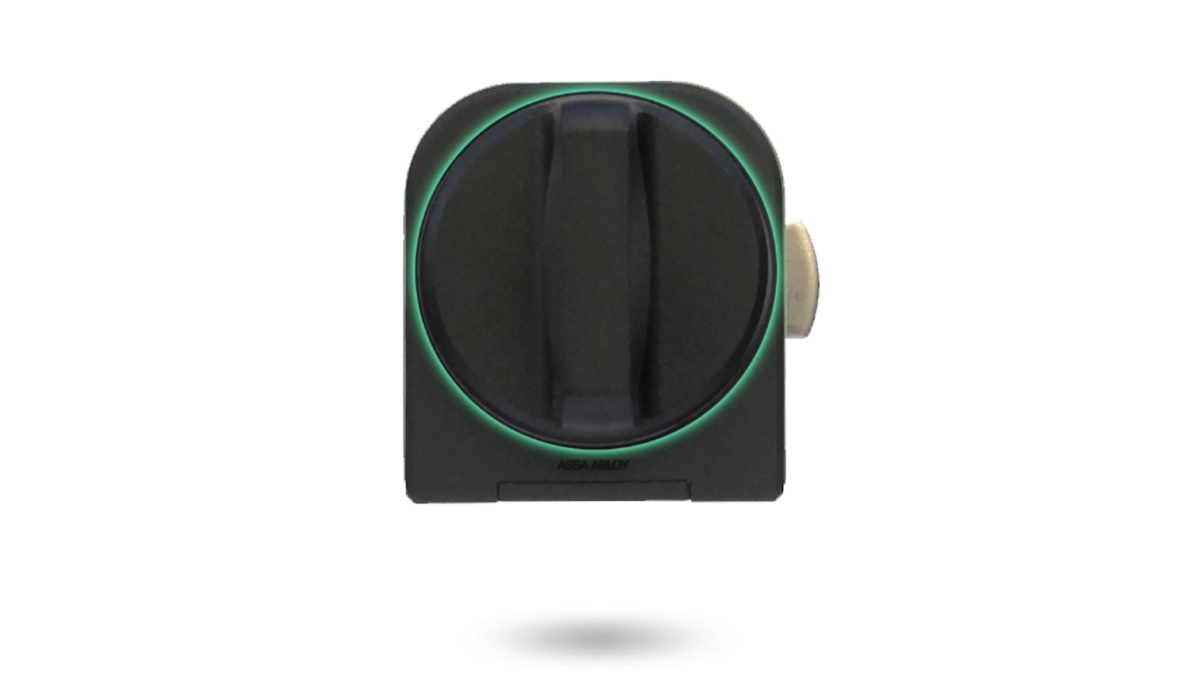

  • Inbuilt LED instantly communicates if access is granted or denied

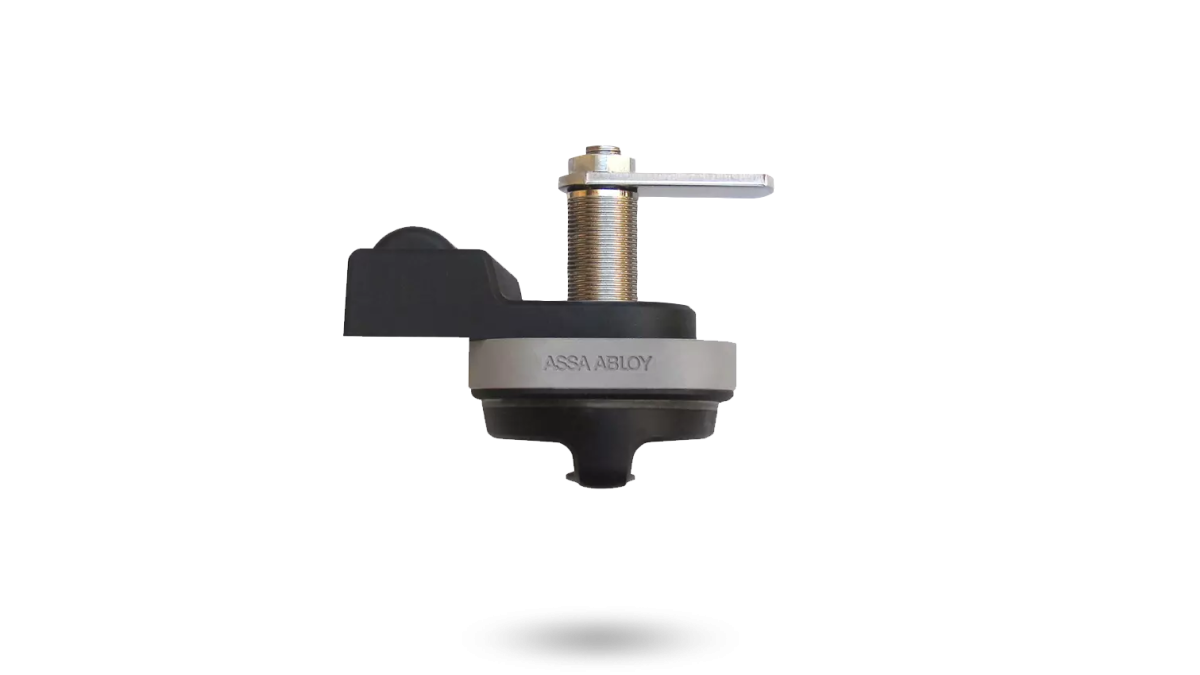

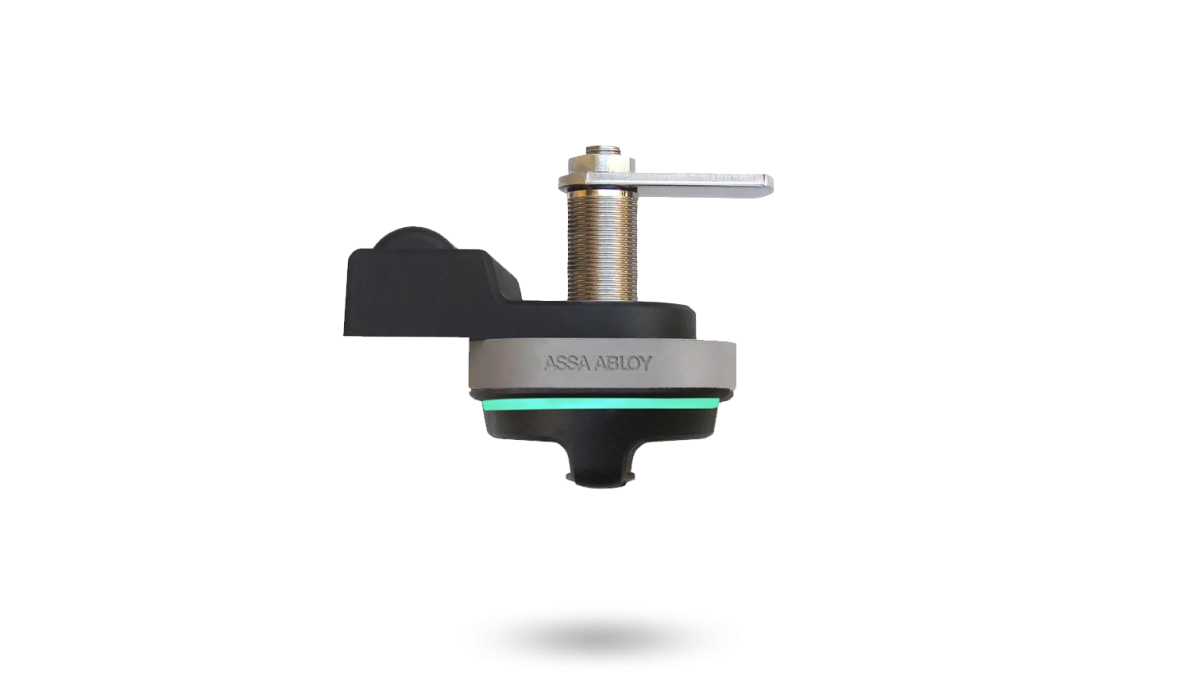

  • Long throat to suit timber applications with 19mm diameter

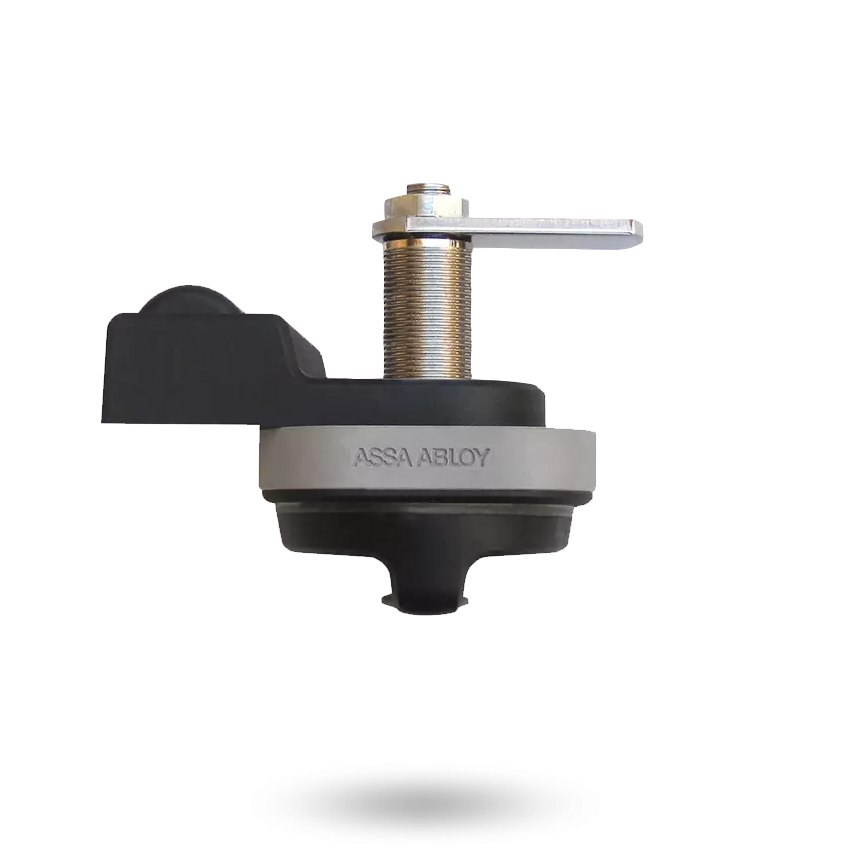

  • Includes as standard straight cam (SKU AKL100-20)
  • Several CAM versions available for multiple applications (cams sold separately)

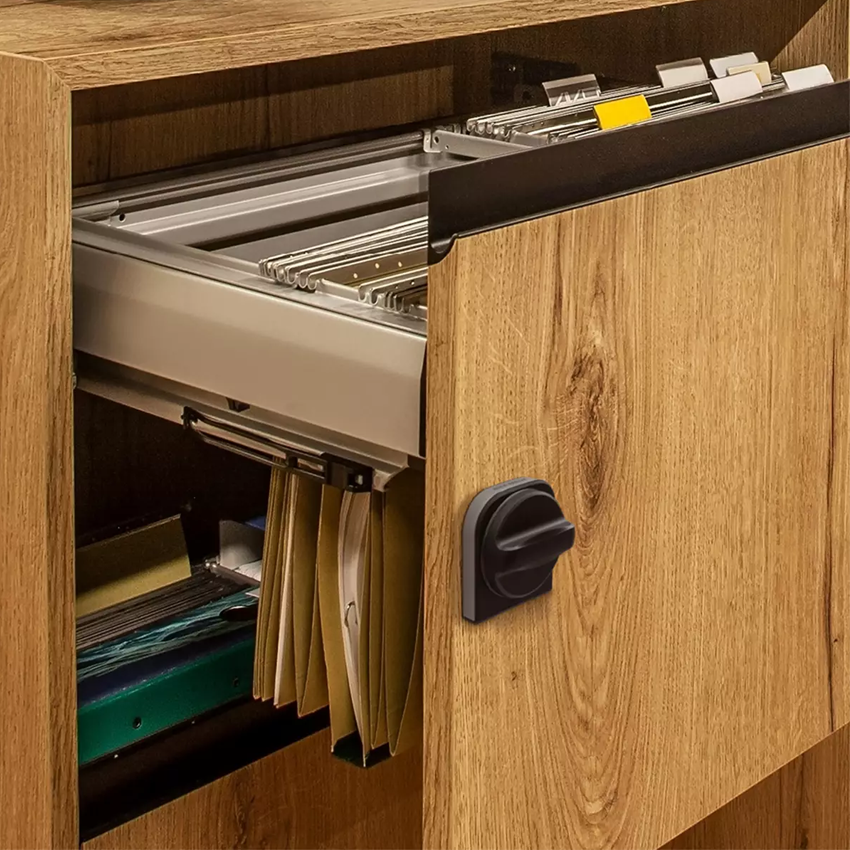

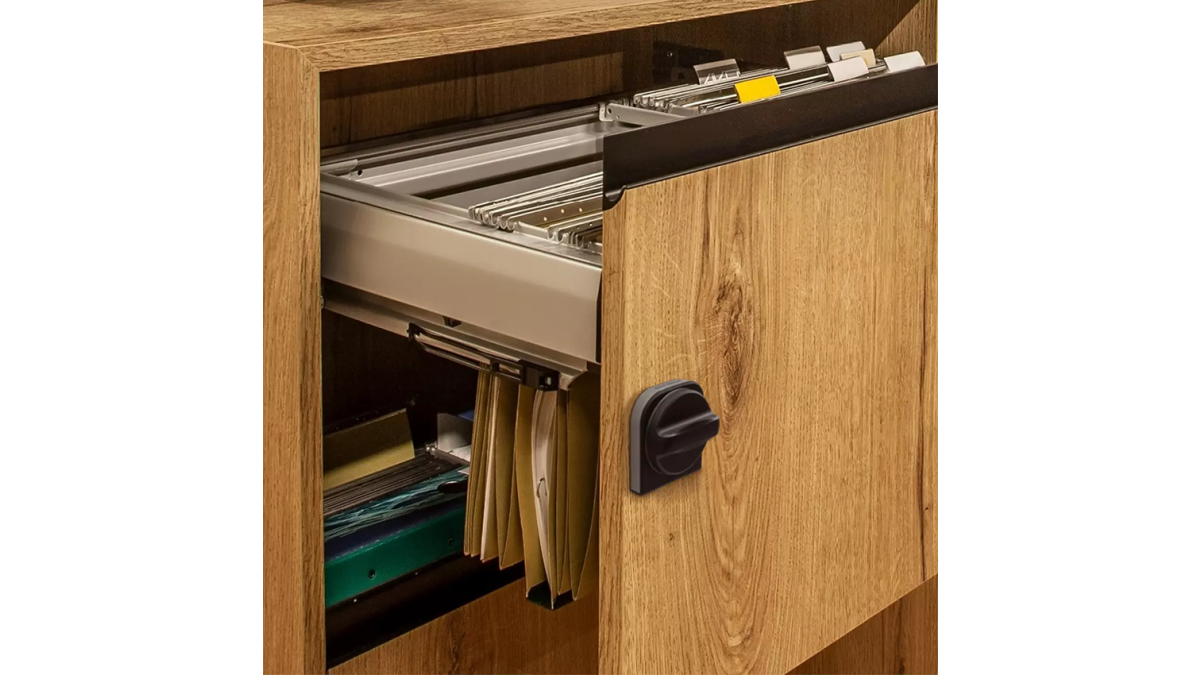

  • May be fitted to left or right-handed cabinet opening and vertically to secure drawers
  • Lock surface is designed to allow manual pull for opening lockers without a handle
  • Battery powered with a typical battery life of several years (battery included — SKU CR123)
  • Can be operated with Smart cards, Bracelets, Fobs and Smartphones (NFC and Bluetooth)
  • Supplied in trade pack
Categories
Locks
Scope of Use

The Aperio KL100 Locker and Cabinet Lock joins a family of trusted wireless, battery-powered devices which includes cylinders, escutcheons, handles, security locks, server rack locks and more. With its contemporary, low-profile design and power provided by a single, standard lithium battery, the KL100 is the modern choice for securing any site’s valuables and sensitive small spaces.

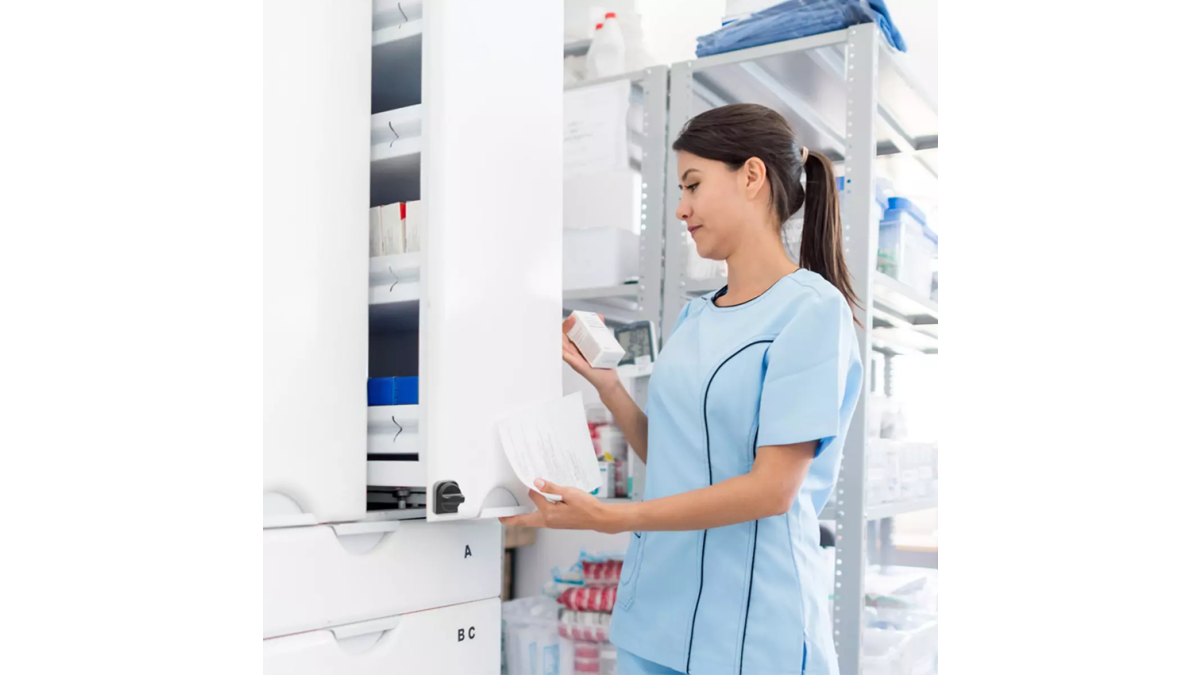

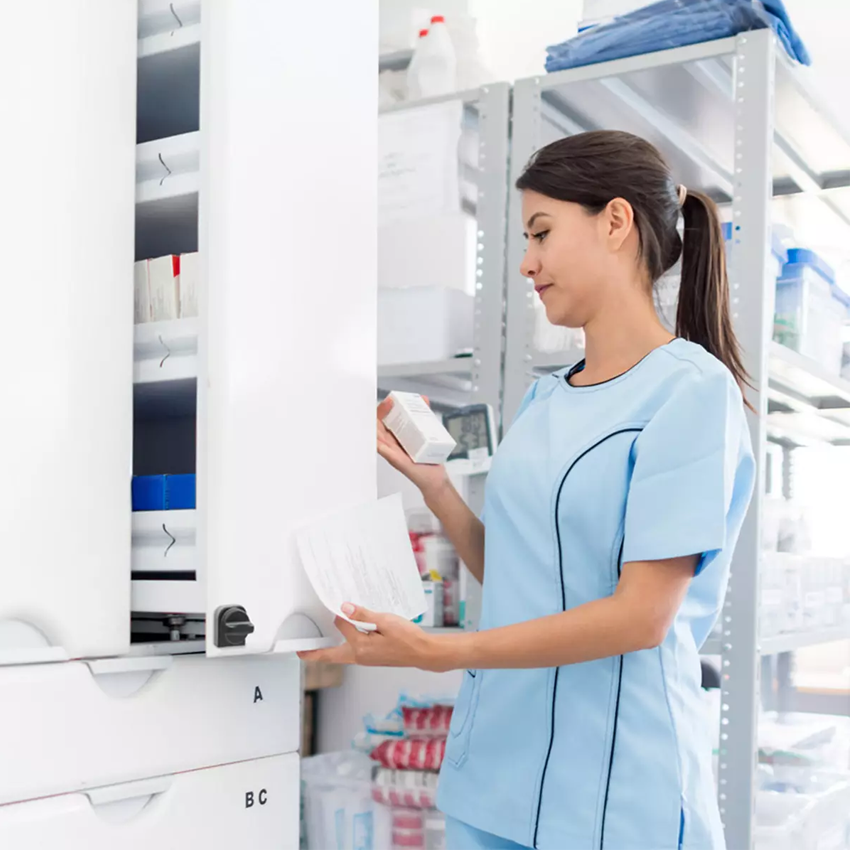

  • Hospital Medicine Cabinets and Drawers
  • Document Cabinets
  • Retail Displays
  • Personal Belongings

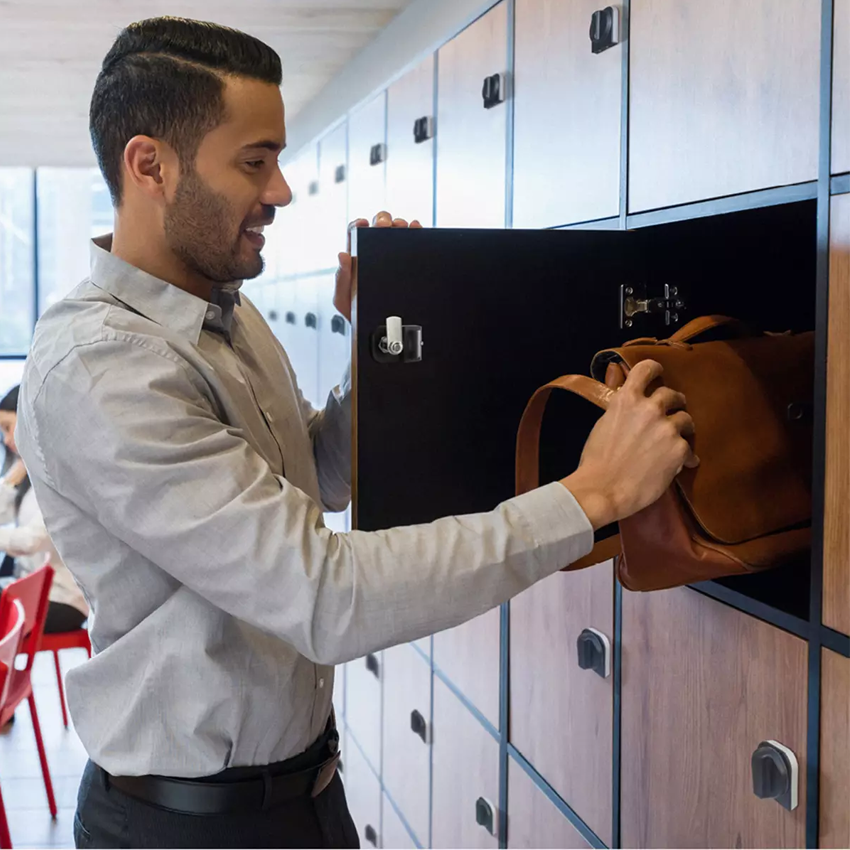

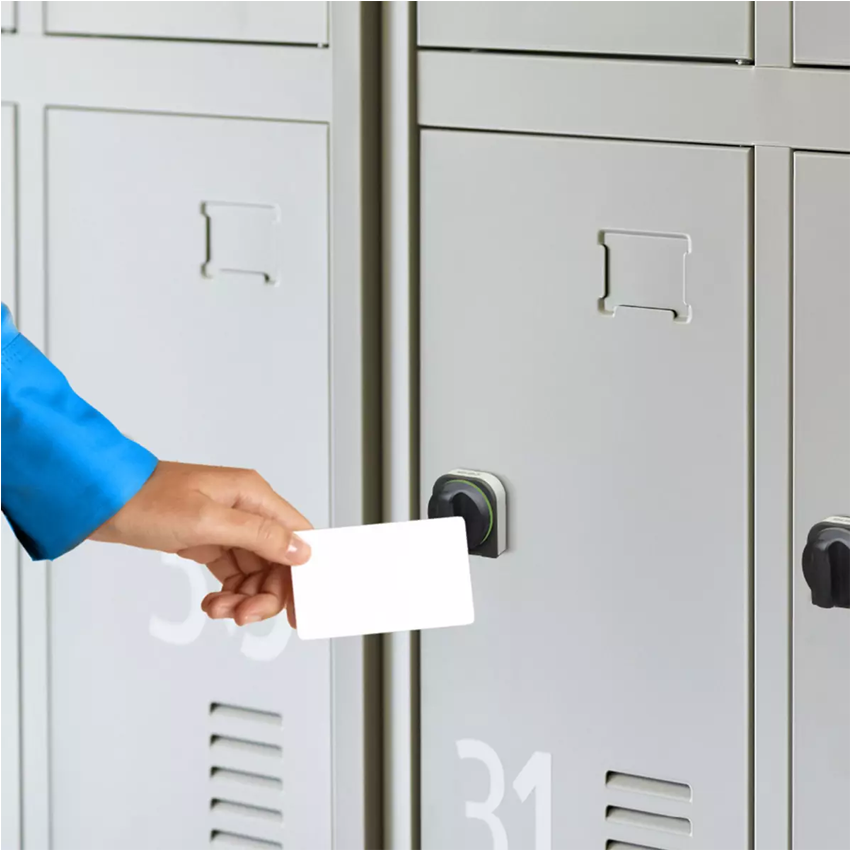

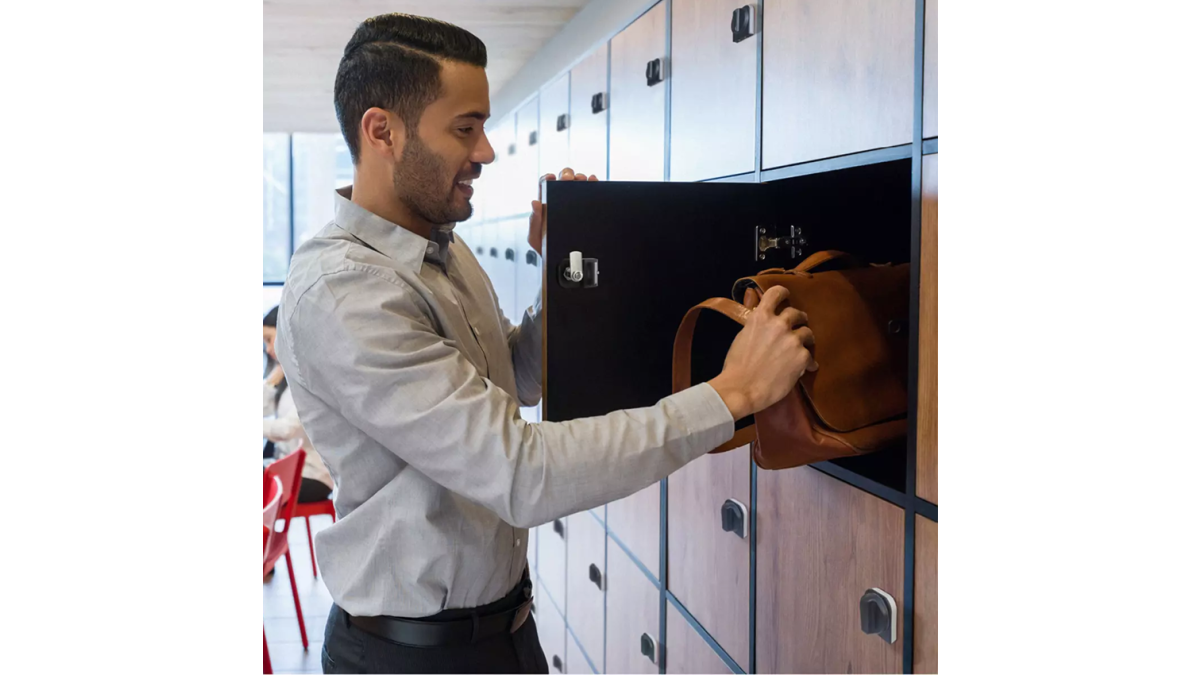

  • Staff Lockers
  • Almost any locker, cabinet or drawer, whether metal or timber
Other Performance Attributes
  • 1 x Lithium CR123A Battery
  • 40,000 cycle battery life
  • Emergency power via micro-USB socket
  • Weather resistant construction to IP54
  • 0°C to 55°V Operating temperature
  • LED status indication: Red/Green/Yellow
  • Operating modes Aperio Online, Aperio Offline, Standard OSS Offline
  • Radio standard IEEE 802.15.4 (2.4GHz)
  • AES 128 bits Encryption
  • RFID Technologies iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, Mifare Classic SE, Mifare Ultralight, Mifare Plus, Mifare DESFire 0.6, Mifare DESFire EV1, Mifare DESFire EV2, Mifare DESFire EV3 (EV2 and EV3 only in Legacy mode), Mifare DESFire SE, PicoPass, ISO 14443A UID, ISO 14443B UID, ISO 15693 UID
  • RFID reading UID / Sector / Block / Application / File / Depending on the RFID technology
  • CE, UKCA, RCM, R-NZ Approvals
  • RFID read range up to 4cm
