Sonatex
Description

Sonatex is a proprietary composite glass mat acoustic laminate designed as a decorative finish to sound absorbing ceiling and wall panels. Sonatex provides a flat durable finish and is available in 3 whites, RAL colours, prints and perforated designs. Sonatex is manufactured in NZ, is lightweight, non combustible, low in embodied energy, low VOC, easily customised and economical.

Composition

Made in NZ from proprietary Sonatex glass matt composite.

Key Features
  • Acoustically transparent
  • Produces an attractive aesthetic to acoustic ceiling panels
  • Group 1-S Fire Rating—non combustible, suitable for all areas including corridors and fire exits
  • GreenTag Certified when laminated to Triton panels
  • Stock colours and custom RAL colours available to order

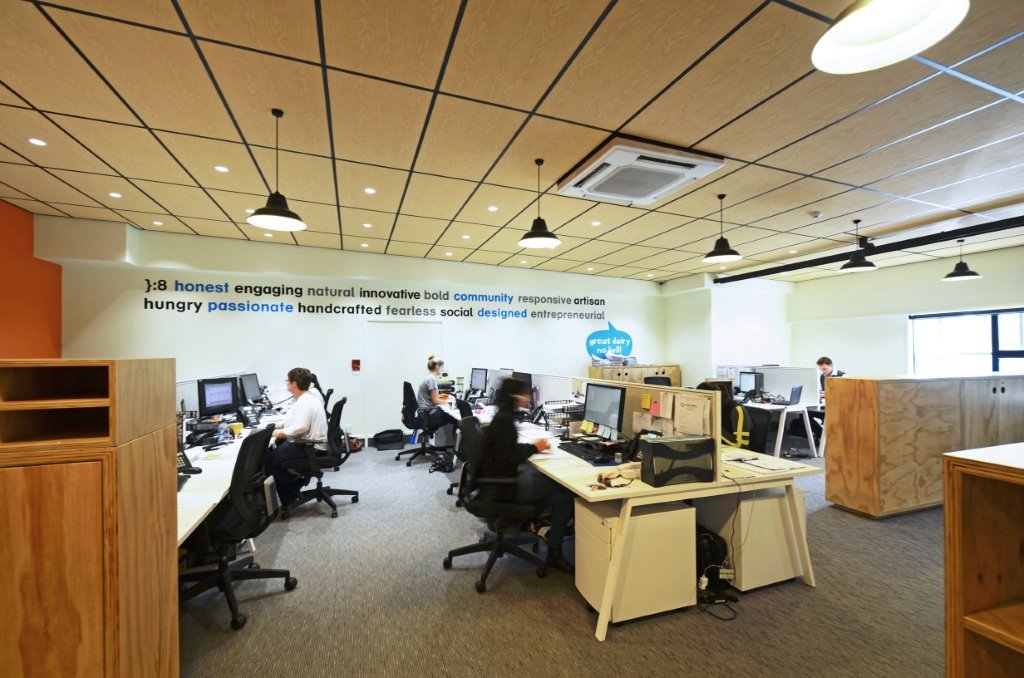

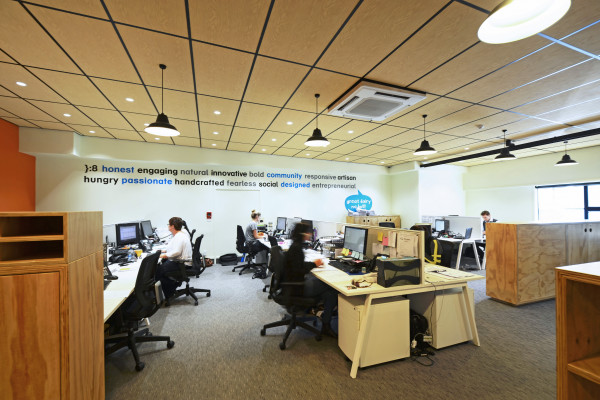

  • Selection of wood print effects available

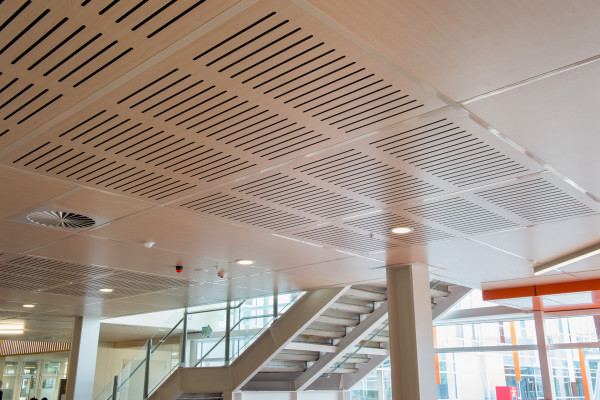

  • Custom sizes and special perforation designs available to order
  • Sonatex has light diffusing properties when formed into AO-Gami shapes
  • Low in embodied energy and low VOC
  • Economical perforated finishes are lower cost vs perforated metal, MDF, Ply or plasterboard
  • Manufactured in NZ
Categories
Suspended Ceilings
Ranges
Triton
Scope of Use

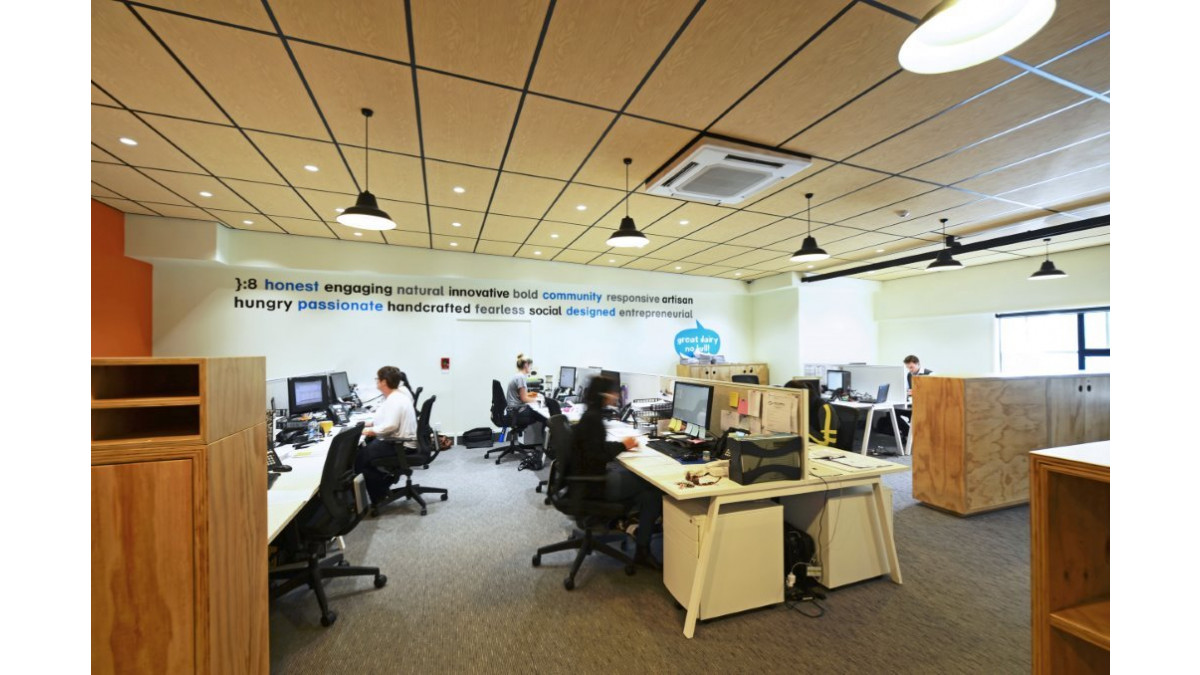

Sonatex is designed to provide a decorative acoustically transparent laminate finish to a broad range of ceiling and wall materials such as polyester, mineral fibre, glass fibre board, rockwool, and plasterboard. Panels can be provided at NRC 0.1 to 1.00 and CAC from 15 to 45dB. Perforation options have a dual layer structure, colours or wood prints can be added for effect but white on white remains the most popular option giving a subtle textural finish to white ceilings.

Limitations on Use

Made in NZ from proprietary glass matt composite, Sonatex is can be used as a feature as in our AO-Gami system or as a facing to the Triton Range of products.

Sonatex is to be used for interior applications only and must not be in direct contact with water or the elements.

Other Performance Attributes

Acoustically Transparent so will not deminsh the NRC of the panel it is applied too.

Fire Rating Group 1-S

Documents
Data Sheet: Acoustic Laminates

17-11

Environmental Information - GreenTag Level A

230413

Maintenance: Triton Range
Warranty
Colour Range

2021
