• Suitable for use as outlets and/or overflow drains in conjunction with a variety of modern waterproofing membrane systems:
  • single-ply sheet membranes
  • torch-on membranes

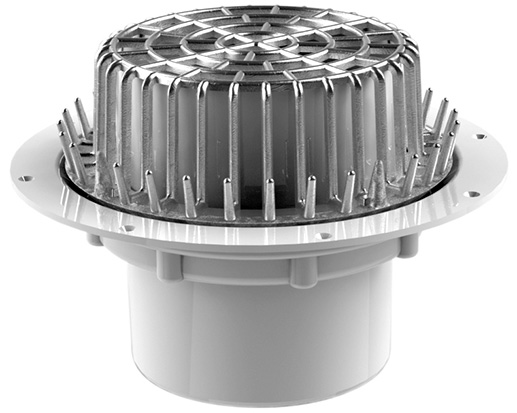

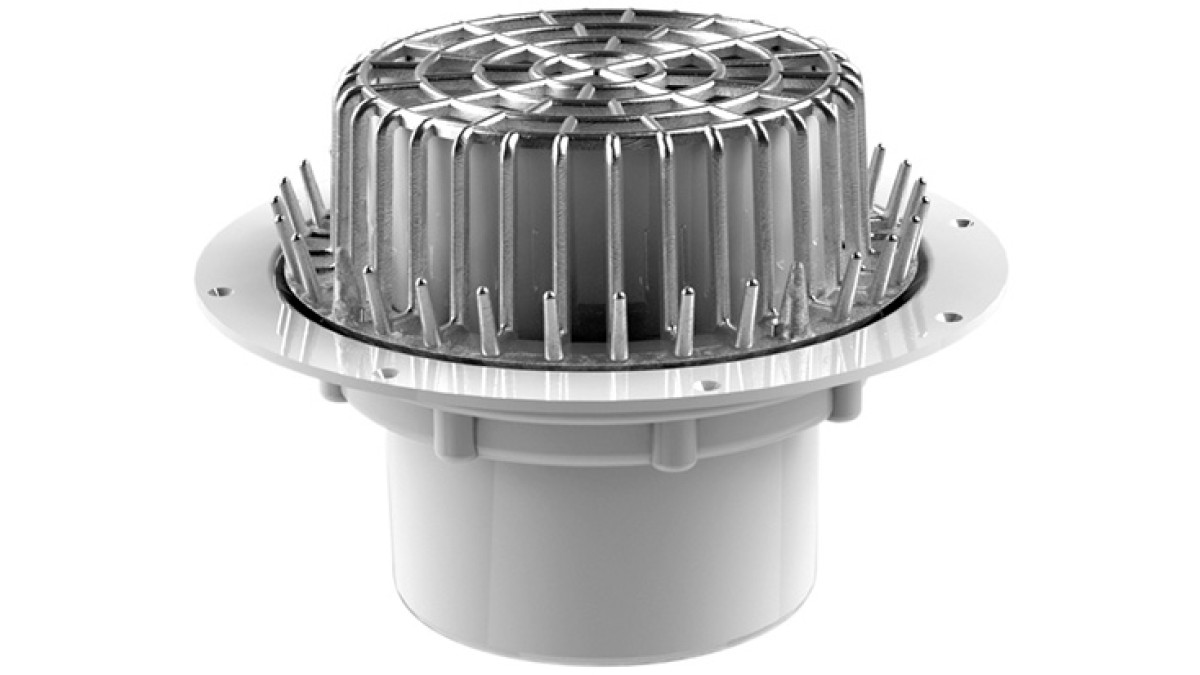

• Bottom exit
• Large flange for general application
• Engineered clamping range 0-10mm membrane thickness; suitable for single-ply, multi-layer and torch-on
• Residential and commercial applications
• All corrosion zones as defined in NZS 3604:2011

• Not to be used where membrane build-up exceeds 10mm in clamping area
• For micro-climates as defined in NZS 3604: 2011, contact Aquaknight for material selection information
• For use with monolithic hot-melt membranes, consult membrane supplier

If designed, installed and maintained in accordance with Aquaknight Industries’ requirements, the Aquaknight Roof Drain will meet or contribute to meeting the following provisions of the NZBC:

• B1 Structure B1.3.1, B1.3.2, B1.3.3 (a, b, c, j)
• B2 Durability B2.3.1 (b)
• E1 Surface Water E1.3.3 (a, b, c, d, e, f)
• F2 Hazardous Materials F2.3.1

Used with most membrane waterproofing systems extensively throughout New Zealand for over ten years.

• Flow rates vary between product models, consult individual FlowLAb reports to establish exact flow rates
• Stainless steel interlocking clamp ring — tested as fit for purpose and endorsed by Waterproofing Membrane Association Inc.
• Over-moulded custom machine nuts — cannot be 'cranked out' and will not yield over time
• M6 machine screws for positive clamping torque

Warranty and Maintenance

Warranty for exterior membrane drainage outlets:

Free from defects of material and workmanship for 15 years. Tea staining may occur over time. This is not considered a material defect and is not covered under warranty terms.

Maintenance for exterior membrane drainage outlets:

Regular inspections (at least monthly, and after every significant storm) should be conducted to remove any accumulation of debris from box-gutters, sumps and around the drain areas. Accumulation of such material can lead to blocked drains and overflow events. The overflow outlet discharge pipes should be monitored during rain events. Any water discharge is an early warning that may indicate a partially blocked drain.
