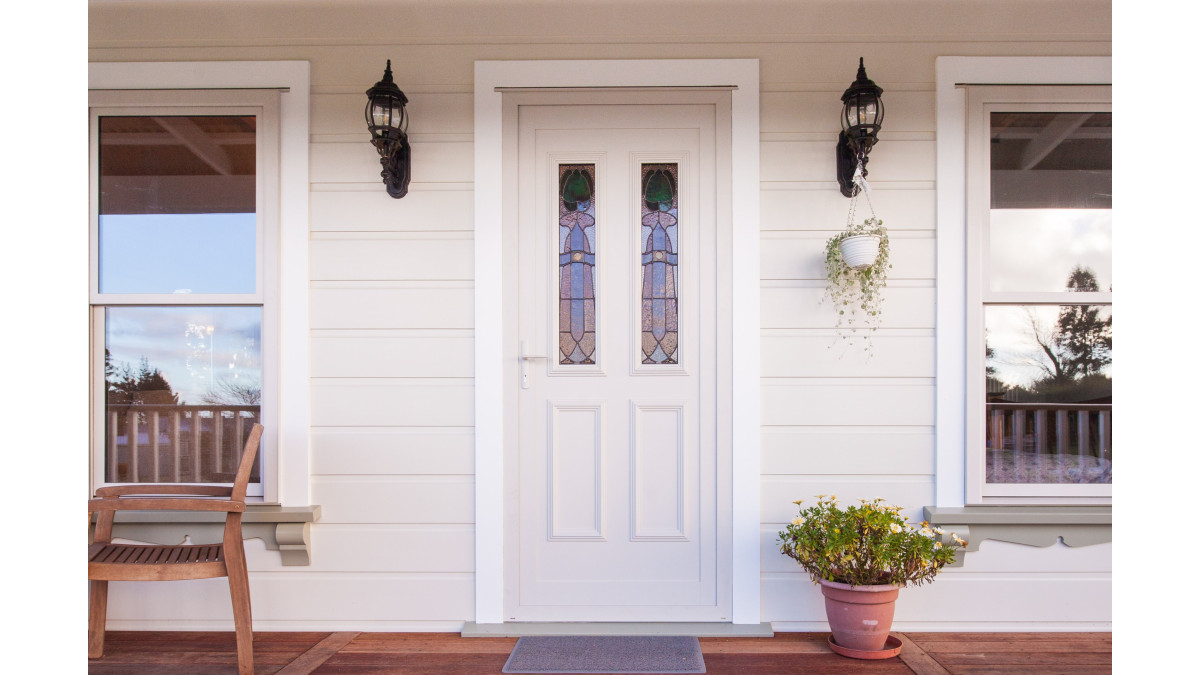

Classic Door
56 Classic Door Corner First

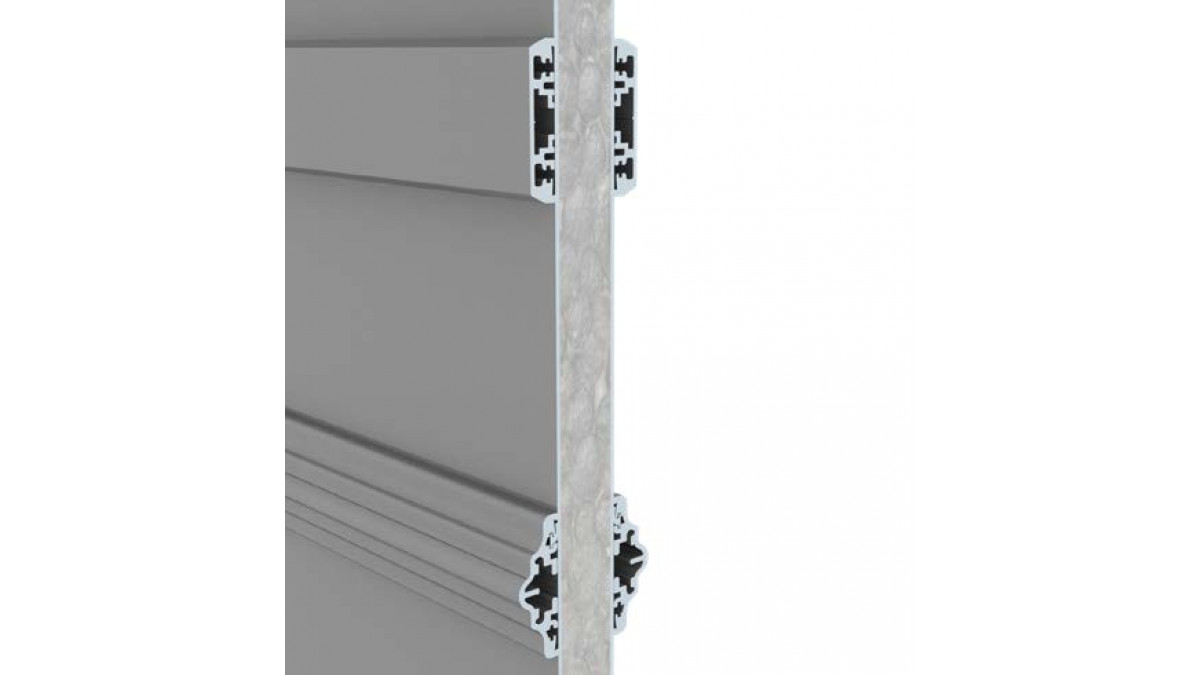

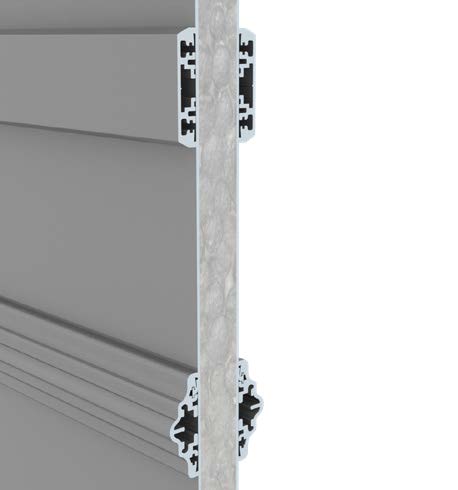

Classic door moulding and bead options

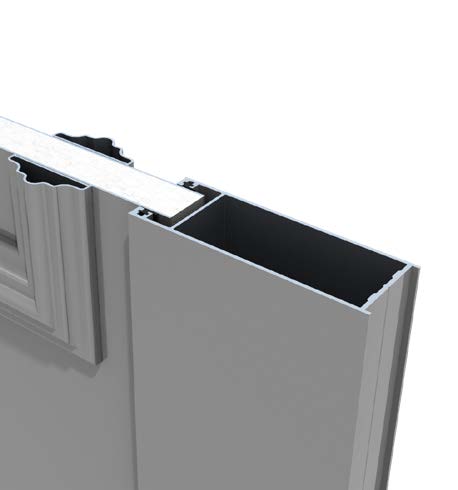

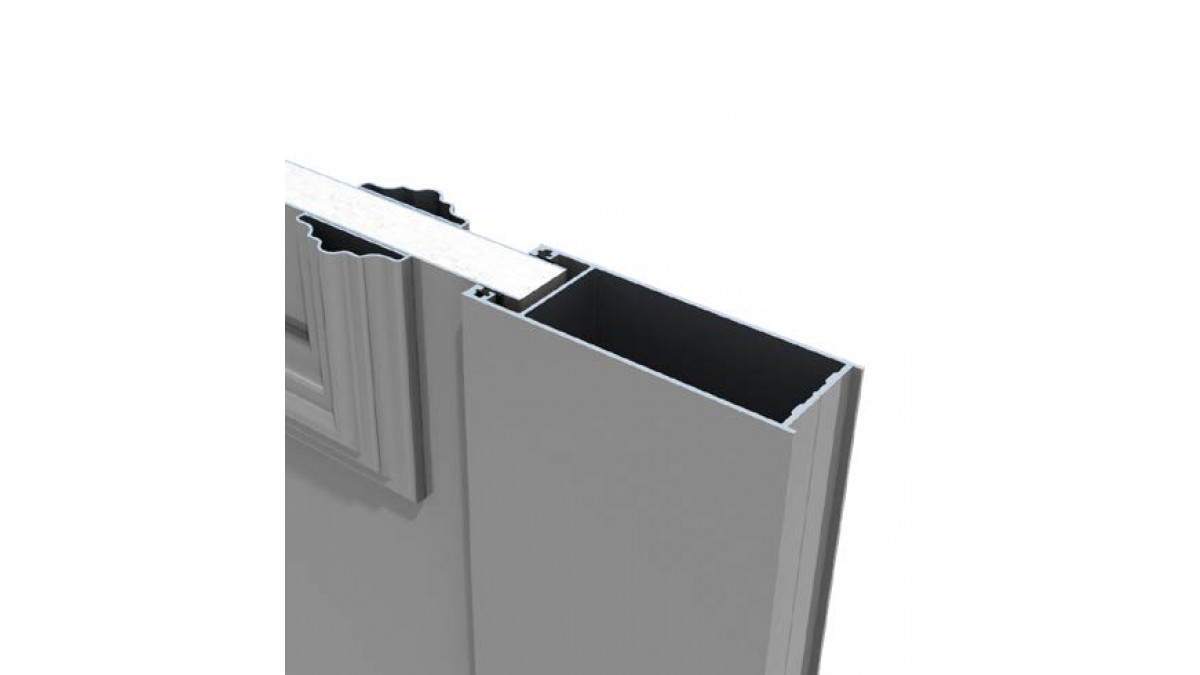

Classic door stile nonthermal option
Classic panel with opening sidelight right

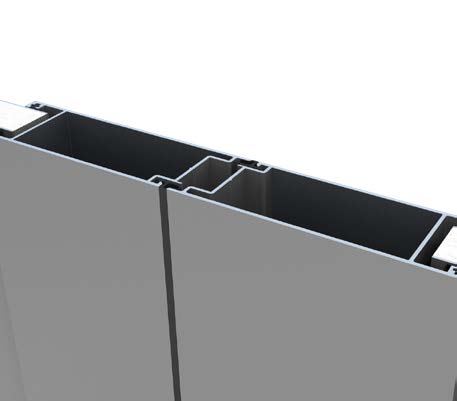

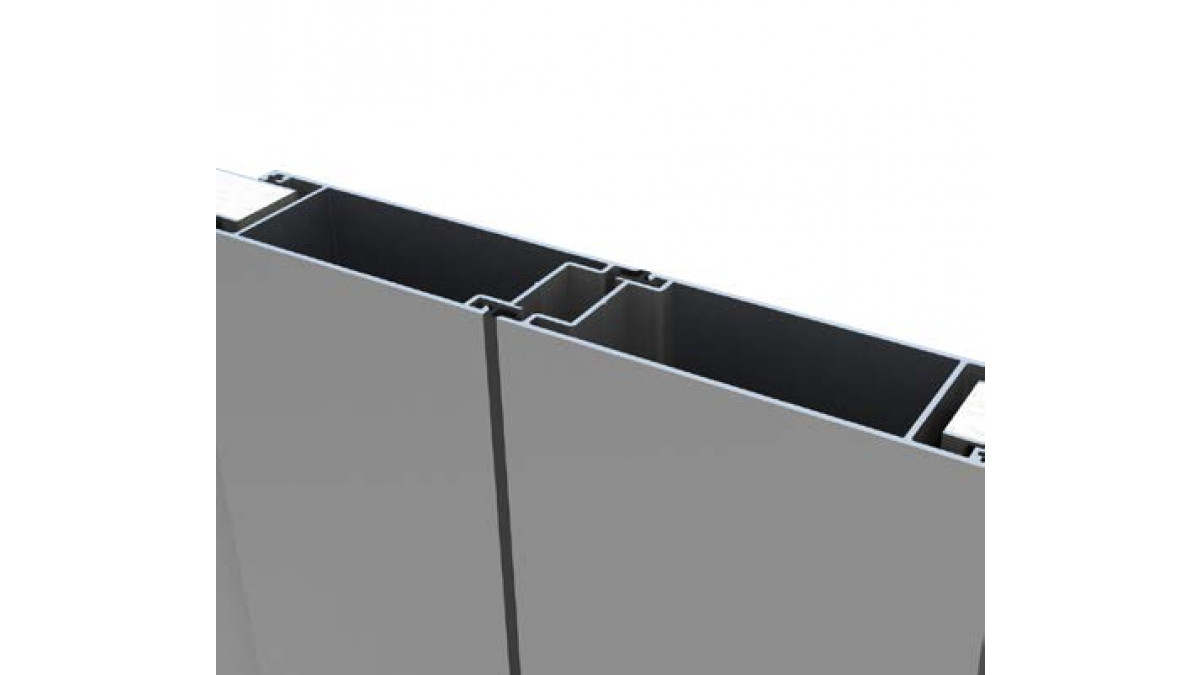

Double door meeting stiles non thermal option
Description

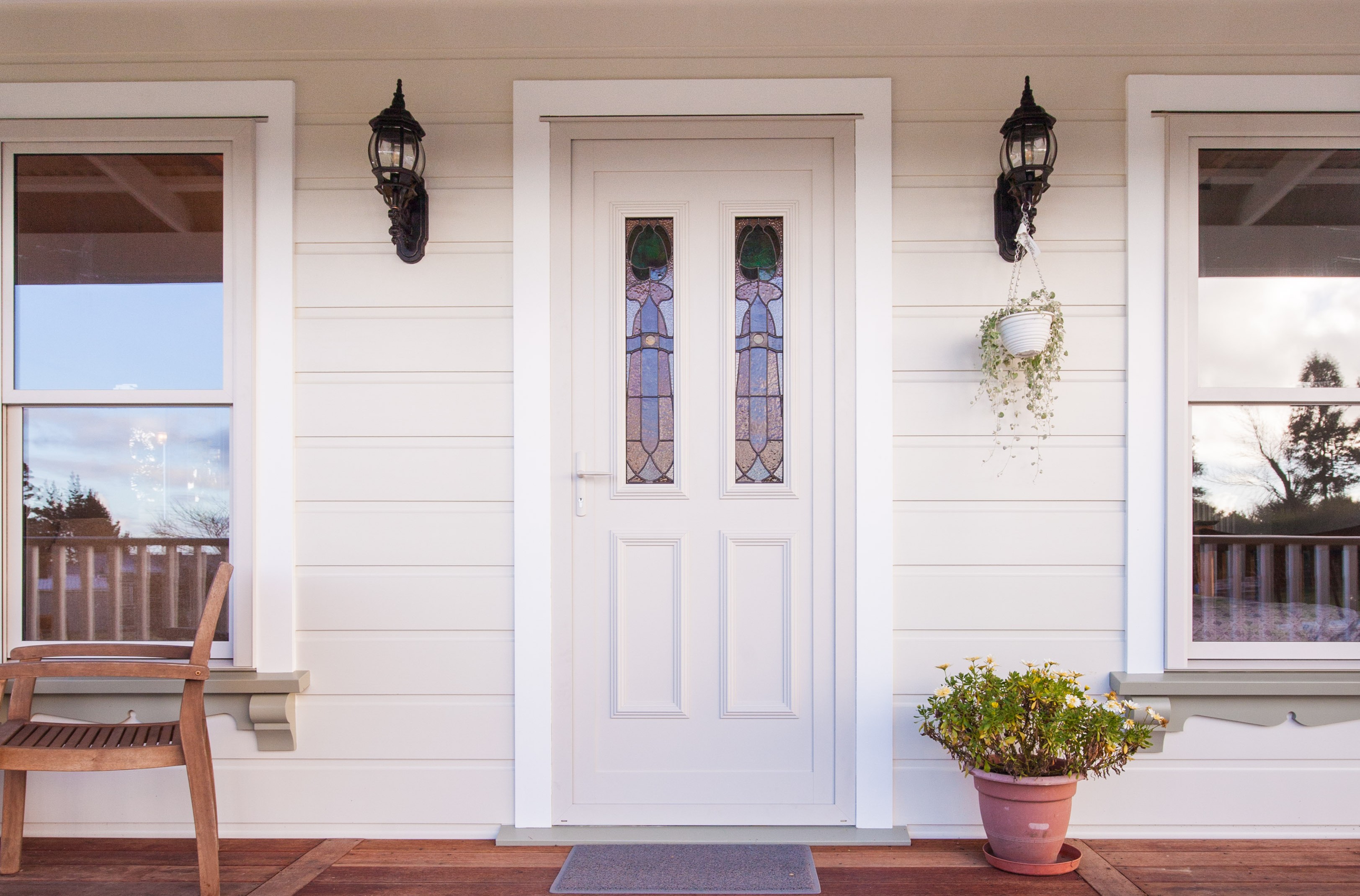

This door offers classic designs and patterns suitable for a more formal look. Traditional scrolled mouldings as well as contemporary flat-faced edgings are available.

Matching sidelights, both opening and fixed are possible. Classic doors can be supplied thermally broken on request.

Key Features
  • For mainstream residential use
  • Aluminium clad doors with the capability to display a range of rectangular patterns and glazed inserts
  • Applied mouldings can be either scrolled or flat-faced, the latter offering a more contemporary look
  • Glass inserts are generally 22mm IGUs
  • Glass beads take the form of the two moulding designs on offer
  • Arched top glazed inserts are possible
  • Doors are filled with high density polystyrene for thermal efficiency and sound dampening
Categories
Entrance Doors
Ranges
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
  • Available in defined maximum sizes
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Released in 1998
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
  • Case Studies
Documents
Data Sheet
pdf
Entrance Door R Values

2024

pdf
Altherm on Masterspec
URL
Full Specification
docx
Specification Clause
docx
Specifier Guide
pdf
WGANZ Guide to E2/AS1
pdf
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

URL
Altherm Design Brochure

2020

URL
Altherm Entrance Door Brochure

2019

URL
APL and Sustainability

2019

URL
Manufacturer Contact List
URL
CAD/PDF Details
View full
Full Set of Drawings
pdf

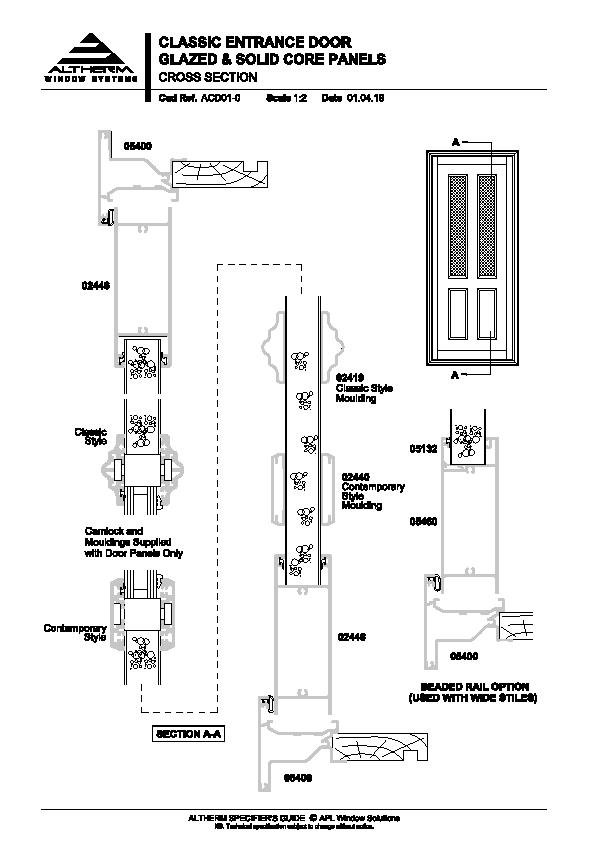

Altherm Residential Classic Entrance Door Glazed & Solid Core Panels

ACD01-0

dwf
dwg
dxf
pdf

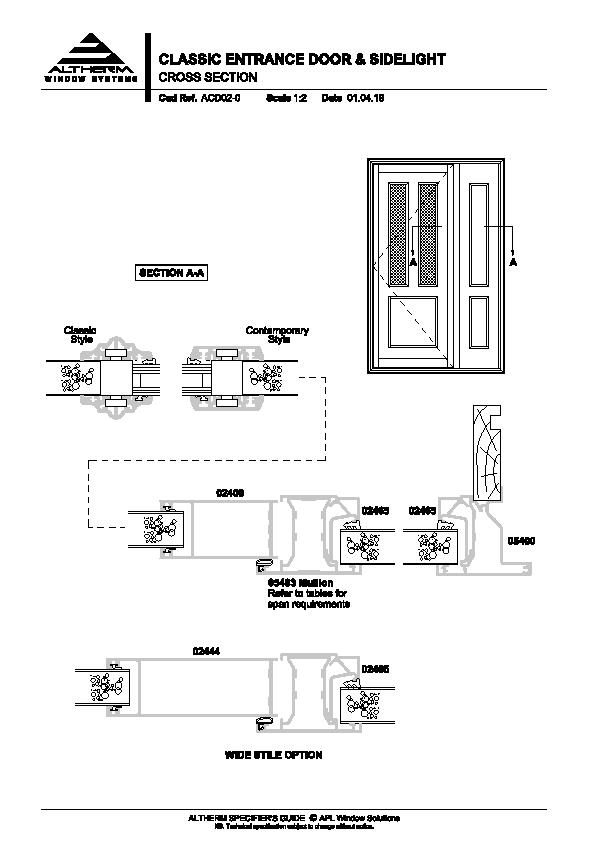

Altherm Residential Classic Entrance Door & Sidelight

ACD02-0

dwf
dwg
dxf
pdf

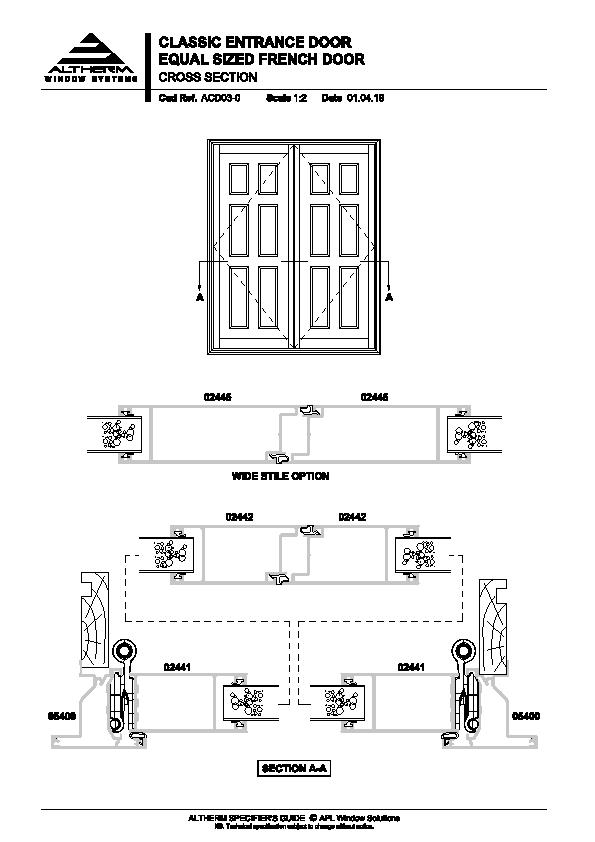

Altherm Residential Classic Entrance Door Equal Sized French Door

ACD03-0

dwf
dwg
dxf
pdf
