Axis Entrance Doors
For high-performance double-glazing, explore AGP’s product range available now Explore
Description

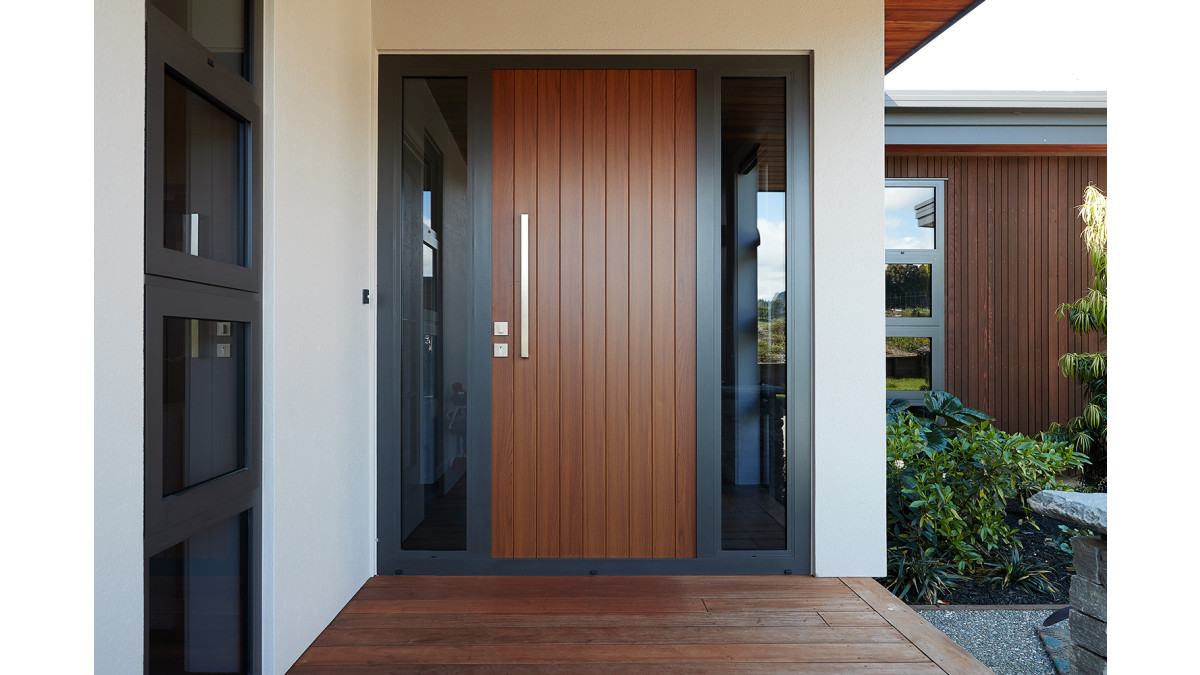

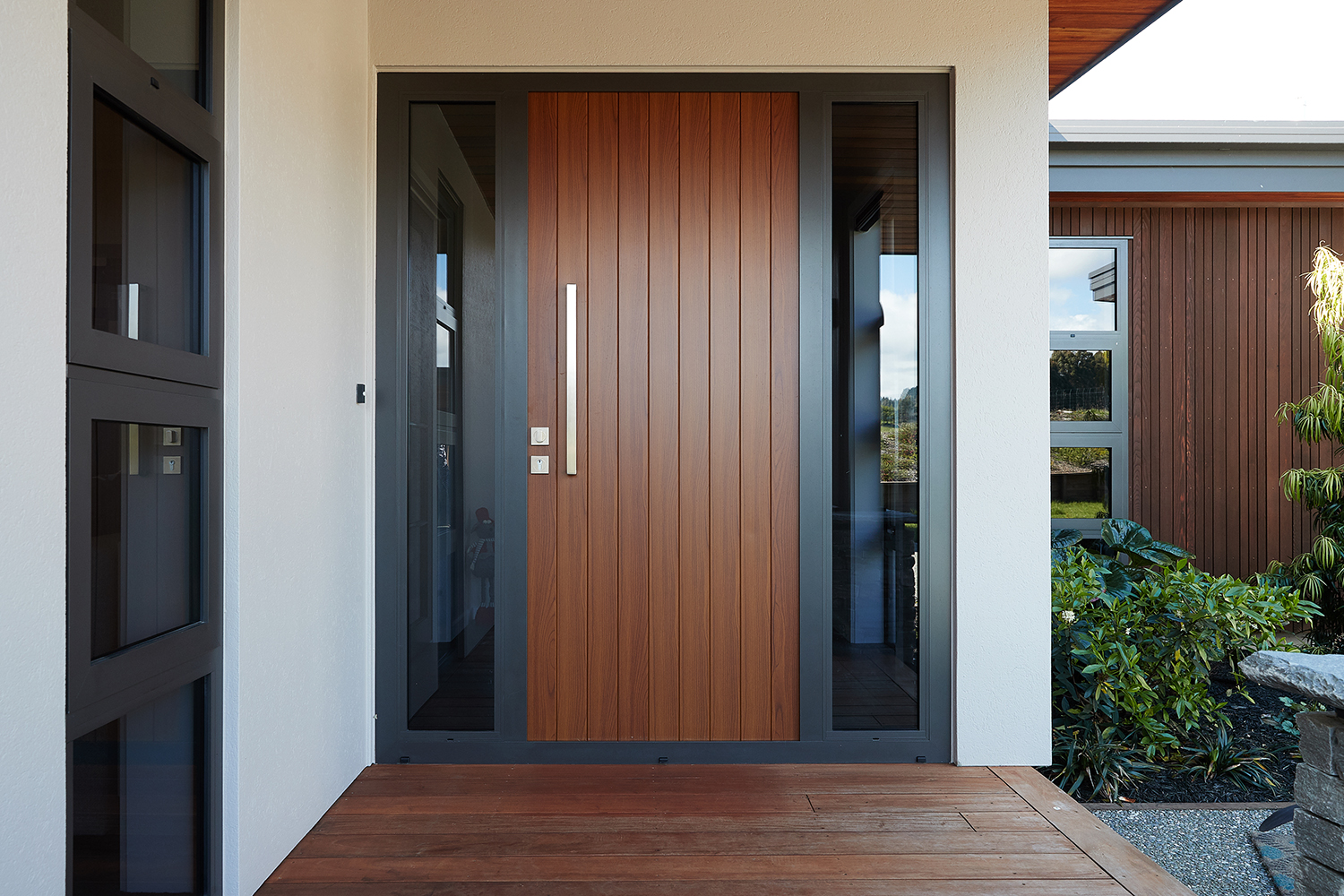

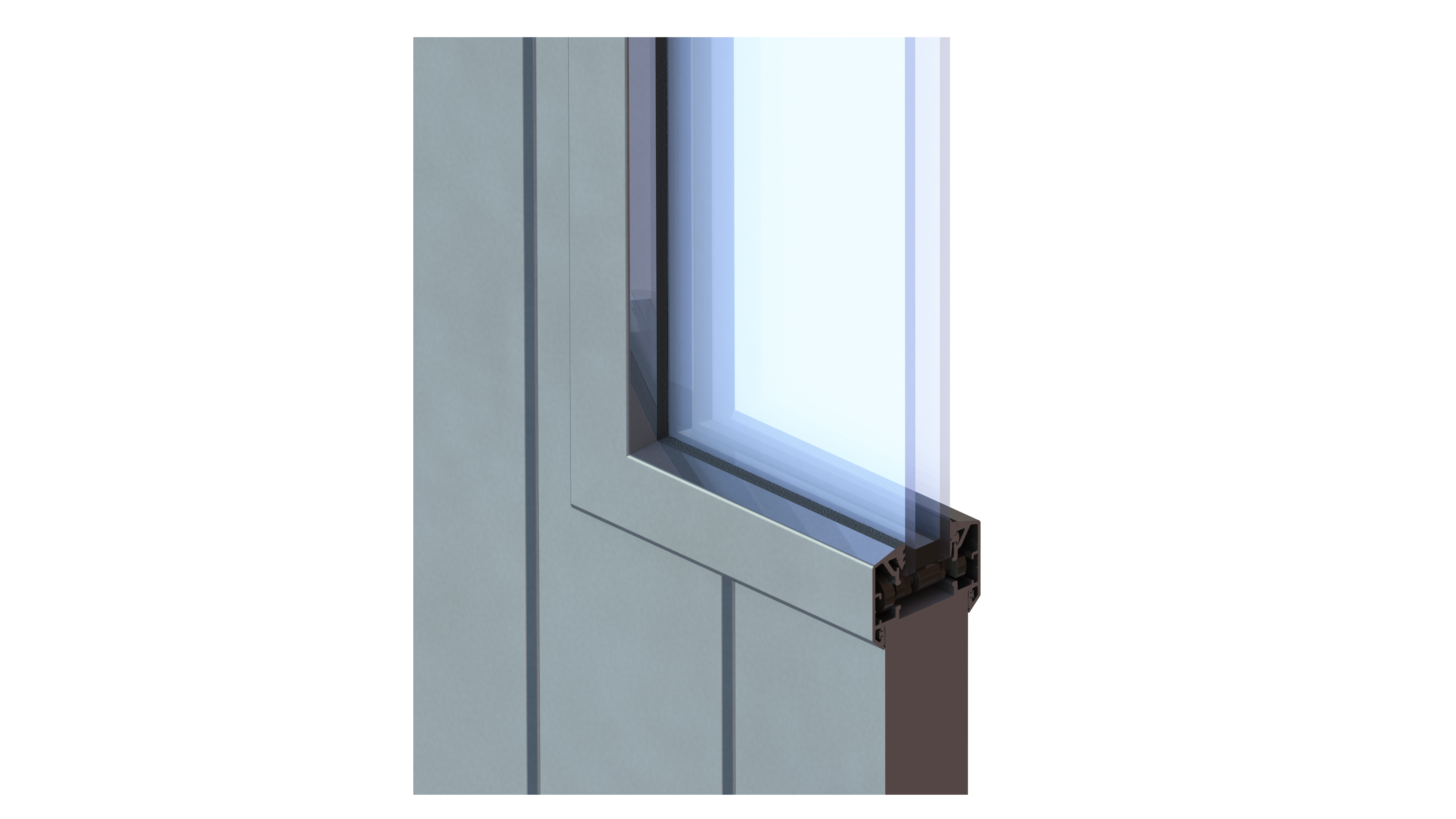

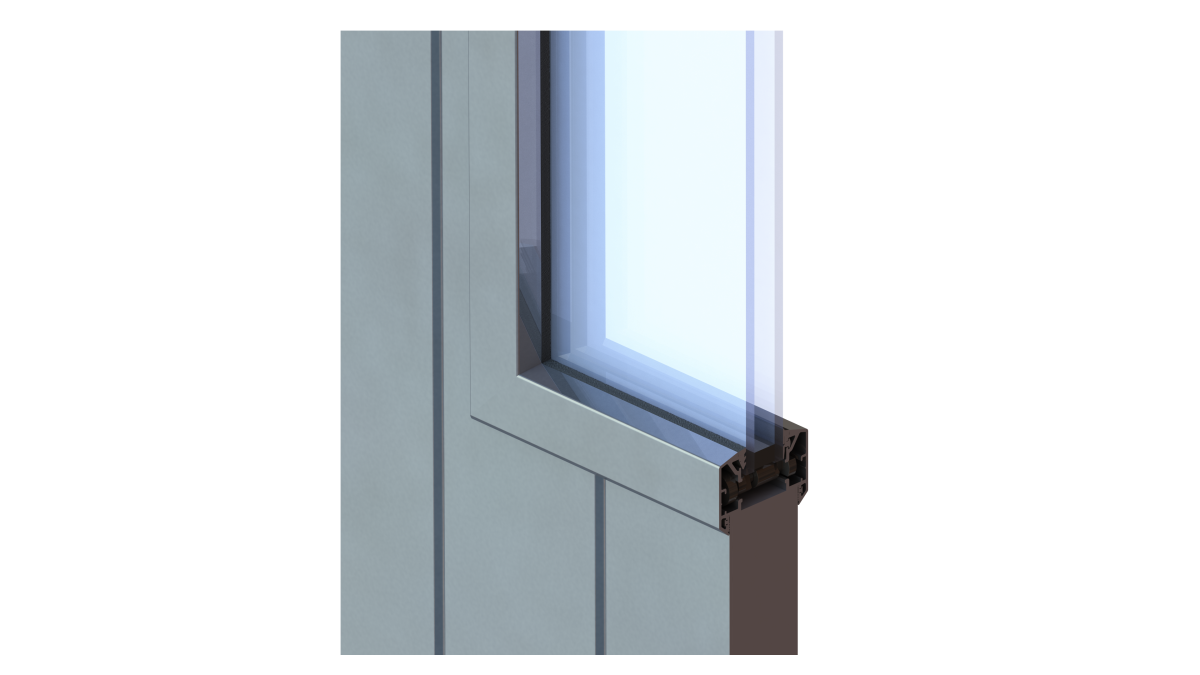

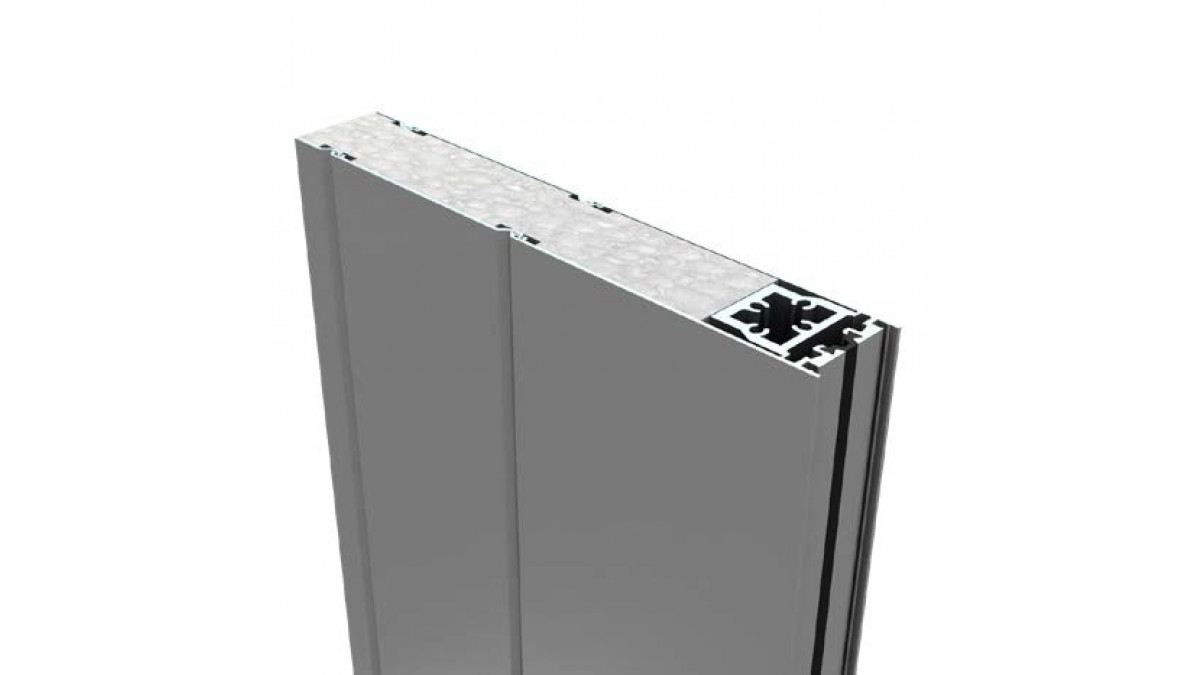

Made from aluminium with vertical tongue and groove planks, Axis doors offer the opportunity for a totally clean aesthetic or a door with glazed inserts for vision or light entry.

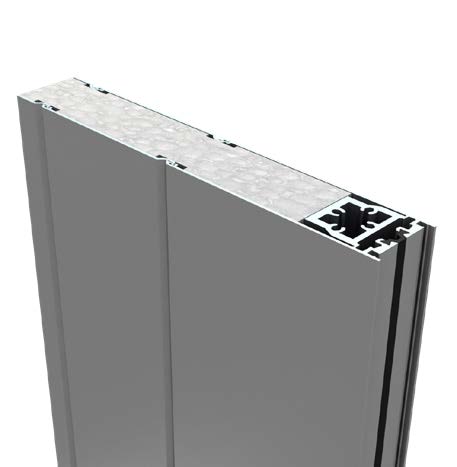

The two-part construction offers the opportunity for a dual colour panel — one colour for the outside and a different one for the inside to match interior colour schemes. Axis doors are thermally broken. The solid, foam-filled construction imparts high strength and jemmy resistance.

Key Features
  • For mainstream residential use
  • Tongue and groove panel doors clad in aluminium for low maintenance
  • Panels are 41mm thick and tall heights up to 3000mm are possible depending on the site exposure
  • Two-part (interior/exterior) construction allows a different colour each side to match interior and exterior colour schemes
  • Thermal breaks and polystyrene fill included in the door construction enhance thermal efficiency
  • Authentic and hard wearing wood grain appearance available, as well as powder coat and anodised finishes
Categories
Entrance Doors
Scope of Use
  • Generally installed in protected entranceways and sheltered environments
  • Inward opening option is usually recommended
  • Double opening doors (French style) or opening sidelights possible for full-width access
  • Available in defined maximum sizes
Limitations on Use
  • Installation in sheltered environments recommended — away from full sun exposure
  • Hardware type must be advised at time of door order
Statement of Building Code Compliance
  • Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233:  Glazing in Buildings, Parts 1-4
  • Designed and tested to conform to NZ Building Code, including Clause E2
In-Service History
  • Launched in 2005
  • Widely used by homeowners, builders, Group home builders and specifiers
Other Performance Attributes
  • Door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
  • Surface finish is covered by a separate performance warranty dependent on the actual finish selected
  • A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed
Documents
Entrance Door R Values

2024

Data Sheet
Altherm on Masterspec
Full Specification
Specification Clause
Specifier Guide
WGANZ Guide to E2/AS1
Altherm Care, Maintenance & Warranty Brochure (with AGP)

2020

Altherm Design Brochure

2020

Altherm Entrance Door Brochure

2019

APL and Sustainability

2019

Manufacturer Contact List
CAD/PDF Details
Full Set of Drawings

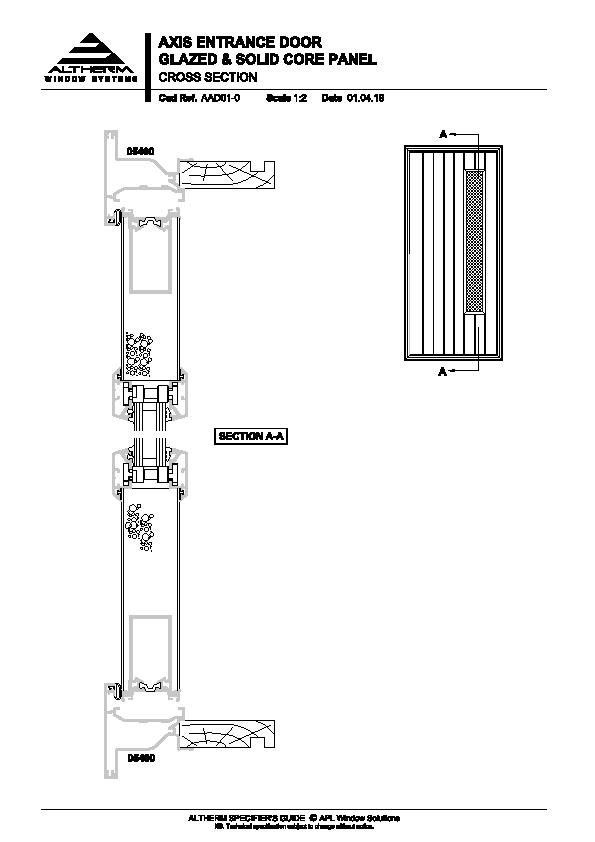

Altherm Residential Axis Entrance Door Glazed & Solid Core Panel

AAD01-0

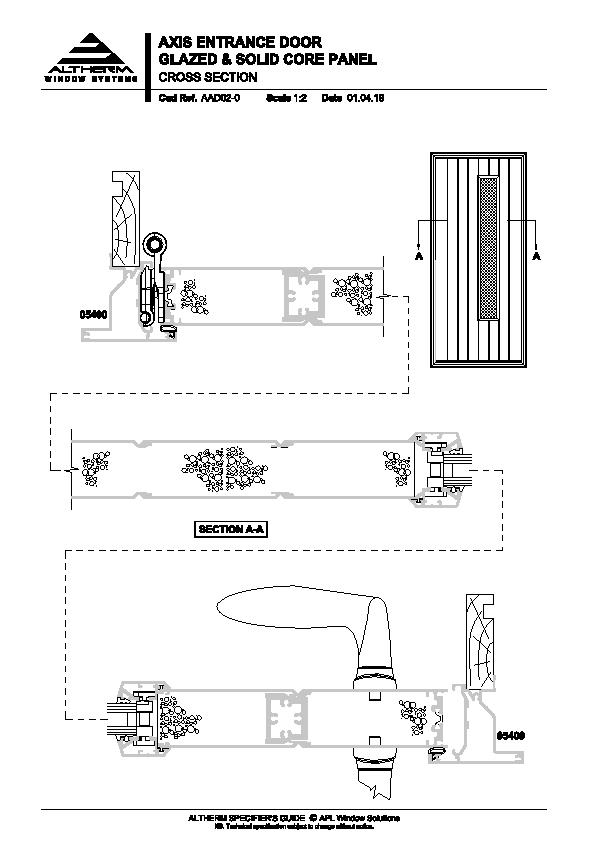

Altherm Residential Axis Entrance Door Glazed & Solid Core Panel

AAD02-0

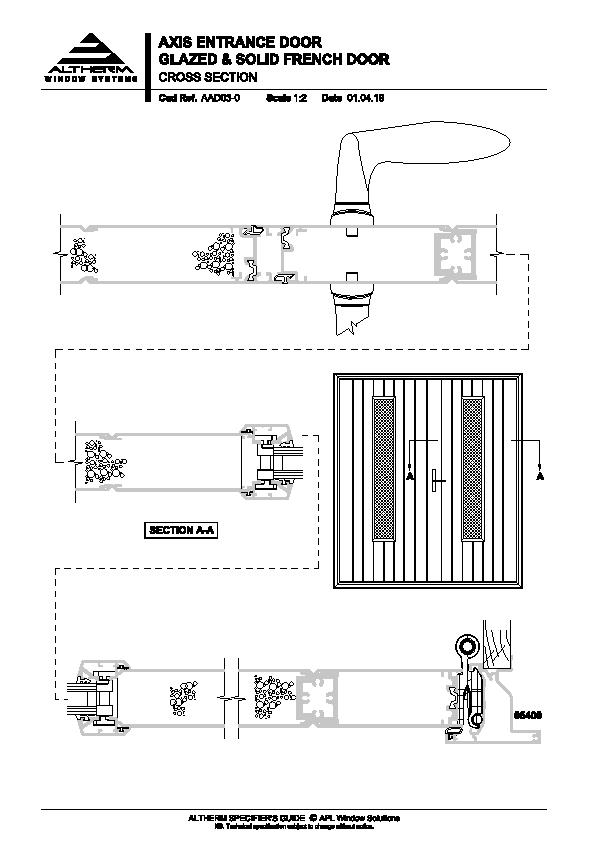

Altherm Residential Axis Entrance Door Glazed & Solid French Door

AAD03-0
