Legge 995 Mortice Locks
Allegion
All products

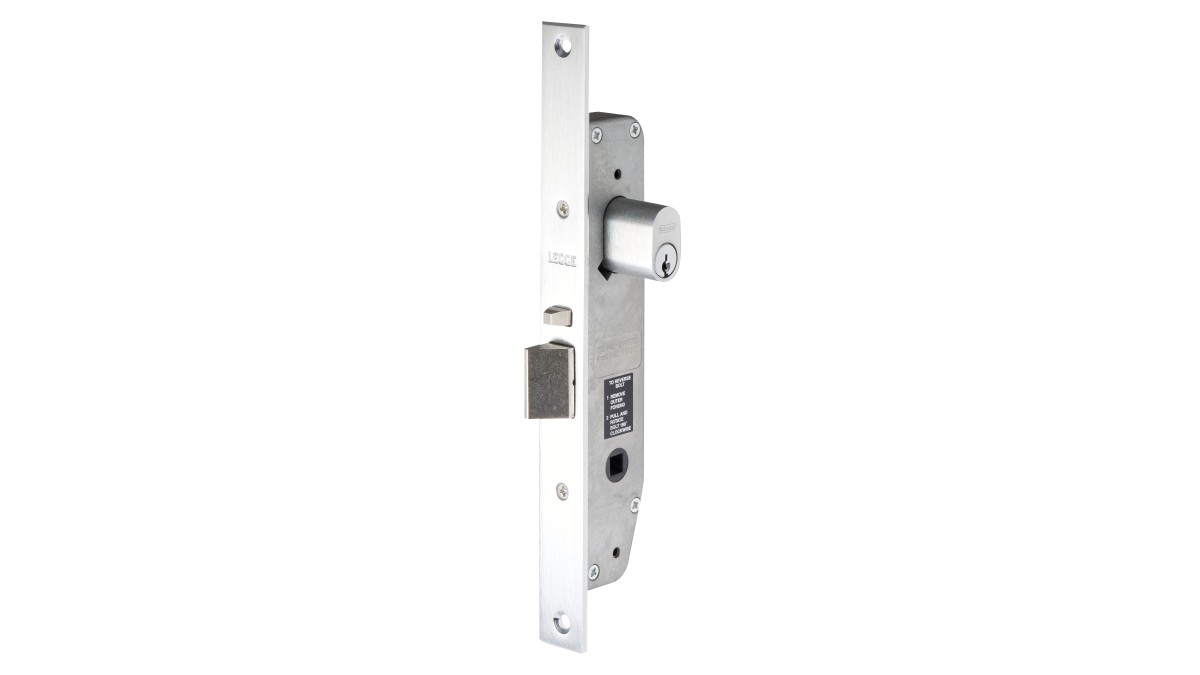

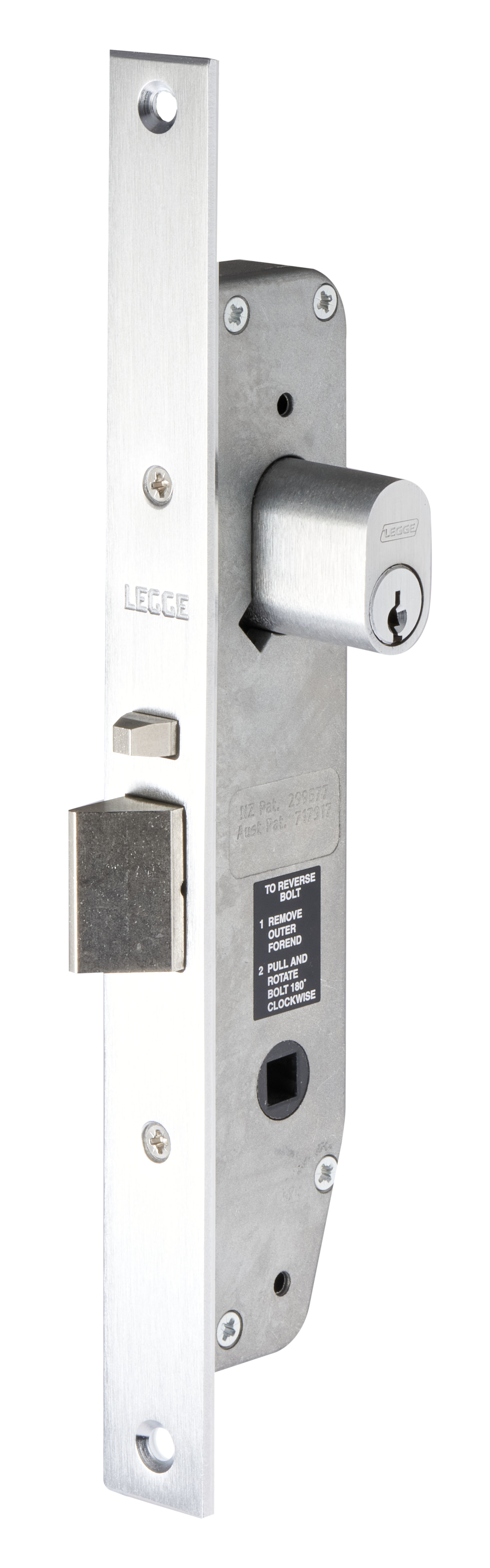

L95MFS LONG STRIKE PLATE

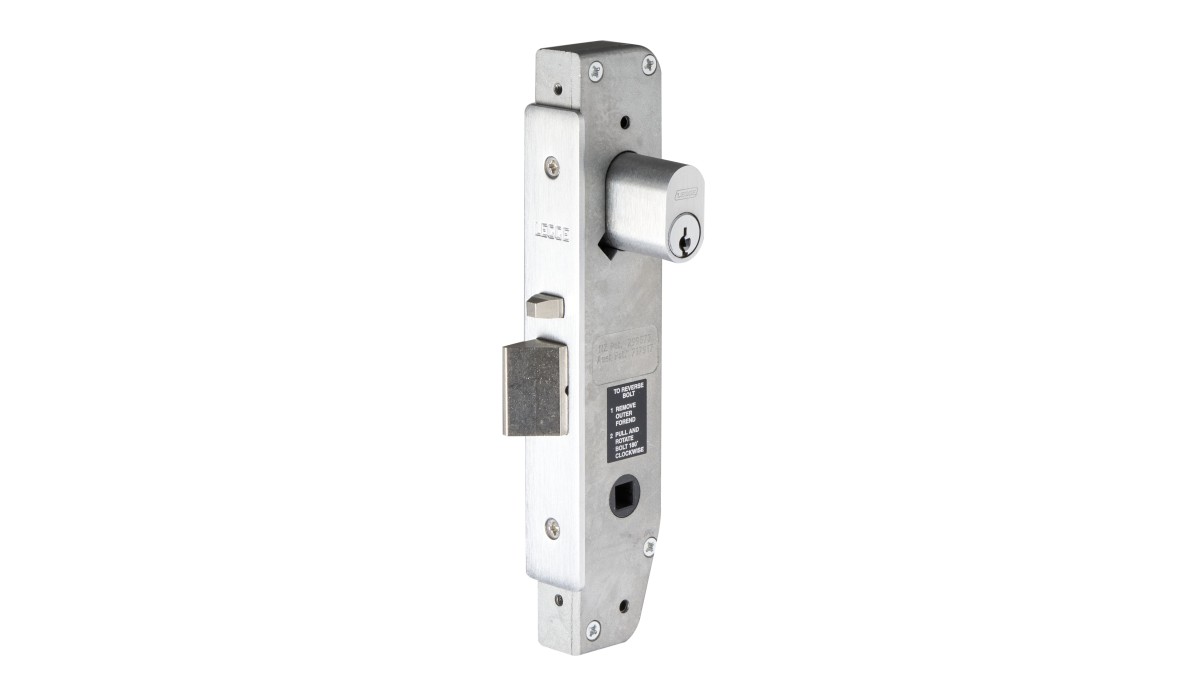

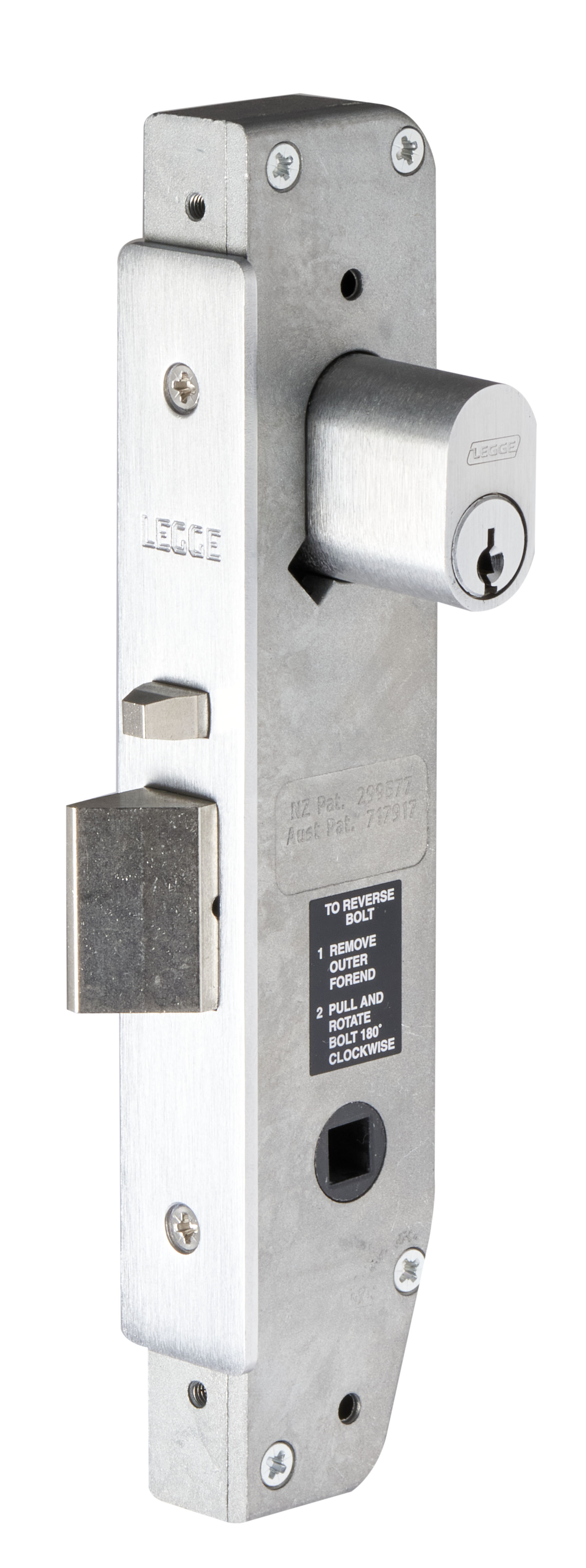

L95MFS SHORT STRIKE PLATE

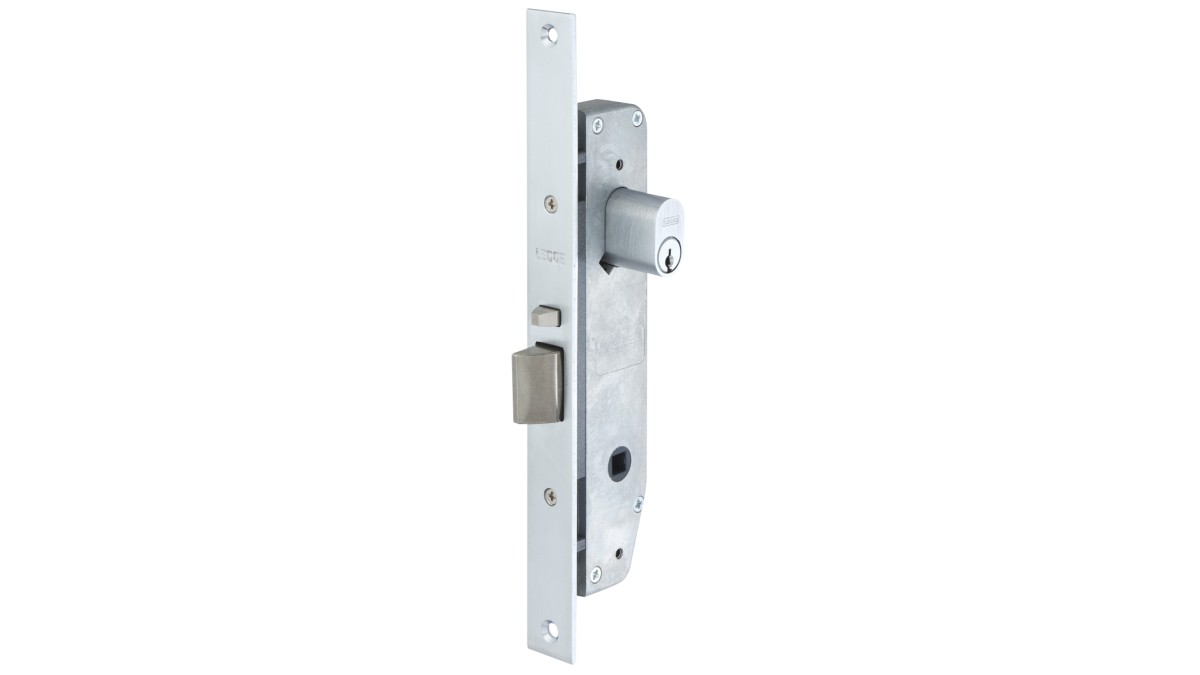

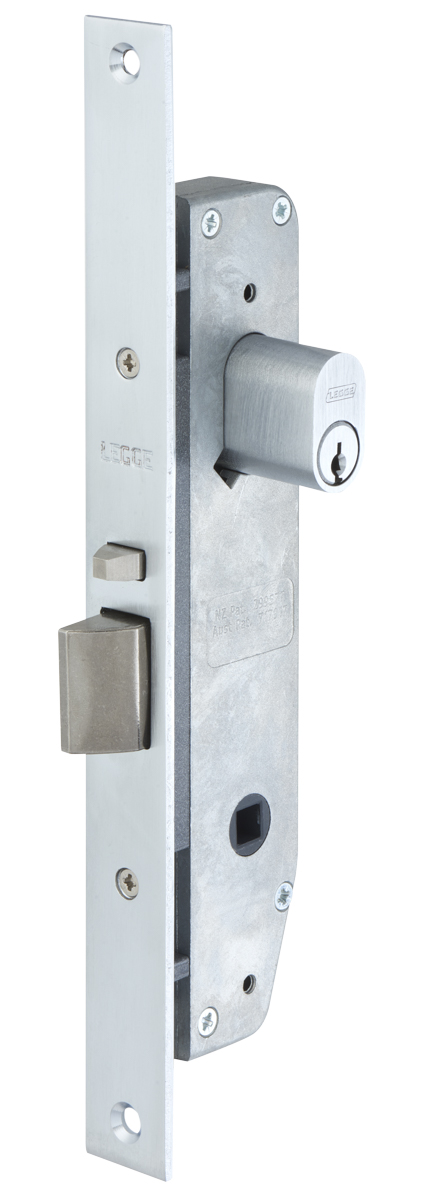

LEGGE 995 LATCH

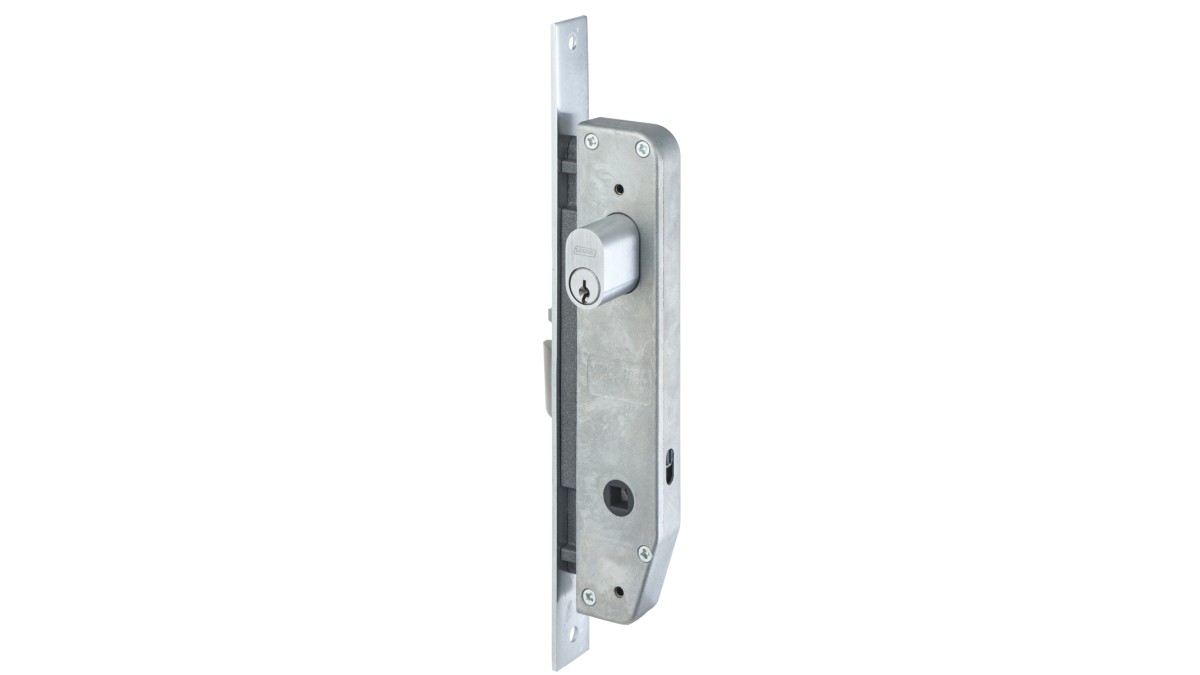

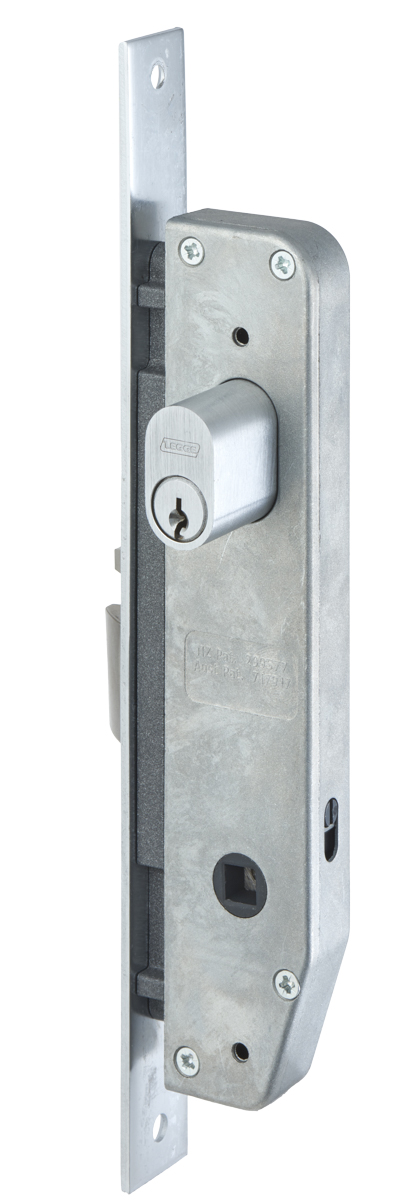

LEGGE 995 LATCH BACK
Description

The Legge 995MF Series of narrow style mortice locks and latches have been designed specifically to meet the requirements of the Australasian market. With a range of lock functions, the 995MF Series has the right function to meet your specific needs. The 990MF Series is ideally suited for commercial, industrial and government buildings, where durability and security are of major importance.

Key Features
  • Door type: Timber or metal
  • Door thickness: Timber doors — 32mm to 48mm standard. Extended cylinders, spindles and strike plates are available. Metal doors — 35mm to 48mm standard. Designed to be used on hollow stile door sections, with a minimum internal depth of 39mm
  • Lock case: High purity zinc alloy
  • Outer forend: Satin stainless steel
  • Bolt: Stainless steel
  • Sub-bolt: Stainless steel
  • Spindles: 2 split spindles 32mm
  • Strike plate: Satin stainless steel
  • Backset: 23mm standard. 30mm and 38mm available
  • Key cylinder: CC4 6 Pin keyway standard, Schlage C6 pin keyway optional, Schlage SR1 Restricted keyway optional, Schlage Everest Open & Restricted keyways optional
  • Fire rated: Four hour fire rating (refer to door manufacturer)

Available Finishes:

  • Antique Bronze
  • Chrome Plate
  • Oil Rubbed Bronze
  • Polished BRass
  • Satin Black Chrome
  • Satin Brass
  • Satin Chrome Plate
Categories
Locks
Ranges
Legge Door Furniture
Scope of Use

For commercial applications

  • Door type: Timber or metal
  • Door thickness: Timber doors — 32mm to 48mm standard. Extended cylinders, spindles and strike plates are available. Metal doors — 35mm to 48mm standard. Designed to be used on hollow stile door sections, with a minimum internal depth of 39mm
  • Spindles: 2 split spindles 32mm
  • Strike plate: Satin stainless steel
  • Backset: 23mm standard. 30mm and 38mm available
  • Key cylinder: CC4 6 Pin keyway standard, Schlage C6 pin keyway optional, Schlage SR1 Restricted keyway optional, Schlage Everest Open & Restricted keyways optional
  • Fire rated: Four hour fire rating (refer to door manufacturer)
Documents
995C
pdf
995V
pdf
Installation and Operation
pdf
Commercial Warranty 2023
pdf
Bochure: 991, 990, 995 Series
pdf
Brochure: 990MF & 995MF Series
pdf
Caring for Door Hardware
pdf
