Legge 5300 Series
Allegion
All products

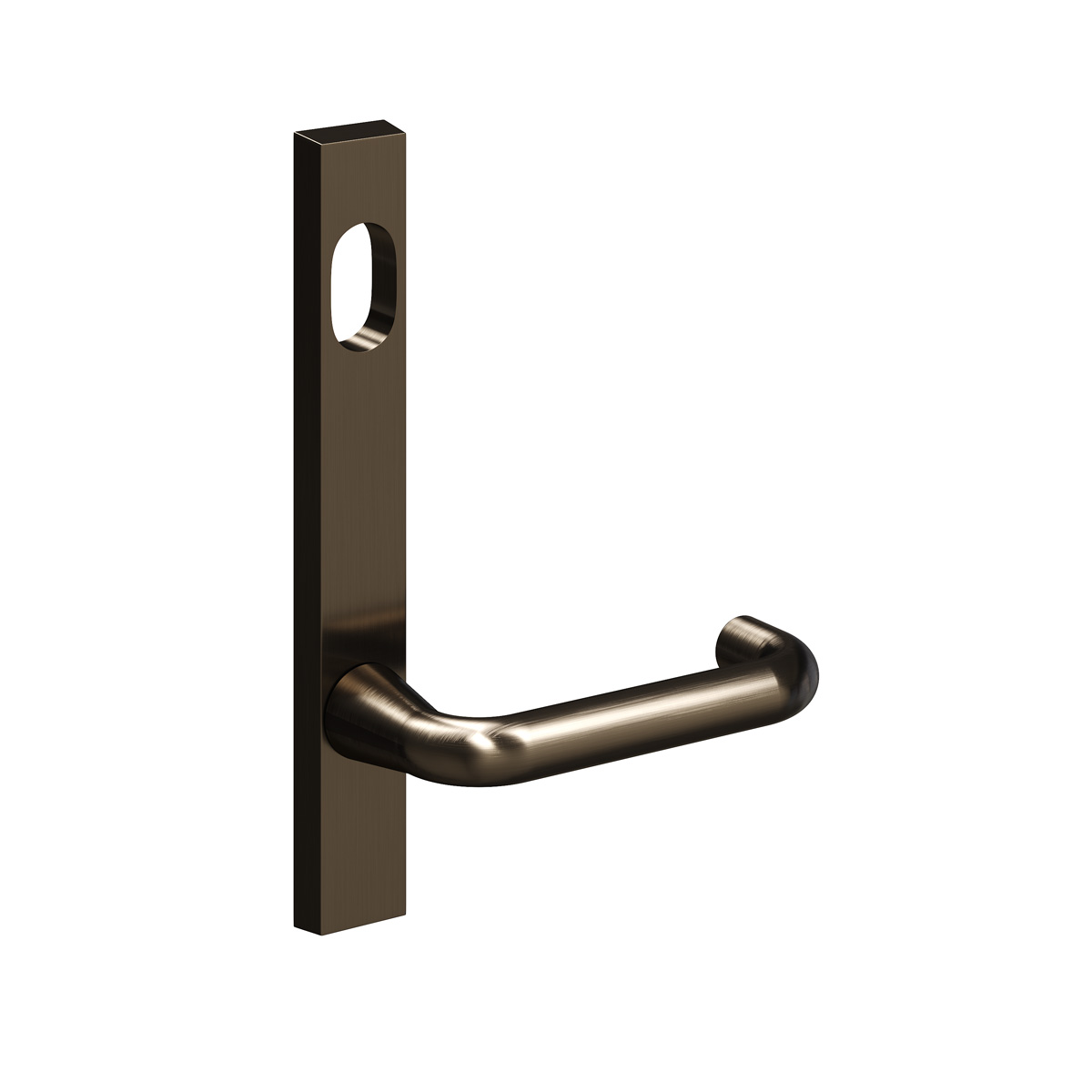

Legge 5303 Series Alpha Antique Bronze

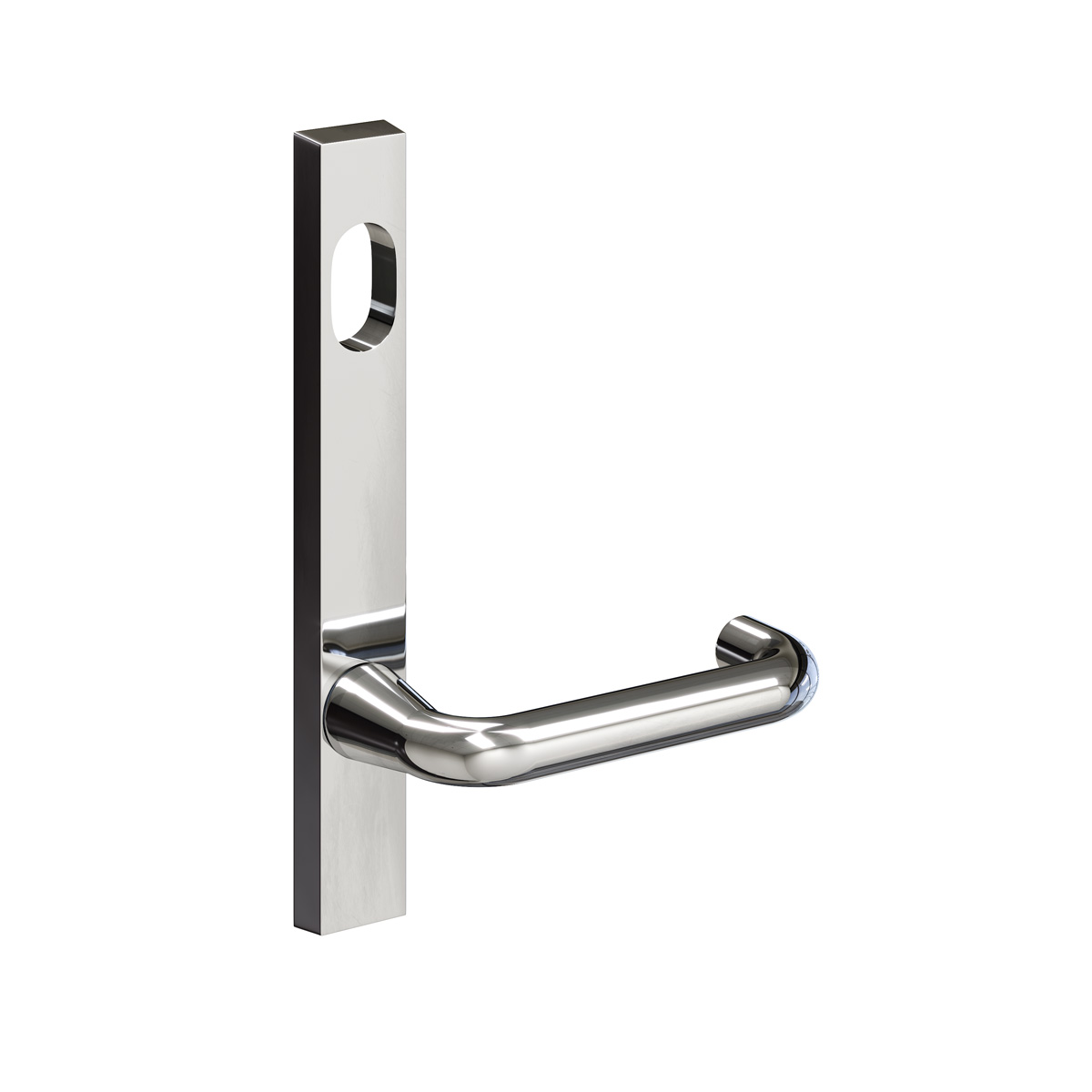

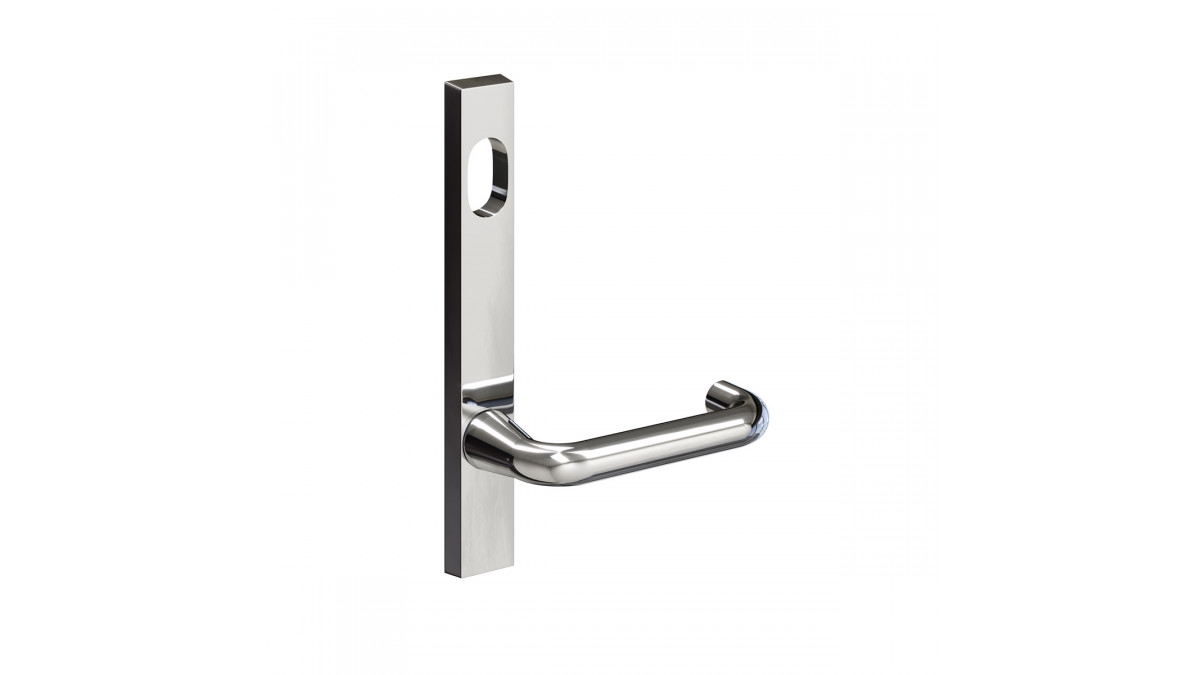

Legge 5303 Series Alpha Chrome
Legge 5303 Series Alpha Satin Black Chrome

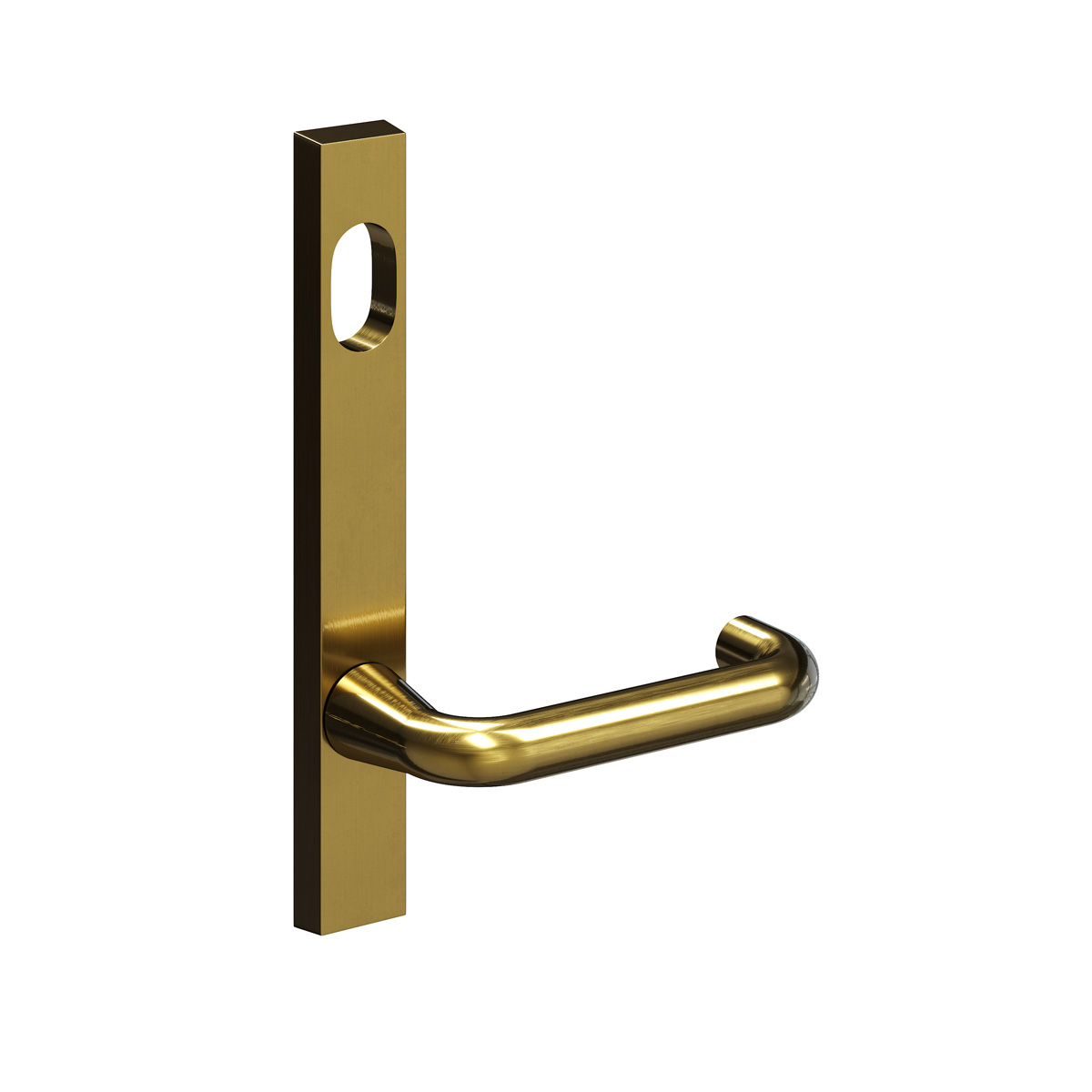

Legge 5303 Series Alpha Satin Brass

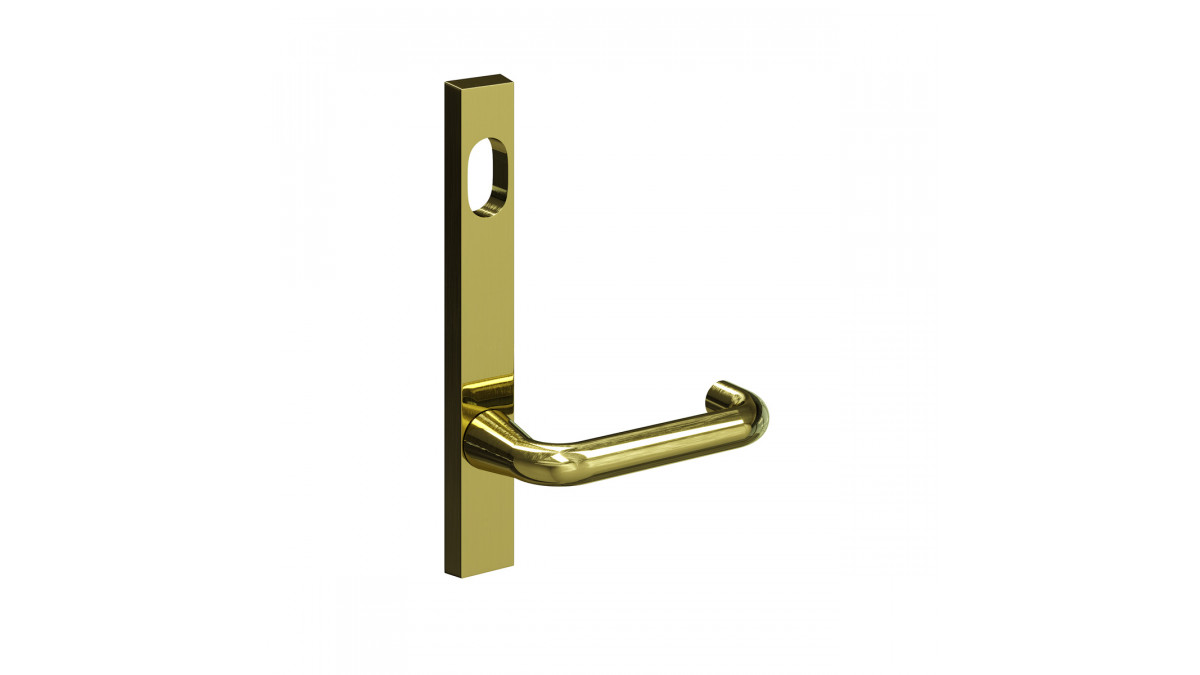

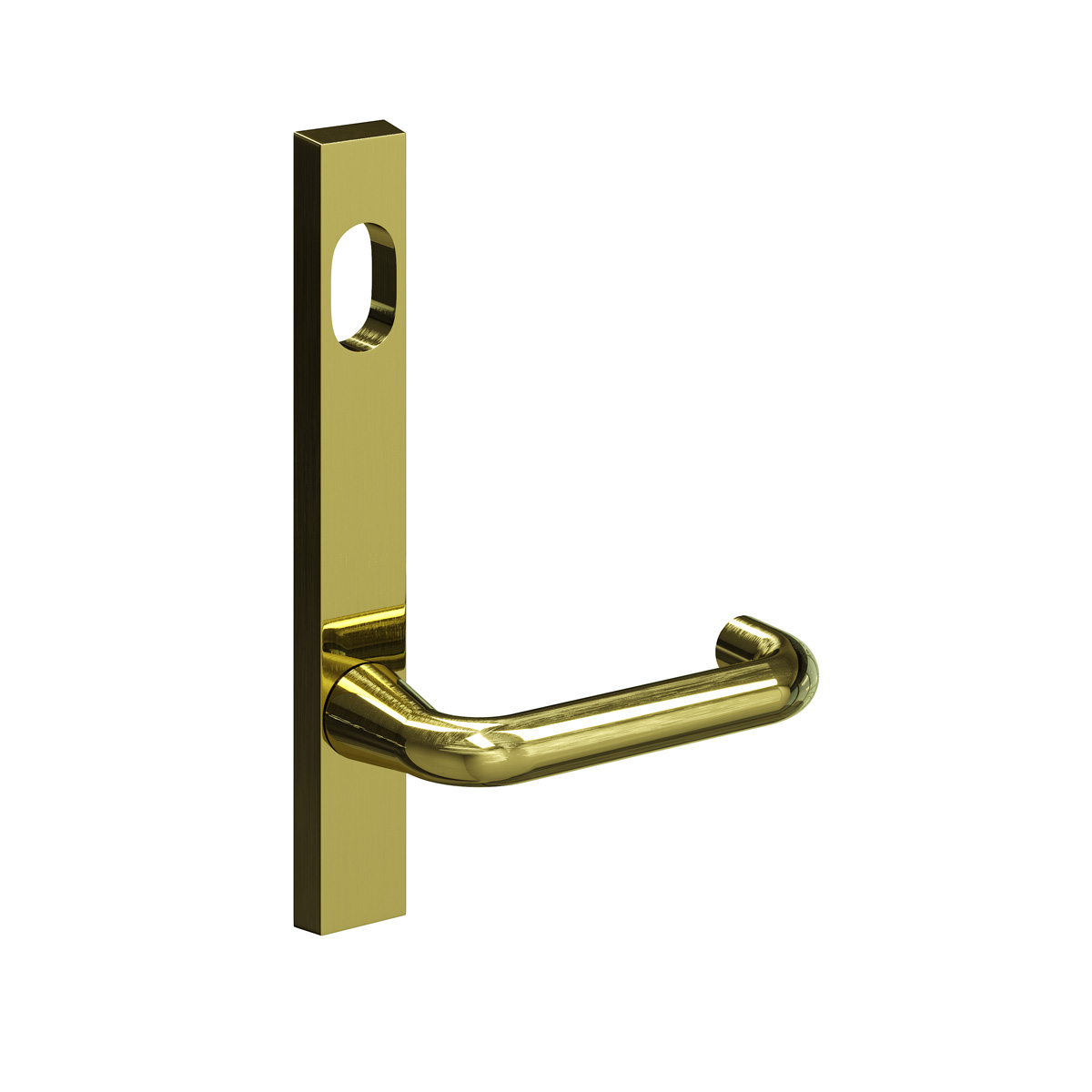

Legge 5303 Series Alpha Polished Brass
Legge 5303 Series Alpha Oil Rubbed Bronze

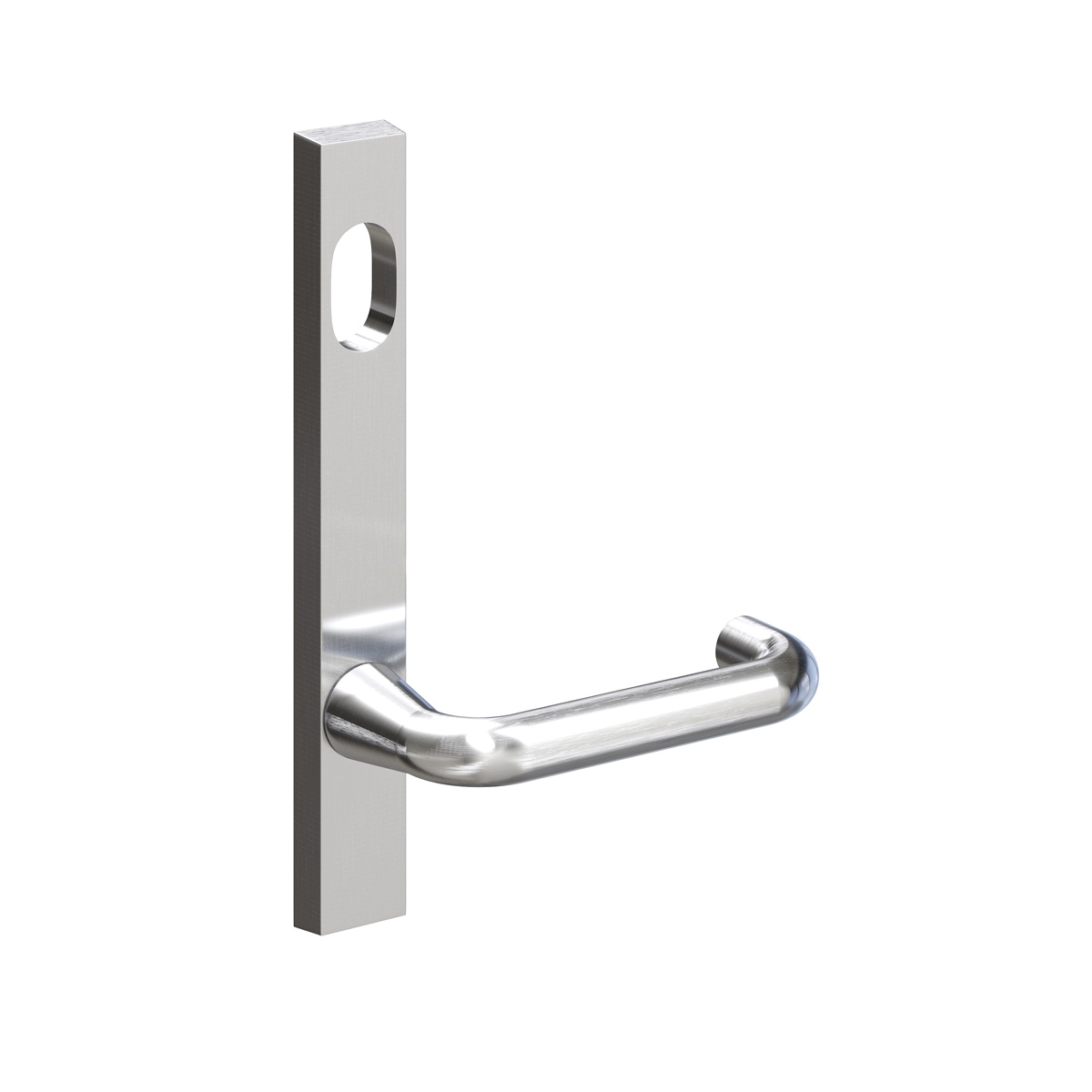

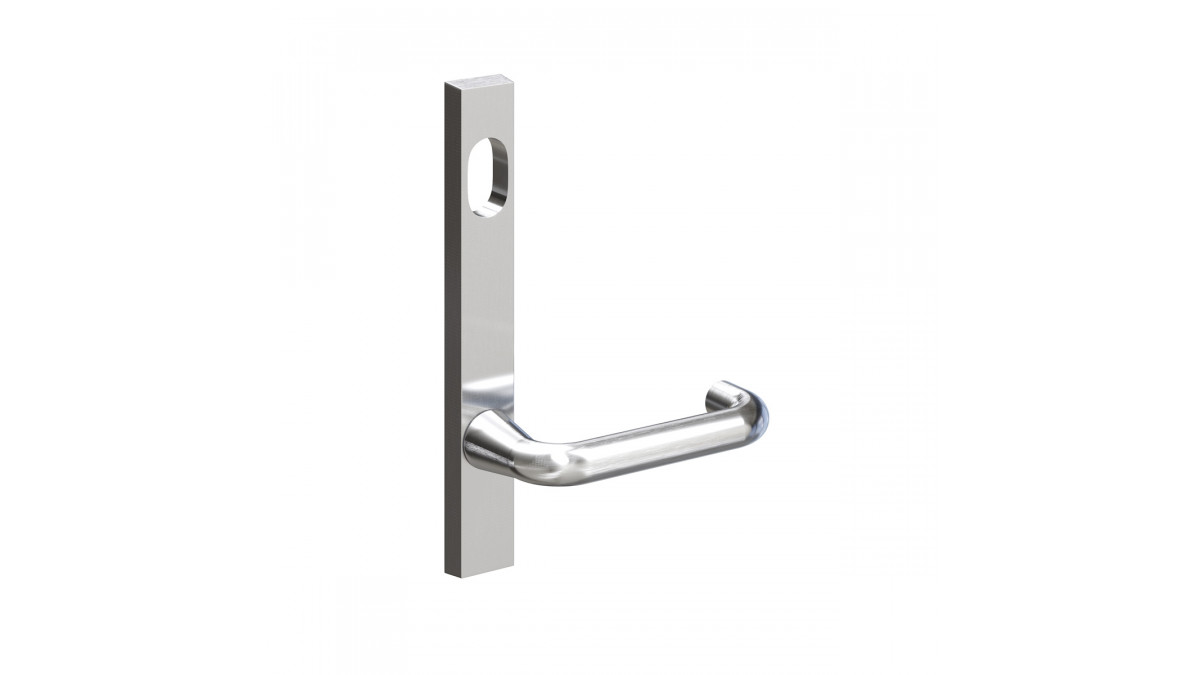

Legge 5303 Series Alpha Satin Chrome

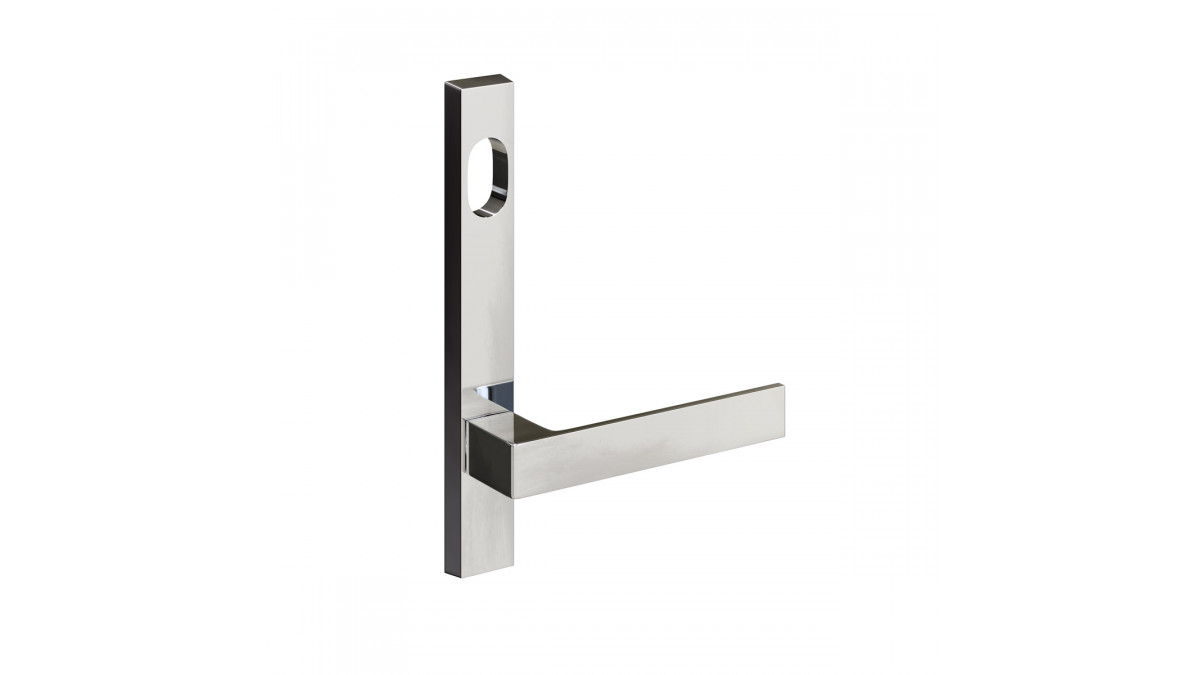

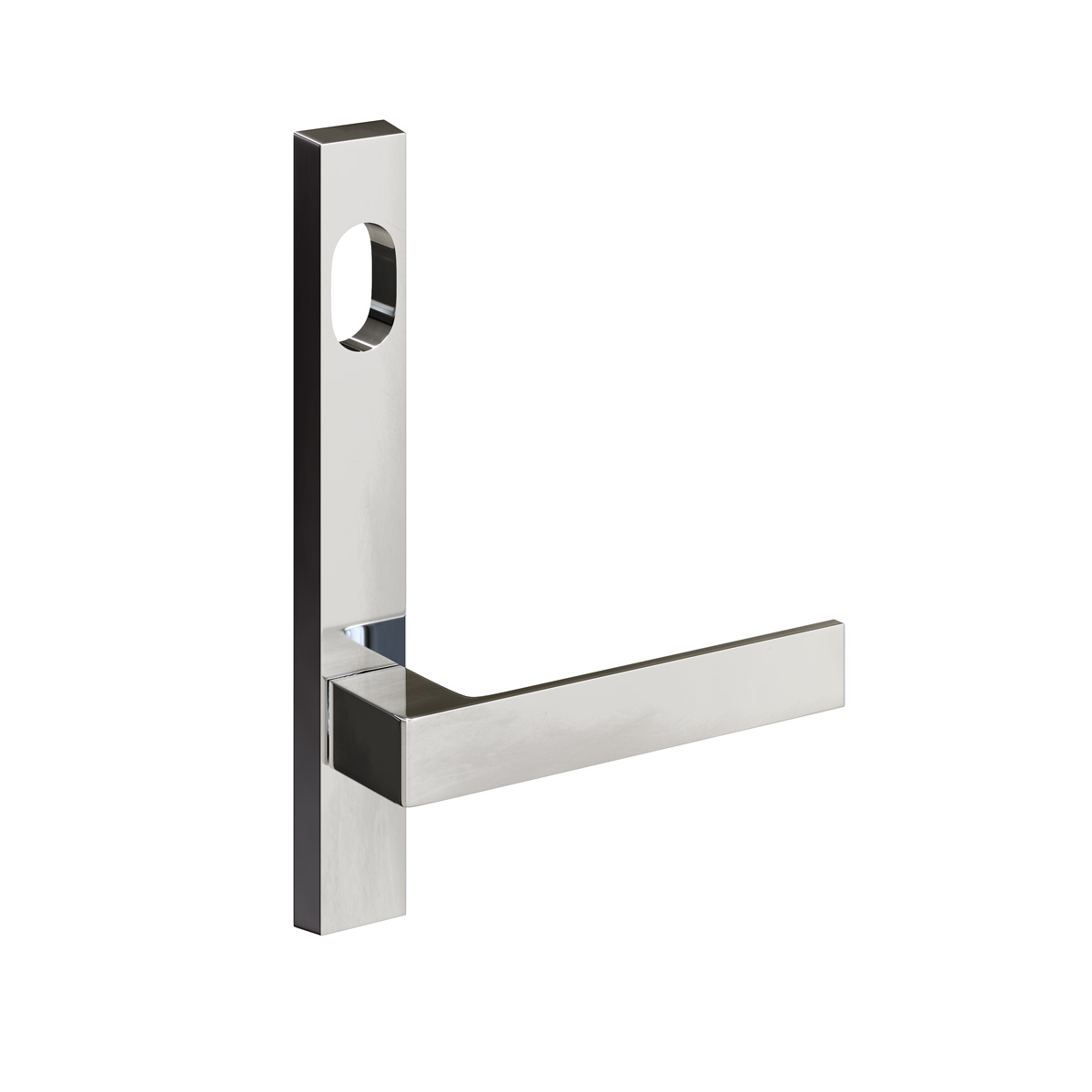

Legge 5303 Series Angelo Chrome

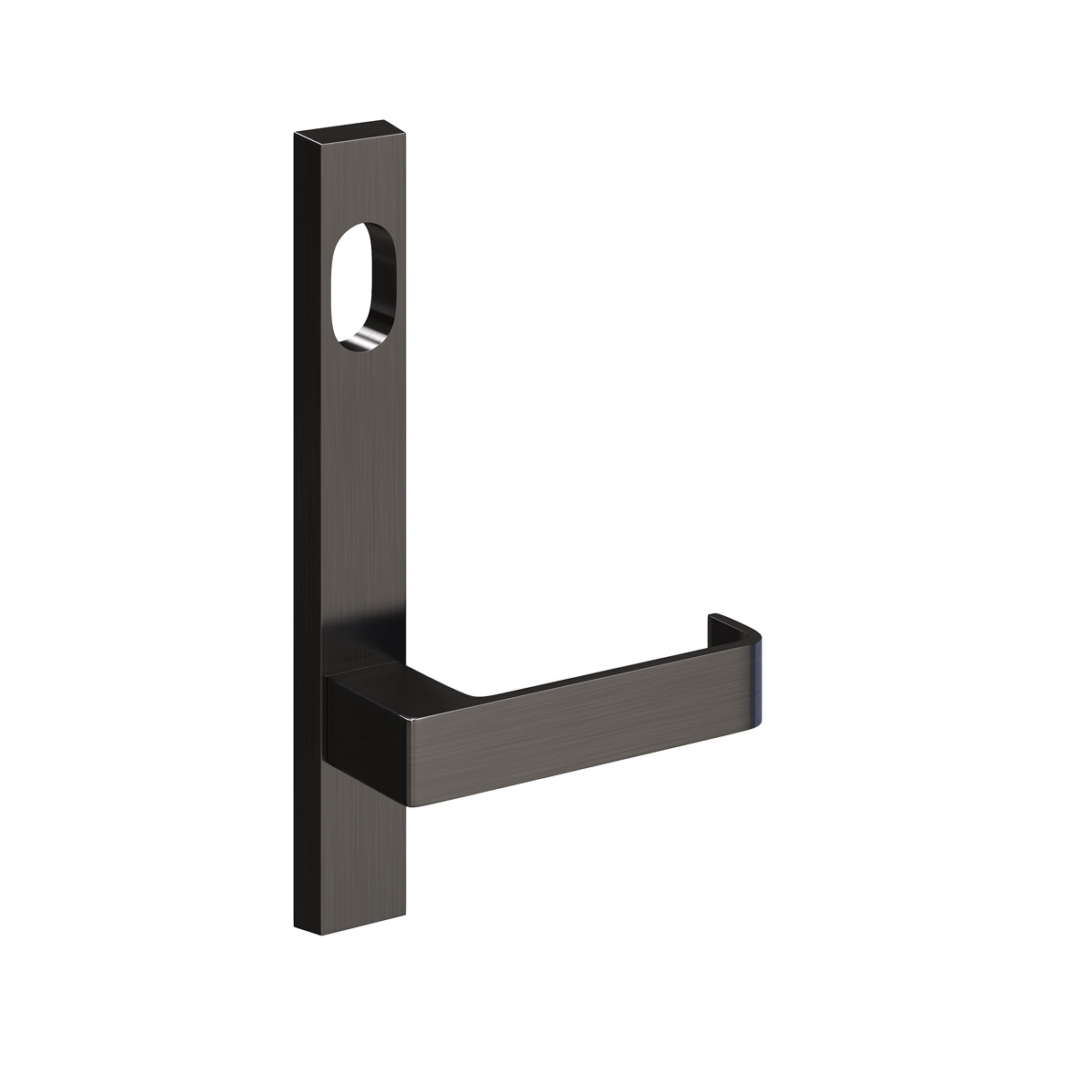

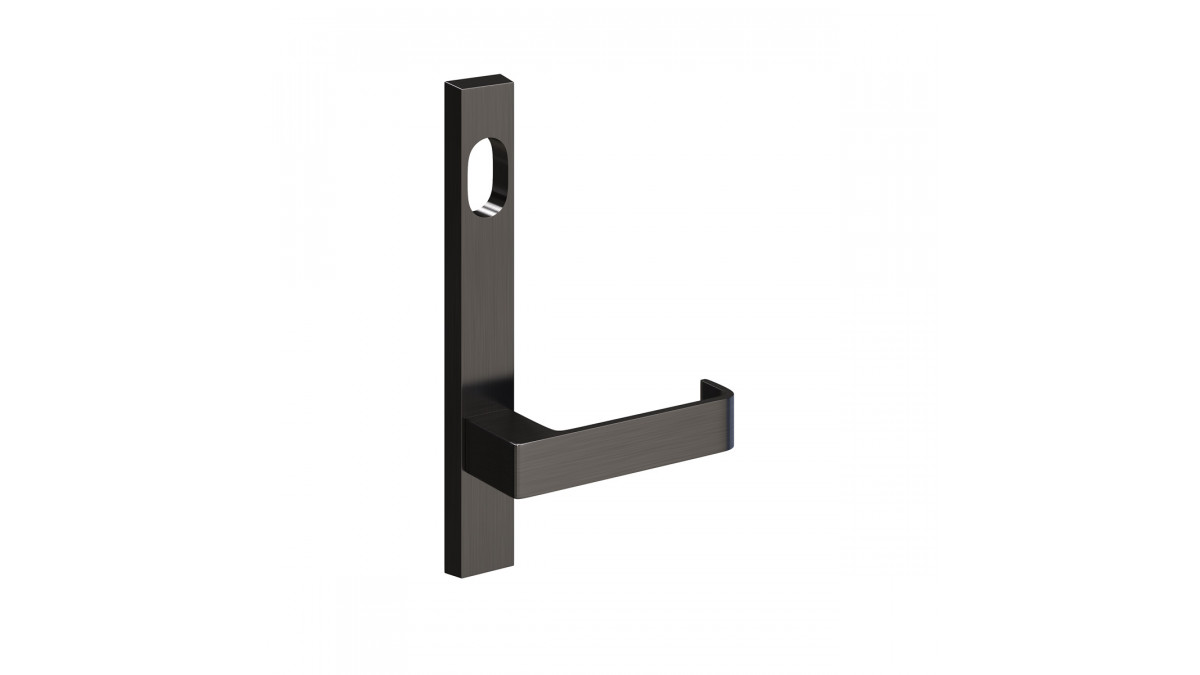

Legge 5303 Series Bergen Oil Rubbed Bronze
Legge 5303 Series Ergo Satin Brass

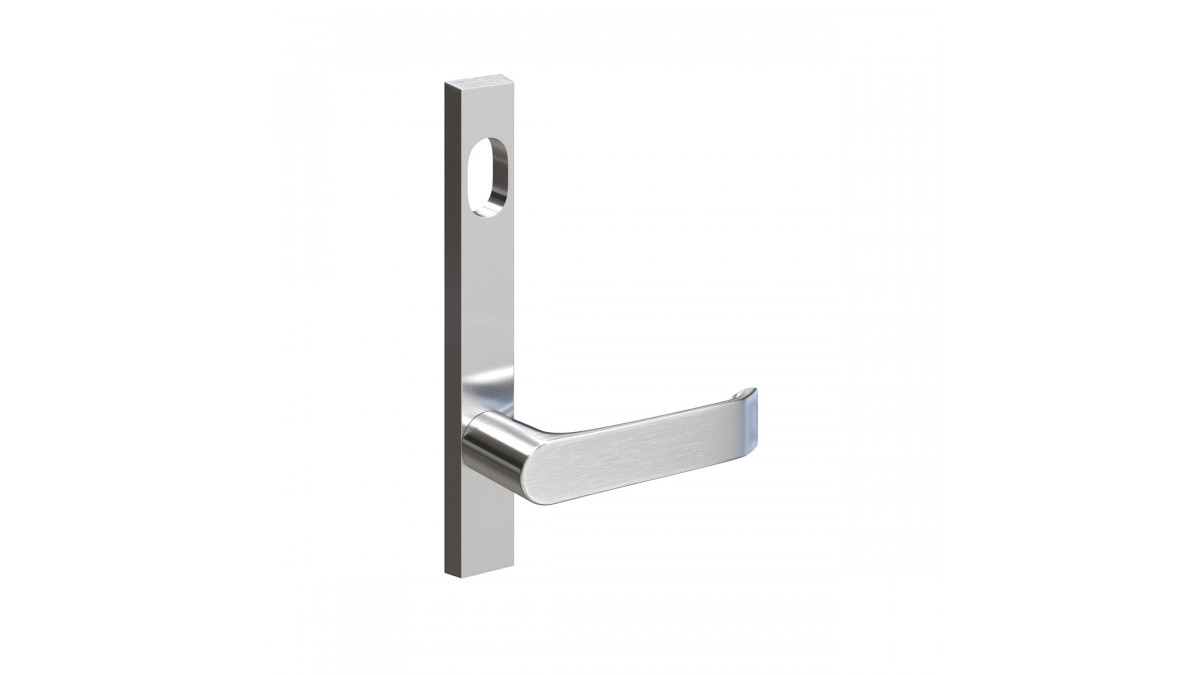

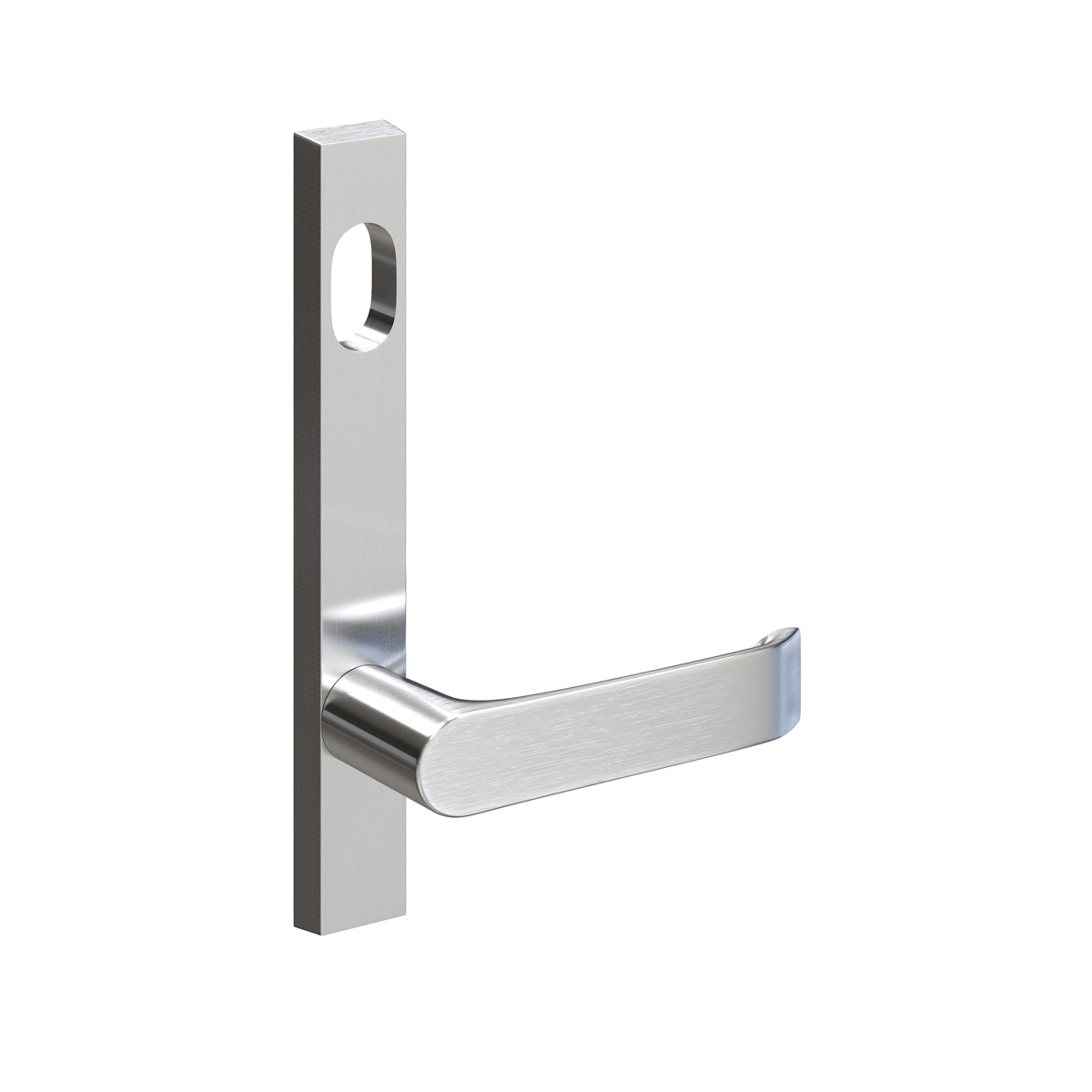

Legge 5303 Series Leonardo Satin Chrome

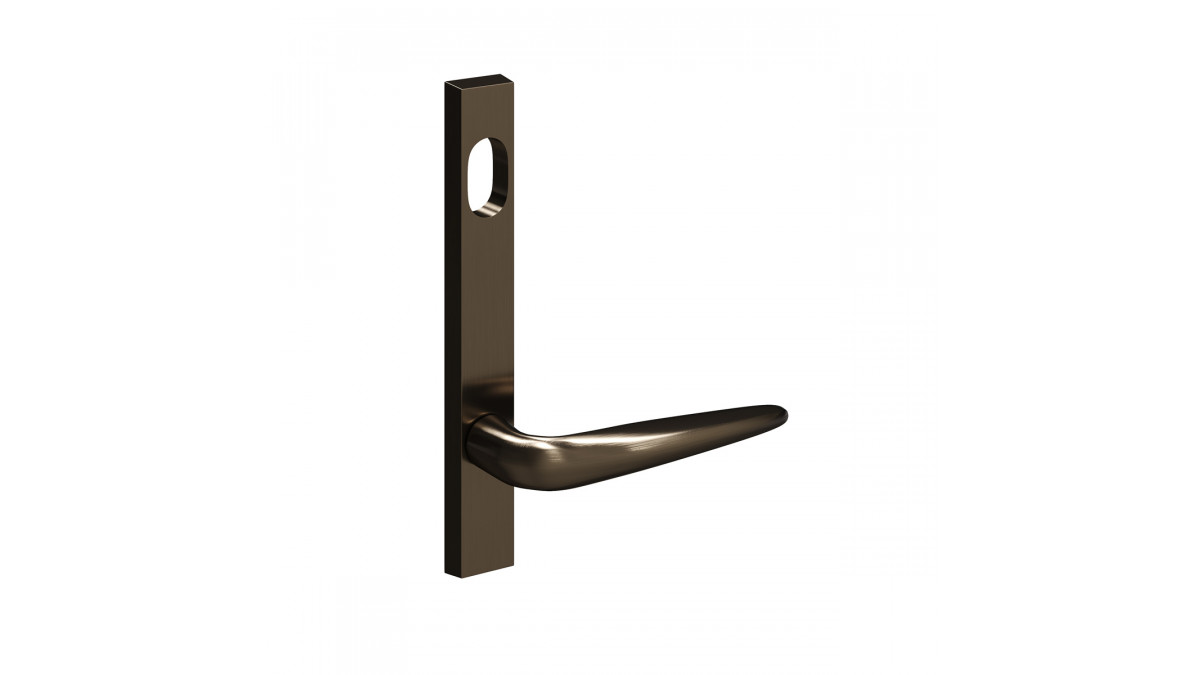

Legge 5303 Series Monet Antique Bronze

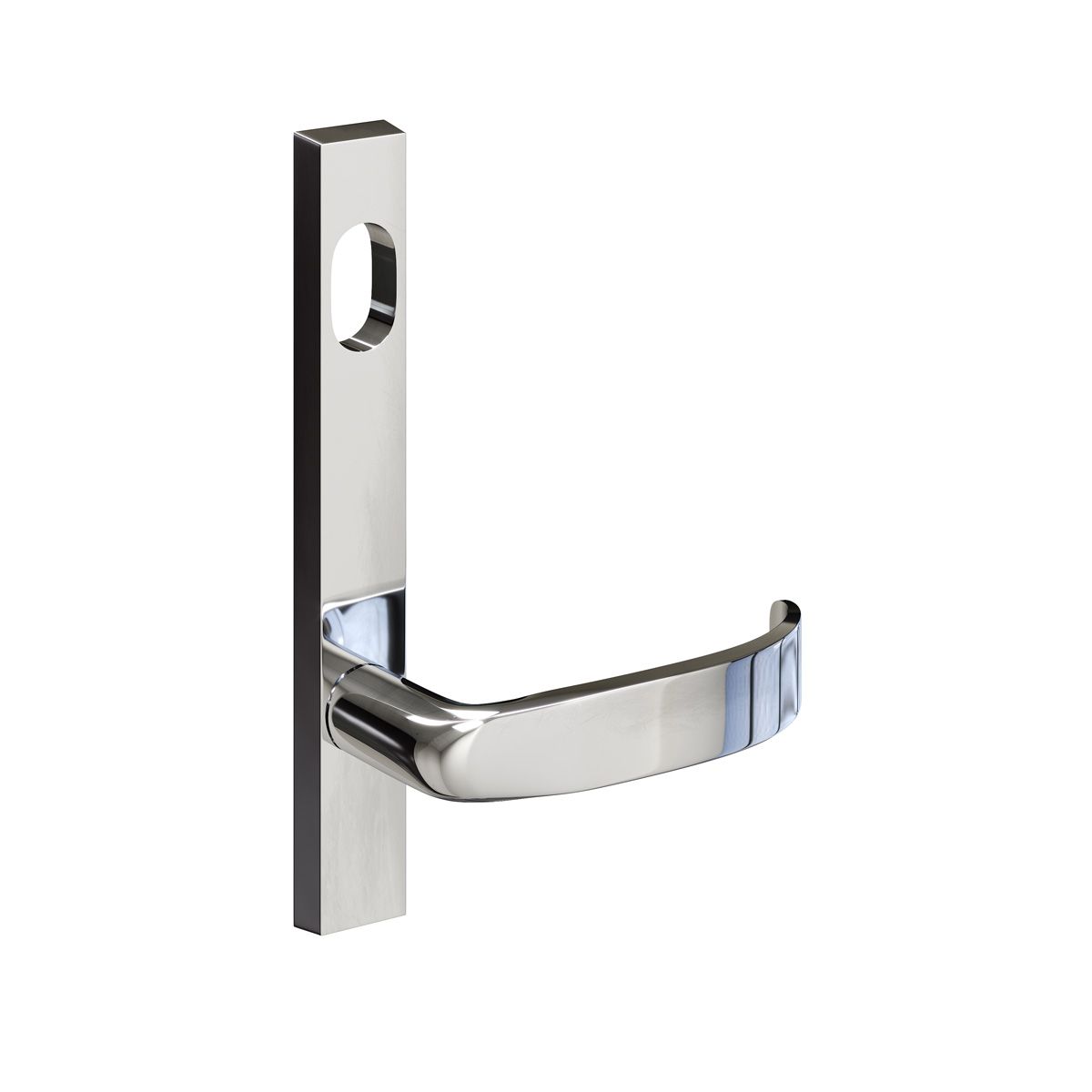

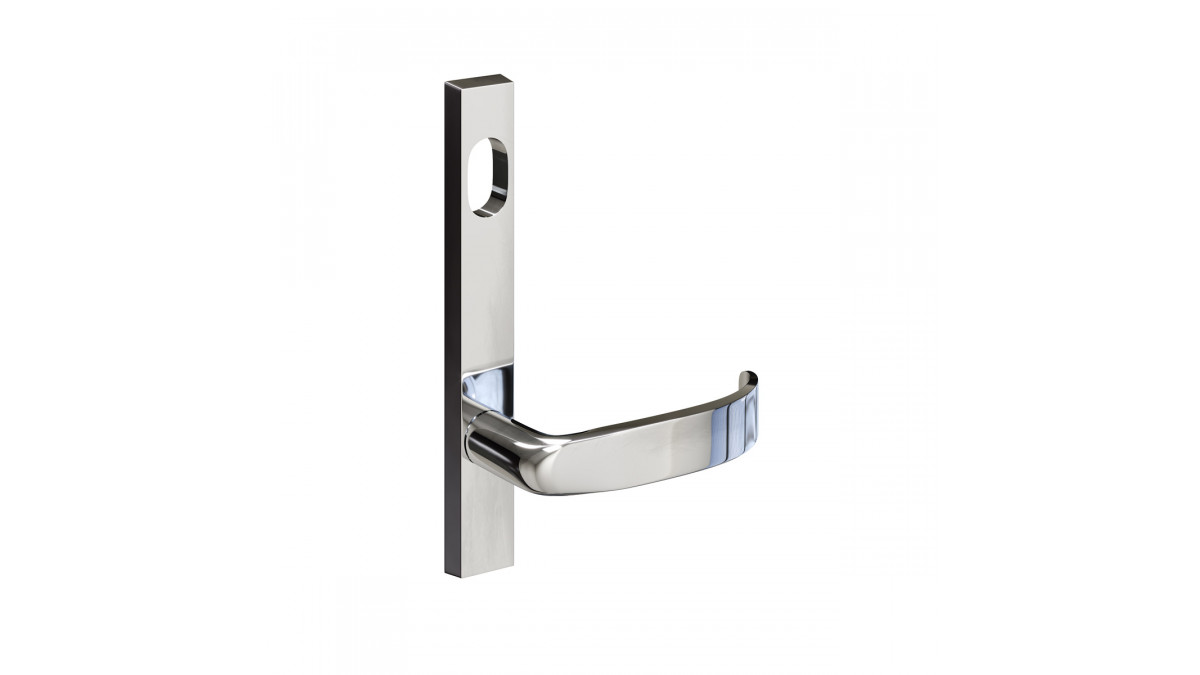

Legge 5303 Series Neptune Chrome
Legge 5303 Series Renoir Oil Rubbed Bronze

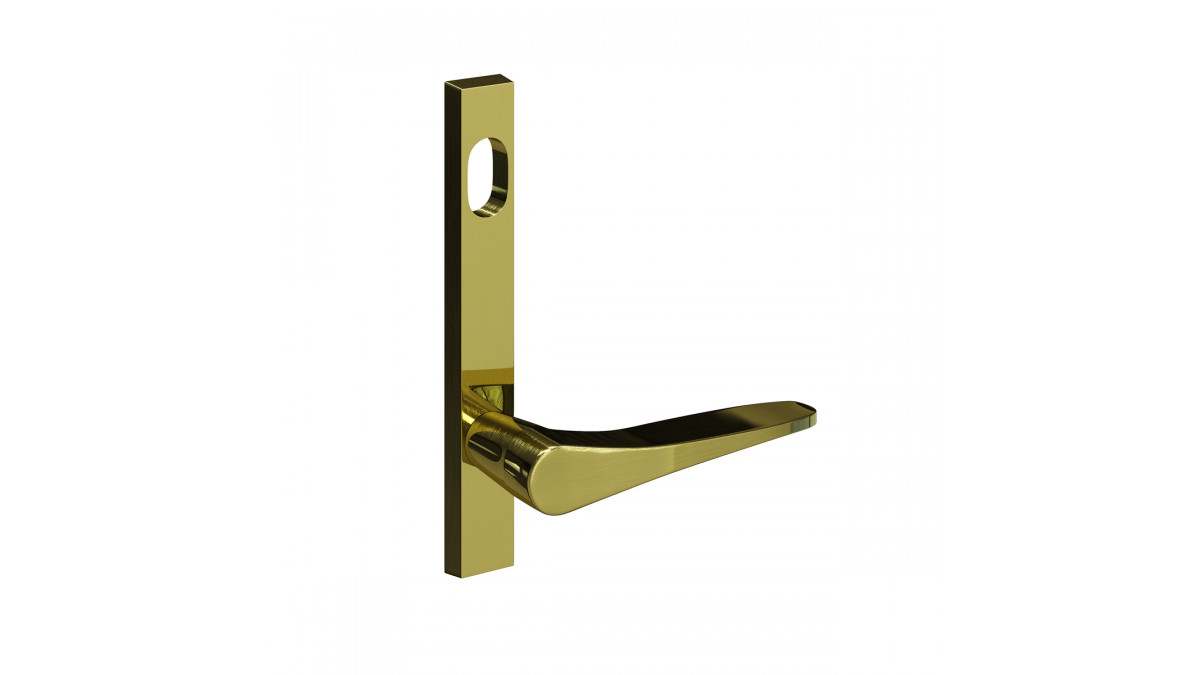

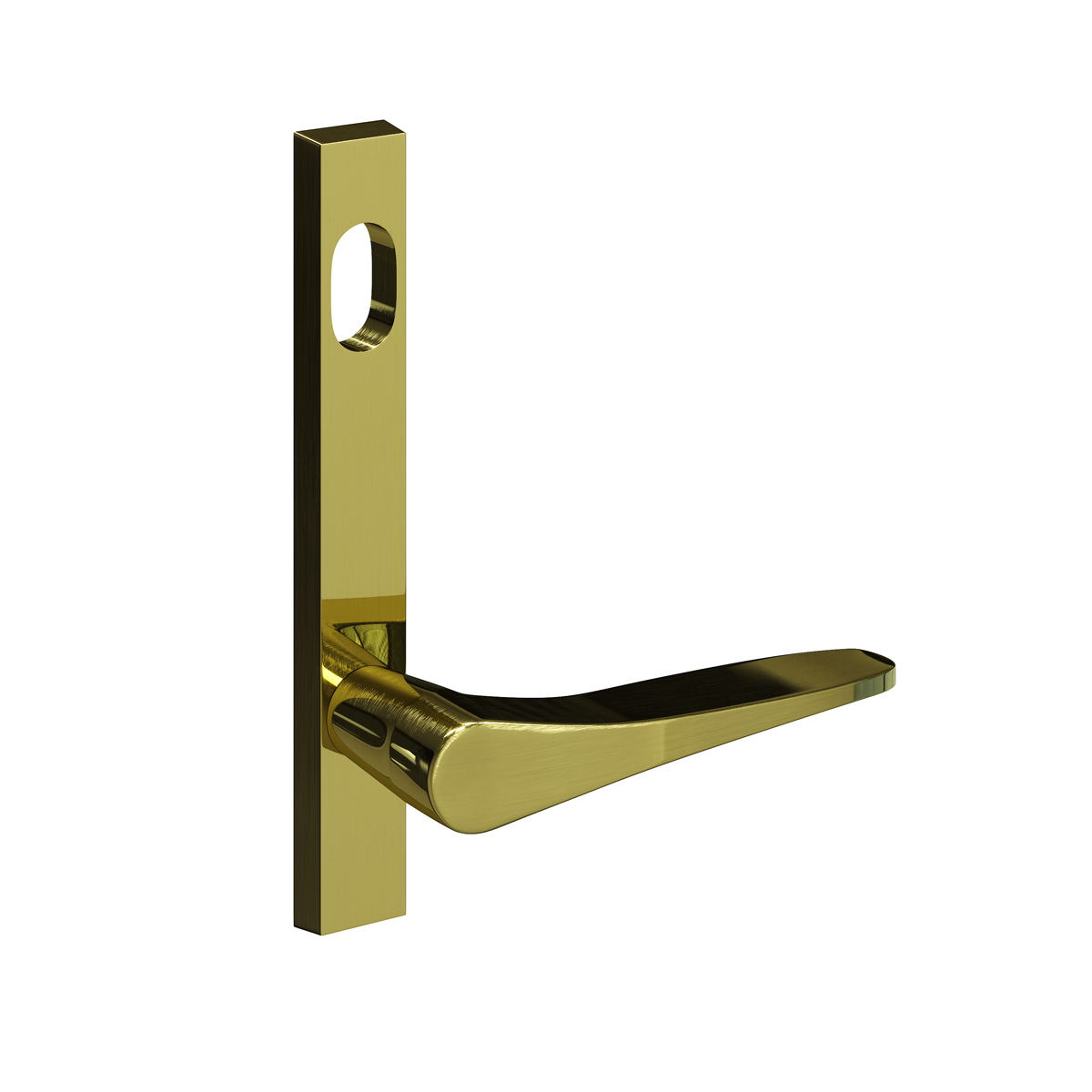

Legge 5303 Series Rubens Polished Brass
Description

The 5300 Series narrow stile furniture is designed for use in commercial applications, including exterior and interior doors for retail/shop front, educational, governmental, medical and public buildings. The narrow plate is ideal for use on narrow aluminium or timber stiles.

With a range of modern and contemporary lever designs, the 5300 Series will complement any décor. The handing mechanism of this Series allows the furniture to be handed on-site, by simple rotation of the handle in the preferred direction of use prior to installing on the door.

Available Finishes:

  • Oil Rubbed Bronze
  • Antique Bronze
  • Satin Brass
  • Satin Chrome
  • Polished Brass
  • Chrome
  • Satin Black Chrome
Key Features
  • Constructed of commercial-grade, quality components including forged brass handles and extruded brass plates
  • Heavy-duty compression spring provides a smooth, positive return action of the lever and eliminates droop, extending the life of the product
  • Symmetrically designed levers are able to be handed on site within seconds, with a simple 180° rotation of the lever in the preferred direction of use prior to installation
  • Designed for use with Legge 995 narrow stile mortice locks, the 5300 Series can also be supplied to suit Legge 990MF mortice locks
  • Materials: Levers — forged & extruded brass, plate — extruded brass
Categories
Handles and Knobs
Ranges
Legge Door Furniture
Scope of Use

Commercial applications, including exterior and interior doors for retail/shopfront, educational, governmental, medical and public buildings.

  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm (51mm to 75mm with optional extended screws)
  • Fixing centres: 159mm
  • Plate height: 185mm
  • Plate width: 25mm
  • Plate thickness: 12mm
  • Lever to cylinder centres: 90mm for 995MF mortice lock and 69mm for 990MF mortice lock
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 995MF and Legge 990MF Series mortice locks
  • Fixing: Back to back., external plates concealed fixing,  screws supplied with exterior plates only. 75mm M4 screw
Other Performance Attributes
  • The 30 year mechanical warranty provides specifiers and users with assured quality and performance
  • News
Documents
Installation and Operation
pdf
Commercial Warranty 2023
pdf
Product Catalogue
pdf
Caring for Door Hardware
pdf

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
