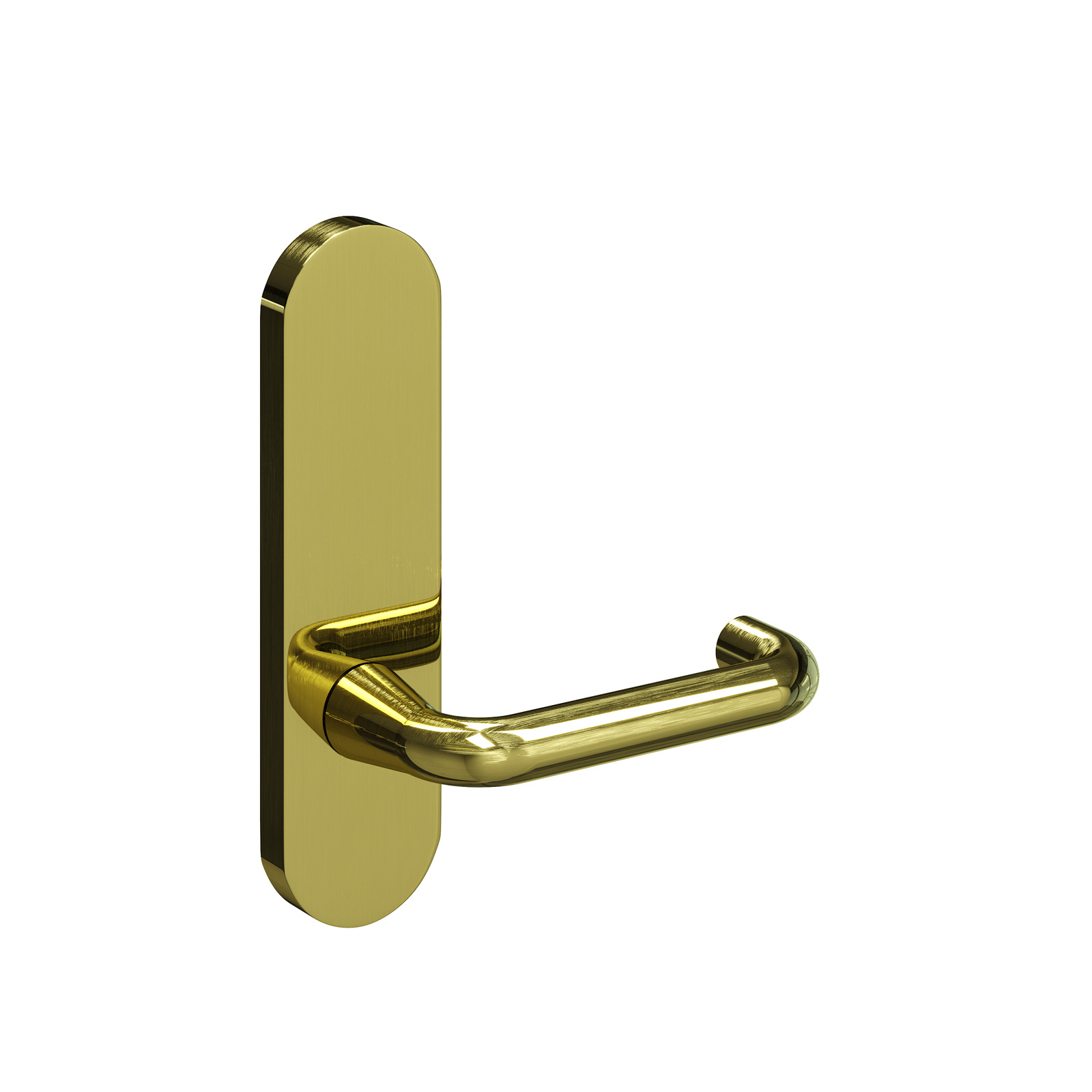

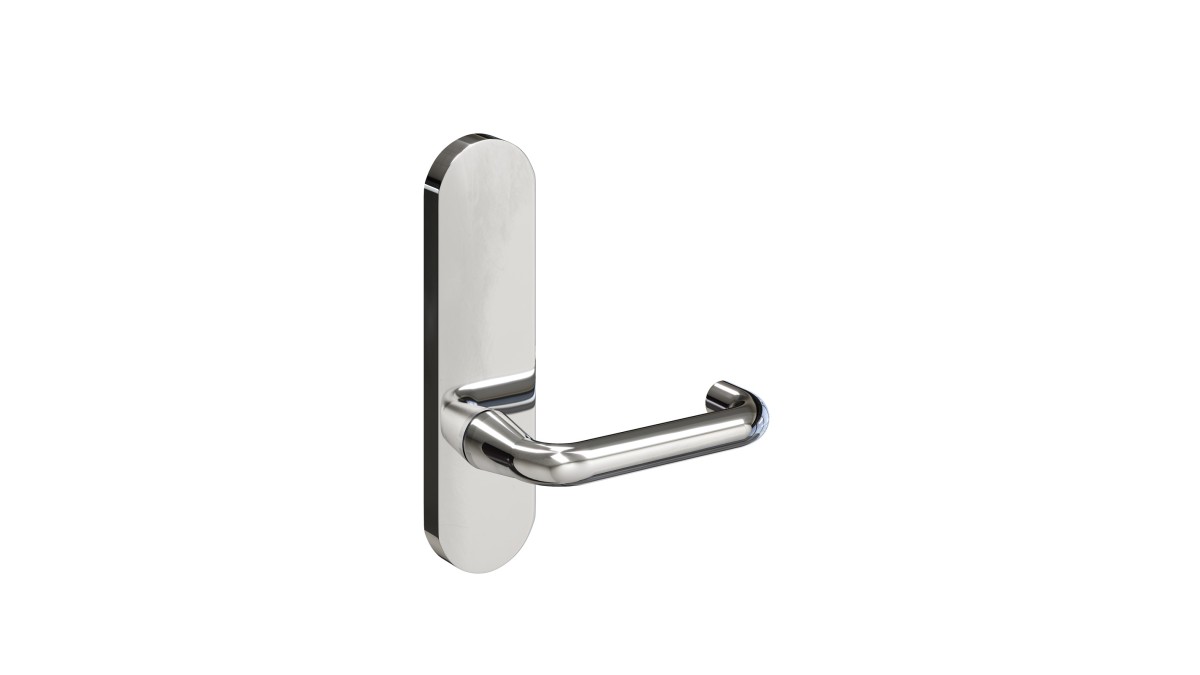

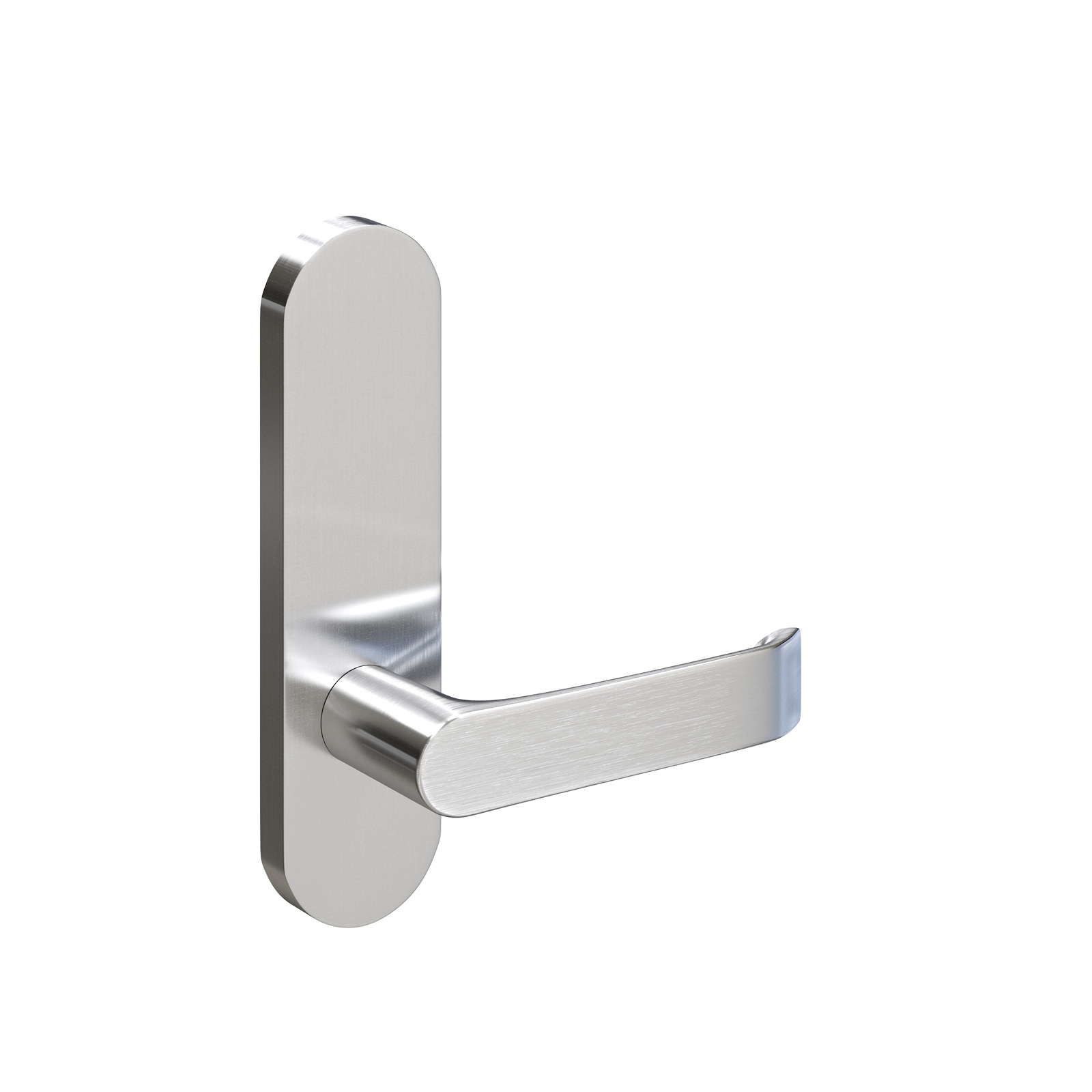

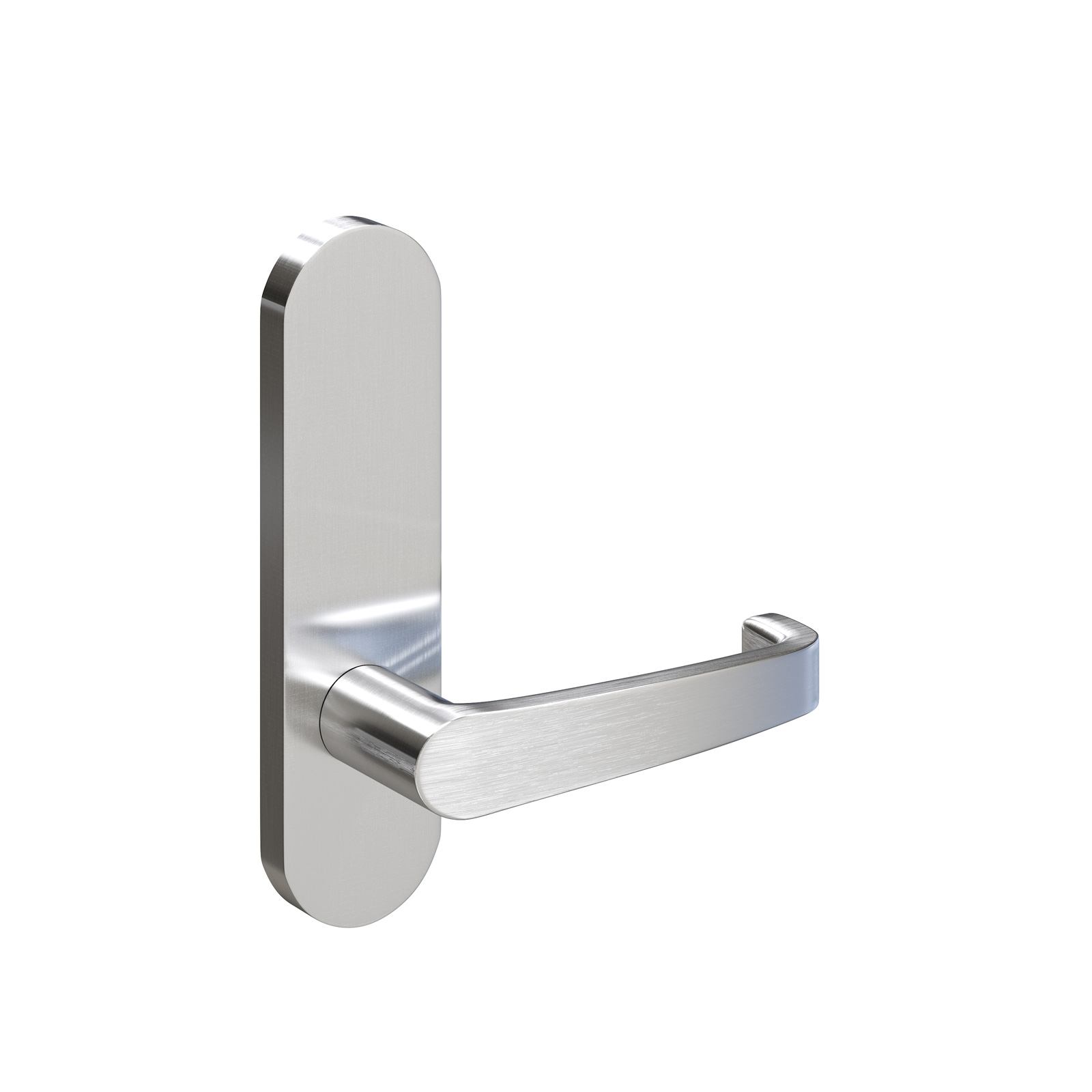

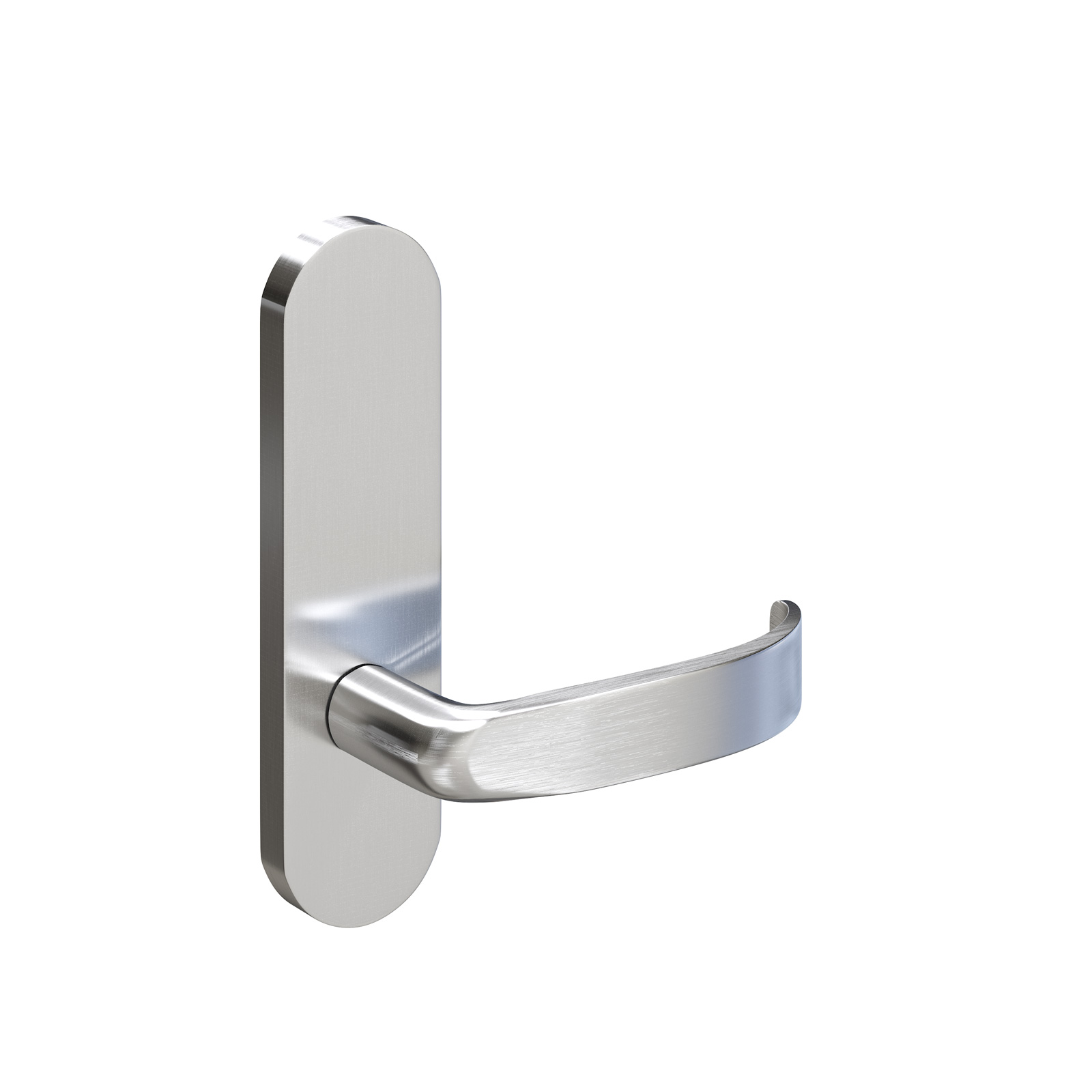

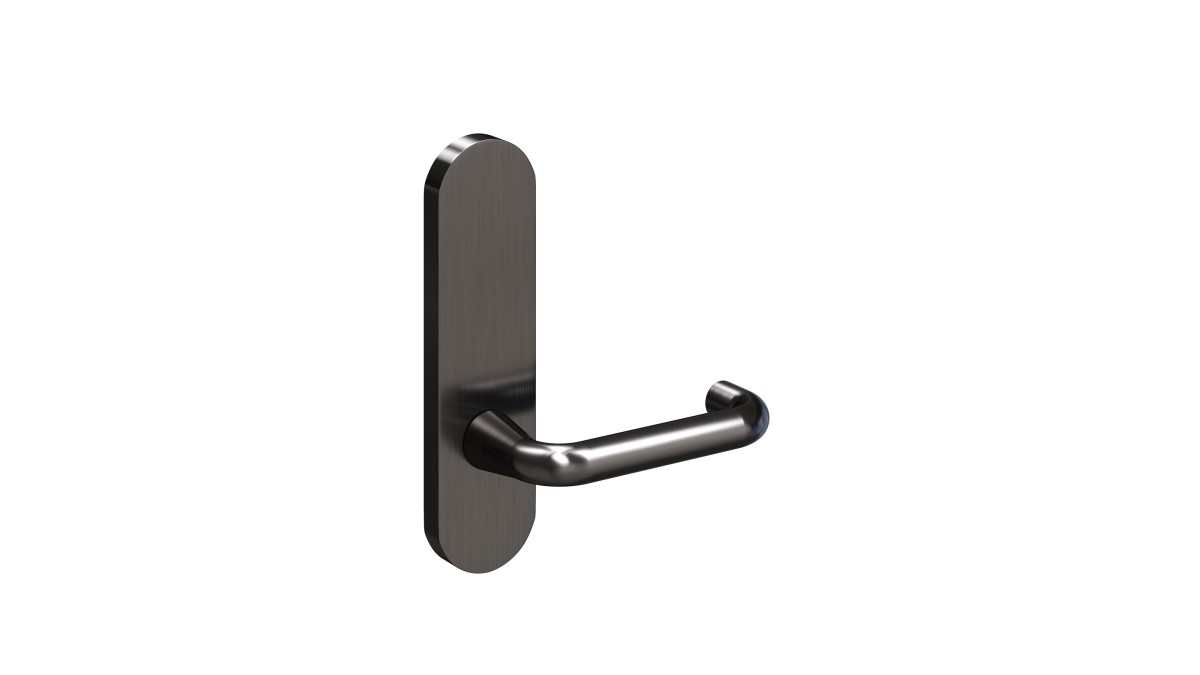

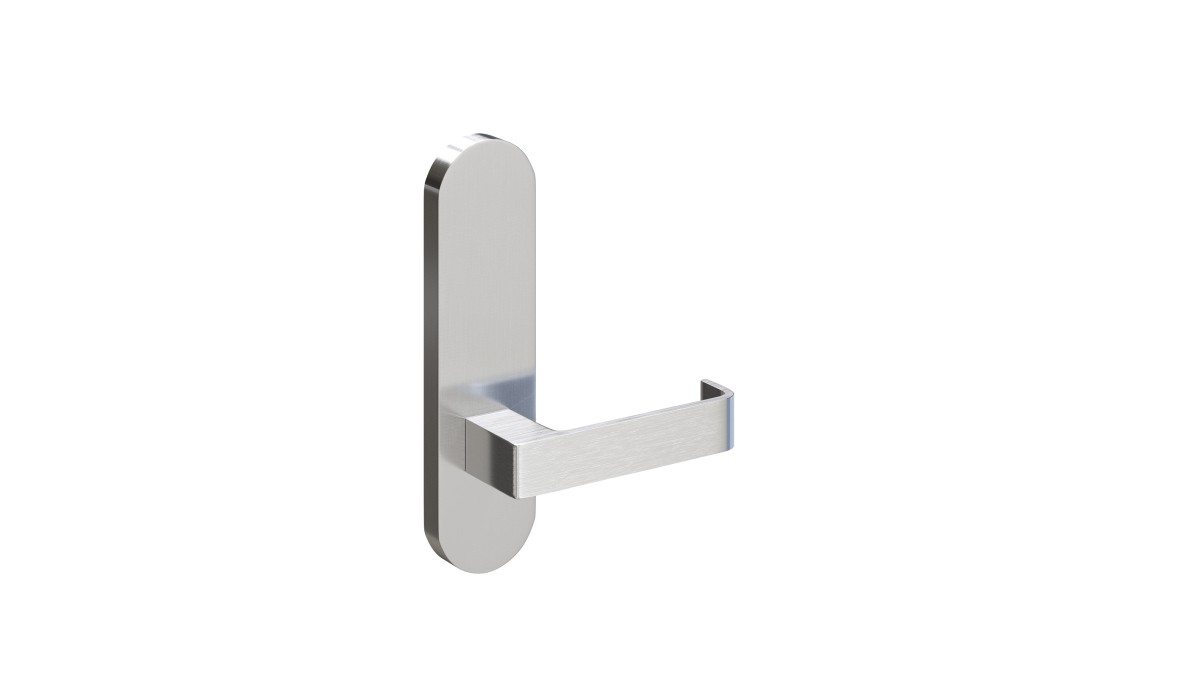

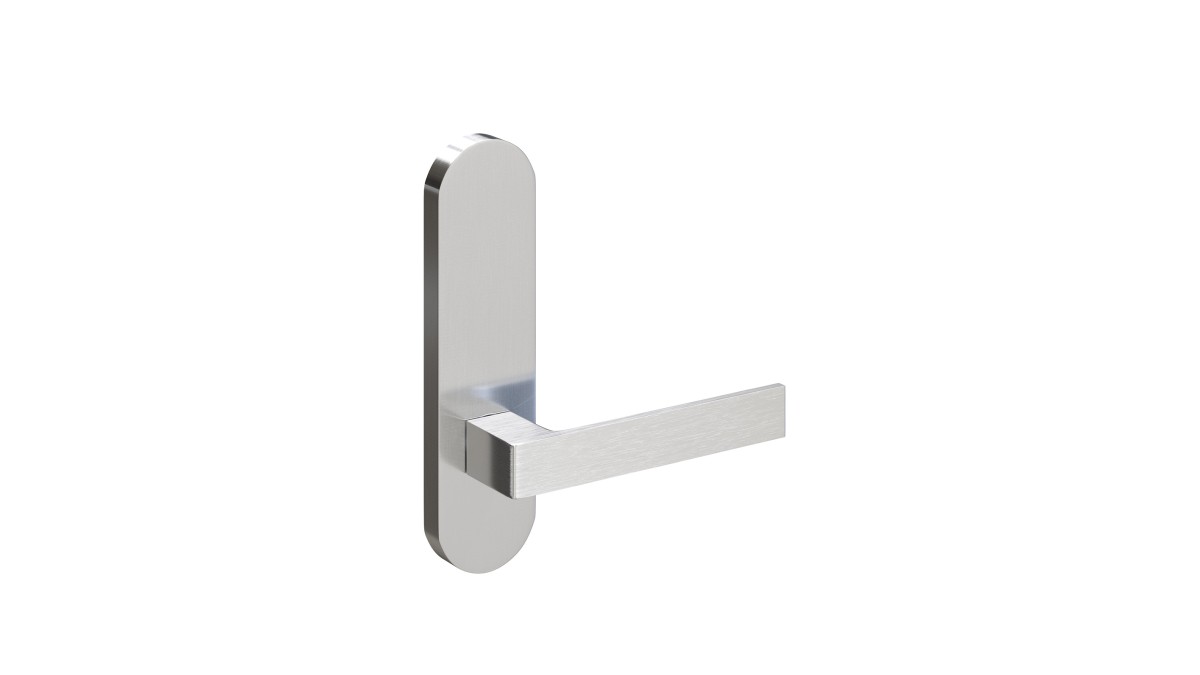

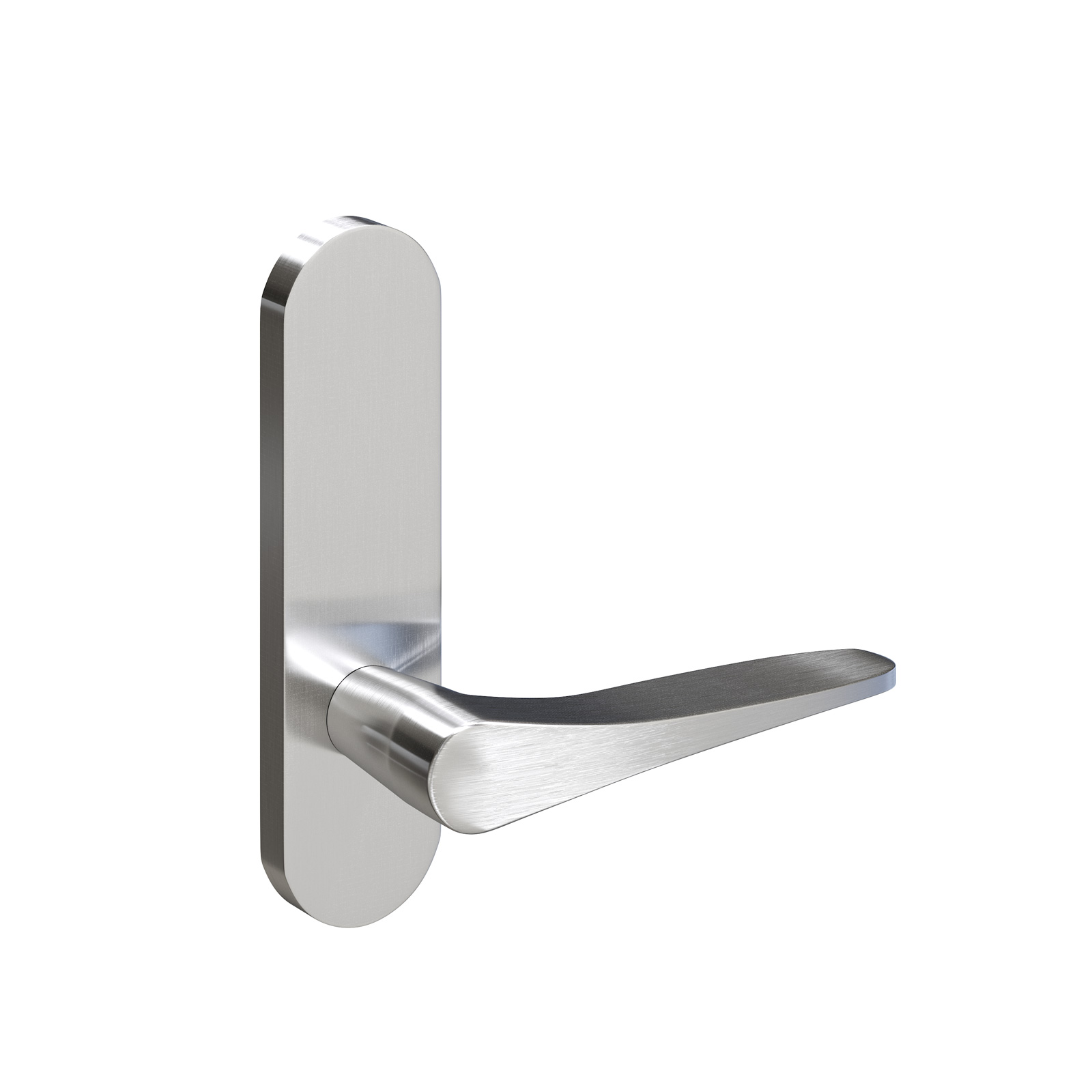

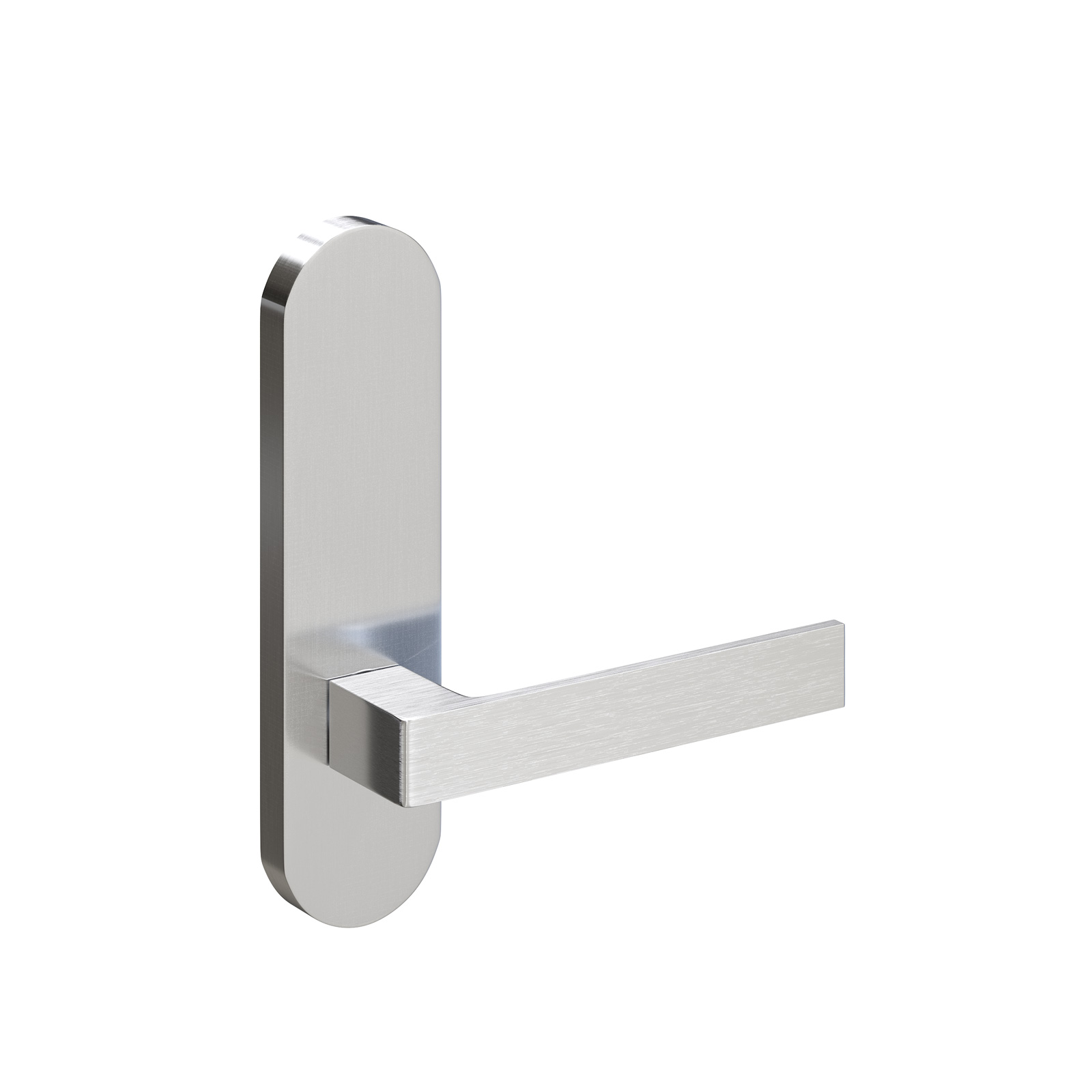

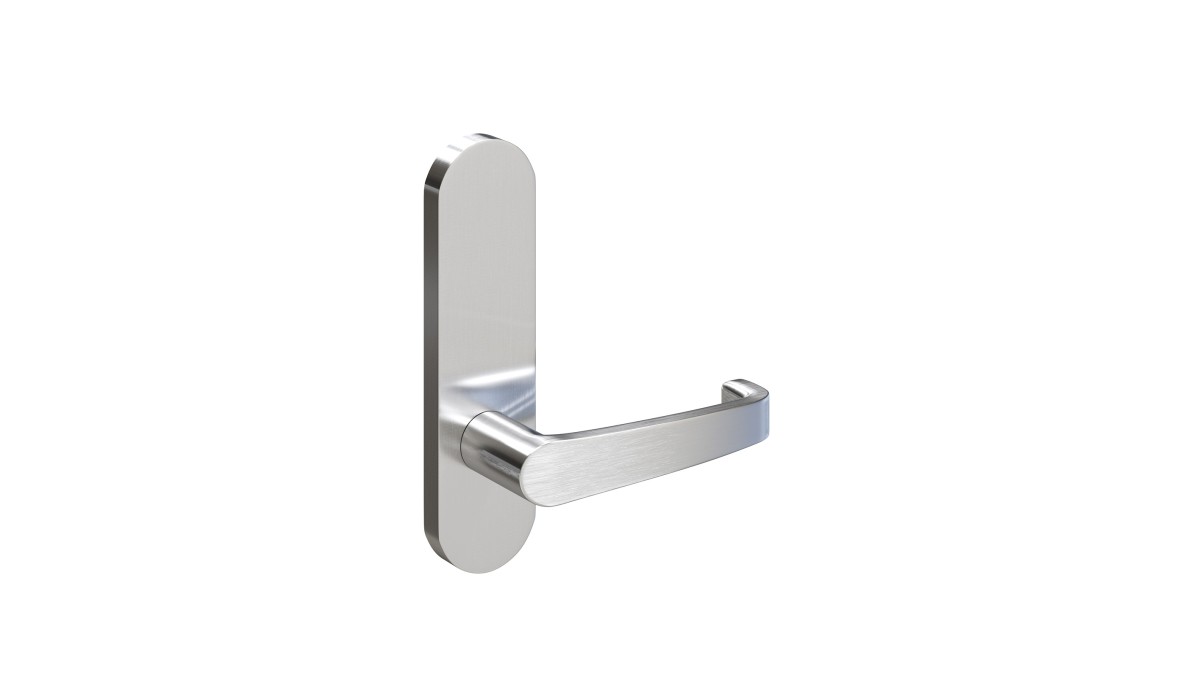

Legge 500 Series
Description

The Legge commercial range of door furniture has been designed for use on commercial applications, including interior and exterior doors for retail, educational, governmental, medical and public buildings.

Legge commercial furniture should be specified where heavy-duty and durable door furniture is essential.

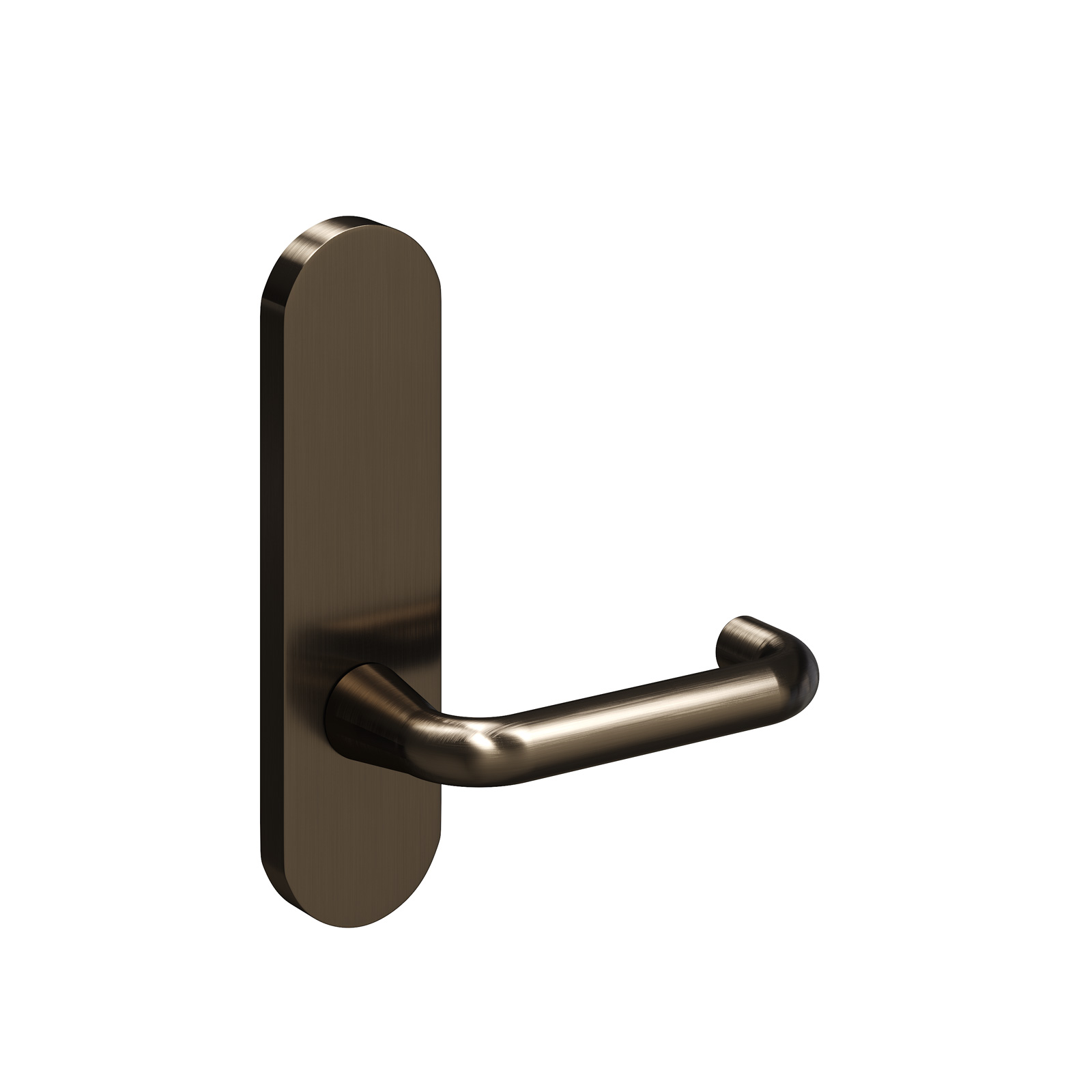

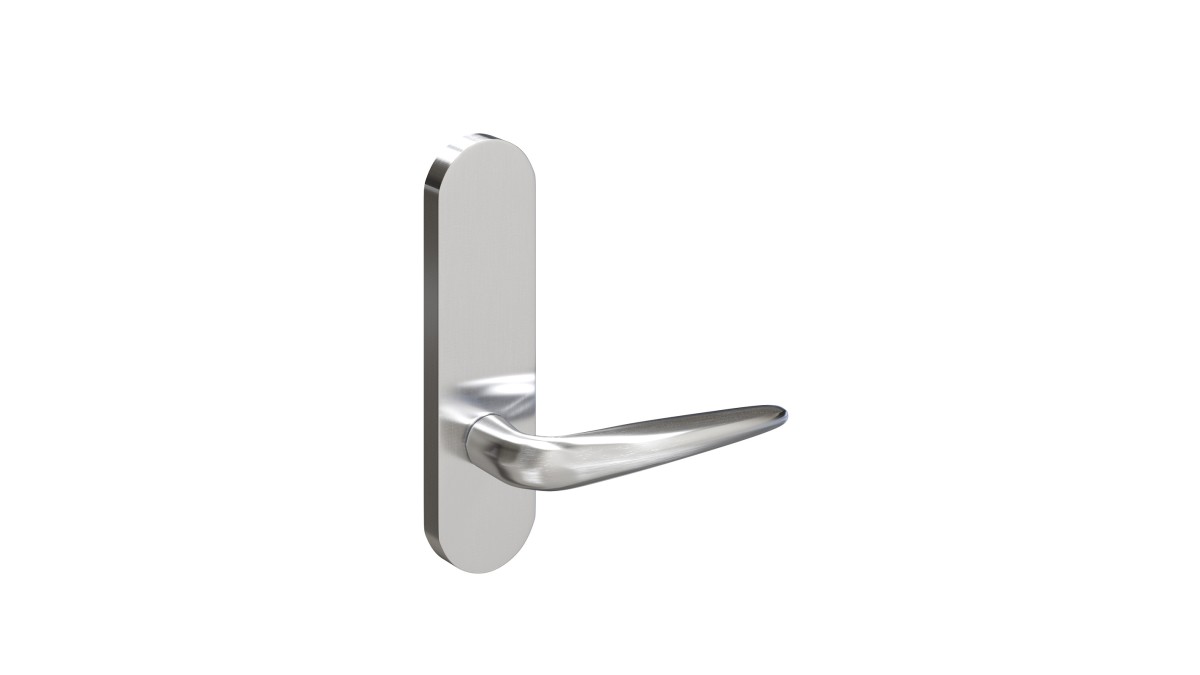

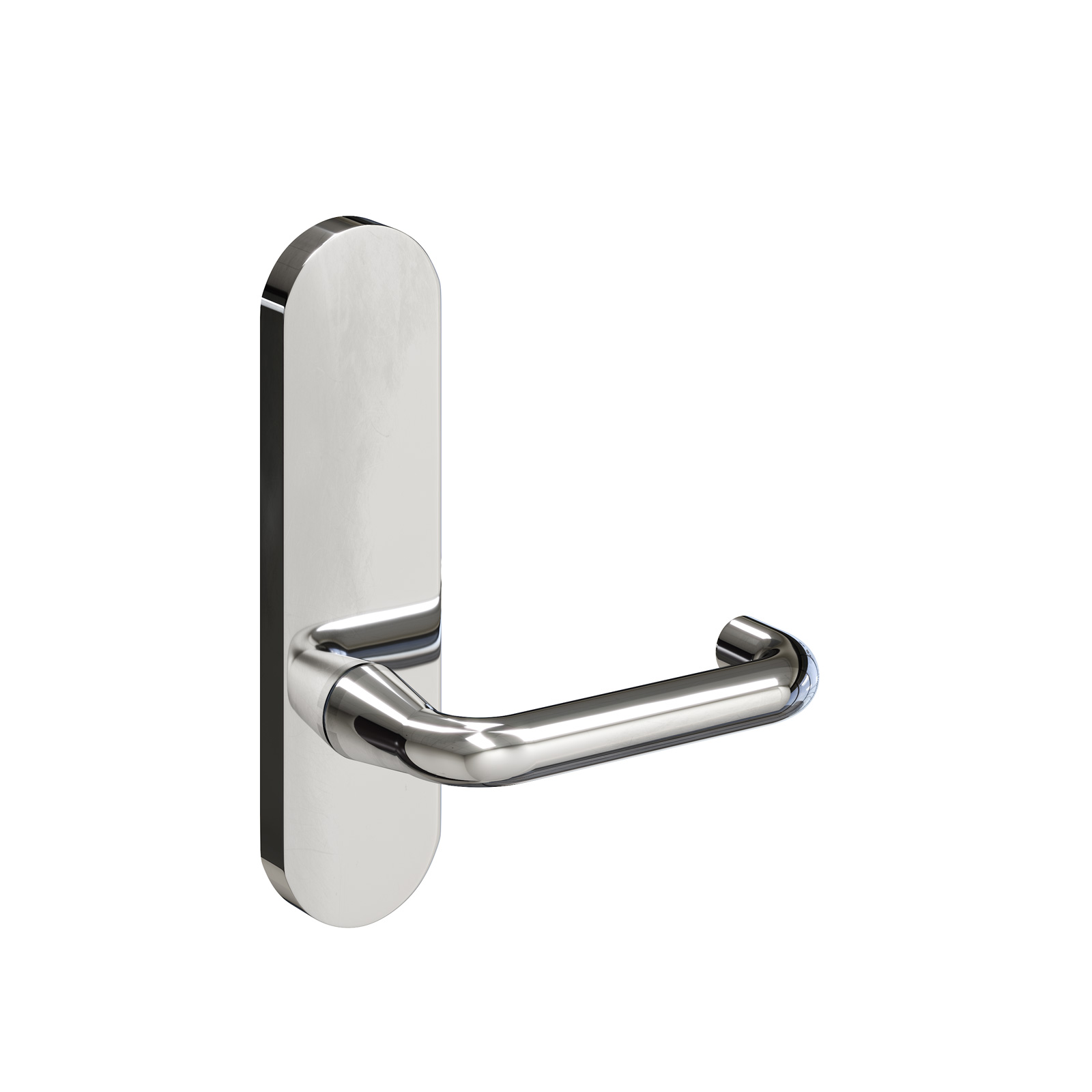

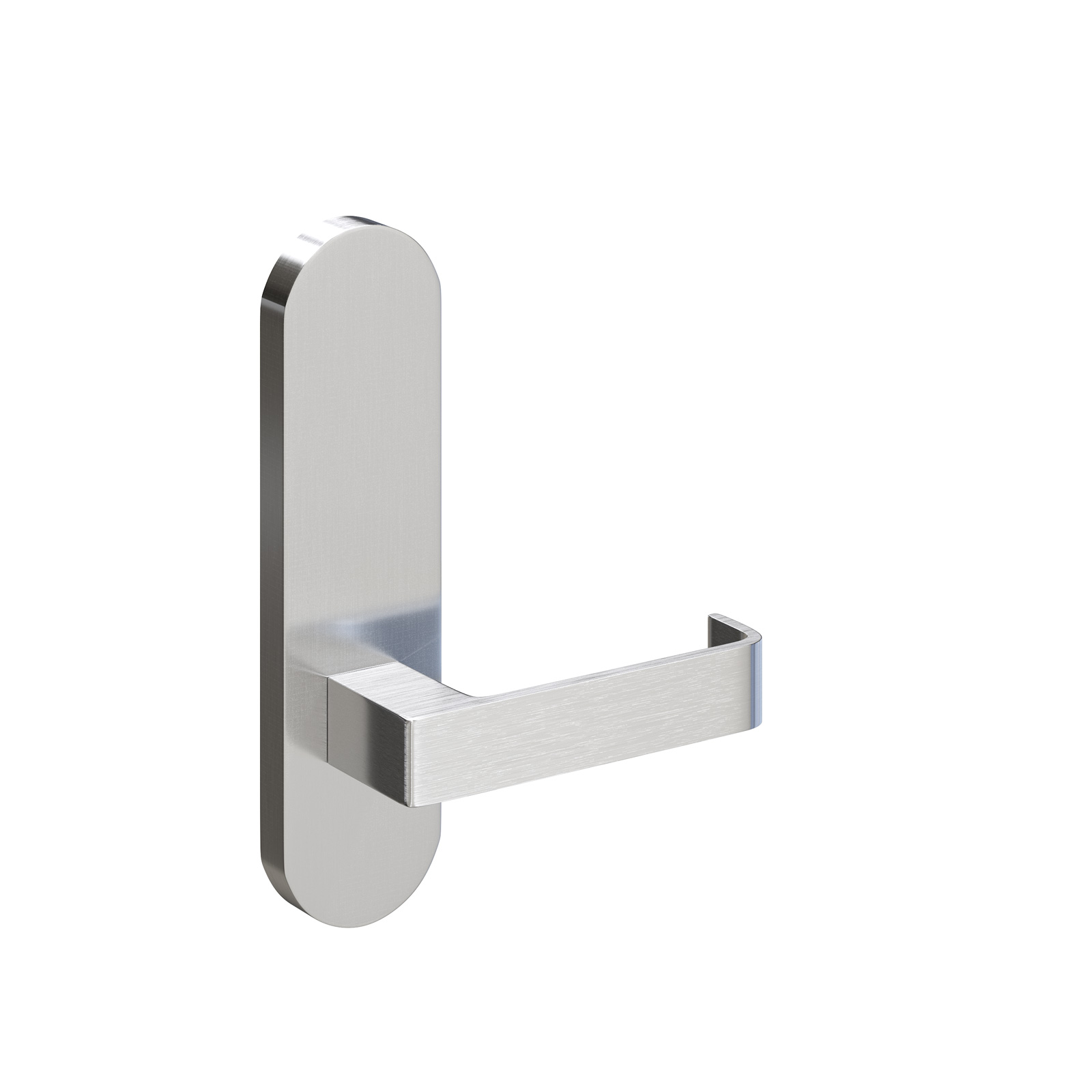

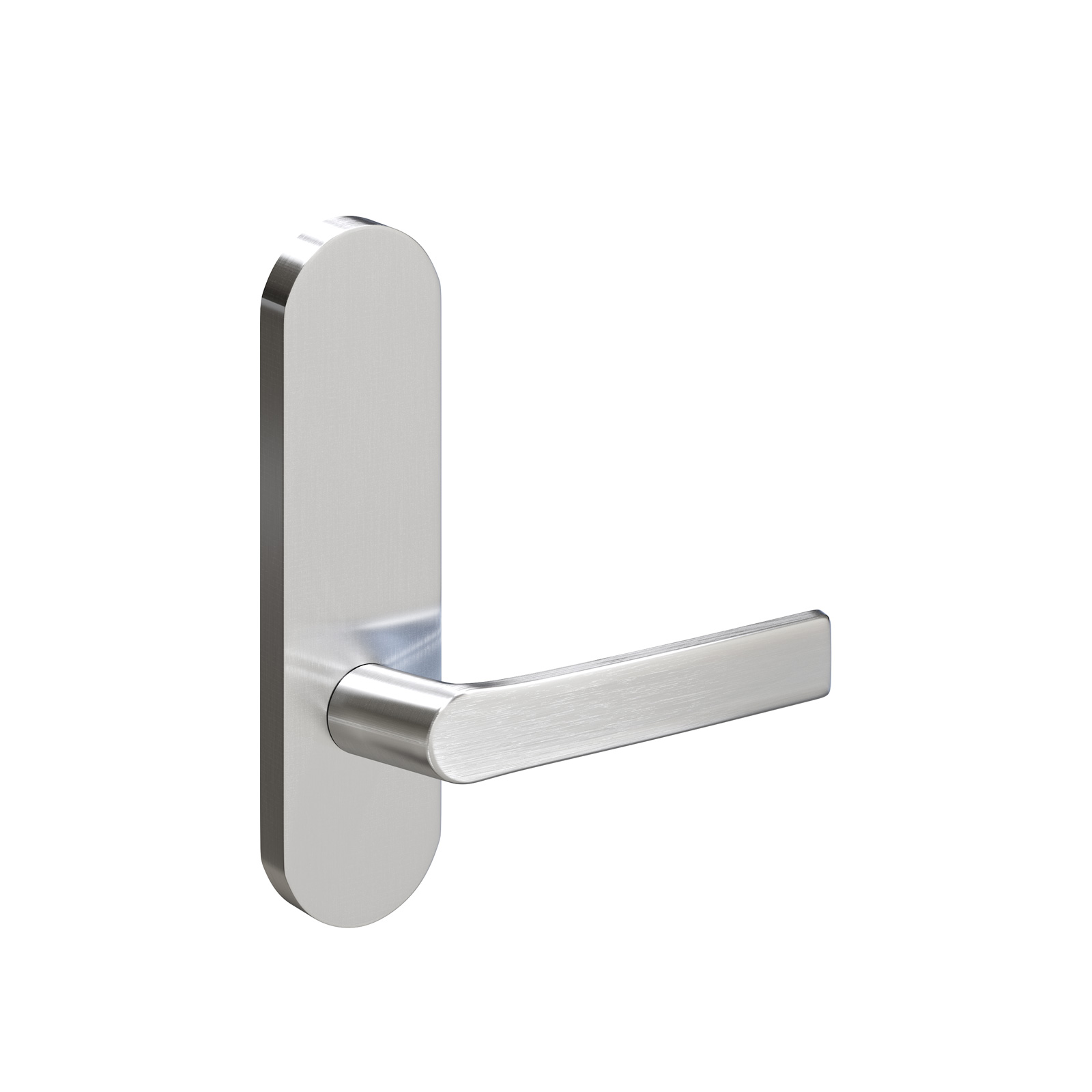

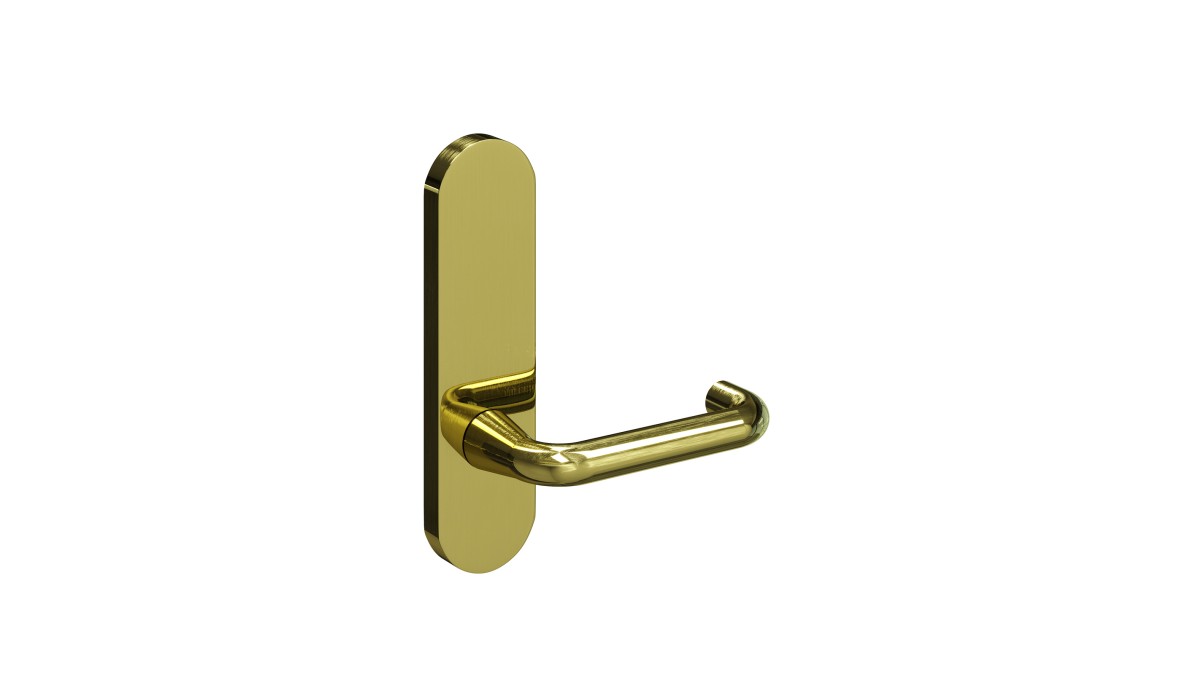

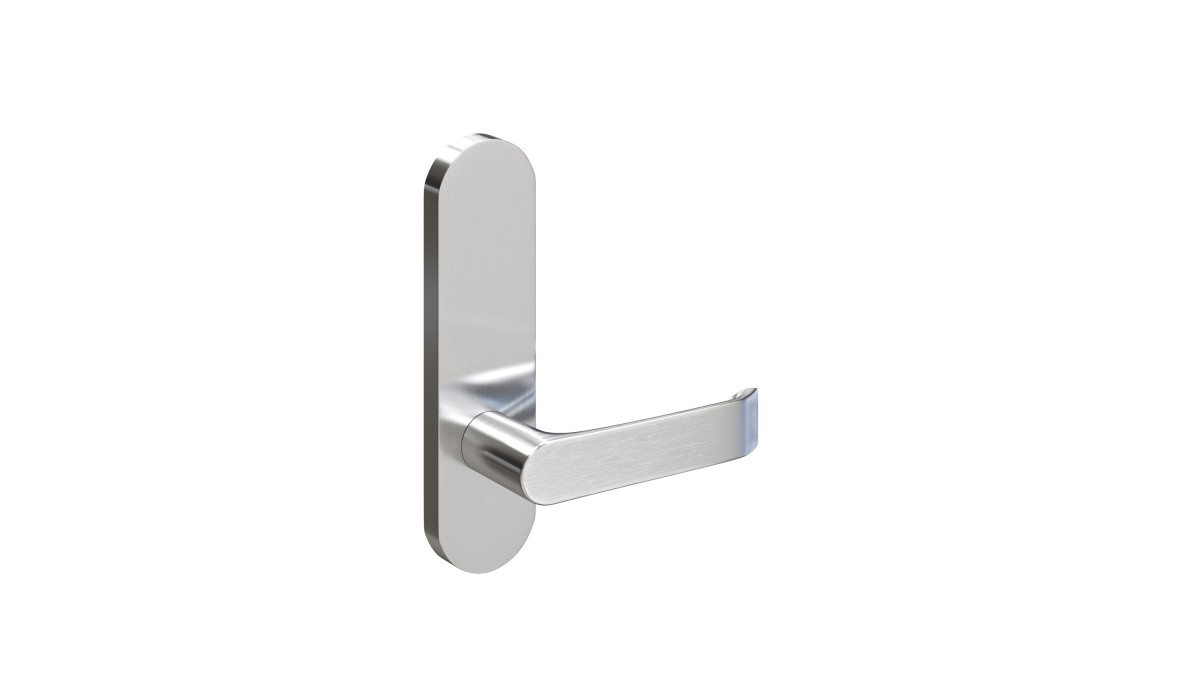

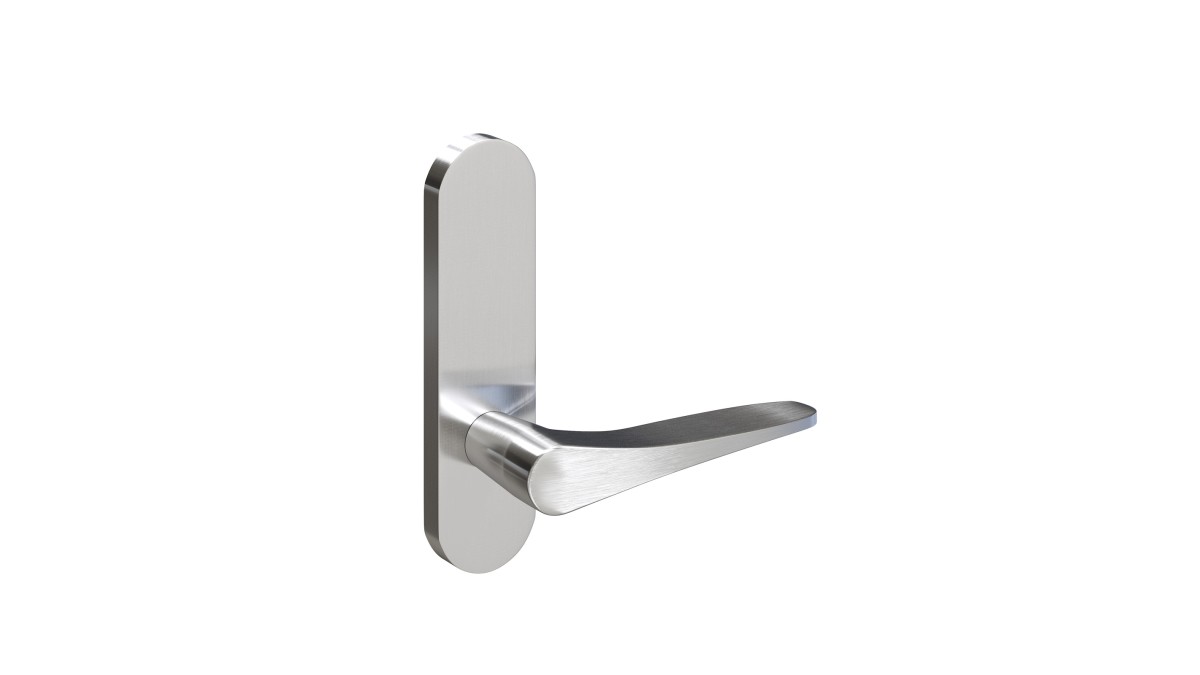

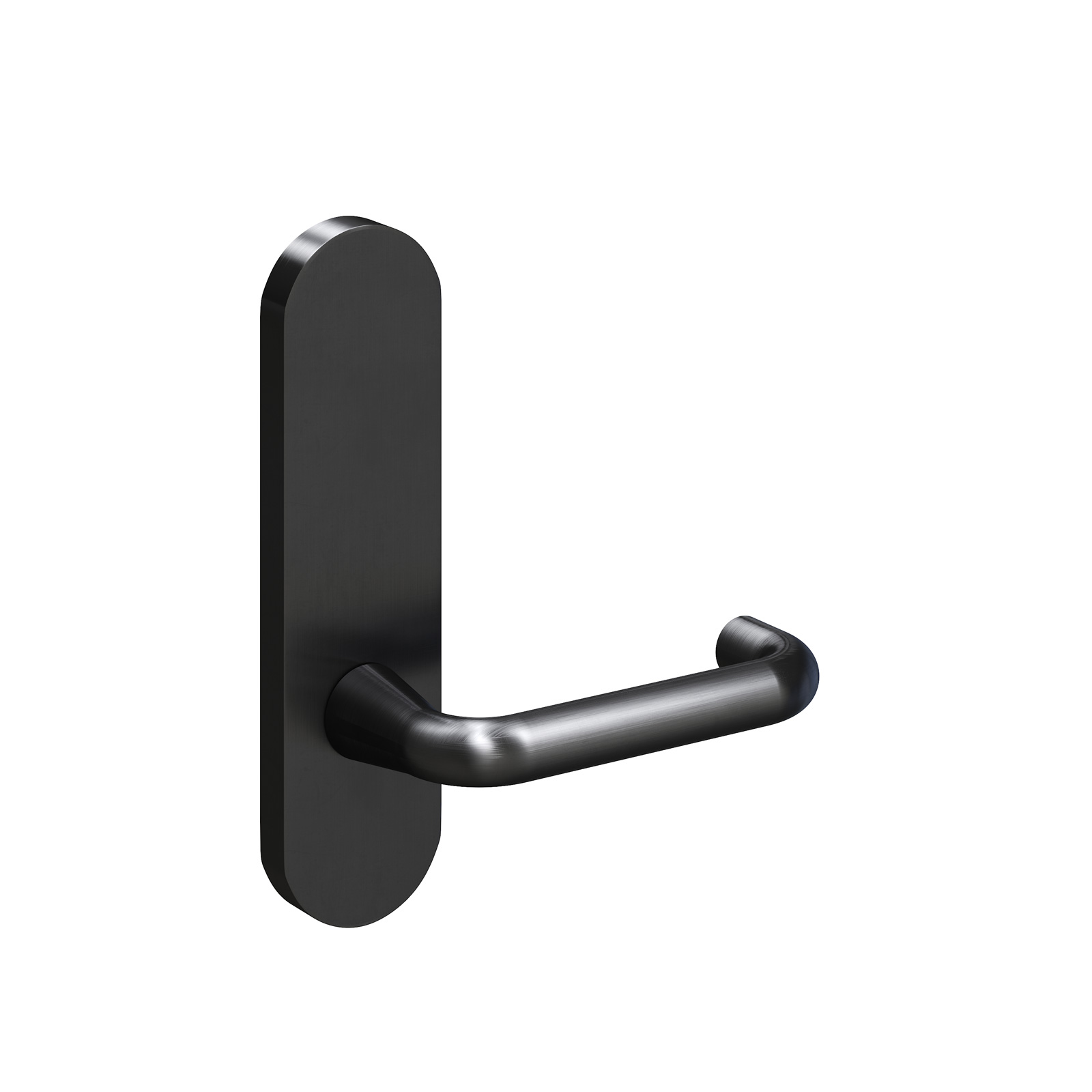

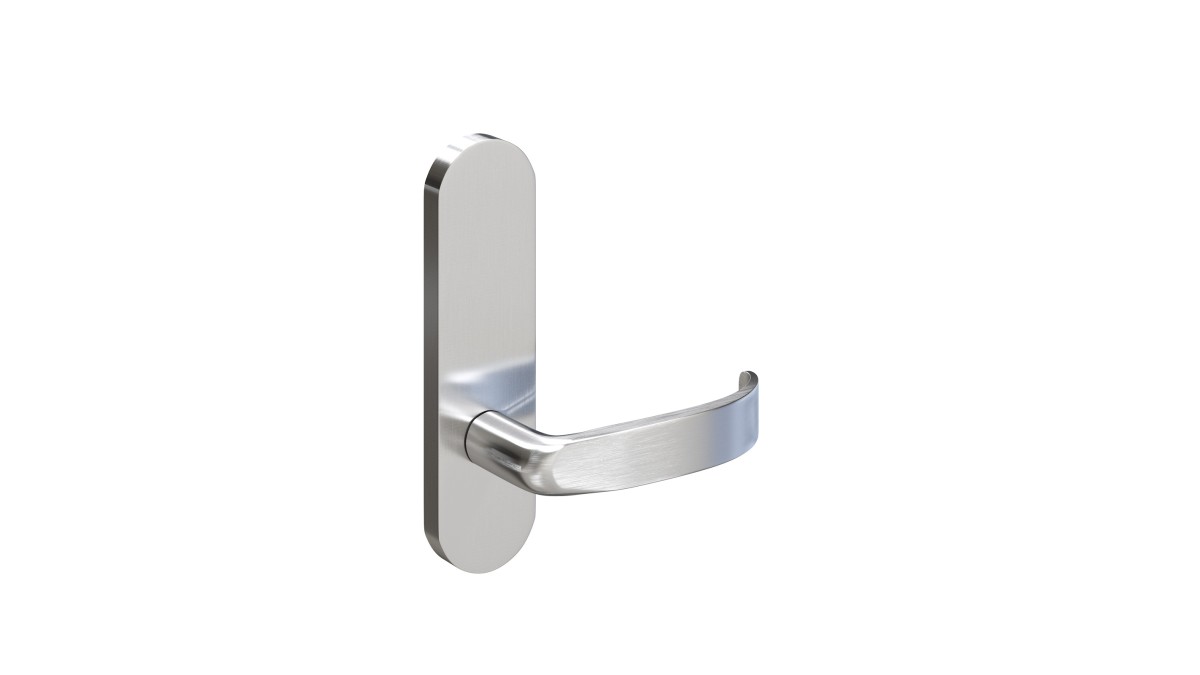

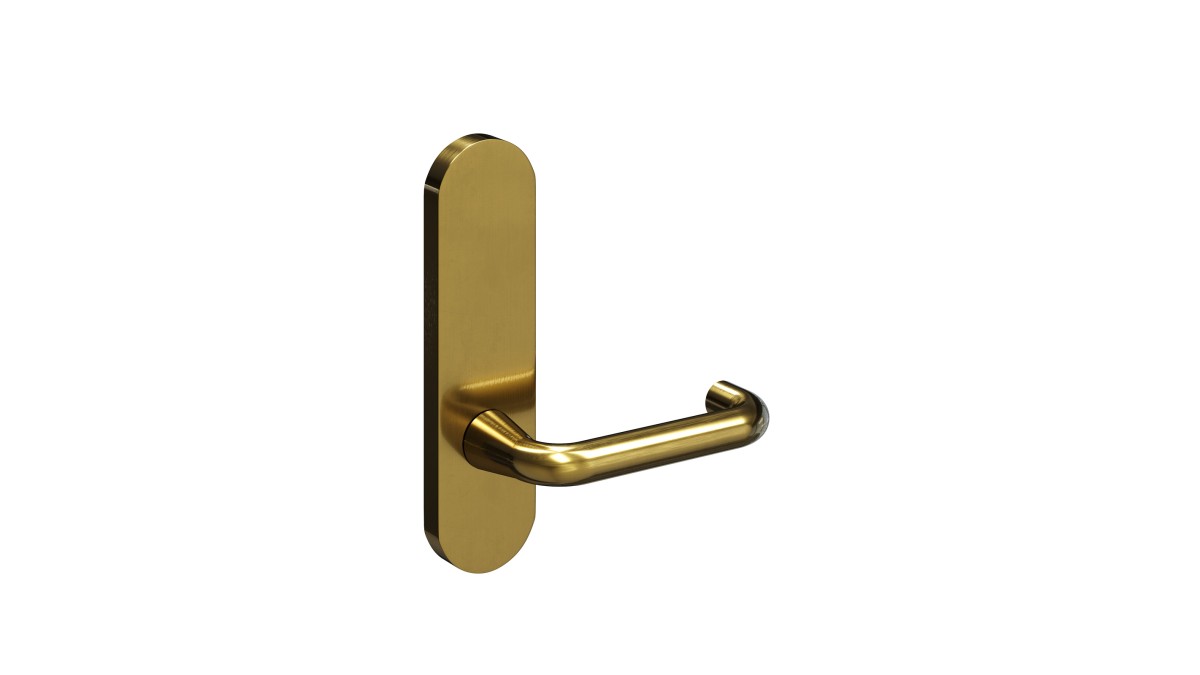

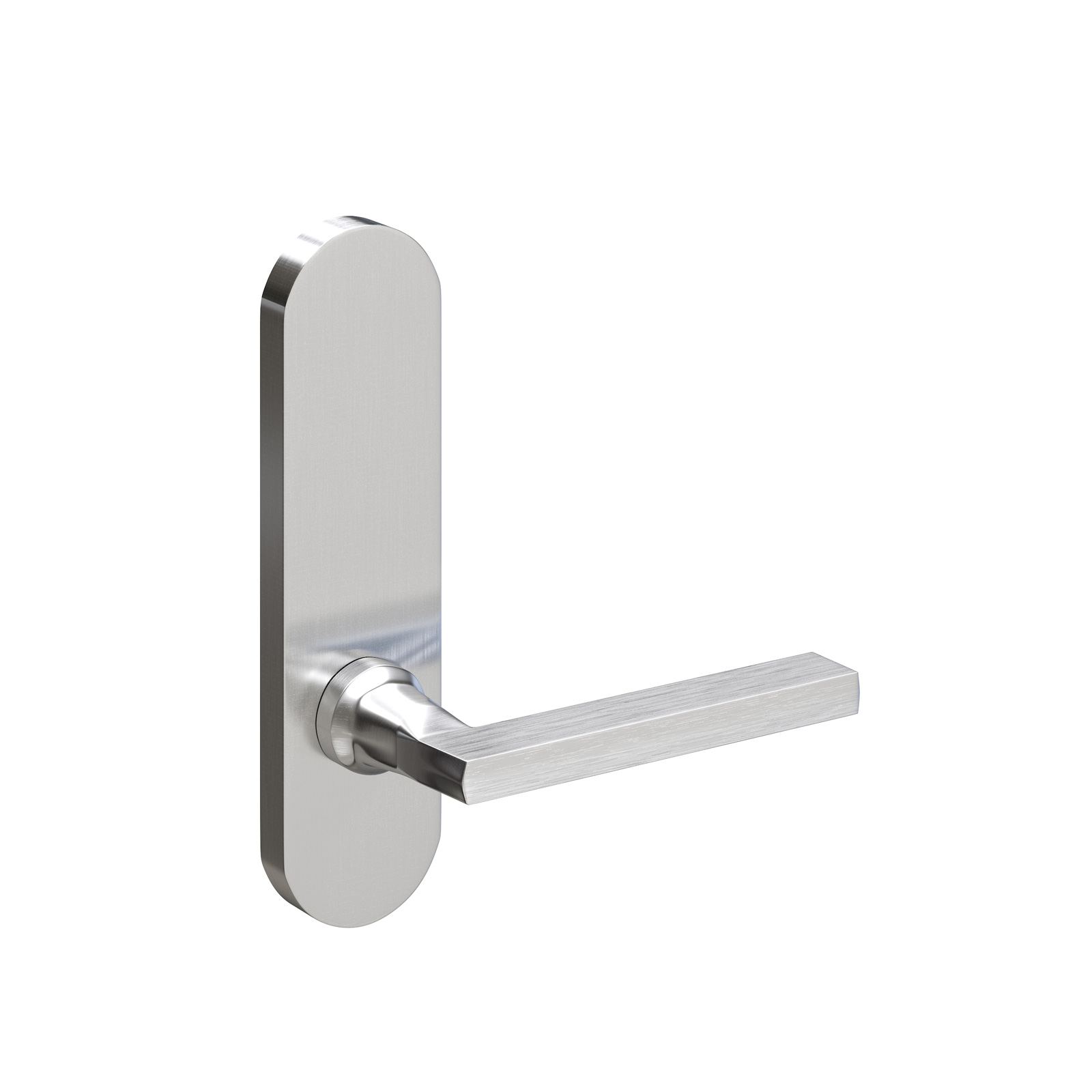

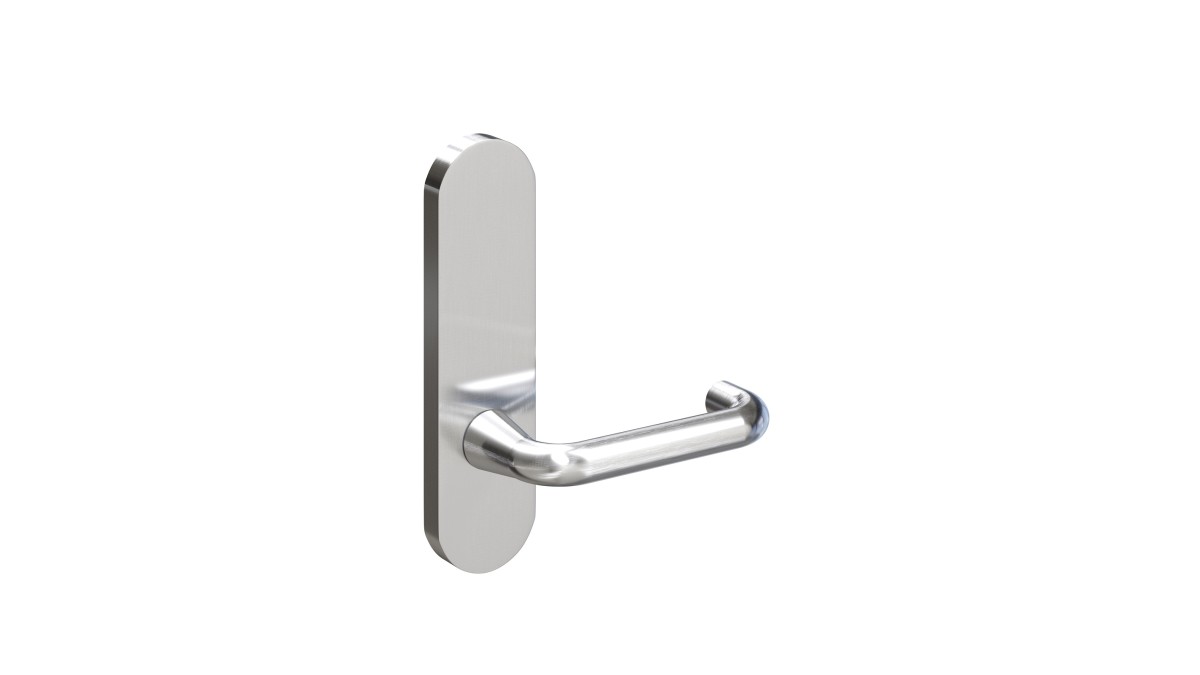

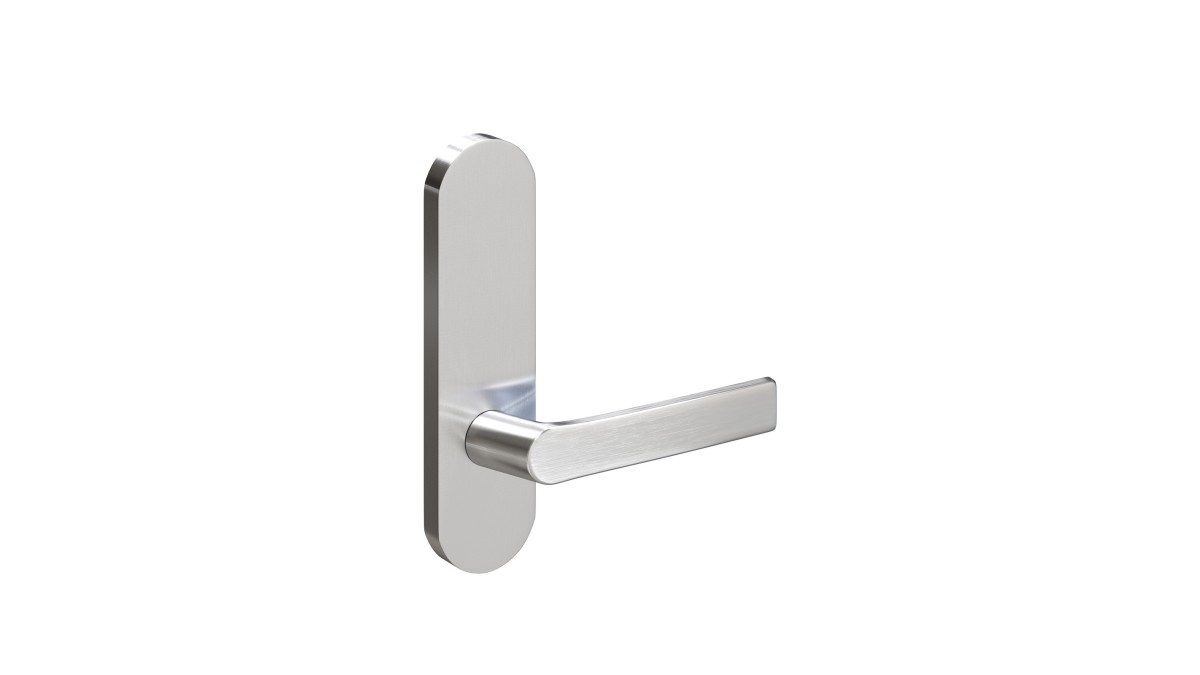

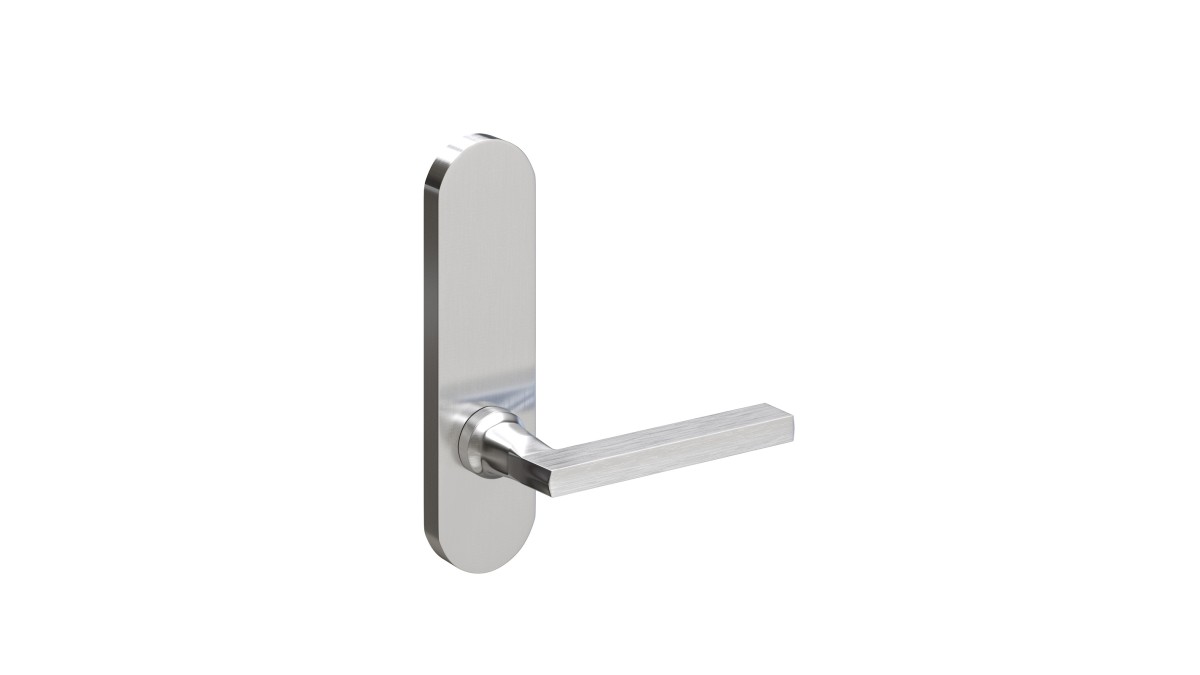

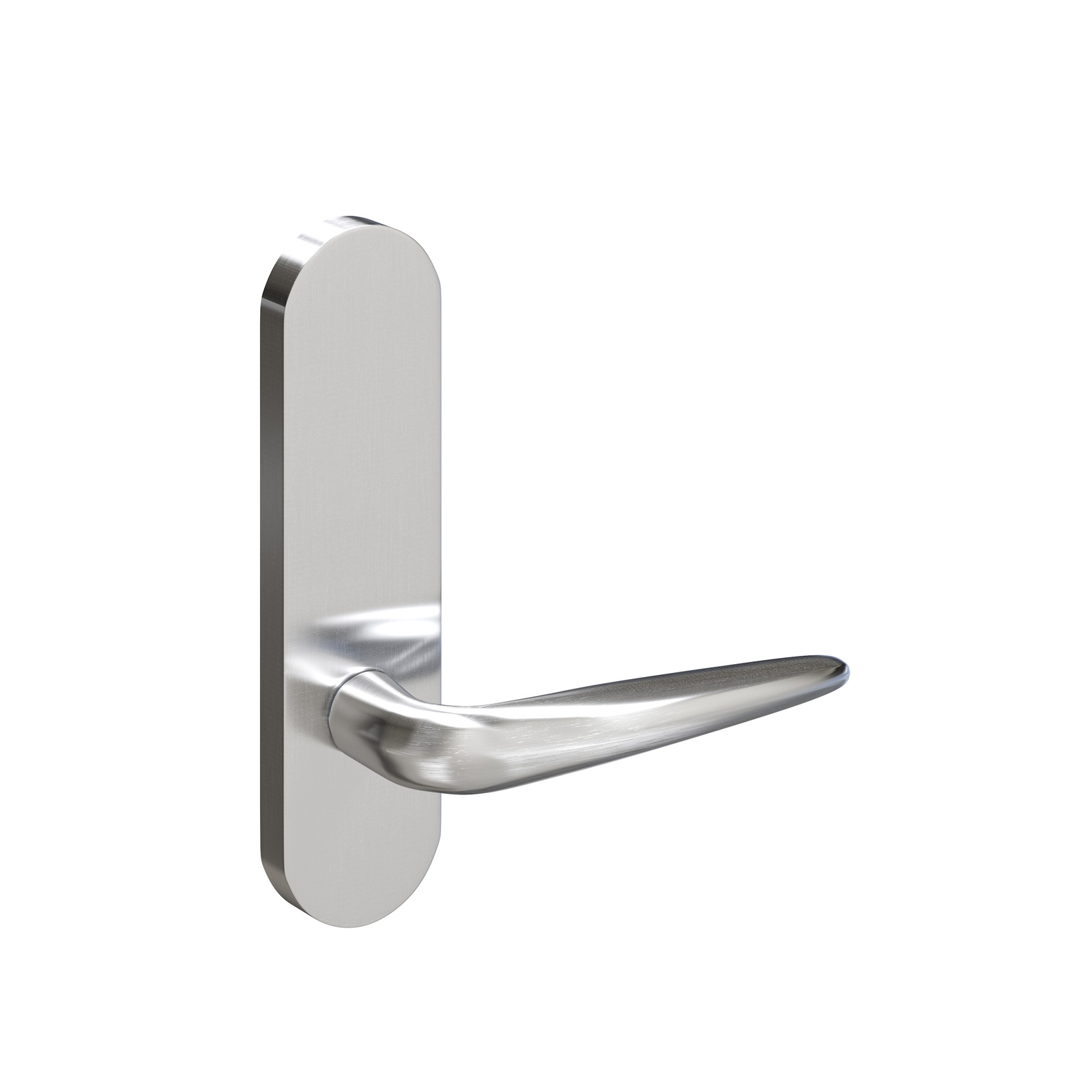

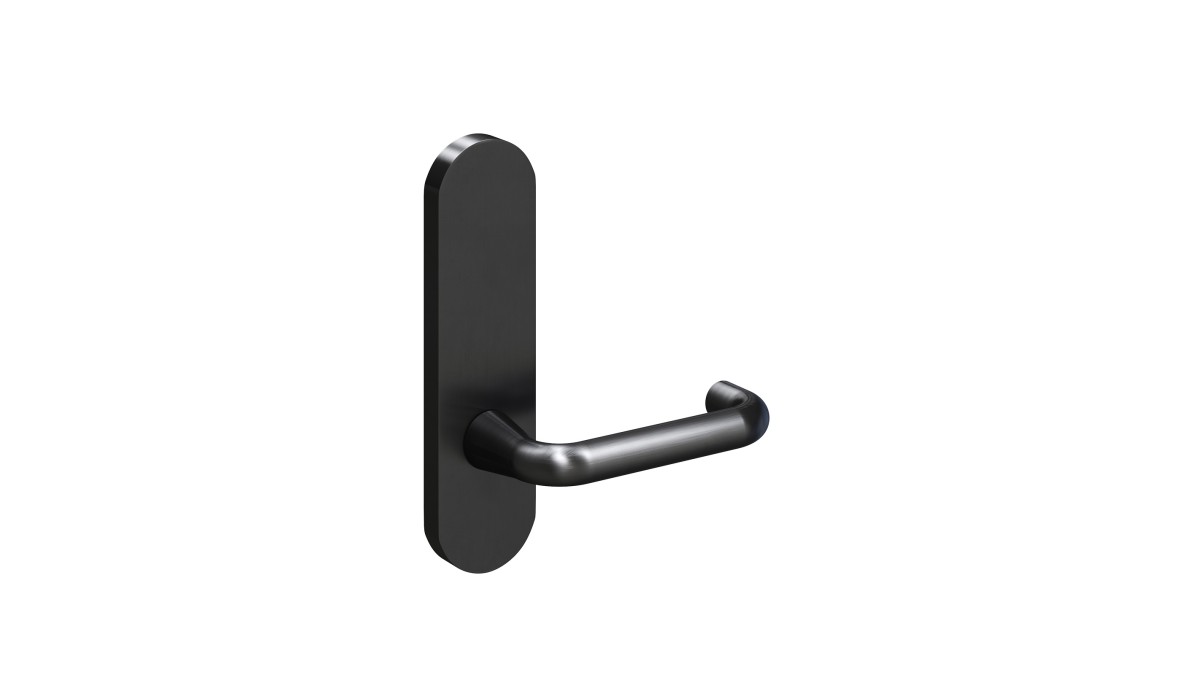

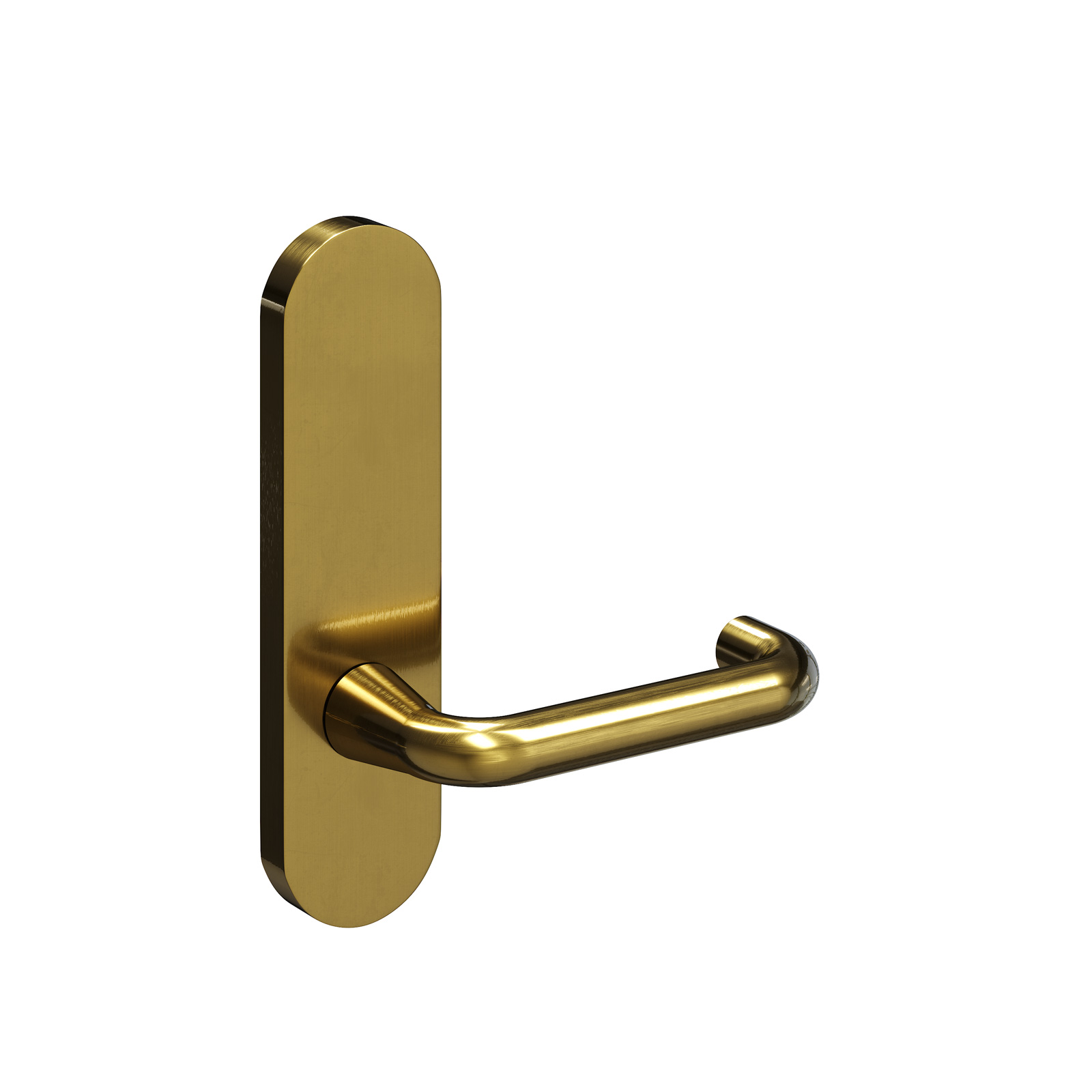

Available finishes: Antique Bronze, Chrome Plate, Oil Rubbed Bronze, Polished Brass, Satin Chrome Plate, Satin Black Chrome, Satin Brass

Key Features
  • Constructed of commercial-grade quality components, with forged brass levers and plates
  • Heavy-duty spring provides a smooth, positive return action of the lever and eliminates droop extending the life of the product
  • Furniture re-handed by simple relocation of lever using the screw stop block prior to installation
  • Anti-vandal guard option available
  • Anti-hang option available
  • Suitable for use on fire door assemblies when used with fire-rated locks and latches
  • 30 year mechanical warranty



Scope of Use
  • Legge commercial furniture should be specified where heavy duty and durable door furniture is essential.
  • Designed for use on commercial applications.
  • Suitable for use on fire door assemblies when used with fire rated locks and latches
  • Anti-vandal guard option available
  • Anti-hang option available
  • Door type: Timber or metal
  • Door thickness: 32mm to 50mm (51mm to 75mm with optional extended screws)
  • Fixing centres: 147.5mm
  • Plate height: 168mm
  • Plate width: 48mm
  • Plate thickness: 11mm
  • Lever to cylinder centres: 63.5mm
  • Spindle size: 7.6mm
  • Compatible locks/latches: Legge 990MF Series mortice locks
  • Fixing: Back to back, external plates concealed fixing, screws supplied with exterior plates only, screw length 75mm, optional extended screw 100mm
Other Performance Attributes
  • The 30 year mechanical warranty provides specifiers and users with assured quality and performance
Documents
500 Series
Installation and Operation
Commercial Warranty 2023
Caring for Door Hardware
