Brio Weatherfold 4s Window and Servery 35 Hardware
Description

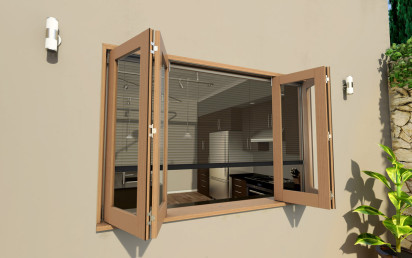

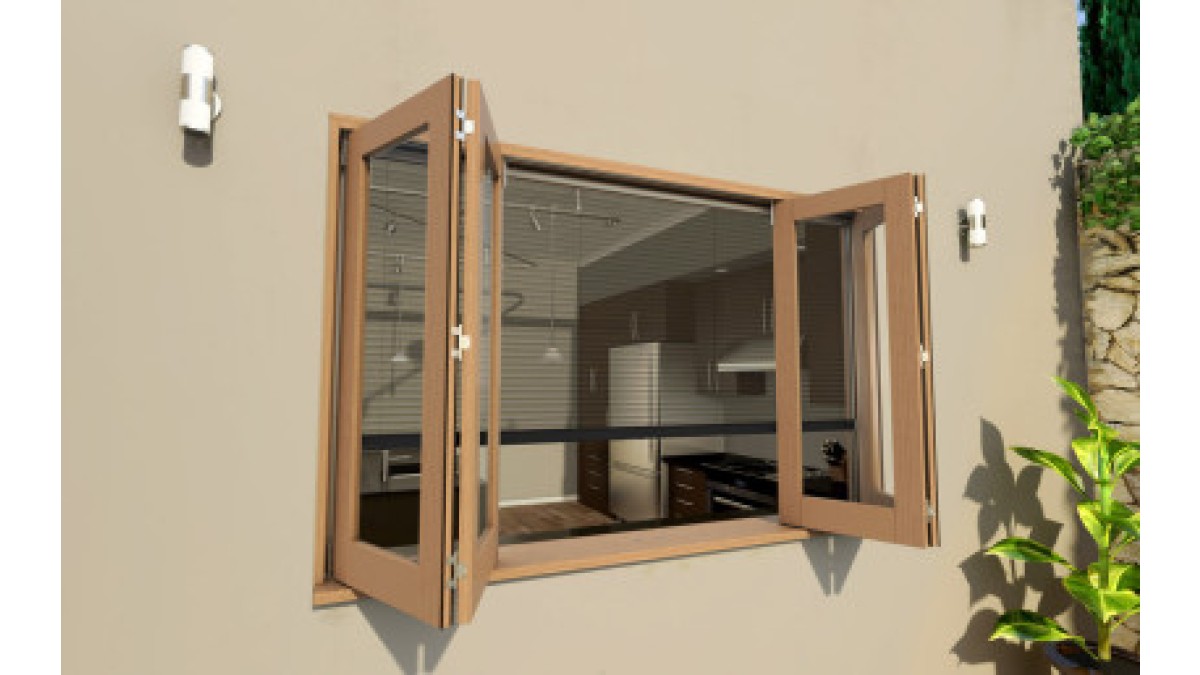

Brio Weatherfold 4s Servery 35 has been developed specifically to meet the requirements of servery type installations. As no sill or channel is required, the work surface is left completely unobstructed from one side to the other making this an ideal solution for kitchen serveries that open out to exterior dining areas.

Key Features
  • Each window sash can weigh 35kg by 1000mm wide comfortably accommodating a span of 12m. This is made possible by the new recessed bottom guide system.
  • The guide system not only provides stability for folding up to 12 window sashes, its concealed low profile design and excellent weatherproofing capabilities make it an ideal option for window sills.
Scope of Use

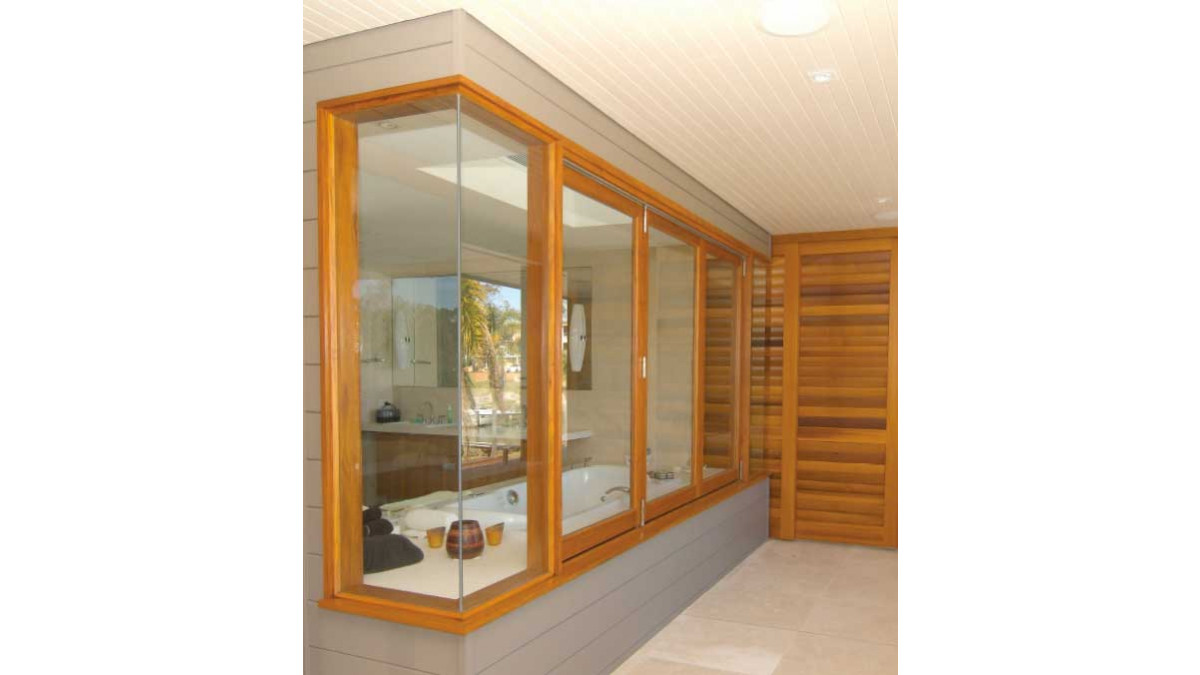

The systems are suitable for many applications with a wide range of configurations. The Weatherfold 4s 35 family is most suited for applications that include kitchen serveries, living areas, bedrooms, cafes, hotels, bars and restaurants or where an architectural feature is desired.

  • Max Panel Weight: 35kg
  • Max Panel Width: 650mm
  • Max Panel Height: 1800mm
  • Min Panel Thickness: 35mm
  • Max Number of Panels: 2 each way
Documents
Data Sheet

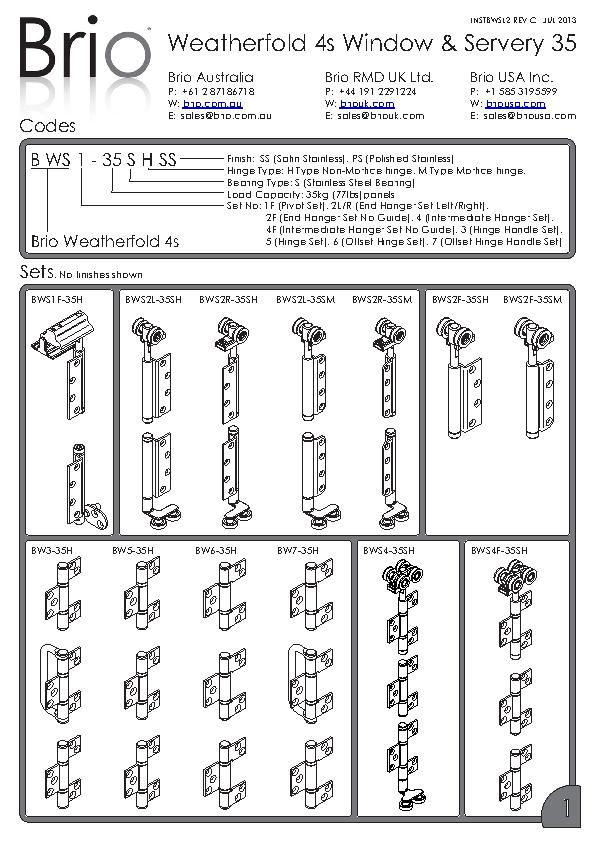

Installation and Operation
Brochure
Installation Details
Installation
