Brio Open Round Rail Glass 100
Description

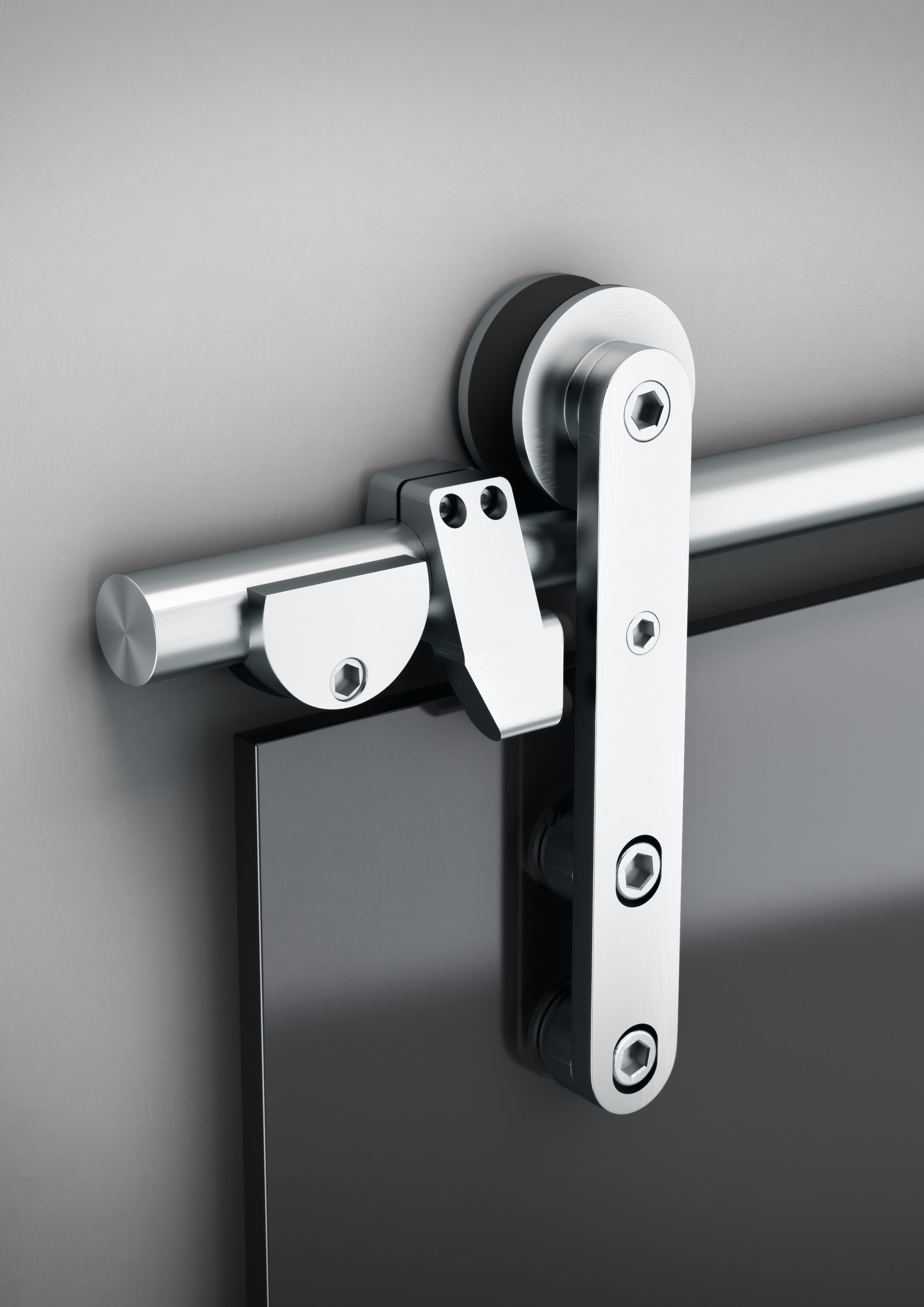

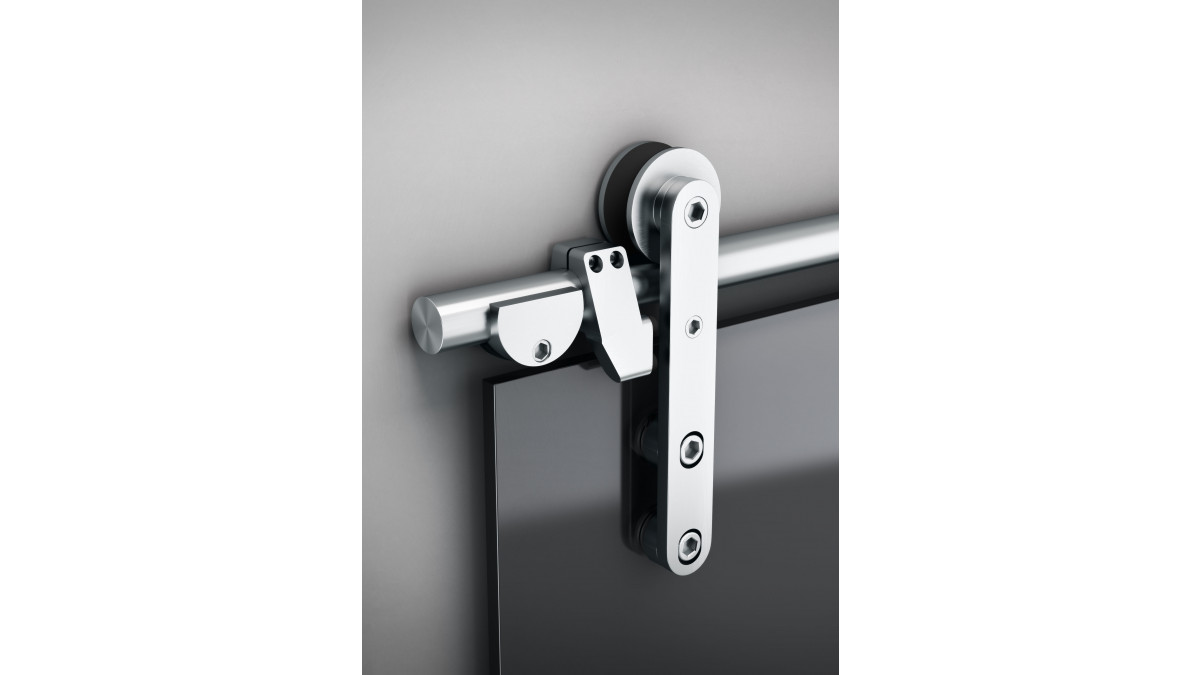

Brio’s Open Round Rail Glass system is an elegant solution for frameless glass panels in any home or office application.  Suitable for panels up to 100kg of 8, 10 or 12mm thickness. The sealed precision bearing and nylon inlaid tyre ensure high performance and smooth operation every time.  The versatile, stainless steel guide suits for all 3 sizes and adds to the minimal appearance achieved with this system.

Key Features
  • The universal stainless steel guide can hold glass panels of 8, 10 and 12mm thick and 100kgs in weight
  • Sealed precision stainless steel bearing with nylon inlaid tyres and brushed stainless steel round rails are easy to install and performs effortlessly every time
  • To request a sample or demonstration please contact Allegion
Scope of Use

Brio Open Round Glass 100 ideal internal system for residential and commercial applications of toughened glass panels with exposed hangers and rail.

  • Max panel weight: 100kg
  • Panel width: 2000mm
  • Panel height: 3000mm
  • Panel thickness: 8, 10 and 12mm max
Documents
Data Sheet
Brochure
Request Sample or Demonstration

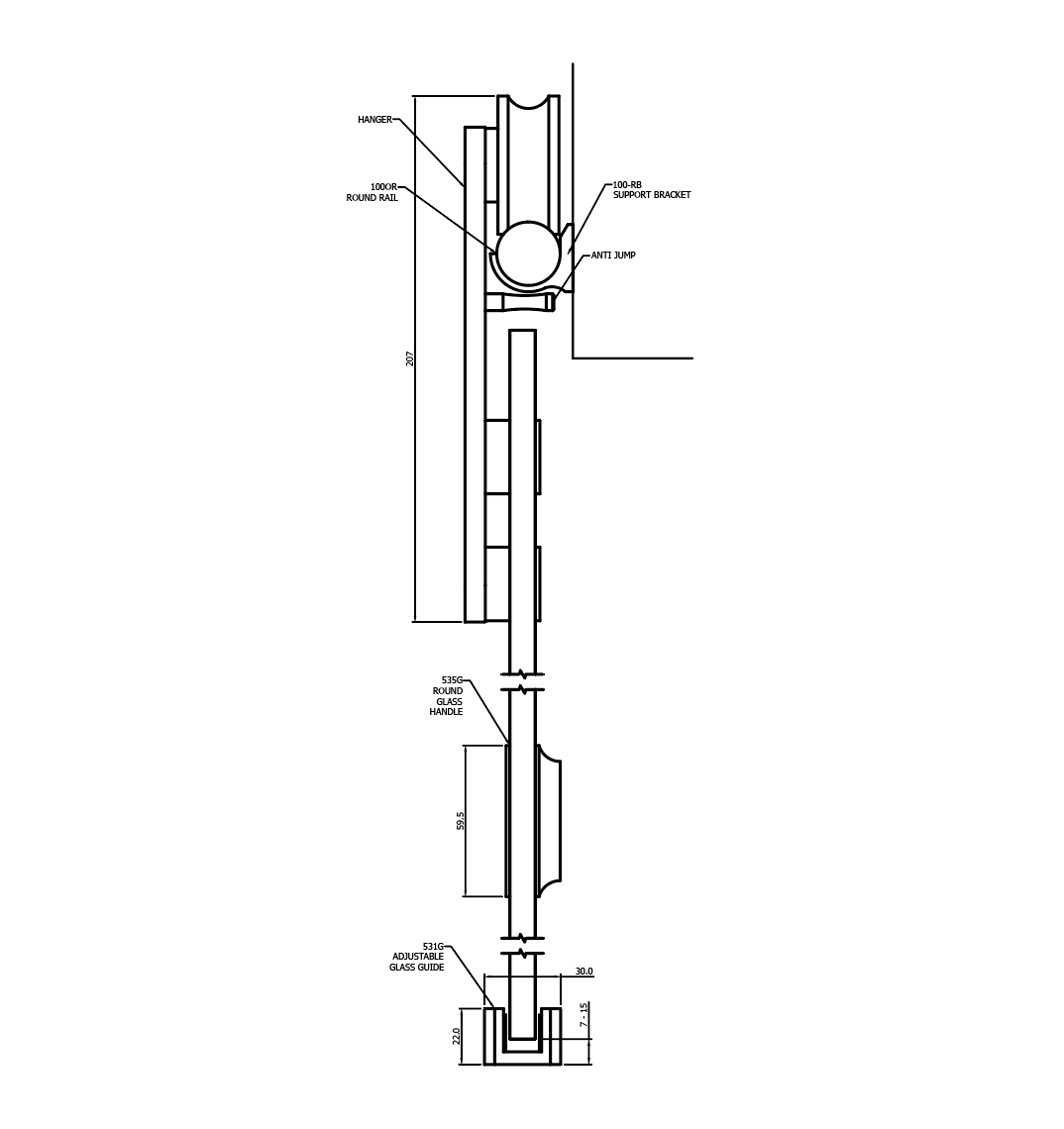

CAD/PDF Details
Round Rail Glass

2022

Allegion locally manufactures residential and commercial hardware: electronic locks, mechanical door furniture, cylinder, keying, door control, exit devices and hardware for sliding and folding doors.
