Techlam NZ Completes CCCS Jubilee Church

Techlam NZ

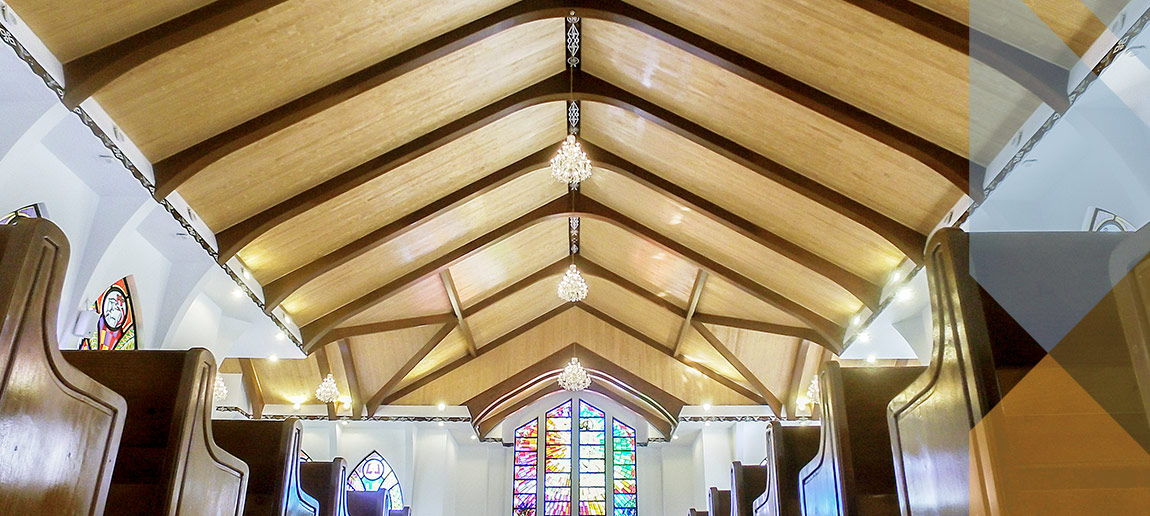

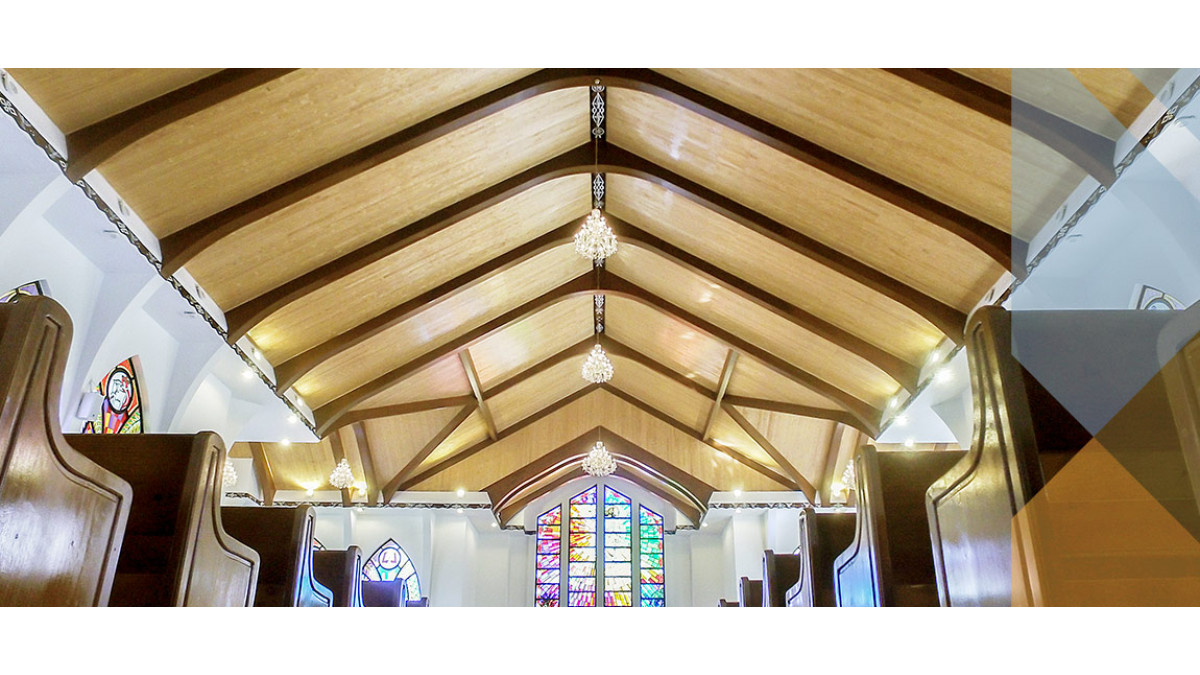

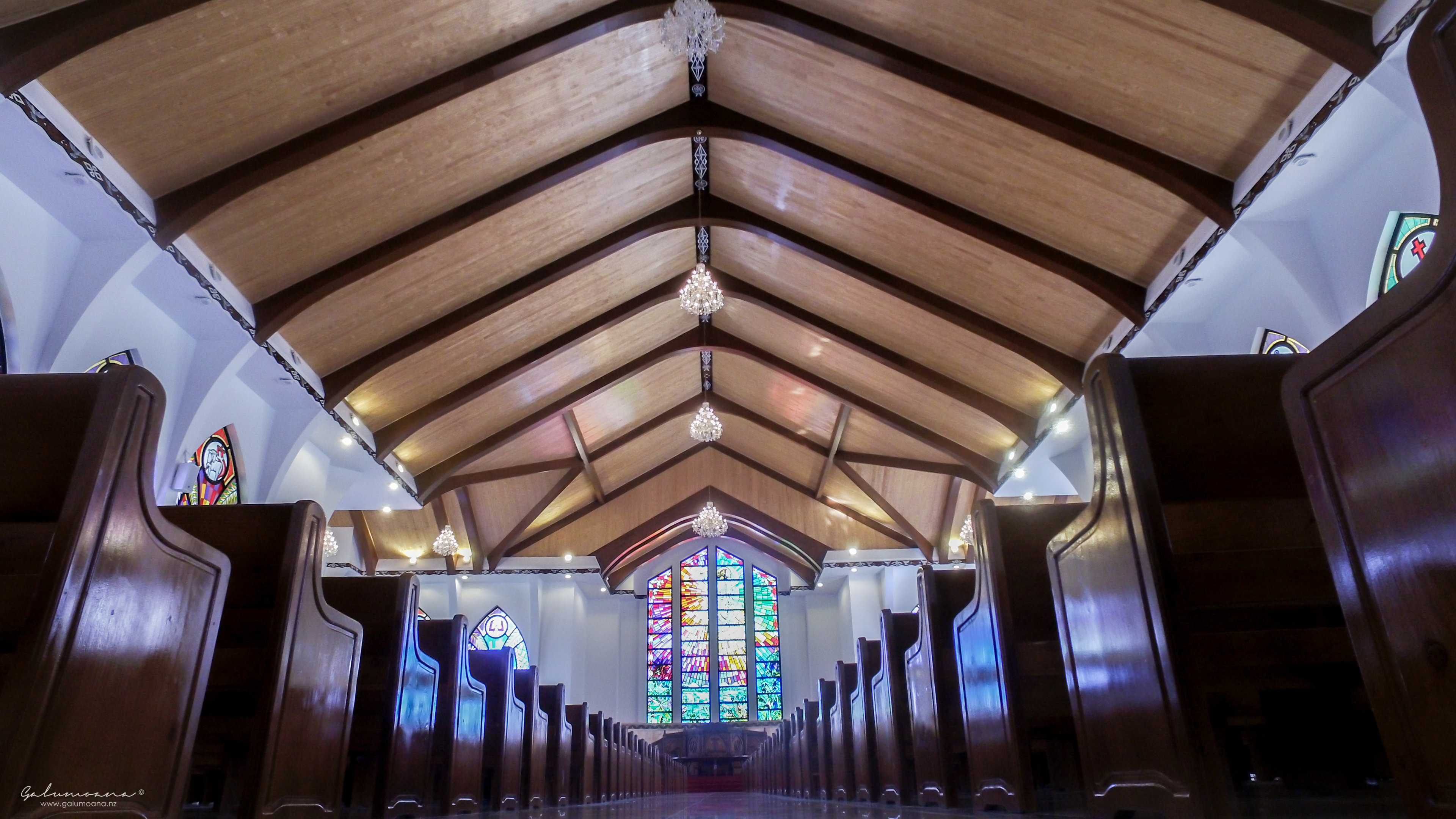

Officially opened in June 2017, the Jubilee Church in Malua, Samoa features extensive structural timber from Techlam.

Malua is a small village on the Samoan island of Upolu. The name originates from the Samoan word 'Maluapapa' which is translated as 'shelter under the rock'.

CCCS have been building the new church for the last several years, with the massive structure slowly taking shape.

Techlam became involved in this project early in 2015, and it was soon realised that the roof design was going to need a lot of changes to enable it to perform in the cyclone prone area. Techlam worked with the church and engaged their engineer to redesign the structure so it was stronger, and more importantly for the client, more efficient and less costly to build.

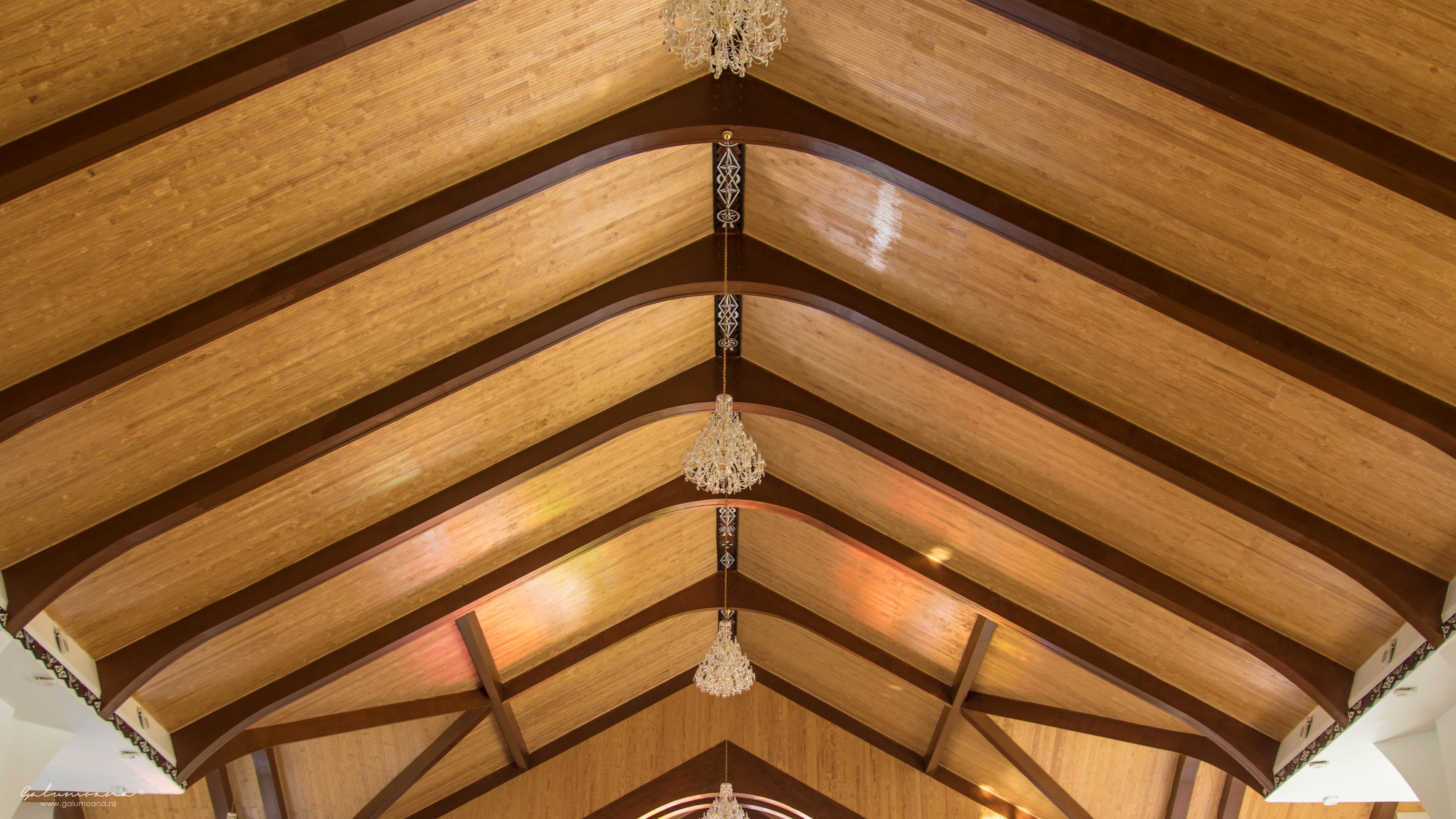

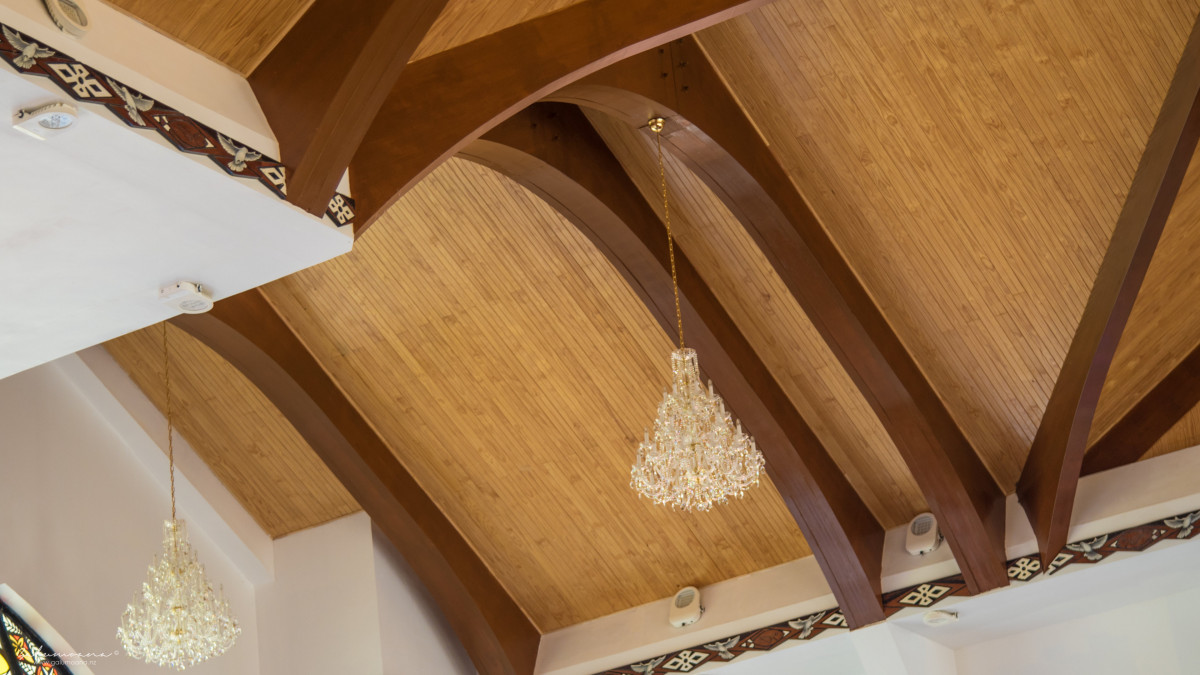

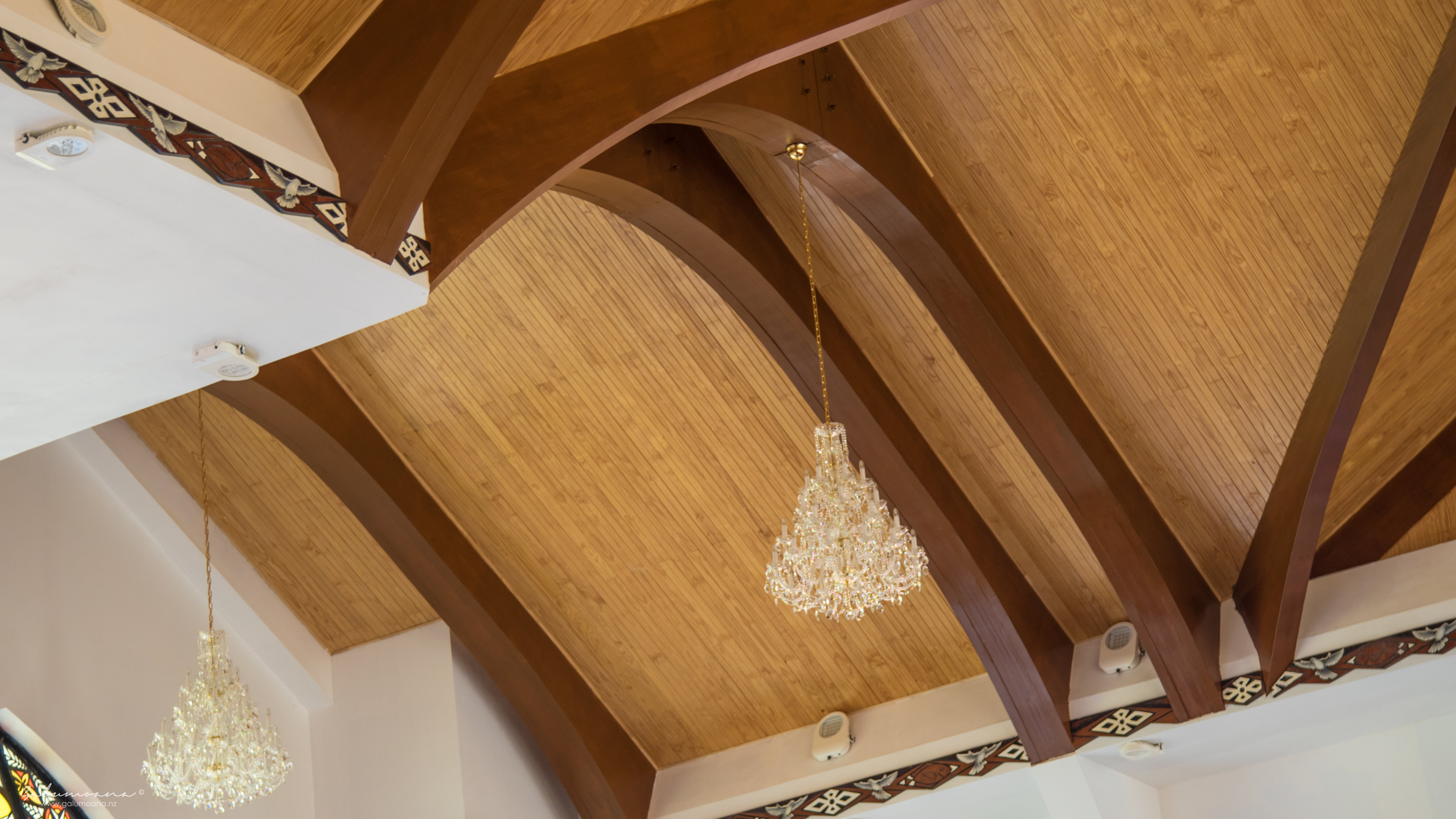

The final design incorporated a 'box beam' configuration. This meant that Techlam could create a beam that matched the width of the concrete columns already poured on site, enabling a seamless transition from the walls through to the rafter beams. The beams are a massive 19 metres above the floor level.

Location: Malua, Upolu, Western Samoa
Client: Congregational Christian Church of Samoa
Architect: Evan Ngau Chun
Structural Engineer: Kirk Roberts
Builder: CCCS/Shanghai Construction Group
Products Used: Glulam 'Box' Rafter Beams, Glulam Purlins

Connection Detailing

Connection Detailing

Techlam NZ

View Product

Techlam can source and pre-fit many different types of structural timber connections in the plant, allowing significant reductions in time spent on site and reducing the need for site cutting or epoxying.

Show more

Curved Beams

Curved Beams

Techlam NZ

View Product

Curved glulam timber beams have long been a cost-effective form of construction, both for their strength and design capabilities.

Show more

FSC Certified
FSC Certified

Techlam laminated timber posts and beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Show more

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

  • Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
  • Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
  • Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9)
  • Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Show more

PASS
PASS
Glulam Portals

Glulam Portals

Techlam NZ

View Product

Techlam laminated timber portal frames are a structural solution, providing large and efficient spans.

Show more

FSC Certified
FSC Certified

Techlam laminated timber portals can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. Manufacturing is subject to project specific environmental conditions.

Show more

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

  • Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
  • Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
  • Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
  • Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Show more

PASS
PASS
Glulaminated Visual Appearance Grade

Glulaminated Visual Appearance Grade

Techlam NZ

View Product

Techlam Trade's Visual Appearance Grades are the best choice for any application where timber members are exposed to view.

Show more

FSC Certified
FSC Certified

Techlam Laminated Timber Posts and Beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Show more

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

  • Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
  • Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
  • Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
  • Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Show more

PASS
PASS
Rafter Beams

Rafter Beams

Techlam NZ

View Product

Lightweight, strong and aesthetically pleasing, laminated timber is far superior to solid timber, with stability and consistent structural properties key benefits.

Show more

FSC Certified
FSC Certified

Techlam laminated timber posts and beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Show more

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

  • Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
  • Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
  • Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
  • Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

Show more

PASS
PASS
Techlam NZ
View more information on Techlam NZ, including contact details.
