Plan Carbon Zero Projects with Confidence

Creating carbon zero structures with Techlam glulaminated timber products can be simpler and more environmentally-friendly than using traditional steel materials. This is because glulaminated timber stores carbon, and the greenhouse emissions used to make it are negligible when compared to the amount of carbon dioxide the timber has absorbed over the years of its growth. Timber grows naturally from the earth, is harvested and grows again — providing a sustainable way forward for construction and a 100% renewable resource.

To help archirects plan carbon zero projects with confidence, Techlam in partnership with Thinkstep-anz has created a ‘nutrition label’ that shows the end-to-end environmental impact of their glulam timber products. The findings from this exercise confirm that building a carbon zero structure with glulam products is not only possible, but relatively easy.

If further certifications or environmental criteria need to be met, like Greenstar, Homestar or Living Building Challenge, Techlam will recommend product options and provide the relevant supporting information needed to achieve these ratings.

Techlam supports carbon zero structures not only with their products, but with all the necessary technical documentation and on-call support needed to bring each project to life.

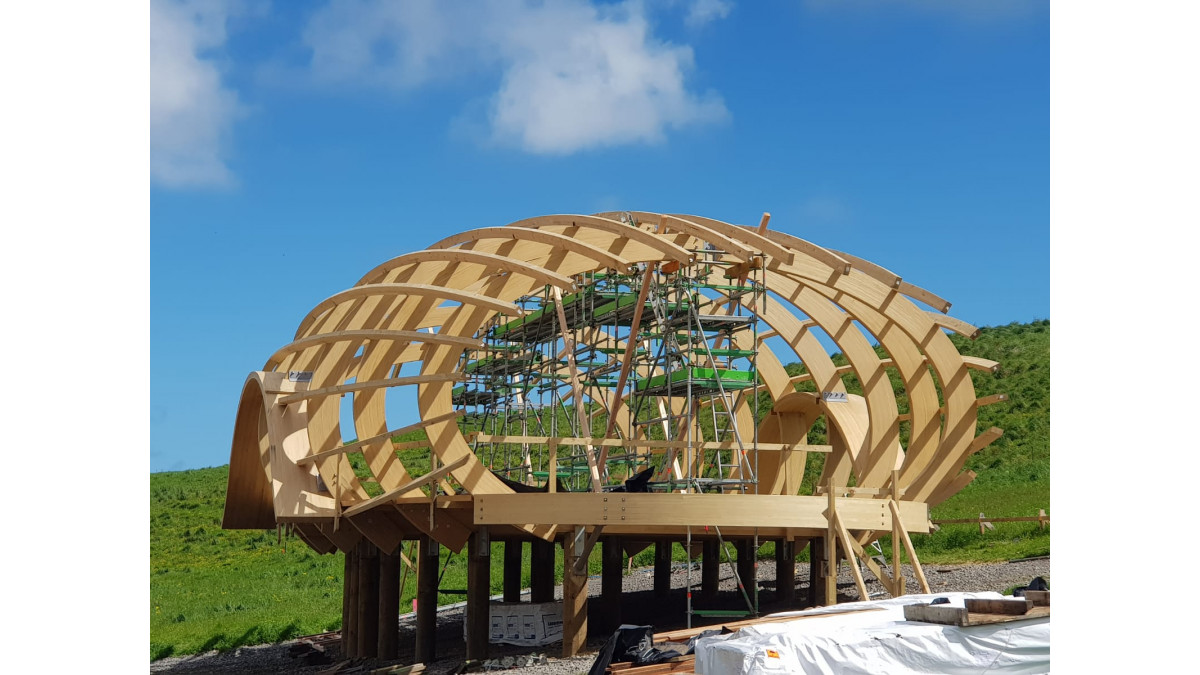

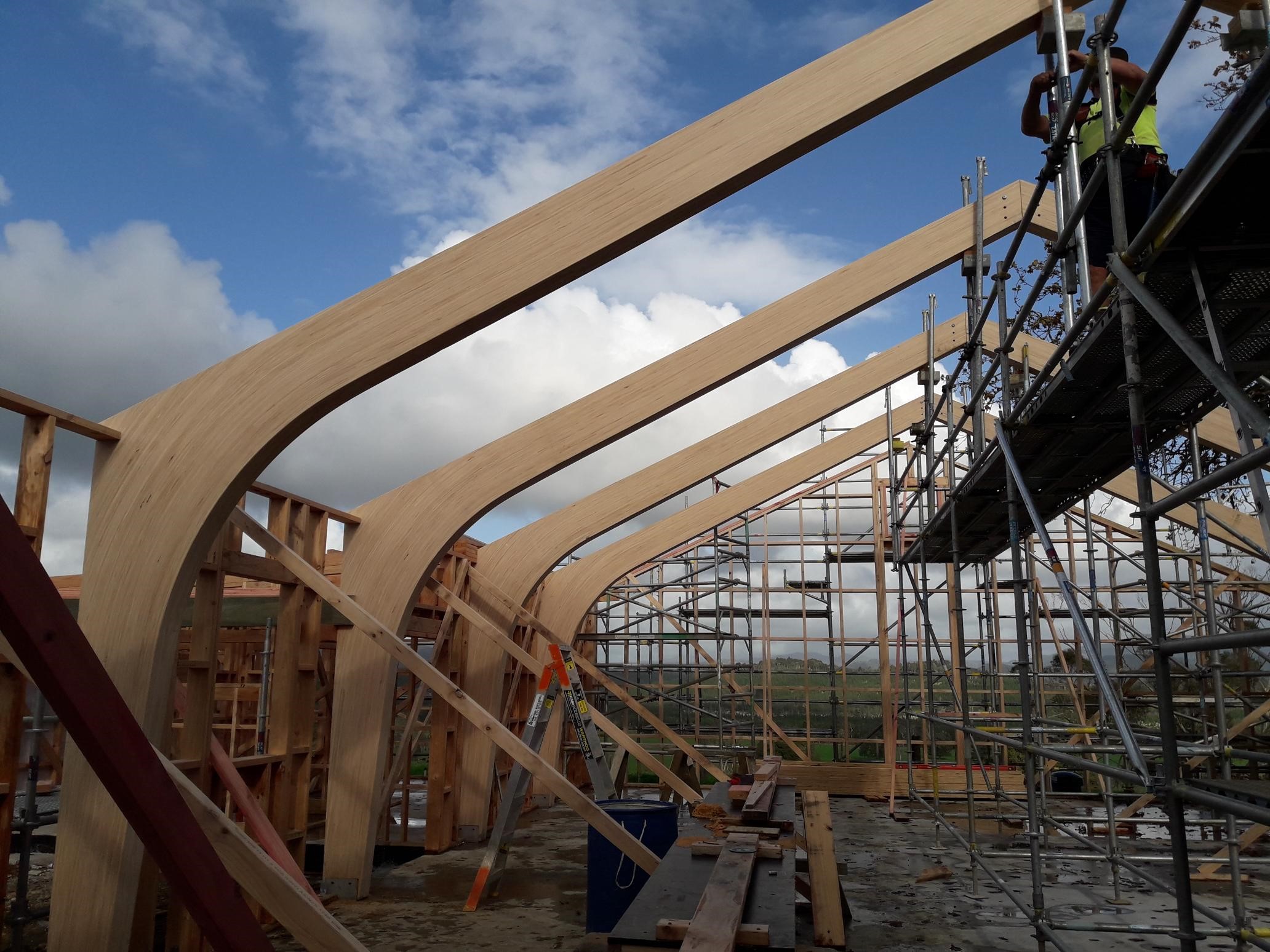

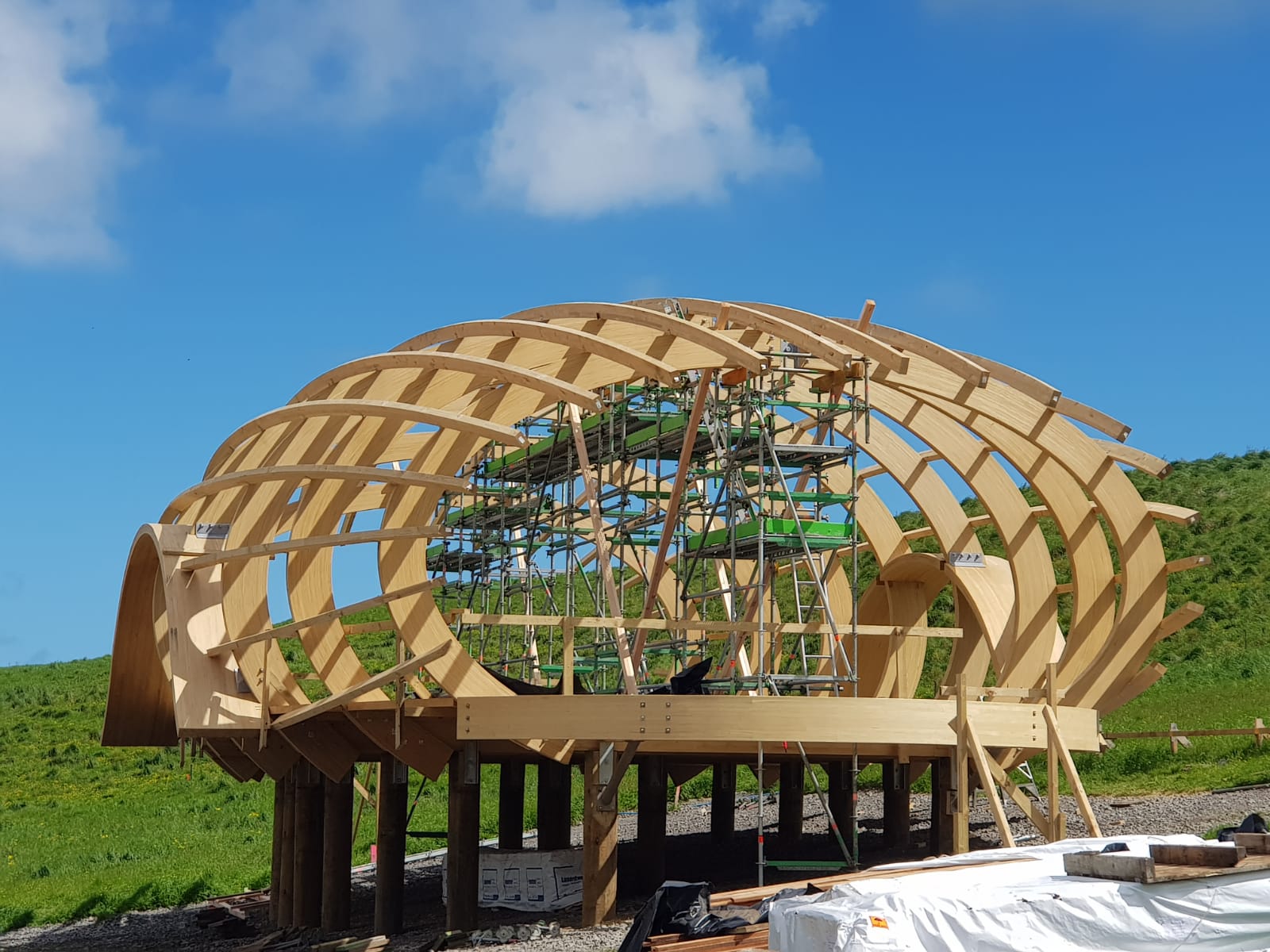

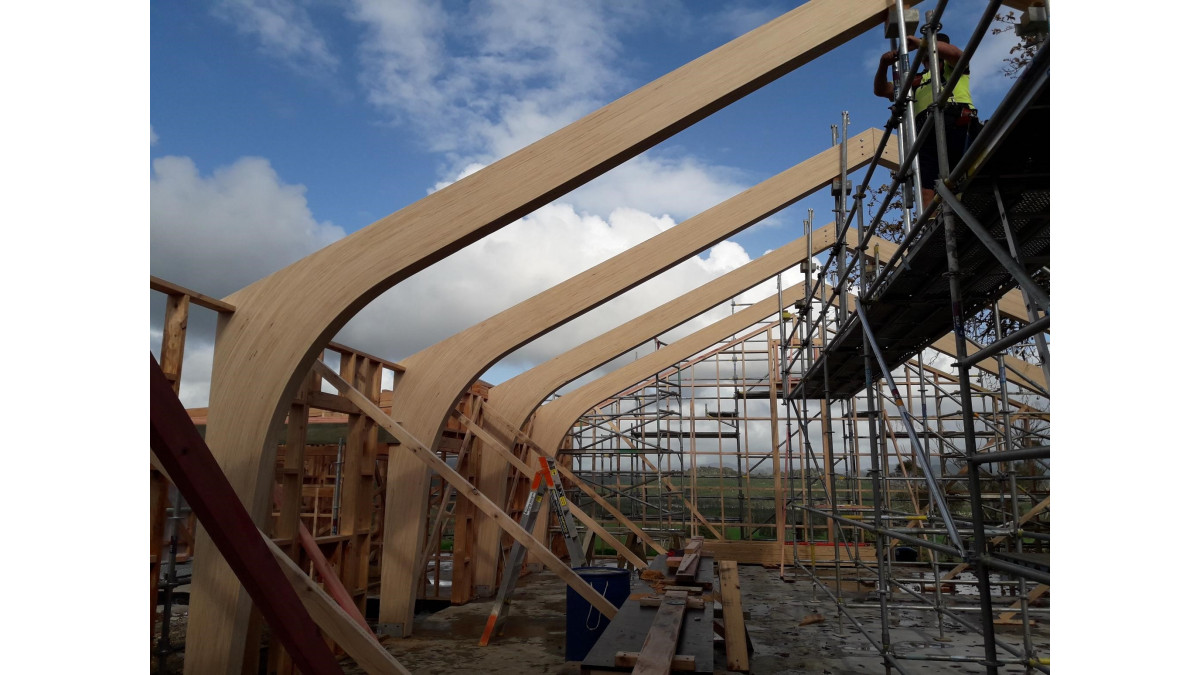

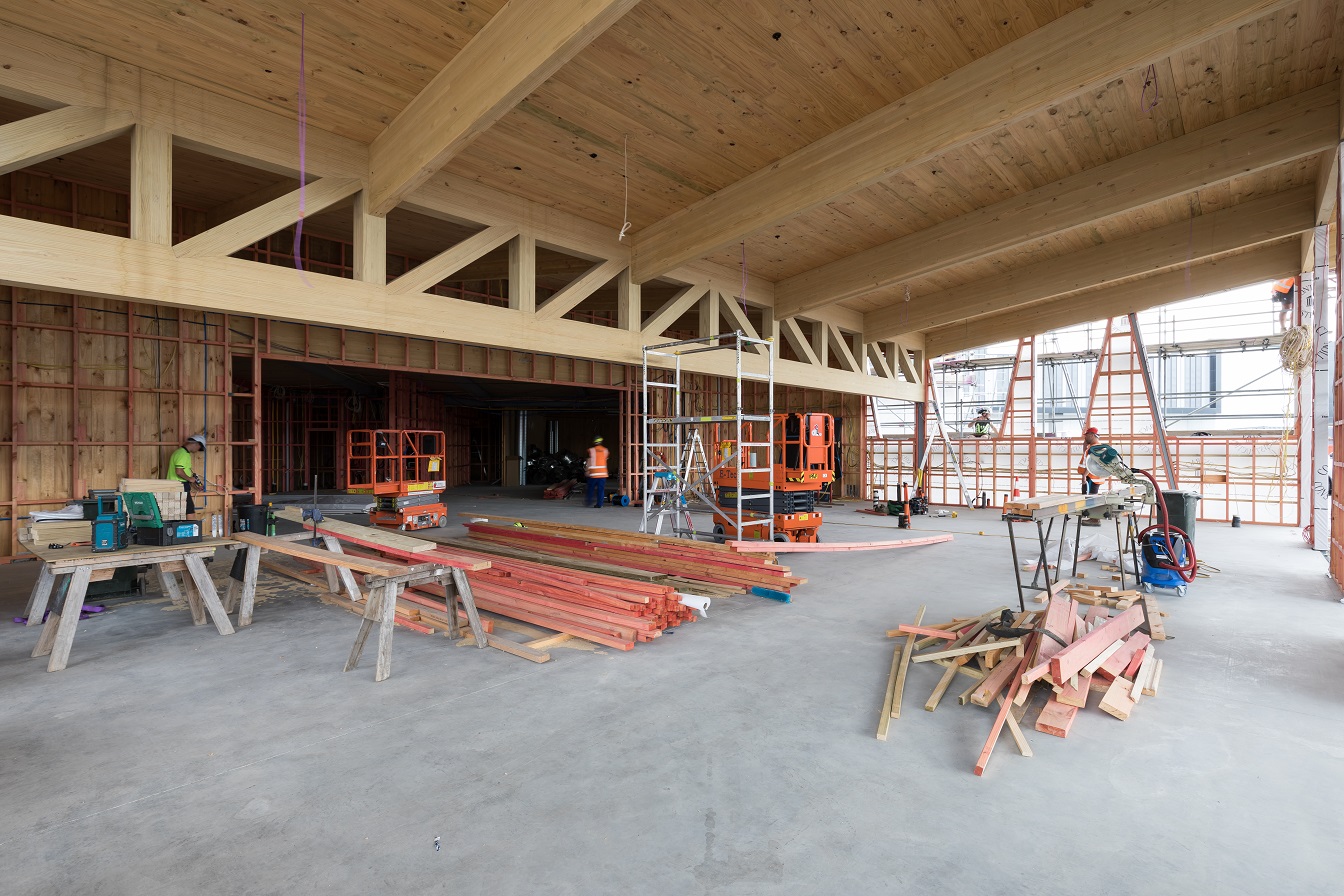

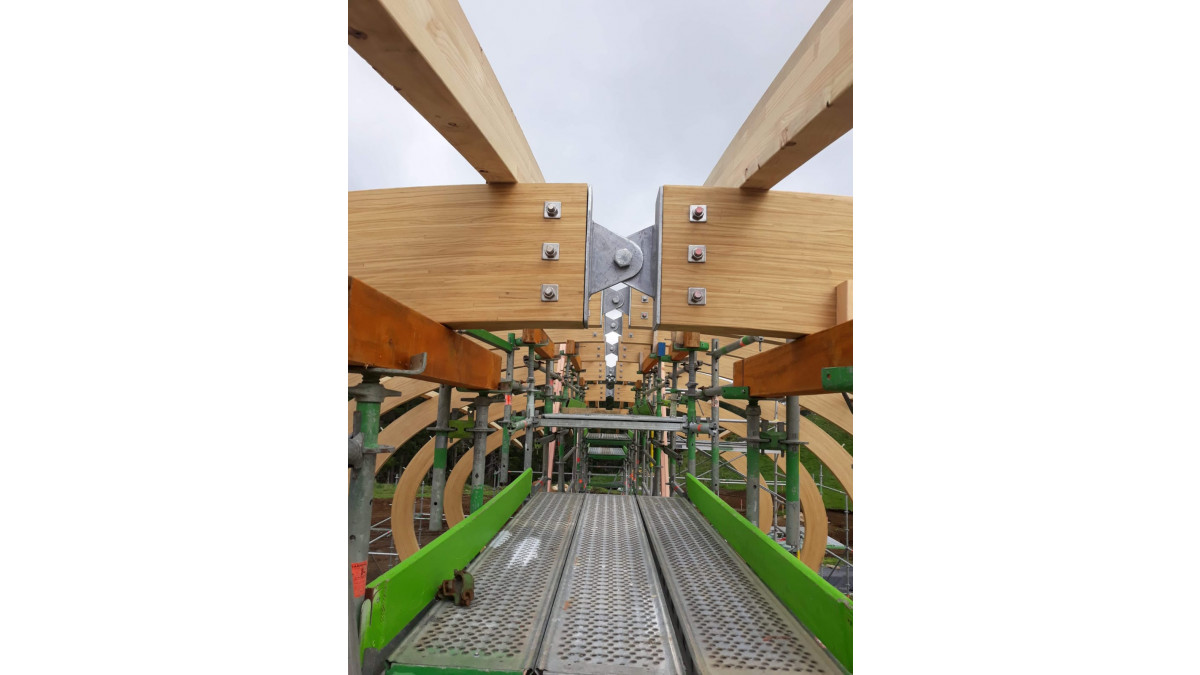

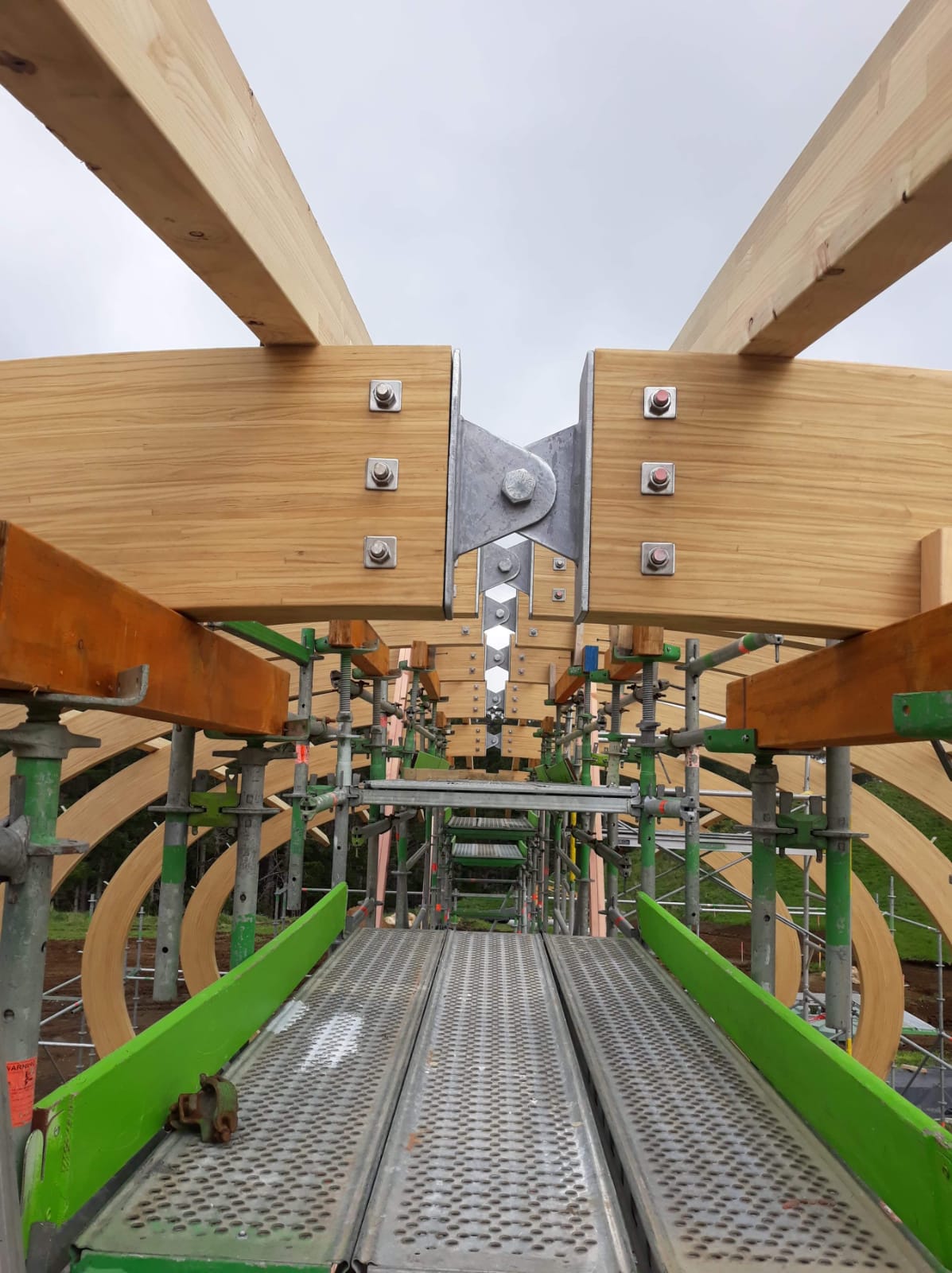

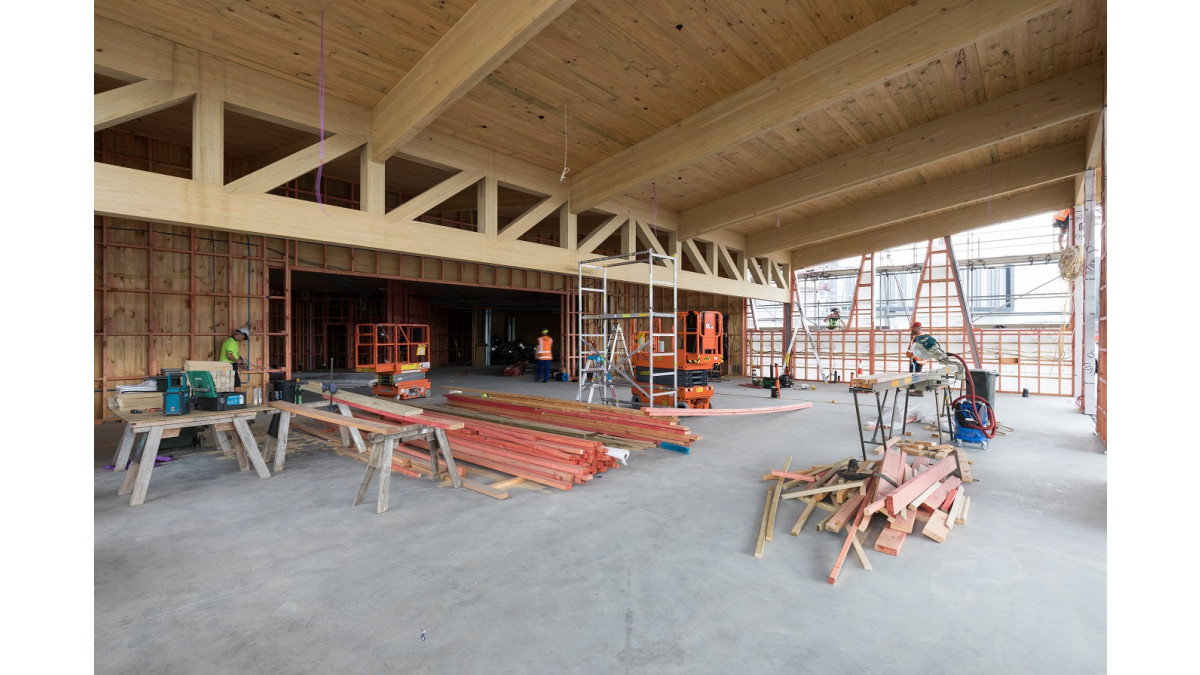

Some of Techlam’s recent carbon friendly projects include Green School New Zealand, Kaipatiki Community Centre and Higgins’ HQ.

Techlam’s Environmental Credentials contain their Environmental Product Declaration which explains the carbon footprint of engineered wood products in more detail.

Read Techlam’s Environmental Credentials here.

Techlam is on-call to help you make your carbon zero project a reality — call them on 0800 832 452.

Glulaminated Visual Appearance Grade

Techlam NZ

View Product

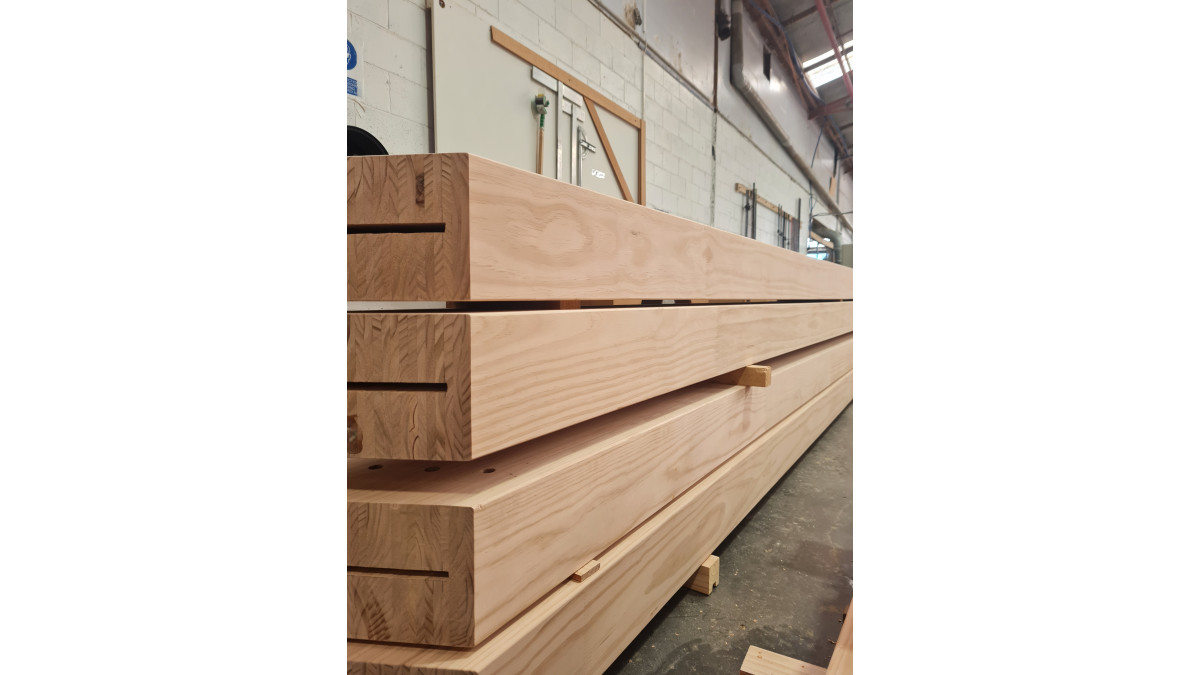

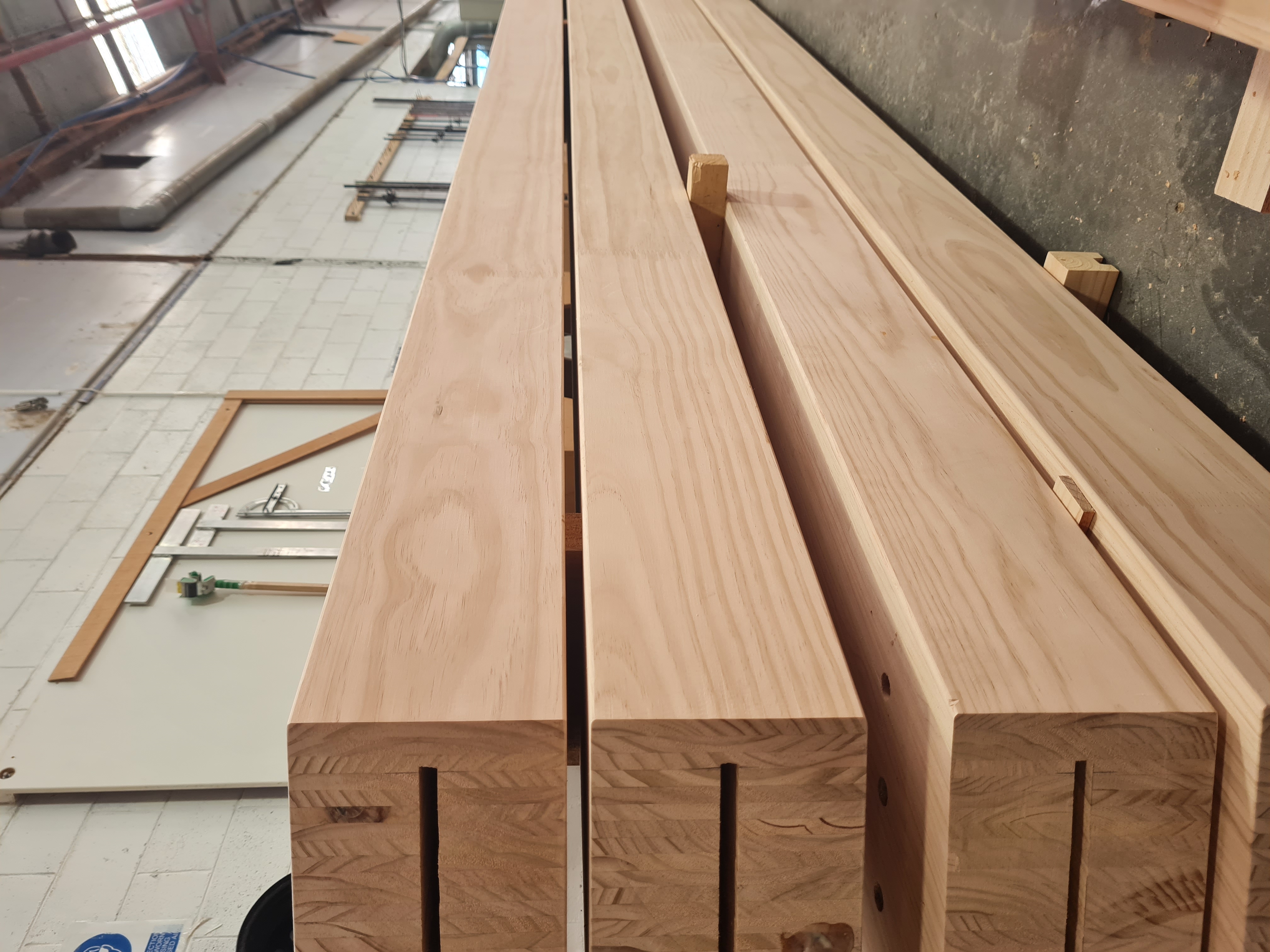

Techlam Trade's Visual Appearance Grades are the best choice for any application where timber members are exposed to view.

FSC Certified

Techlam Laminated Timber Posts and Beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

If installed in accordance with the Techlam installation requirements, Techlam laminated posts and beams and Techlam structural laminated flooring will comply with the performance clauses of the Building Code:

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

PASS

Sprucelam

Techlam NZ

View Product

Sprucelam is an untreated engineered timber product suitable for use as a structural element where the risk of exposure to moisture is minimised.

NZ Made

NZ-Owned Business

Techlam supplies Sprucelam for use as a structural element located within the external envelope of a building or where it forms part of the external structure subject to the same controls applied to untreated Douglas Fir.

Where used as part of the external structure the following scope applies:

In new buildings designed and construction to NZS3604:2011or specifically engineered to NZS3603:1993.
In existing buildings where the designer and installer have determined that the existing building is suitable for the intended building work and that all other conditions have been met, and
In stand alone, single units less than 10m in building height, and
In all corrosion zones, subject to fixings in accordance with section 4, NZS3604:2011
Has a risk matrix score of no more than 6 on any external face, as defined in E2/AS1, and
Has a roof slope of 10° or more, and
If it has a skillion roof, the roofing material is corrugated iron or concrete, metal of clay tiles for adequate ventilation, and
Has eaves or 450mm-wide or more for single-storey buildings and eaves 600mm-wide or more for two storey buildings

If designed, installed and maintained in accordance with all Techlam requirements, Sprucelam will comply with or contribute to compliance with the following provisions of the NZBC:

B1 Structure, B1.3.1, B1.3.2, B1.3.3 (a, b, f, h, j, m, q) - Compliance by Alternative Solution AS/NZS1328:1998 (glulamination) NZS3603:1993A4 (timber structures), NZS3631:1998 (grading) and AS/NZS 5068:2006 (finger jointing).
B2 Durability, B2.3.1(a) - Compliance by B2/VM1 April 2017: Scion TE16-067 – Spruce & Radiata Pine Finger Joint Qualification test & Glue Bond Durability Test. March 2015: Scion Expert Opinion Durability of heartwood Spruce compared to durability of sap/heartwood Douglas fir
F2 Hazardous Building Materials, F2.3.1 — Compliance by In service history

Independent Assessment

PASS

Test Results

Glulam Bridges

Techlam NZ

View Product

Glulam bridges are a tried and proven answer to many bridging requirements.

FSC Certified

Techlam laminated timber posts and beams can be used in all forms of construction where the structure relies on AS/NZS 1170: 2002. The design and use must be in accordance with Techlam specifications, design criteria and selection tables.

Structure B1/AS1: meets the requirements of B1.3.1, B1.3.2, B1.3.3 (a, b, f, j, m, q) B1.3.4 (a, b, c, d, e); AS 1170:2002 for engineering span tables; AS/NZS 1328:1998 and AS5068 for building element.
Durability B2/AS1: meets the requirements of B2.3.1(a) B2.3.2. All timber is treated in accordance with NZS 3640. Techlam does not carry out this treatment, Techlam relies upon its suppliers as they are all third party accredited.
Protection from Fire C: APA Evaluation of Char Rate (ASTM E119), TT-118, January 2015; meets the requirements of C6.3 C6.4. Where members are required to have a fire resistance rating the designer can use the following standards for FRR design: TT-118 OR: NZS 3603:1993 (section 9).
Hazardous Building Materials F2/AS1: meets the requirements of F2.3.1. Timber treatment suppliers meet NZS3640, which includes flash-off requirements.

PASS
