With its intelligent design, the IRDL will integrate perfectly with access control systems.

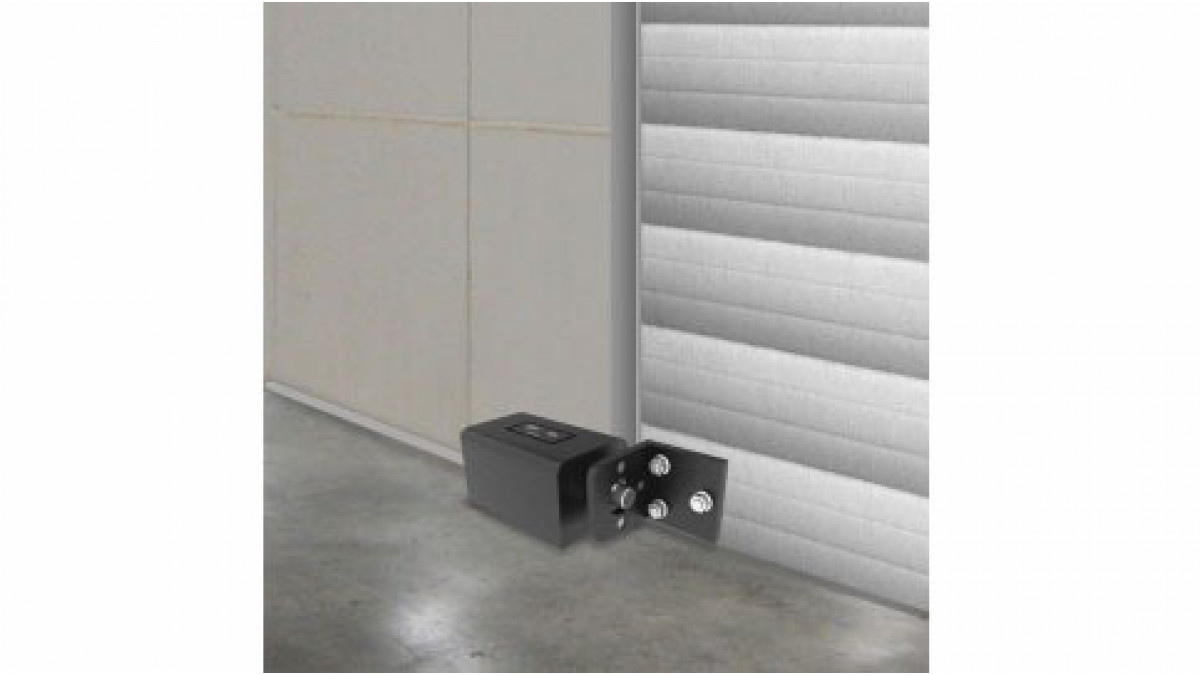

Supplied with a matching strike, the IRDL is powered by a multi-voltage input (12-24VDC) and is installed internally through either a floor or wall mounting. A solid 18mm diameter stainless steel bolt pin ensures the highest strength and with a bolt pin stroke of 35mm offers flexible installation.

IRDL’s integrated electronics and bolt position sensors allow complete control and monitoring of the lock. Its security features include multiple locking attempts with fail alarm, secure manual override, selectable automatic locking upon door closure and selectable fail safe/fail secure. To reinforce its tamper proof design, the IRDL also has concealed wiring through the base or via a 20mm wiring gland (not supplied) and a key secured cover.
