In the video above, Fyrehalt V fire shutters deploy to provide Fire & Smoke compartmentation upon receipt of an alarm or loss of power. On reset, the system automatically rewinds back into the standby position.

Fyrehalt Vertical Fire Curtain — Up to 24m²

Fyrehalt Vertical Fire Curtain — Up to 24m²

The Fyrehalt V is a vertical fire curtain with a compact, discreet headbox and is suitable for small to medium openings up to 24m2.

Ideal for small to medium openings — up to 24m²
Compact headbox 165x165mm
Vertical curtain
Rated -/120/- or -/120/120 when used in conjunction with sprinklers in accordance with A51530.4

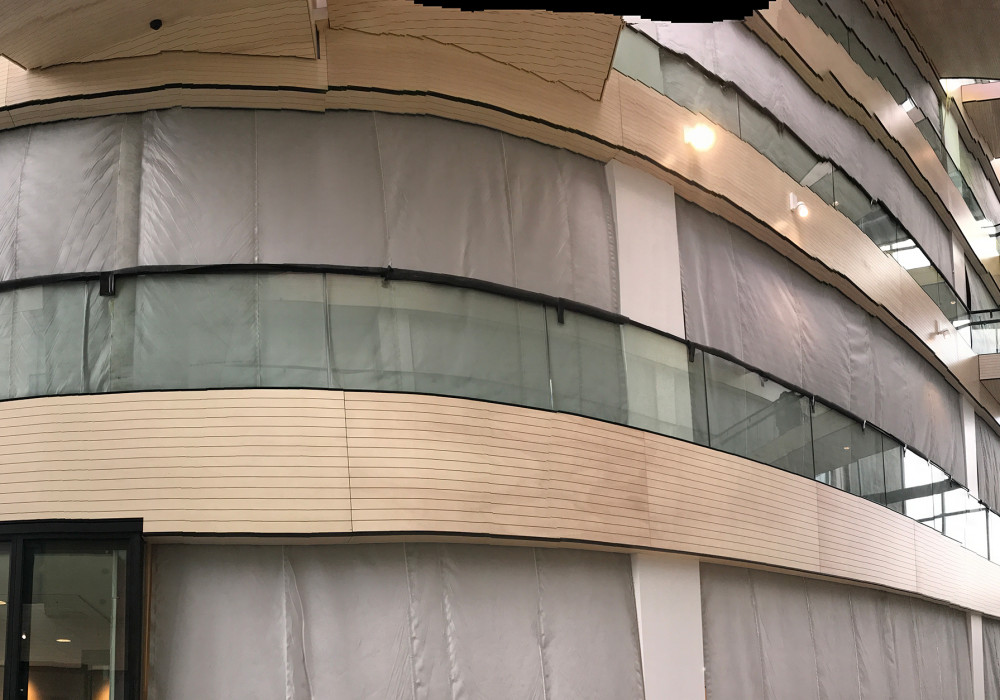

Fyrehalt V have been used to provide fire and smoke compartmentation in:

Hospitals
Universities
Basement carparks
Warehouse dividing walls
Lift shafts
Interconnecting stairs
Servery openings

AS1530.4 for up to -/120/-
AS/NZS3100 for control box
AS3837: Classification Group 1
EN12101.1 Smoke Curtain
AS1530.3 Early Fire Hazard Indices 0,0,0,2
AS1530.7 Smoke Leakage performance

View more information on Smoke Control, including contact details.
