Fyrehalt Evolution Halo Fire Curtain — Closed Systems
Description

Designed, engineered and manufactured in Australia, the Fyrehalt Evolution fire curtain  is highly reliable and is made using a continuous overhead drive system and proprietary controls to prevent out of sync operation over massive spans.

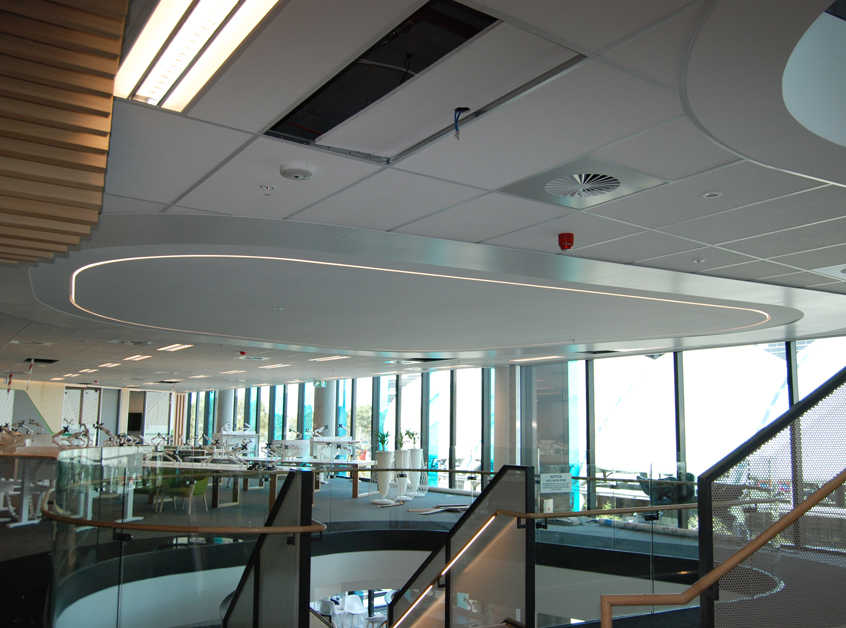

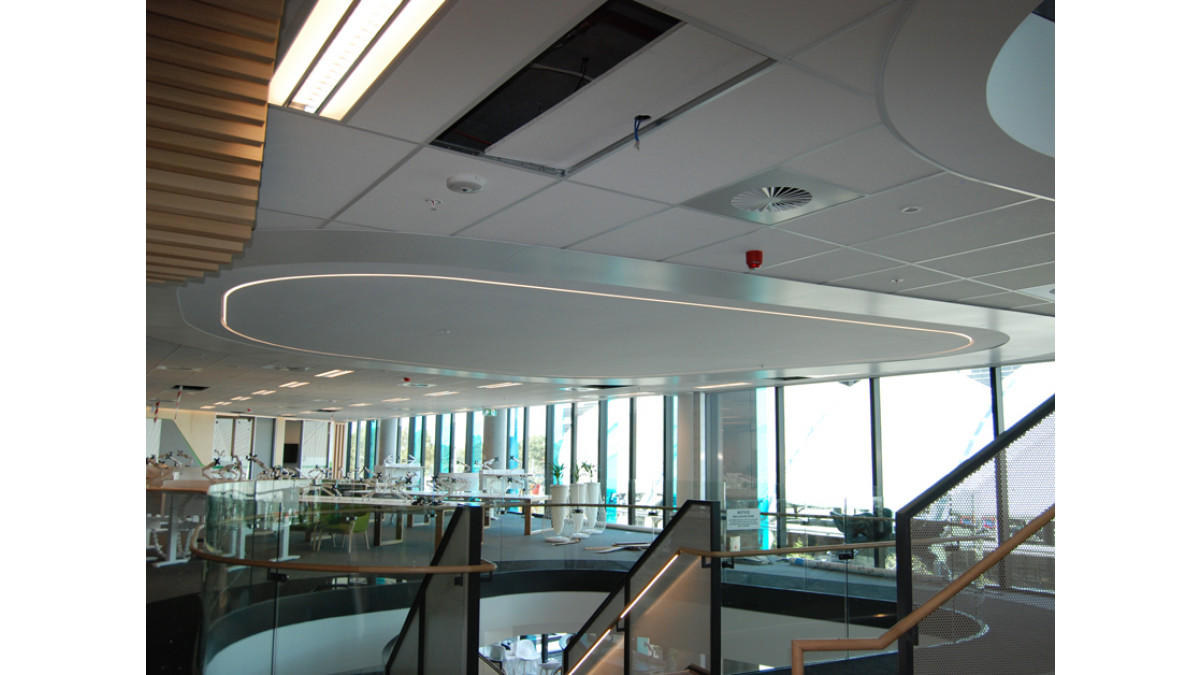

Ideal for protecting openings in floor slabs, the Fyrehalt Evolution can be installed in a multitude of configurations and shapes including rectangles, polygons and curves, and it can zig-zag across a building from one side to the other.

Key Features
  • Fyrehalt Evolution can be installed in unlimited sizes consisting of 20 x 4m (maximum) legs
  • Fire Ratings up to -/120/- FRL

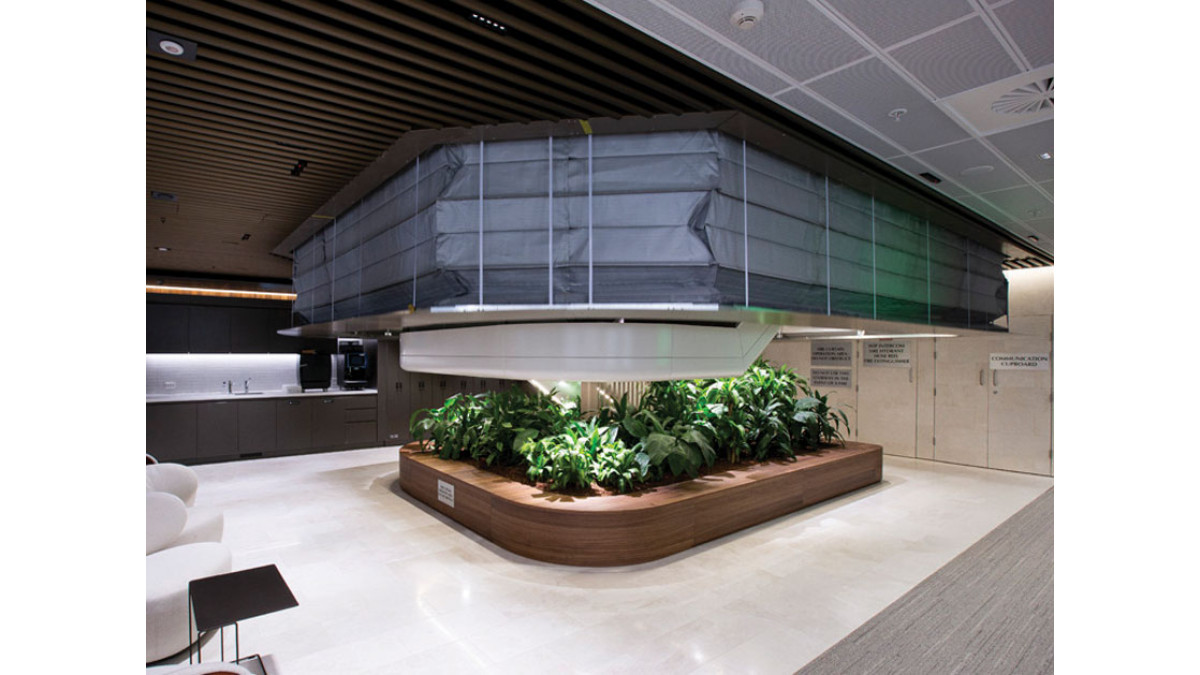

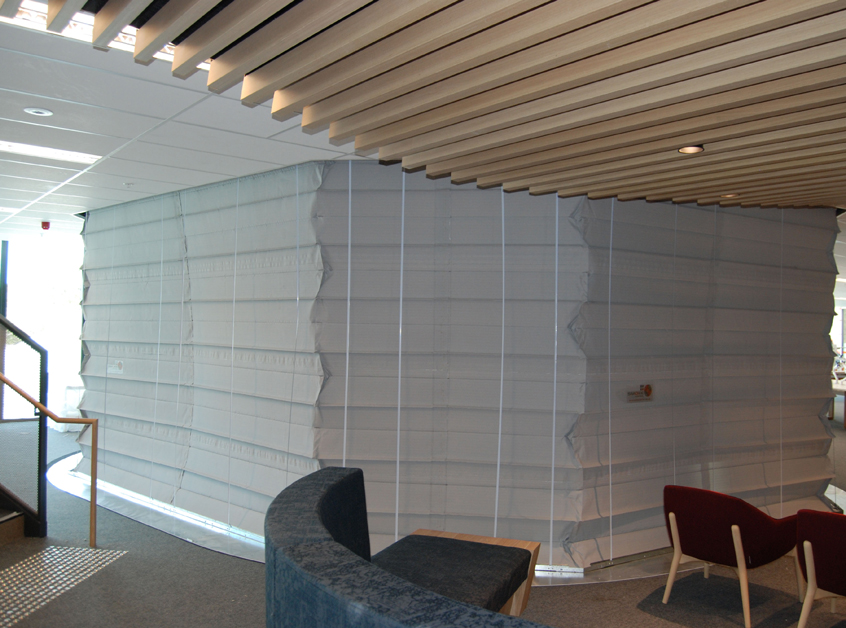

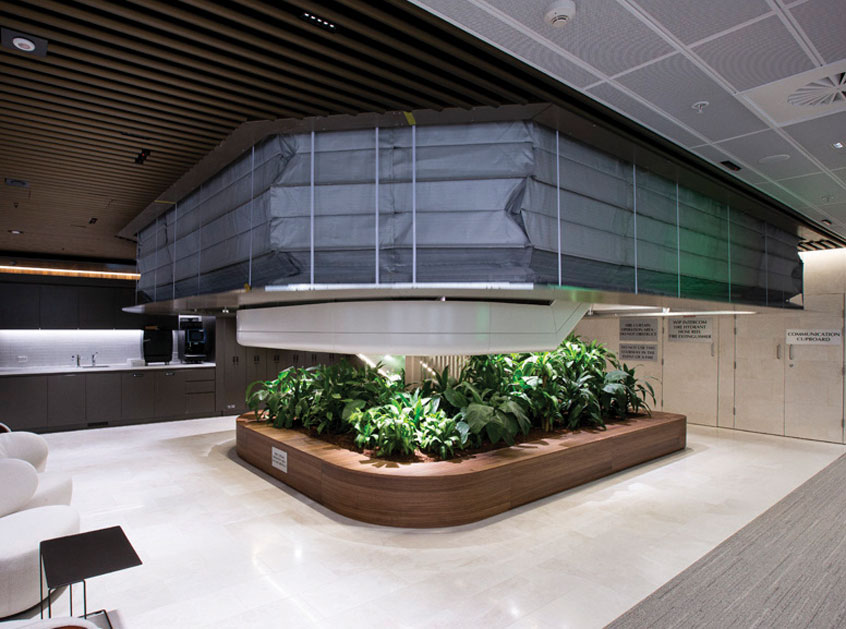

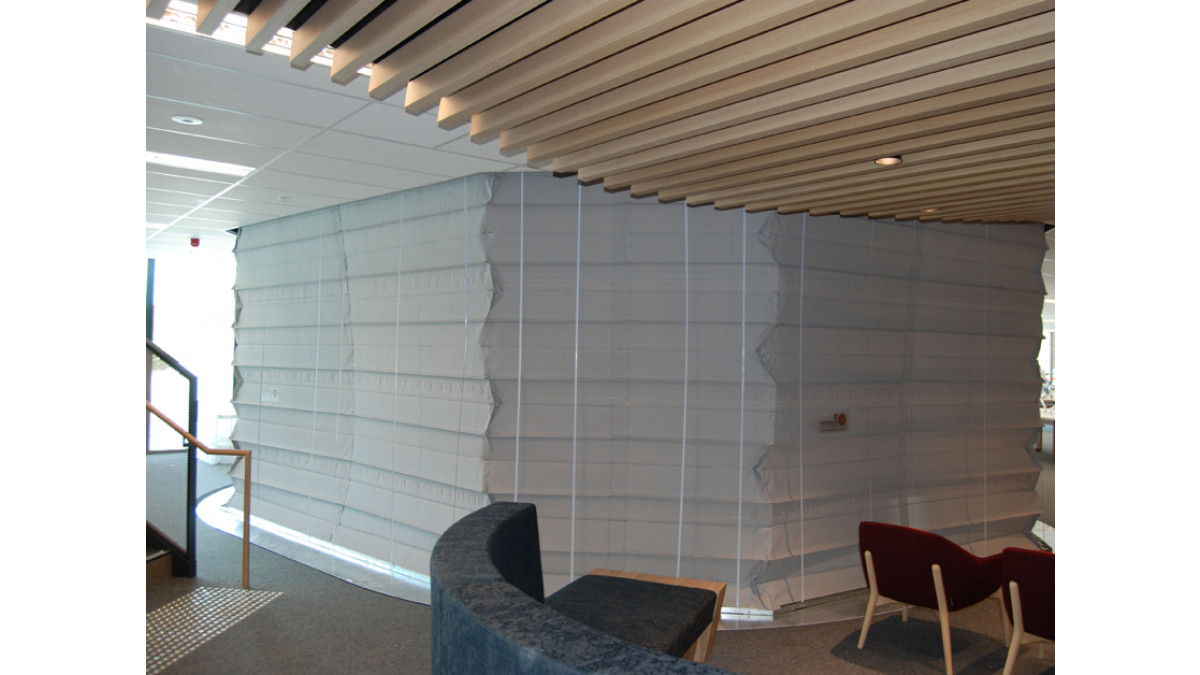

  • Polygon shapes of many sides can be created (closed systems)
  • The system can zig-zag across a space and terminate against a wall at each end using proprietary galvanised side guides (open systems)
  • The system can be installed in a straight line, as an 'L' shape and as a 'C' shape
  • Gravity fail safe operation
  • Ideal for medium to very large openings

Options

  • Bottom bar cover
  • Battery backup
  • Rewind switches
  • Sounders and strobes
  • Curtain applied signage
  • Staged deployment
Categories
Fire Safety
Scope of Use
  • Ideal for medium to very large openings
  • Fire Ratings up to -/120/- FRL
  • Can be installed in unlimited sizes consisting of 20 x 4m (maximum) legs
  • Polygon shapes of many sides can be created (closed systems)
  • The system can zig-zag across a space and terminate against a wall at each end using proprietary galvanised side guides (open systems)
  • The system can be installed in a straight line, as an 'L' shape and as a 'C' shape

Fyrehalt Evolution can be used to provide fire and smoke compartmentation in:

  • Offices
  • Vertical schools
  • Hospitals
  • Airports

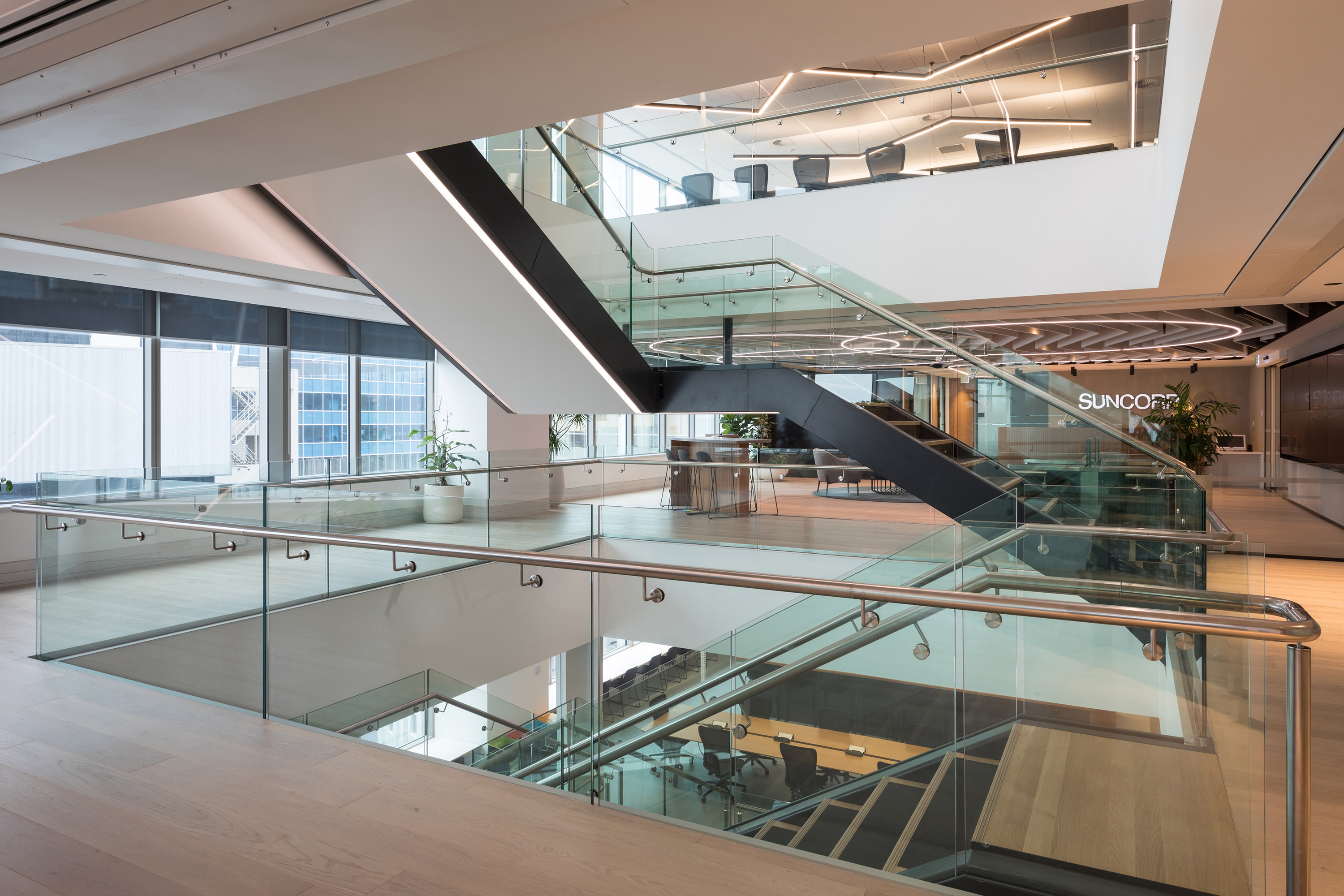

  • Interconnecting stairs

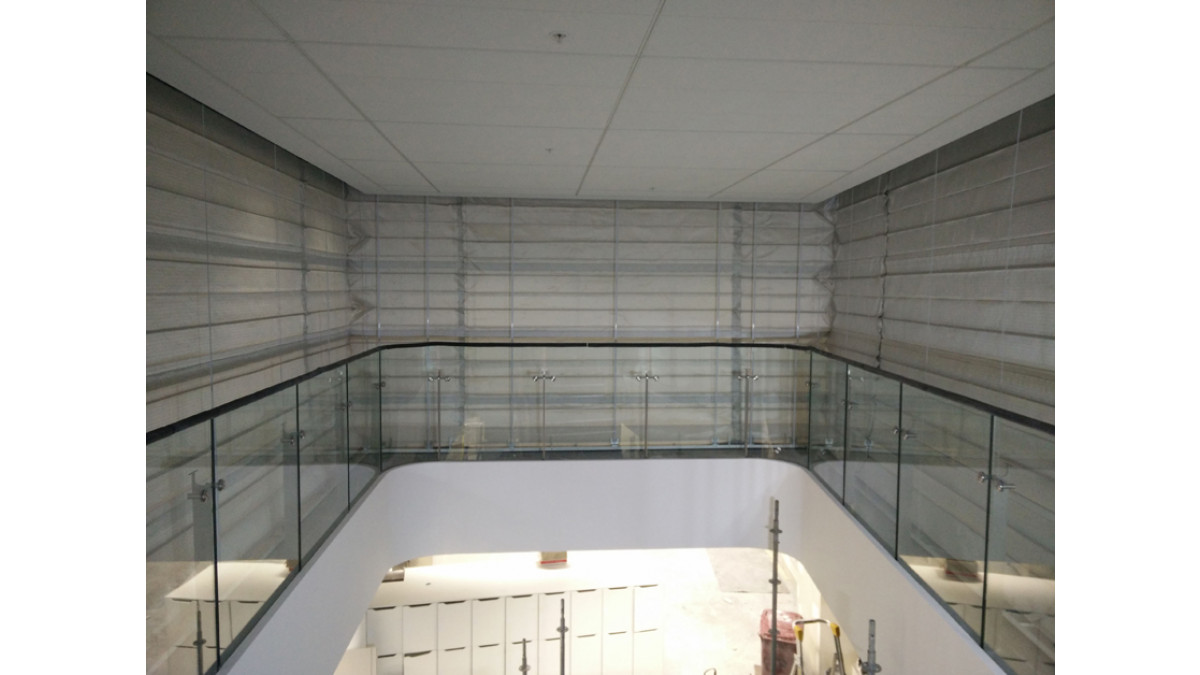

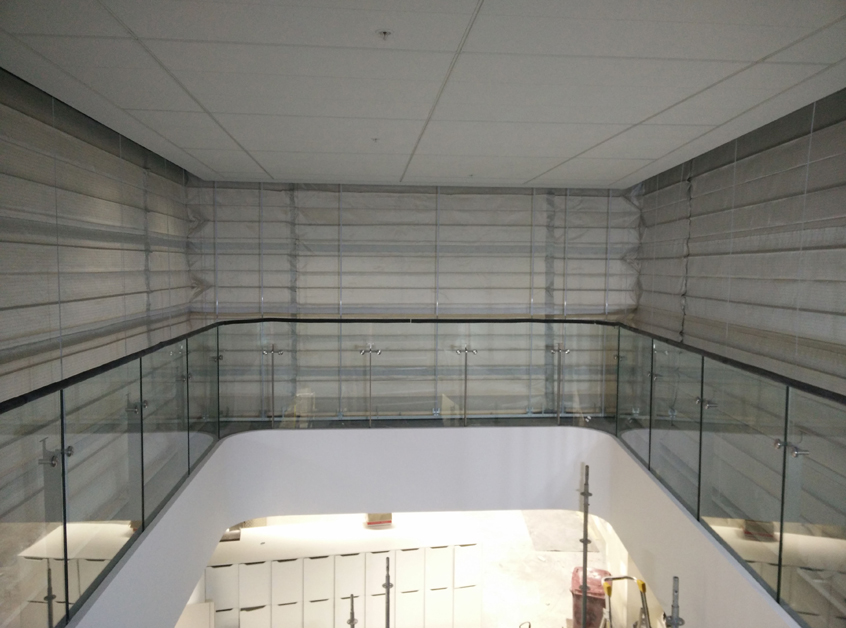

  • Light wells
Limitations on Use
  • Fire Ratings up to -/120/- FRL
  • Interior use only
Statement of Building Code Compliance

Fyrehalt Evolution fire curtains/shutters are Australian made in Smoke Control's own ISO9001 Accredited facility using only high quality components

Fyrehalt Evolution can be supplied, installed and certified for fire ratings up to -/120/- in accordance with AS1905.2 Fire Shutters and AS1530.4 Fire Test Methods. When installed as a closed system the permeability of the fabric provides a good indication of the air (smoke) leakage through the system.

In-Service History

Smoke Control was established in 2003 and partner swith leading local and international organisations to work with the new performance based design environment — in addition to the traditional prescriptive environment — designing and installing systems to meet the challenging fire and smoke control demands of modern buildings.

Notable projects:

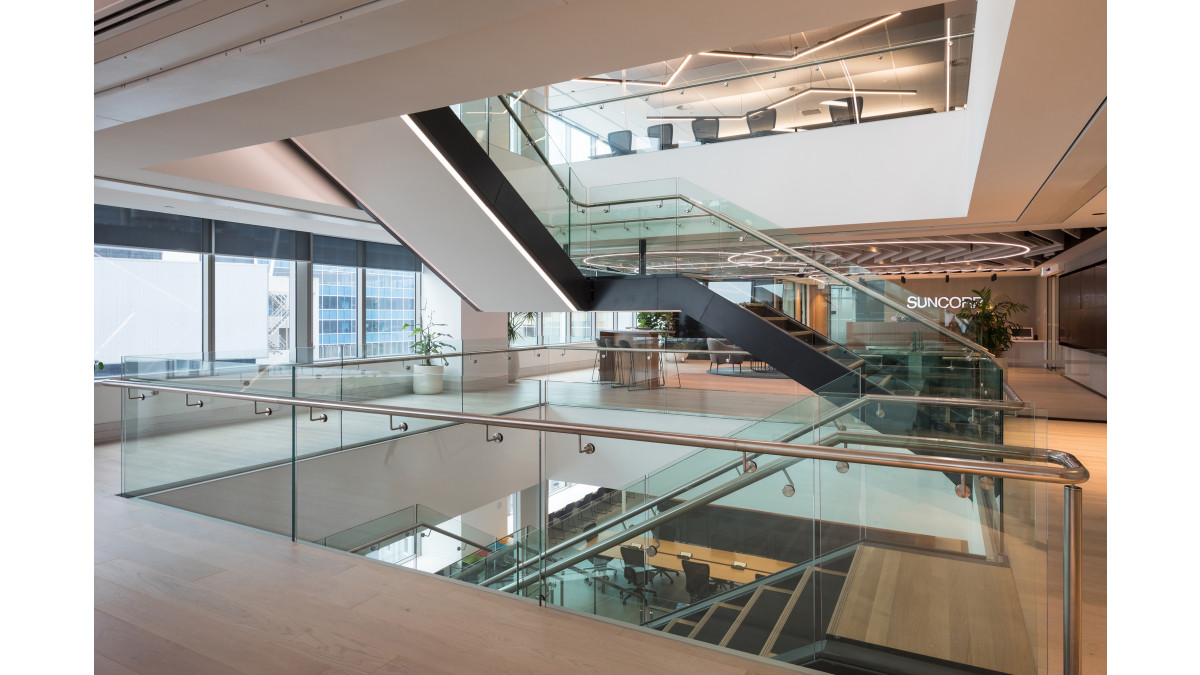

  • Suncorp
  • 155 Fanshaw
  • PWC Offices Commercial
  • David Jones Wellington
  • Napier Police Station

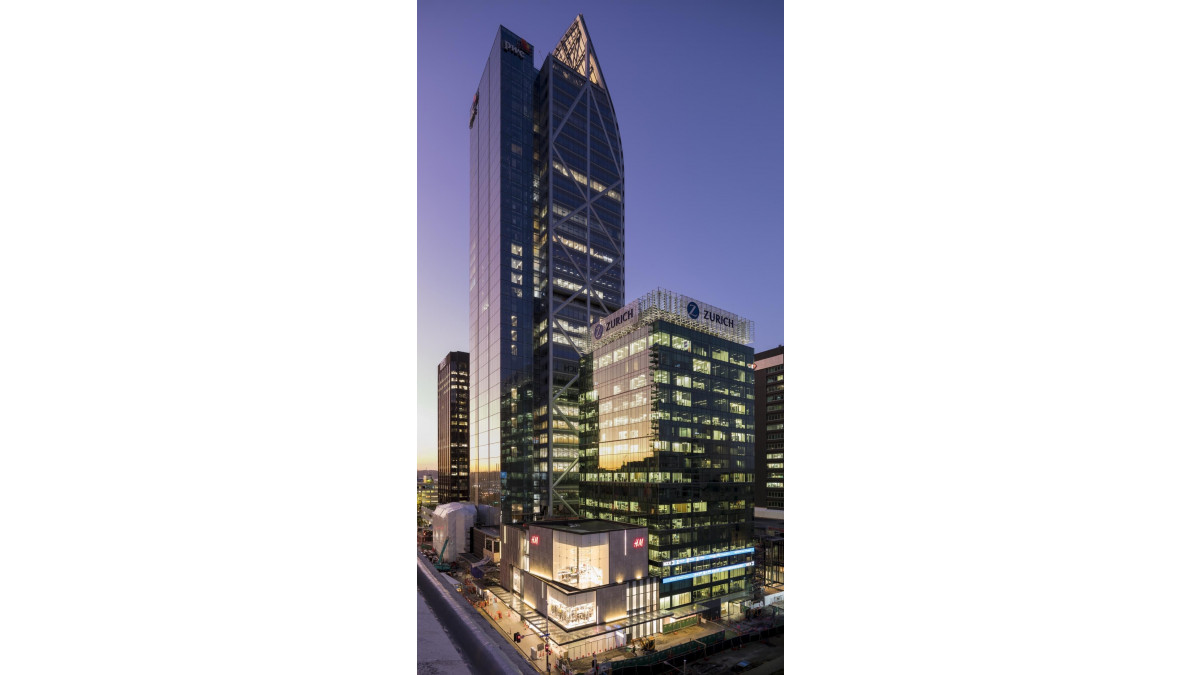

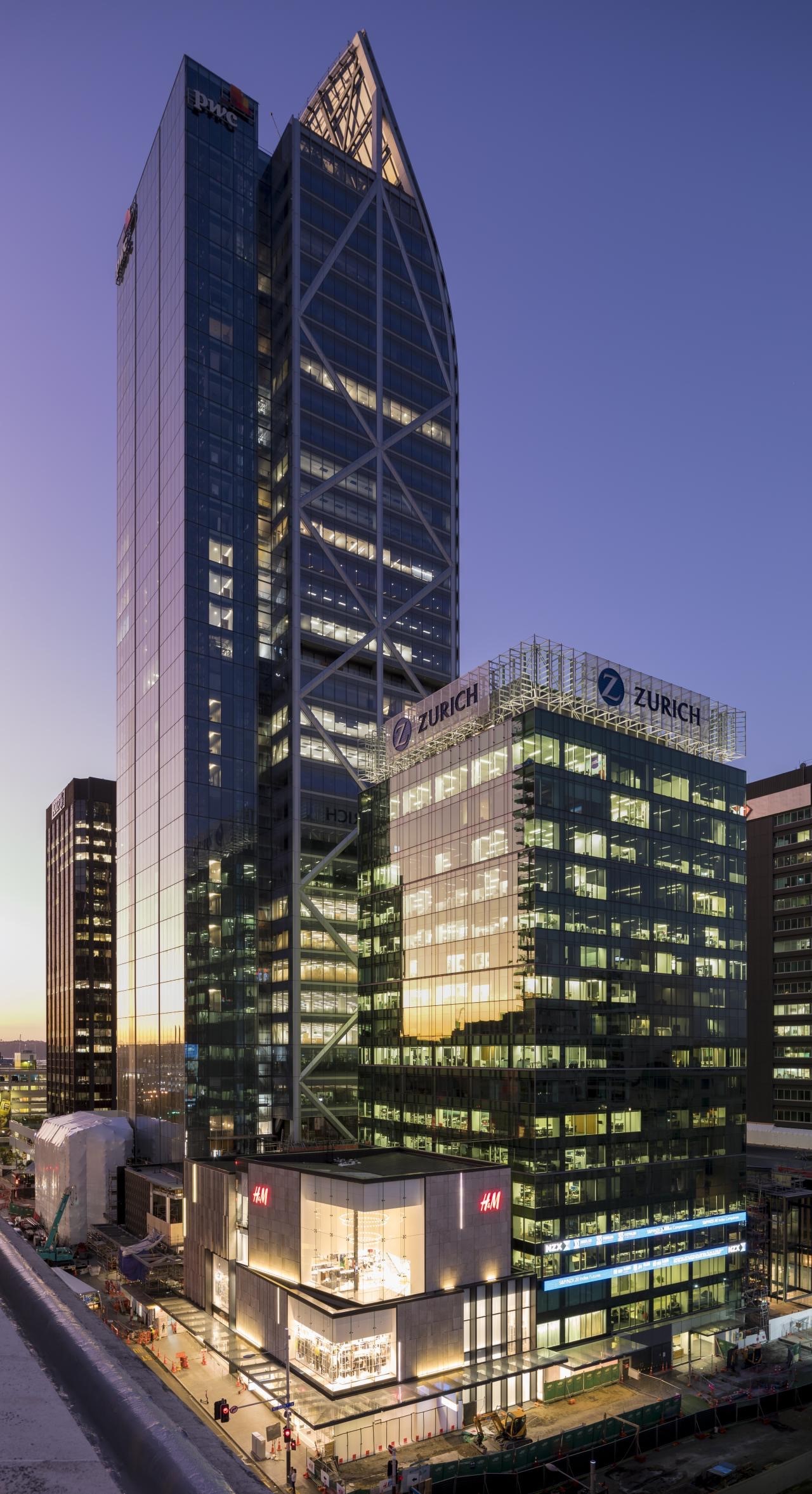

  • H & M Commercial Bay
  • Eatery Commercial Bay
  • Zero St Georges Bay
Other Performance Attributes

Fyrehalt Evolution also bears the Warnock Hersey Mark. The Warnock Hersey Mark (WH) signifies that Smoke Control's manufacturing sites undergo periodic and independent 3rd party inspections to ensure ongoing compliance with fire test approvals. The WH Mark is the world’s largest product compliance scheme and provides our customers with total surety by eliminating product and component substitution.

Warranty

As with all essential services, Fyrehalt V should be maintained in strict accordance with Smoke Control's documented procedures by fully trained and competent technicians. Operational tests alone are not considered adequate and when conducted by inexperienced personnel, may lead to damage of the product. Smoke Control offers a comprehensive preventative maintenance program which has proven costs savings over the life of the product.

Documents
Specification Clause: Fyrehalt Evolution

2015

Brochure: Fyrehalt Evolution

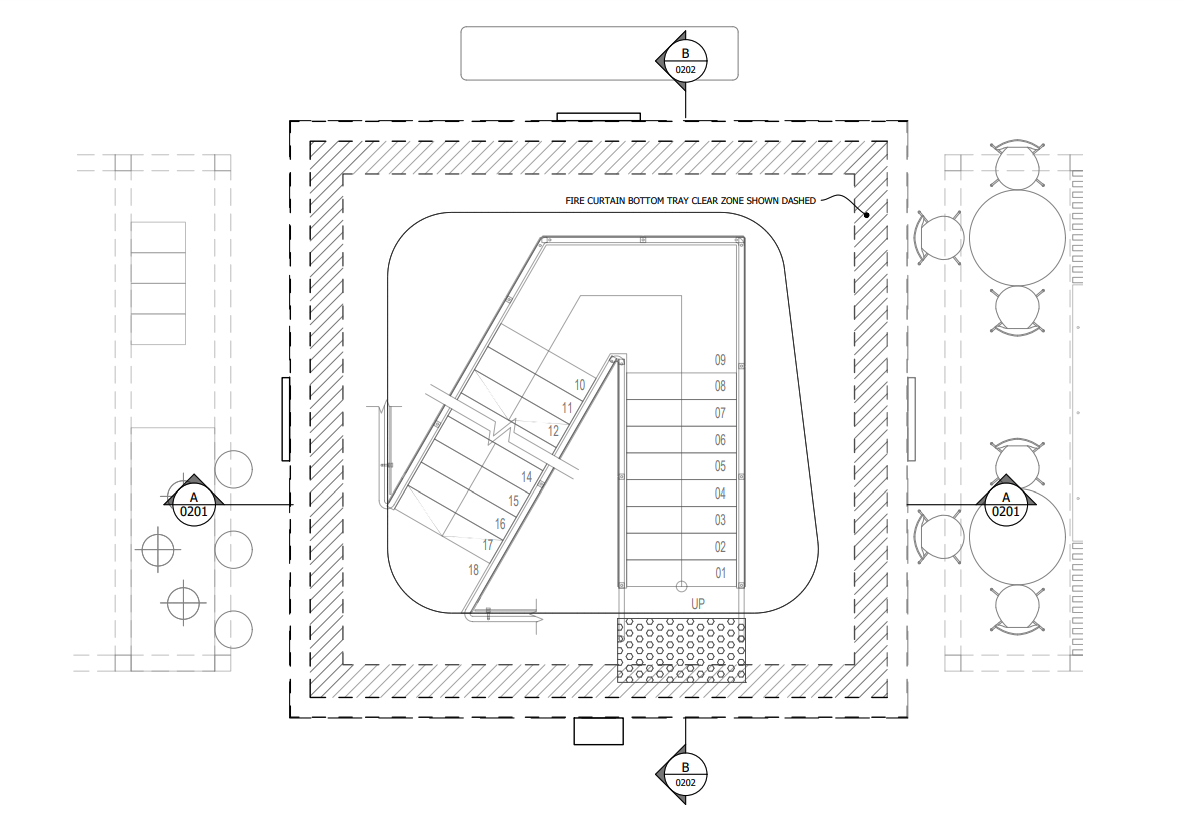

CAD/PDF Details
Fyrehalt Evolution

SCS-FHE-0001 - 1002

2020
