Fyrehalt Vertical Fire Curtain — Up to 24m²
Description

The Fyrehalt V is a vertical fire curtain with a compact, discreet headbox and is suitable for small to medium openings up to 24m2.

Designed in Australia and locally manufactured, the Fyrehalt V fire shutter has the smallest headbox size in the Smoke Control range, and consists of a head box, curtain barrel, side guides and bottom bar. With a compact head box size of just 165 x 165mm the Fyrehalt V fire curtain is capable of spanning 8m without overlaps or multiple modules, significantly increasing the reliability of the system compared to overlapped systems.

Fyrehalt V fire curtains/shutters are exported from Smoke Control's factory to many high-profile projects around the world.

Key Features
  • Independent third party verified for compliance with fire test approvals
  • Fire ratings up to -/120/-
  • Fire tested in accordance with AS1530.4:2014
  • Tested in accordance with AS1530.7 for smoke containment
  • Compact headbox
  • Gravity fail safe
  • Automatic rewind
  • Light weight
  • Highly reliable single over-head coil (no overlaps)
  • Ideal for small to medium size openings

Optional

  • Bottom bar cover
  • Battery backup
  • Rewind switches
  • Curtain applied signage
Categories
Fire Safety
Scope of Use
  • Ideal for small to medium openings — up to 24m²
  • Compact headbox 165x165mm
  • Vertical curtain
  • Rated -/120/- or -/120/120 when used in conjunction with sprinklers in accordance with A51530.4

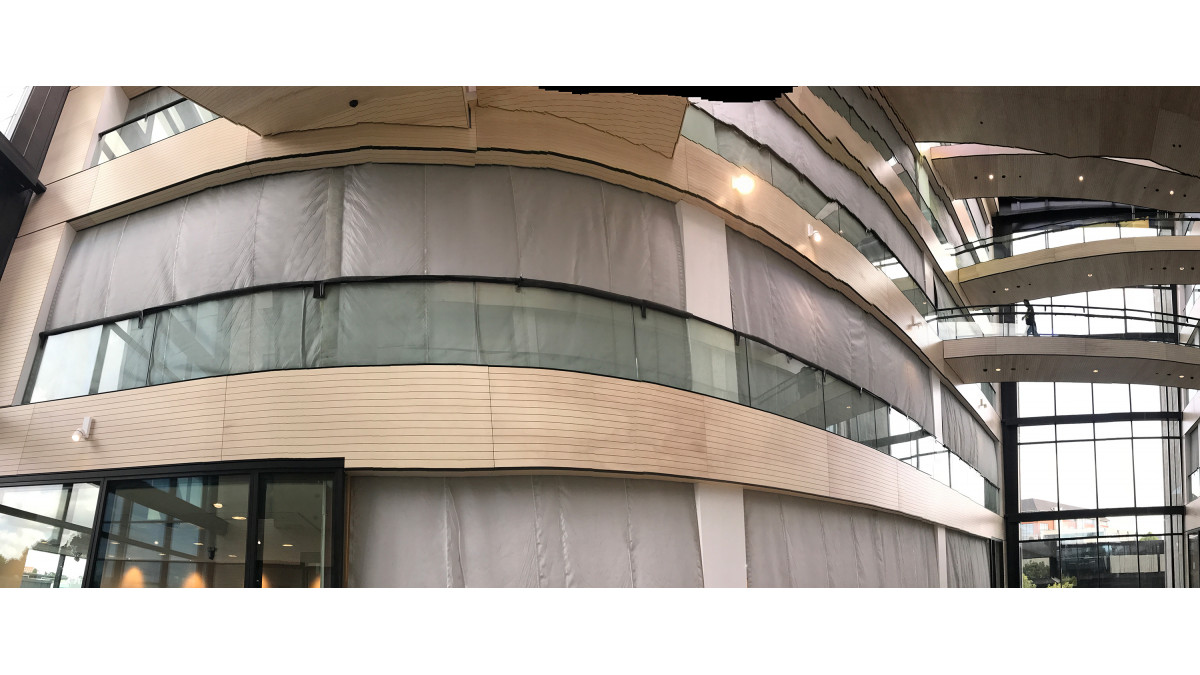

Fyrehalt V have been used to provide fire and smoke compartmentation in:

  • Hospitals
  • Universities
  • Basement carparks
  • Warehouse dividing walls
  • Lift shafts
  • Interconnecting stairs
  • Servery openings
Limitations on Use
  • 8m maximum width, 4m maximum height — up to total of 24m²
  • Interior use only
Statement of Building Code Compliance
  • AS1530.4 for up to -/120/-
  • AS/NZS3100 for control box
  • AS3837: Classification Group 1
  • EN12101.1 Smoke Curtain
  • AS1530.3 Early Fire Hazard Indices 0,0,0,2
  • AS1530.7 Smoke Leakage performance
In-Service History

Established in 2003, Smoke Control partner with leading local and international organisations to work with the new performance based design environment — in addition to the traditional prescriptive environment — designing and installing systems to meet the challenging fire and smoke control demands of modern buildings.

Recent Auckland projects:

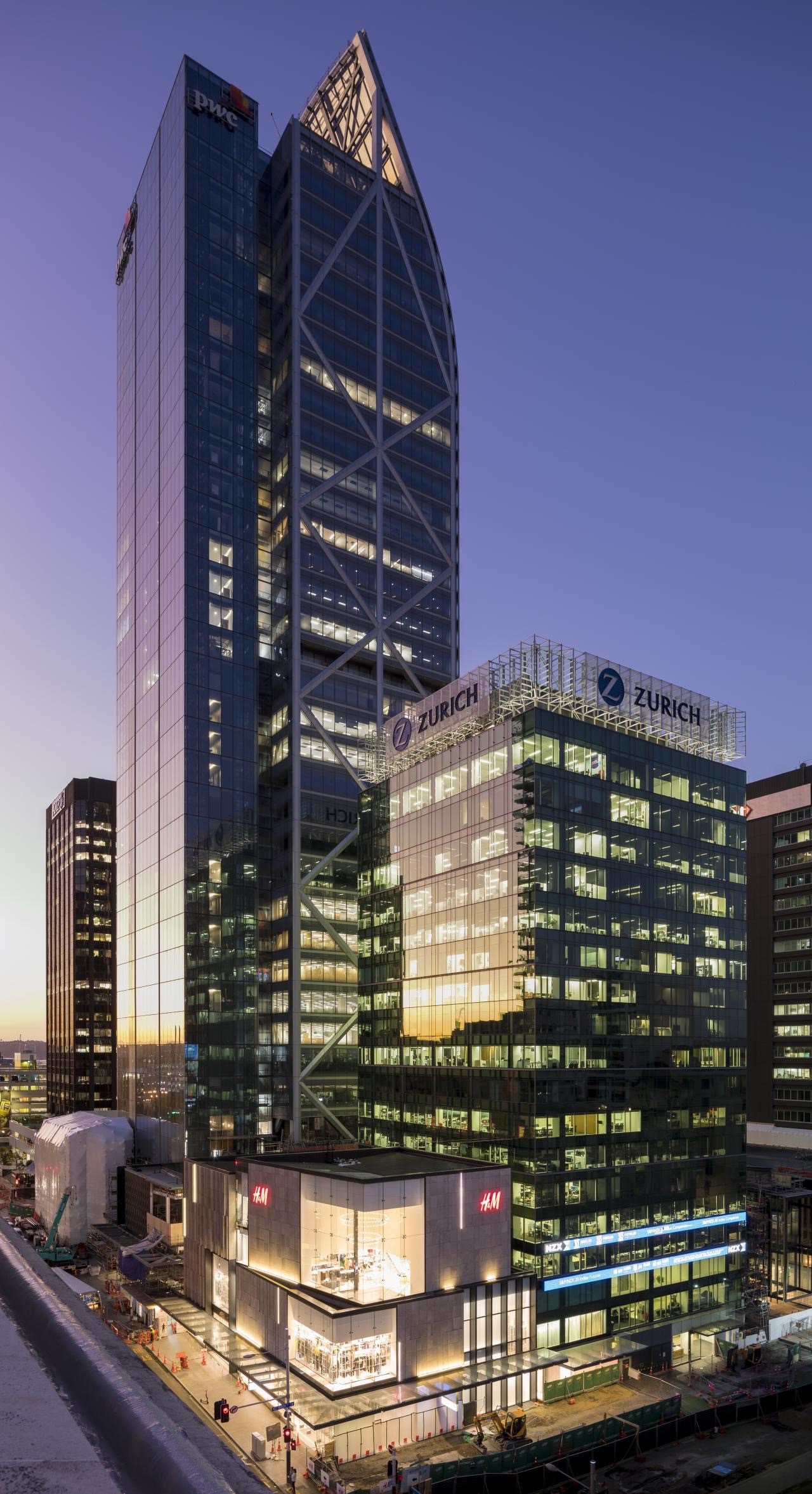

  • Commercial Bay

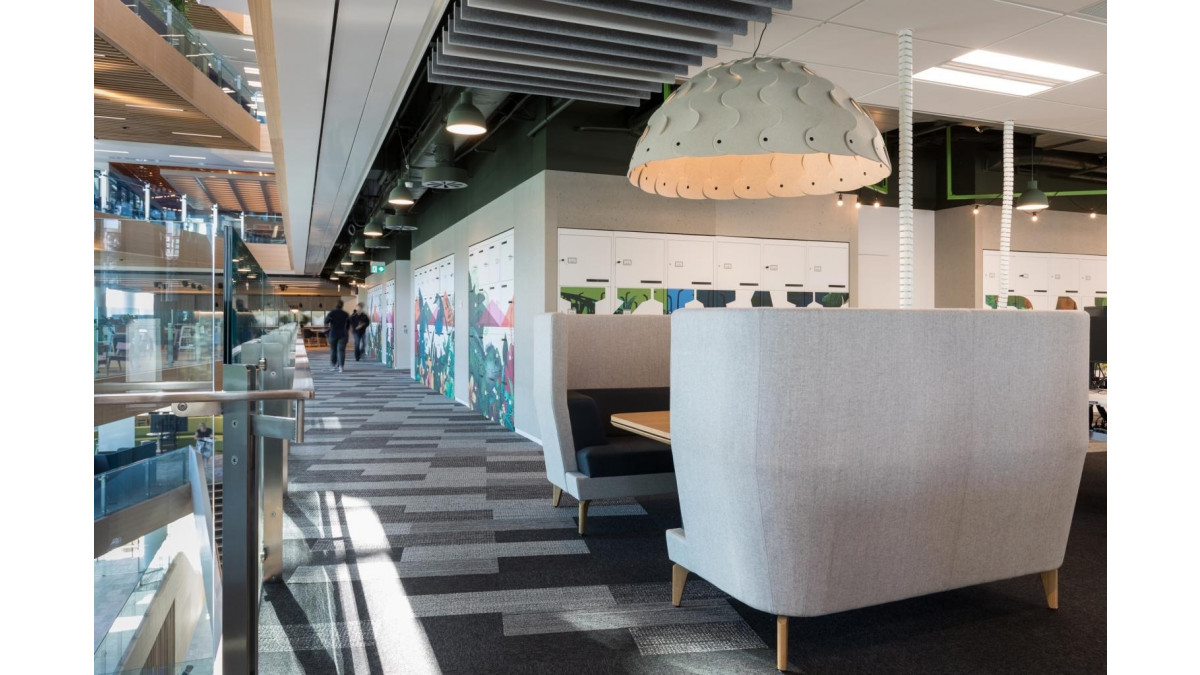

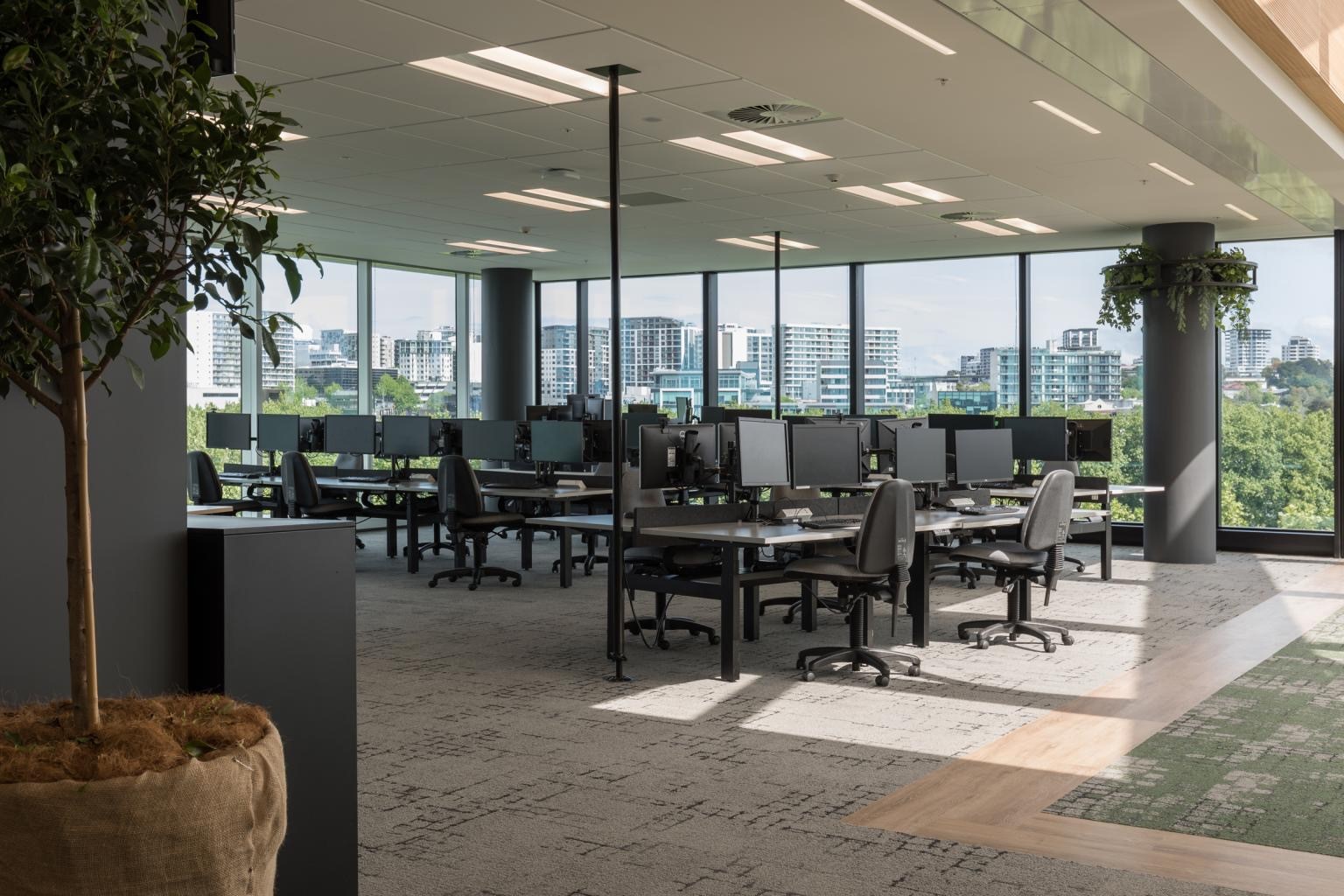

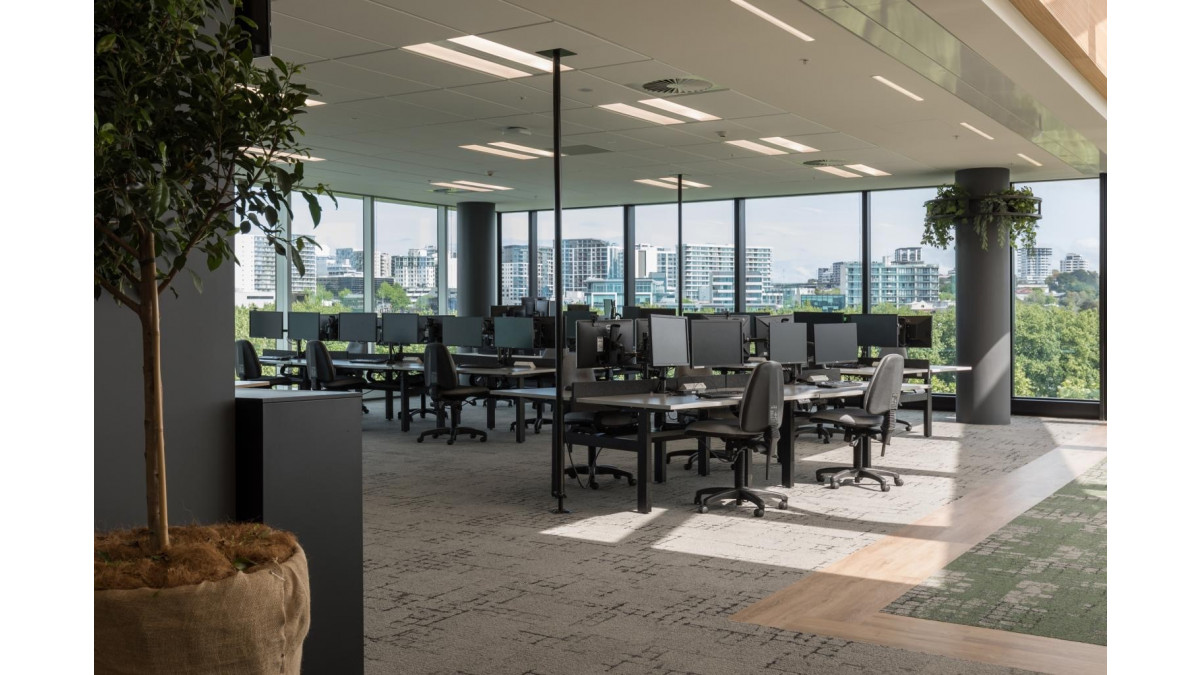

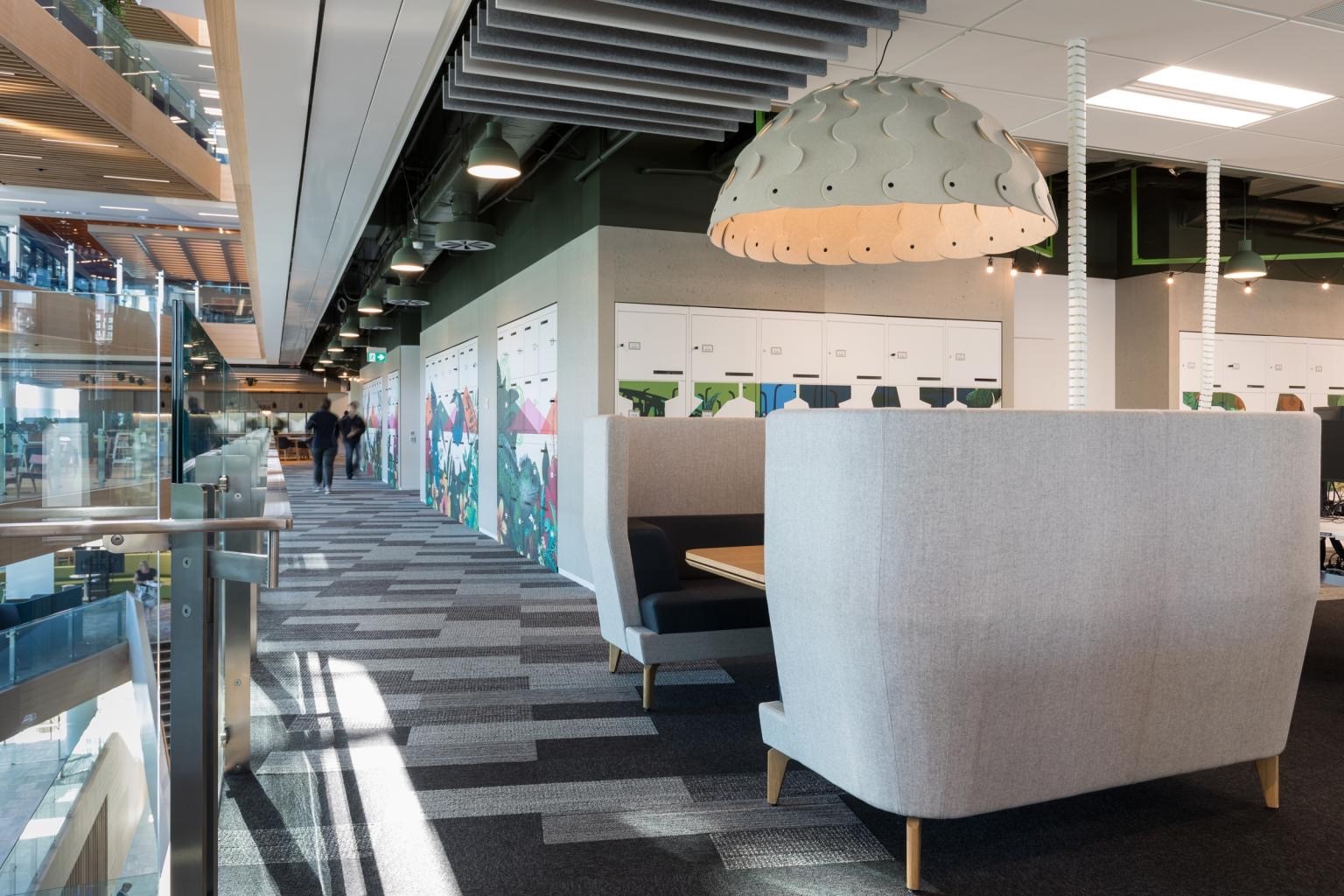

  • 155 Fanshaw
  • 33 Broadway
Other Performance Attributes
  • Cycle tested 30,000 cycles

Fyrehalt V also bears the Warnock Hersey Mark (WH). The Warnock Hersey Mark (WH) signifies that Smoke Control's manufacturing sites undergo periodic and independent 3rd party inspections to ensure ongoing compliance with fire test approvals. The WH Mark is the world’s largest product compliance scheme and provides our customers with total surety by eliminating product and component substitution.

Warranty

As with all essential services, Fyrehalt V should be maintained in strict accordance with Smoke Control's documented procedures by fully trained and competent technicians. Operational tests alone are not considered adequate and when conducted by inexperienced personnel, may lead to damage of the product. Smoke Control offers a comprehensive preventative maintenance program which has proven costs savings over the life of the product. Please contact Smoke Control's Maintenance Department for details.

Documents
Specification Clause: Fyrehalt V

2020

Brochure: Fyrehalt V

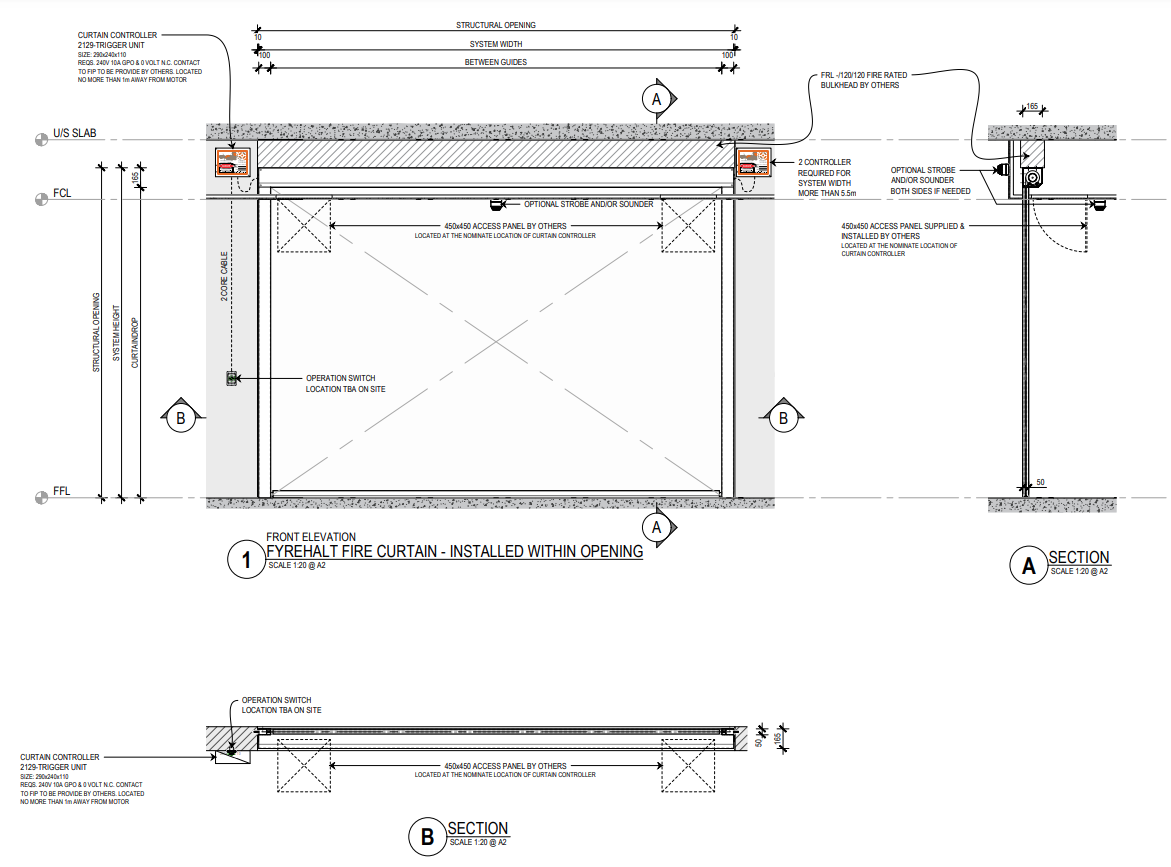

CAD/PDF Details
Fyrehalt Fire Curtain

SCS-FH-0001 - 0203

2020

Smoke Control believe in creating safe, beautiful buildings — their specialised team design, supply, install and maintain a range of discrete smoke curtains, fire curtains, and fire rated glazing.

Product Enquiries

News from Smoke Control

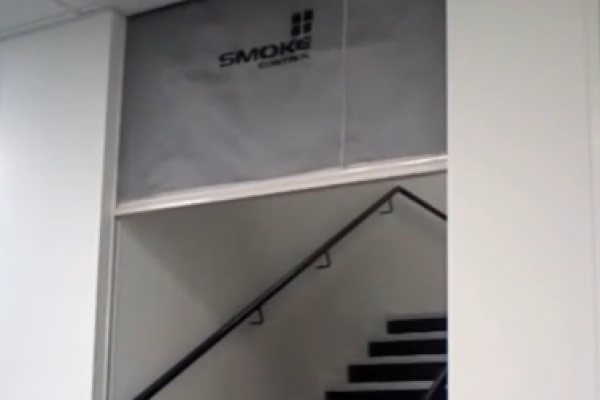

Video: How Does the Fyrehalt V Vertical Fire Curtain Work?
