Faster Fitting with REHAU PINC

PINC has been designed and manufactured to the highest specifications, and is the result of decades of polymer product development. Plumbing is changing, with plumbers wanting simpler installs, better productivity and opportunities to save time.

The PINC product range satisfies these needs — bringing efficiency and ease to any plumbing project. The PINC fittings also complement REHAU’s trusted sliding sleeve — same pipe, different connect technology.

How does PINC work?

Simplicity and trust

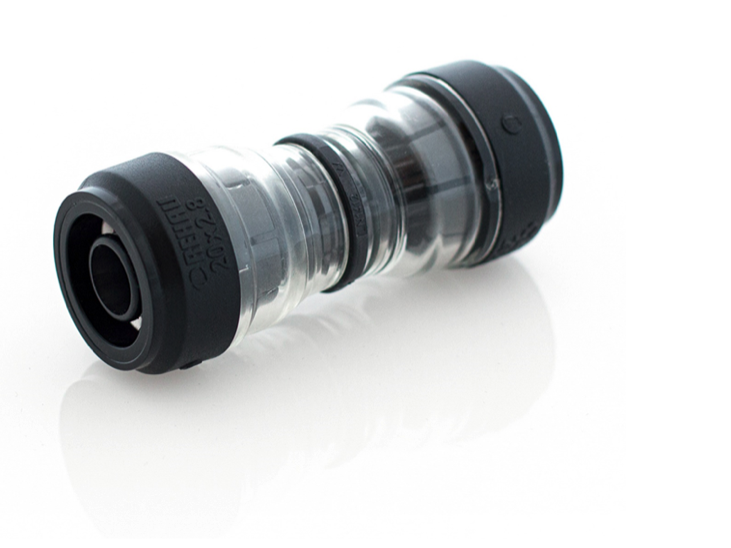

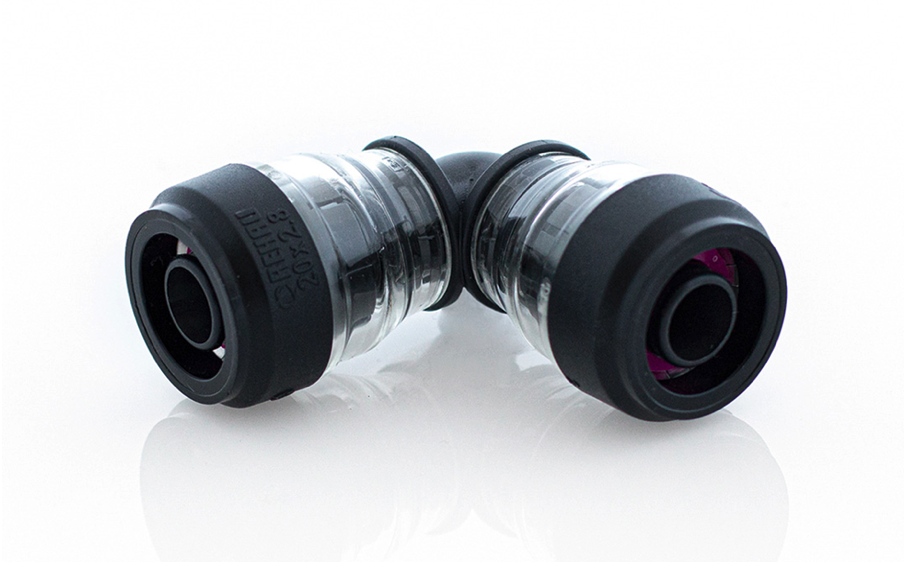

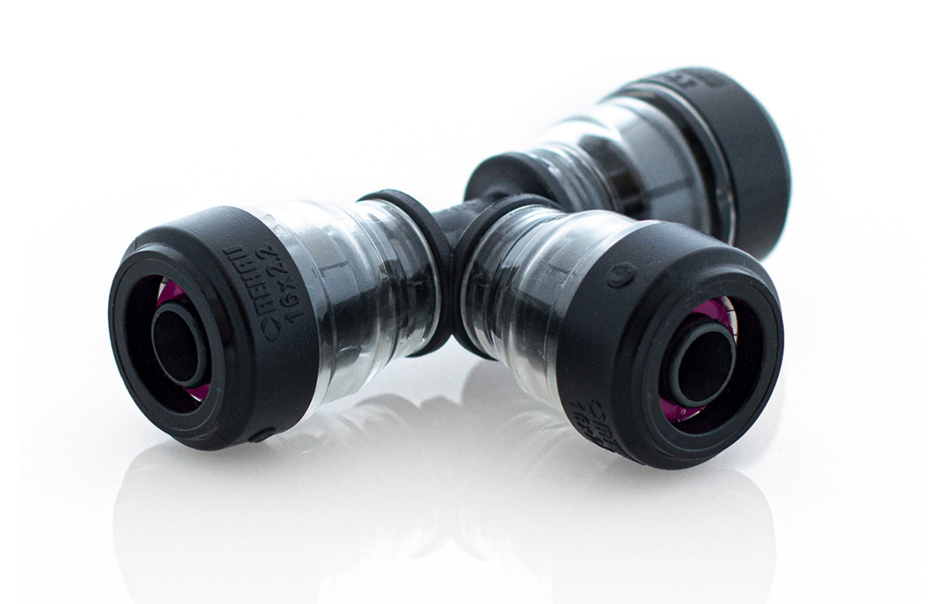

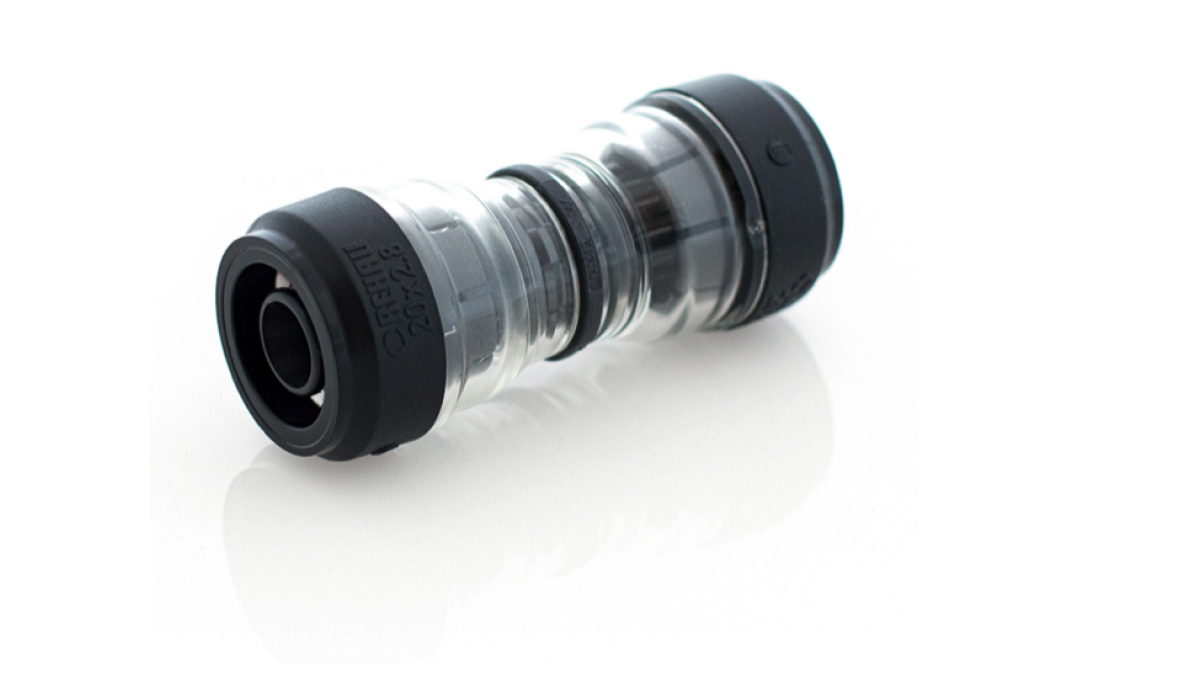

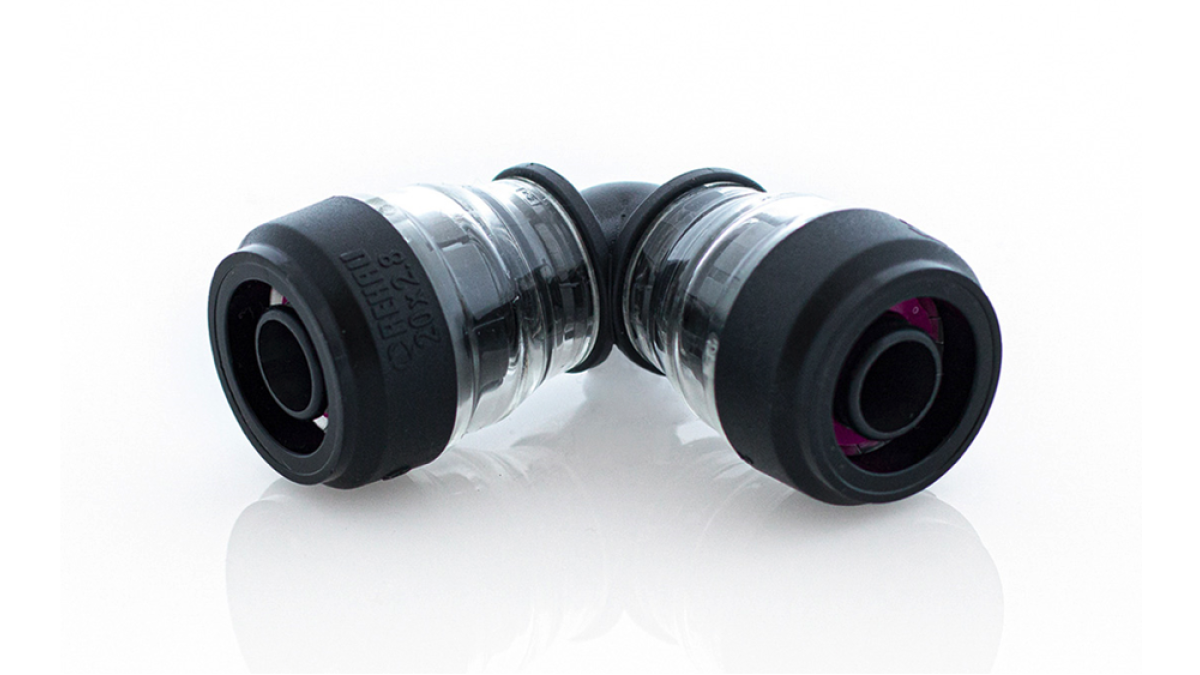

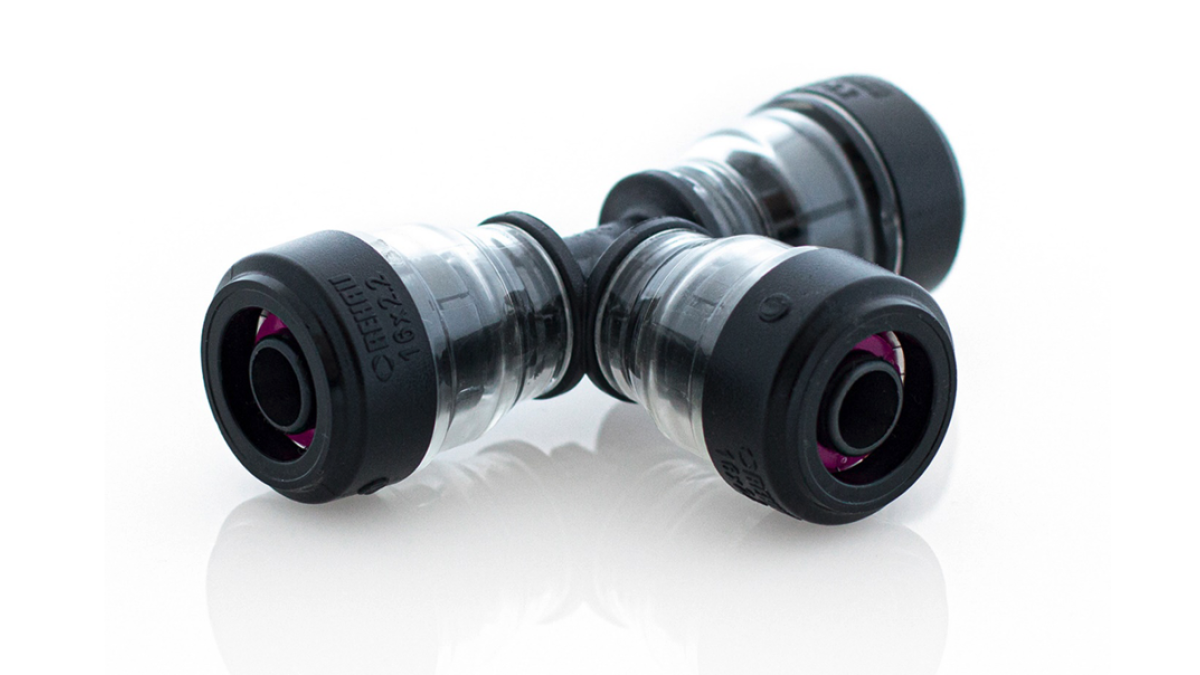

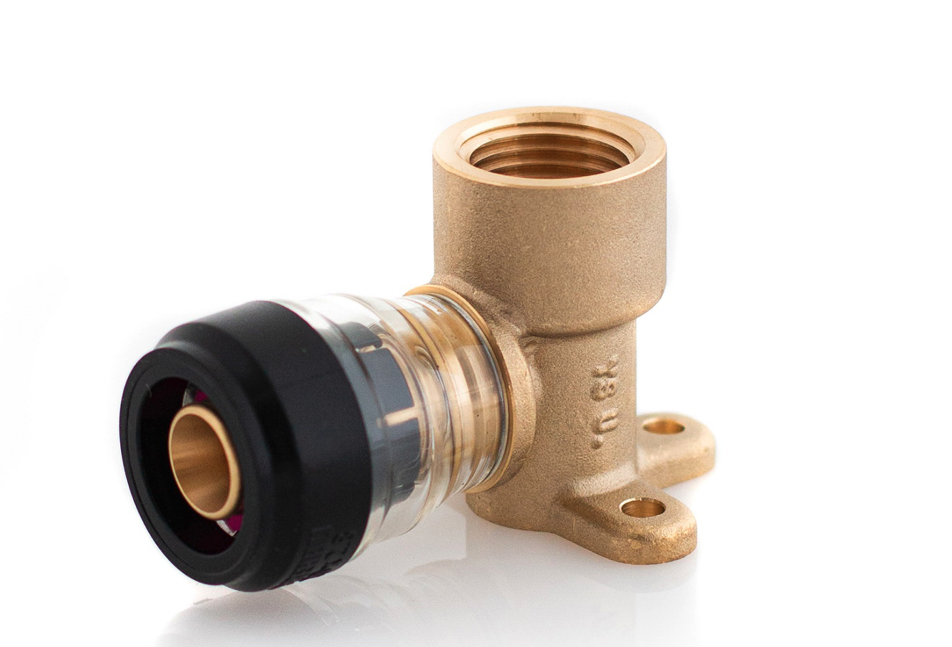

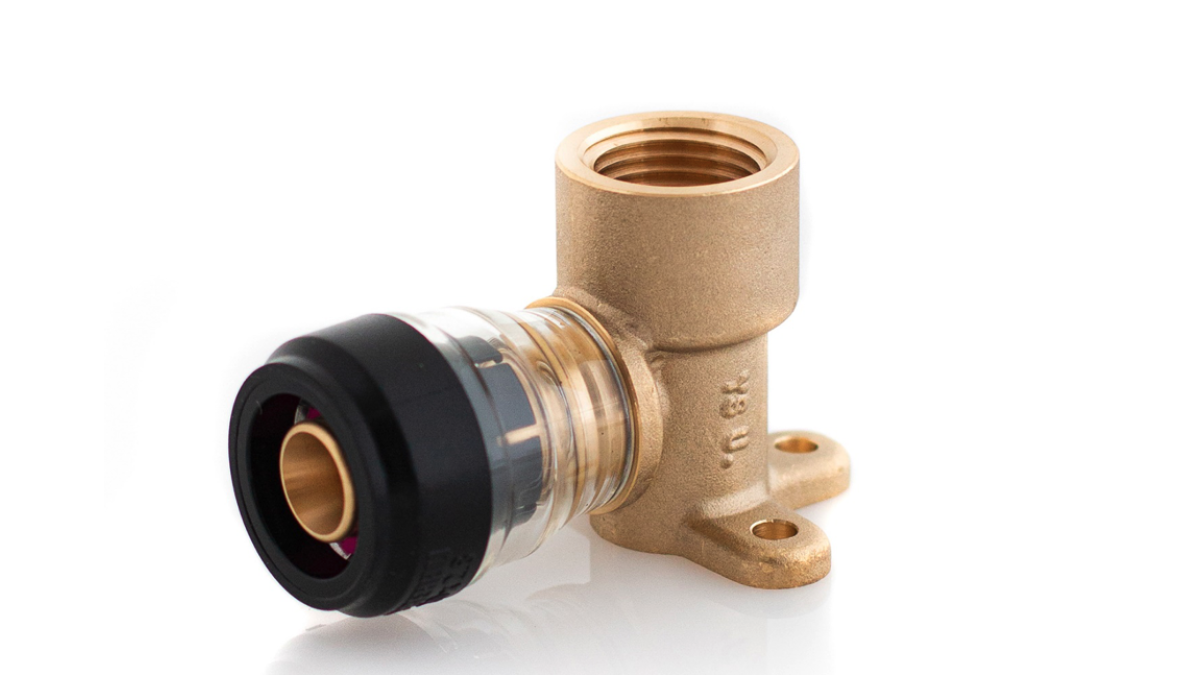

PINC works by pushing REHAU standard PE - Xa 16 or 20mm hot or cold water pipe into a PINC connector joint until it clicks — the joint is completely home when the 360° fluorescent UV pink inspection ring is fully visible.

Safety

PINC is also dark place friendly — simply shine a UV torch at the pink inspection ring to see a full circle view of the completed joint.

Efficiency

It’s also tool-free, apart from a trusty pipe cutter.

Where can I use PINC?

REHAU PINC is ideal for residential and commercial plumbing including multi residential or stand-alone and modular housing applications. It is suitable for use with REHAU RAUTITAN PE-Xa 16 or 20mm hot or cold water pipe, and is ideal for installation into tight, dark spaces.

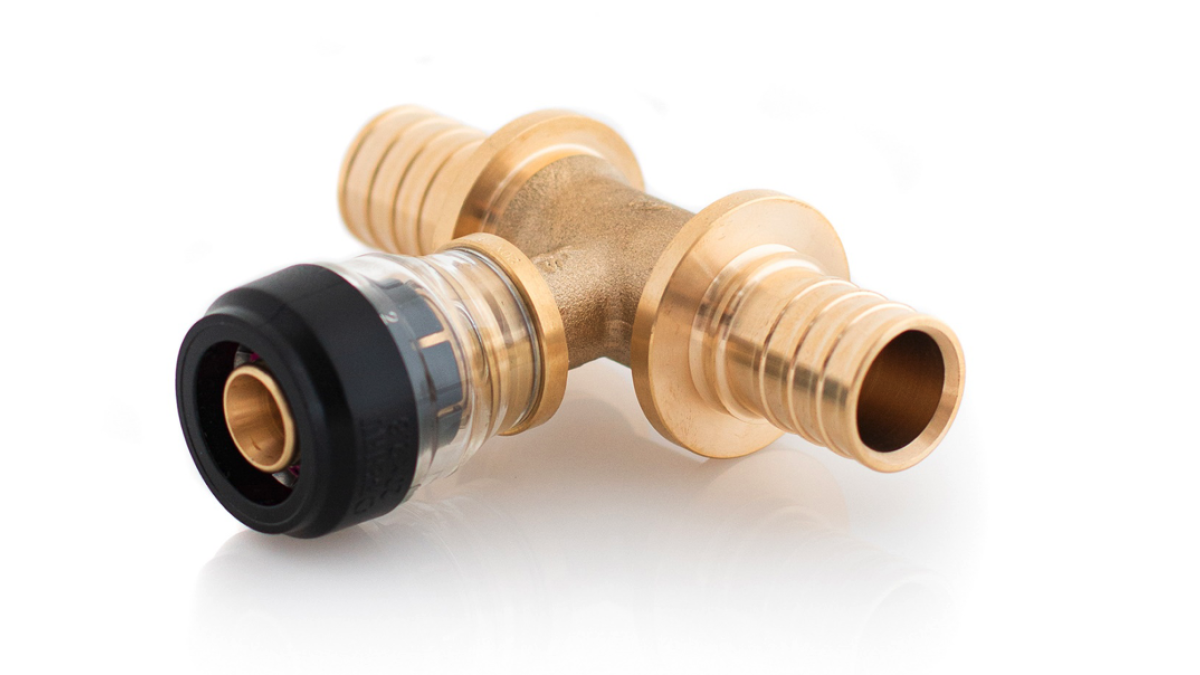

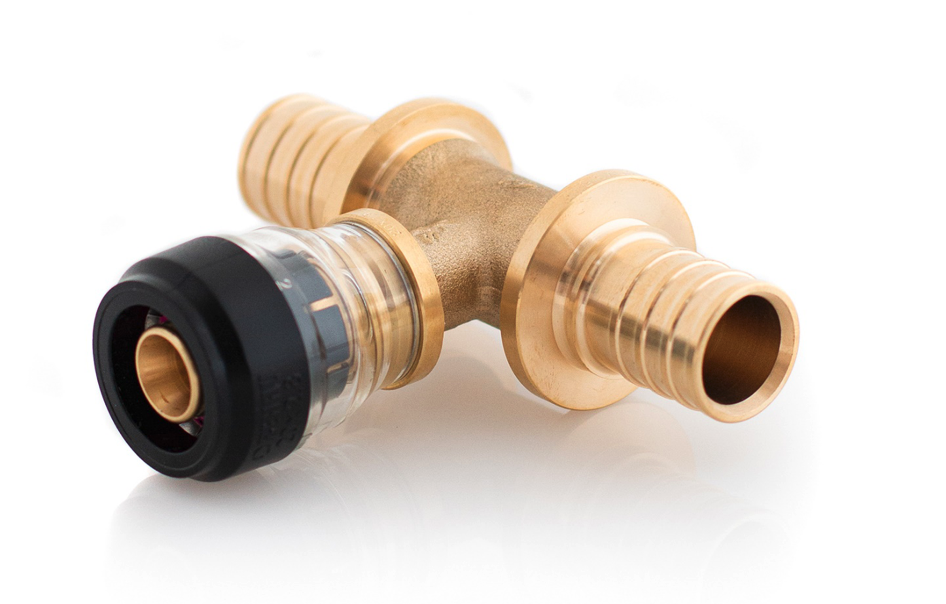

REHAU PINC is complementary, providing options to either mix and match with existing REHAU fittings, or used as a complete 16 and 20mm system. PINC offers a faster installation time compared to the current system offered by REHAU.

Key features

  • Stainless steel toothed grab ring is capable of holding up to 2.5 tonnes pull-out force
  • Two sealing rings for extra security and enhanced leak tightness
  • Made with REHAU's engineered polymers and highly dezincification resistant brass
  • Only needs a REHAU approved pipe cutter for installation
  • No expensive tools are needed.
  • Consist of 47 fittings, that are easy to work with in tight, dark spaces.
  • A fluorescent pink inspection ring provides visible confirmation of a completed joint.

REHAU PINC is watermarked and complies with NZS 2537.2:2011 (WaterMark Certificate 001412) and AS/NZS 4020: 2018.

PINC is produced by REHAU — a global company which was founded in Germany in 1948 and is trusted in over 50 countries around world, with 40 factories and 20,000 employees. Over 500 million REHAU plumbing fittings and over 404,000 KM of PE-Xa pipe has been installed throughout the world.

Learn more about PINC from REHAU directly or visit your local plumbing merchants located throughout both the North and South Islands of New Zealand.

Demo product is available at selected merchant branches or upon request by emailing [email protected]

Product brochures can be downloaded from www.rehau.co.nz

View more information on REHAU, including contact details.
