RAUPIANO for Trade and High Temperature Waste

Manufactured by REHAU since 1996, and installed in New Zealand and Australia since 2011, RAUPIANO is ideal for use in commercial kitchens and trade waste applications.

RAUPIANO is made of mineral reinforced Polypropylene (PP-MD) with high temperature and chemical resistance. This makes it an ideal drainage solution for greasy and trade waste installations.

Rubber ring joints enable three times faster jointing than HDPE. RAUPIANO has half the thermal expansion of HDPE which means it doesn’t grow or bend during delivery to site. It also has a high resistance to warm environment installations and during high temperature discharge. This allows for straight, neat installs.

When the guidelines of the RAUPIANO Installation are adhered to, applications in ground or in concrete are acceptable.

RAUPIANO is approved for waste temperature up to 98°C (brief periods) as well as having resistance to chemicals between pH2 to pH12. Some chemicals are not suitable for RAUPIANO. For example, a school laboratory may need some verification as to the chemicals discharged, while chemicals found in petrol station applications are unsuitable for RAUPIANO.

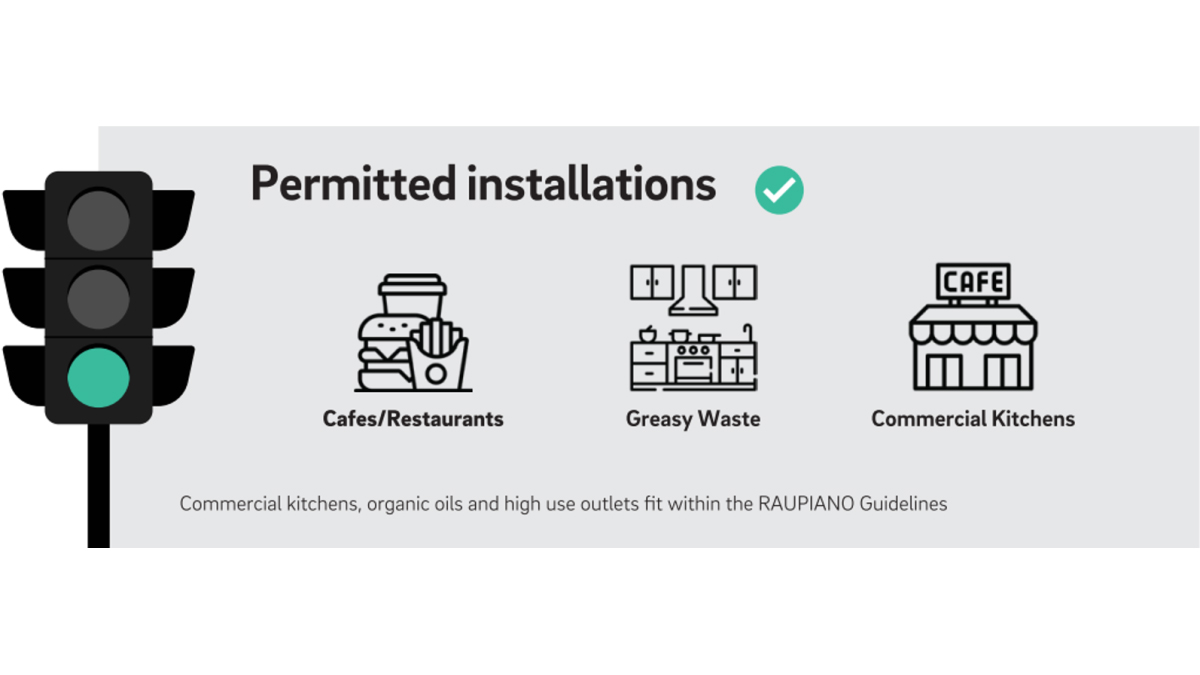

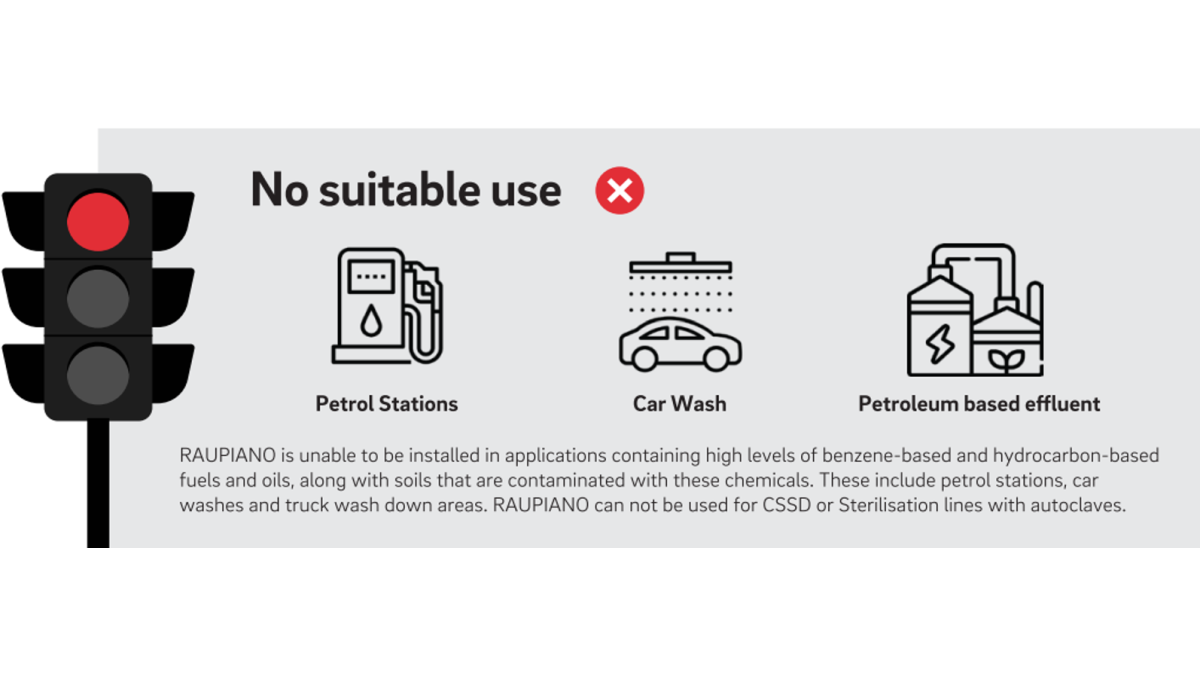

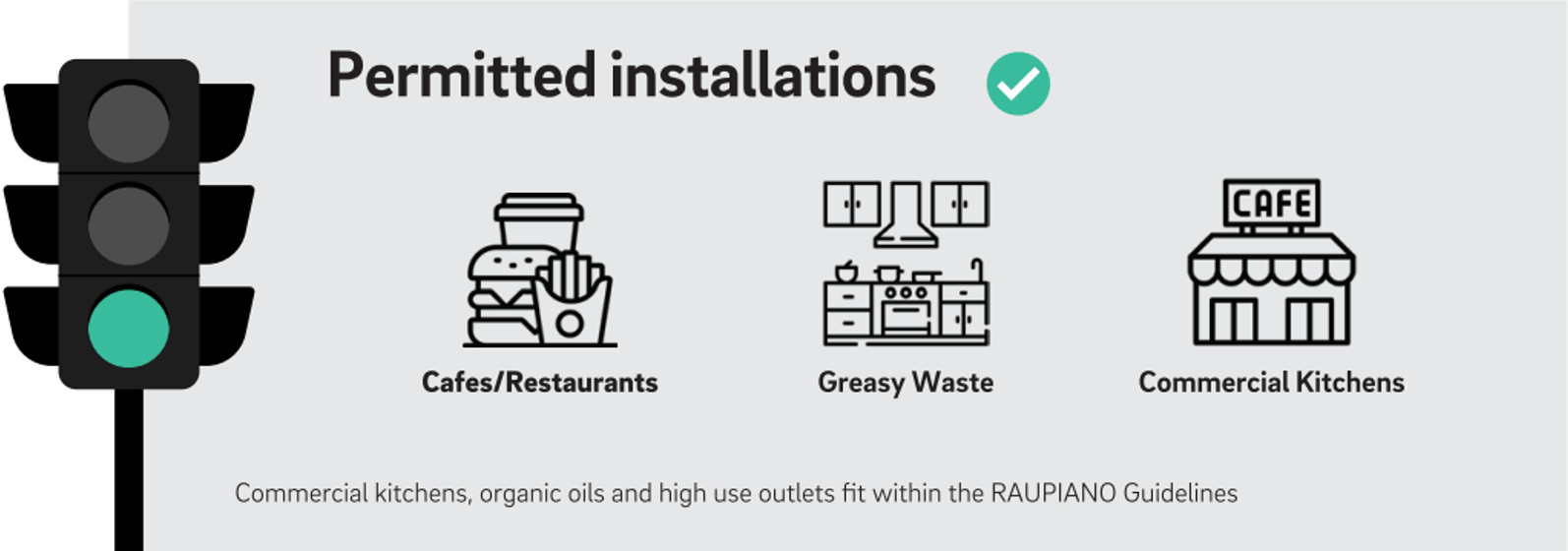

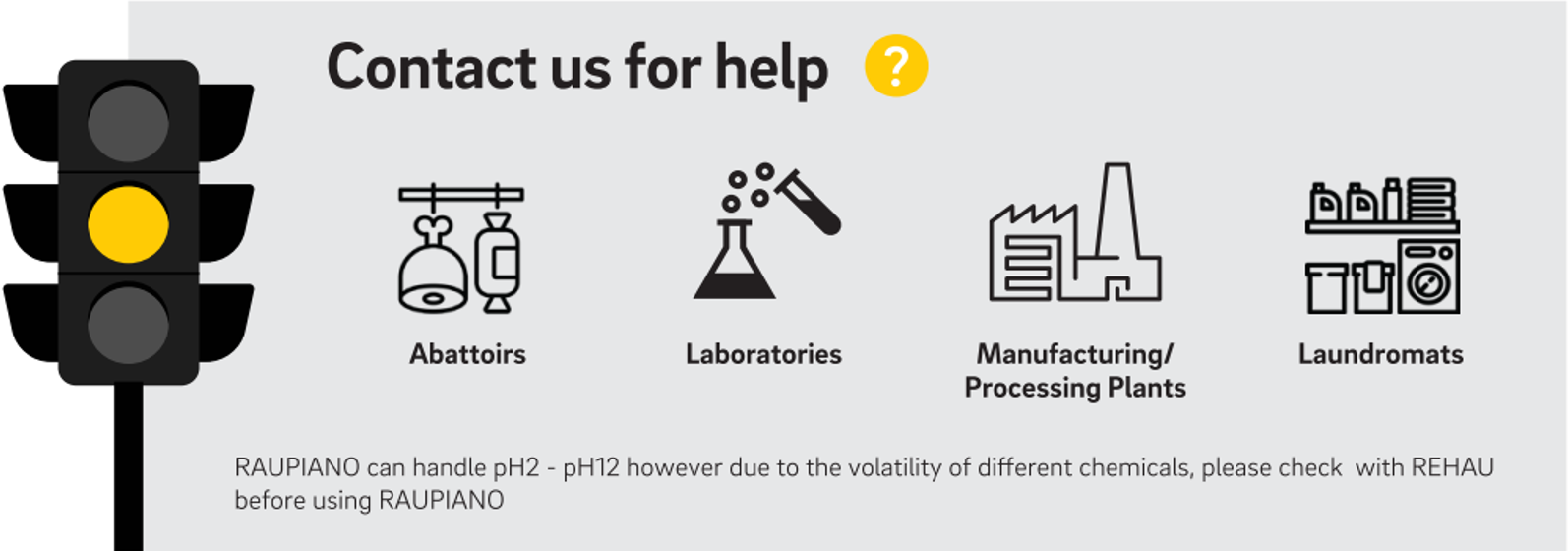

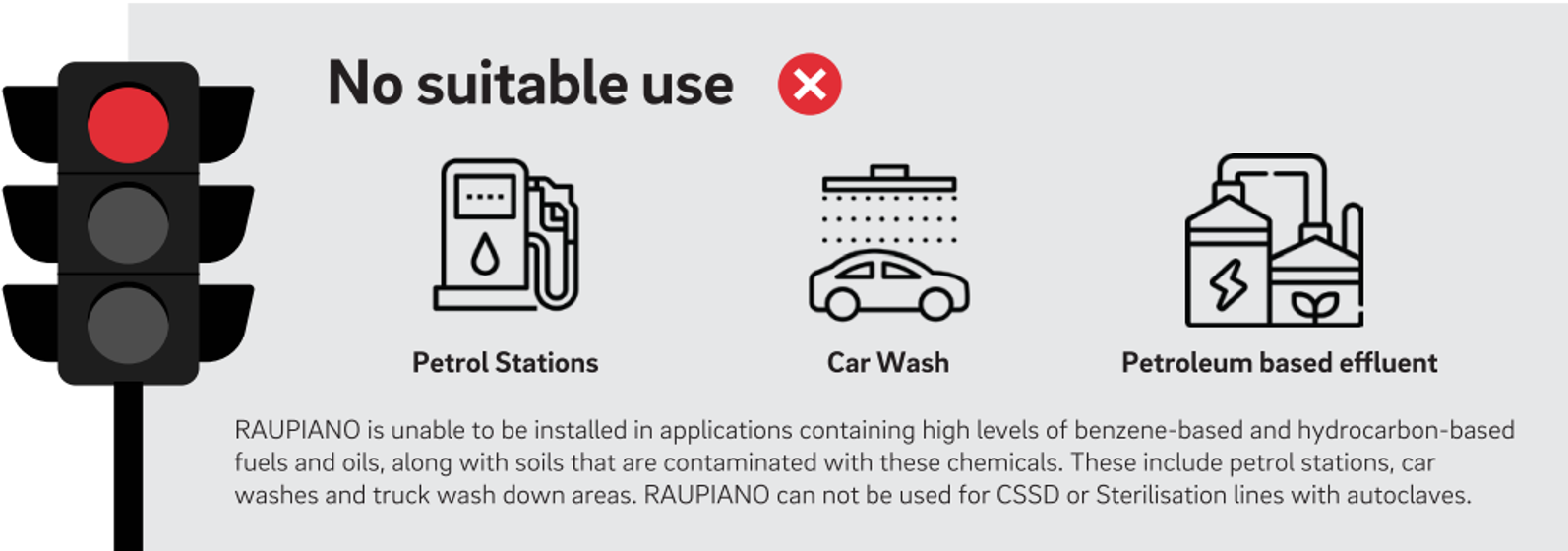

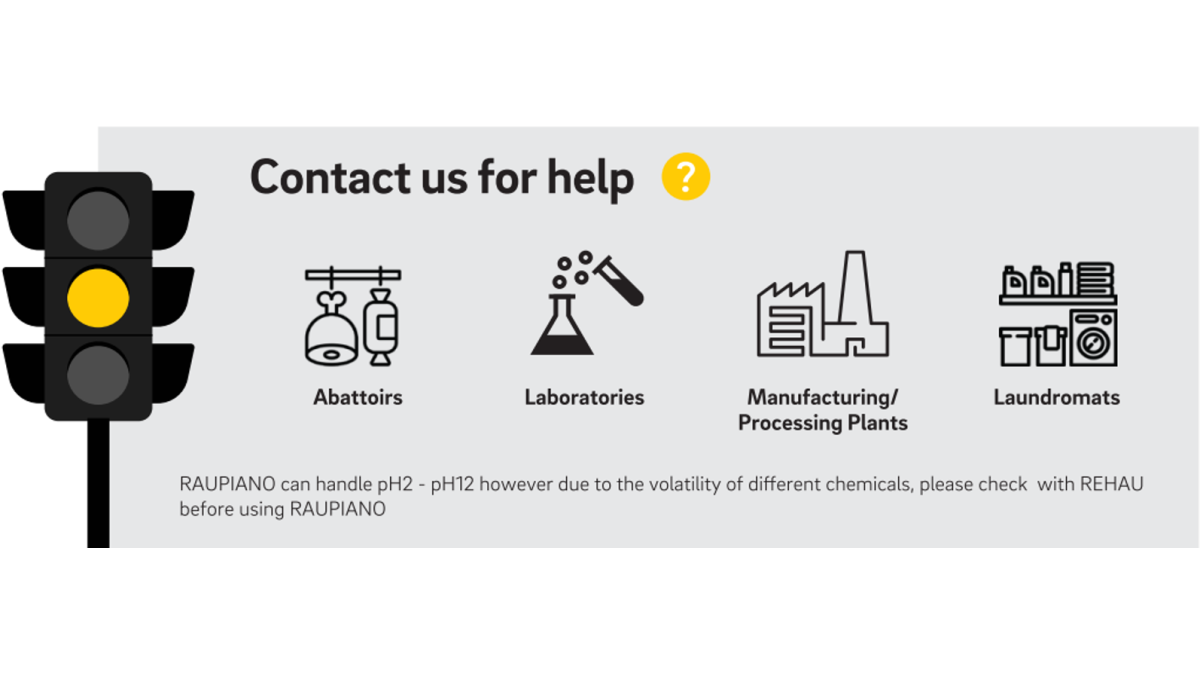

By following the REHAU Traffic Light system for applications, RAUPIANO is your trusted choice for trade waste applications.

To learn more about how RAUPIANO can save time on site while meeting your trade waste requirements, please visit www.myrehau.co.nz or contact your local Area Sales Manager.

RAUPIANO PLUS Acoustic Plumbing and Drainage System

REHAU

View Product

The RAUPIANO PLUS Acoustic Plumbing and Drainage System is a polypropylene-based plumbing and drainage pipe system that consists of discharge pipes and fittings that have been acoustically designed to reduce the noise caused by water and waste passing through the discharge system.

The system is suitable in a wide range of buildings from comfortable homes, modern hospitals, and hectic commercial kitchens to contemporary skyscrapers.

The RAUPIANO PLUS Acoustic Plumbing and Drainage System has been appraised by BRANZ for use within the following scope:

as pipes, fittings and materials for sanitary plumbing system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2; and
for use as a sanitary plumbing system for internal use within buildings; and
for pipes and fittings of size 40 mm and greater, for drainage system design and installation in accordance with NZBC Acceptable Solution G13/AS3 and AS/NZS 3500.2.

In the opinion of BRANZ, The RAUPIANO PLUS Acoustic Plumbing and Drainage System if designed, installed, used and maintained in accordance with the statements and conditions of Appraisal 809 (2013), will meet the following provisions of the NZBC.

Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement. See Paragraph 8.1.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets this requirement and does not present a health hazard to People.
Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. The RAUPIANO PLUS Acoustic Plumbing and Drainage System meets these requirements. See Paragraphs 7.1 to 7.5.

Durability

Hazardous Building Materials

Foul Water

BRANZ Appraised
