Pro Clima Releases Certified Builders Branded Wrap

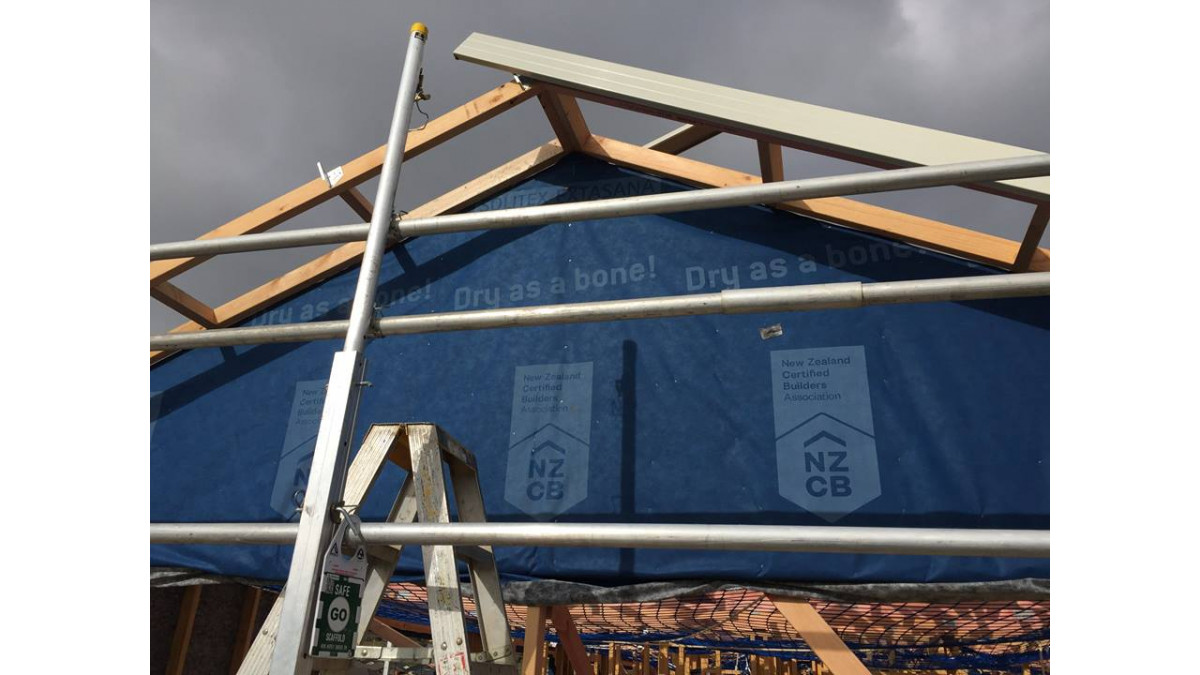

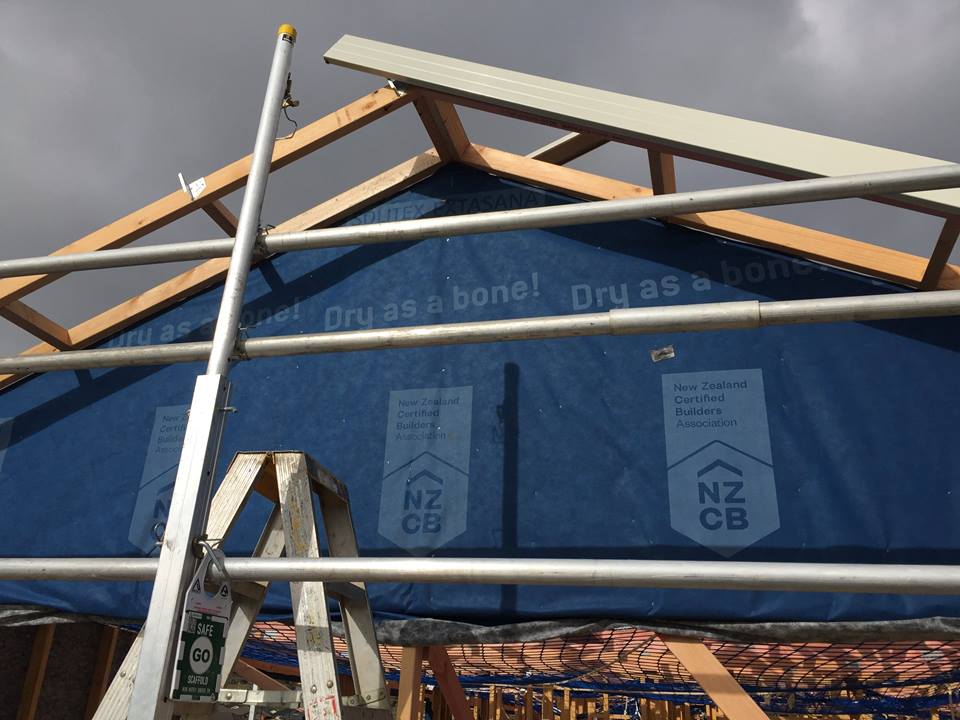

Pro Clima recently teamed up with the New Zealand Certified Builders Association to develop a branded building wrap. This allows all Certified Builders to purchase the SOLITEX EXTASANA building wrap at a substantially discounted price while promoting the new Certified Builders logo.

Pro Clima also offers builders the opportunity to have their own logo printed on the SOLITEX EXTASANA subject to a minimum annual order quantity. Contact a local Pro Clima representative to discuss this further.

SOLITEX EXTASANA is a non-porous flexible building wrap that has been manufactured in Germany. The benefit of being non-porous is that it offers a much higher degree of weather tightness than micro-porous building wraps. It is not affected by timber treatments and will not wick physical water droplets through itself. The product has been tested with 10,000mm of water column pressure. At the same time, the wrap has a really low resistance to water vapour with an MVTR rating of 0.75 MNS/g, and actively transports water vapour away from the insulation and framing layer. The product is ideal for use with dark claddings as the TEEE functional layer has a melt point close to 200ºC. It has a CodeMark certificate and offers 60 days UV rating.

This is one of the few building wraps that meets all of the requirements of Table 23 in E2/AS1.

Wall Underlay (SOLITEX EXTASANA)

pro clima

View Product

SOLITEX EXTASANA is a synthetic flexible wall underlay designed for New Zealand conditions, produced in Germany, and exceeds all of the testing standards of E2/AS1 Table 23.

Has been assessed for use as a flexible wall underlay on timber framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with absorbent wall claddings directly fixed to framing; and,
with non-metallic, non-absorbent wall claddings directly fixed to frame; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to, and including ‘Very High’.

Has been assessed for use as a flexible wall underlay on steel framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regards to building height and floor plan area; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to, and including ‘Very High’.

Has been assessed for use as a flexible wall underlay over rigid wall underlays on timber and steel framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1 (August 2011), Paragraph 1.1 with regards to building height and floor plan area; and,
with absorbent and non-absorbent wall claddings installed over an 18 mm minimum drained cavity; and,
with masonry veneer in accordance with NZBC Acceptable Solution E2/AS1; and,
situated in NZS 3604:2011 Wind Zones up to and including ‘Extra High’

If used, designed, installed and maintained in accordance with the statements and conditions of the Installation Guide and the Codemark Certificate, will meet, or contribute to meeting the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1(a), not less than 50 years, B2.3.1(b), 15 years and B2.3.2. meets these requirements.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2. When used as part of the cladding system, will contribute to meeting this requirement.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Meets this requirement and will not present a health hazard to people.

BRANZ Appraised

CodeMark
