Nu-Wall Offers Cladding with a Long-Term View

Nu-Wall Aluminium Cladding is increasingly being specified on the many new housing developments around New Zealand, in both the private and public sectors. The high durability of the product, coupled with a low requirement for maintenance, results in a significantly lower cost of ownership over the life of the building. This is of particular importance to owners who plan to hold the property over a long term.

Additionally, the wide range of cladding profiles and finishes offered, plus the choice of either horizontal or vertical cladding profiles, provides specifiers and their clients with the opportunity to create individual aesthetics within a housing development without deviating from the scope of the overall project Building Consent.

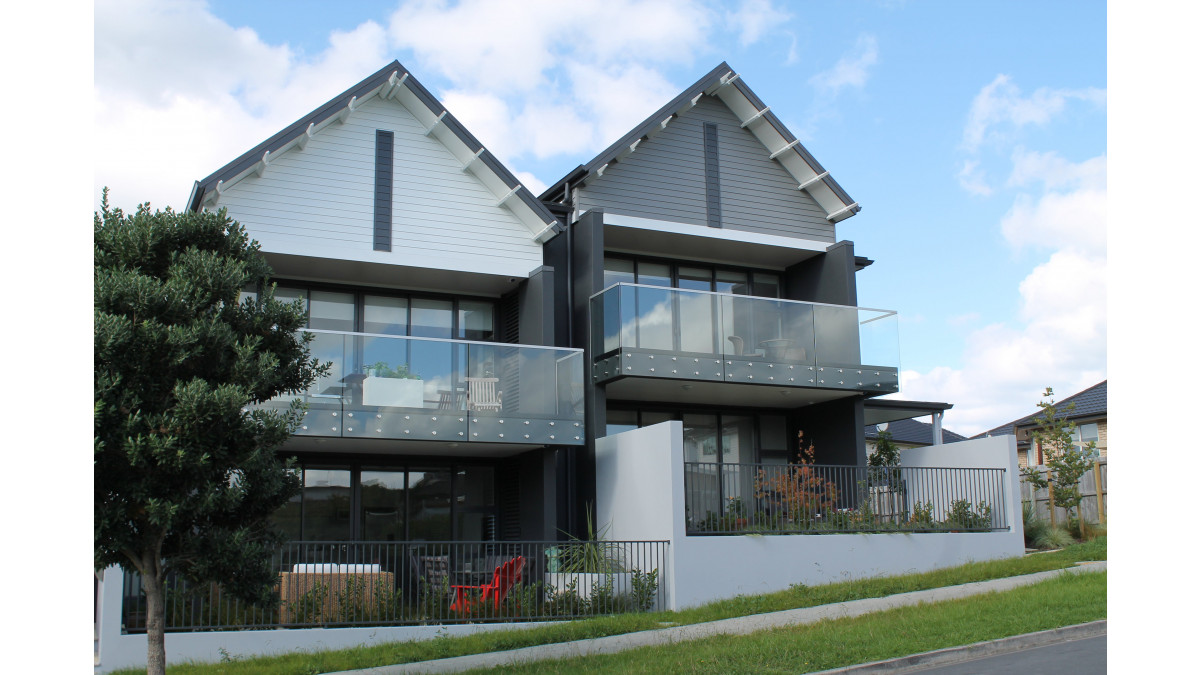

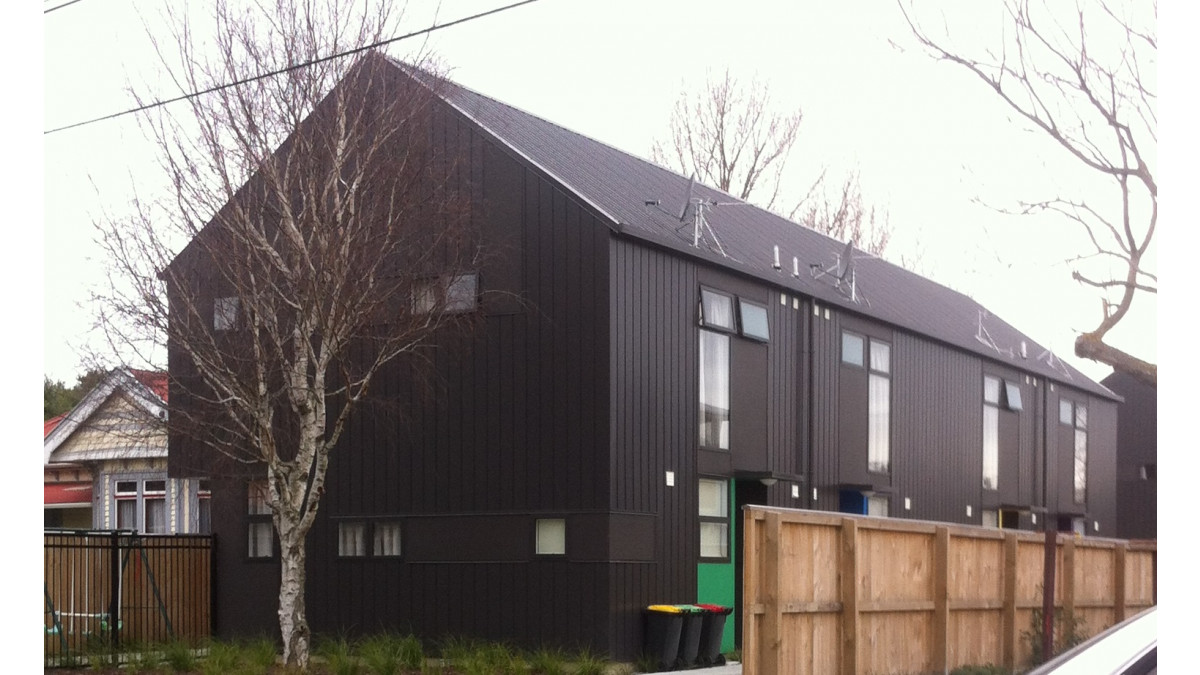

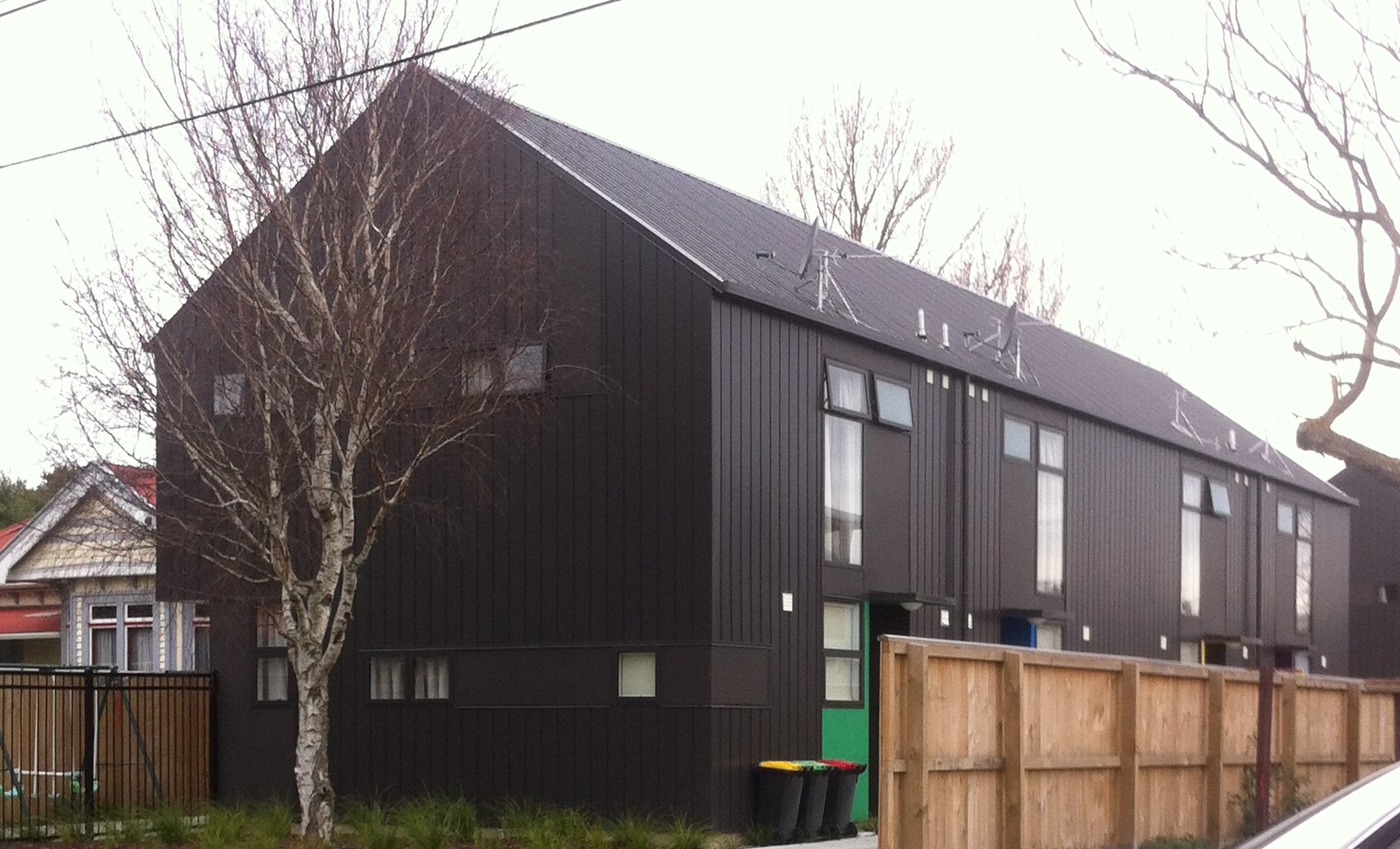

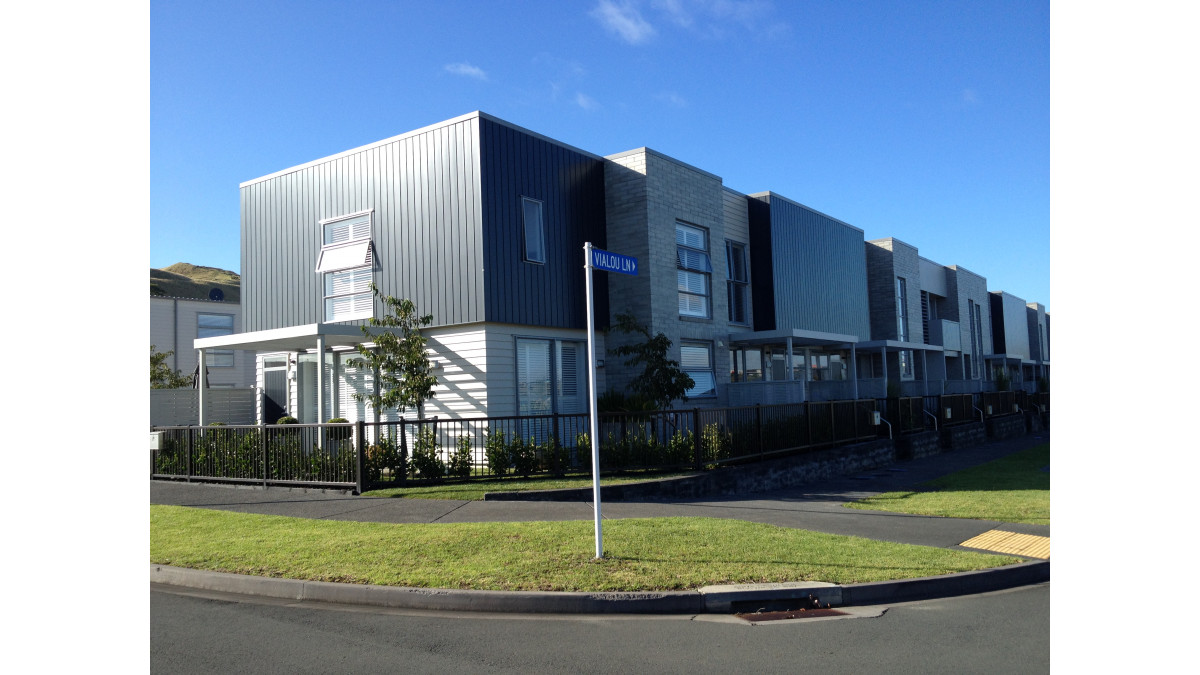

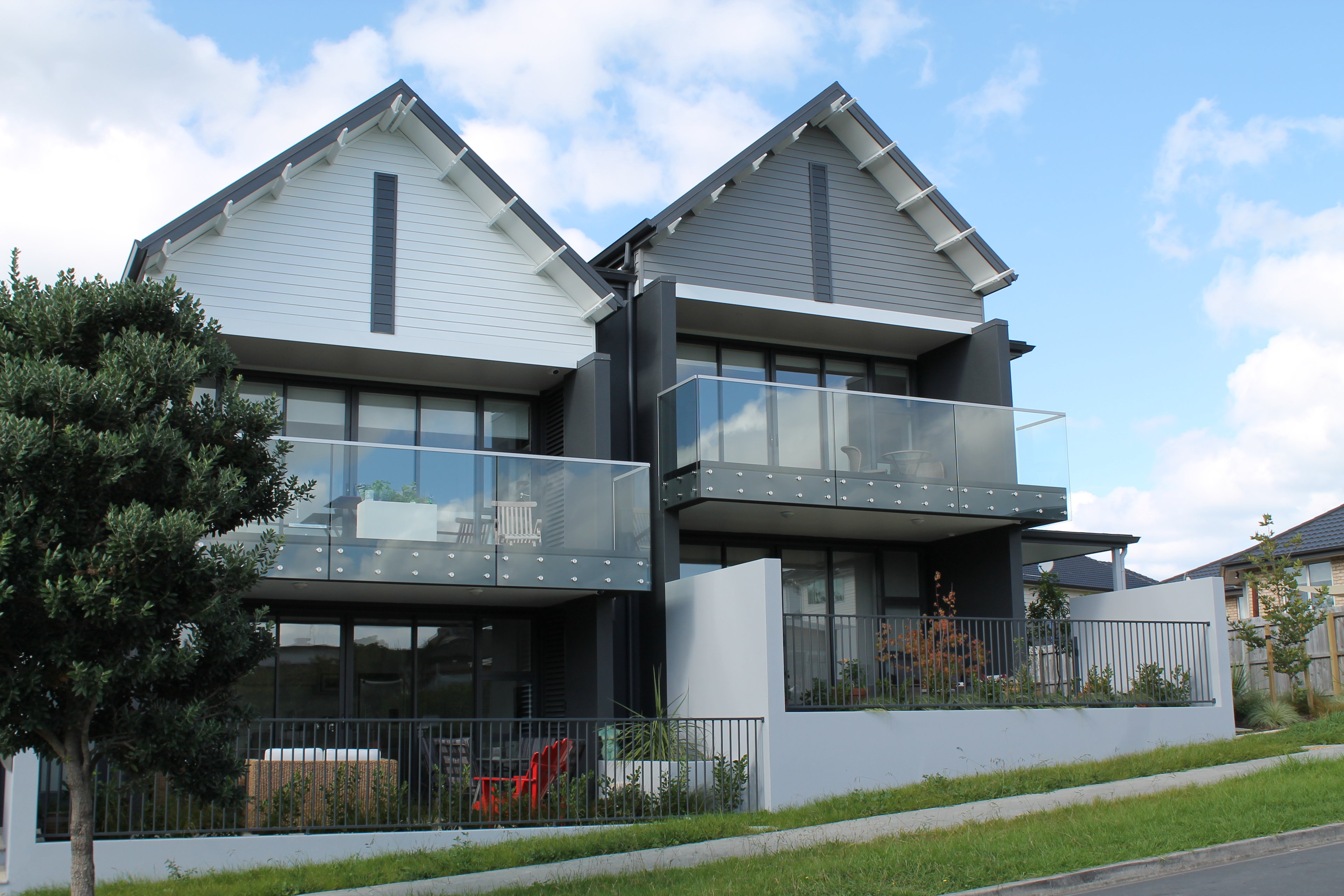

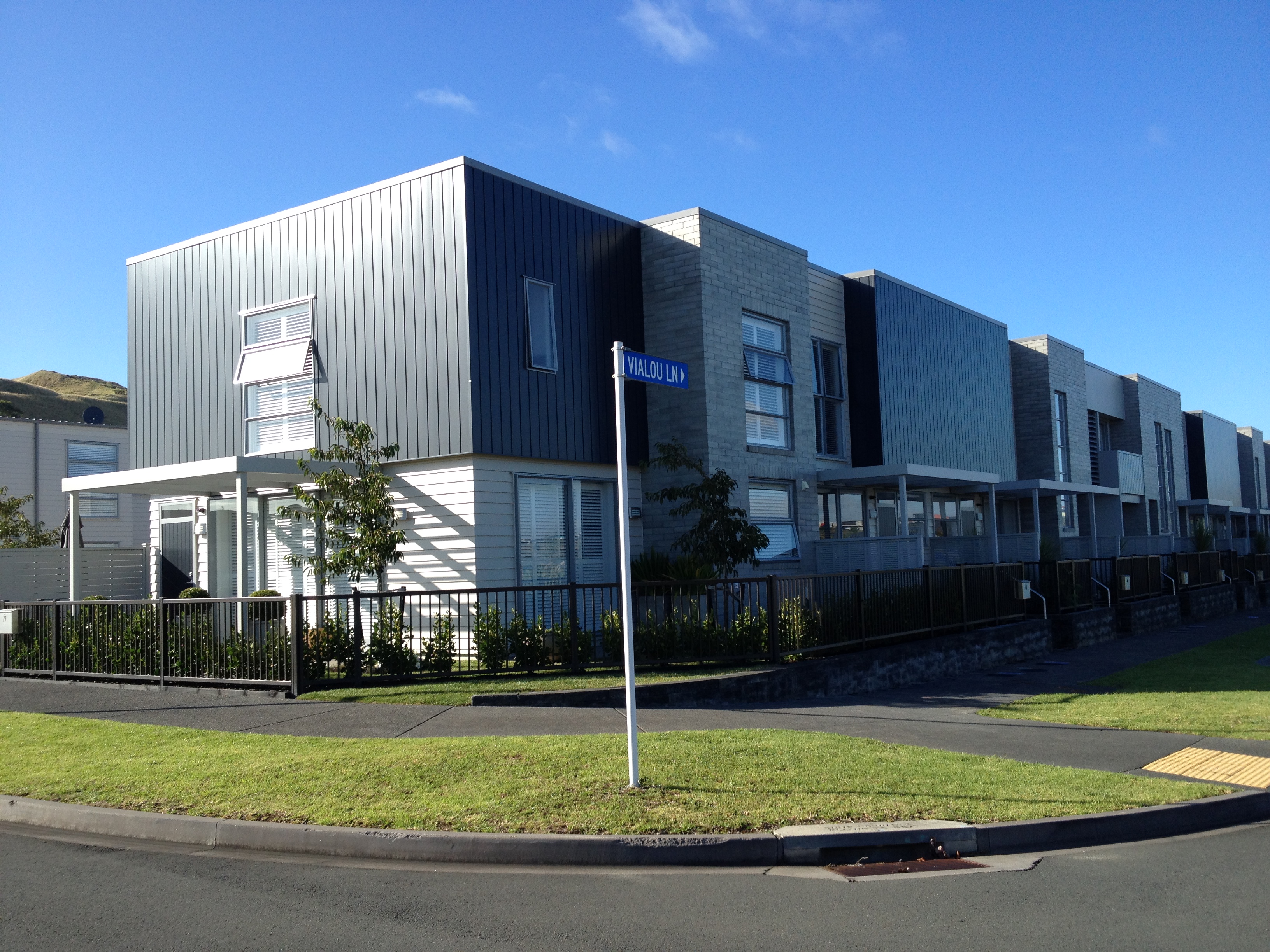

The above images illustrate some examples of completed housing projects, with cladding profiles having been specified to suit the house designs. Shown are an example using a horizontal weatherboard-type profile, and two others on which flat 200mm-wide cladding profiles were installed vertically.

Horizontal Cladding Profiles

Nu-Wall Cladding

View Product

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity is a cavity-based, inter-locking powder-coated aluminium weatherboard system.

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has also been appraised for weathertightness and structural wind loading when used as an external horizontally fixed wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
constructed with timber and steel framing complying with the NZBC; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 550 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Horizontal on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 550, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 550 for full information.

BRANZ Appraised

Vertical Cladding Profiles

Nu-Wall Cladding

View Product

The Nu-Wall Aluminium Cladding System — Vertical is a cavity-based or direct-fixed, inter-locking powder-coated aluminium weatherboard system.

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

See BRANZ Appraisals 556 and 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical on Cavity has also been appraised for weathertightness and structural wind loading when used as an external wall cladding system for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with timber and steel framing subject to specific engineering design; and,
situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 870 for full information.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has been appraised as an external wall cladding for buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and, ¬ constructed with timber framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Vertical Direct Fixed has also been appraised as an external wall cladding for steel-framed buildings within the following scope:

the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 with regard to building height and floor plan area; and,
constructed with steel framing complying with the NZBC; and,
with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
situated in NZS 3604 Wind Zones up to, and including, Extra High.

See BRANZ Appraisal 556 for full information.

See BRANZ Appraisals 556 and 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, and B2.3.2
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 870 for full information.

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Vertical Direct Fixed, if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4 — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years
Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 556 for full information.

BRANZ Appraised
