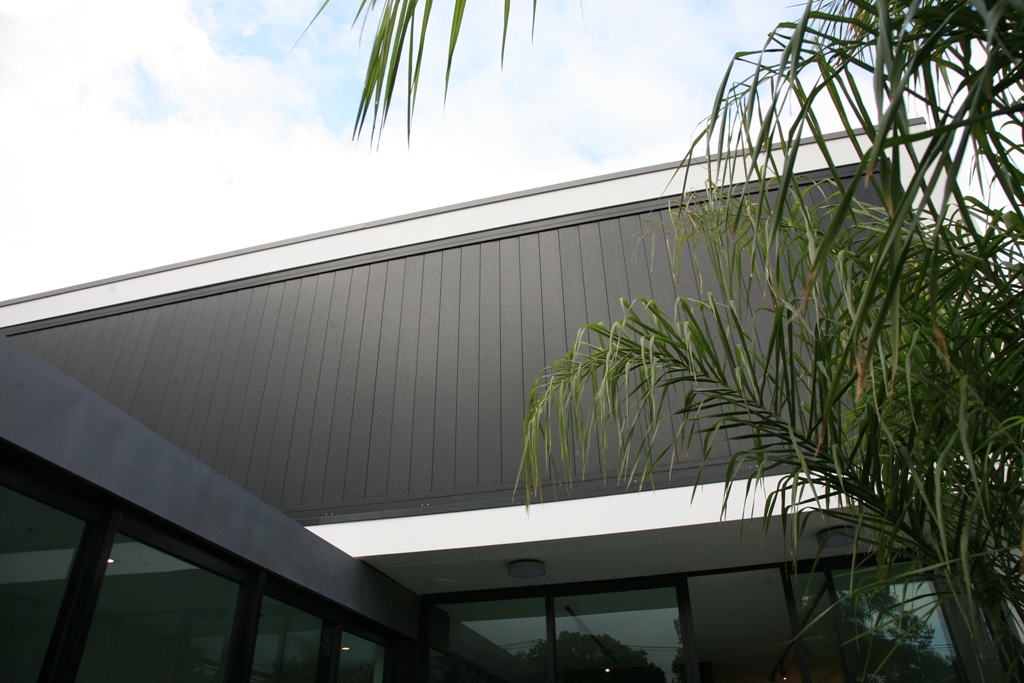

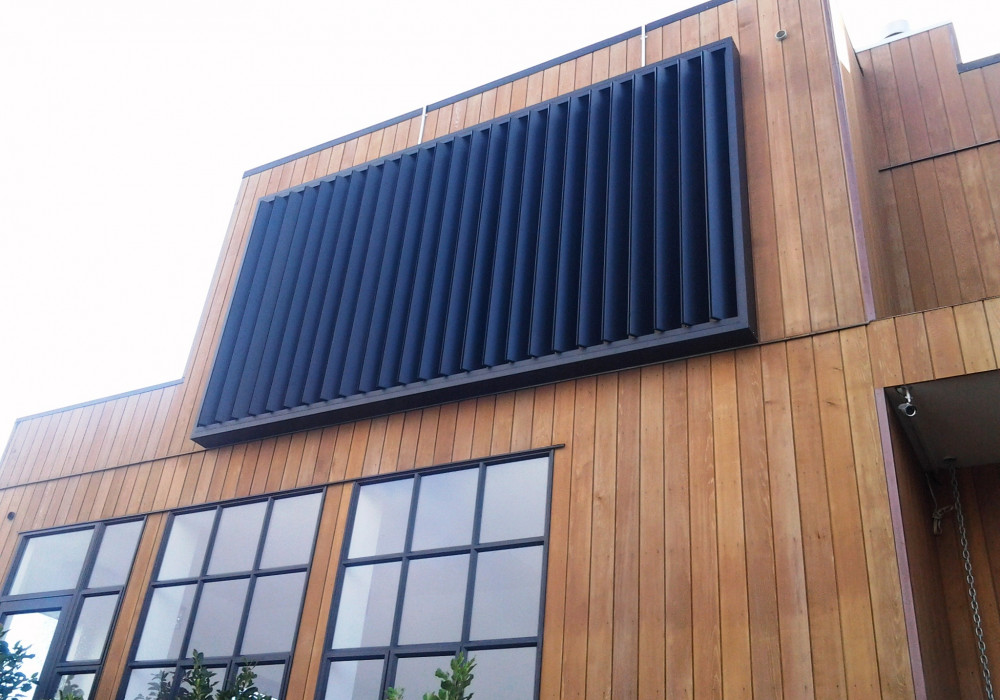

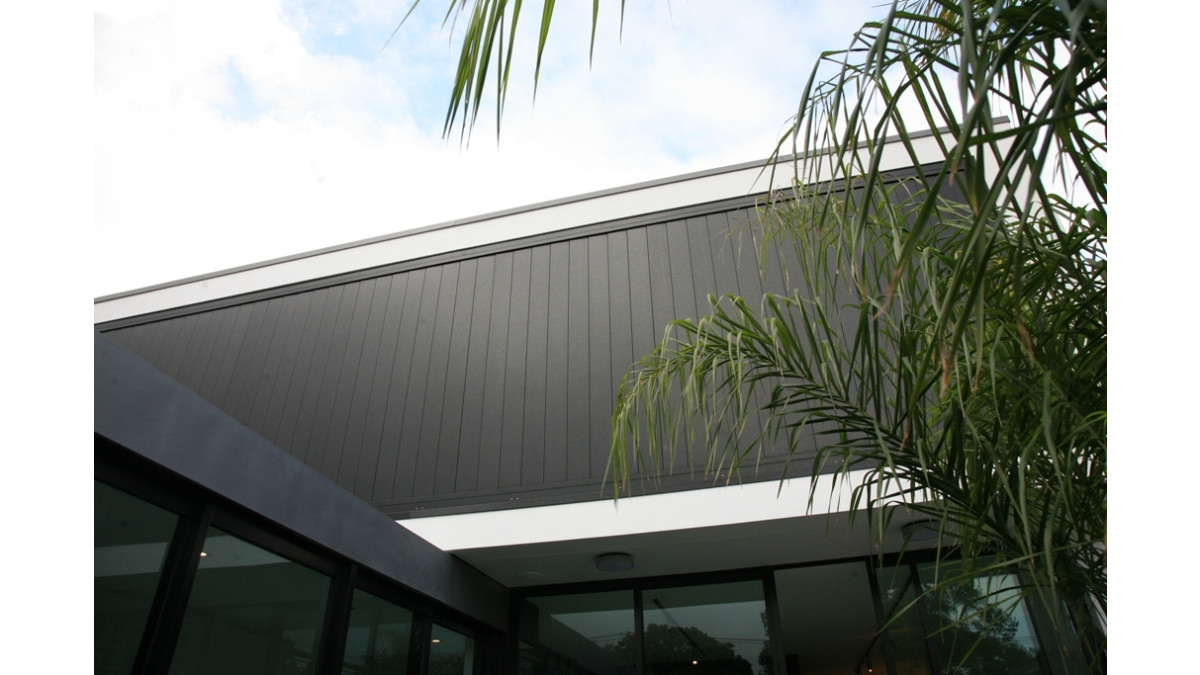

New Louvreline Panel from Louvretec

Choose from either a weatherboard look or a flush panel look – Louvreline panels are a new concept for wall panels, louvres and balustrades.

The blades can be used vertical or horizontal and open up many new and innovative design options. The panels close on to a woolpile strip minimising metal to metal contact Louvreline panels can be motorised or hand adjustable complementing modern architecture and working with the elements for ventilation, heating and cooling.

120mm Flush Panel

Louvretec

View Product

The 120mm Louvreline Flush Panel has a modern rectangular shape and seamlessly flat finish.

NZ Made

Can be used for sun shading, wind break, privacy and Architectural feature.
Suitable for coastal, inland, snow, residential, commercial installation.
Louvres can be installed horizontally, vertically or at an angle and can be motorised or manually adjustable (Spiral Pivot system) or fixed (end or bracket).
The Spiral pivot system allows for 180° rotation of the louvres.

Engineered to meet relevant AS/NZS standards.
All extrusions manufactured in an ISO quality assured environment to AS1866 & AS3902 standards.
Louvre spans, as per tables 1&2, section 12 of the Louvretec Product Catalogue, are certified by Markplan Consulting Limited (Consulting Structural Engineers) and meets the requirements of AS/NZS 1170:2011, NZS3604:2011, AS/NZ 1664:1997.
Refer to attached Engineering notes and PS1 provided by Markplan Consulting with regard to B1 & B2.
