270 Translucent Opening Roof
Louvretec
All products

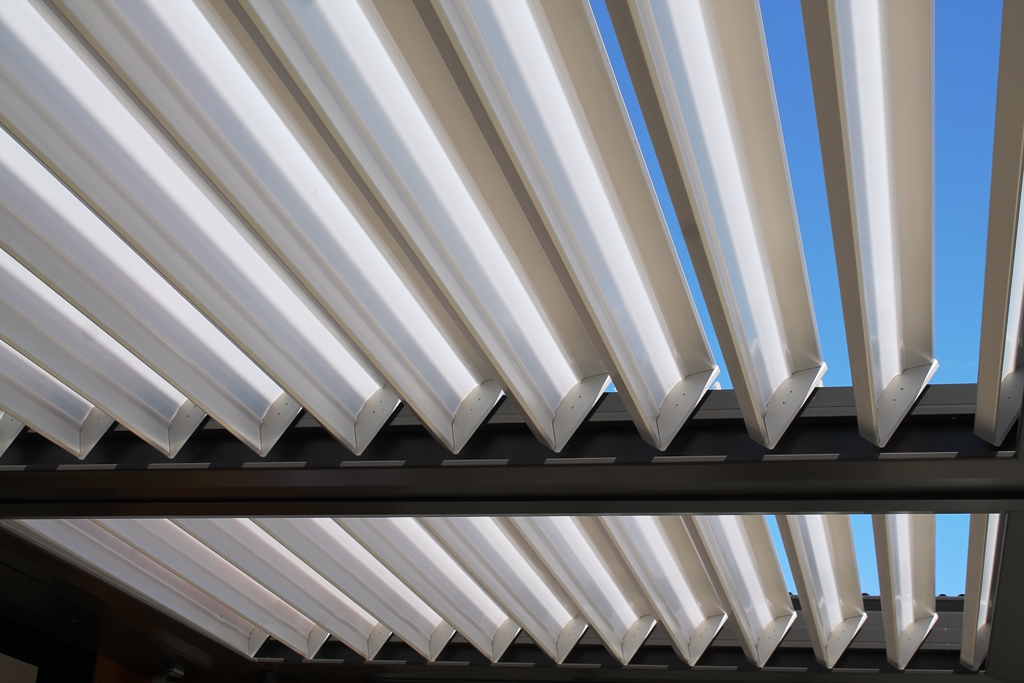

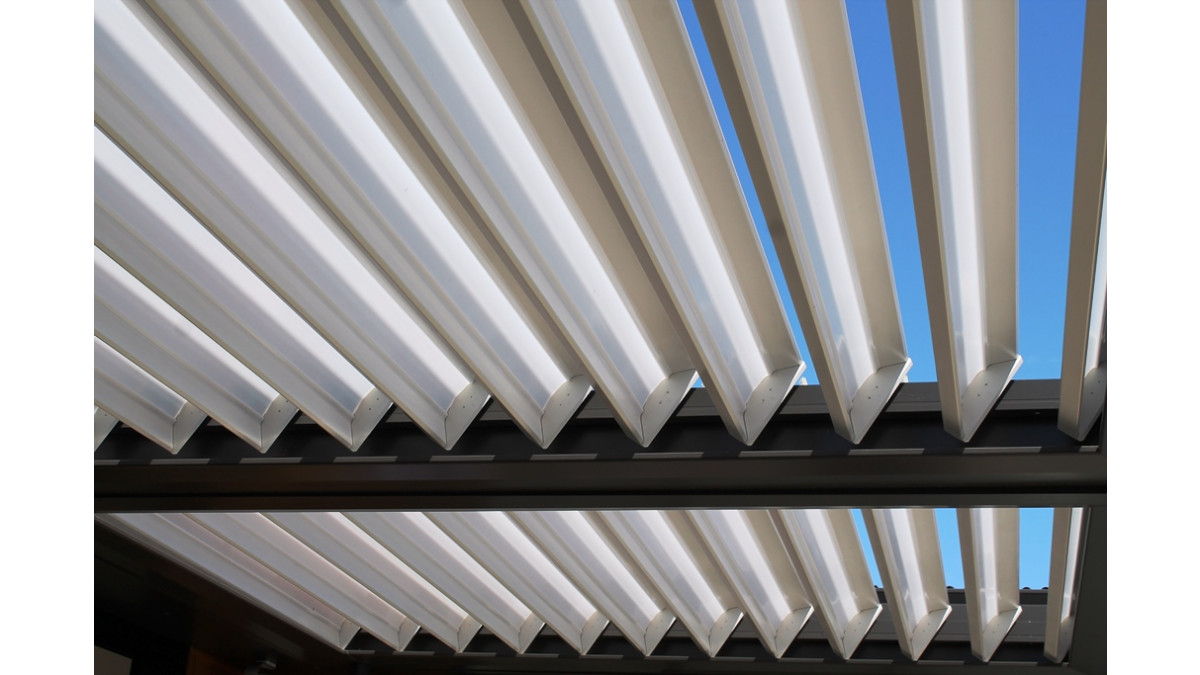

260
Translucent Roof by Louvretec

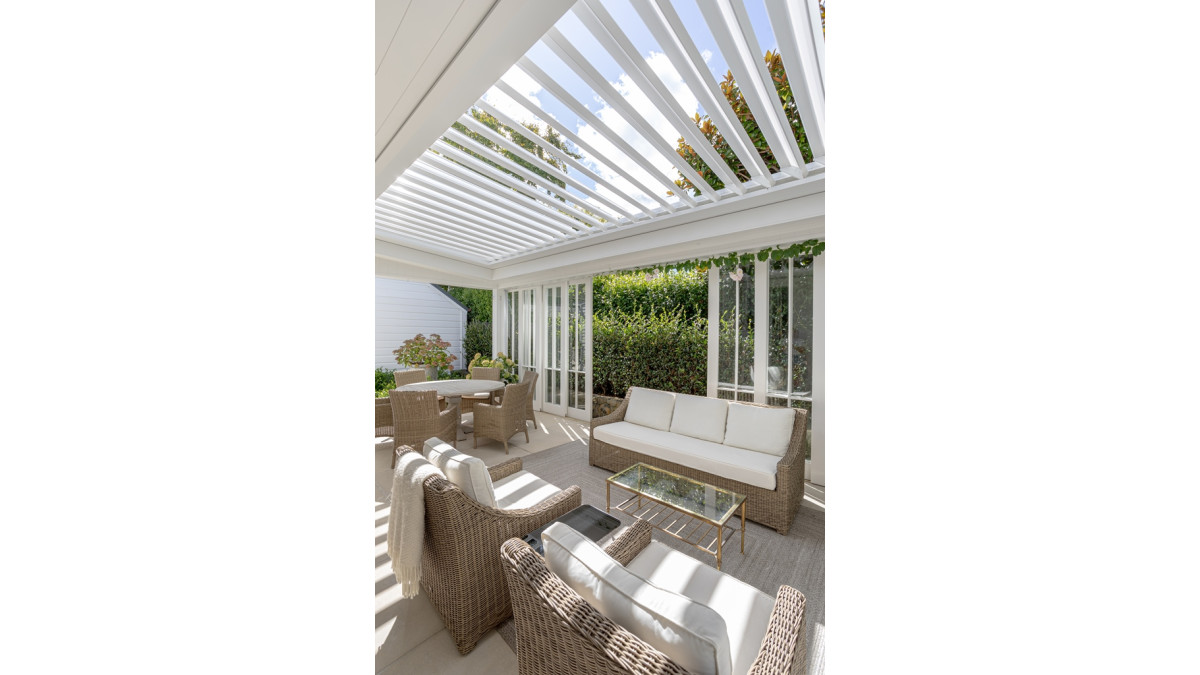

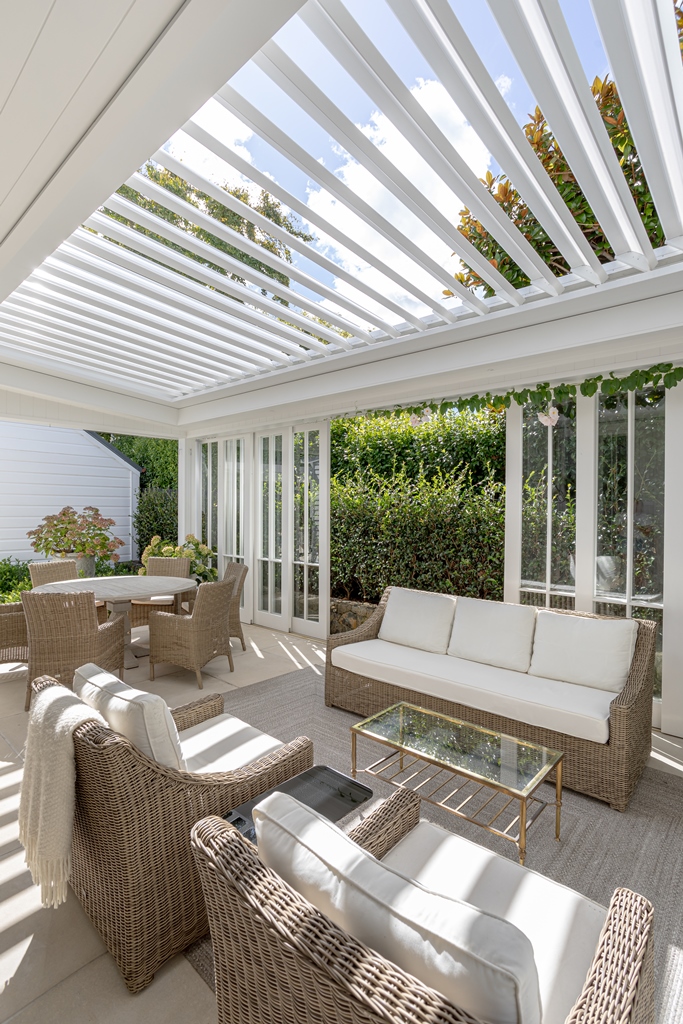

Louvretec Translucent Opening Roof lr
Translucent Roof by Louvretec. Architect: RAD. Photographer: John Williams

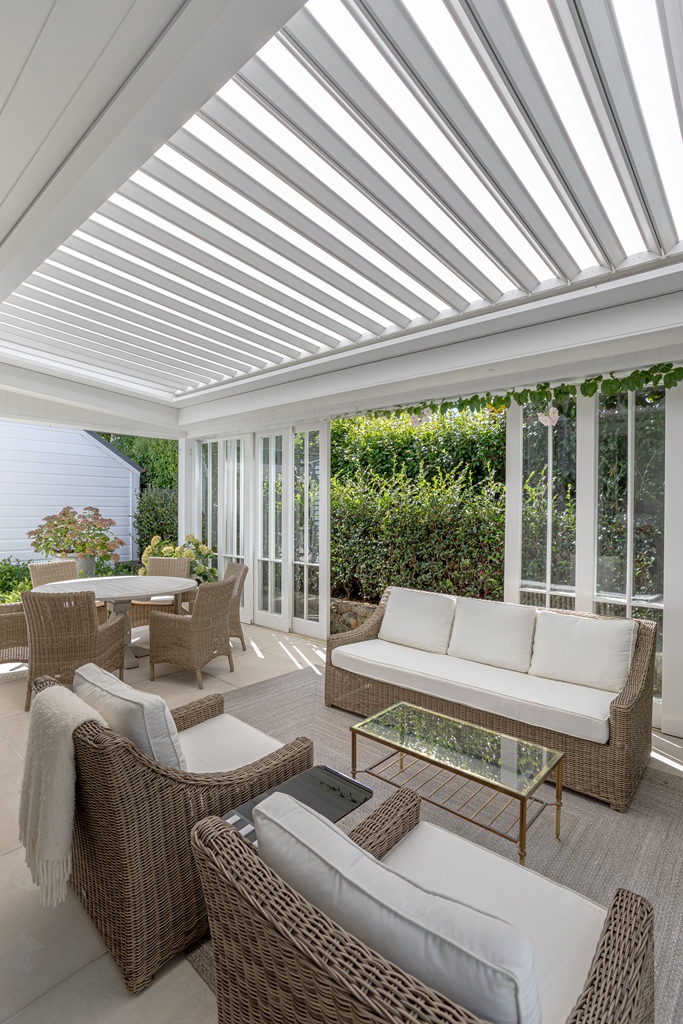

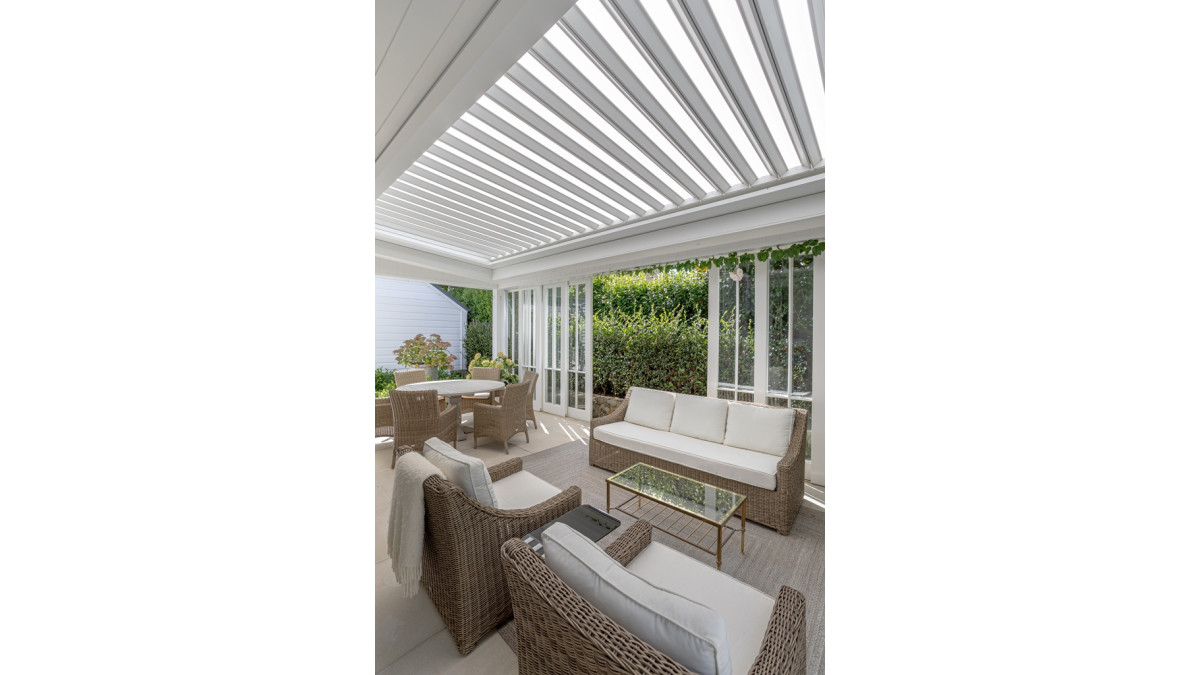

Louvretec Translucent Opening Roof2 lr
Translucent Roof by Louvretec. Architect: RAD. Photographer: John Williams

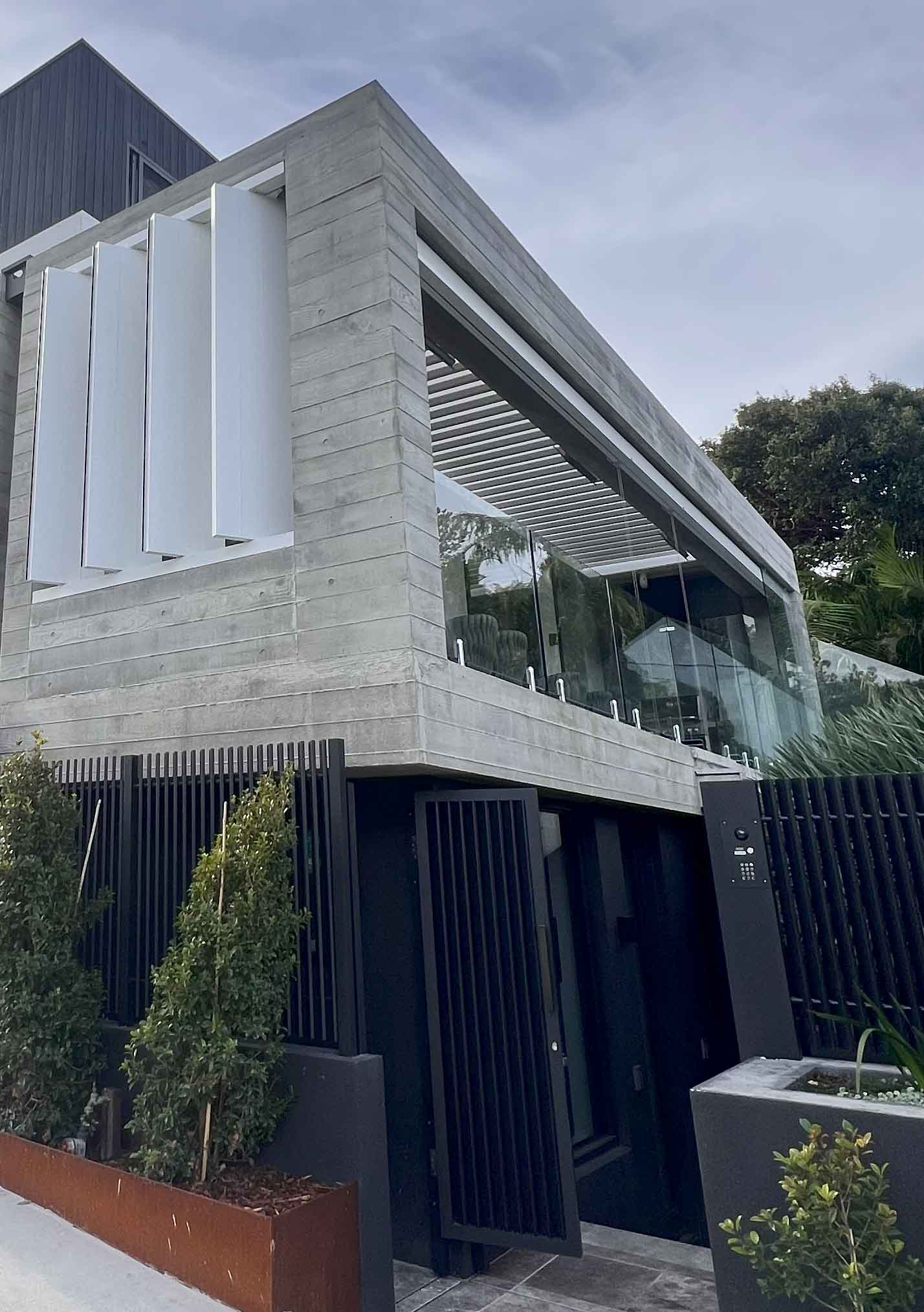

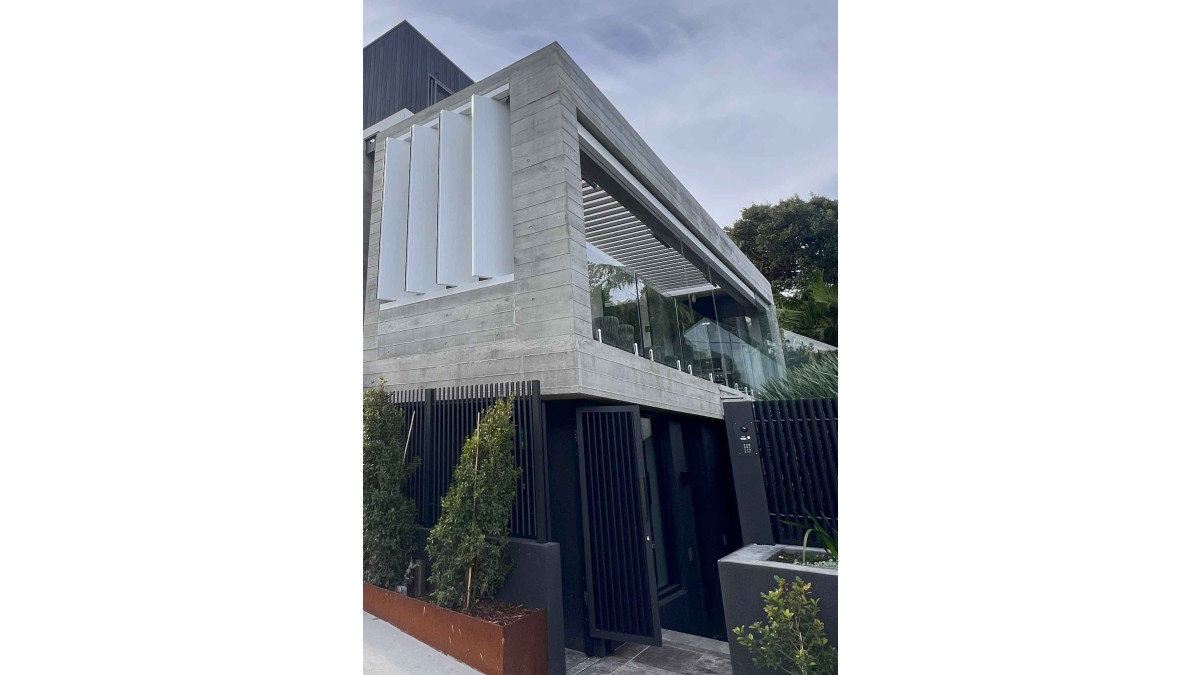

translucent and 450RL (1)lr
Translucent Roof by Louvretec

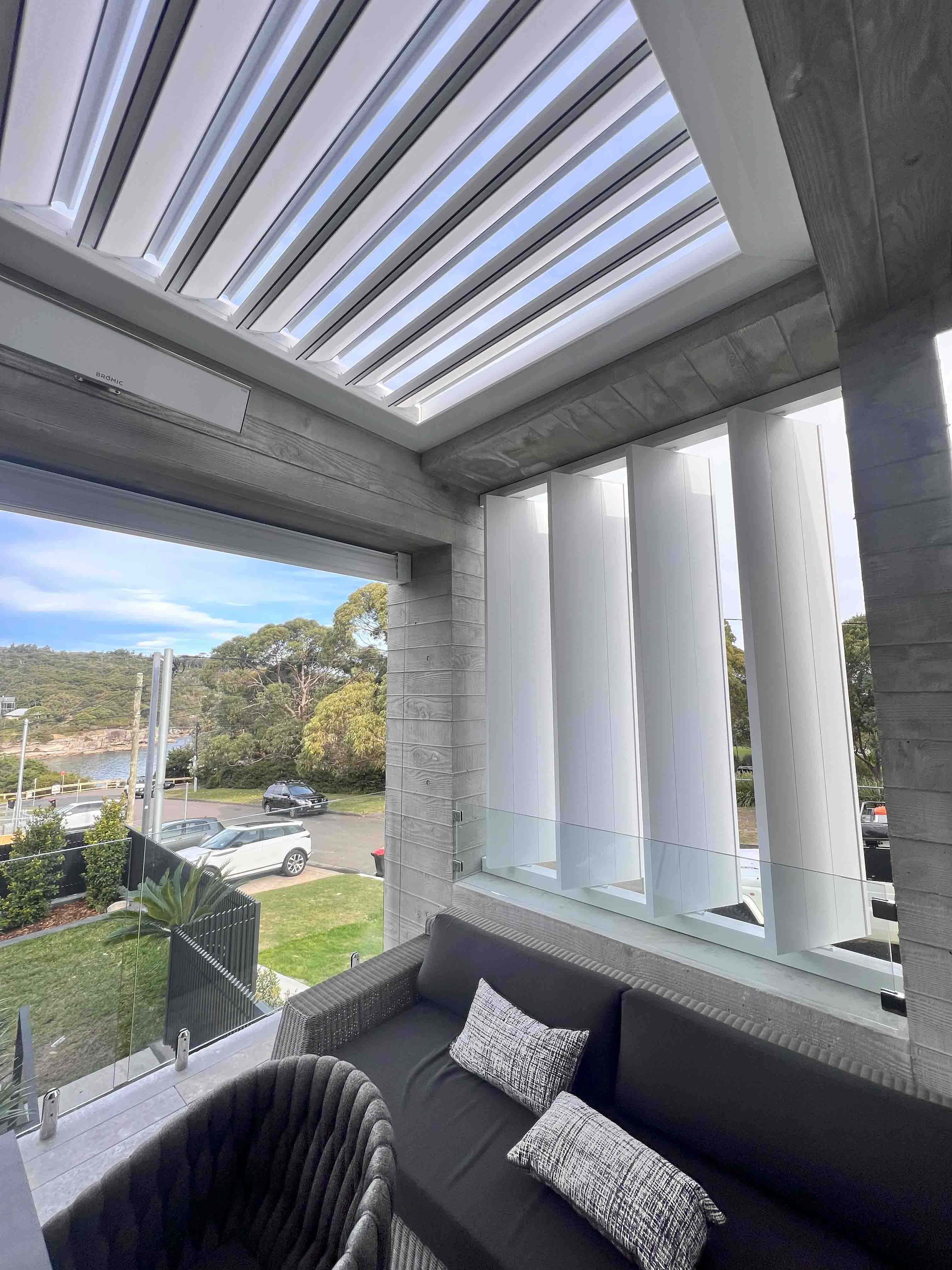

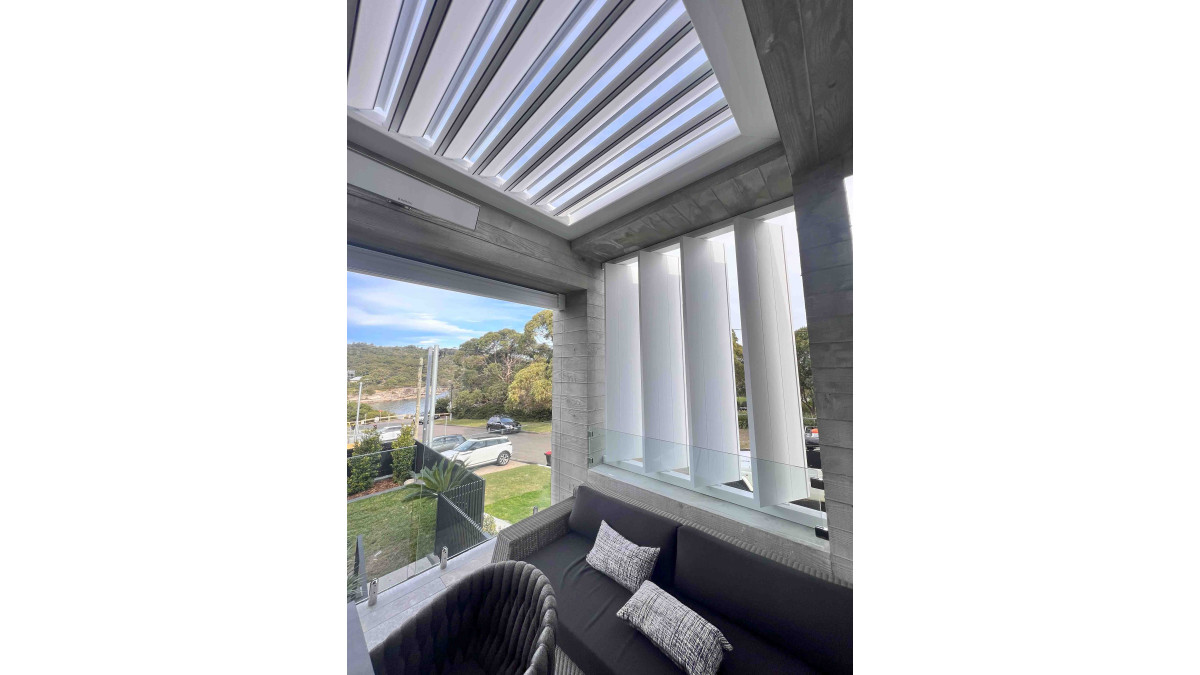

translucent and 450RL (2)
Translucent Roof by Louvretec

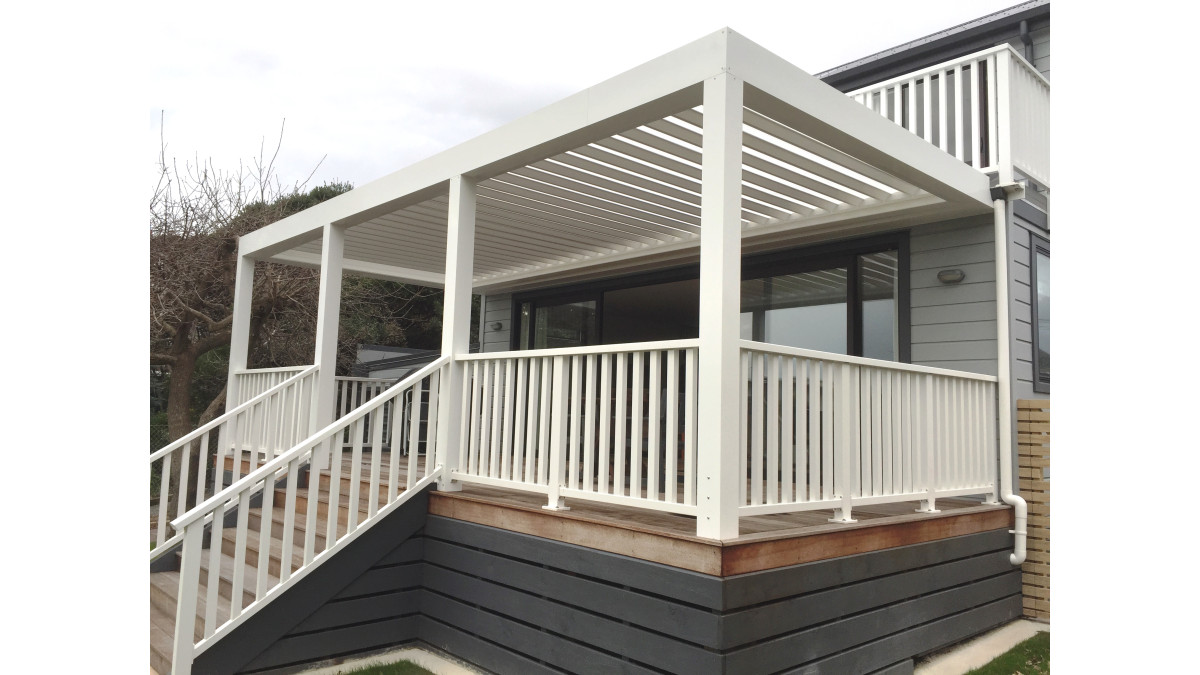

translucent roof
Translucent Roof by Louvretec

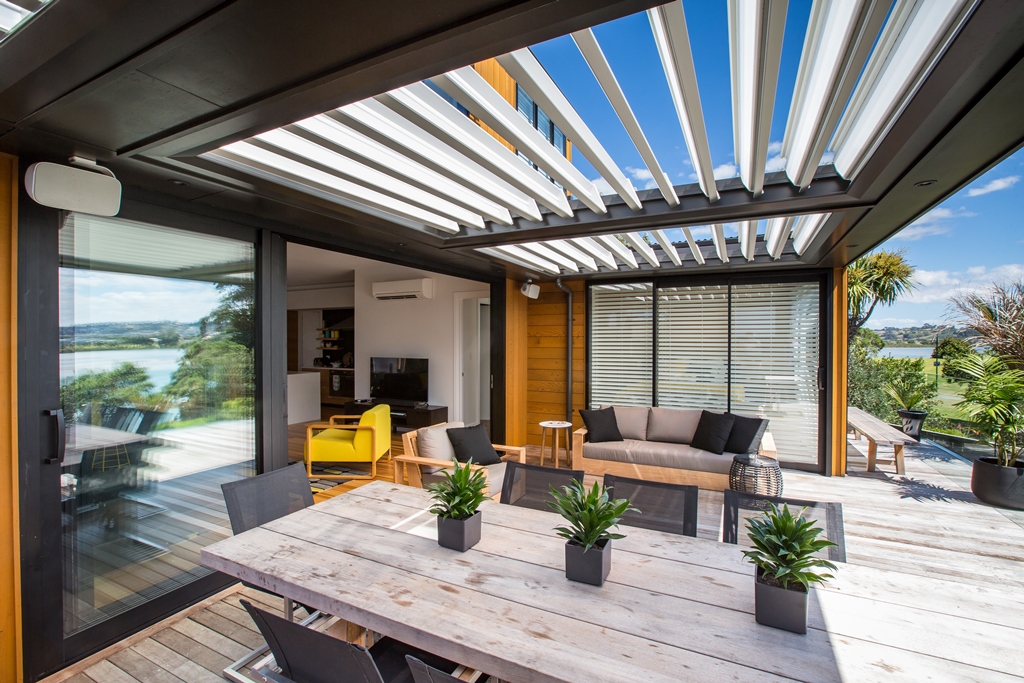

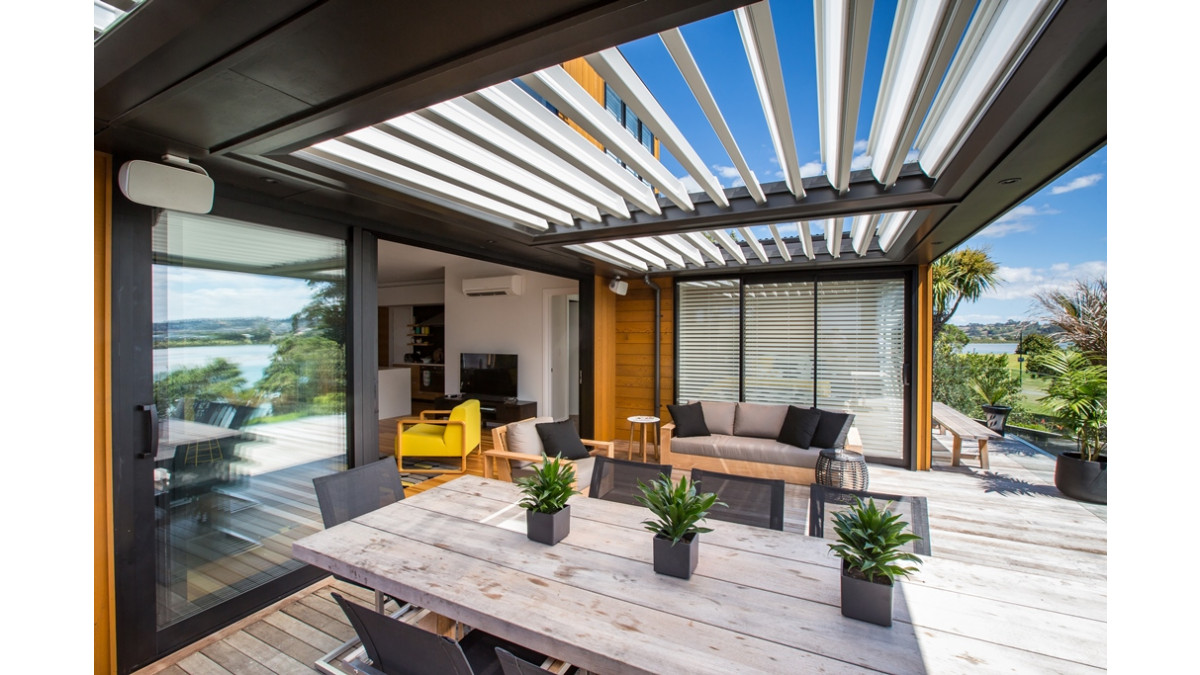

NEW 260 Translucent Opening Roof1
Translucent Roof by Louvretec
Description

The refreshed 270 Translucent Opening Roof allows filtered light to flow through when this Opening Roof is closed – so if loss of light is an issue when the roof is closed, this style provides an ideal solution.

The 270 Translucent Opening Roof now features an all new white infill panel of Acrylic Naturelite Plexiglas. Plexiglas offers UV protecton throughout the material, it does not rely on an applied surface coating. This is one of the reasons Plexiglas is used in aircraft cabin windows to protect from strong UV light and substantial differences in pressure and extreme cold.

Key Features
  • Blades are 270mm wide and provide wide, open spaces when open. Blades open and close up to 180 degrees.
  • The 270 Translucent Opening roof features a 185mm extra wide gutter to all four sides as standard
  • Enjoy a filtered light when the Translucent Roof is closed
  • Each Louvre features a new white in-fill panel of Acrylic Naturelite Plexiglas
  • Plexiglas offers natural UV protection
  • Because each Louvre is 270mm wide, a larger space between Louvres is acheived when they are opened
  • Available Motorised or Hand-operable
  • Great span options to suit different wind zones
  • Powered by world-renowned Somfy Motors
  • Award-winning Spiral Pivot System for smooth movement of the Louvre blades
  • Gearbox and motor are hidden from view
  • Louvretec Structural Frames are included as standard
  • Made from aluminum, ideal for coastal environments
  • Durable, tested for alpine conditions
  • Available in a variety of powder coat and anodised colors
  • Available in a wood grain/timber-look, and other special finishes, such as Blistered Yakasugi, or Concrete-look!
  • Engineered for quality and longevity
  • Warranty
  • Provides sun, shade, and weather control
  • Enjoy a comfortable haven below when the roof is closed
  • Open the louvre blades at your discretion to follow the sun for adjustable overhead cover



Categories
Louvred and Pneumatic Roofing
Ranges
Opening Roofs Slidetec Frameless Glass Sliding Door System
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For residential and commercial projects
  • Spans are affected by Wind Zones as set out in Louvretec's 2025 Design Manual
Limitations on Use
  • Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual
  • All Louvretec systems must be installed by Louvretec's in-house installers
In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are constructed of aluminium
  • Engineered
  • Case Studies
  • News
Documents
Louvretec 2025 Design Manual - Full

Louvretec 2025 Design Manual

pdf
Louvretec 2025 Design Manual - Section 4 (Structural Frames)

2025

pdf
Louvretec 2025 Design Manual - Section 8 (Outdoor Heating)
pdf
Louvretec 2025 Design Manual Section 2

2025

pdf
Maintenance and Warranty

Louvretec 2025 Design Manual

pdf
Brochure

Louvretec Lighting and Heating Brochure

pdf
Brochure
pdf
Louvretec Outdoor Heating (and Lighting) Brochure

2025

pdf
CAD/PDF Details
View full
Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 42
Typical Detail | 270 Translucent Roof - Motorised

2.41

Louvretec 2025 Design Manual

DWG
Section 2 Opening Roofs Louvretec DM 2025 FINAL Page 43

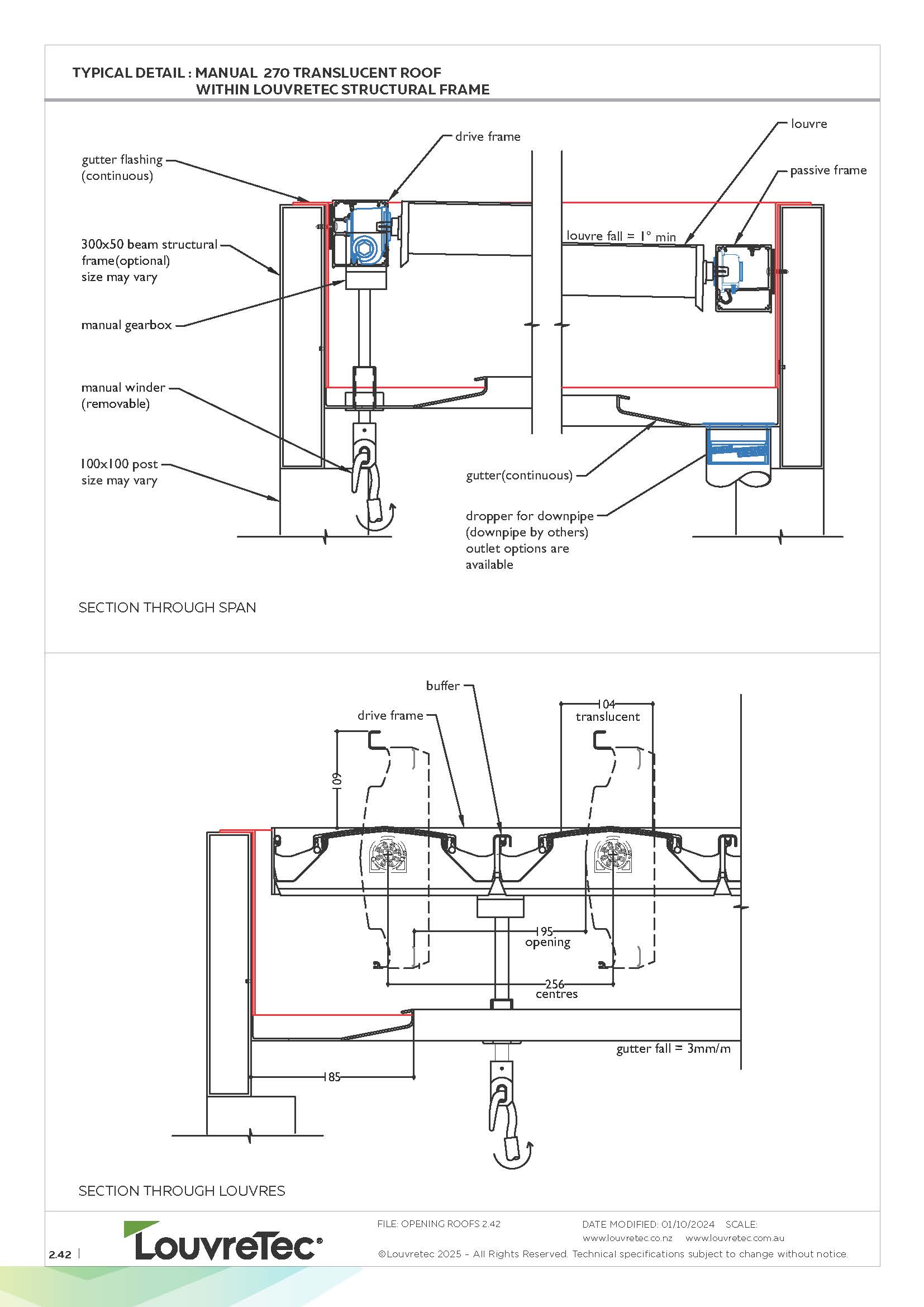

Typical Detail | 270 Translucent Roof - Hand Operable

2.42

Louvretec 2025 Design Manual

DWG
7.09
Typical Detail | Lighting to Front Face of Gutter

7.09

Louvretec 2025 Design Manual: Lighting Section 7

dwg
BIM
View full
270 Translucent Thumbnail

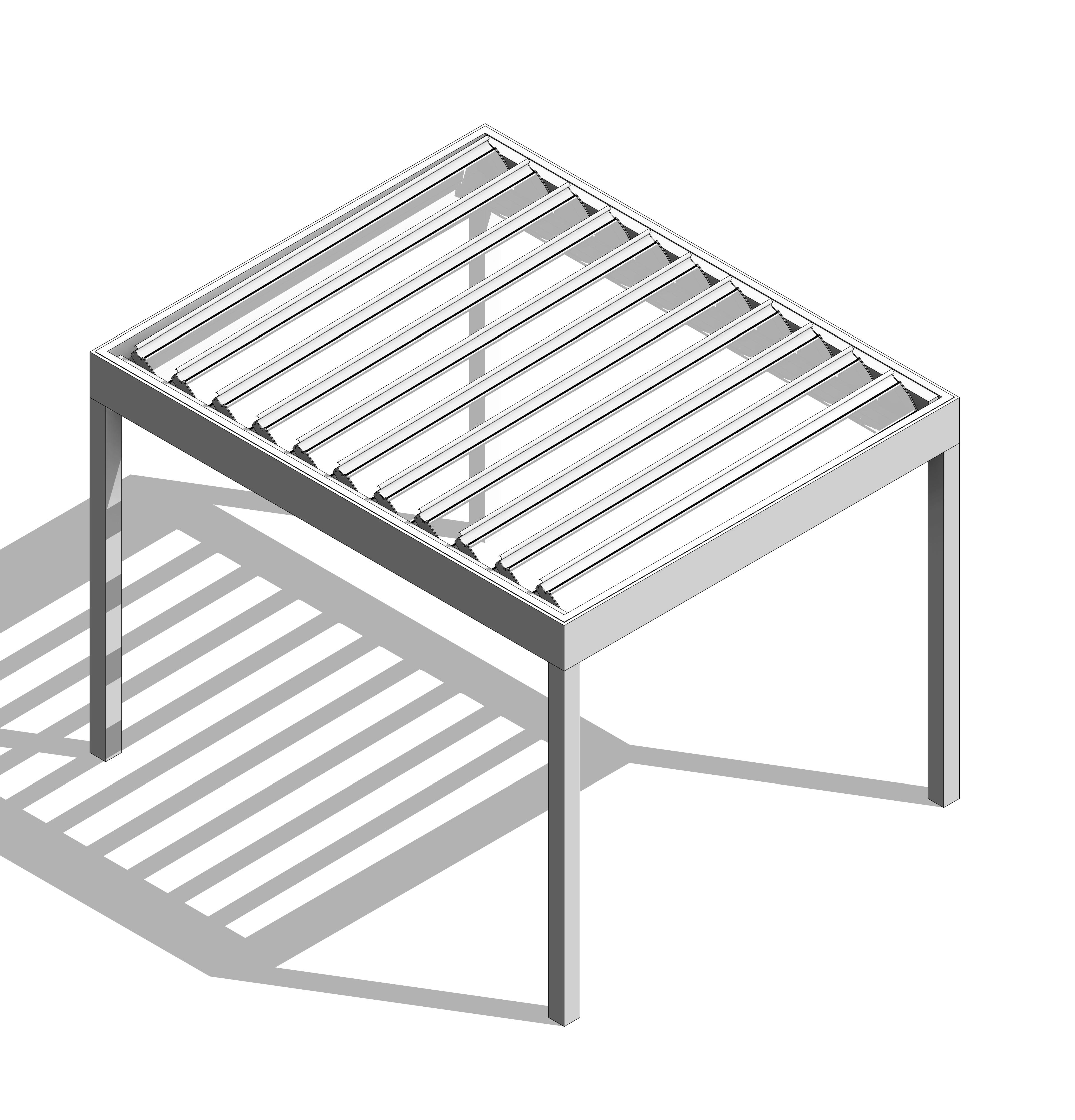

3D Model | 270 Translucent Roof by Louvretec

Louvretec 2025 Design Manual

rfa
Lighting to Front face of Suburban Gutter
3D Model | Lighting to Front Face of Opening Roof Gutter

Louvretec 2025 Design Manual

rfa
Lighting to Inside face of Suburban Gutter
3D Model | Lighting to Inside Face of Opening Roof Gutter

Louvretec 2025 Design Manual

rfa
