Maximise Minimal Space with a Cavity Slider

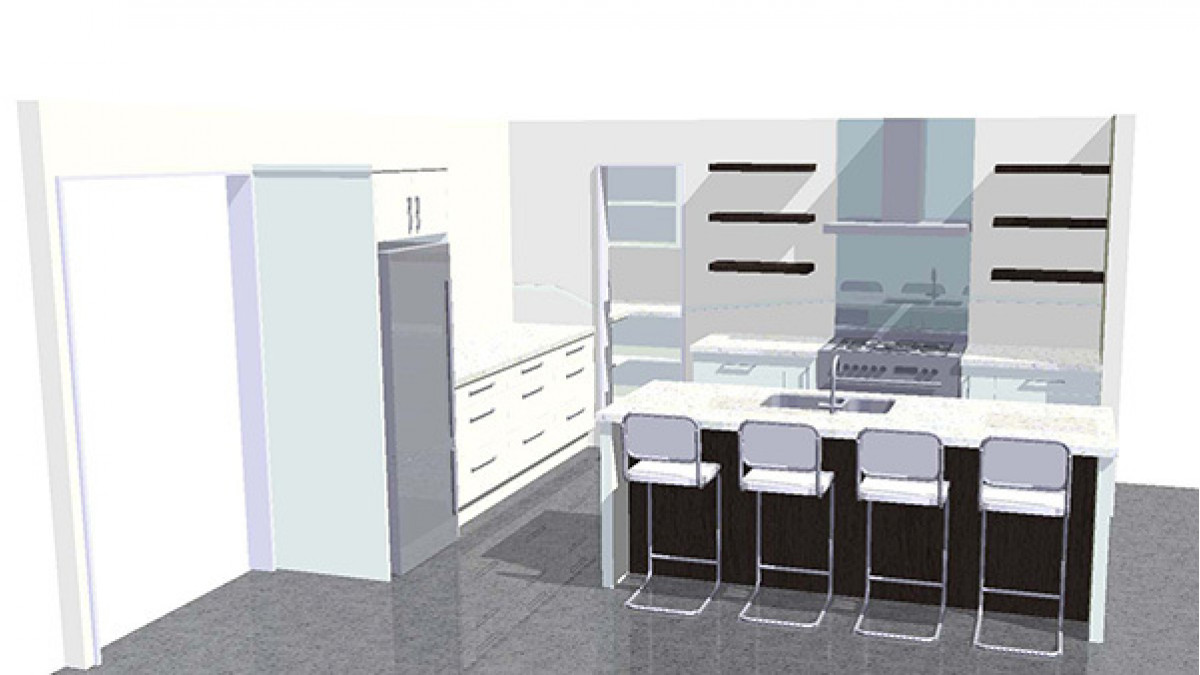

CS FOR DOORS recently worked with a client who liked the idea of a cavity slider into their butler’s pantry, but was concerned that the location near to the cooker and a set of display shelving meant they would need to make compromises in their design to make it happen.

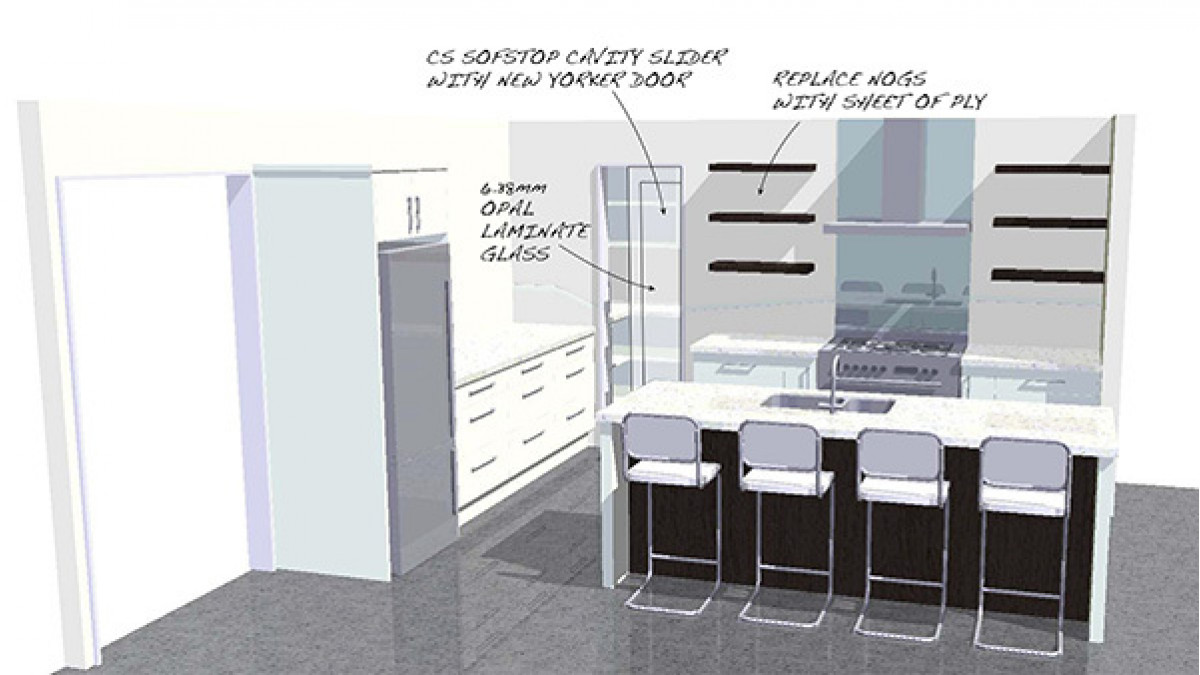

CS recommended a SofStop cavity slider for a smooth, soft closing action, in line with the rest of the drawers and cupboards in the kitchen. The nogs on the side of the pocket adjacent to the cooker were replaced with a sheet of ply to provide fixing for the display shelving.

A CS NewYorker door was specified with 6.38mm opal laminate glass. The natural anodised aluminium frame toned in well with the appliances and ensured the door wouldn’t bow under temperature differentials.

CS SofStop Cavity Slider

CS Cavity Sliders (CS for Doors)

View Product

Combining all the features of New Zealand’s highest quality cavity sliders with soft close technology, the CS SofStop is a must have wherever quiet and safety are priorities.

NZ Made

CS Cavity Sliders units have been appraised for use with sliding doors in internal locations in residential, commercial and light industrial buildings
The SofStop mechanism is engineered to stop doors up to 100kg. A small amount of force is necessary to open the door

Best operating temperature: 10˚C to 40˚C
Minimum door width is dependant on door type
Maximum door weight is 100kg

Lintels over the full trim size (opening and pocket) should be sized to ensure that no load is applied to the door assembly
Lintels to NZS3604 are acceptable for door weights up to 75kg per metre width of door. Specific design required when the door weight exceeds 75kg per metre

Best operating temperature: 10˚C to 40˚C
Minimum door width is dependant on door type
Maximum door weight is 100kg

CS Cavity Sliders will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

Clause B1 Structure: Performance B1.3.1, B1.3.2 and B1.3.4. CS Cavity Sliders meet the requirements for loads arising from self-weight, earthquake, wind and impact [i.e. B1.3.3 [a], [f], [h] and [j]]
Clause B2 Durability: Performance B2.3.1 [a], not less than 50 years, [b], 15 years and [c], 5 years. CS Cavity Sliders meet these requirements
Clause F2 Hazardous Building Materials: Performance F2.3.1. CS Cavity Sliders meet this requirement and will not present a health hazard to people

BRANZ Appraised
