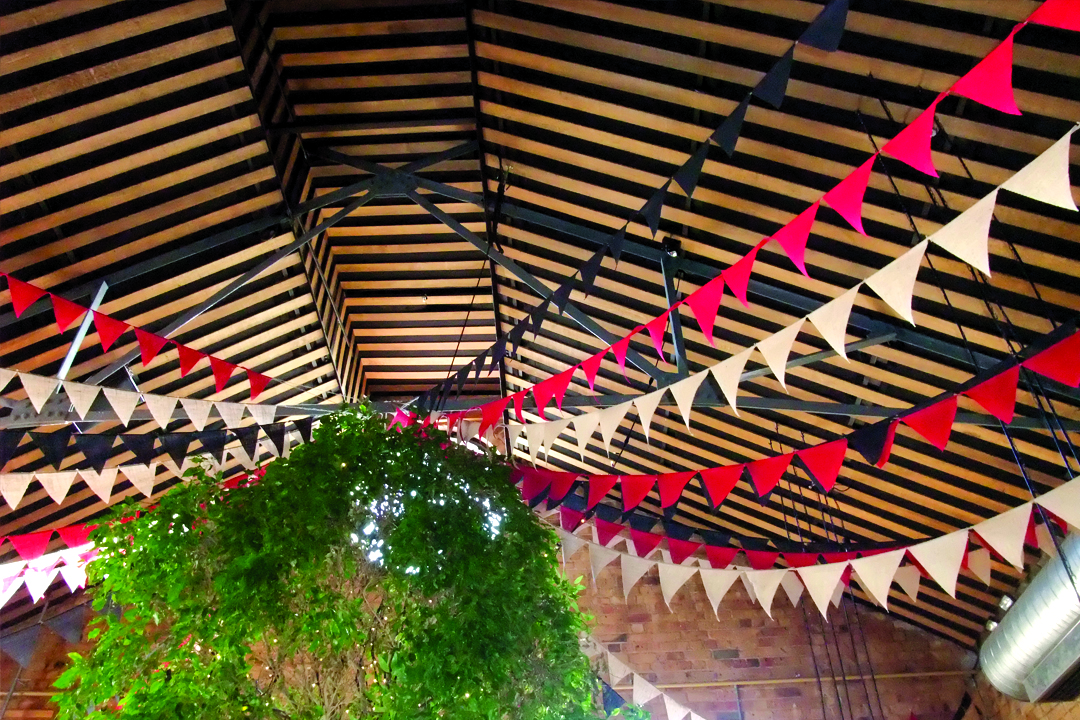

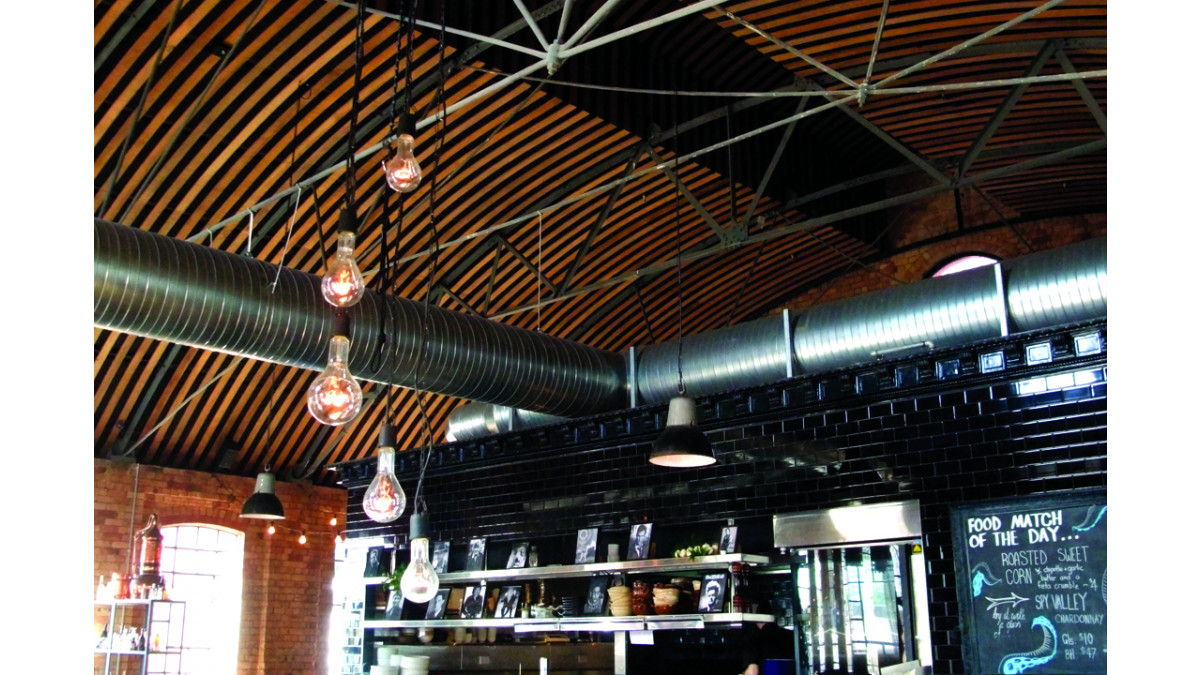

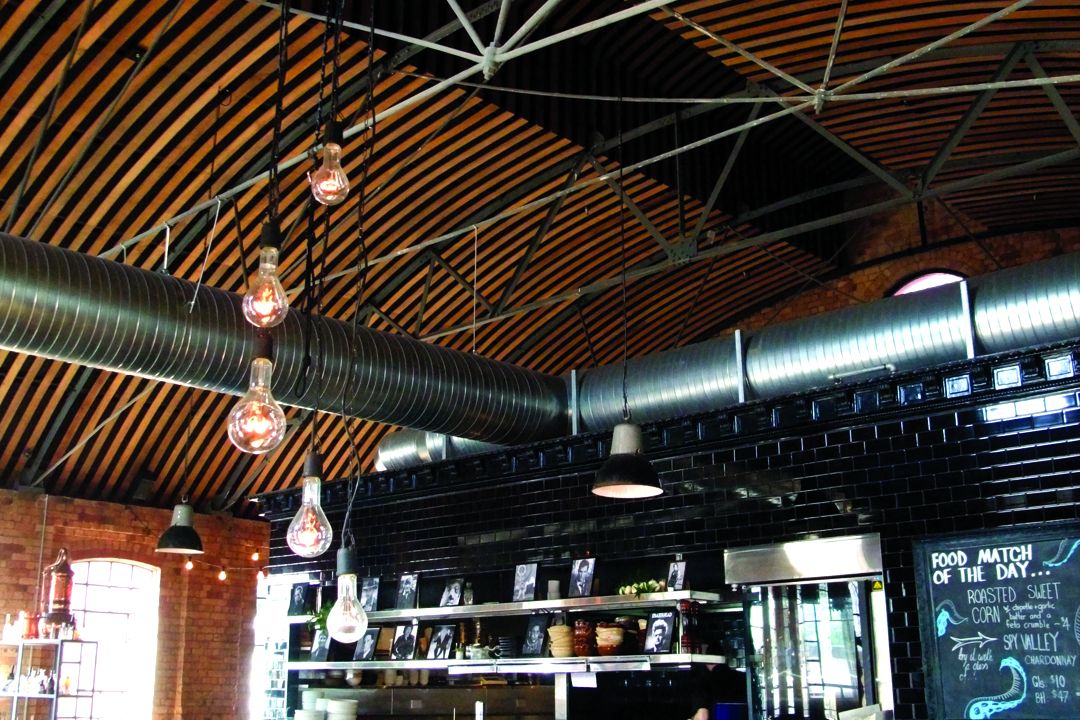

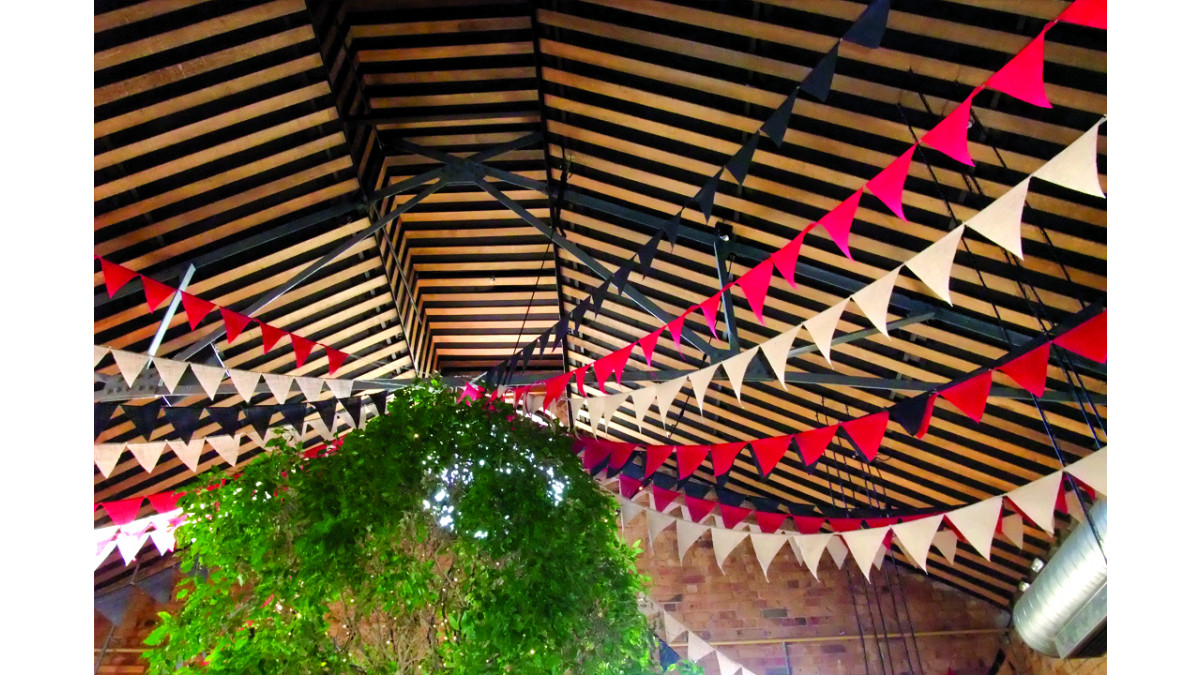

Autex Acoustic Blanket Controls Noise and Temperature at an Auckland Hot Spot

The overall goal was to not only improve the acoustic quality of the space but also to control the internal temperature that was proving difficult with an iron roof. Autex’s Acoustic Blanket (AAB) 35-50 in black was chosen for the job due to its aesthetic appeal and flexibility. AAB has a 100% polyester composition with a minimum of 45% recycled content and a Group 1-S fire rating making it compliant for areas without fire sprinkler systems. Pack & Co also recognised the importance of having a versatile and moveable product that would complement and work well with the curves of the ceiling making AAB the ideal choice.

Acoustics can have an impressionable effect on a bar's atmosphere so it's important to get it right. AAB 35-50 provides a NRC rating of 1.05 offering premium noise reduction; perfect for Libertine to accommodate excess noise and chatter by absorbing the echo and reverberation created.

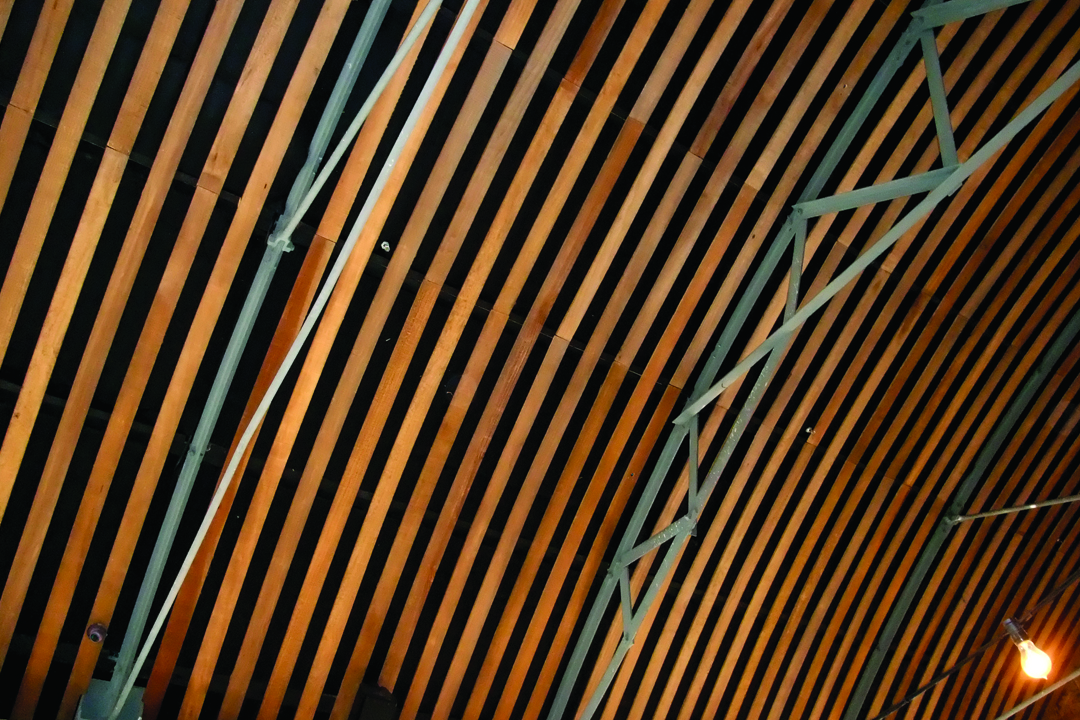

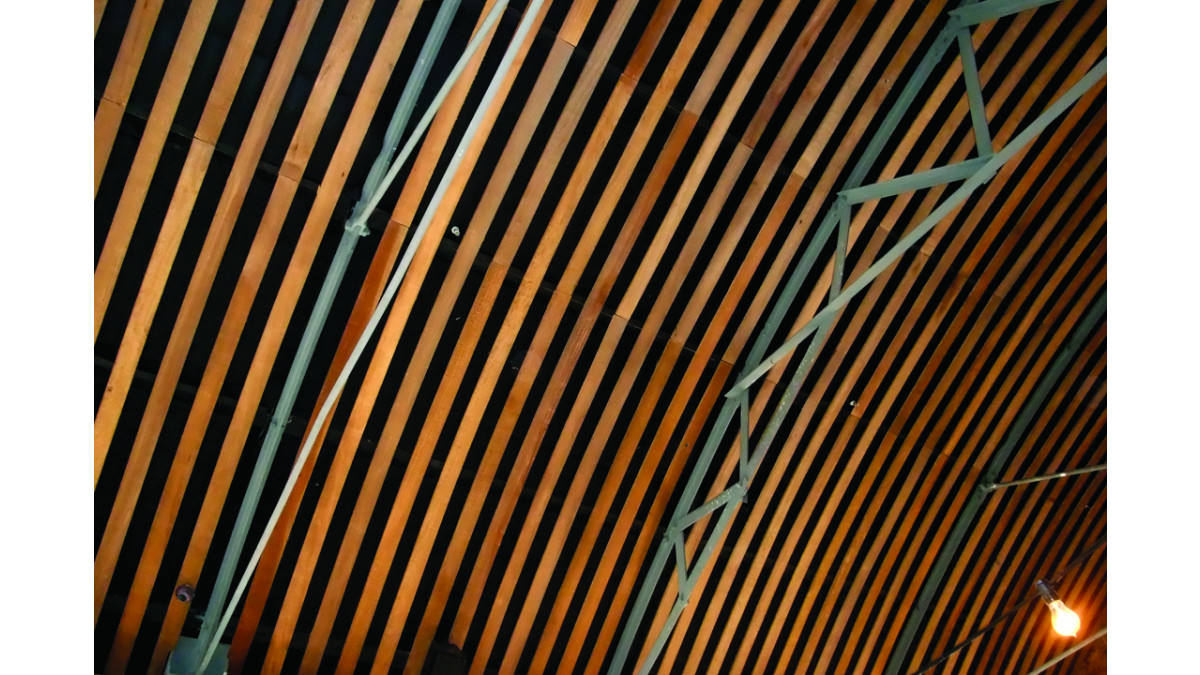

Functionality was just as important as performance when it came to the building's tin roof. Pack & Co report that not only has the AAB kept the space warm in winter, but also cooler as we head into summer. The R1.36 rated AAB was friction fit and held in place by the timber battens – giving a subtle and stylish look to the batten designs.

Pack & Co use AAB in many other bars across Auckland and rate it as a top quality thermal, acoustic and aesthetically appealing product.

GreenStuf Acoustic Absorption Blanket (AAB)

GreenStuf

View Product

GreenStuf® Acoustic Absorption Blanket (AAB) is engineered to maximise sound absorption for the control of reverberated noise in building interiors.

Declare LBC Red List Free

Green Tag Certified

Post-Consumer Recyclable Content

Pre-Consumer Recycled Content

NZ Made

NZ-Owned Business

Application: Exposed acoustic insulation
Fitting: Interior walls & ceilings

GreenStuf AAB has been engineered to maximize sound absorption for the control of reverberated noise in building interiors. GreenStuf AAB is ideal for managing noise in theatres, studios, auditoriums, halls, offices, retail and indoor swimming pool complexes. GreenStuf AAB can also be used in marine applications, as acoustic baffles, acoustic infill for silencers and louvres, and insulation for Original Equipment Manufacturers (OEM).

NZBC Compliance: When installed in accordance with the manufacturer’s instructions will satisfy the 50 year durability clause NZBC B2.3.1 (a). GreenStuf meets the relevant clauses of NZBC E3 Internal Moisture, F2 Hazardous Building Materials, and may contribute to meeting H1 Energy Efficiency, and G6 Acoustic Design requirements.

Fire Regulations: Greenstuf insulation may not be suitable for all applications, as stipulated in the NZBC. Please consult a fire engineer when specifying GreenStuf insulation or contact a GreenStuf account manager for further information.

Acoustic Performance: GreenStuf AAB has been engineered to maximize sound absorption for the control of reverberated noise in building interiors. GreenStuf AAB is ideal for managing noise in theatres, studios, auditoriums, halls, offices, retail and indoor swimming pool complexes. GreenStuf AAB can also be used in marine applications, as acoustic baffles, acoustic infill for silencers and louvres, and insulation for Original Equipment Manufacturers (OEM).

Hazardous Building Materials: GreenStuf is non-hazardous.

Durability: GreenStuf has a 50 Year Durability Warranty.

Moisture: GreenStuf is not affected by moisture. Exposure to an atmosphere of 50°C at 90% relative humidity for four days showed moisture absorption by weight of less than 0.03%.
