How Much is Your Tanking Really Costing You?

When it comes to tanking, there is only one chance to do it right. Designing, planning, and selecting the right membrane is key to guaranteeing the success of the project.

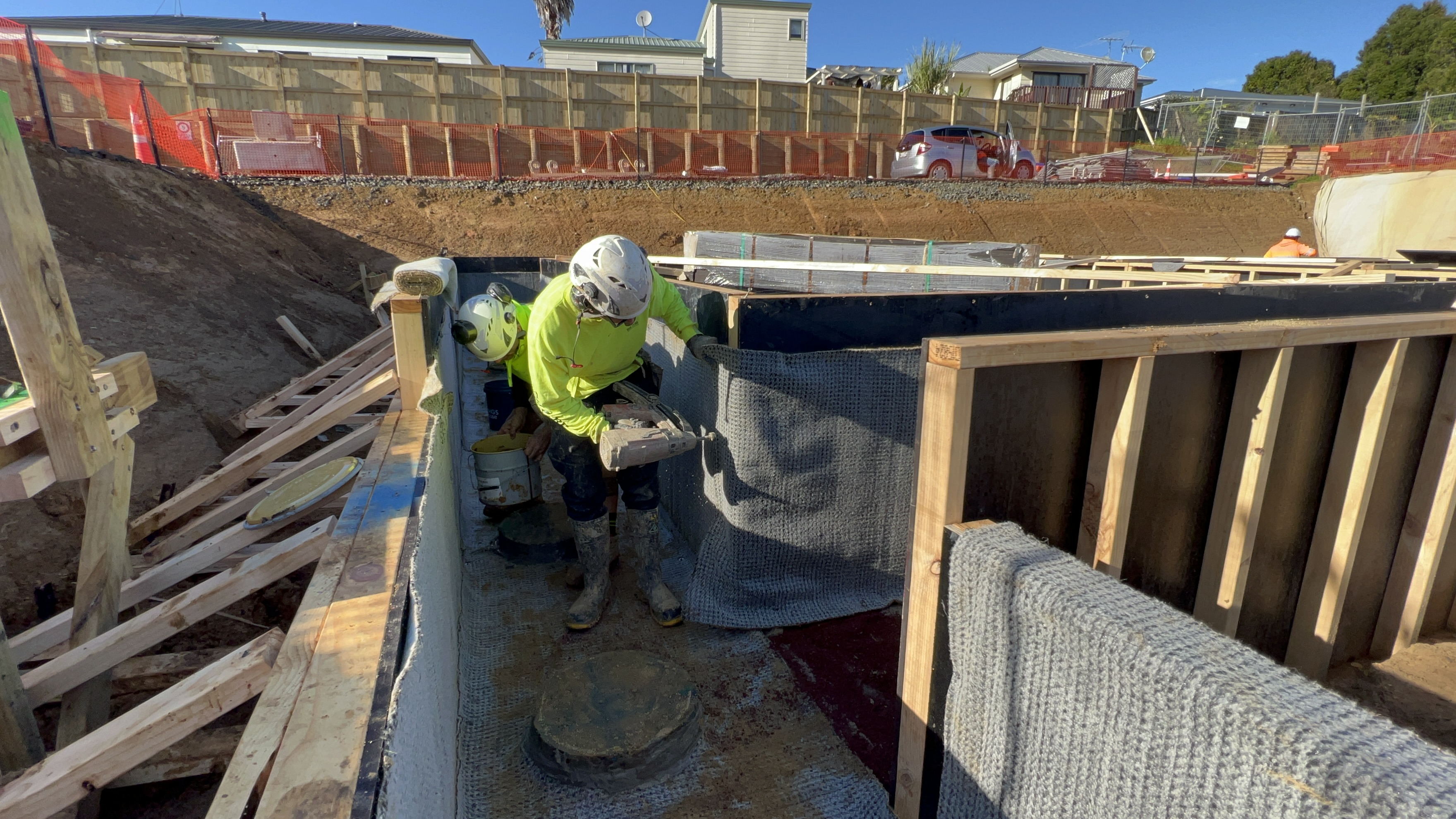

The Allco Volclay Waterproofing range is a great alternative to torch-on membranes. Unlike torch-on, the Volclay range can be installed in most weather conditions, whereas a rainy day will grind the application of torch-on to a halt creating a cascade effect of delays. Oftentimes, the added pressure to get the project out of the ground pushes for the installation of torch-on to be done in less-than-ideal conditions (moist walls), creating the potential for membrane failure and water ingress issues later on.

The Volclay range is also a lot quicker to install than torch-on. A good single applicator can apply 400+ m² of Voltex or 200m² of Swelltite a day, getting the project out of the ground ahead of schedule on average 2-3 weeks faster than other products.

Volclay membranes can be applied to damp substrates — there is no need to wait 28 days for the concrete to cure — saving the project precious time and money. Priming is also not required, unlike other tanking membranes. Volclay can be installed directly onto compacted slab substrates without site concrete and in some cases, no formwork is needed. It can also be pre-applied at the precast yard creating efficiencies and saving the project valuable time.

The Allco Volclay range will not only minimise weather-related construction delays and get your project out of the ground quicker, it will also give your building a high-quality waterproofing membrane that will protect the structure from water ingress for years to come.

Read more: Tanking in wet conditions — Weather conditions can play a significant part in and can delay construction and have a lasting effect if the membrane selected requires special or unrealistic conditions during installation.

If you have any questions or need technical support please get in touch with Allco's technical team: [email protected]

Volclay Waterstop RX

Allco Waterproofing Solutions

View Product

Waterstop-RX is an active bentonite / butyl-rubber based waterstop designed to stop water infiltration through cast-in-place concrete construction joints by expanding upon contact with water to form a positive seal against the concrete.

Applications include both vertical and horizontal non-moving concrete construction joints, new to existing concrete construction, irregular surfaces, and around through-wall penetrations, such as plumbing and utility pipes.

Additionally Waterstop-RX can seal around concrete pilings and steel H-piles passing through the slab. Waterstop-RX works in both continuous hydro-static and intermittent hydro-static conditions.

B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years.
E2 EXTERNAL MOISTURE: Performance E2.3.3.
F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Volclay Waterproofing System meets this requirement and will not present a health hazard to people.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Volclay Swelltite

Allco Waterproofing Solutions

View Product

Volclay Swelltite is a bentonite waterproofing membrane designed for below grade masonry block, split-slab deck and plaza construction.

Swelltite is designed for waterproofing below-grade vertical and horizontal structural surfaces, as well as, above grade split-slab construction used with plaza areas, parking garages and sports stadiums.

Swelltite is excellent for:

Below-grade masonry block walls
Split-slab Plaza Deck Construction
Cut & Cover Tunnels
Masonry Block Foundation Walls
Concrete Foundation Walls
Earth-covered Structures

Installation:

Ready for use and requires no set-up
Does not require torching or priming
It can be applied in all weather conditions to green concrete
Can be installed in temperatures below freezing

In the opinion of BRANZ, the Volclay Waterproofing System if designed, used, installed and maintained in accordance with the statements and conditions of this Appraisal, will meet the following provisions of the NZBC:

Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years. the Volclay Waterproofing System meet this requirement. See Paragraph 14.1.
Clause E2 EXTERNAL MOISTURE: Performance E2.33. the Volclay Waterproofing System meet this requirement. See Paragraphs 16.1 - 16.3.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. the Volclay Waterproofing System meet this requirement and will not present a health hazard to people.

BRANZ Appraisal is of an Alternative Solution in terms of New Zealand Building Code compliance.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised

Volclay Voltex DS & DS/SWR

Allco Waterproofing Solutions

View Product

Bentonite-Geotextile waterproofing system with Integrated Polyethylene Liner, used as a damp-proofing or waterproofing membrane below ground to protect basements and other underground structures against water penetration and water vapour transmission from the ground.

The Volclay Waterproofing System has been appraised for use as:

an external waterproof tanking membrane to in-situ concrete, precast concrete and concrete masonry basement constructions subject to hydrostatic pressures of up to 2 bar (20 metres); and,
a damp-proof membrane (DPM) to slab-on-ground and basement constructions; and,
a waterproof membrane to plaza deck roof structures

Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years. The Volclay Waterproofing System meets this requirement. See Paragraph 14.1.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.3. The Volclay Waterproofing System meets this requirement. See Paragraphs 16.1 – 16.3.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Volclay Waterproofing System meets this requirement and will not present a health hazard to people.

This is an Appraisal of the Volclay Waterproofing System as an Alternative Solution in terms of New Zealand Building Code compliance.

Durability

External Moisture

Hazardous Building Materials

BRANZ Appraised
