APL Architectural Series Awning & Casement Windows by VANTAGE Windows & Doors

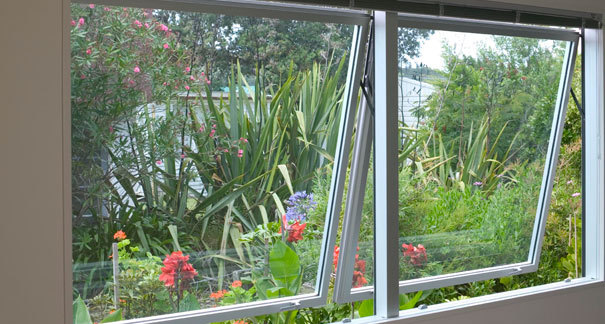

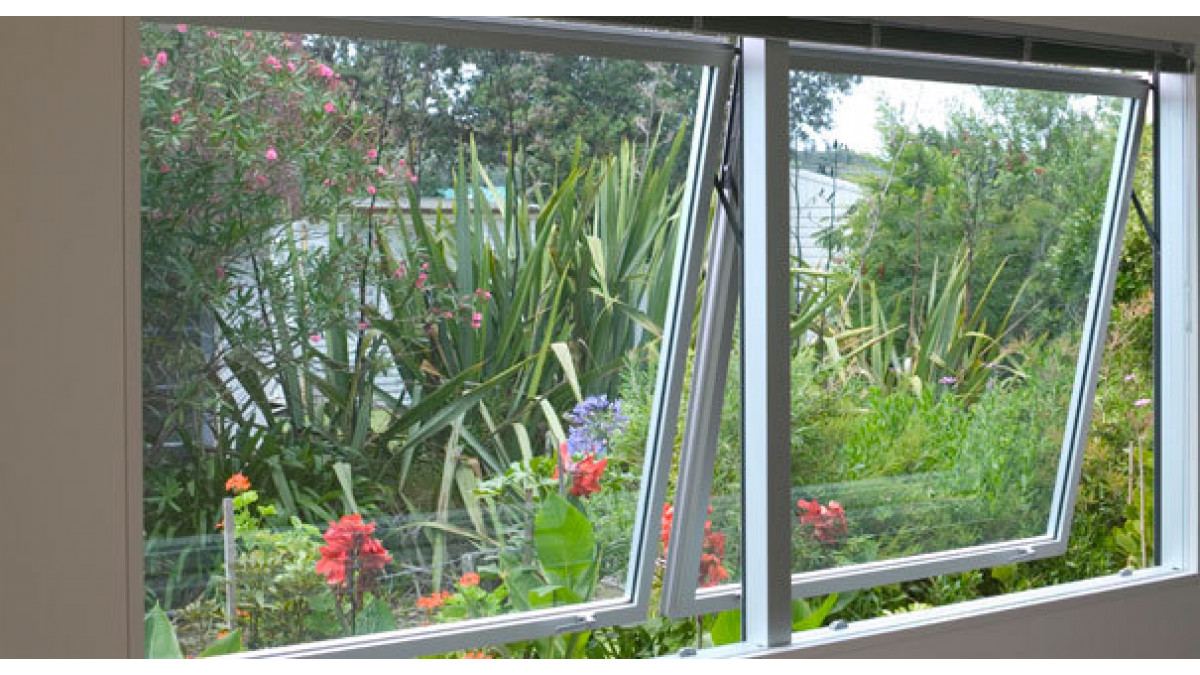

APL Architectural Series Awning & Casement Windows

VANTAGE Windows & Doors

All products

For high-performance double-glazing, explore AGP’s product range available now Explore

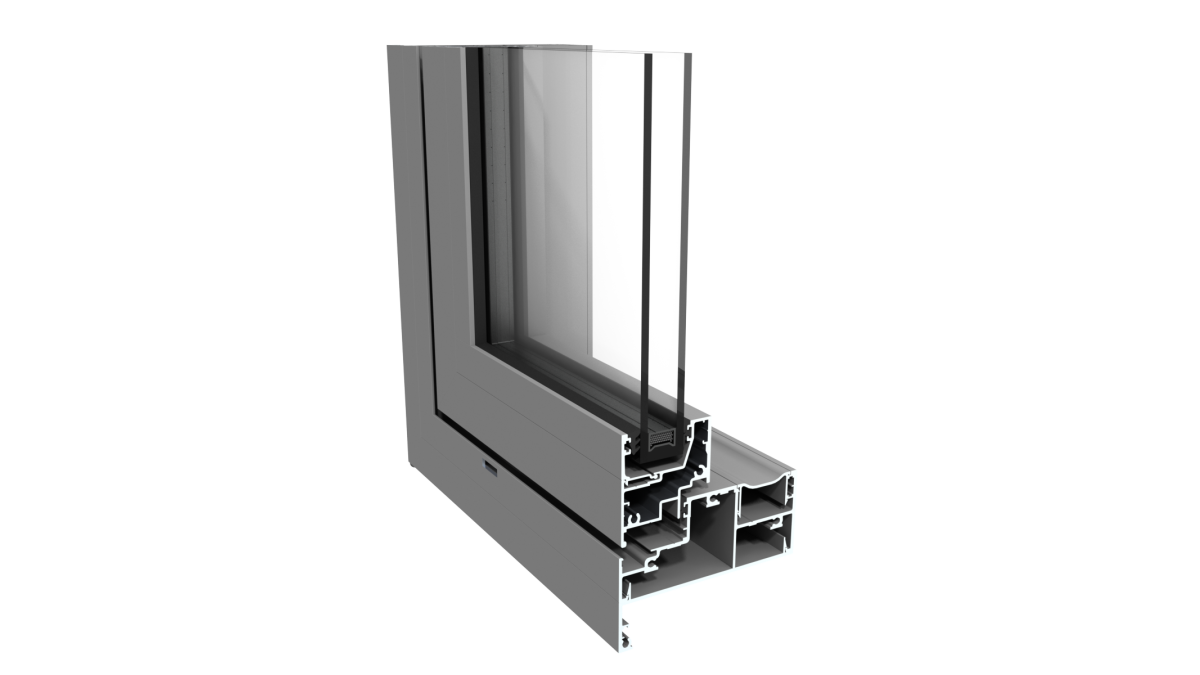

Standard window frame (106mm option) and awning sash

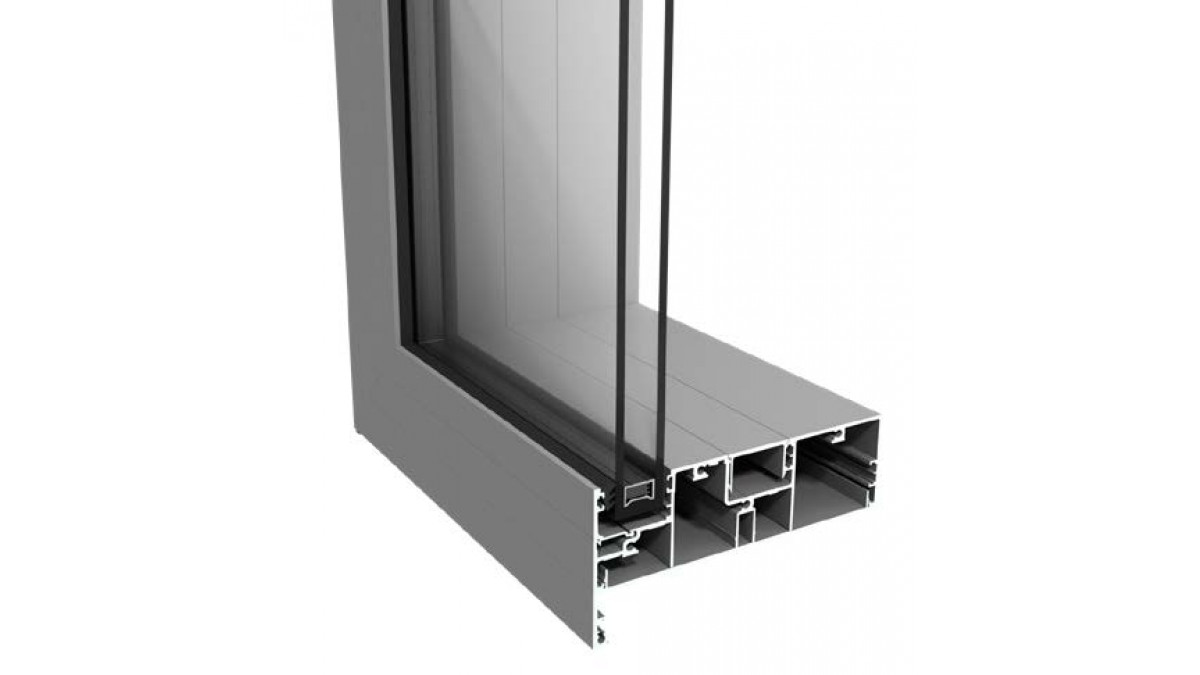

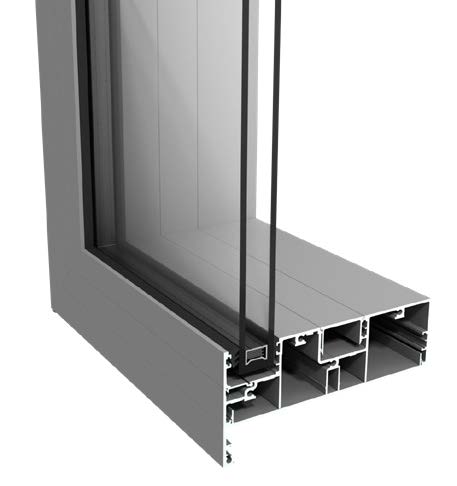

Fixed light – 158mm frame

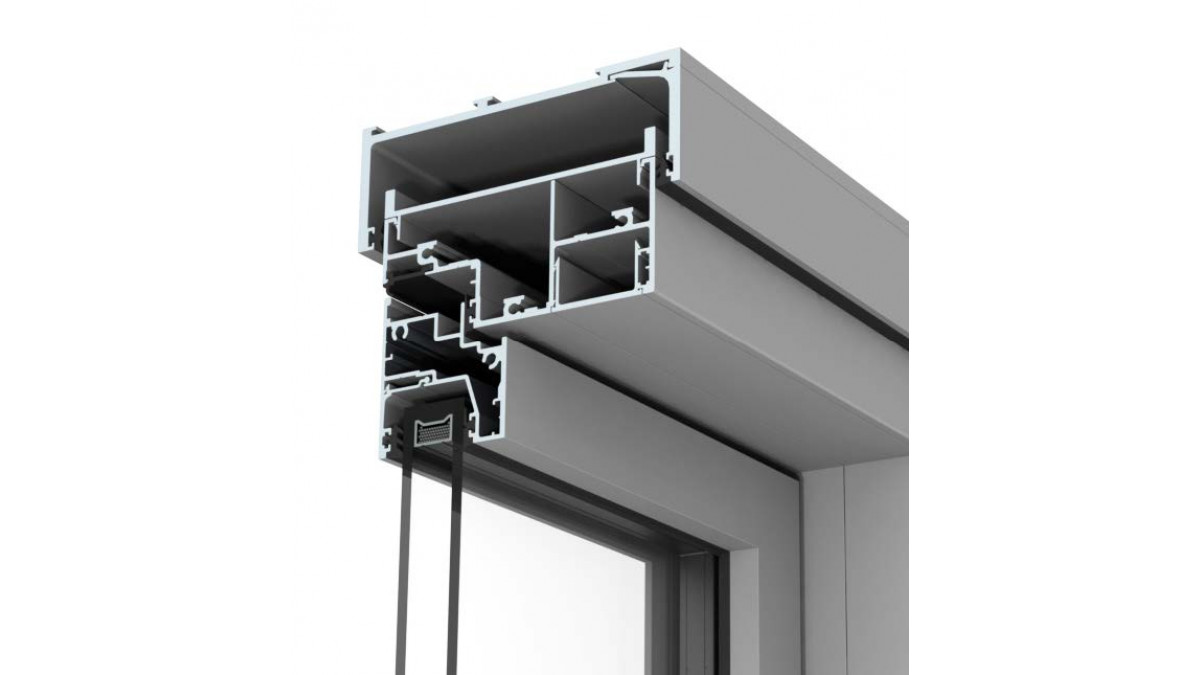

Seismic frame option at head

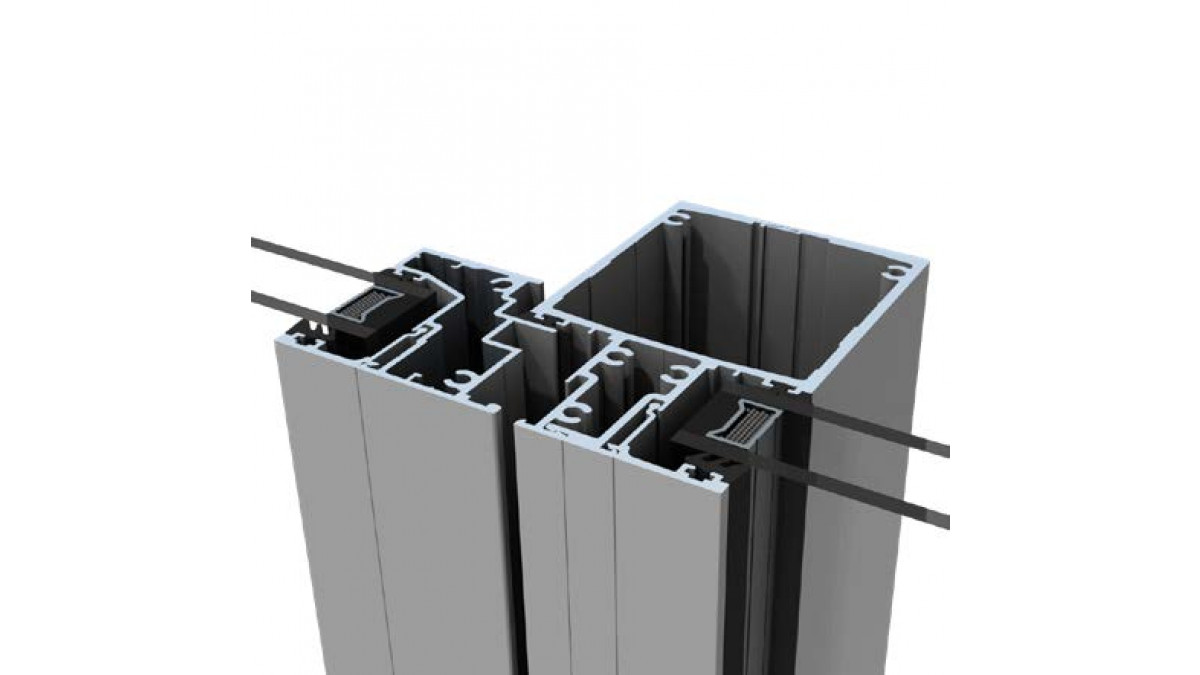

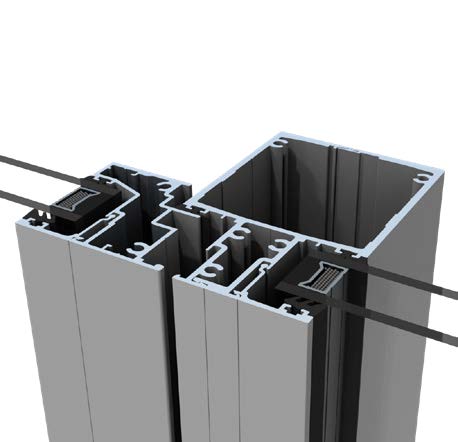

Internal box mullion – sash on left

Product Enquiries

Description

Opening sashes are non-facing, lying flush with the frame for enhanced aesthetics. Matching depth window frames and hinged and sliding door frames allow a continuous edge on the inside when products are coupled together.

Sashes and fixed lights are bead glazed externally on all sides for glass thicknesses of 4-28mm.

Key Features

A high performance series of windows and doors ideal for architecturally designed houses and apartments
Can achieve tall heights and wide spans and has been designed for suitability for Extra High wind zones and Specific Design applications
The window frame is available in two options, 106mm and 158mm, which couple with adjoining door frames for a continuous interior edge
Awning and casement sashes have a flush, non-facing sash
Frames have facing adaptors which allow 25mm of weather cover if desired
Mullions and transoms have stiffening boxes which project to the interior
Two–point espagnolette locking available

Ranges

APL Architectural Series

Scope of Use

Suitable for the full spectrum of residential environments in standard or large formats. Awning windows provide versatile ventilation with a good degree of weather protection
Casements can direct breezes inside and have a traditional aesthetic
Need to be used in defined maximum sizes according to the wind exposure
Designed for suitability for Extra High wind zones and Specific Design applications
Can achieve tall heights and wide spans

Limitations on Use

Care needed if projecting on to walkways and decks. Restrictor stays can limit opening in such situations
Restrictors will be needed to conform to NZBC F4 'Safety from falling' if windows open on to a drop of 1m or more
Consider a horizontal sliding window to protect walkways
Caution is required for the use of casements which open directly into prevailing winds
Casements beyond benches may have top fasteners that are hard to reach

Statement of Building Code Compliance

Designed, tested and manufactured to meet NZS 4211: Performance of Windows, and NZS 4233: Glazing in Buildings, Parts 1-4
Designed and tested to conform to NZ Building Code, including Clause E2

In-Service History

Launched in 2004
Design upgrades regularly released
Widely used by homeowners, builders, Group home builders and specifiers

Other Performance Attributes

Window and door warranty provided under normal conditions of use against failure of materials and workmanship for a period of five years
Surface finish is covered by a separate performance warranty dependent on the actual finish selected
A hardware/componentry warranty is offered against defects in manufacturing, functionality and surface finish for a period of five years, provided care and maintenance guidelines have been followed

Case Studies

Prefabrication of Vantage Windows in Pre-cast Panels

VANTAGE Windows & Doors

March 2022

Case Studies

Documents

Data Sheet

pdf

Span Tables

pdf

Declare Label

2025

pdf

Specifier Guide

pdf

Vantage on Masterspec

URL

Manufacturer Contact List

URL

WGANZ Guide to E2/AS1

1 August 2019

pdf

Vantage Care, Maintenance & Warranty Brochure (with AGP)

2020

URL

Sound Solutions Brochure

2020

URL

Vantage Brochure

URL

AGP Cleaning & Maintenance

pdf

AGP Condensation Guide

pdf

AGP Visual Quality of Glass

pdf

APL and Sustainability

2019

URL

CAD/PDF Details

View full


Full Set of Drawings

pdf

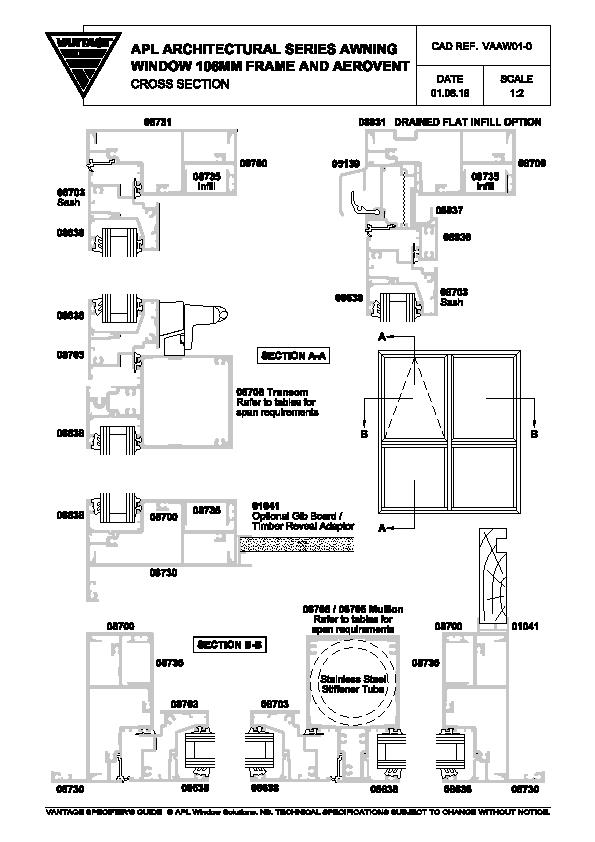

Vantage APL Architectural Series Awning Window 106mm Frame

VAAW01-0

dwf

dwg

dxf

pdf

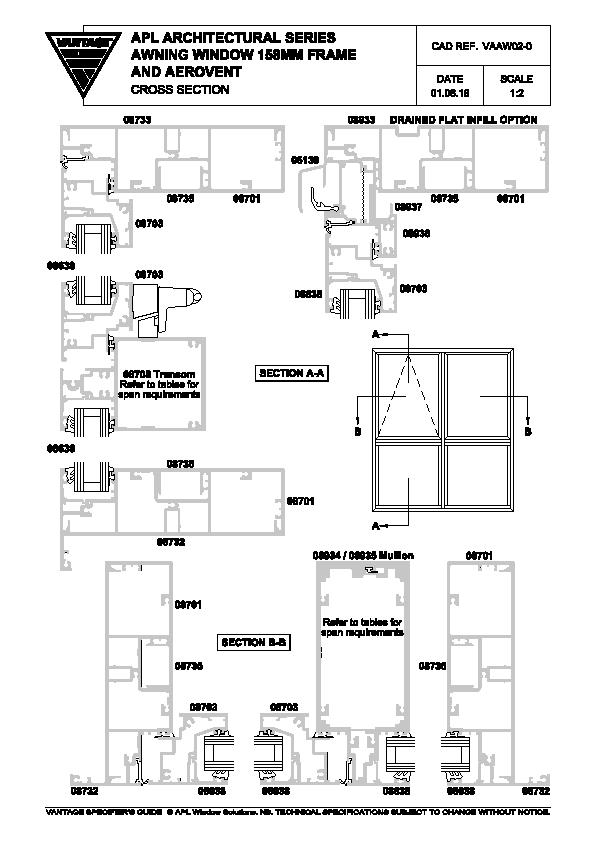

Vantage APL Architectural Series Awning Window 158mm Frame

VAAW02-0

dwf

dwg

dxf

pdf

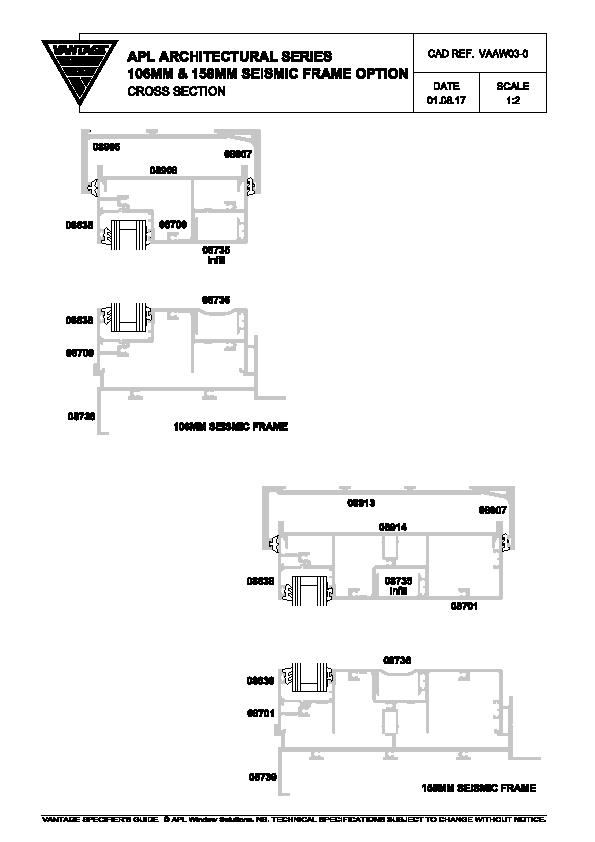

APL Architectural Series 106mm & 158mm Seismic Frame Option

VAAW03-0

dwf

dwg

dxf

pdf

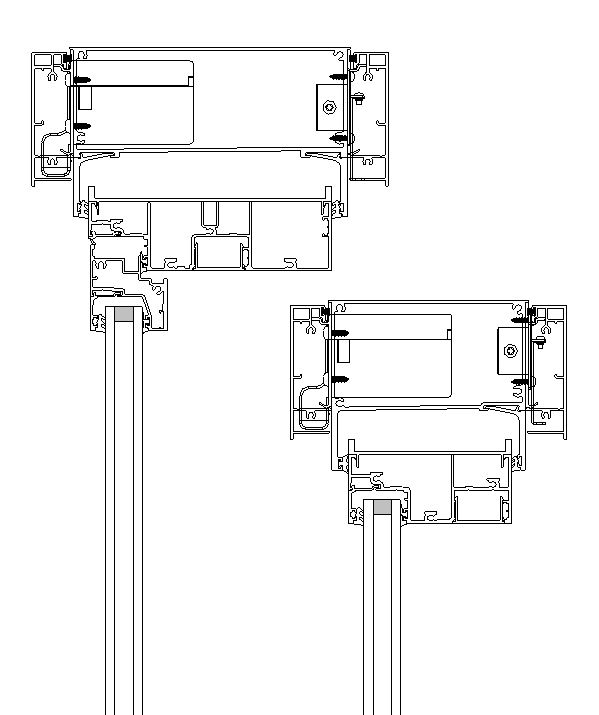

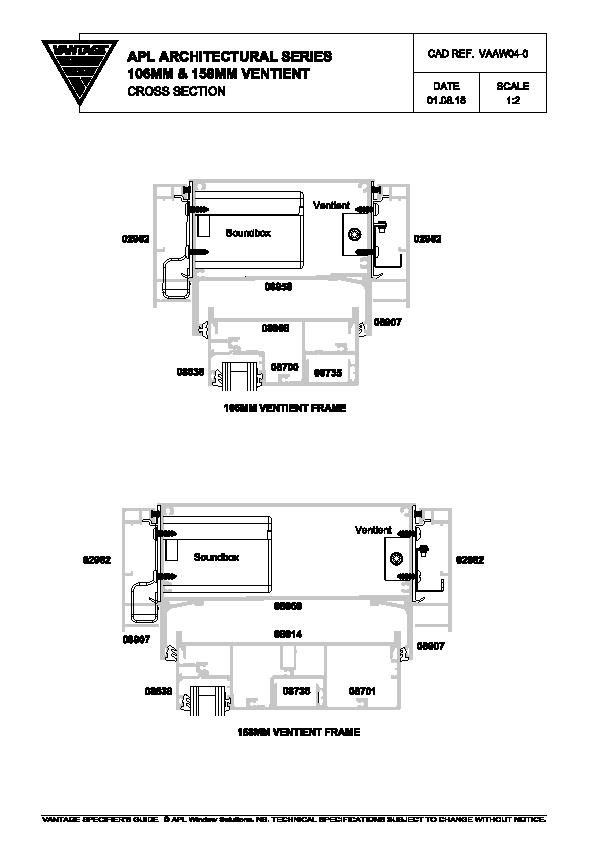

Vantage Architectural Series Ventient

VAAW04-0

dwf

dwg

dxf

pdf

Installation Details

View full

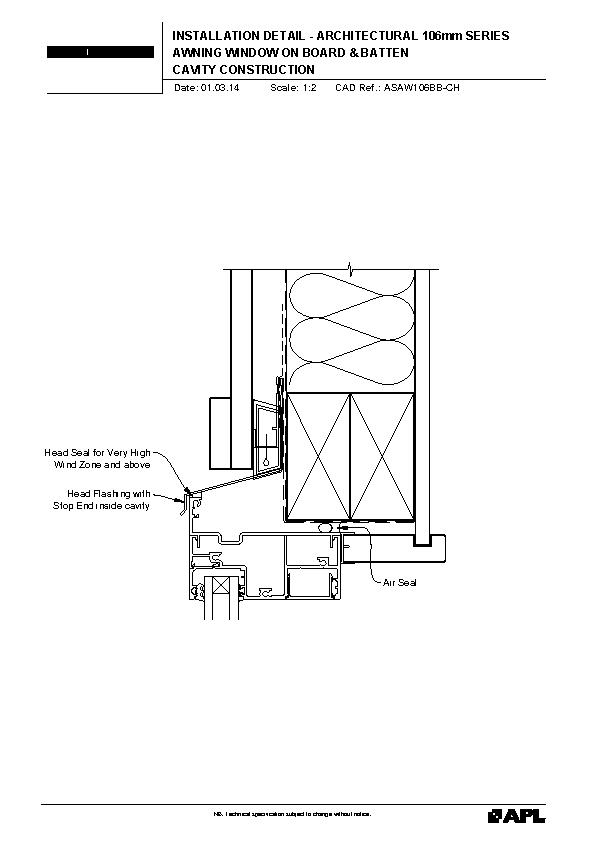

Vantage APL Architectural Series Awning Window 106mm on Board and Batten

ASAW106BB

dwg

pdf

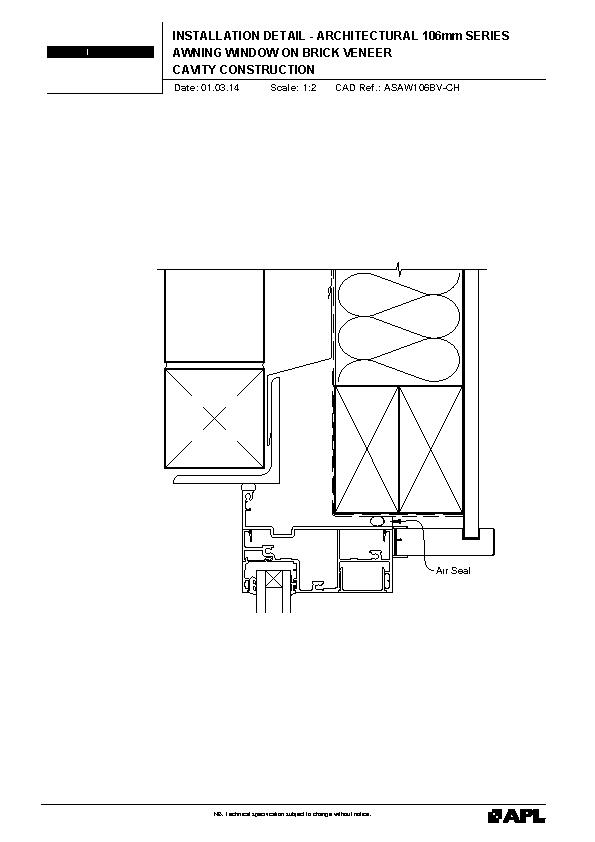

Vantage APL Architectural Series Awning Window 106mm on Brick Veneer

ASAW106BV

dwg

pdf

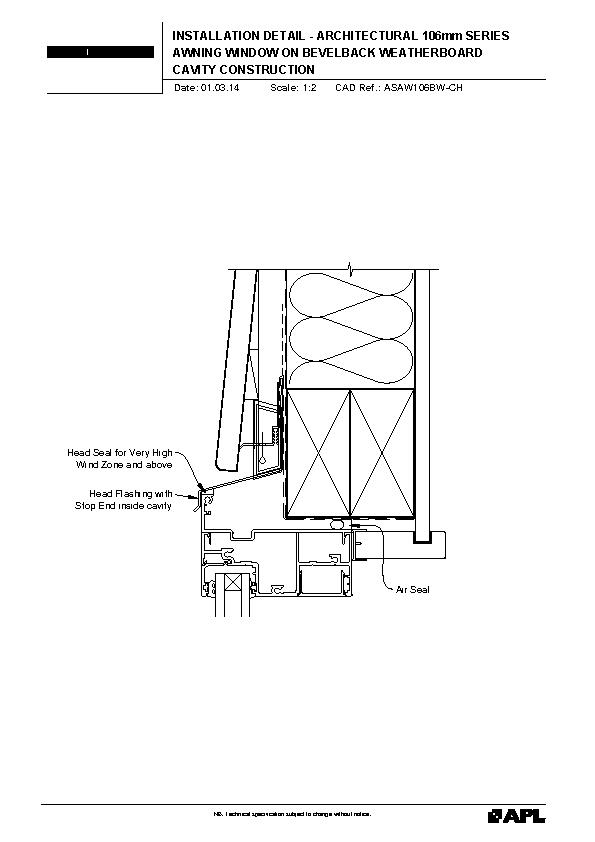

Vantage APL Architectural Series Awning Window 106mm on Bevelback Weatherboard

ASAW106BW

dwg

pdf

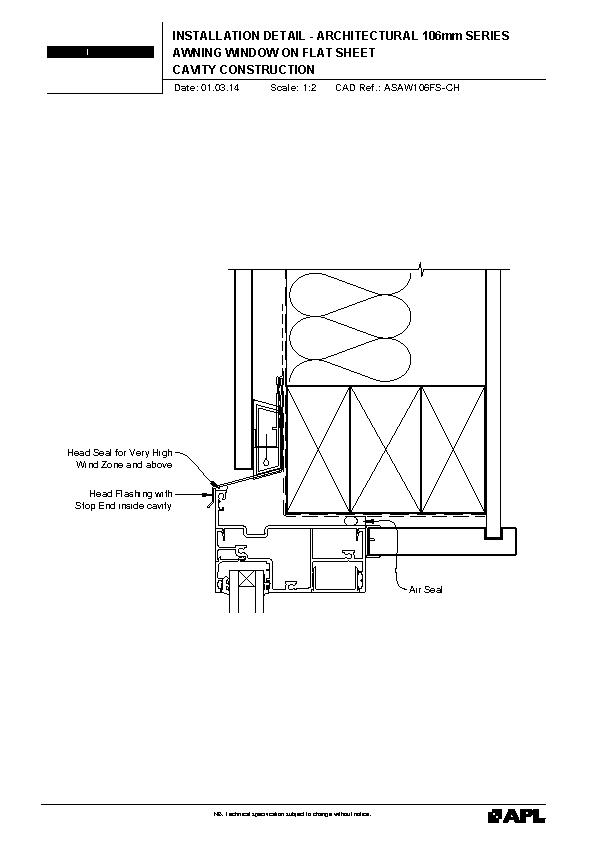

Vantage APL Architectural Series Awning Window 106mm on Flat Sheet

ASAW106FS

dwg

pdf

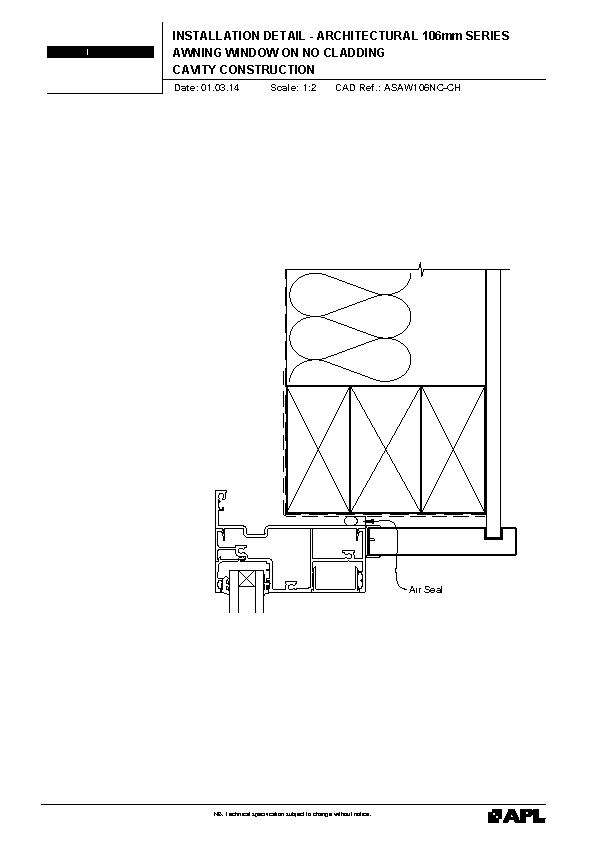

Vantage APL Architectural Series Awning Window 106mm No Cladding

ASAW106NC

dwg

pdf

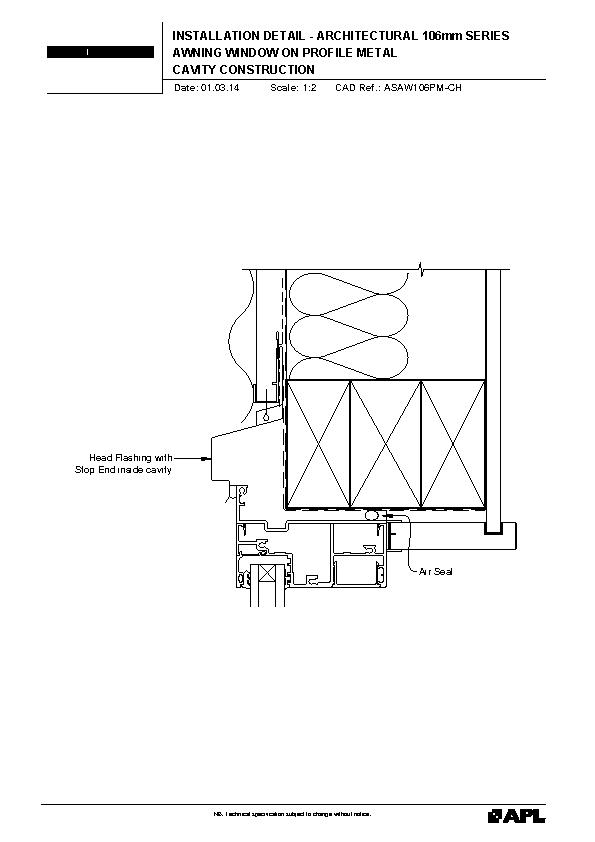

Vantage APL Architectural Series Awning Window 106mm on Profile Metal

ASAW106PM

dwg

pdf

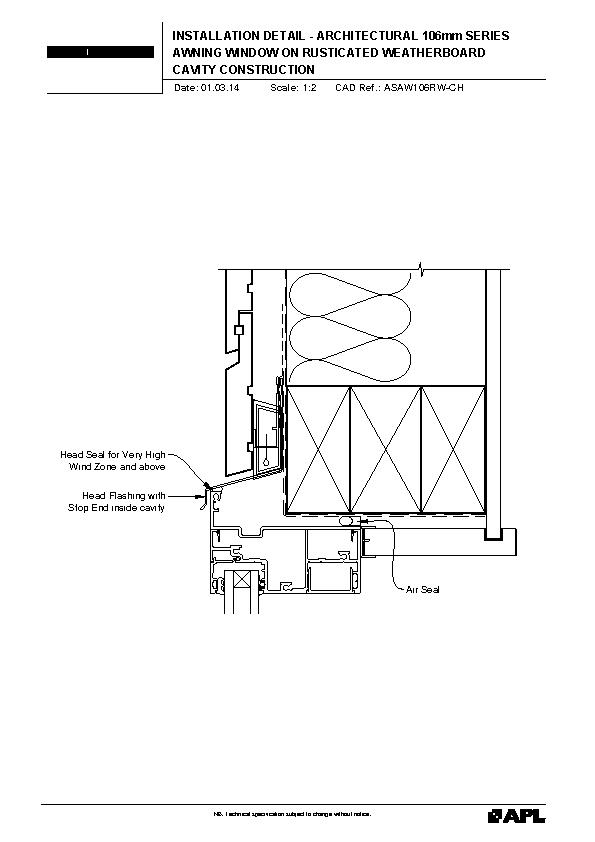

Vantage APL Architectural Series Awning Window 106mm on Rusticated Weatherboard

ASAW106RW

dwg

pdf

Vantage APL Architectural Series Awning Window 106mm on Stucco

ASAW106ST

dwg

pdf

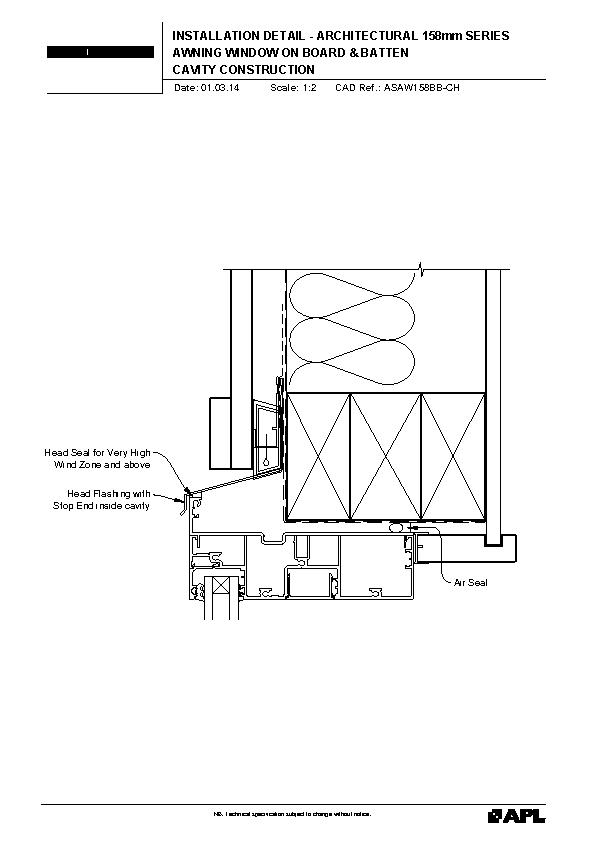

Vantage APL Architectural Series Awning Window 158mm on Board and Batten

ASAW158BB

dwg

pdf

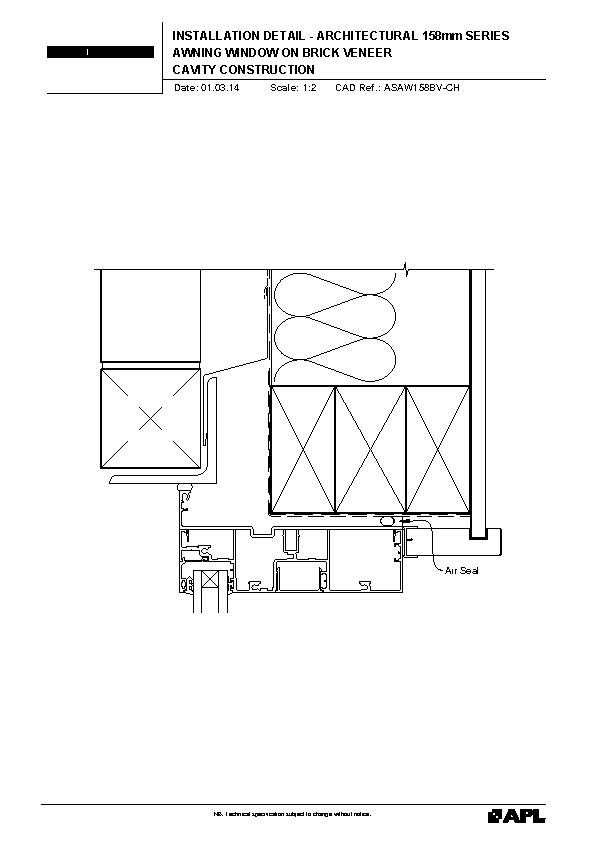

Vantage APL Architectural Series Awning Window 158mm on Brick Veneer

ASAW158BV

dwg

pdf

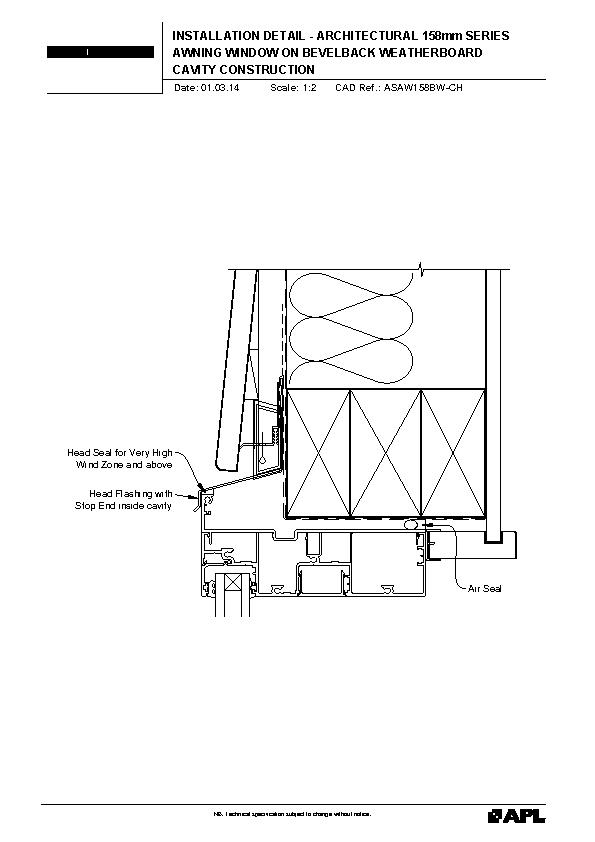

Vantage APL Architectural Series Awning Window 158mm on Bevelback Weatherboard

ASAW158BW

dwg

pdf

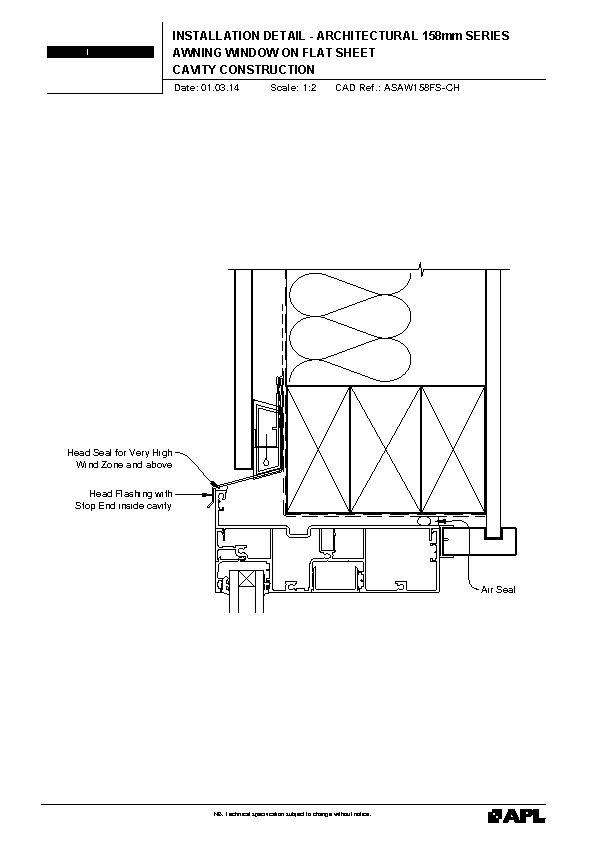

Vantage APL Architectural Series Awning Window 158mm on Flat Sheet

ASAW158FS

dwg

pdf

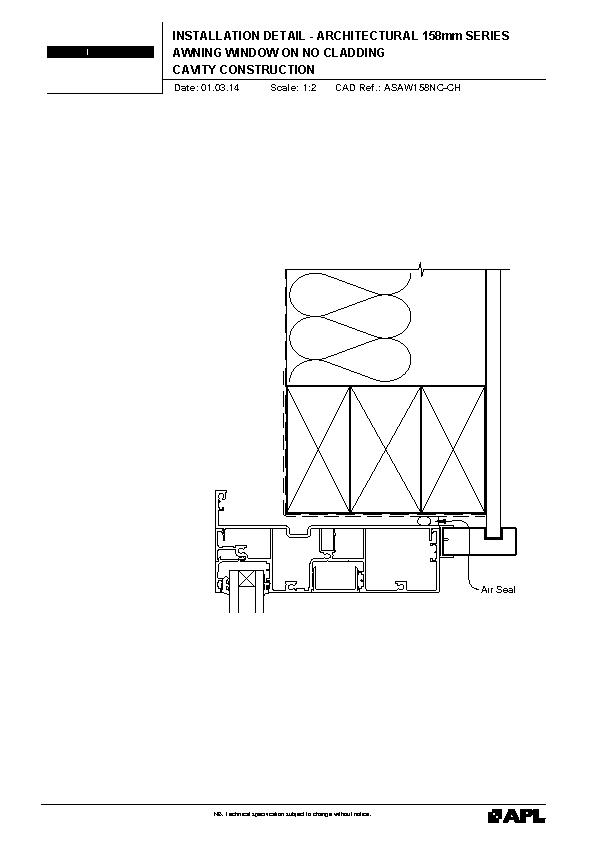

Vantage APL Architectural Series Awning Window 158mm No Cladding

ASAW158NC

dwg

pdf

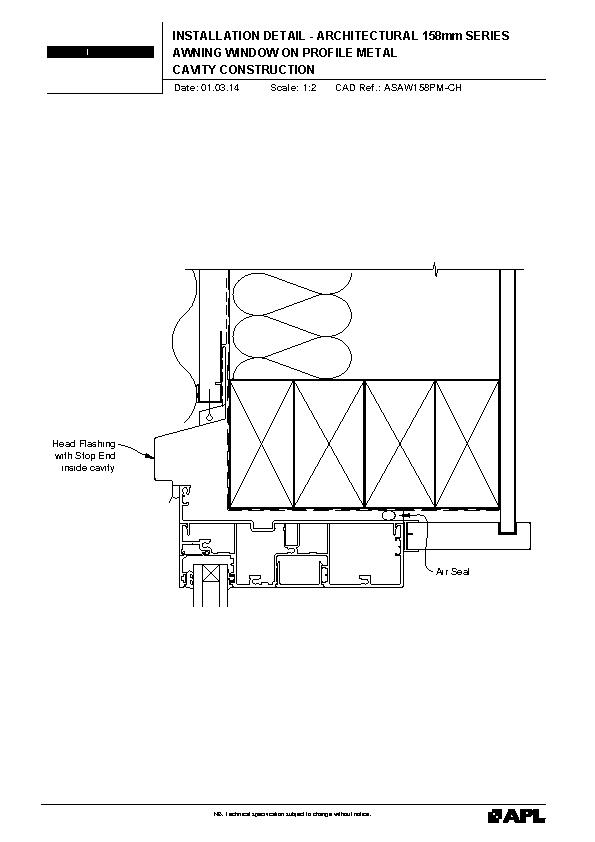

Vantage APL Architectural Series Awning Window 158mm on Profile Metal

ASAW158PM

dwg

pdf

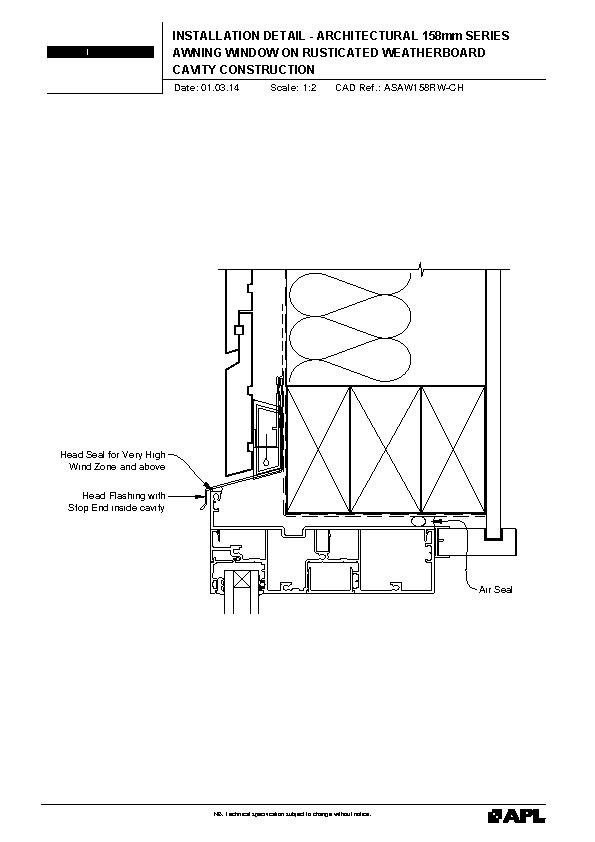

Vantage APL Architectural Series Awning Window 158mm on Rusticated Weatherboard

ASAW158RW

dwg

pdf

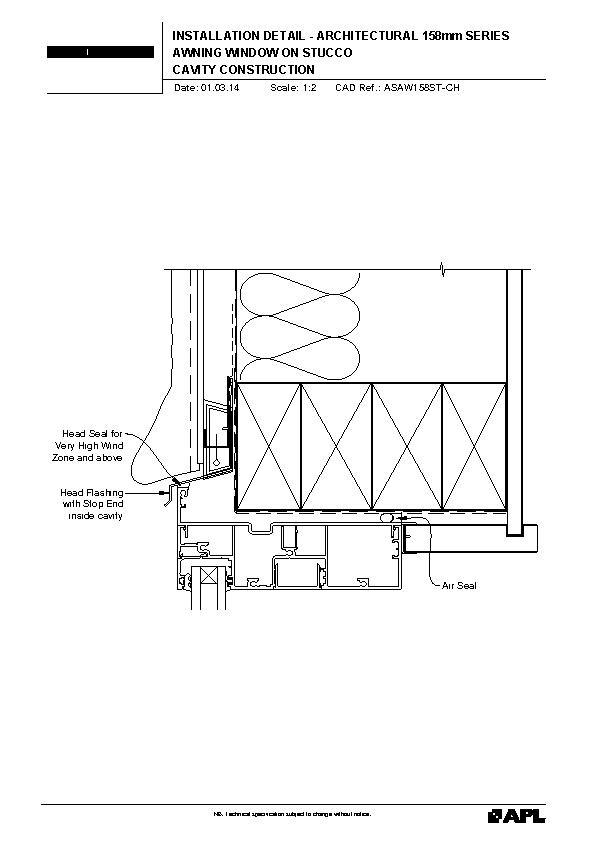

Vantage APL Architectural Series Awning Window 158mm on Stucco

ASAW158ST

dwg

pdf

BIM

View full

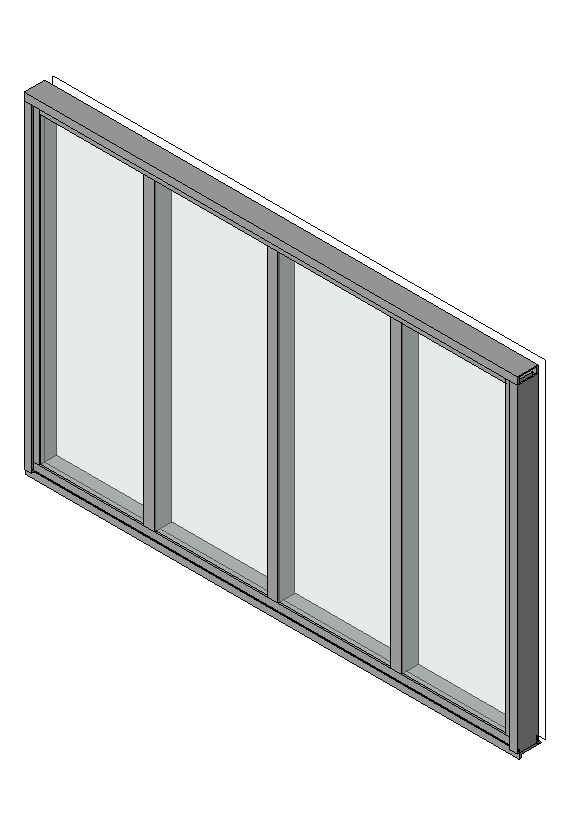

APL Architectural Series 106mm Seismic Awning Window

Revit LT 2020

zip

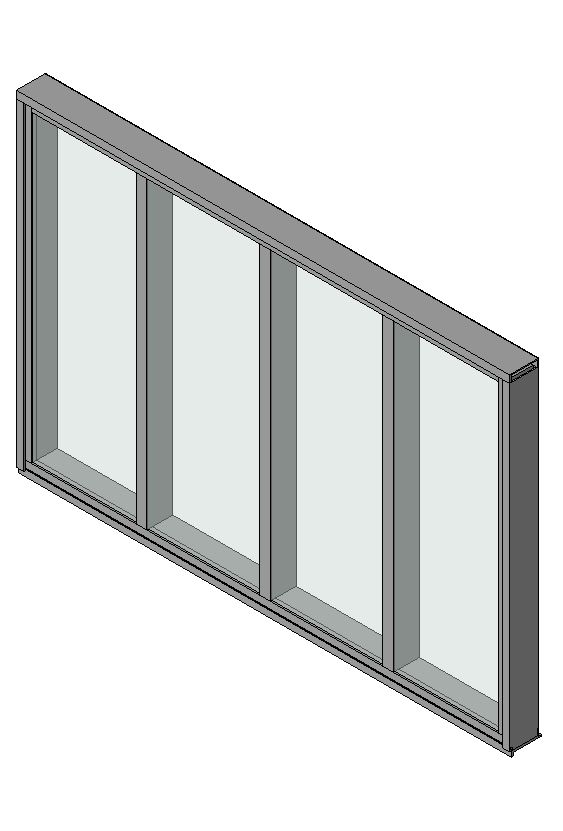

APL Architectural Series 158mm Seismic Awning Window

Revit LT 2020

zip

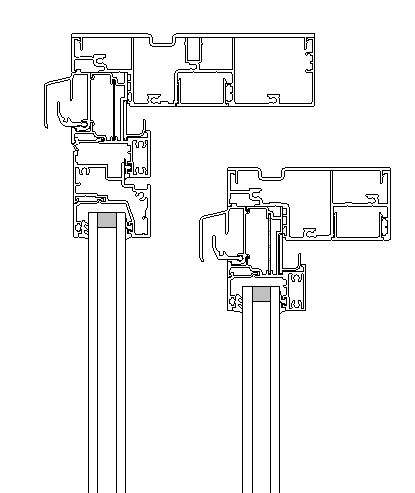

Architectural Series 106mm and 158mm Awning Window with Aerovent

Revit LT 2020

zip

Architectural Series 106mm and 158mm Awning Window with Ventient

Revit LT 2020

zip

Vantage Windows & Doors' locally made joinery is found in more New Zealand homes than any other brand, and Vantage are always refining and innovating solutions to meet changing needs.

Product Enquiries

Categories

Popular Products

Popular Brands

Features

Sections

This Month

Caesarstone: Redefining Surface Excellence with Crystalline Silica Free Formulations

NZ's Largest Mass Timber Office Building: The Sustainable Timber Engineering Behind 90 Devonport Rd

Terra Lana Insulation for a World-Leading Hospital Targeting Zero Carbon Certification

SECTIONS

Exploring Options for Self-certification of Building Work

Complaints Not Upheld

From Windows to Warm Roofs: How Can We Make the New Insulation Standards Work?

Description

Key Features

Categories

Ranges

Scope of Use

Limitations on Use

Statement of Building Code Compliance

In-Service History

Other Performance Attributes

Full Set of Drawings

Vantage APL Architectural Series Awning Window 106mm Frame

Vantage APL Architectural Series Awning Window 158mm Frame

APL Architectural Series 106mm & 158mm Seismic Frame Option

Vantage Architectural Series Ventient

Vantage APL Architectural Series Awning Window 106mm on Board and Batten

Vantage APL Architectural Series Awning Window 106mm on Brick Veneer

Vantage APL Architectural Series Awning Window 106mm on Bevelback Weatherboard

Vantage APL Architectural Series Awning Window 106mm on Flat Sheet

Vantage APL Architectural Series Awning Window 106mm No Cladding

Vantage APL Architectural Series Awning Window 106mm on Profile Metal

Vantage APL Architectural Series Awning Window 106mm on Rusticated Weatherboard

Vantage APL Architectural Series Awning Window 106mm on Stucco

Vantage APL Architectural Series Awning Window 158mm on Board and Batten

Vantage APL Architectural Series Awning Window 158mm on Brick Veneer

Vantage APL Architectural Series Awning Window 158mm on Bevelback Weatherboard

Vantage APL Architectural Series Awning Window 158mm on Flat Sheet

Vantage APL Architectural Series Awning Window 158mm No Cladding

Vantage APL Architectural Series Awning Window 158mm on Profile Metal

Vantage APL Architectural Series Awning Window 158mm on Rusticated Weatherboard

Vantage APL Architectural Series Awning Window 158mm on Stucco

APL Architectural Series 106mm Seismic Awning Window

APL Architectural Series 158mm Seismic Awning Window

Architectural Series 106mm and 158mm Awning Window with Aerovent

Architectural Series 106mm and 158mm Awning Window with Ventient

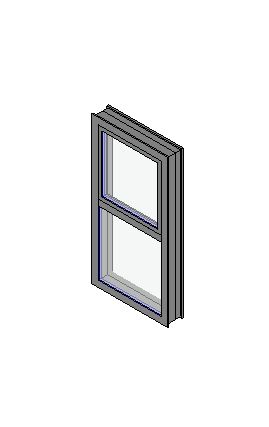

Vantage APL 106mm Architectural Series Awning Window

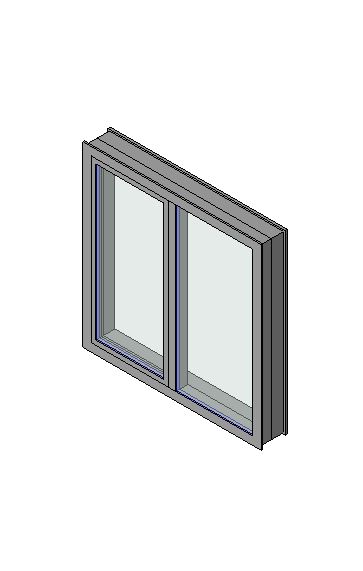

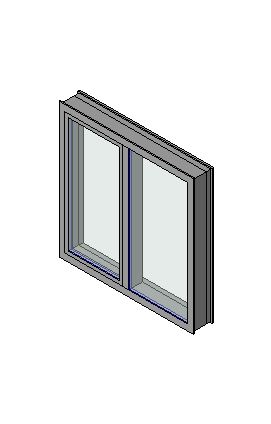

Vantage APL 106mm Architectural Series Awning Window Fixed / Sash
