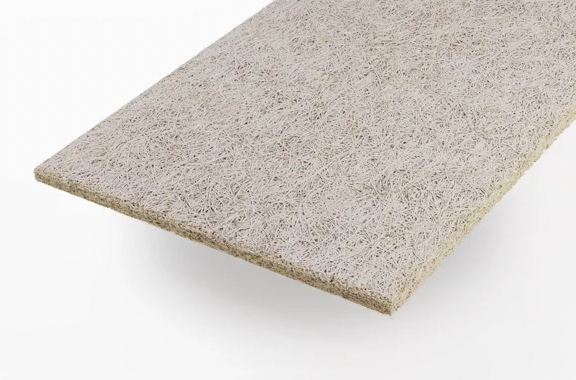

Troldtekt Acoustic Panel
Description

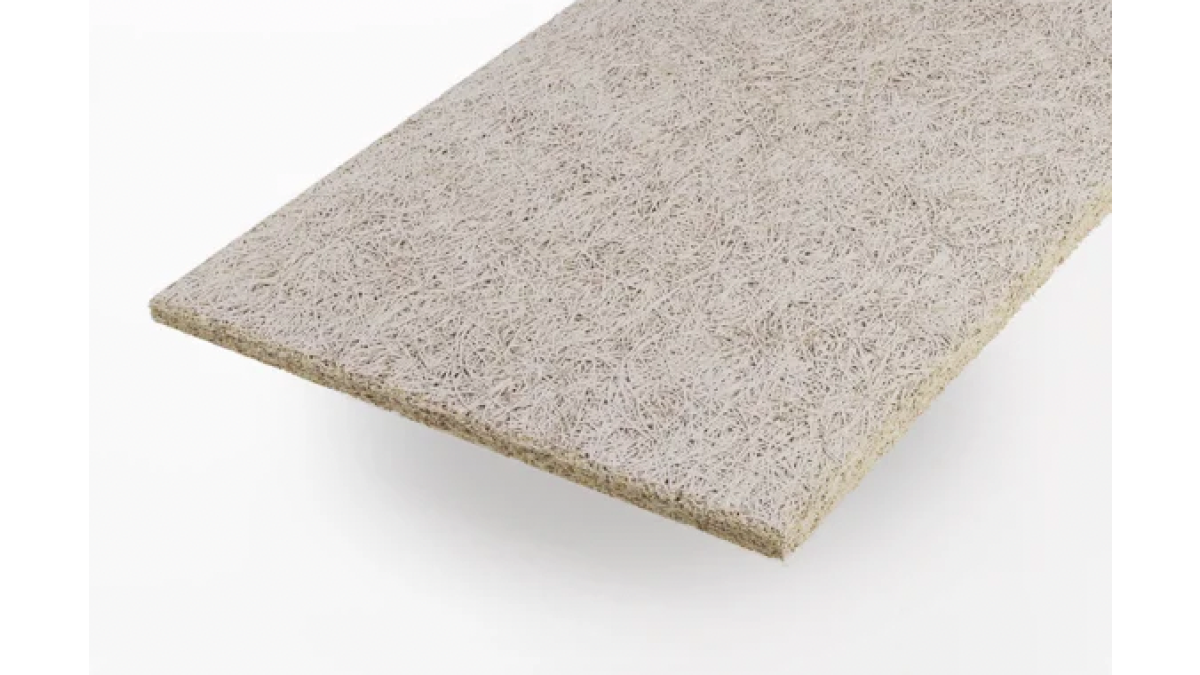

Troldtekt acoustic ceiling and wall panels are are made from PEFC™ certified or FSC® certified Norway spruce, a 100% natural material, and cement extracted from Danish mineral resources. The combination of wood and cement creates Troldtekt's unique sound absorbing properties, ensuring good acoustics in any room. The material has a natural resilience and can handle moist environments, while also providing effective fire protection. The sustainability of the Troldtekt acoustic panels is documented throughout the entire product life cycle with Cradle to Cradle Gold certification.

Troldtekt is a classic, one-layer acoustic panel, suitable for use in most building types, and has a Group 1-S fire rating. Troldtekt acoustic panels can be installed directly onto wooden battens or in a suspended profile system. However, they are most often installed with underlying mineral wool in order to ensure the best sound absorption.

  • Width: 600mm
  • Length: 600, 1200, 2400
  • Thickness: 25, 35mm
  • Edge: square edge or 5mm bevel



Key Features
  • The open structure of Troldtekt cement-bonded wood wool effectively absorbs sound
  • Sustainable product — Cradle to Cradle Gold certified, PEFC™ certified or FSC® certified Norway spruce (FSC® C115450)
  • Reaction to fire: Group 1-S
  • Easy installation options
  • Low maintenance, long life product
  • Robust acoustic solution for walls and ceilings
Categories
Acoustic Insulation
FSC Certified
FSC Certified
PEFC Certified
PEFC Certified
Scope of Use

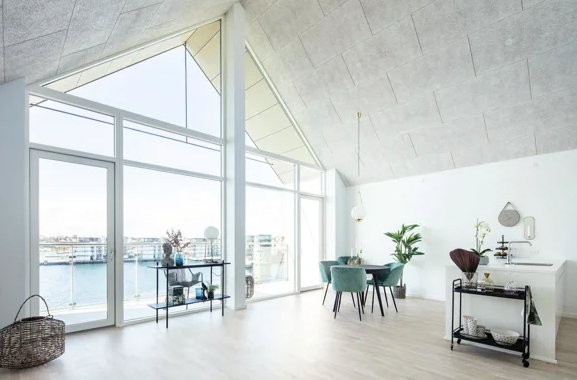

  • Indoor ceiling and wall cladding used either for direct installation or as suspended ceiling panels
  • Troldtekt acoustic panels are suitable for commercial, industrial and residential builds
  • Suitable for use in humid areas such as swimming complexes and gyms
  • Troldtekt can be surface-treated, but is often used unprocessed (natural wood and grey natural)
Limitations on Use
  • Must not be used as a structural component
  • Not suitable for surfaces subjected to frequent rubbing or physical contacts
  • Separation or protection must be provided to Troldtekt acoustic panels from heat sources such as fireplaces, flues and chimneys
  • 1200mm length panels at 25mm and 35mm thickness are over 7.5kg
  • Specific fastening method to satisfy seismic requirements is required when used in suspended grid systems
  • Due to the nature of the material, colour variations may occur with both natural wood and grey natural — to achieve an even distribution of the colour tones, it is recommended to mix the panels
  • As this is a natural product, there may be small variations in panel dimensions
  • Installation, storage and acclimatisation instructions must be carefully followed
Statement of Building Code Compliance

Troldtekt acoustic panels meet the performance requirements of NZBC:

  • Clause B1 Structure (B1.3.1, B1.3.2, B1.3.3(a), B1.3.4)
  • Clause F2 Hazardous Building Materials (F2.3.1)
  • Reaction to fire: Group 1-S
Other Performance Attributes
  • Impact resistance: Ball impact certification acc. to DIN 18032-3:2018-11
  • PEFC™ certified or FSC® certified Norway spruce (FSC® C115450)
  • Cradle to Cradle certified Gold Level
  • Troldtekt cement-bonded wood wool can last for at least 50–70 years — can be painted to extend product life
  • Low maintenance — requiring only light cleaning
Documents
Declaration of Performance

2024

Data Sheet: Troldtekt Acoustic Panels

2024

Certification & Tests
Sound Absorption Values
Download Revit Files
Installation Instructions
Kingspan Troldtekt Warranty

Issue 4.0, Jun 2024

Colour Variation — Natural Grey
Troldtekt Structures & Colours

The ideal choice for ceilings and walls; the combination of wood and cement creates Troldtekt's unique sound-absorbing properties, ensuring good acoustics with a focus on a sustainable indoor climate.
