Phonic Dai Lotone
T&R Interior Systems
All products

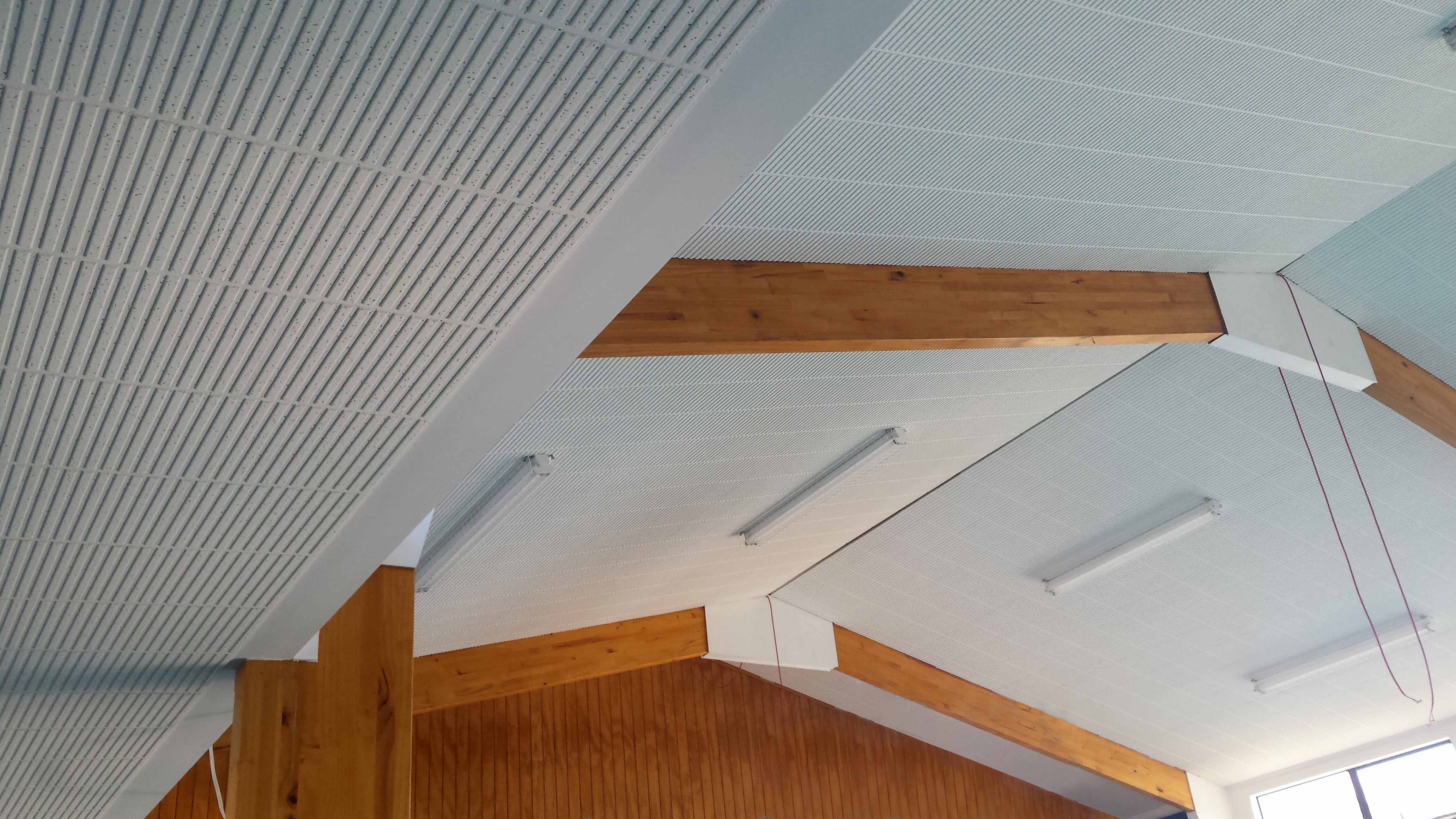

daiken dai lotone small

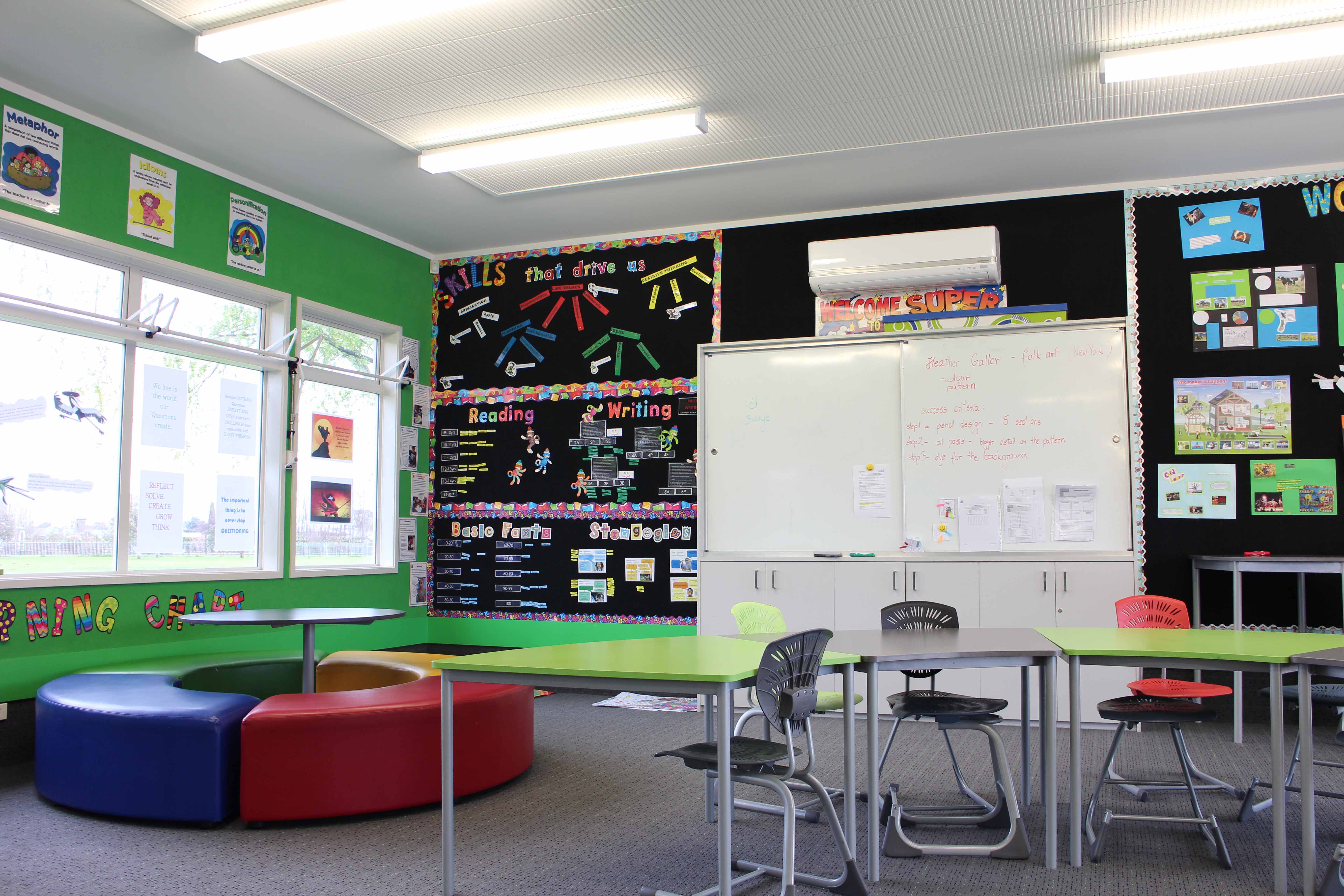

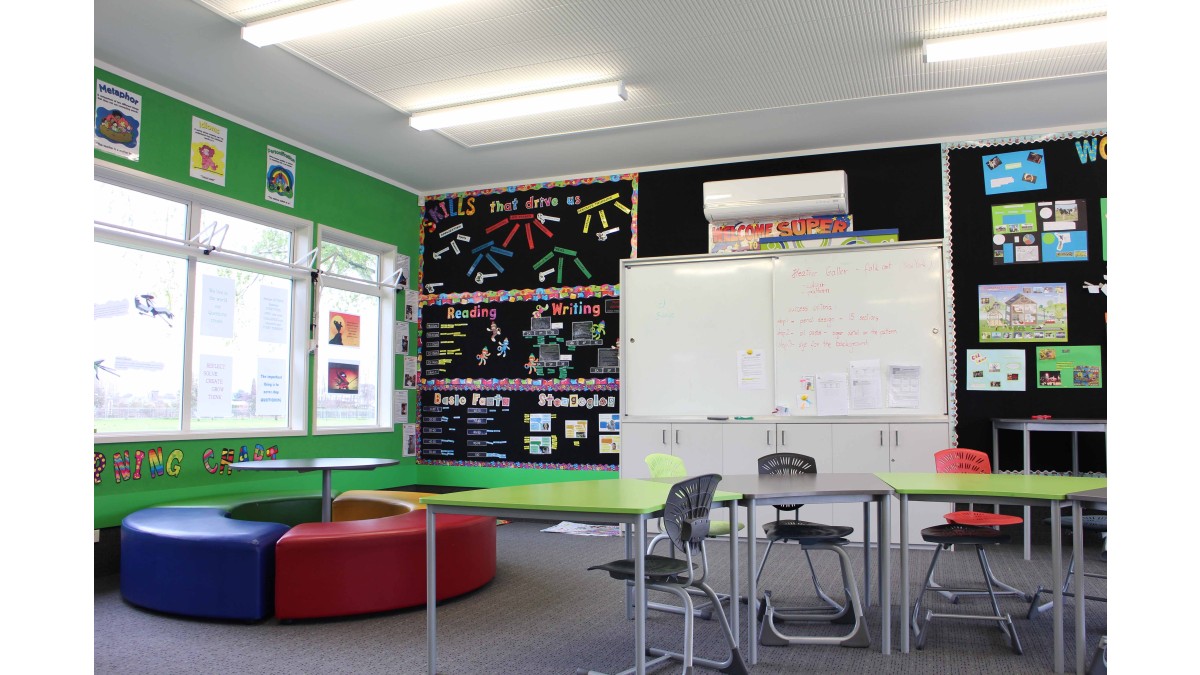

Daiken Dai Lotone Martinborough School small

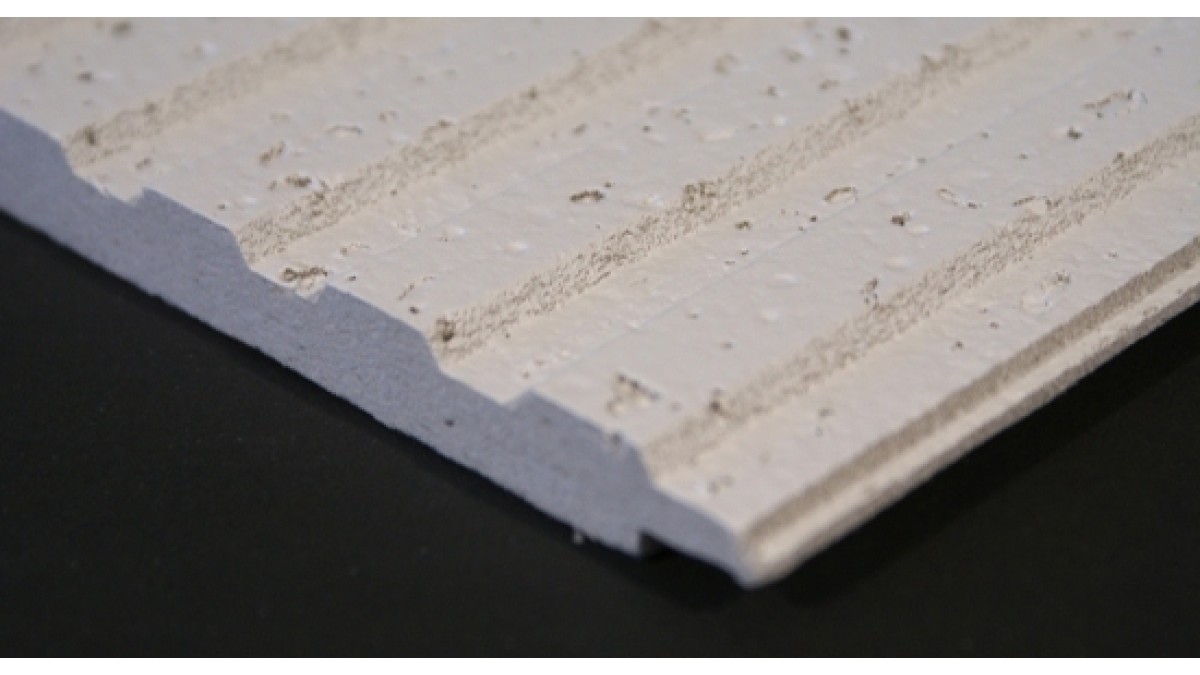

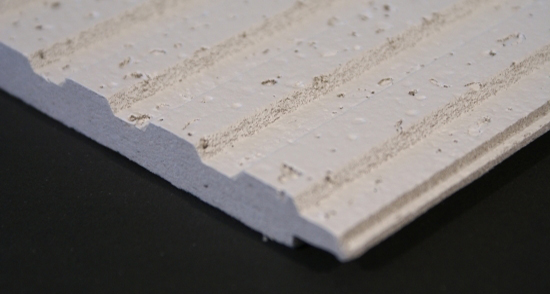

SetWidth550 Daiken Dai Lotone Staple and Glue side view

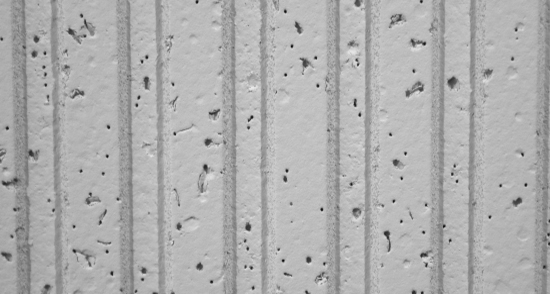

SetWidth550 Daiken Dai Lotone Staple and Glue
Description

Phonic Dai Lotone is a high density tongue and groove mineral fibre ceiling tile with a white painted finish designed for direct fix applications to new and existing gypsum board or timber battens. No additional painting required.

Key Features
  • Phonic T&G ceiling tiles have superior noise absorption. A mid-range tile
  • Phonic Dai Lotone Ceiling tiles are manufactured to produce porous properties with a low specific gravity and therefore exhibits efficient thermal insulation and sound absorption qualities, while resisting sound transmission more effectively than glass fibre products
  • Effective thermal insulation (more than 6 times gypsum board)
  • Due to its high density and fine grained substrate, Phonic can achieve unique and high quality detailing in their tiles. This is reflected in the Rib 501 pattern
  • Phonic T&G ceiling tiles have outstanding fire resistance. Phonic Mineral Fibre Acoustic Ceiling materials are not only noncombustible but is less likely to emit gas or smoke, or to melt, break or become deformed under normal fire conditions
  • 30 year lifetime system warranty to withstand conditions up to 40° - 98% relatively humidity without visible sag
Categories
Fire-Protection and Acoustic Linings Fire, Acoustic & Special Performance Ceilings
Ranges
Ceiling Systems Acoustic Ceiling Tiles
Scope of Use
  • A mid-range tile designed for direct fix applications to new and existing gypsum board or timber battens
Statement of Building Code Compliance
  • Fire Performance: Group 1-S
  • Acoustic Absorption: NRC 0.45 - 0.50
Other Performance Attributes
  • 30 year lifetime system warranty to withstand conditions up to 40° - 98% relatively humidity without visible sag
Documents
Data Sheet
pdf
Additional Information
URL
BIM
View full
Dai Lotone
zip

T&R Interior Systems specialise in the supply of quality interior building and acoustic products fully backed by extensive technical support and friendly service.
