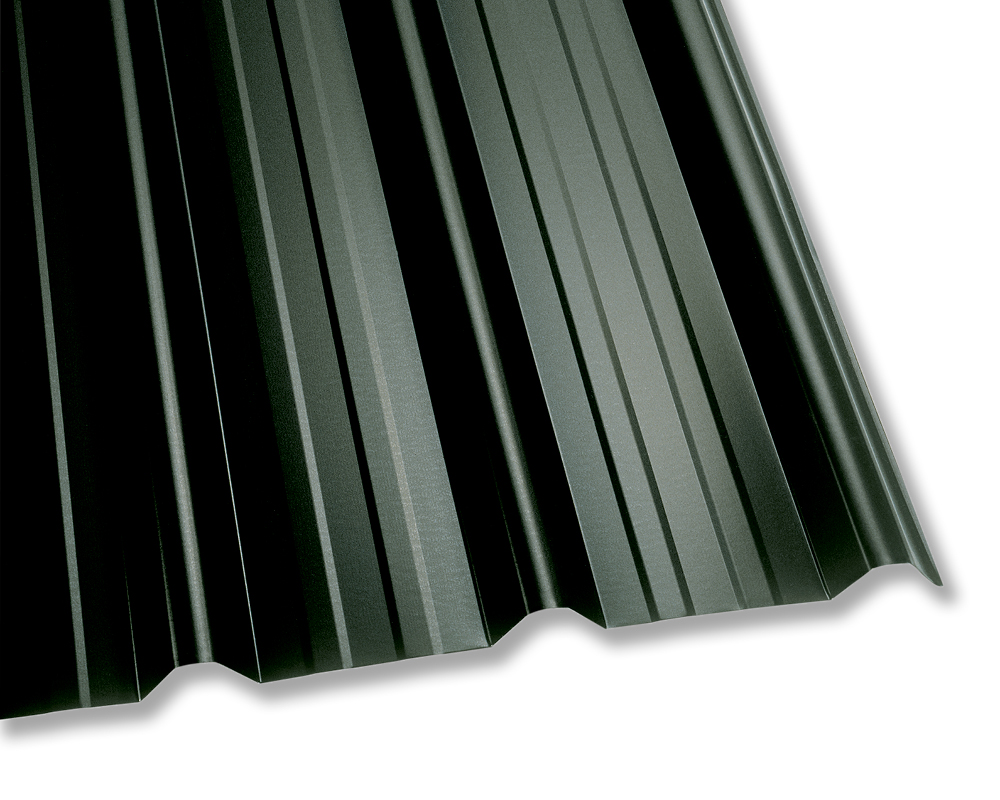

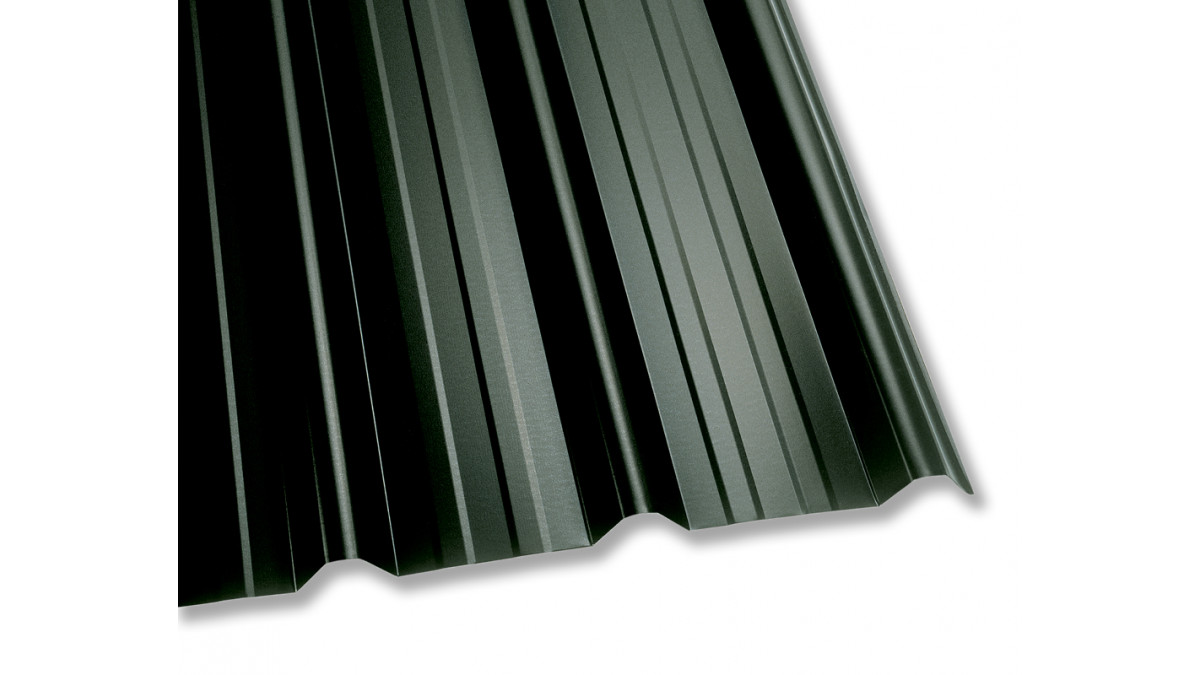

Plumbdek, Trimform nd Trimline profiles feature a strong rib design coupled with wide economical cover, meaning they are equally at home in residential and commercial applications.

• Minimum pitch 3°

Trimform if designed, used, installed and maintained in accordance with the statements and conditions of the technical literature, will meet or contribute to meeting the following provisions of the NZBC:

• Clause E2 External Moisture: Trimform will comply with the performance requirements of E2 when installed in accordance with E2/AS1. Alternatively, when designed in compliance with the NZ Metal Roof and Wall Cladding Code of Practice, or Steel & Tube Roofing Solutions Product Guide, Trimform will comply with Clause E2 where SLS wind loads do not exceed 3.0 kPa
• Clause B1 Structure: In .40mm or .55mm steel, G550 grade (high strength) Trimform will meet the requirements of B1 for the following loads and spans. Figures are given for rib fastening with self drilling screws and proprietary load spreading washer to each rib. Pan fixing of wall cladding will also attain the same loads. For other materials or grades of material, or applications outside the attached graph, specific design is required
• Clause B2 Durability: With normal maintenance, the requirements of Acceptable Solution B2/AS1 will be met by nominated materials in the following environments as defined in New Zealand Steel Specifiers and Builders Guide June 2010
