ComFlor SR Composite Flooring System

Description

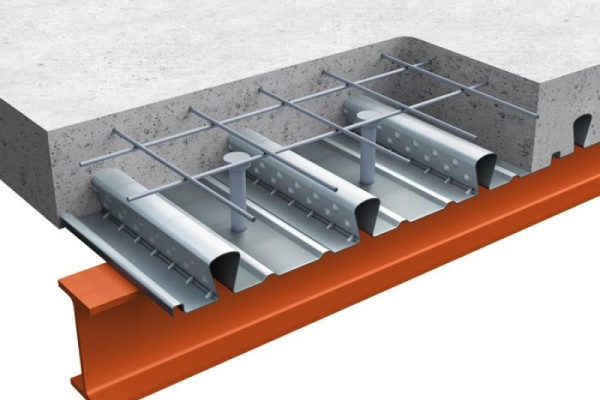

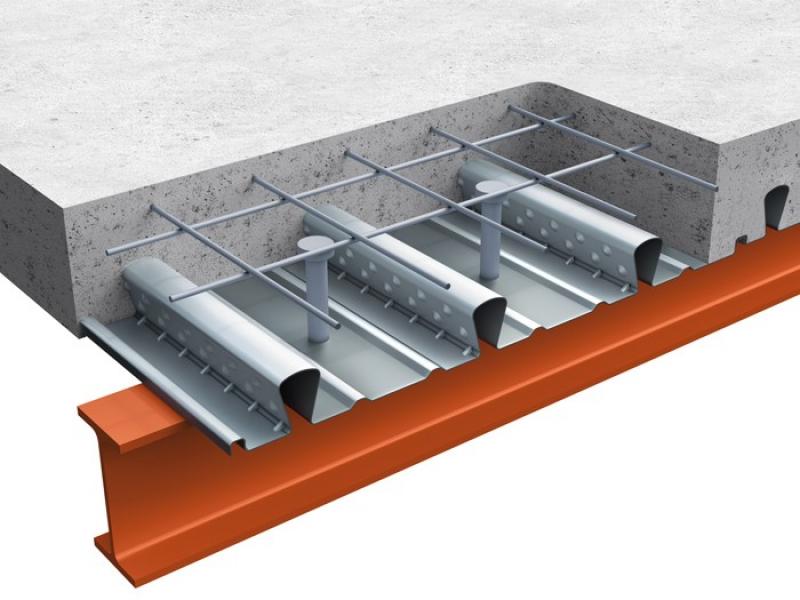

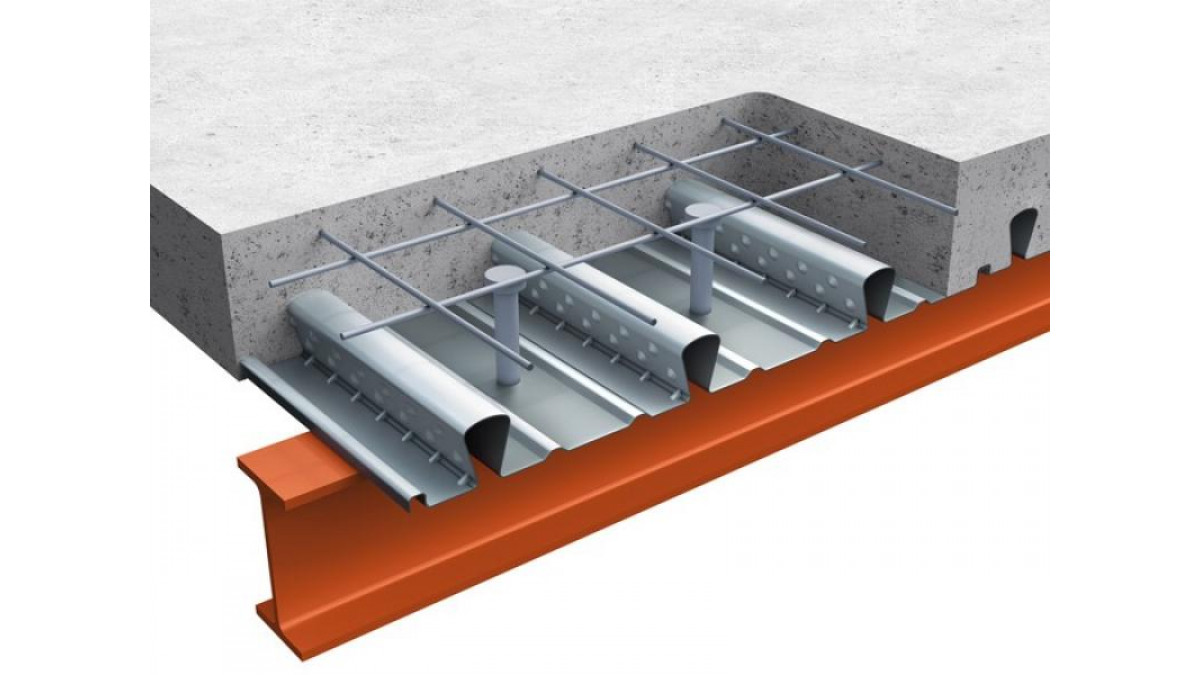

ComFlor SR is new generation in composite steel floor decking systems, with added mass in the slab for enhanced vibration and acoustic performance. It features fire ratings of 120 minutes with a 120mm slab.

ComFlor is distributed by Steel & Tube New Zealand, distributor of steel and stainless steel products and services. Rigorous and extensive testing in conjunction with the UK-based Steel Construction Institute ensures that ComFlor SR meets internationally recognised design and construction standards. ComFlor is a registered trade mark used in Australia and New Zealand under licence from Tata Steel UK Limited.

Key Features

Long-span capability:

Gauge options of 0.75 to 1.25 to suit the particular span
Optimised profile design gives exceptional unpropped (double) spanning capability of up to3.90 metres, reducing structural steel requirements and hence cost

Cost efficient:

Fire testing allows 120 minutes without using bottom steel
Stiffer profile means less deflection during construction leading to greater site safety and cost savings in concrete

Ranges

ComFlor: Composite Concrete Flooring System

Scope of Use

Spans* propped and unpropped:

**ComFlor SR**
	Propped	Unpropped
0.75mm	up to 6.20m	up to 2.80m*
0.90mm	up to and in some cases over 6.30m	up to and in some cases over 3.10m*
1.00mm	to and in some cases over 6.40m	up to and in some cases over 3.50m
1.20mm	up to and in some cases over 6.50m	up to and in some cases over 3.70m

*Spans are calculated using ComFlor Software. In some situations the spans may be able to be greater than those indicated. ComFlor Software should always be used to determine the spanning capacity and design requirements of ComFlor for the slab.

In-Service History

ComFlor is a registered trade mark used in Australia and New Zealand under licence from Tata Steel UK Limited.

Other Performance Attributes

Fire ratings 120 minutes with a 120mm slab

Rigorous and extensive testing in conjunction with the UK-based Steel Construction Institute ensures that ComFlor SR meets internationally recognised design and construction standards
