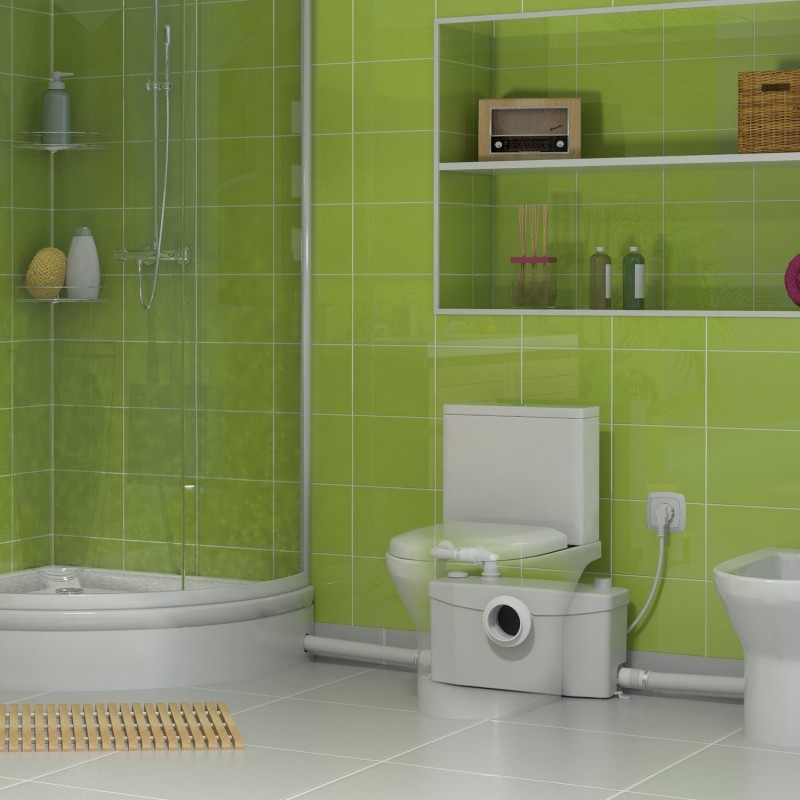

Saniplus is suitable for the installation of a full bathroom:

• 4 possible connections — toilet, basin, bath, and shower
• Full bathroom, large tank
• Can pump up to 5m in height, or 100m length — refer to data sheet
• Inlet pipework: 40mm. Outlet pipework: 20mm
• Can be equipped with Sanialarm (optional extra)

• Macerator needs minimum 4.5 L of unrestricted flush for optimal function
• All horizontal pipework requires a minimum of 1:100 fall
• Working waste water temperature 35°C
• Must be installed by a licensed plumber
• For other applications refer to Product Selection Grid

In opinion of Saniflo this product meets the following provisions of the NZBC:

• Clause B2 DURABILITY: Performance B2.3.1 [a] not less than 50 years, and B2.3.1 [b] 15 years, and B2.3.2. The Saniplus meets this requirement
• Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Saniplus meets this requirement and does not present a health hazard to People
• Clause G13 FOUL WATER: Performance G13.3.1 and G13.3.2. Saniplus meets these requirements

Producer Statement available. Project specific compliance statements are available on request.

The Saniflo SFA Company is the inventor of the macerator concept, with waste solution products successfully deployed around the world for the past 60 years.

• Watermark Certificate WMTS 106: 2019 Certificate number: 23048
• This product meets AS/NZS 3500.1:2018
• IP rating 44

Warranty Conditions

• This device is guaranteed for 2 years from the date of purchase and is subject to:
  • NZ CG Act 1993 if used for personal, domestic or household use
  • Installation in strict compliance with manufacturers installation manual in the product box
• This warranty does not cover the following which remain at the risk, cost and responsibility of the owner:
  • Costs of travel and transport or insurance of the device
  • Device installed outside 50km radius from an accredited Saniflo Agents Office
  • All Costs necessary to safely access and replace the installed device including costs of additional plant equipment, materials. handling and/or safety equipment
• This warranty is not transferable
• This warranty shall not apply when the product is sold or installed outside New Zealand
