Multirib® Roofing and Cladding
Roofing Industries
All products
ed Multirib

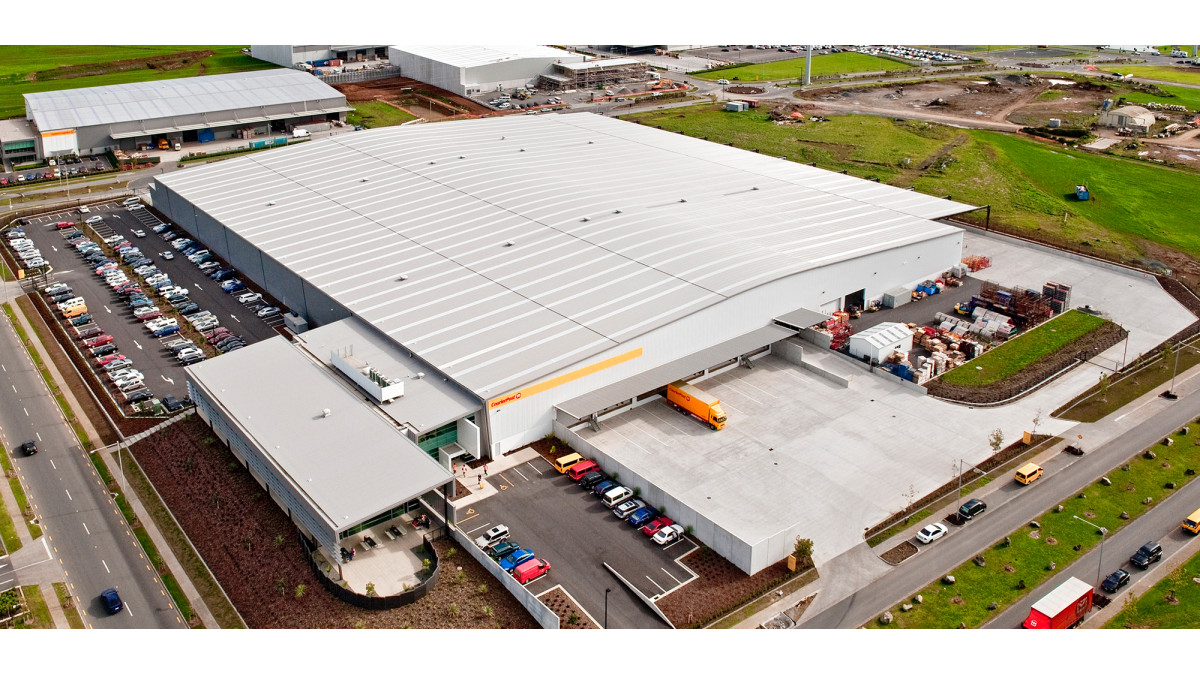

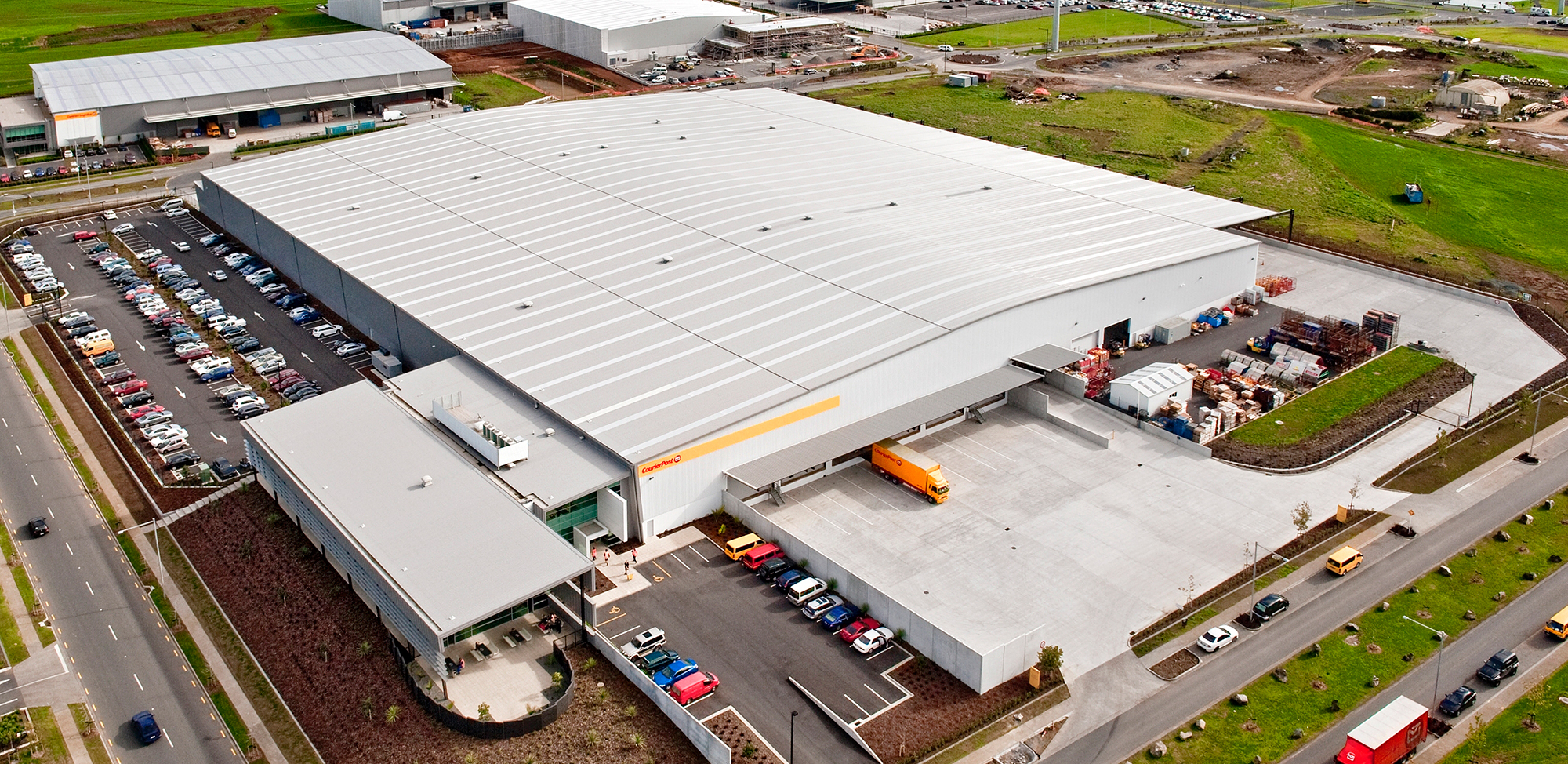

Courier Post edit
Description

Multirib® is a medium height, long run roofing and cladding profile designed primarily for industrial and commercial applications. Multirib is also suited for roofing applications on low pitch residential projects.

Key Features
  • Convex ribs provide strength and water run-off away from the fixings
  • Twin capillary breaks on the lap
  • Purpose designed leg provides support to the underlap
  • Steeply angled ribs provide superior strength and aesthetics
  • Installers feet fit neatly in the pan thereby avoiding damage to the ribs
  • Can be 'reverse run' and the swage removed for use as a wall cladding
  • Lap can be altered in the reverse run process to ensure improved aesthetics and water tightness
  • Narrow barge flashing detail over wider pan profiles thereby reducing wind uplift damage
  • Fully tested and proven Multirib® fastening patterns provide superior wind loading over other commercial profiles
  • Also available with DRI-CLAD™️ drip-resistant lining
  • Excellent water carrying capacity
  • Equally impressive for both roofing and cladding applications
  • Superior spanning at a 3 degree low roof pitch
  • Supported by wind and concentrated load span design graphs derived from extensive industry test rig trials
Categories
Metal Cladding Metal Roofing
Ranges
Trapezoidal
Scope of Use
  • For industrial and commercial roofing and cladding projects where both high spanning and a low pitch is required
  • Residential roofing
  • Industrial and commercial horizontal and vertical cladding in both standard and reverse run applications
  • Rural and lifestyle roofing and cladding
  • Drape curving
  • This profile is also available with DRI-CLAD™️ drip-resistant lining

Metal cladding materials used to construct the building envelope shall be:

  • In accordance with the durability requirements of NZBC B2 suitable for their end use, location and environment as shown in E2/AS1 Table 20, and;
  • Compatible with adjoining materials as shown in E2/AS1 Table 21 and Table 22; and
  • Meet NZ Metal Roof and Wall Cladding code of practice.
Limitations on Use
  • Minimum roof pitch 3°
Statement of Building Code Compliance

Multirib® will, if employed in accordance with the supplier's installation and maintenance requirements, assist with meeting the following provisions of the building code:

  • Clause B2 — Durability: Performance B2.3.1(b)
  • Clause E2 — External moisture: Performance E2.3.1, E2.3.2

Selection of the correct grade of material and appropriate surface coating is imperative to ensure Multirib performs satisfactorily in the environment it is to be installed, meeting the requirements of The NZ Building Code.

  • Case Studies
Documents
Profile Technical Summary

2012

pdf
Tekton Report — E2 Compliance: Multirib

2020

pdf
Product Brochure: DRI-CLAD

Nov 2023 v4

pdf
Product Brochure: Multirib

July 2014

pdf
Selection Guide: Multirib

2012

pdf
Brochure: Roofing with Style

2024

pdf
Handling and Storage of Metal Roofing and Cladding
pdf
Installation Guide: Metal Longrun Roofing & Cladding

2022

pdf
Installation: MRM Code of Practice
URL
Maintenance Instructions

2017

pdf
Brochure: Re-Roof
pdf
Brochure: EZI-FLO Rainwater Systems
pdf
Brochure: Ezy-Lok Gutter & Valley Screens
pdf
RANZ Roofing Guide
URL
CAD/PDF Details
View full
Filters
Project Type
Roofing Details
Wall Cladding Details
Clear filters
Com. Multirib Typical Roof (Uninsulated)

RI-CMR-R000A

dwg
pdf
Com. Multirib Typical Roof (Insulated)

RI-CMR-R000A-1

dwg
pdf
Com. Multirib Typical Ridge

RI-CMR-R001C

dwg
pdf
Com. Multirib Typical Barge (Notched)

RI-CMR-R002A

dwg
pdf
Com. Multirib Typical Barge (Bird's Beak)

RI-CMR-R002B

dwg
pdf
Com. Multirib Head Barge (Notched)

RI-CMR-R003A

dwg
pdf
Com. Multirib Head Barge (Bird's Beak)

RI-CMR-R003A-1

dwg
pdf
Com. Multirib Head Barge Girts Between Columns (Notched)

RI-CMR-R004A

dwg
pdf
Com. Multirib Head Barge Girts Between Columns (Notched — Bird's Beak)

RI-CMR-R004B

dwg
pdf
Com. Multirib Side Apron Chased

RI-CMR-R005A

dwg
pdf

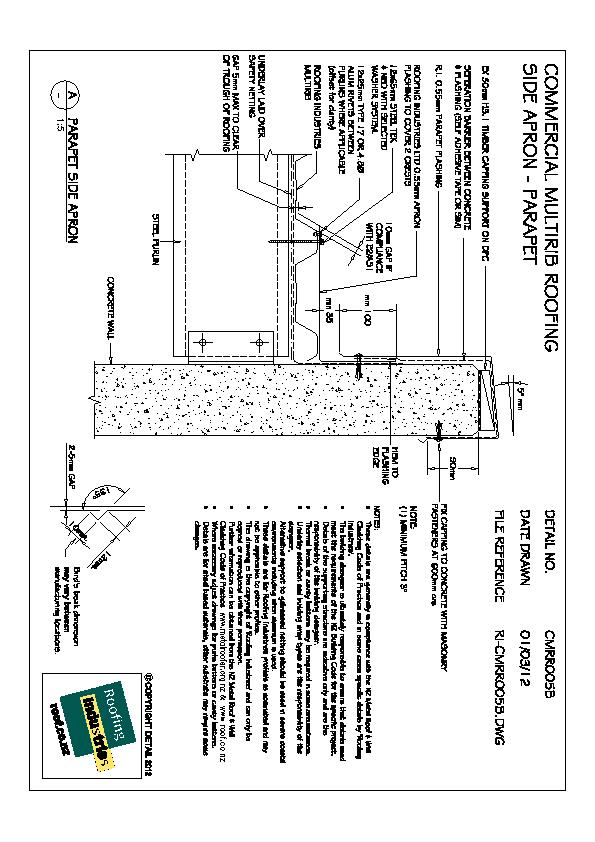

Com. Multirib Side Apron — Parapet

RI-CMR-R005B

dwg
pdf

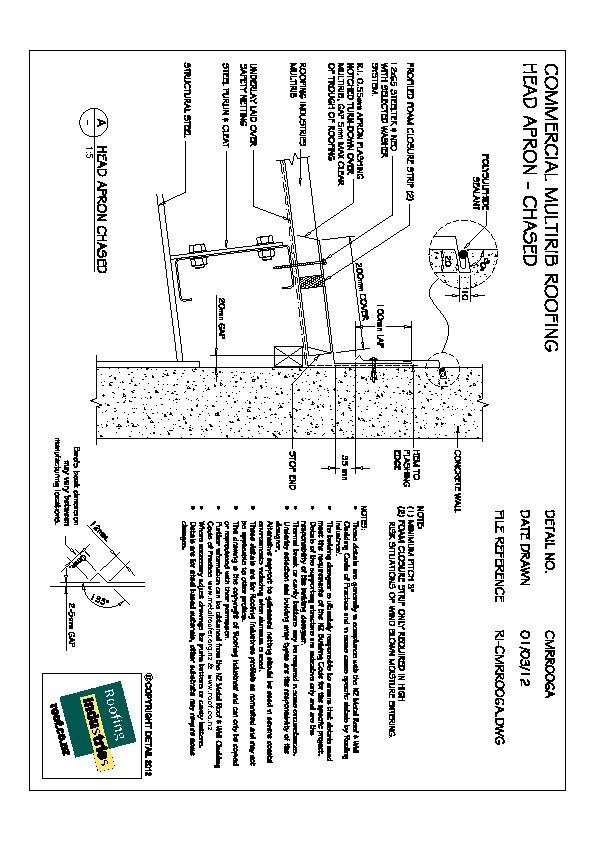

Com. Multirib Head Apron Chased

RI-CMR-R006A

dwg
pdf

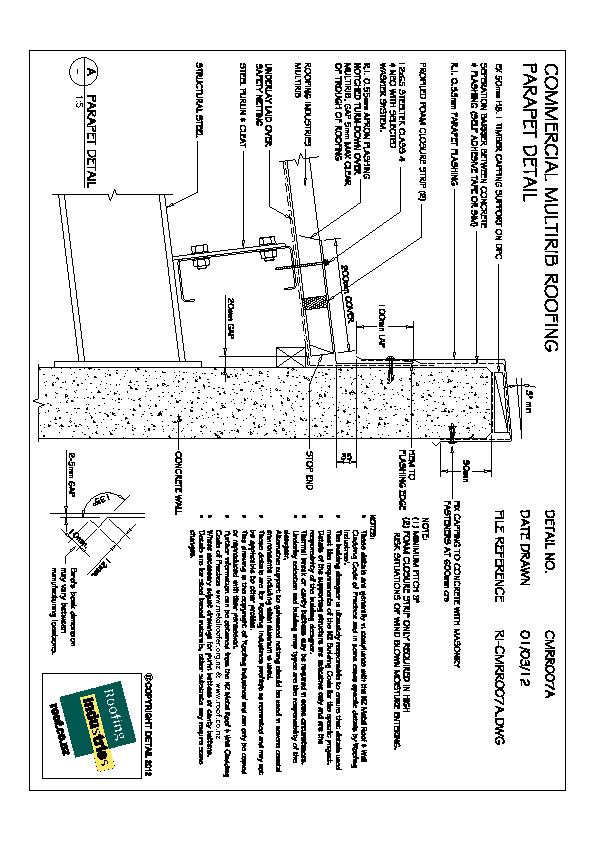

Com. Multirib Parapet Detail

RI-CMR-R007A

dwg
pdf

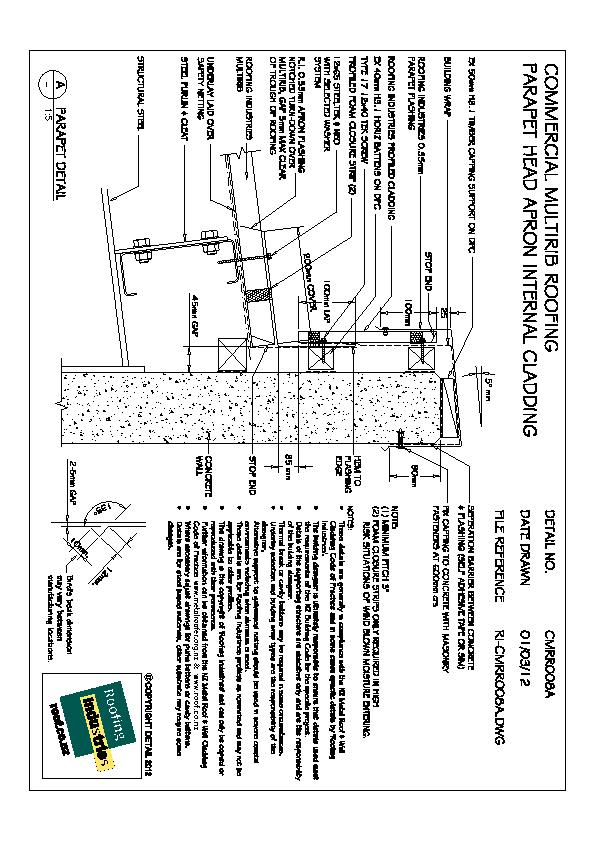

Com. Multirib Parapet Head Apron Internal Cladding

RI-CMR-R008A

dwg
pdf

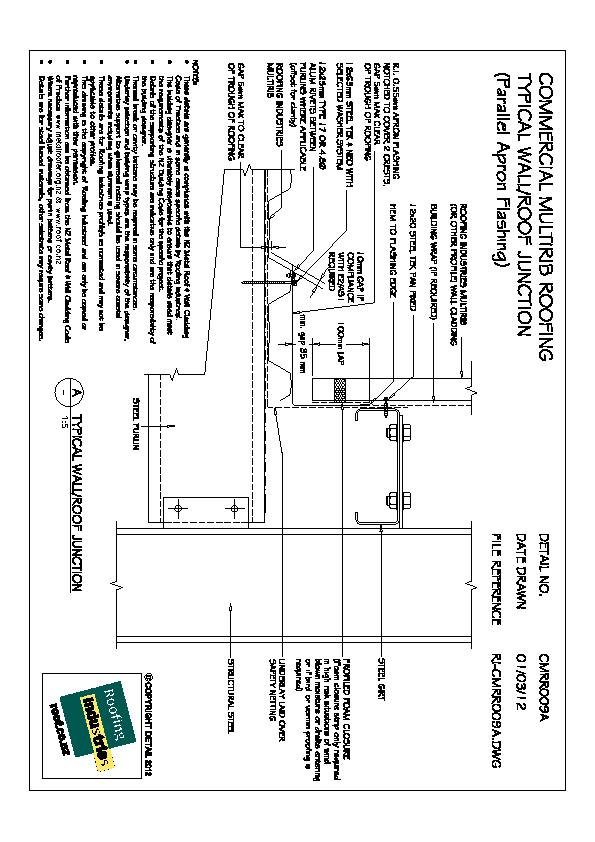

Com. Multirib Typical Wall/Roof Junction (Parallel Apron Flashing)

RI-CMR-R009A

dwg
pdf

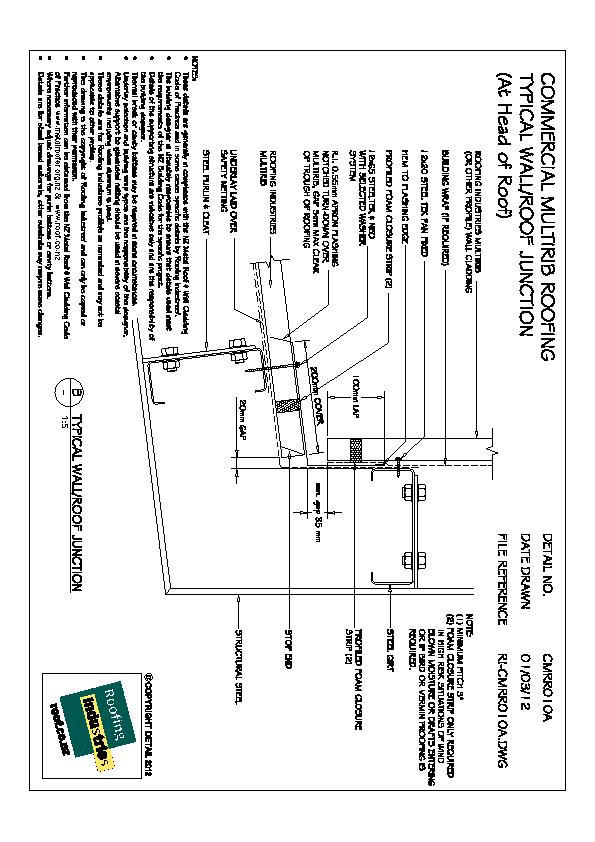

Com. Multirib Typical Wall/Roof Junction (At Head of Roof)

RI-CMR-R010A

dwg
pdf

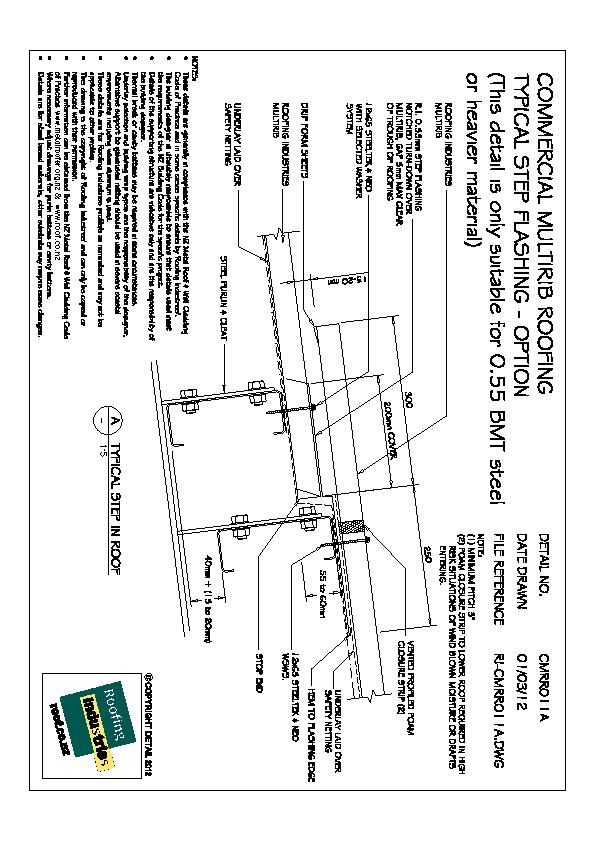

Com. Multirib Step Flashing — Option

RI-CMR-R011A

dwg
pdf

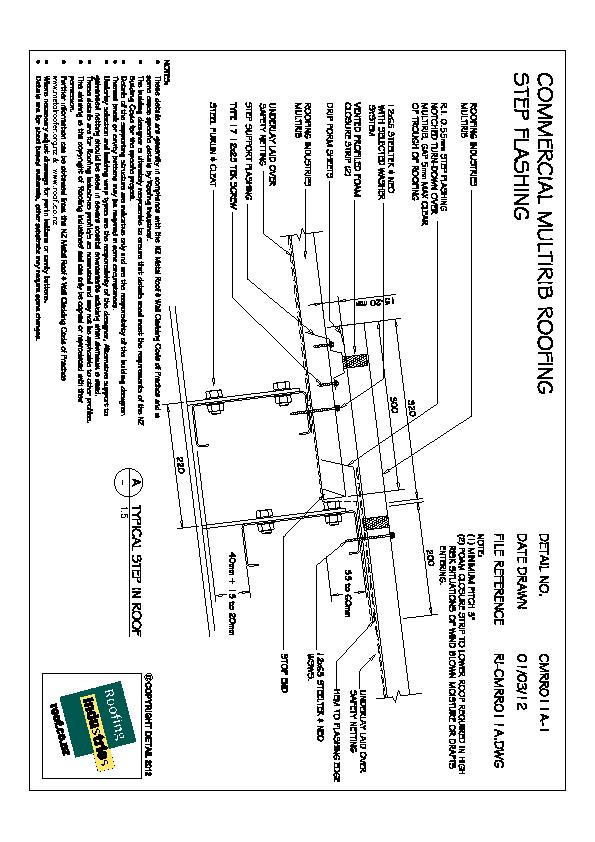

Com. Multirib Step Flashing

RI-CMR-R011A-1

dwg
pdf

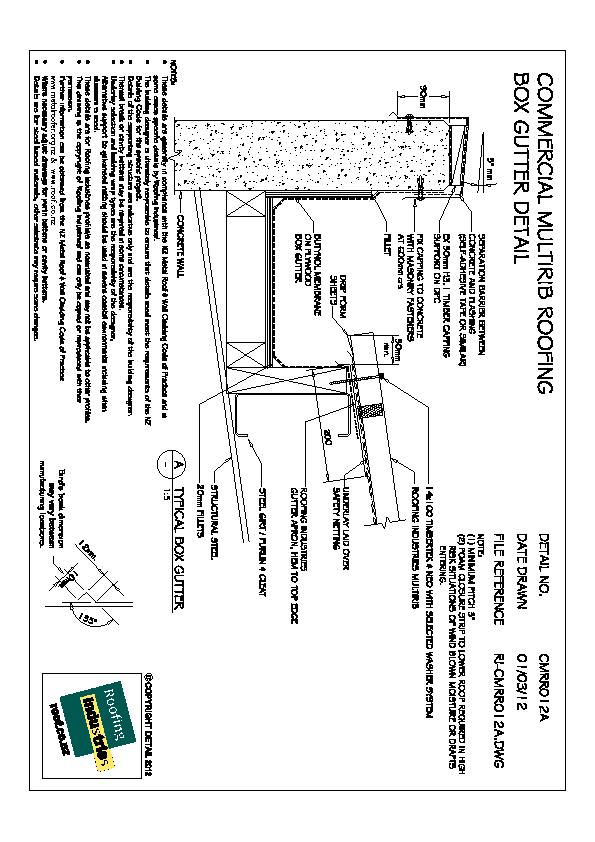

Com. Multirib Box Gutter Detail

RI-CMR-R012A

dwg
pdf

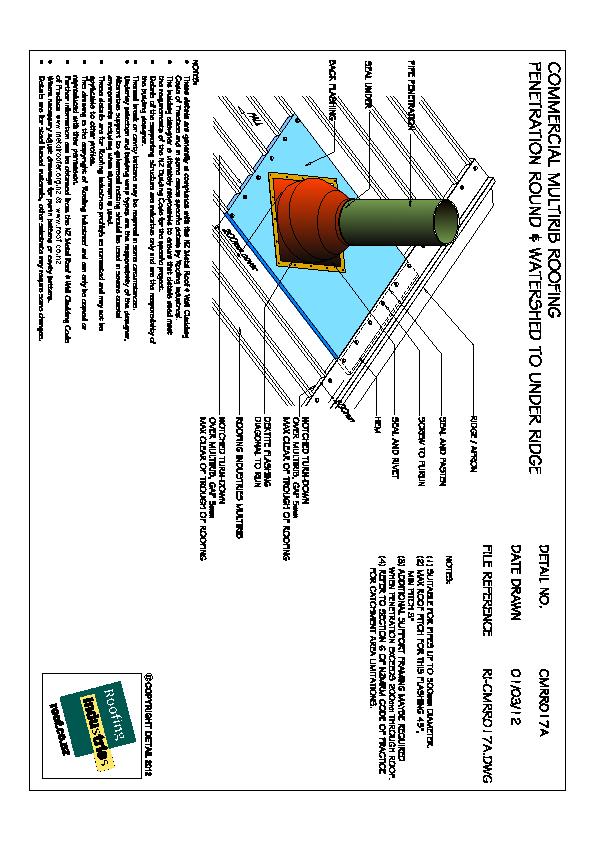

Com. Multirib Penetration Round & Watershed to Under Ridge

RI-CMR-R017A

dwg
pdf

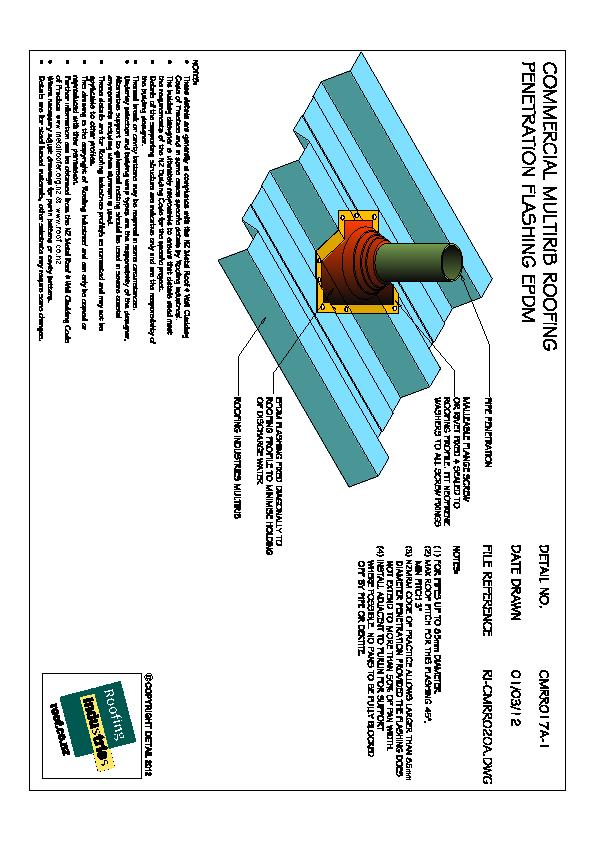

Com. Multirib Penetration Flashing EPDM

RI-CMR-R017A-1

dwg
pdf

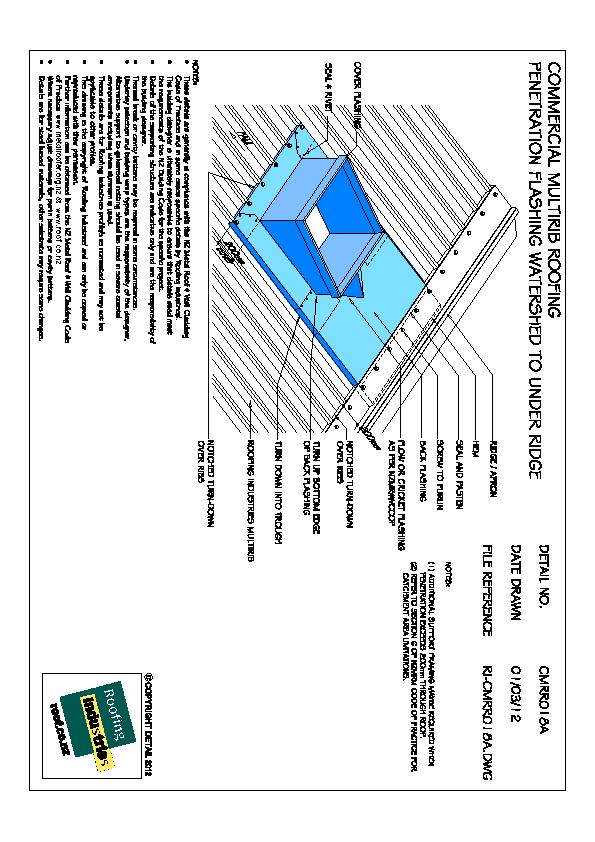

Com. Multirib Penetration Flashing Watershed to Under Ridge

RI-CMR-R018A

dwg
pdf

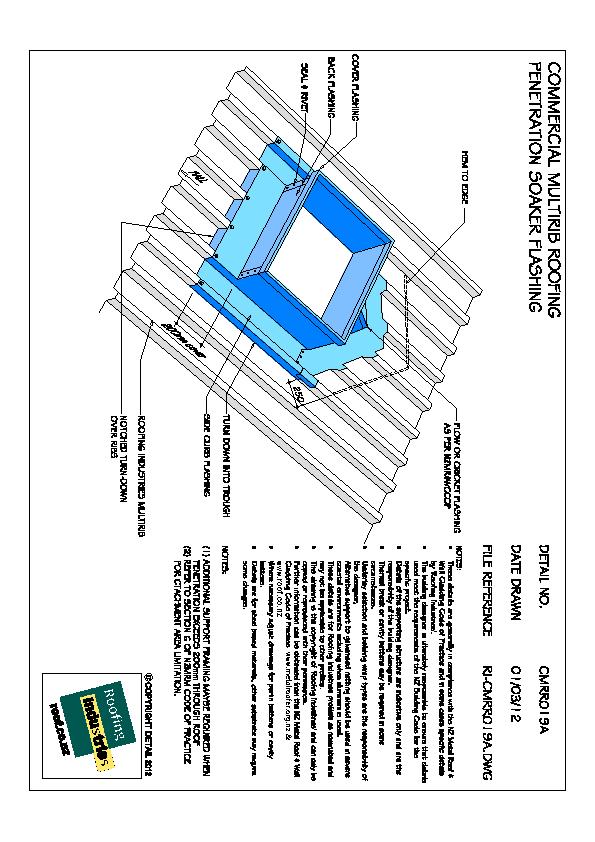

Com. Multirib Penetration Soaker Flashing

RI-CMR-R019A

dwg
pdf

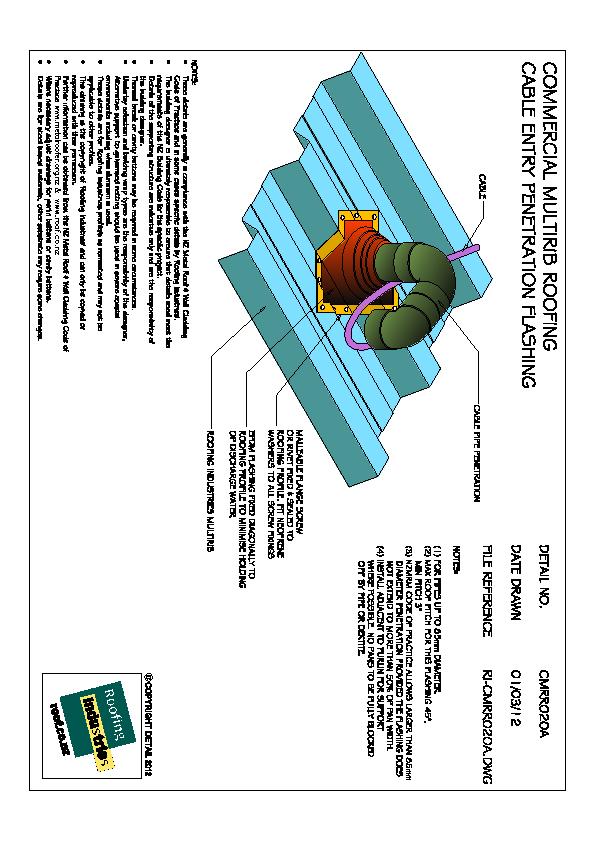

Com. Multirib Cable Entry Penetration Flashing

RI-CMR-R020A

dwg
pdf

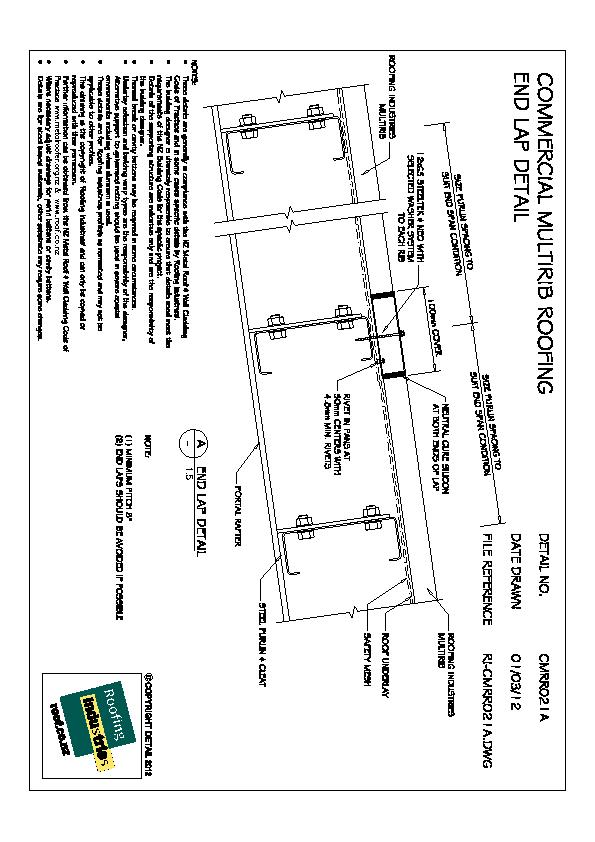

Com. Multirib End Lap Detail

RI-CMR-R021A

dwg
pdf

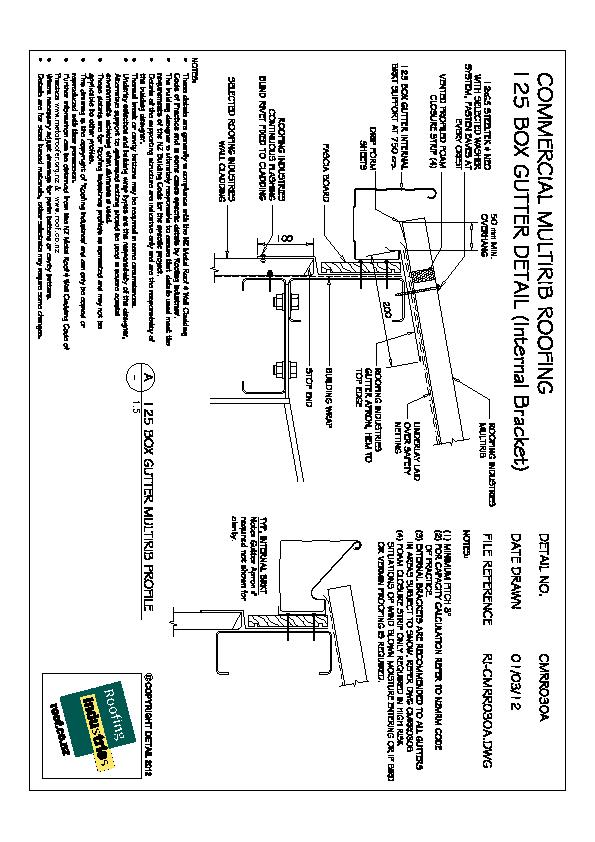

Com. Multirib 125 Box Gutter Detail (Internal Bracket)

RI-CMR-R030A

dwg
pdf

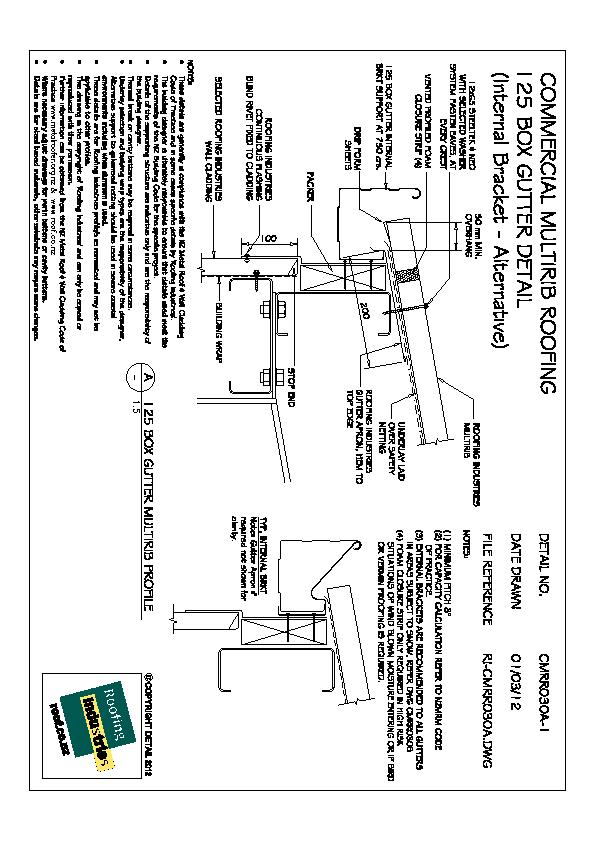

Com. Multirib 125 Box Gutter Detail (Internal Bracket — Alternative)

RI-CMR-R030A-1

dwg
pdf

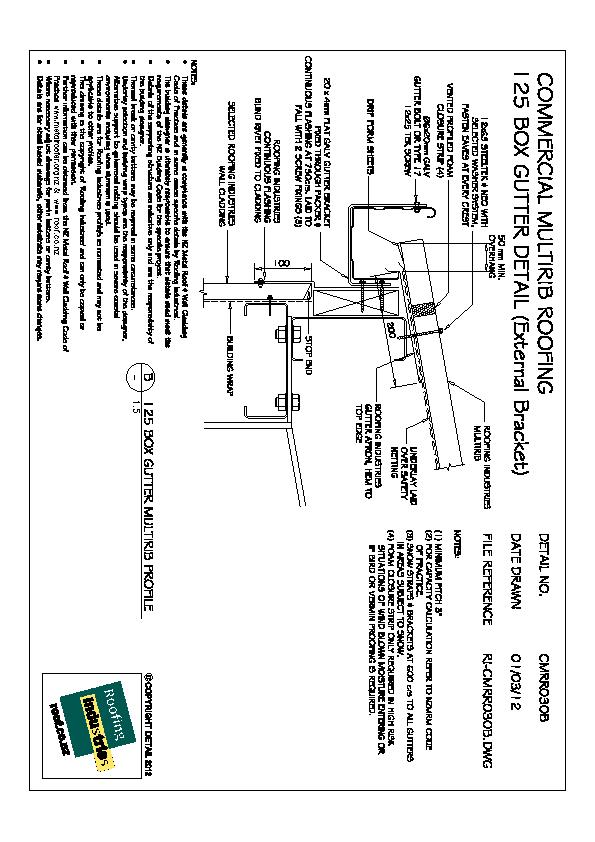

Com. Multirib 125 Box Gutter Detail (External Bracket)

RI-CMR-R030B

dwg
pdf

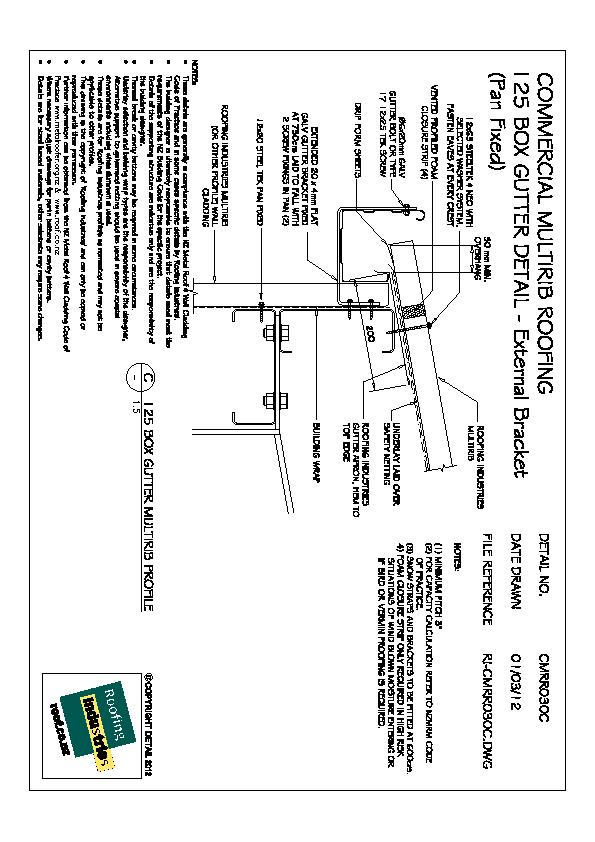

Com. Multirib 125 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMR-R030C

dwg
pdf

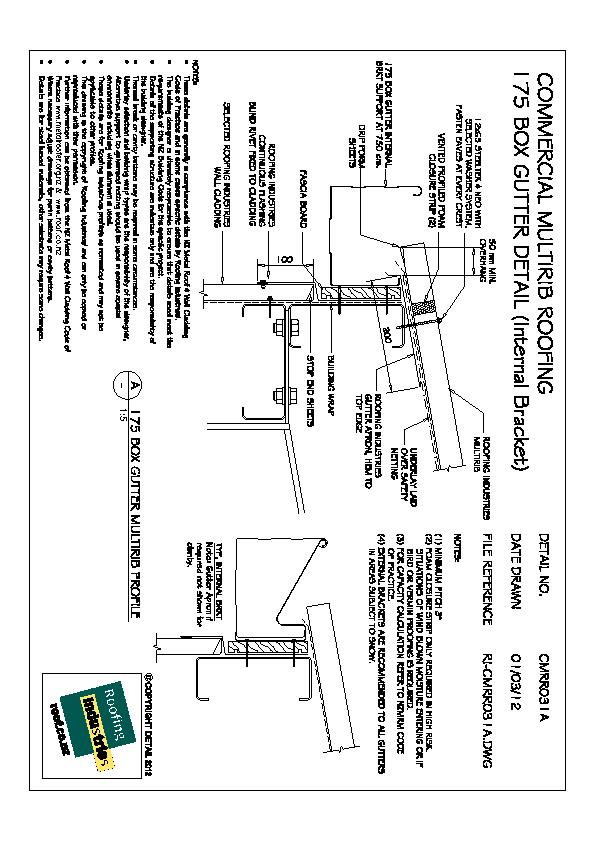

Com. Multirib 175 Box Gutter Detail (internal Bracket)

RI-CMR-R031A

dwg
pdf

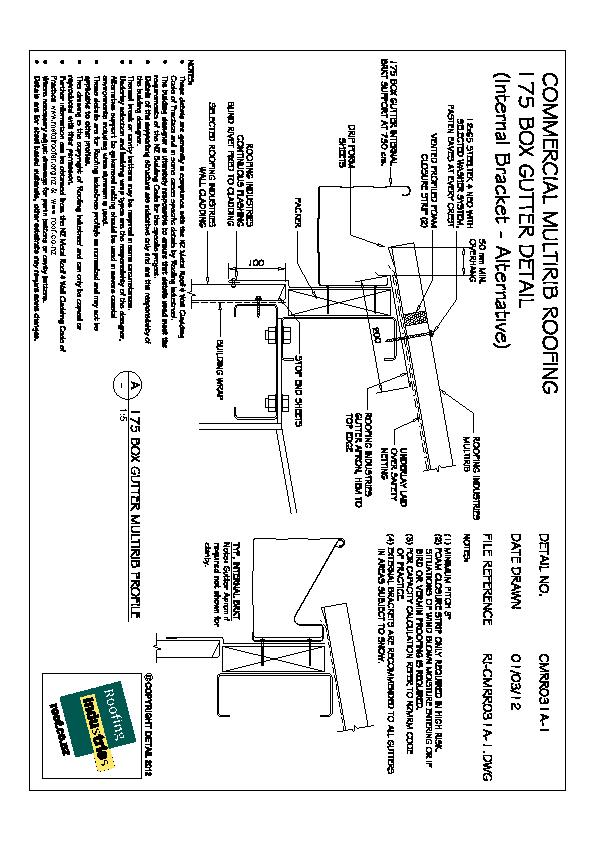

Com. Multirib 175 Box Gutter Detail (Internal Bracket — Alternative)

RI-CMR-R031A-1

dwg
pdf

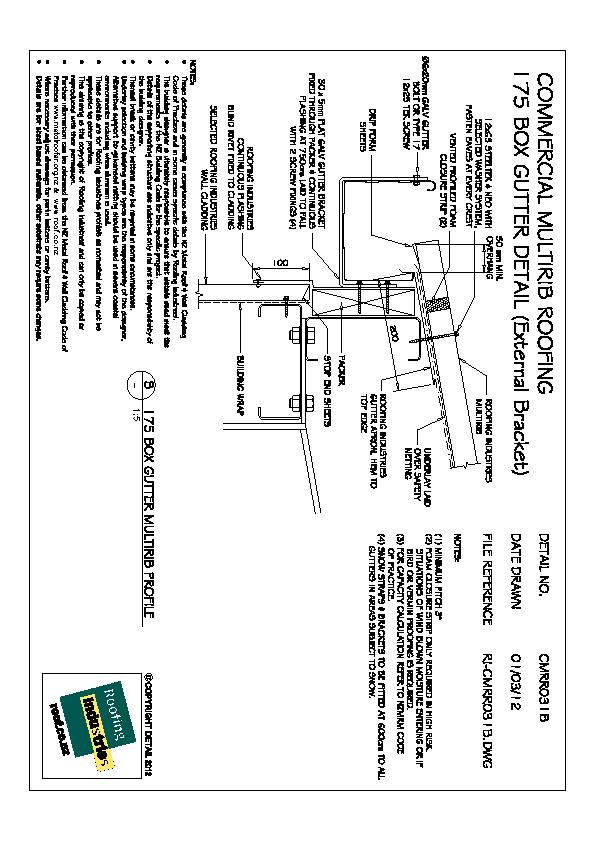

Com. Multirib 175 Box Gutter Detail (External Bracket)

RI-CMR-R031B

dwg
pdf

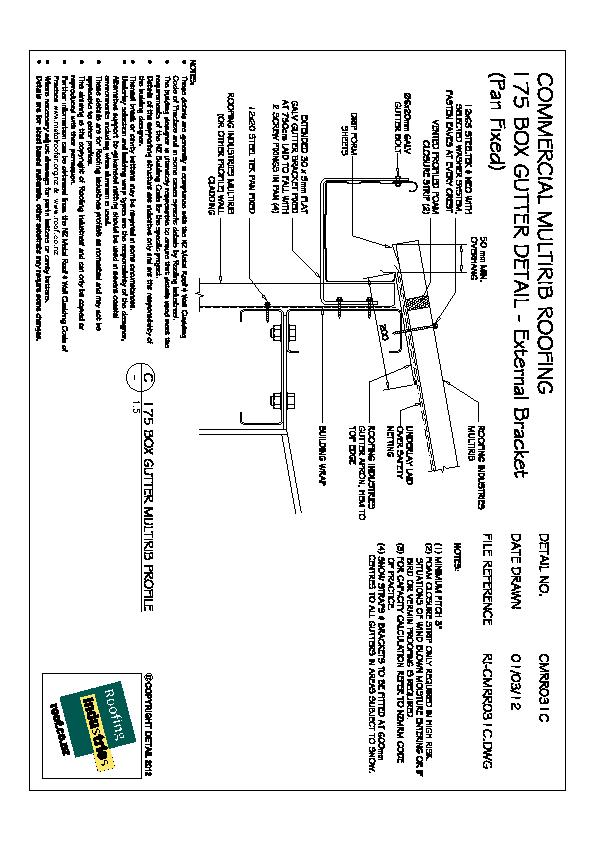

Com. Multirib 175 Box Gutter Detail — External Bracket (Pan Fixed)

RI-CMR-R031C

dwg
pdf

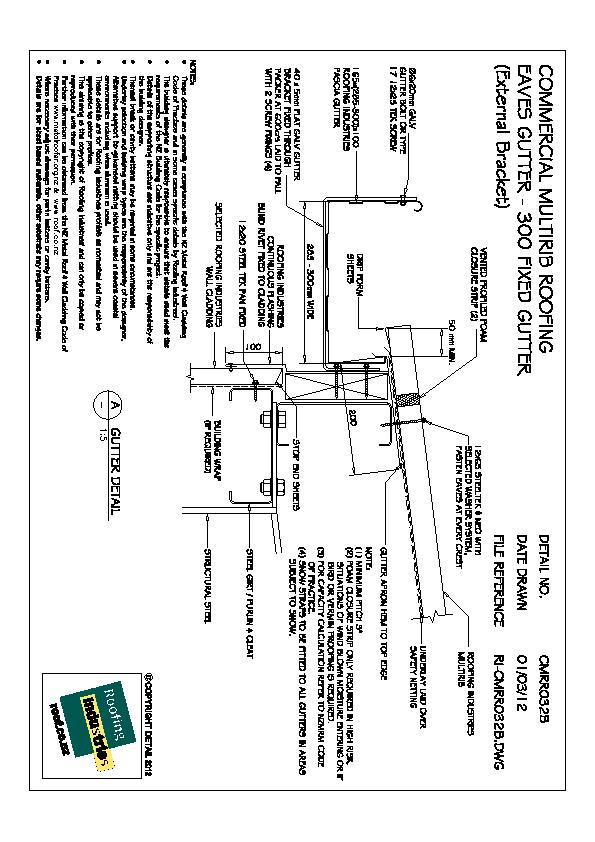

Com. Multirib Eaves Gutter — 300 Fixed Gutter (External Bracket)

RI-CMR-R032B

dwg
pdf

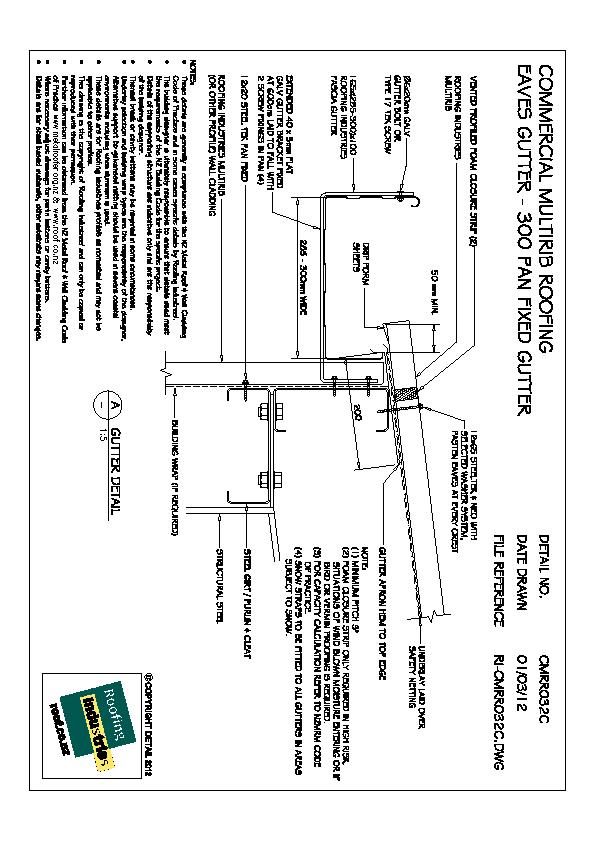

Com. Multirib Eaves Gutter — 300 Pan Fixed Gutter

RI-CMR-R032C

dwg
pdf

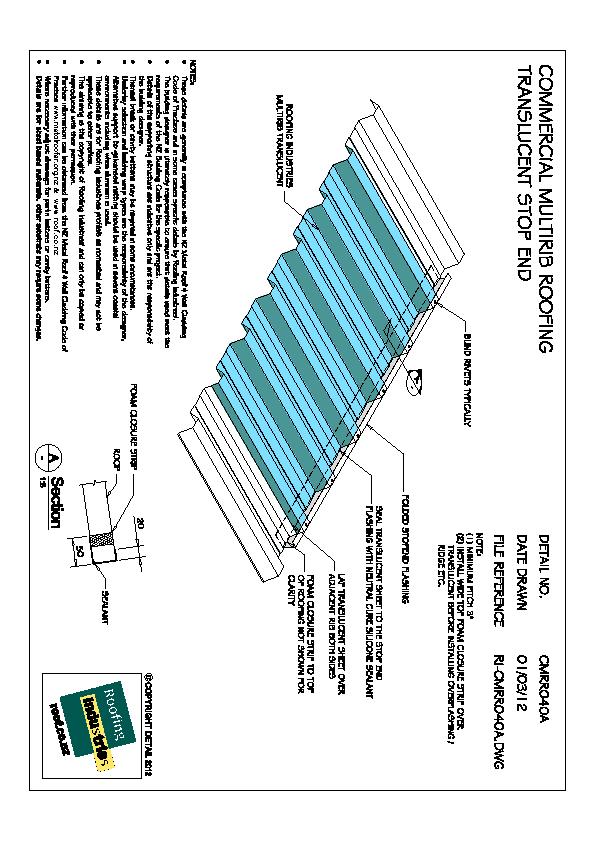

Com. Multirib Translucent Stop End

RI-CMR-R040A

dwg
pdf

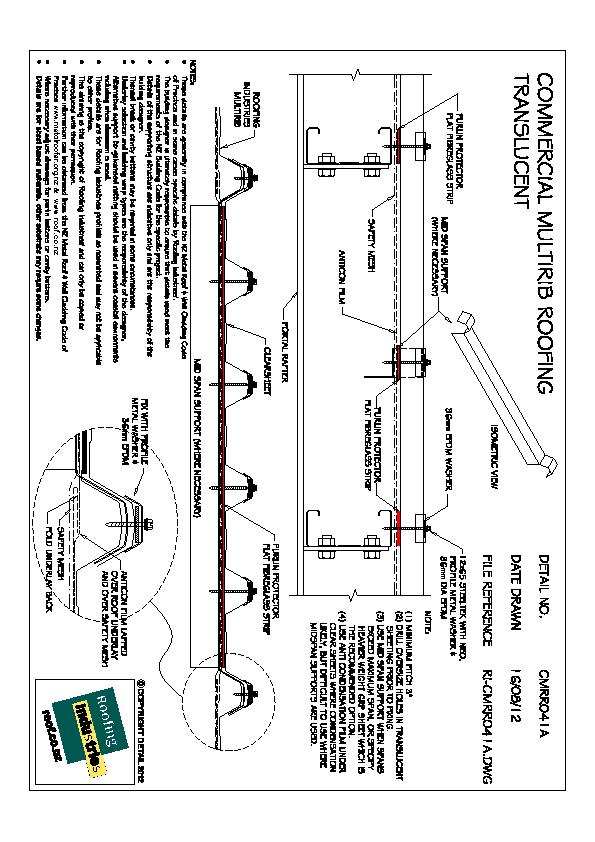

Com. Multirib Translucent

RI-CMR-R041A

dwg
pdf

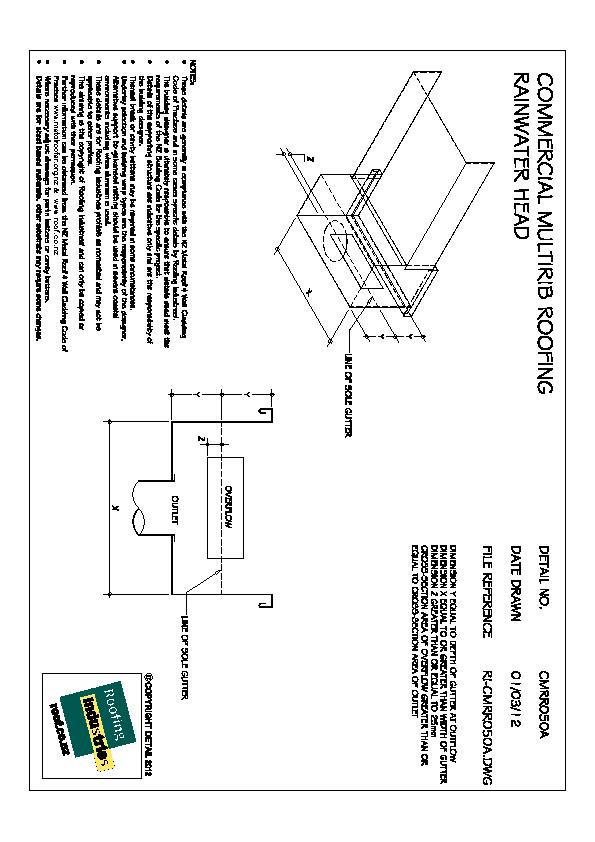

Com. Multirib Rainwater Head

RI-CMR-R050A

dwg
pdf

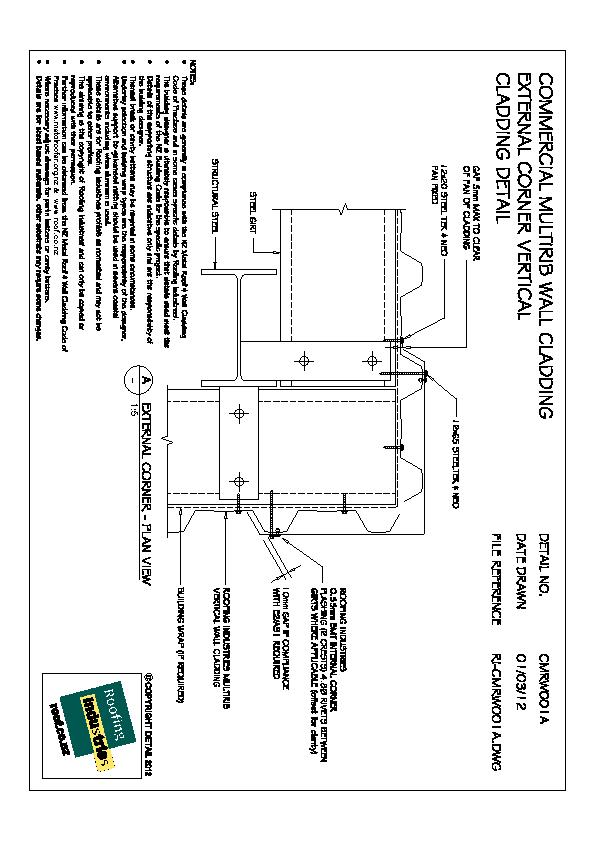

Com. Multirib External Corner Vertical Cladding Detail

RI-CMR-W001A

dwg
pdf

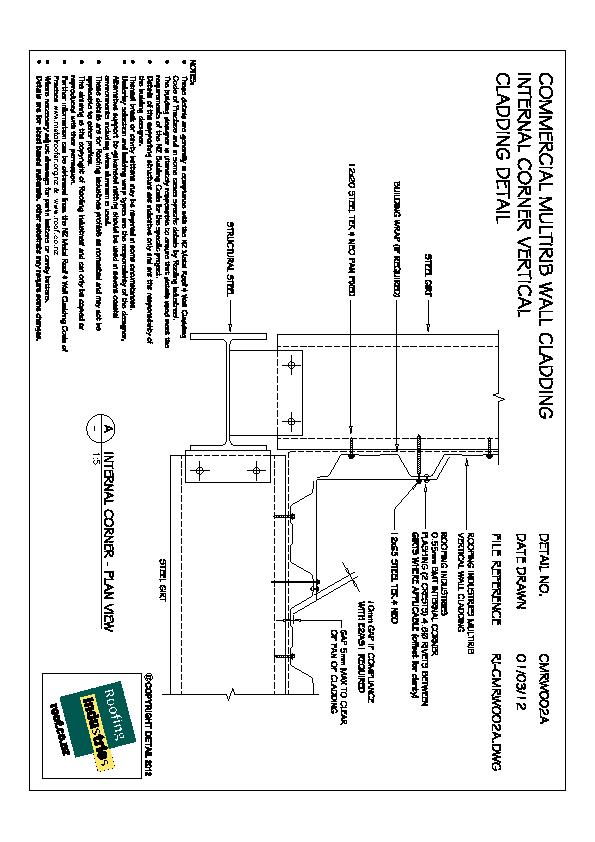

Com. Multirib Internal Corner Vertical Cladding Detail

RI-CMR-W002A

dwg
pdf

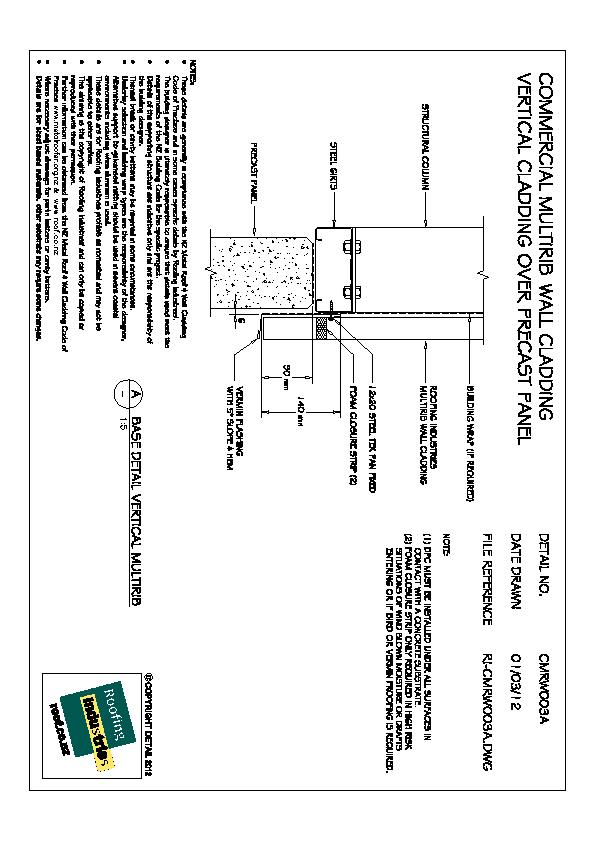

Com. Multirib Vertical Cladding Over Precast Panel

RI-CMR-W003A

dwg
pdf

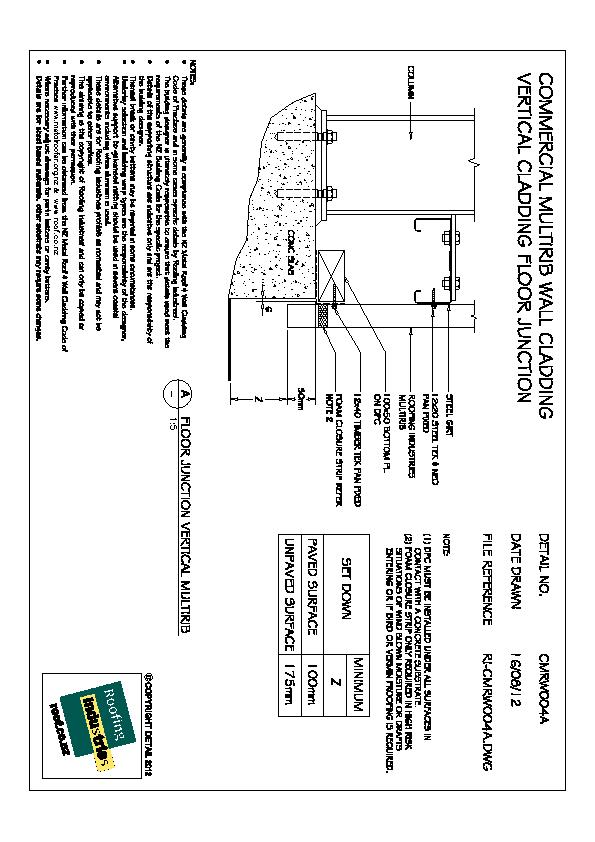

Com. Multirib Vertical Cladding Floor Junction

RI-CMR-W004A

dwg
pdf

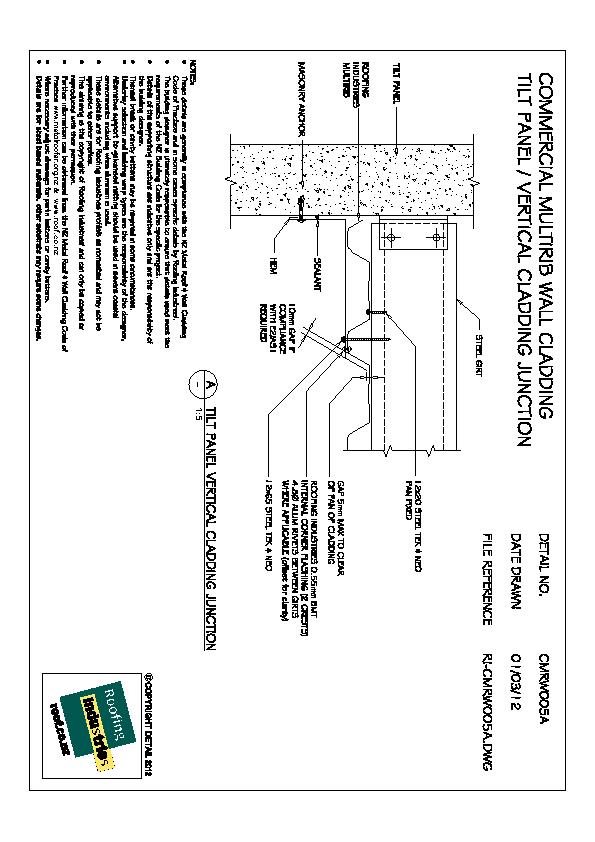

Com. Multirib Tilt Panel / Vertical Cladding Junction

RI-CMR-W005A

dwg
pdf

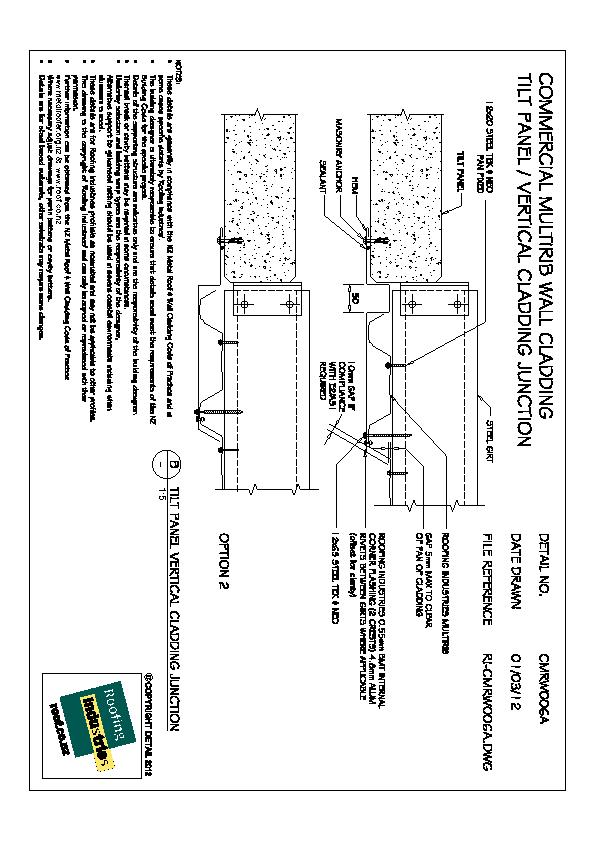

Com. Multirib Tilt Panel / Vertical Cladding Junction (2)

RI-CMR-W006A

dwg
pdf

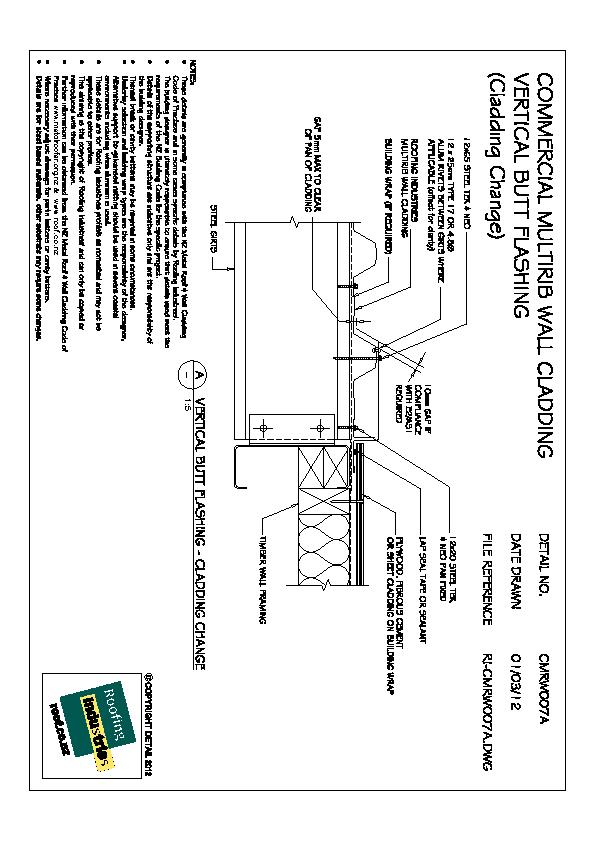

Com. Multirib Vertical Butt Flashing (Cladding Change)

RI-CMR-W007A

dwg
pdf

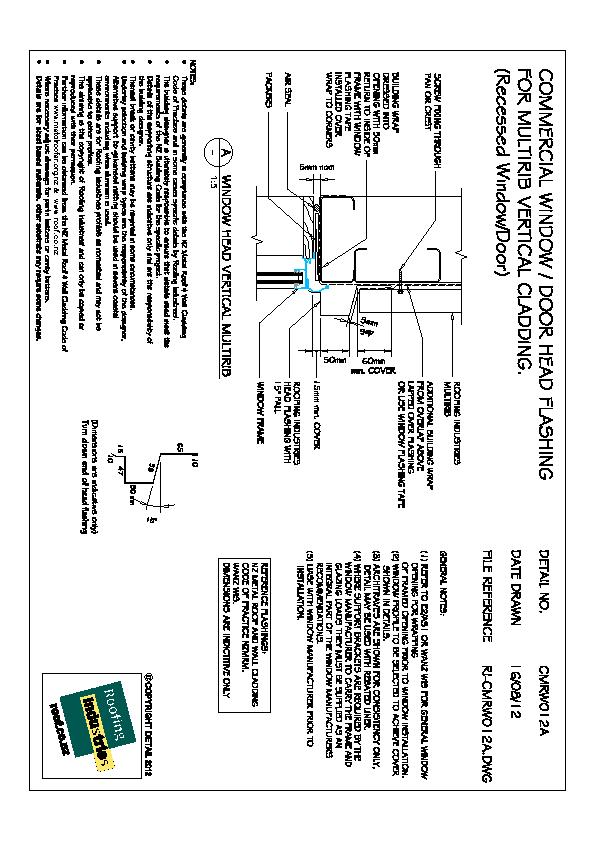

Com. Multirib Window/Door Head Flashing for Vertical Cladding (Recessed Window/Door)

RI-CMR-W012A

dwg
pdf

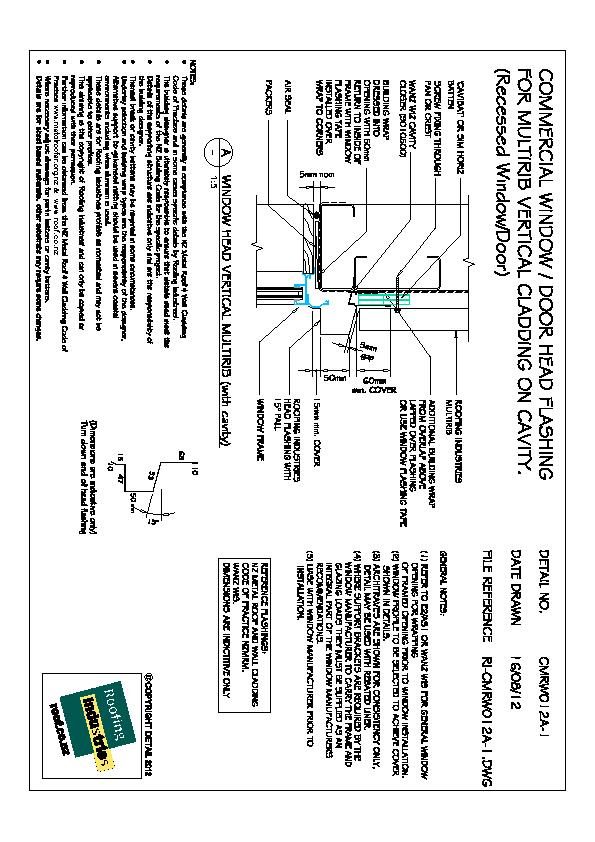

Com. Multirib Window/Door Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMR-W012A-1

dwg
pdf

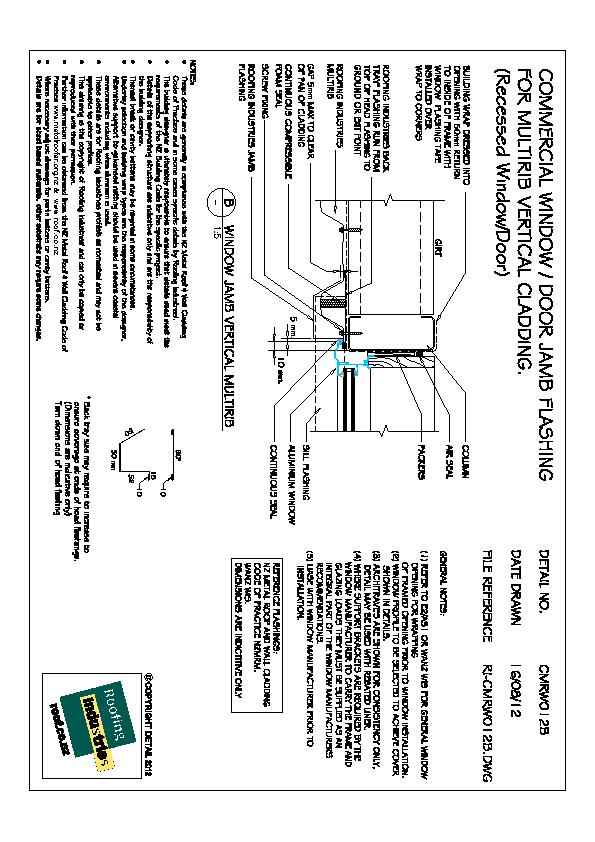

Com. Multirib Window/Door Jamb Flashing for Vertical Cladding (Recessed Window/Door)

RI-CMR-W012B

dwg
pdf

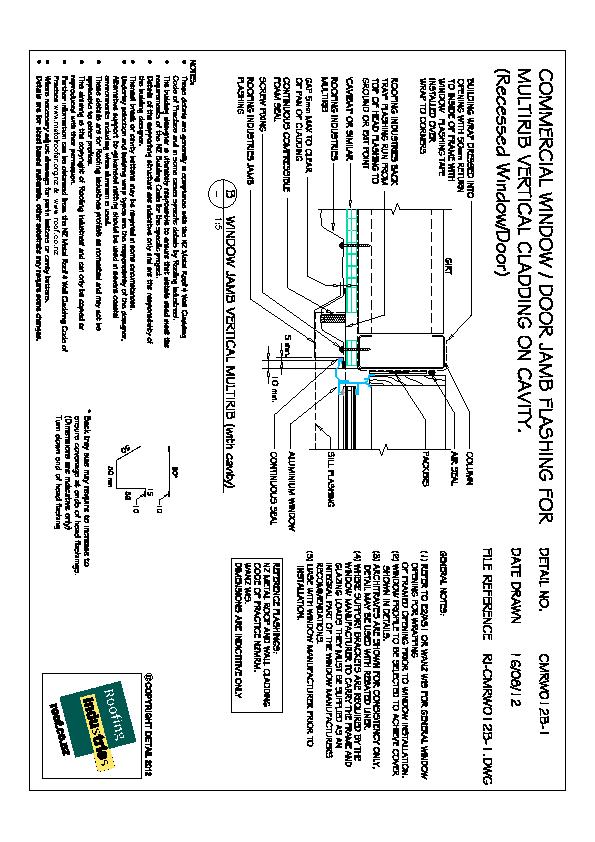

Com. Multirib Window/Door Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMR-W012B-1

dwg
pdf

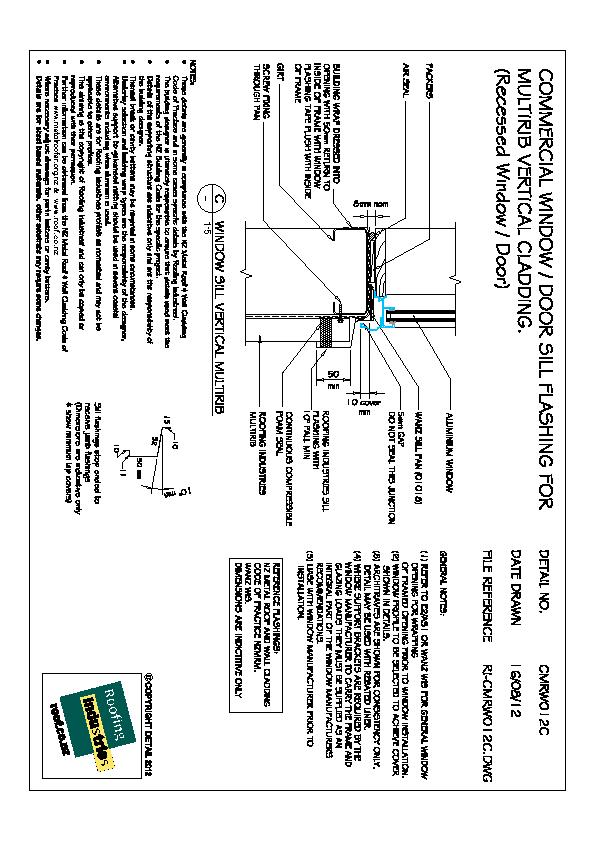

Com. Multirib Window/Door Sill Flashing for Vertical Cladding (Recessed Window/Door)

RI-CMR-W012C

dwg
pdf

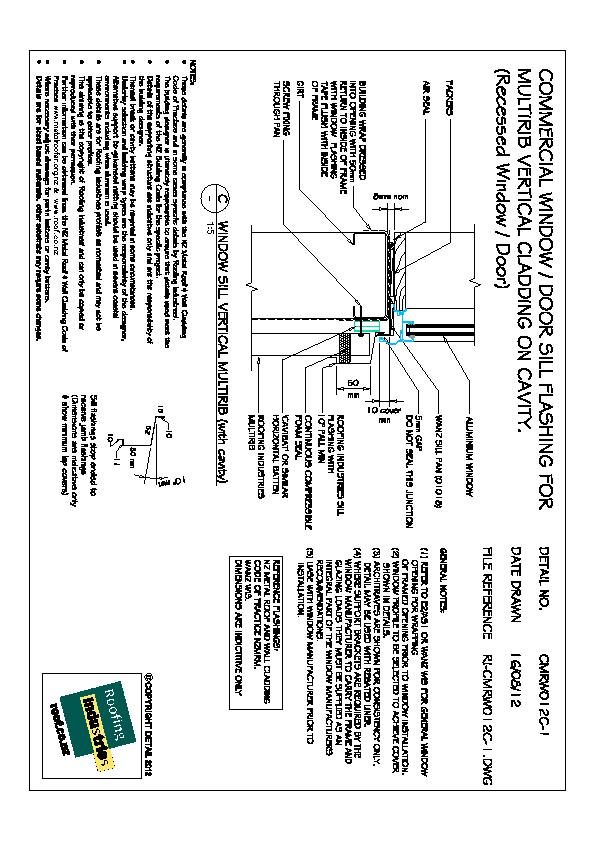

Com. Multirib Window/Door Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-CMR-W012C-1

dwg
pdf

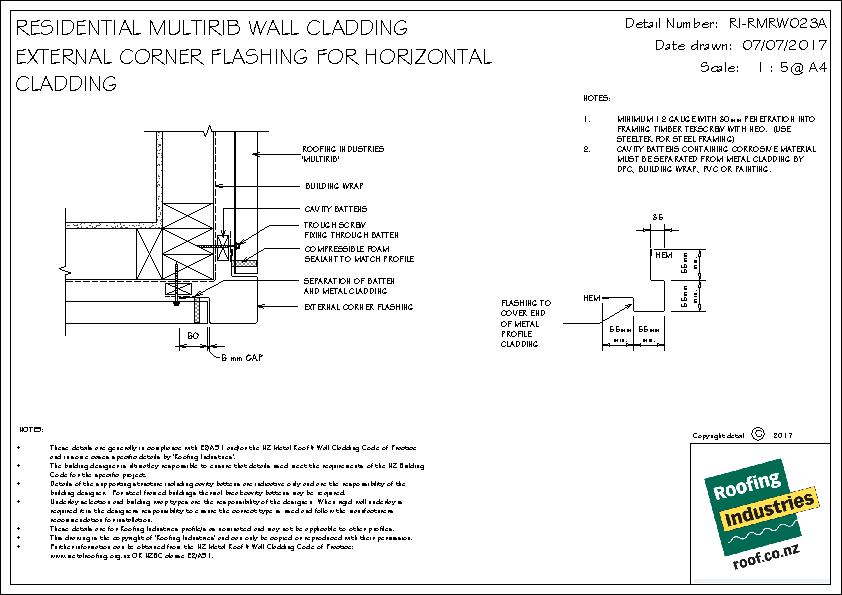

Com. Multirib External Corner Horizontal Cladding Detail

RI-CMR-W023A

dwg
pdf

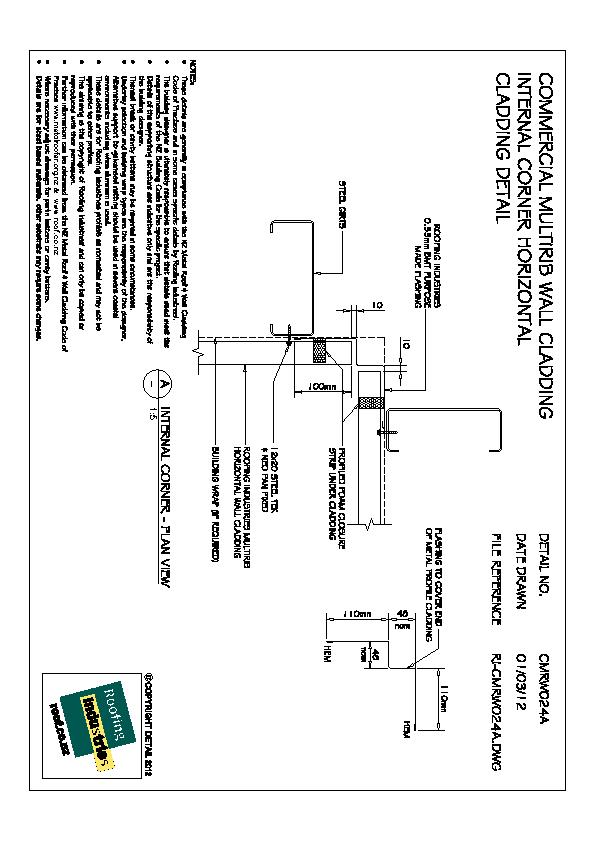

Com. Multirib Internal Corner Horizontal Cladding Detail

RI-CMR-W024A

dwg
pdf

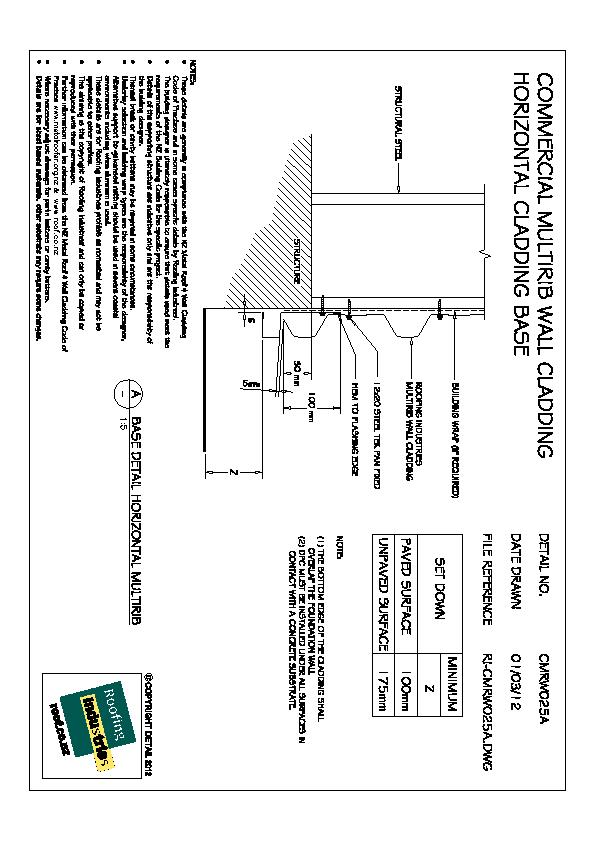

Com. Multirib Horizontal Cladding Base

RI-CMR-W025A

dwg
pdf

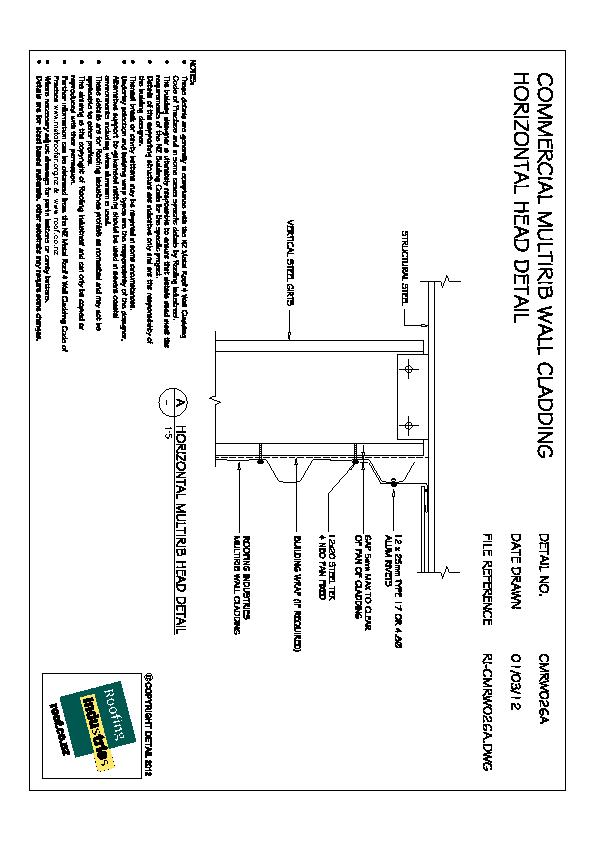

Com. Multirib Horizontal Head Detail

RI-CMR-W026A

dwg
pdf

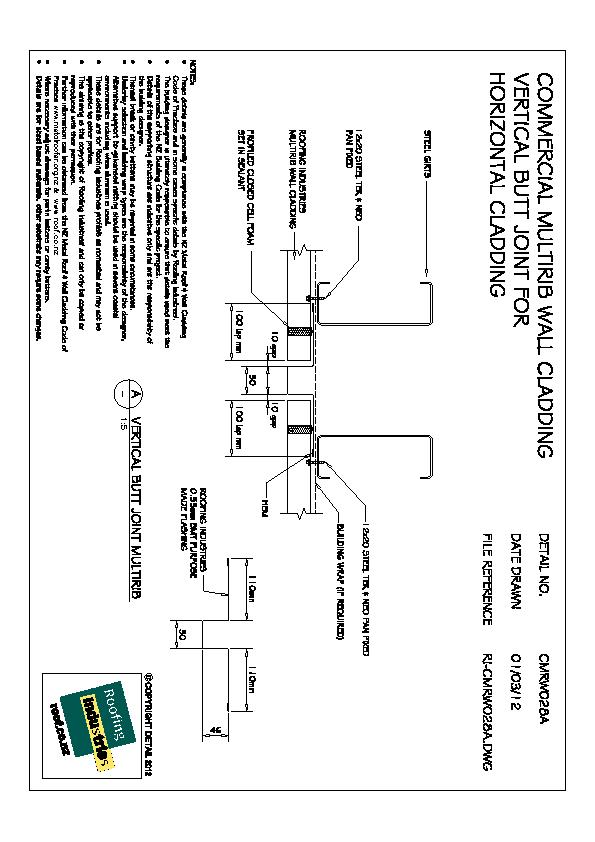

Com. Multirib Vertical Butt Joint for Horizontal Cladding

RI-CMR-W028A

dwg
pdf

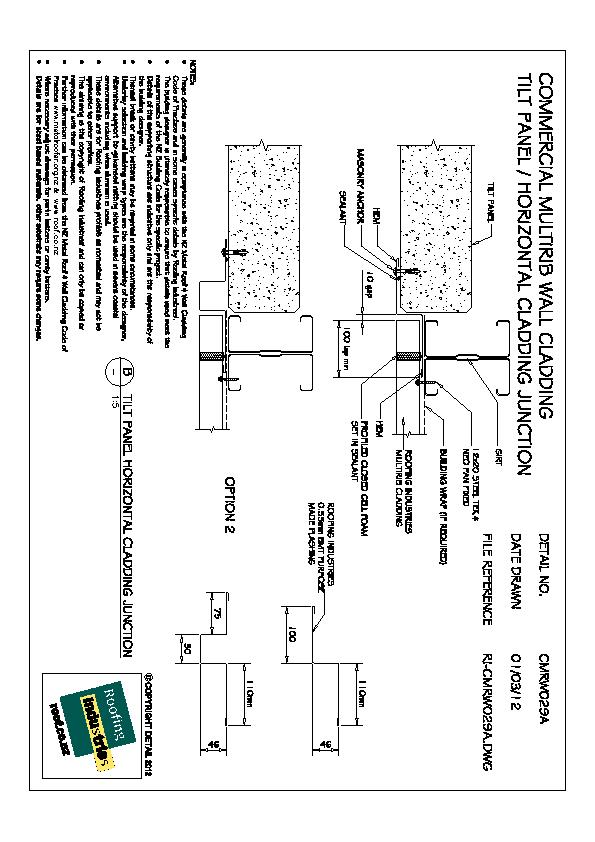

Com. Multirib Tilt Panel / Horizontal Cladding Junction

RI-CMR-W029A

dwg
pdf

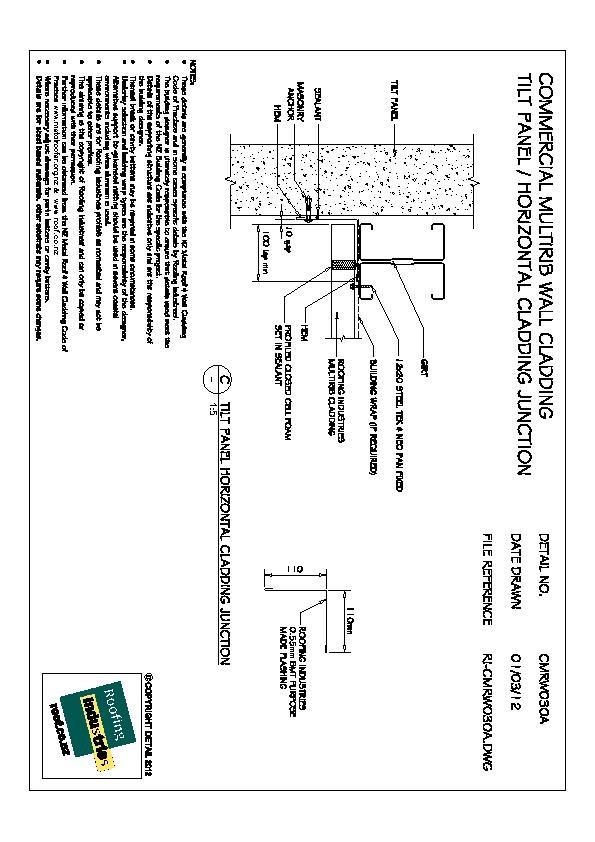

Com. Multirib Tilt Panel / Horizontal Cladding Junction (2)

RI-CMR-W030A

dwg
pdf

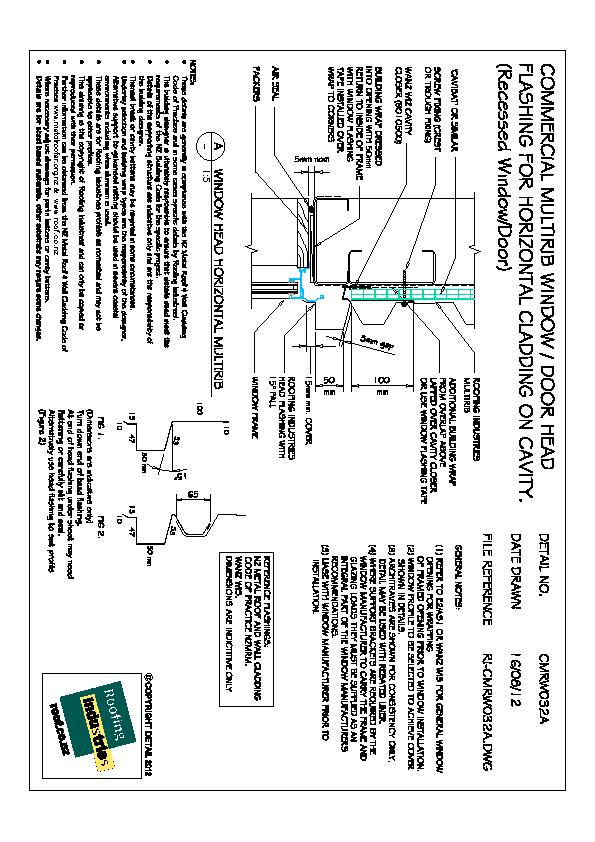

Com. Multirib Window/Door Head Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMR-W032A

dwg
pdf

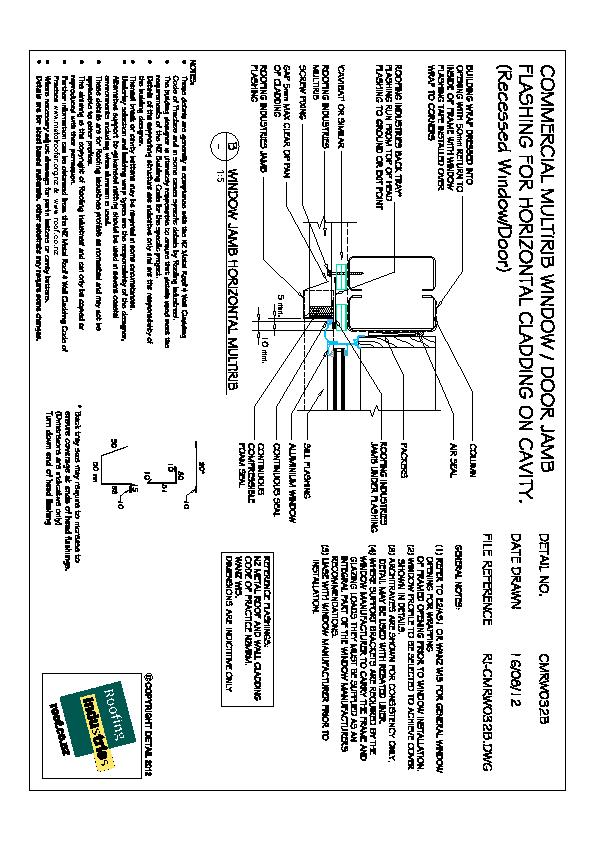

Com. Multirib Window/Door Jamb Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMR-W032B

dwg
pdf

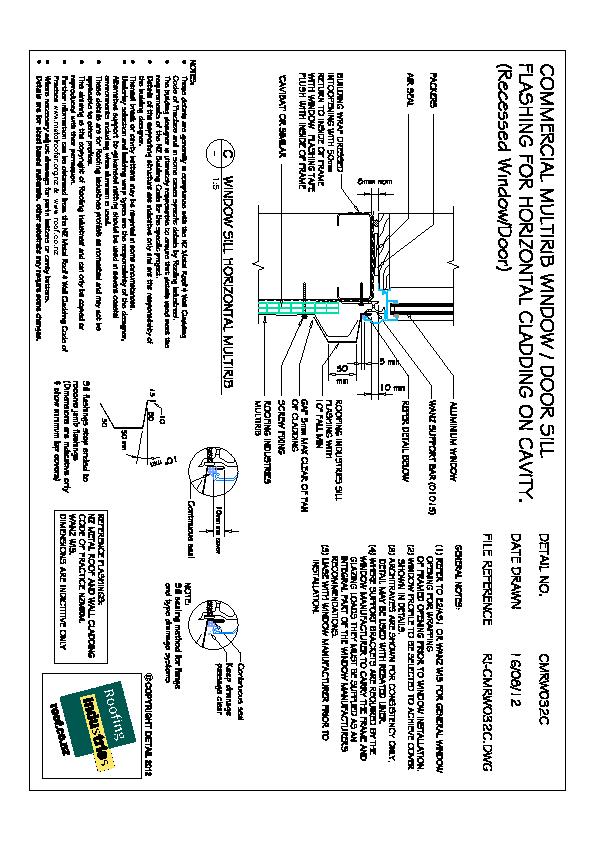

Com. Multirib Window/Door Sill Flashing for Horizontal Cladding on Cavity (Recessed Window/Door)

RI-CMR-W032C

dwg
pdf

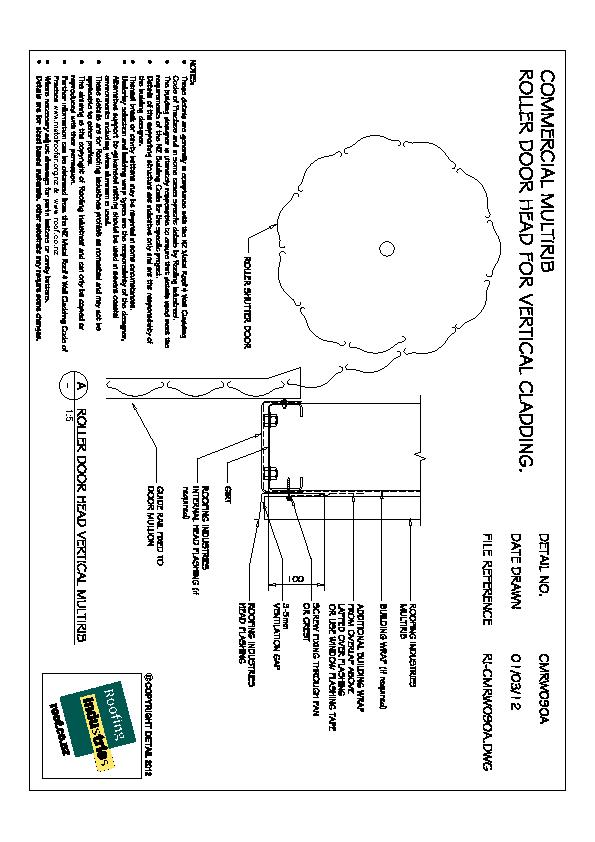

Com. Multirib Roller Door Head for Vertical Cladding

RI-CMR-W090A

dwg
pdf

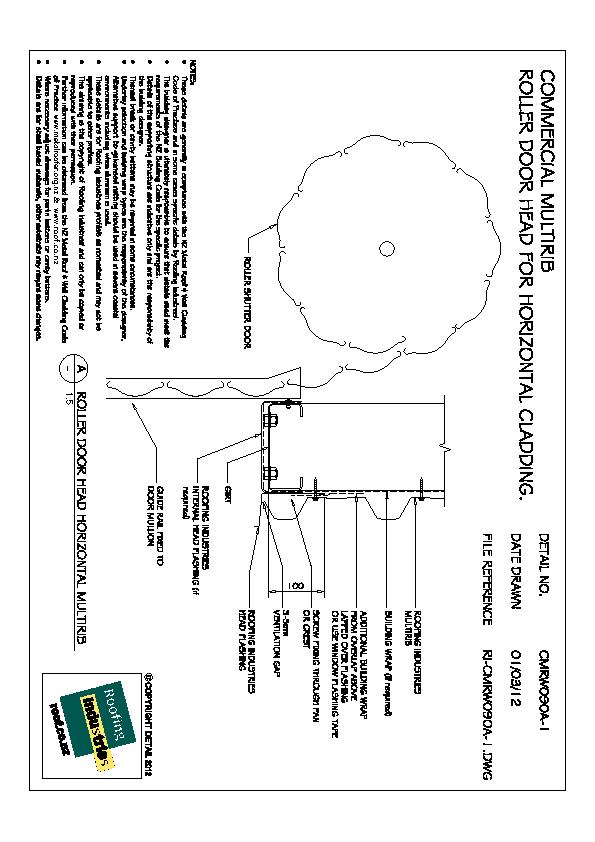

Com. Multirib Roller Door Head for Horizontal Cladding

RI-CMR-W090A-1

dwg
pdf

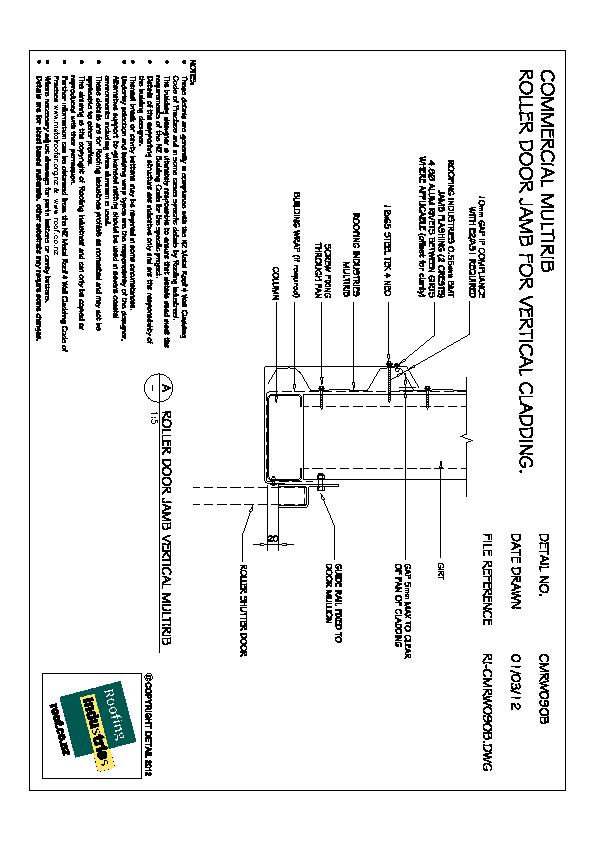

Com. Multirib Roller Door Jamb for Vertical Cladding

RI-CMR-W090B

dwg
pdf

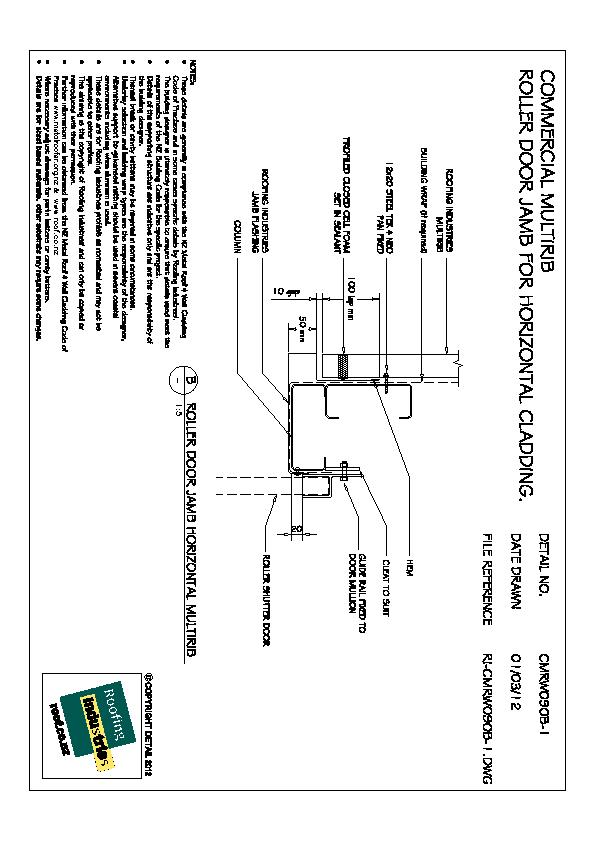

Com. Multirib Roller Door Jamb for Horizontal Cladding

RI-CMR-W090B-1

dwg
pdf
Roofing Industries Fascia Profiles

RI-F02

2020

dwg
pdf
Multirib Residential Full Set of Drawings

RI-RM

pdf

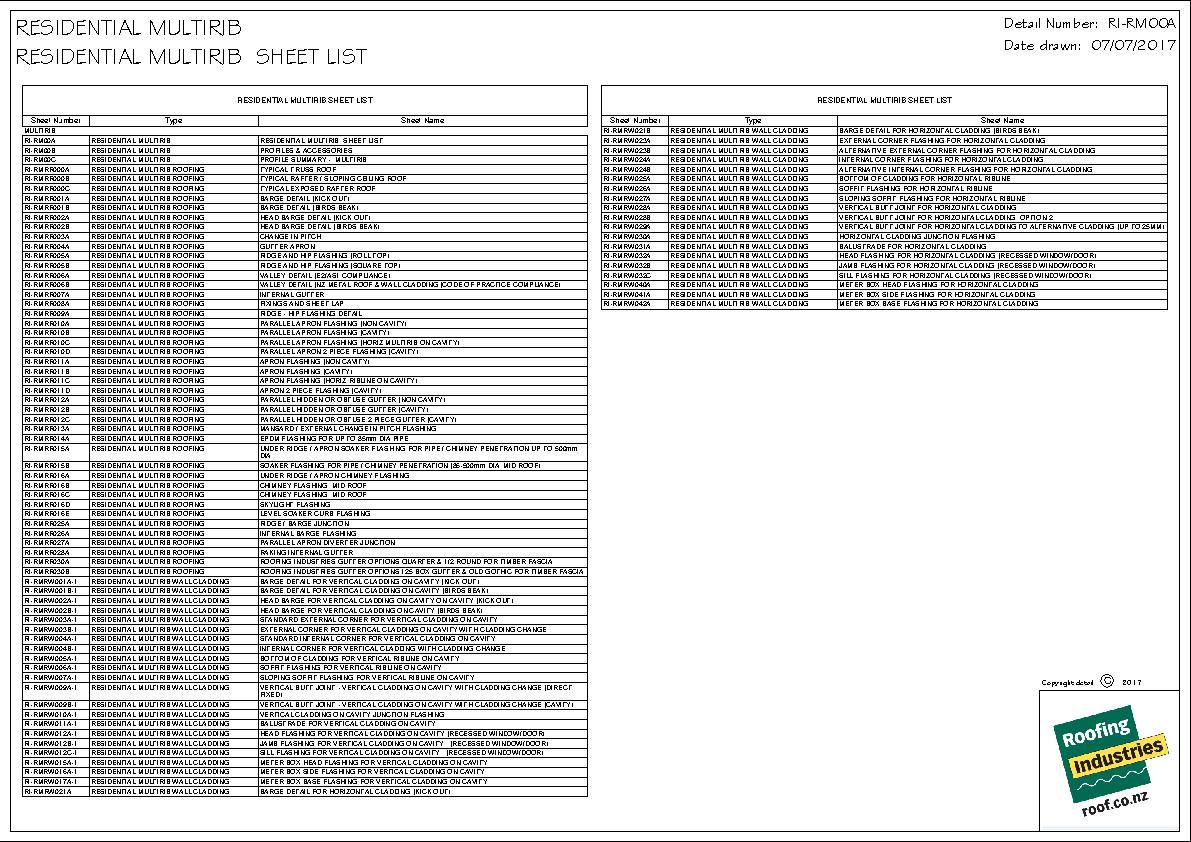

Multirib Residential Sheet List

RI-RM-00A

dwg
pdf

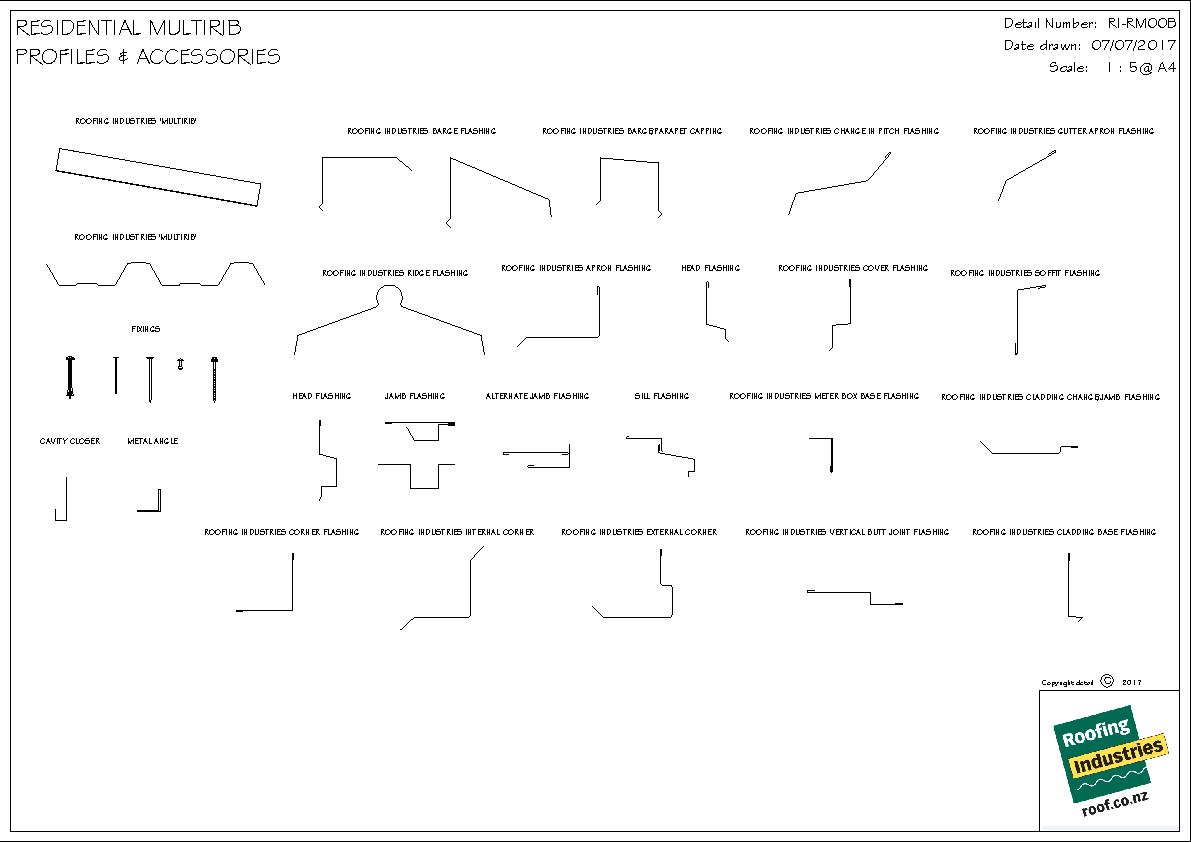

Multirib Profiles and Accessories

RI-RM-00B

dwg
pdf

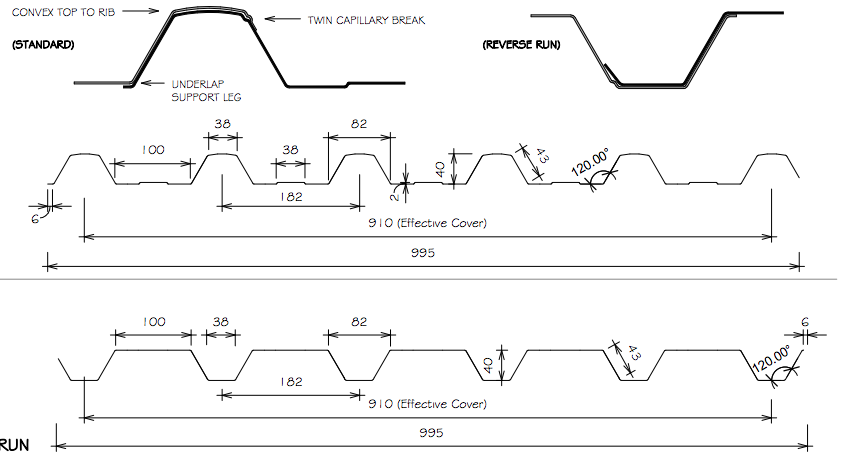

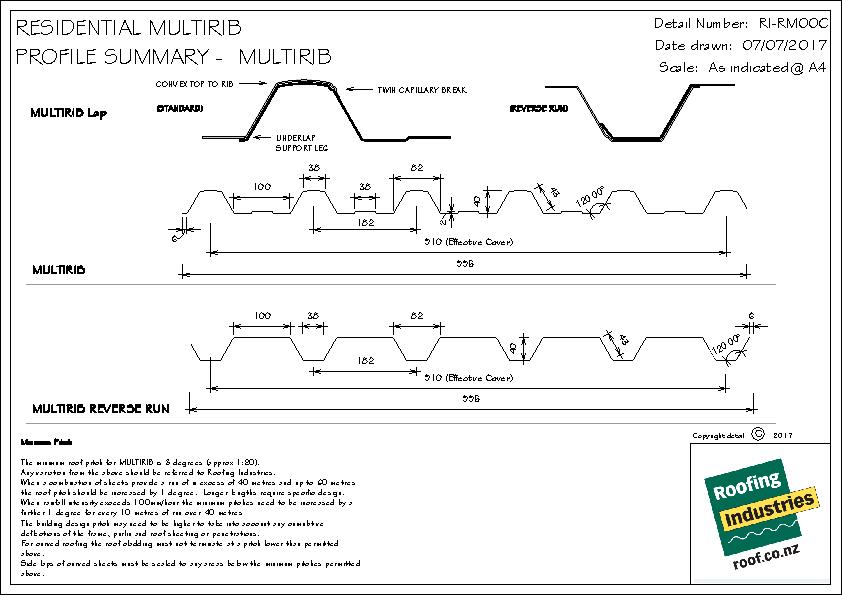

Multirib Profile Summary

RI-RM-00C

dwg
pdf

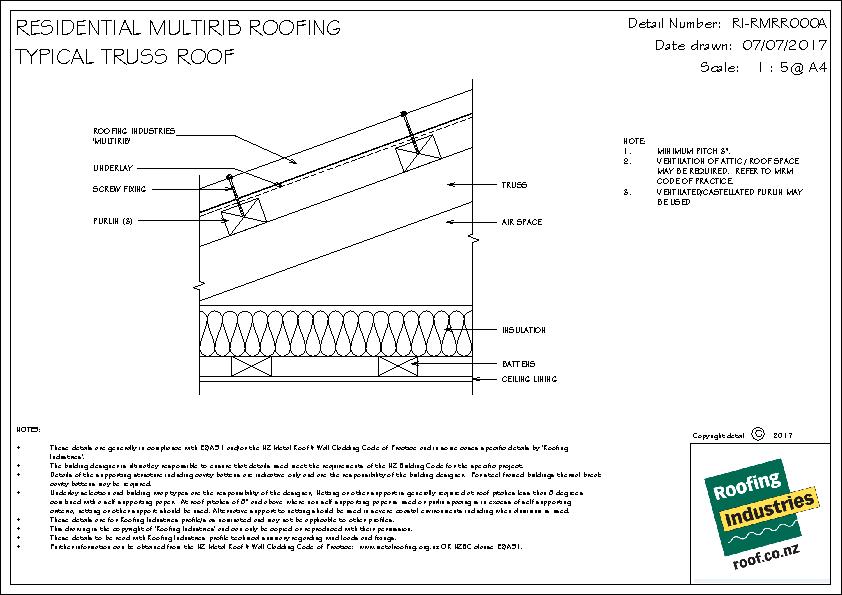

Multirib Typical Truss Roof

RI-RM-R000A

dwg
pdf

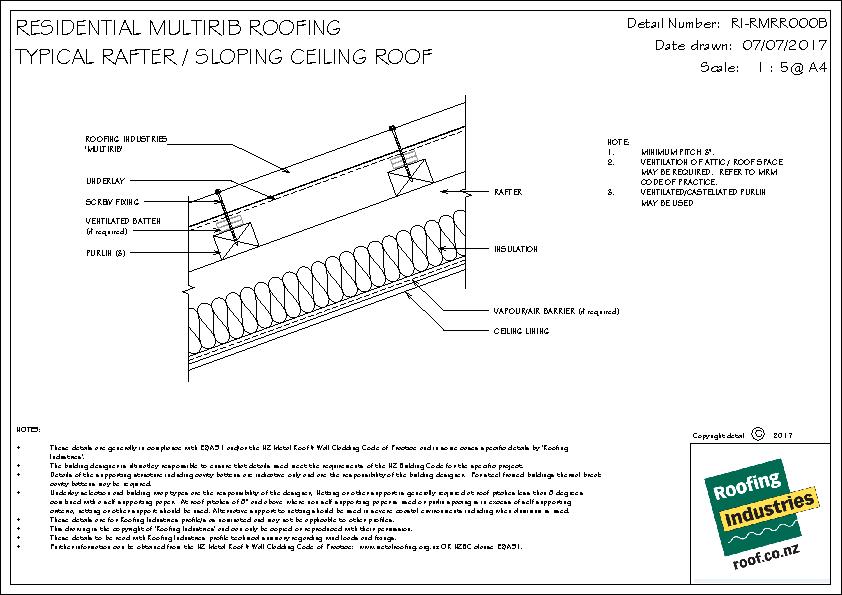

Multirib Typical Rafter / Sloping Ceiling Roof

RI-RM-R000B

dwg
pdf

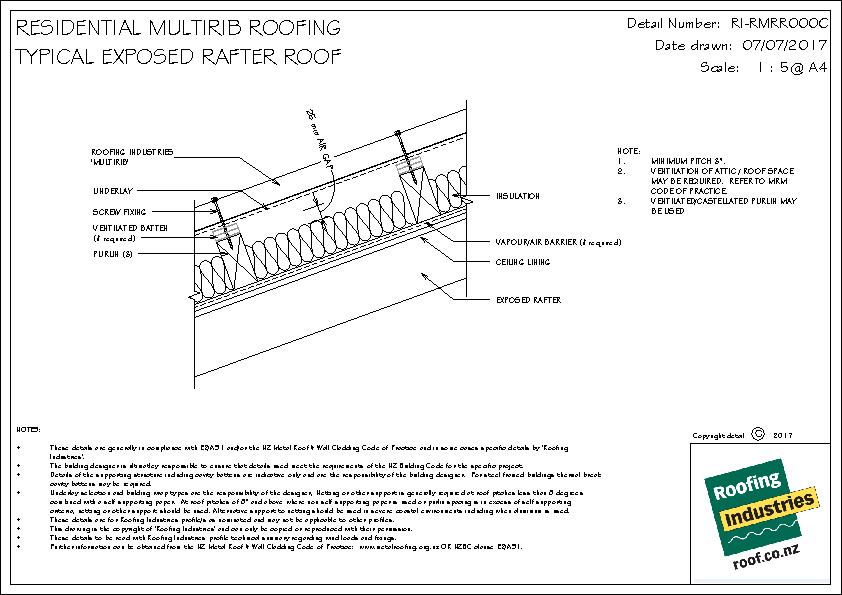

Multirib Typical Exposed Rafter Roof

RI-RM-R000C

dwg
pdf

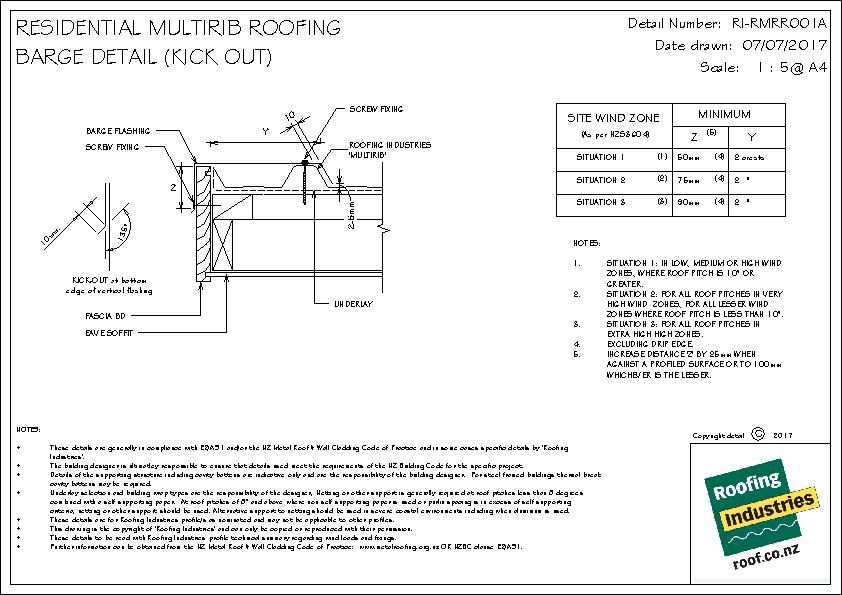

Multirib Barge Detail (Kick Out)

RI-RM-R001A

dwg
pdf

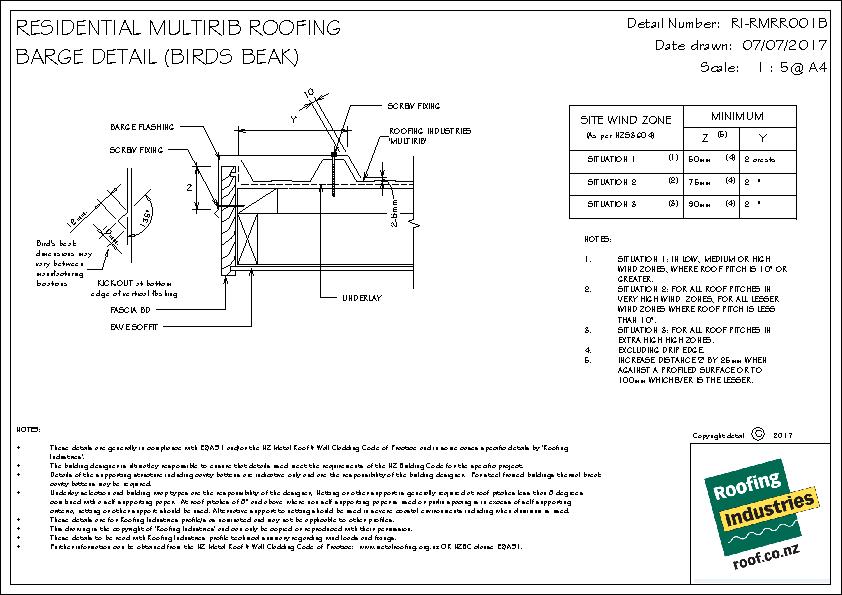

Multirib Barge Detail (Bird's Beak)

RI-RM-R001B

dwg
pdf

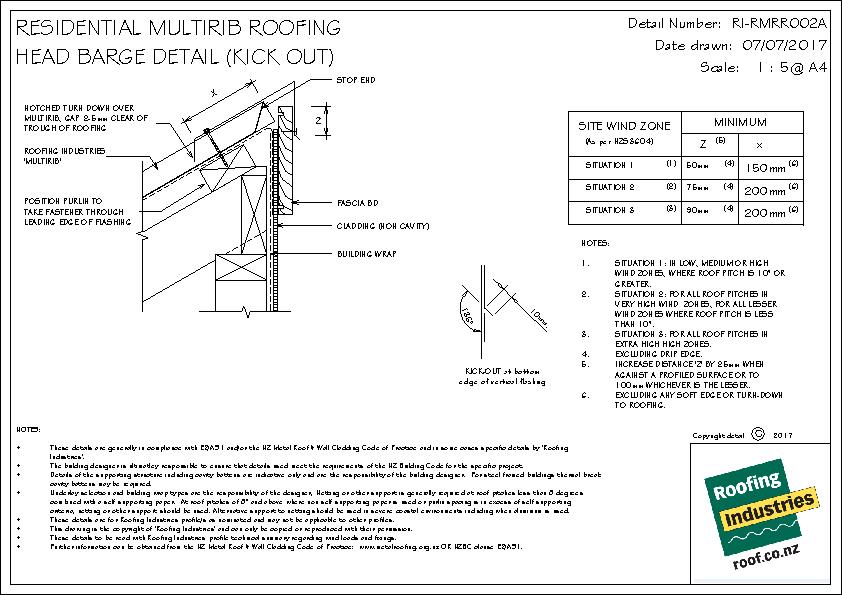

Multirib Head Barge Detail (Kick Out)

RI-RM-R002A

dwg
pdf
Multirib Head Barge Detail (Bird's Beak)

RI-RM-R002B

dwg
pdf

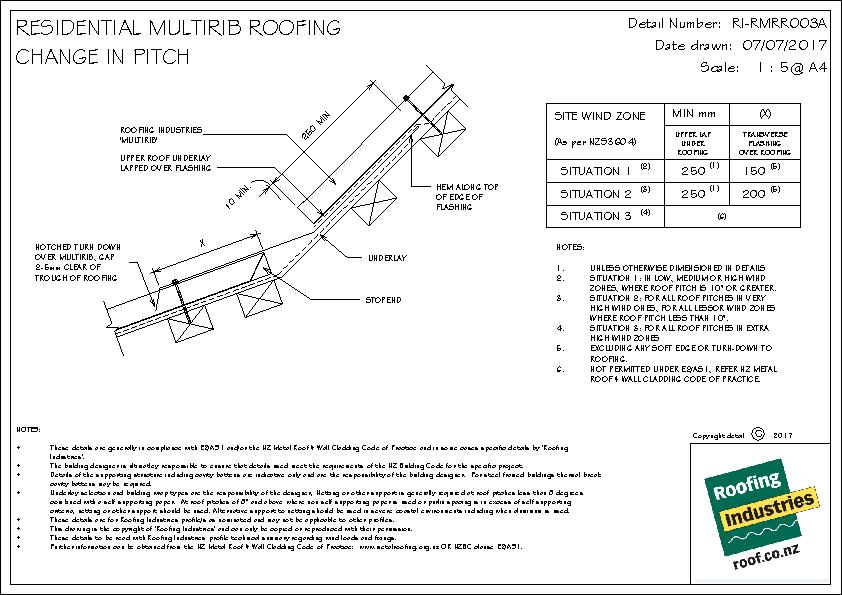

Multirib Change in Pitch

RI-RM-R003A

dwg
pdf

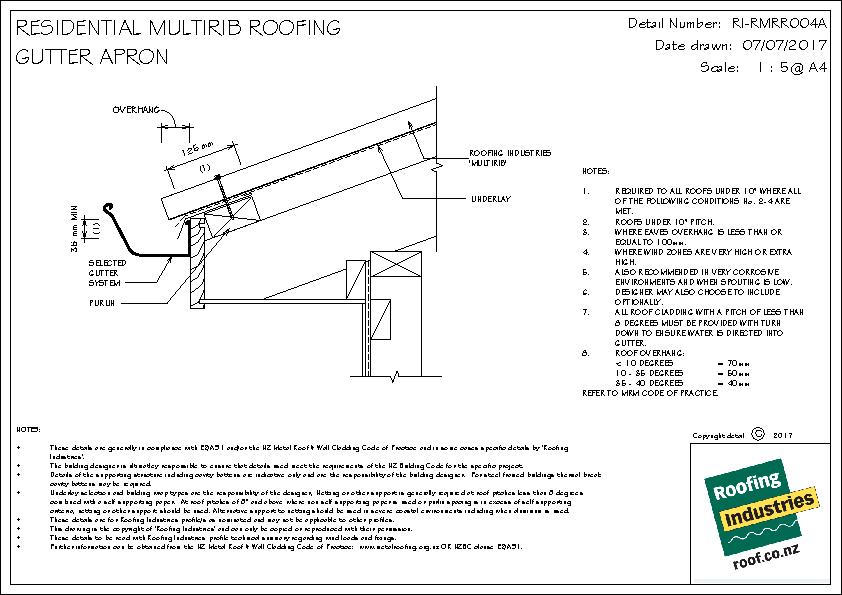

Mulitrib Gutter Apron

RI-RM-R004A

dwg
pdf

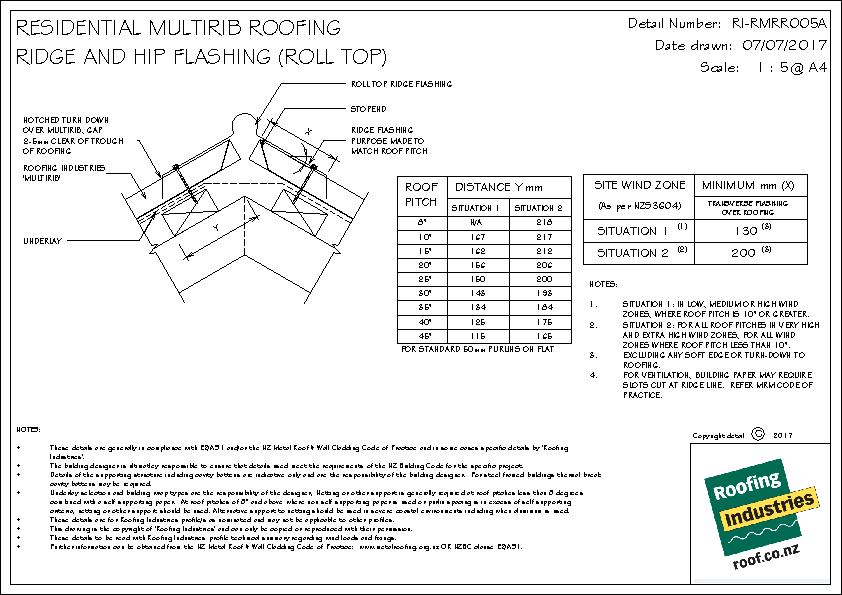

Multirib Ridge and Hip Flashing (Roll Top)

RI-RM-R005A

dwg
pdf

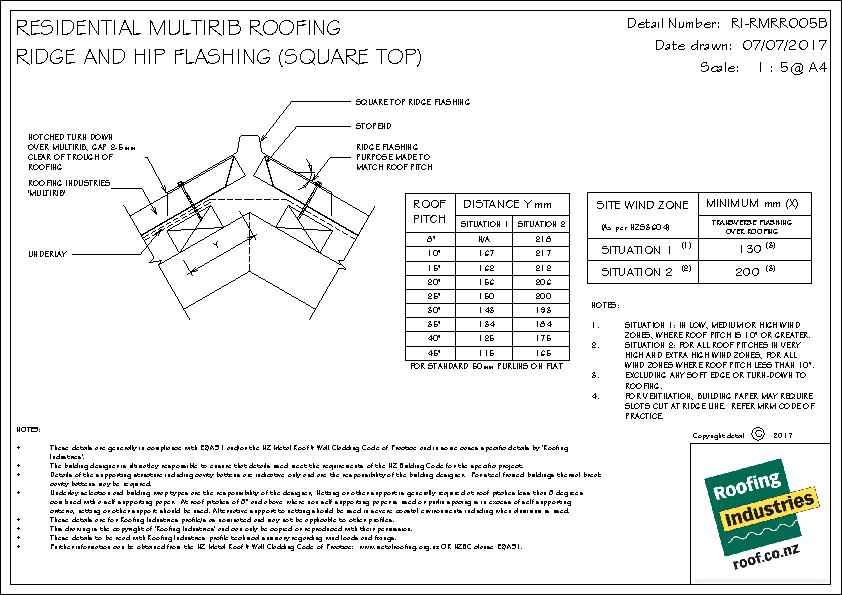

Multirib Ridge and Hip Flashing (Square Top)

RI-RM-R005B

dwg
pdf

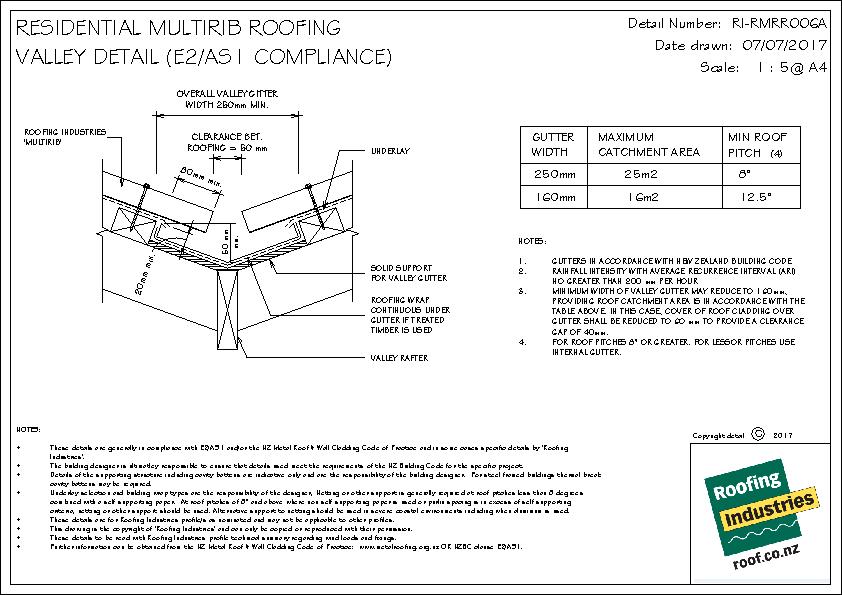

Multirib Valley Detail (E2-AS1 Compliance)

RI-RM-R006A

dwg
pdf
RI-RMRR006B-VALLEY-DETAIL-NZ-METAL-ROOF-WALL-CLADDING-CODE-OF-PRACTICE-COMPLIANCE-pdf.jpg

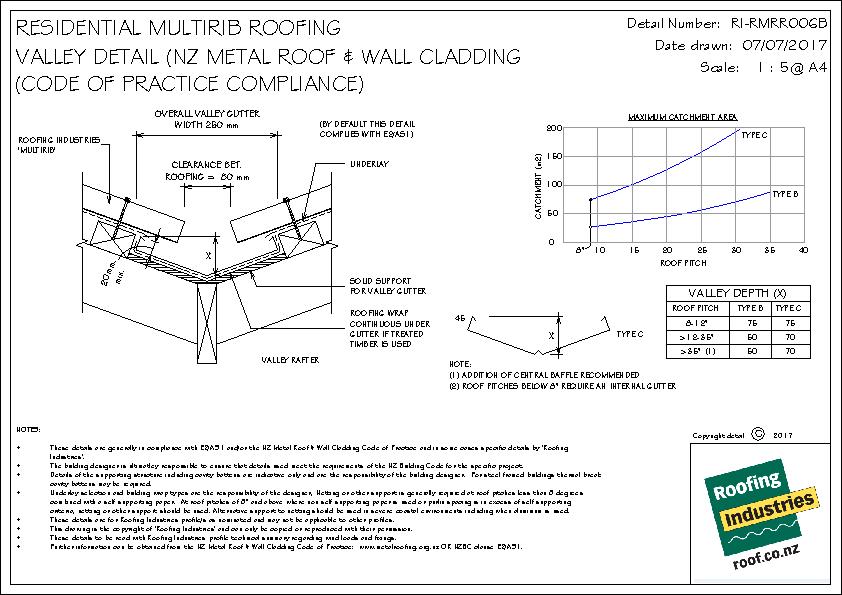

Multirib Valley Detail (Code of Compliance)

RI-RM-R006B

dwg
pdf

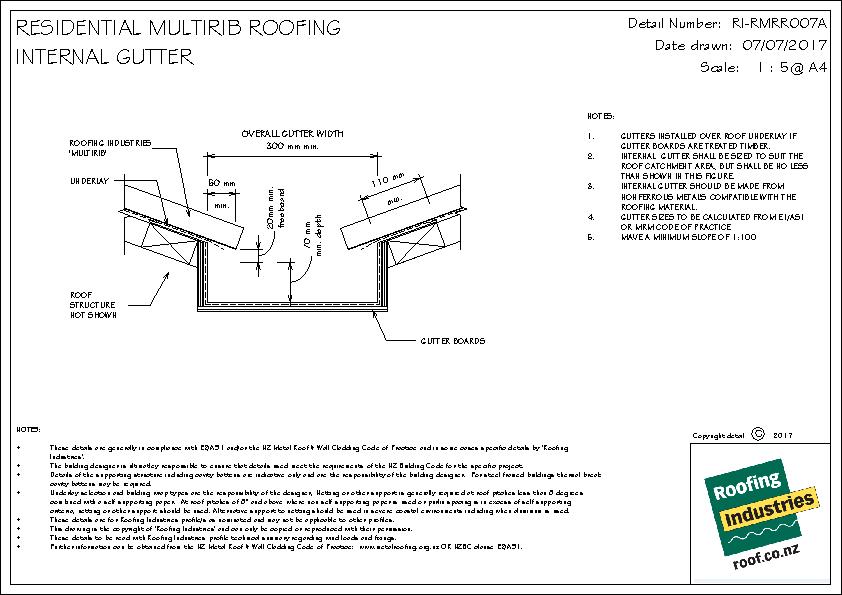

Mulitrib Internal Gutter

RI-RM-R007A

dwg
pdf

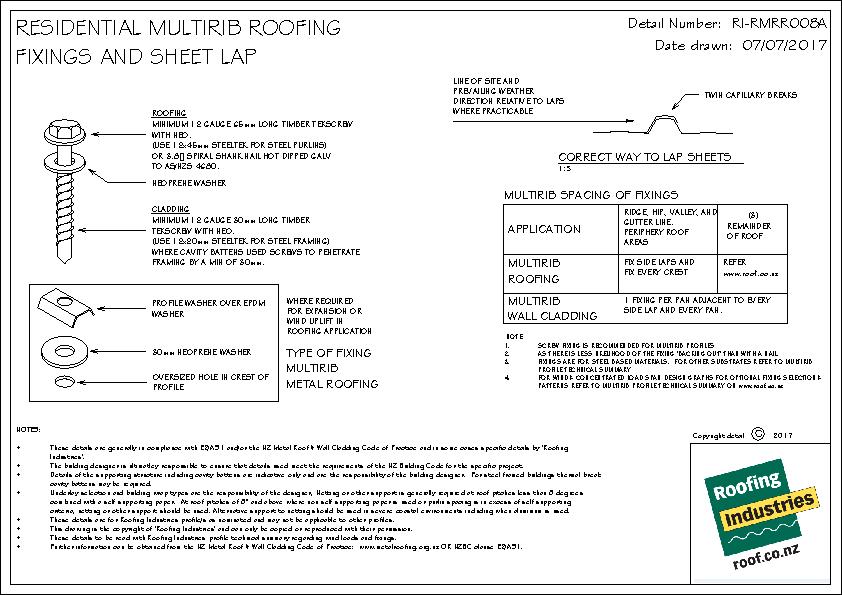

Mulitrib Fixings and Sheet Lap

RI-RM-R008A

dwg
pdf

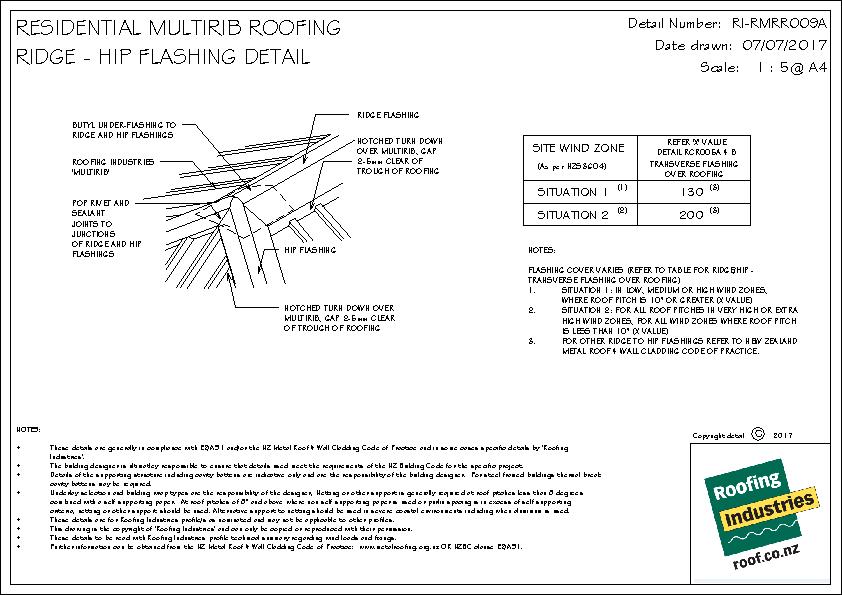

Multirib Ridge / Hip Flashing Detail

RI-RM-R009A

dwg
pdf

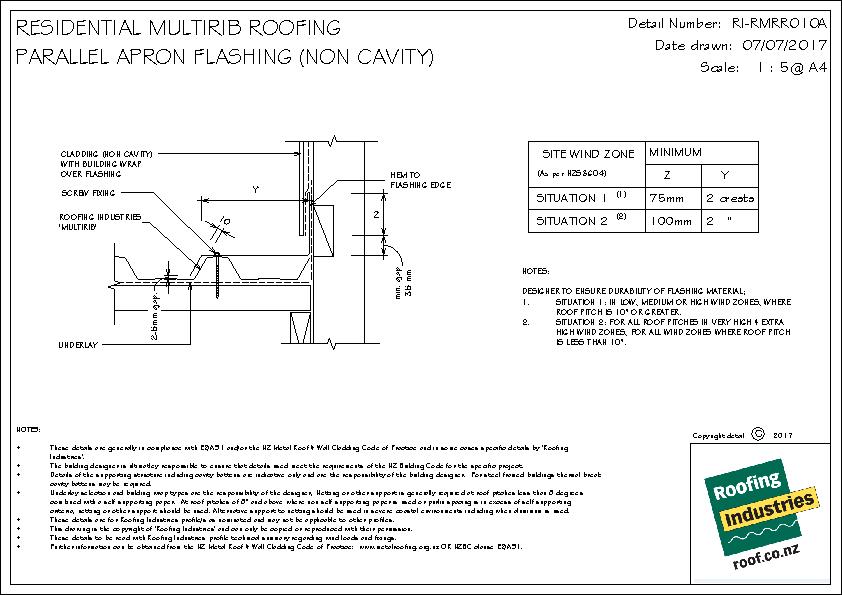

Multirib Parallel Apron Flashing (Non-Cavity)

RI-RM-R010A

dwg
pdf

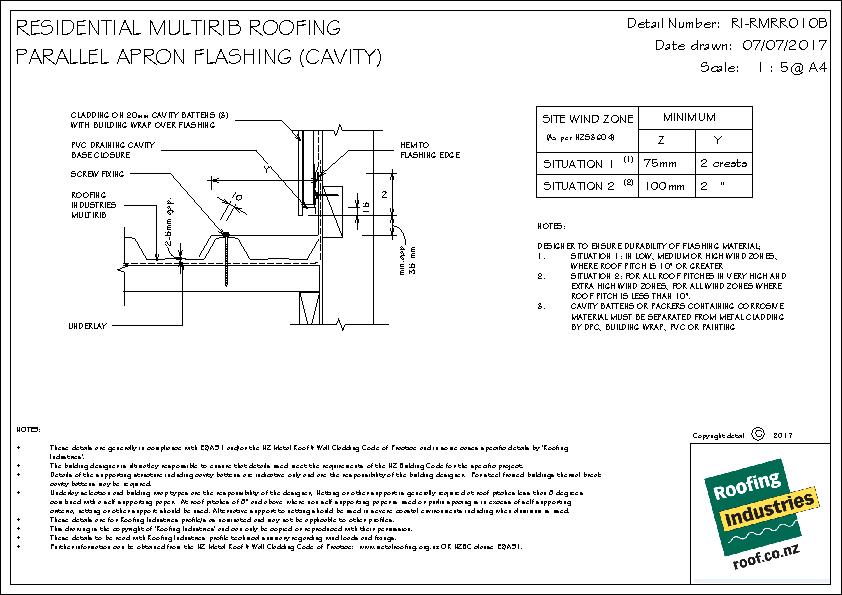

Multirib Parallel Apron Flashing (Cavity)

RI-RM-R010B

dwg
pdf

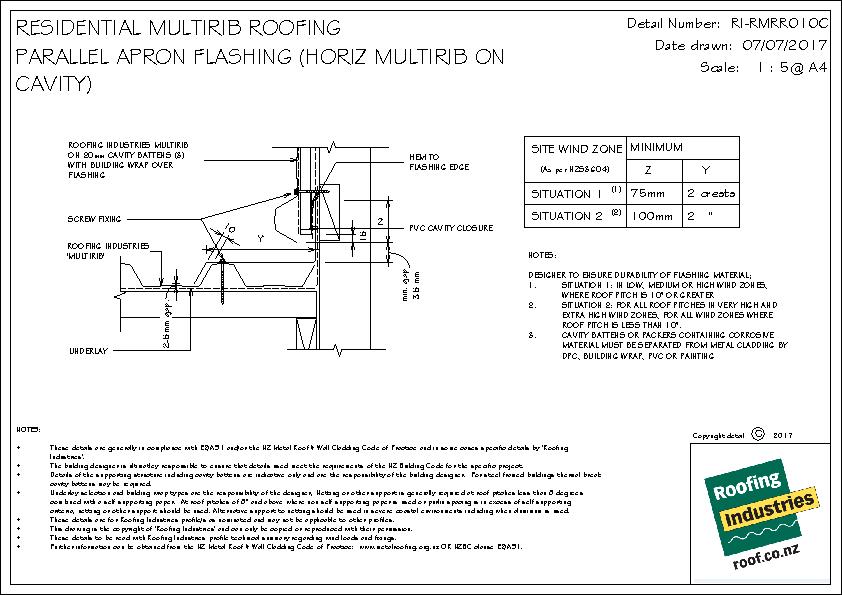

Multirib Parallel Apron Flashing (Horizontal on Cavity)

RI-RM-R010C

dwg
pdf

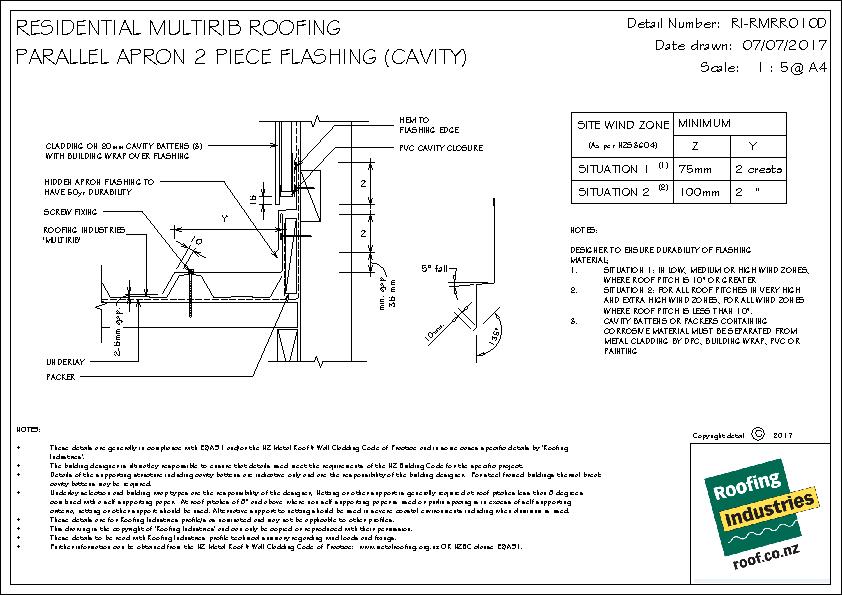

Multirib Parallel Apron 2 Piece Flashing (Cavity)

RI-RM-R010D

dwg
pdf

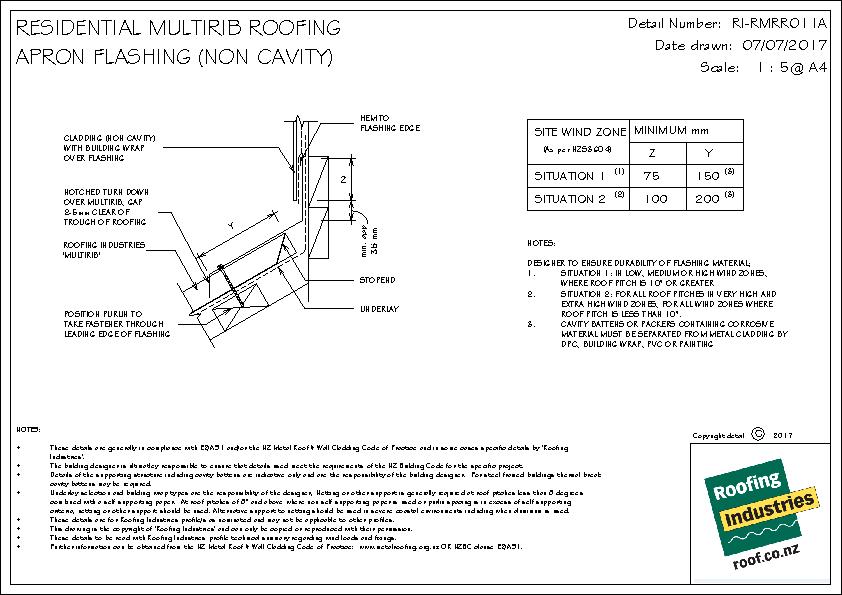

Multirib Apron Flashing (Non-Cavity)

RI-RM-R011A

dwg
pdf

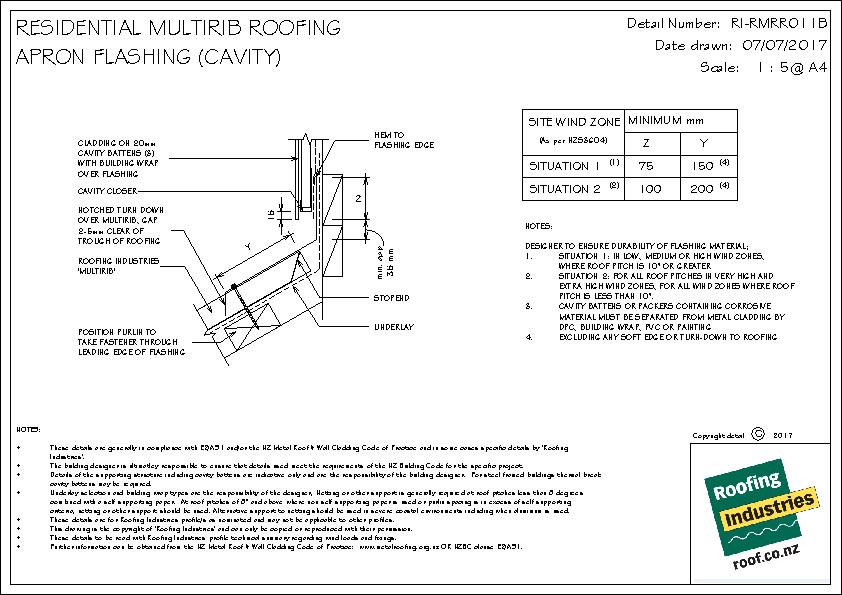

Multirib Apron Flashing (Cavity)

RI-RM-R011B

dwg
pdf

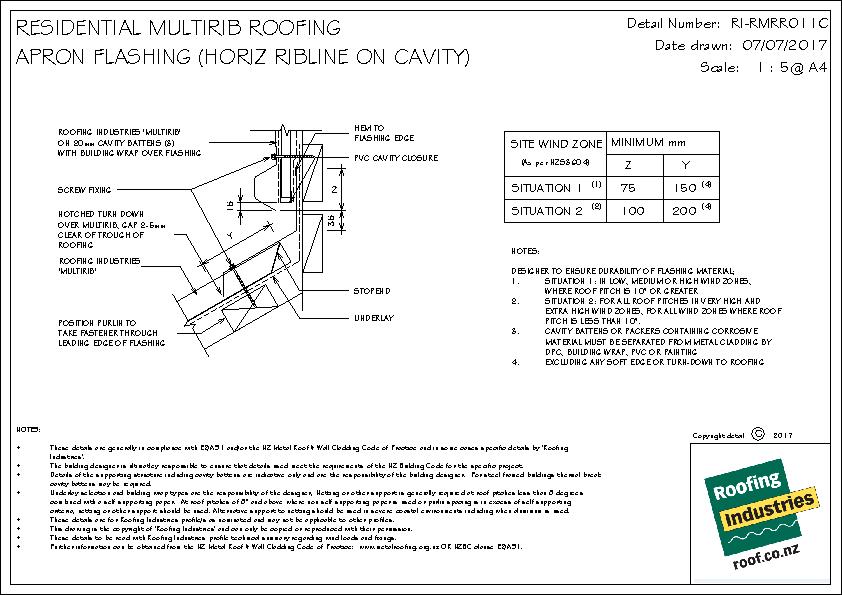

Multirib Apron Flashing (Horizontal on Cavity)

RI-RM-R011C

dwg
pdf

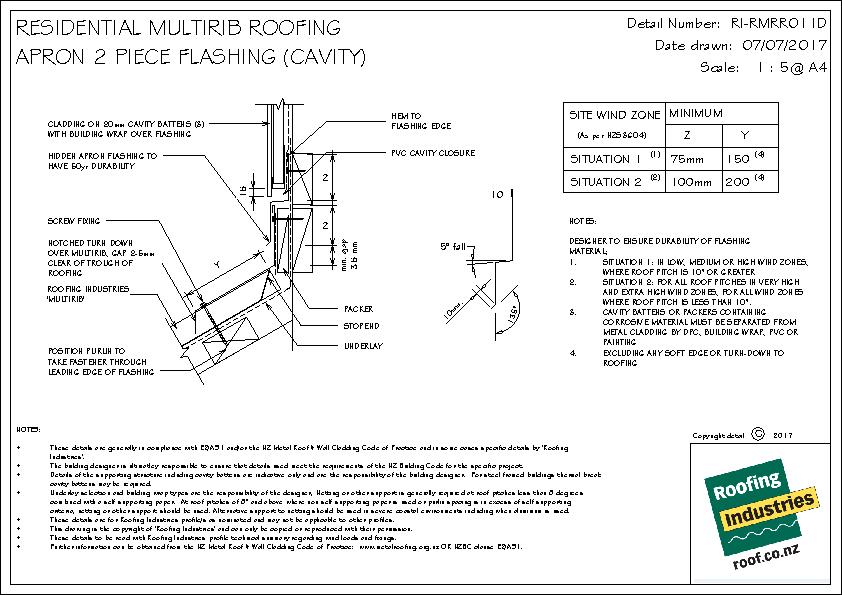

Mulitrib Apron 2 Piece Flashing (Cavity)

RI-RM-R011D

dwg
pdf

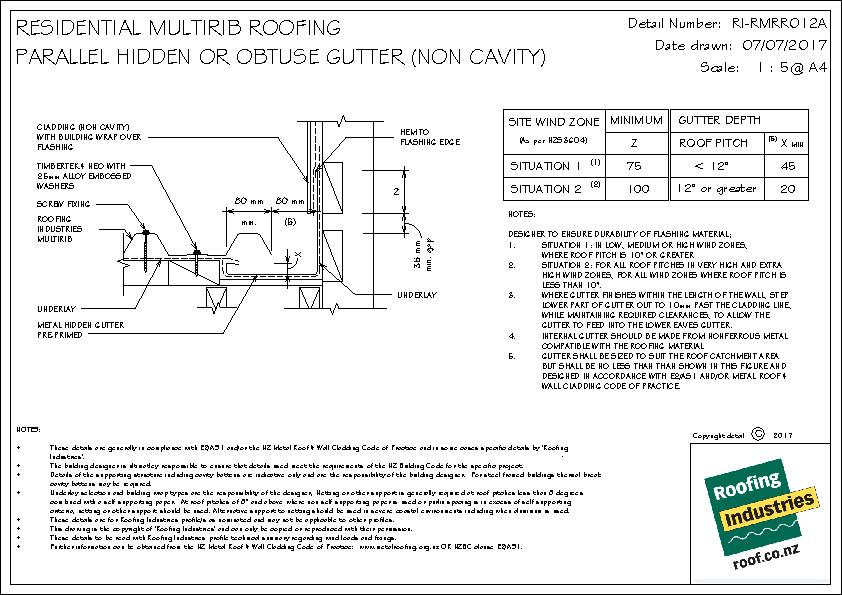

Multirib Parallel Hidden or Obtuse Gutter (Non-Cavity)

RI-RM-R012A

dwg
pdf

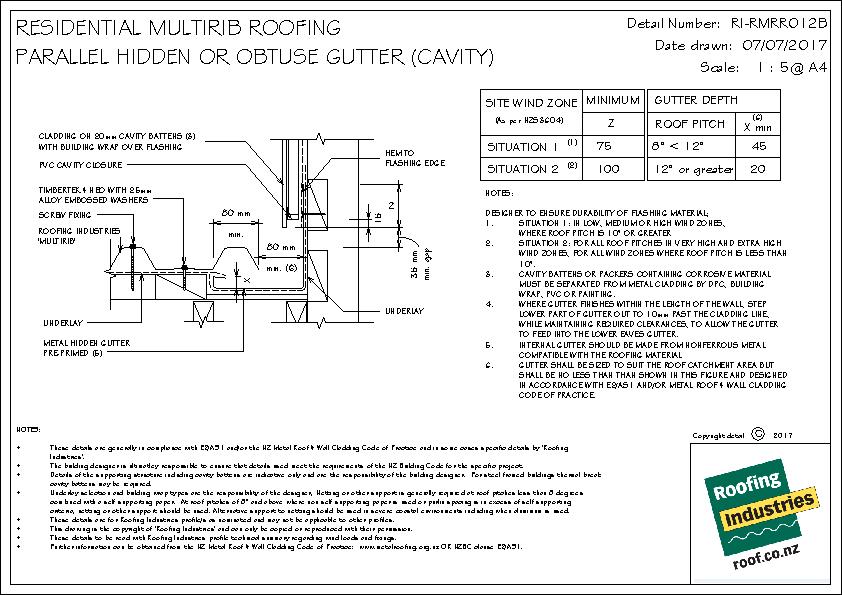

Multirib Parallel Hidden or Obtuse Gutter (Cavity)

RI-RM-R012B

dwg
pdf

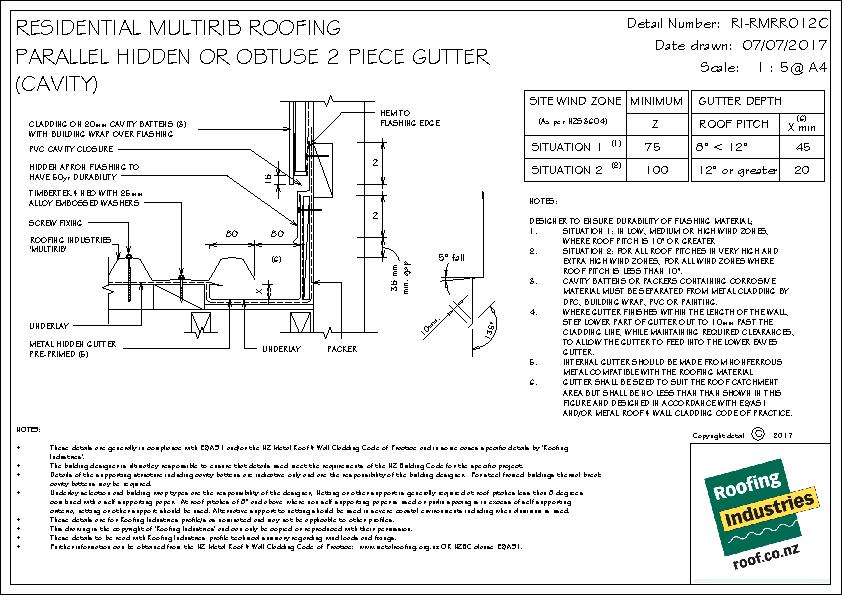

Multirib Parallel Hidden or Obtuse 2 Piece Gutter (Cavity)

RI-RM-R012C

dwg
pdf

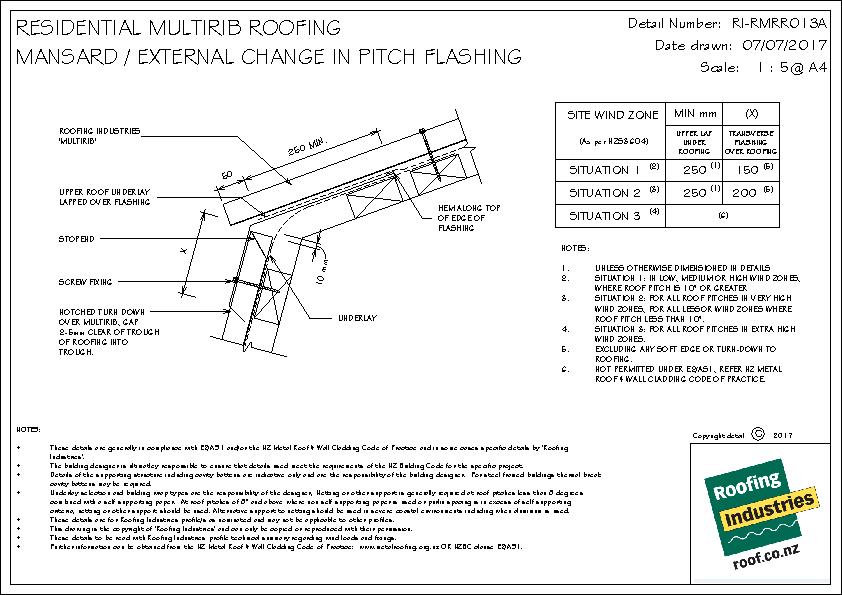

Multirib Mansard External Change in Pitch Flashing

RI-RM-R013A

dwg
pdf

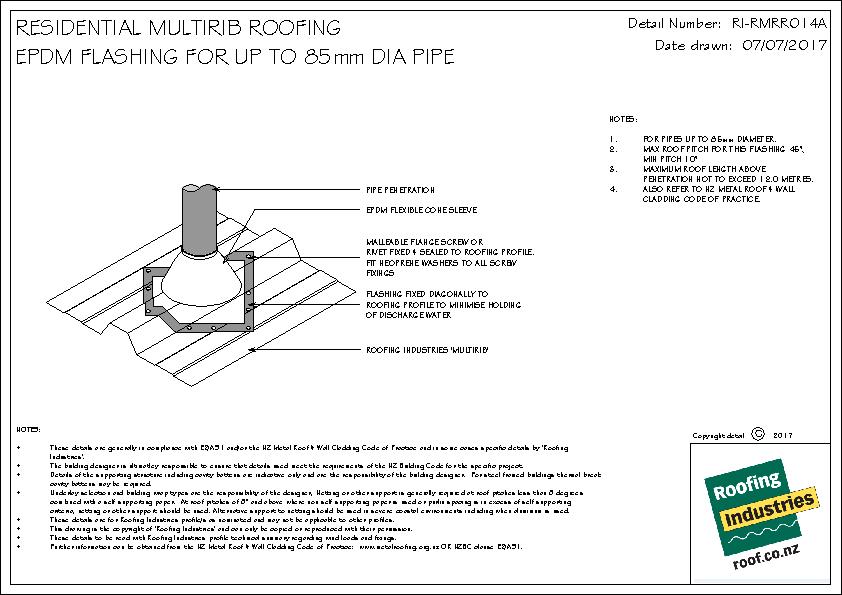

Multirib EPDM Flashing for up to 85mm Pipe

RI-RM-R014A

dwg
pdf
RI-RMRR015A-UNDER-RIDGE-APRON-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-UP-TO-500mm-DIA--pdf.jpg

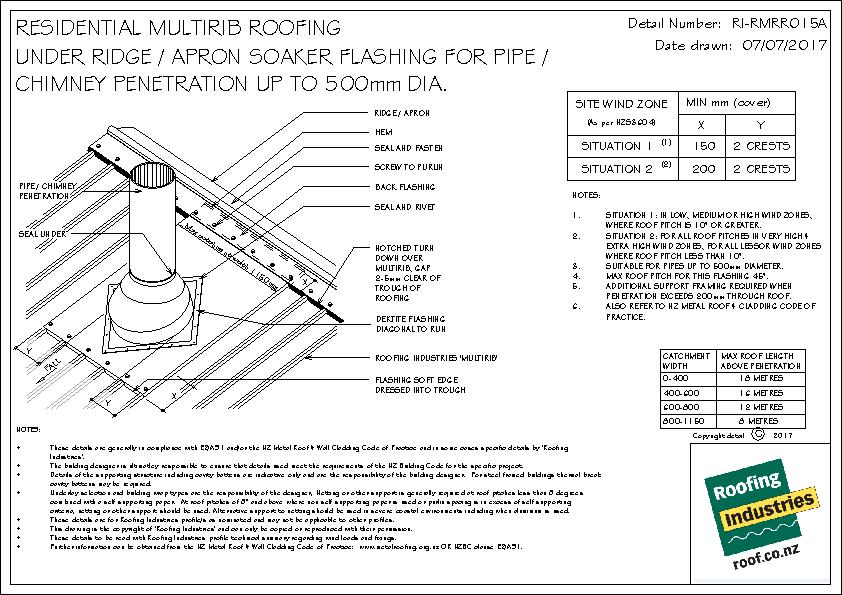

Multirib Under Ridge Apron Soaker Flashing for Pipe/Chimney up to 500mm

RI-RM-R015A

dwg
pdf
RI-RMRR015B-SOAKER-FLASHING-FOR-PIPE-CHIMNEY-PENETRATION-85-500mm-DIA-MID-ROOF-pdf.jpg

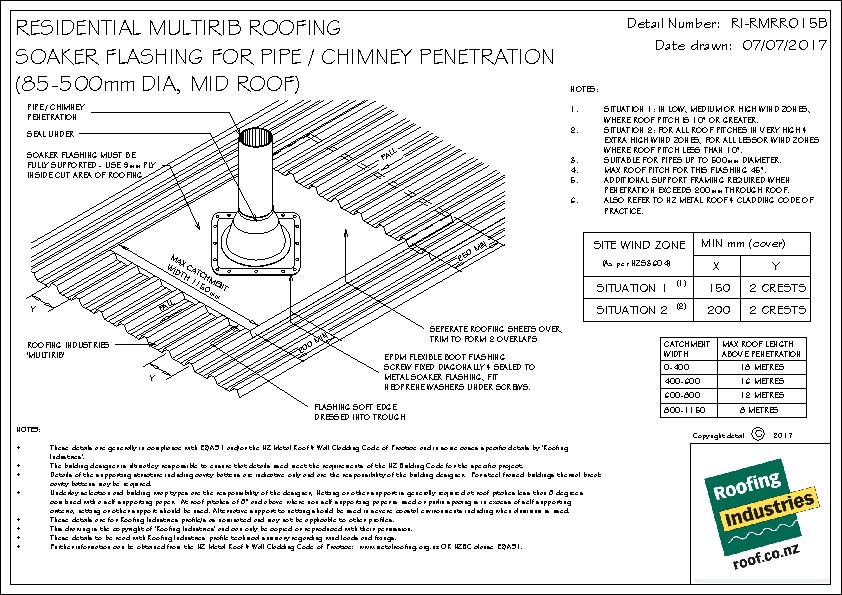

Multirib Soaker Flashing for Pipe/Chimney 85-500mm (Mid-Roof)

RI-RM-R015B

dwg
pdf

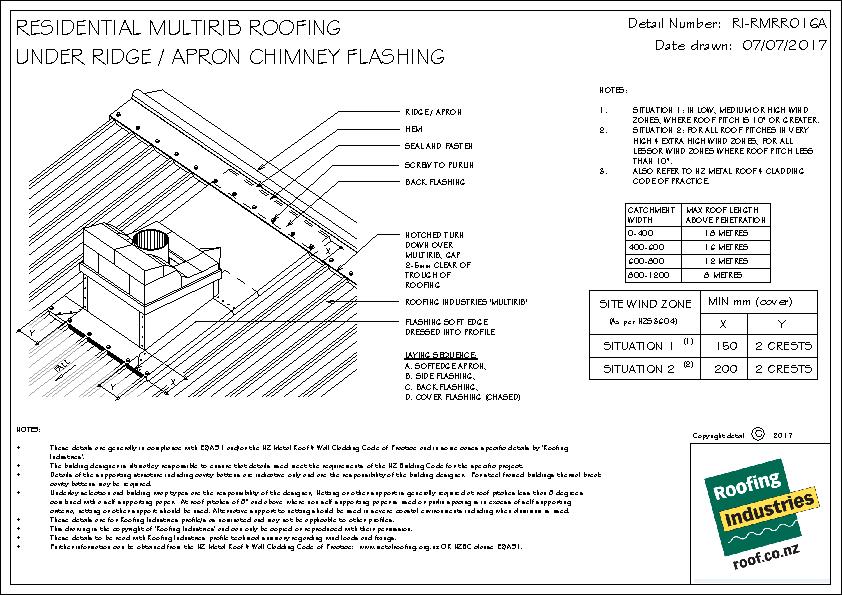

Multirib Under Ridge Apron Chimney Flashing

RI-RM-R016A

dwg
pdf

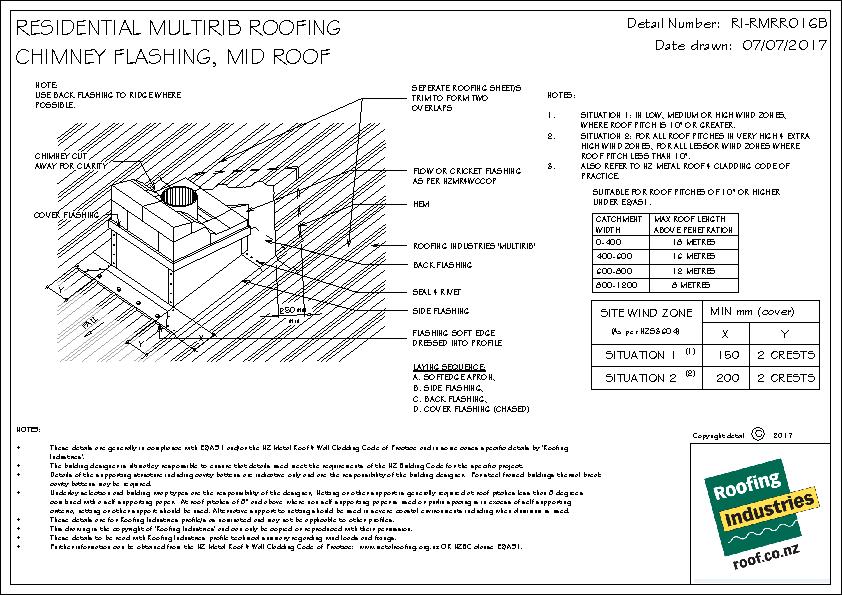

Mulitrib Chimney Flashing (Mid-Roof)

RI-RM-R016B

dwg
pdf

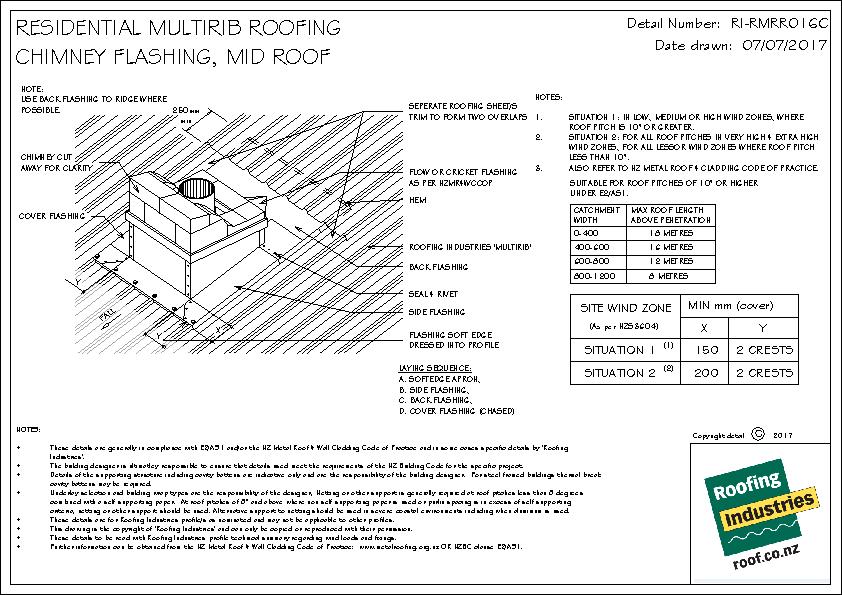

Mulitrib Chimney Flashing (Mid-Roof)

RI-RM-R016C

dwg
pdf
Multirib Skylight Flashing

RI-RM-R016D

dwg
pdf

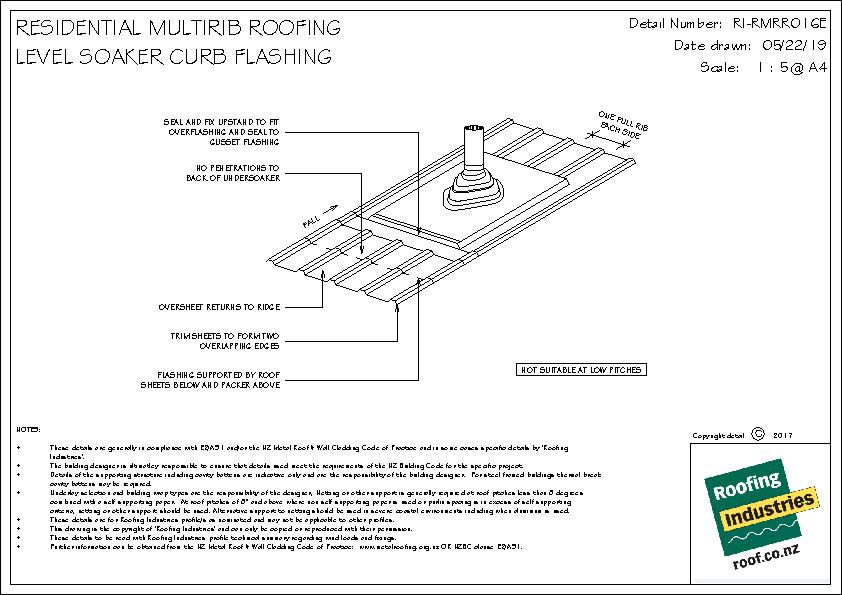

Multirib Level Soaker Curb Flashing

RI-RM-R016E

dwg
pdf

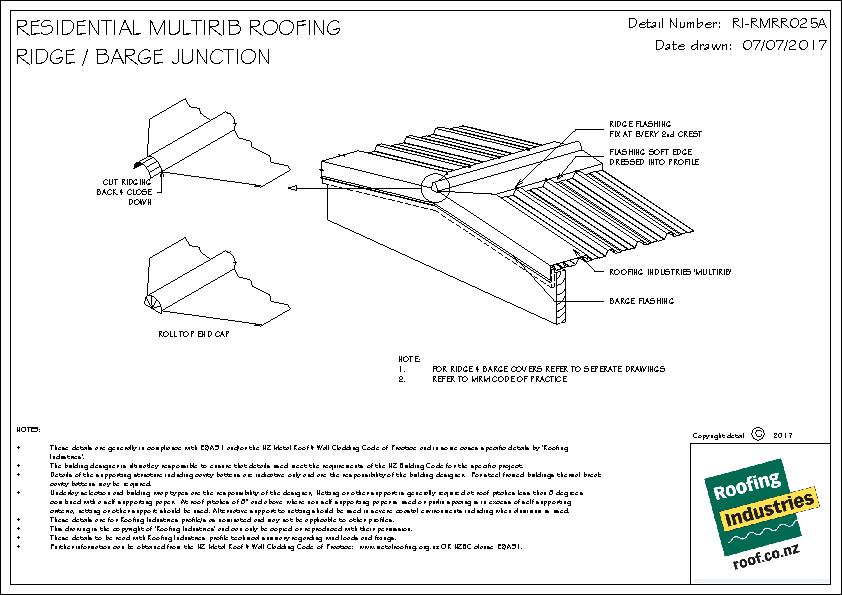

Multirib Ridge / Barge Junction

RI-RM-R025A

dwg
pdf

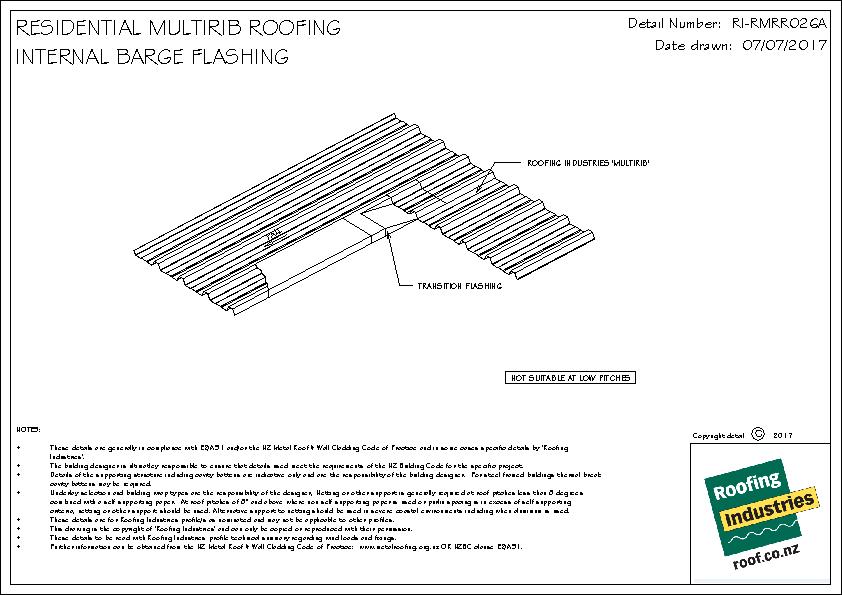

Multirib Internal Barge Flashing

RI-RM-R026A

dwg
pdf

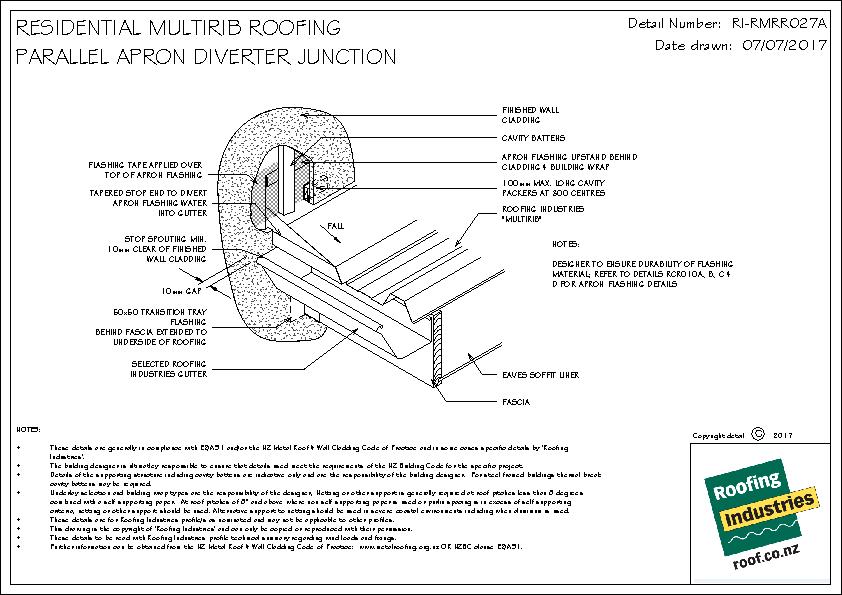

Multirib Parallel Apron Diverter Junction

RI-RM-R027A

dwg
pdf

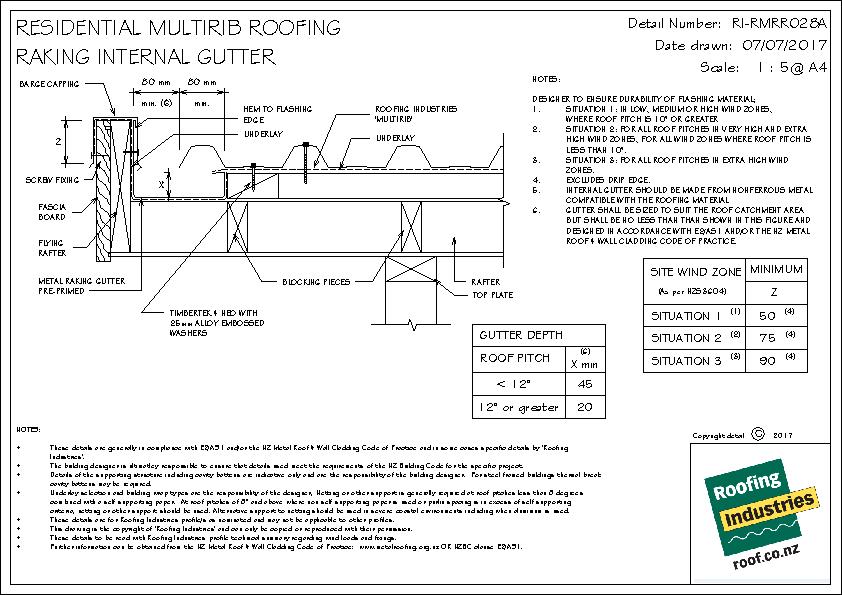

Multirib Raking Internal Gutter

RI-RM-R028A

dwg
pdf

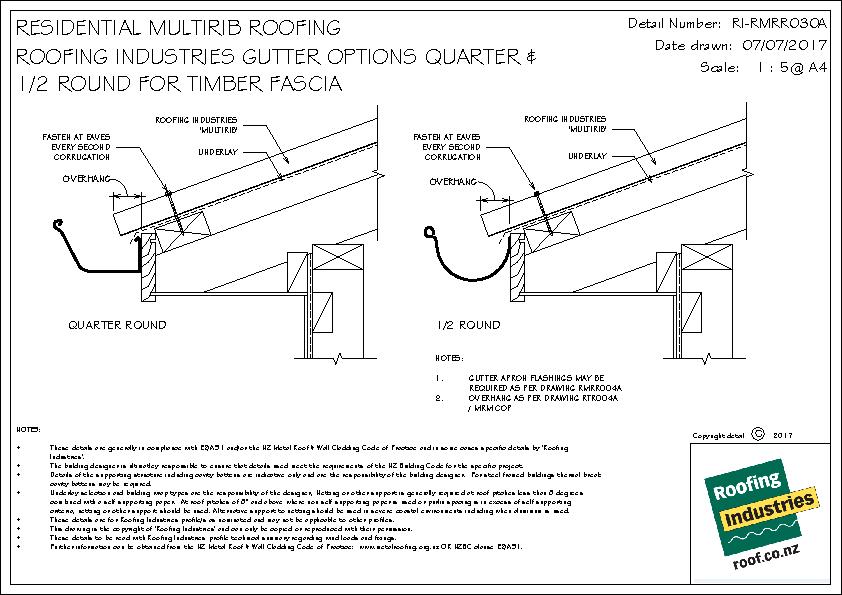

RI-RMRR030A-ROOFING-INDUSTRIES-GUTTER-OPTIONS-QUARTER-1-2-ROUND-FOR-TIMBER-FASCIA-pdf.jpg
Mulitrib Gutter Options (Quarter & Half Round for Timber Fascia)

RI-RM-R030A

dwg
pdf
RI-RMRR030B-ROOFING-INDUSTRIES-GUTTER-OPTIONS-125-BOX-GUTTER-OLD-GOTHIC-FOR-TIMBER-FASCIA-pdf.jpg

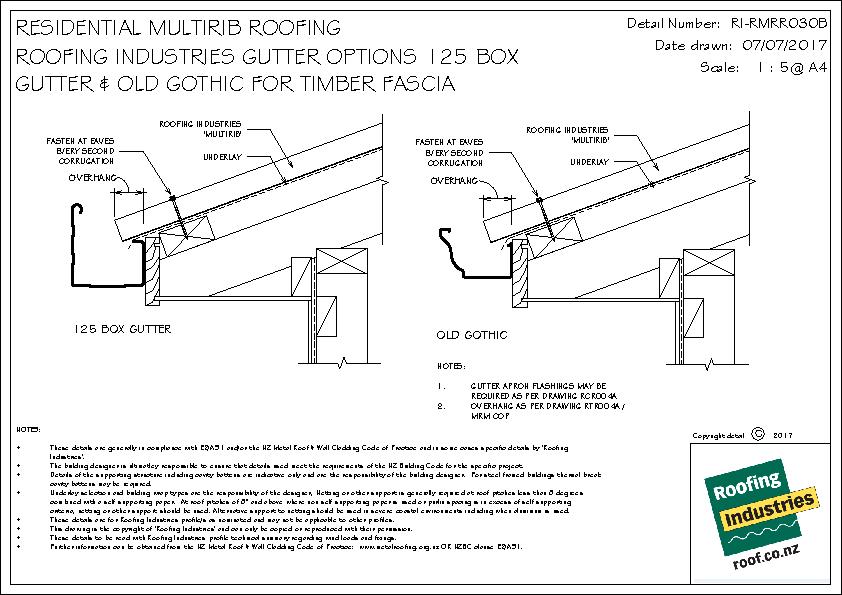

Mulitrib Gutter Options (125 Box & Old Gothic for Timber Fascia)

RI-RM-R030B

dwg
pdf
Mulitrib Barge Detail for Vertical Cladding on Cavity (Kick Out)

RI-RM-W001A-1

dwg
pdf

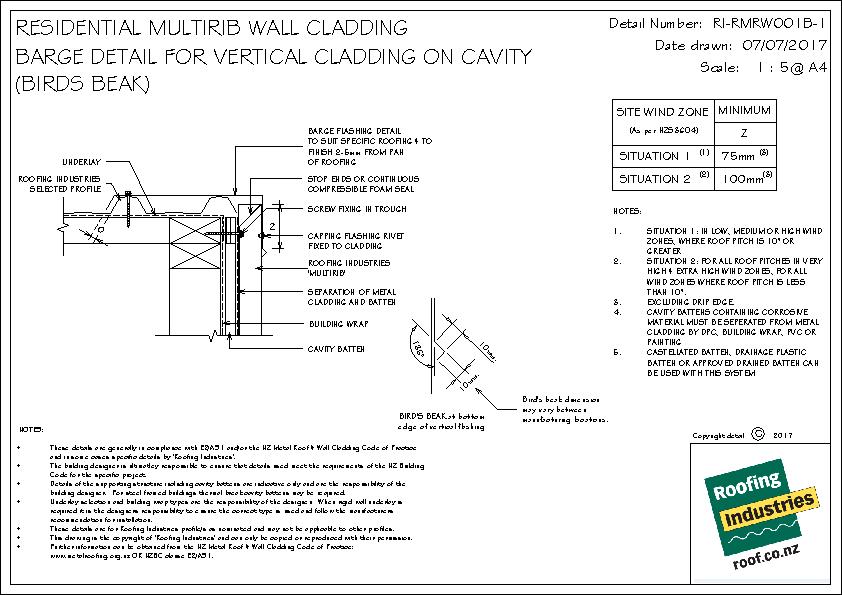

Multirib Barge Detail for Vertical Cladding on Cavity (Bird's Beak)

RI-RM-W001B-1

dwg
pdf
Multirib Head Barge for Vertical Cladding on Cavity (Kick Out)

RI-RM-W002A-1

dwg
pdf

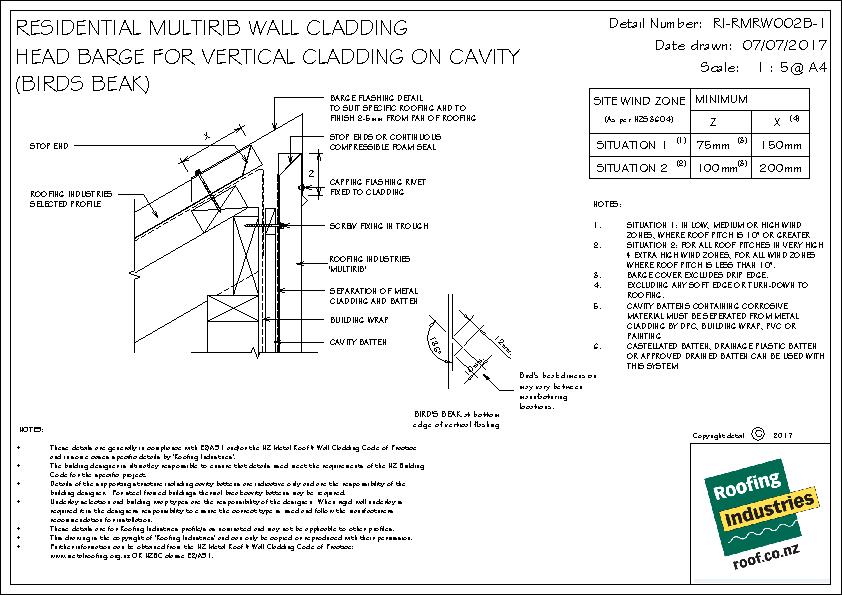

Multirib Head Barge for Vertical Cladding on Cavity (Bird's Beak)

RI-RM-W002B-1

dwg
pdf

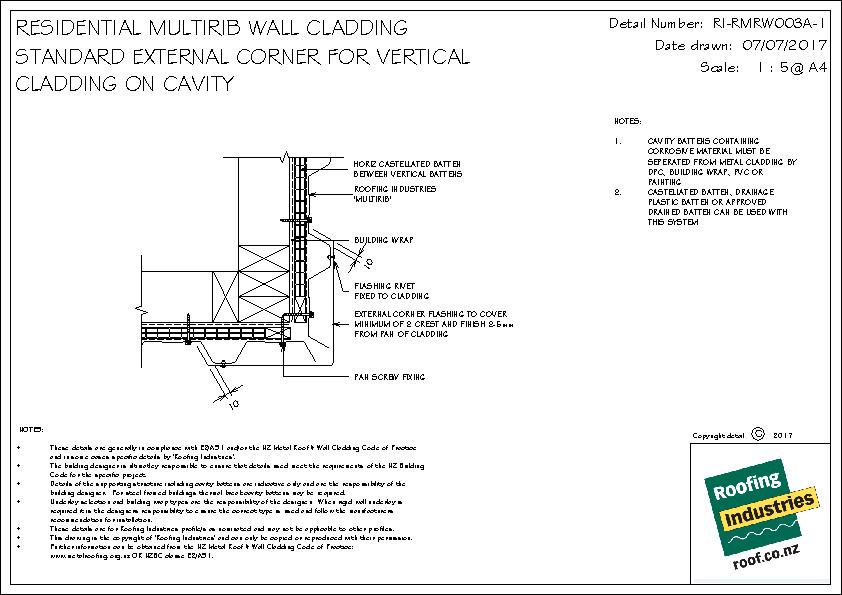

Multirib Standard External Corner for Vertical Cladding on Cavity

RI-RM-W003A-1

dwg
pdf
RI-RMRW003B-1-EXTERNAL-CORNER-FOR-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-pdf.jpg

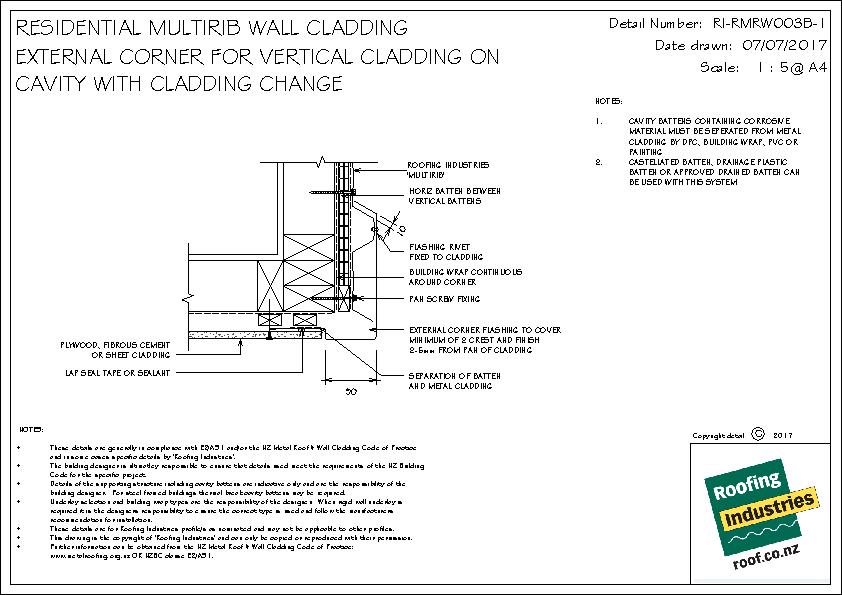

Mulitrib External Corner for Vertical Cladding with Cladding Change

RI-RM-W003B-1

dwg
pdf

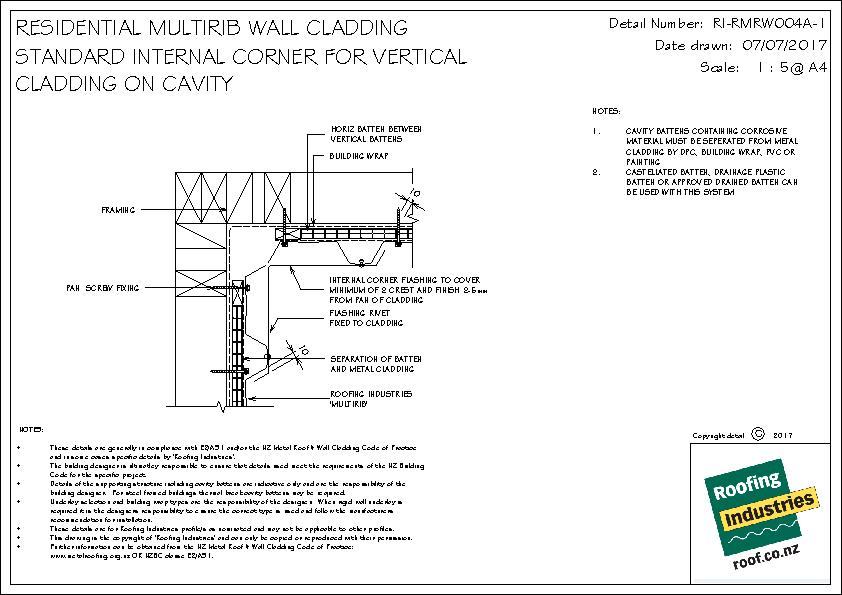

Multirib Standard Internal Corner for Vertical Cladding on Cavity

RI-RM-W004A-1

dwg
pdf

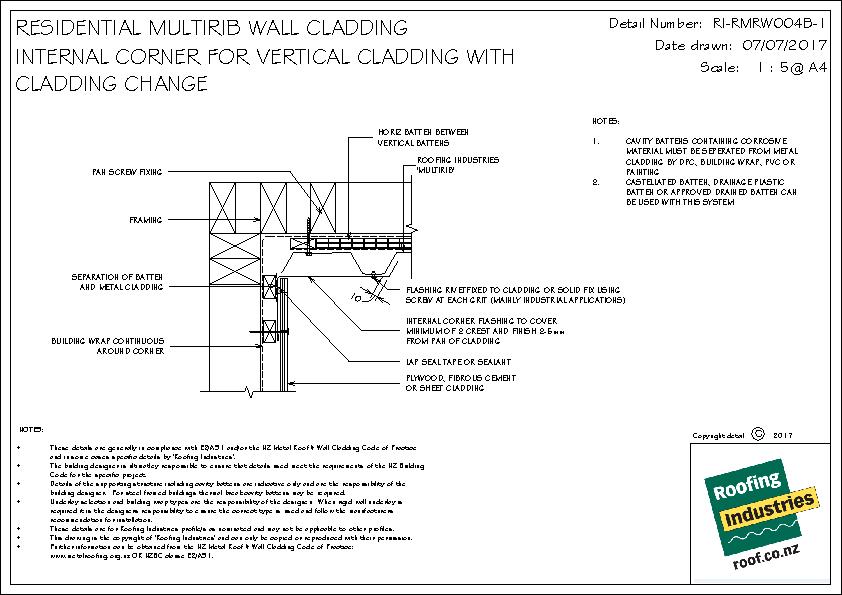

Multirib Internal Corner for Vertical Cladding with Cladding Change

RI-RM-W004B-1

dwg
pdf

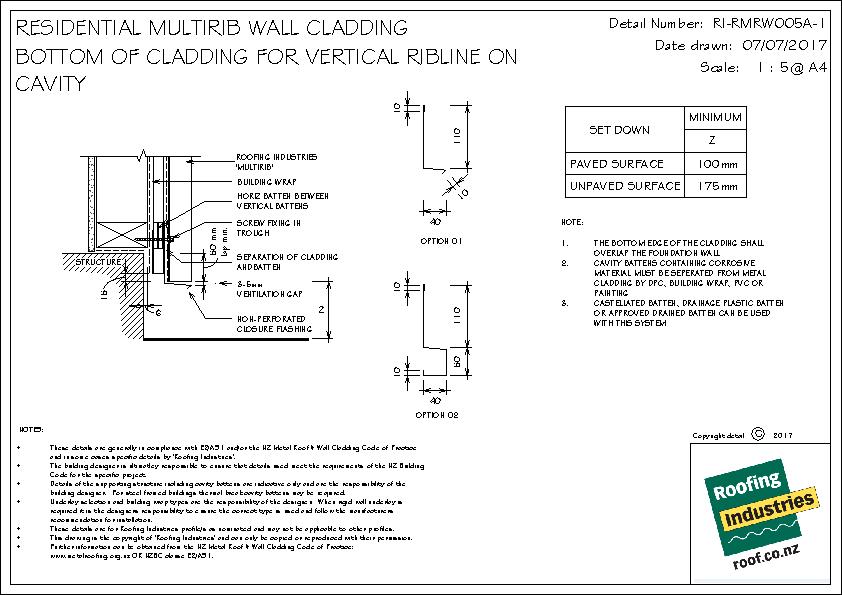

Mulitrib Bottom of Cladding for Vertical on Cavity

RI-RM-W005A-1

dwg
pdf

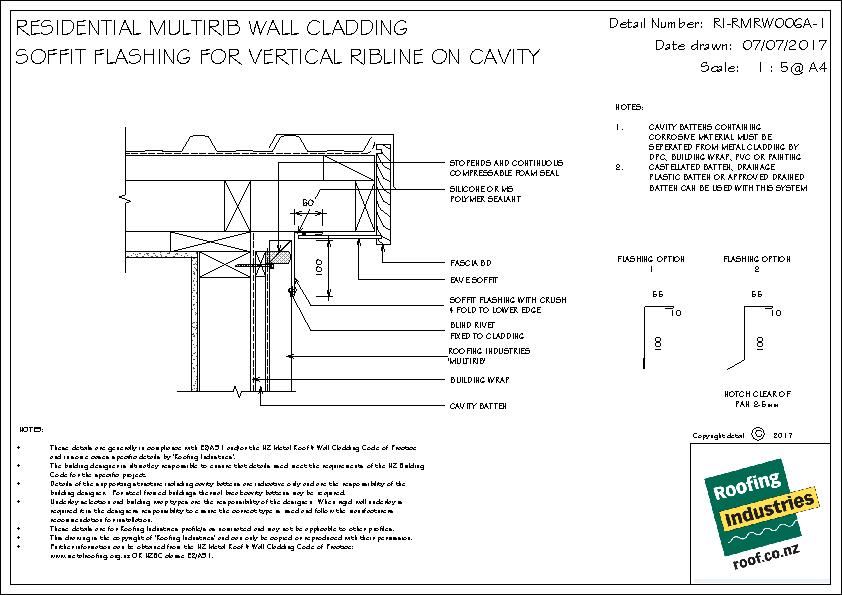

Multirib Soffit Flashing for Vertical on Cavity

RI-RM-W006A-1

dwg
pdf

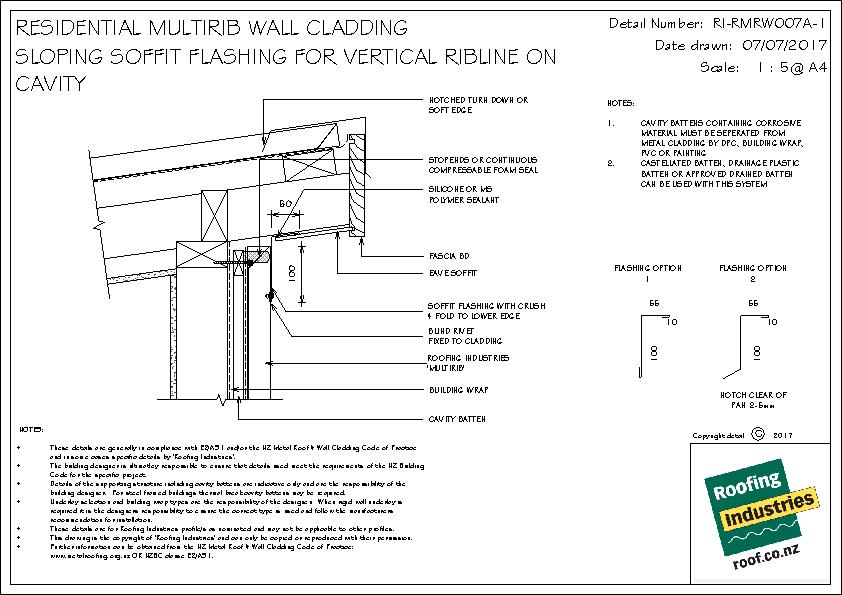

Multirib Sloping Soffit Flashing for Vertical on Cavity

RI-RM-W007A-1

dwg
pdf
RI-RMRW009A-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-DIRECT-FIXED-pdf.jpg

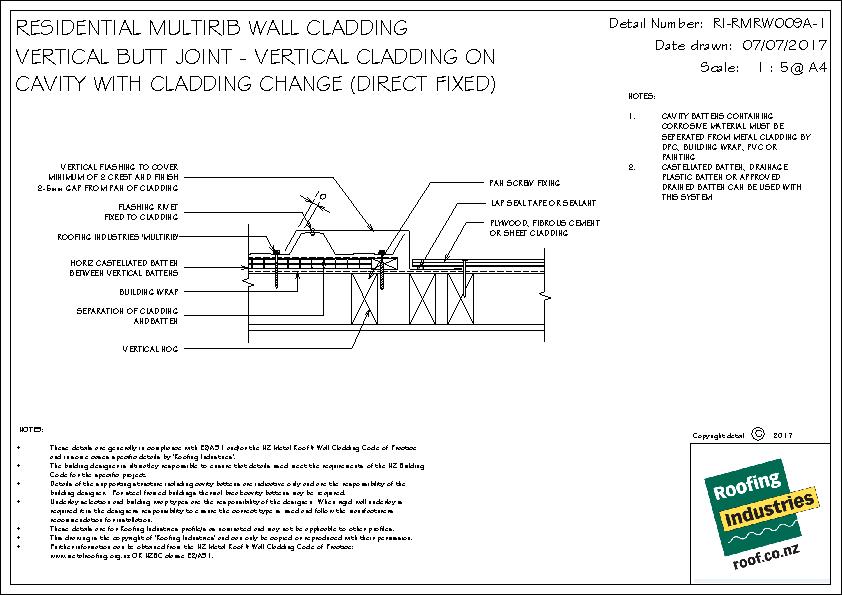

Multirib Vertical Butt Joint for Vertical Cladding with Cladding Change (Direct Fix)

RI-RM-W009A-1

dwg
pdf
RI-RMRW009B-1-VERTICAL-BUTT-JOINT-VERTICAL-CLADDING-ON-CAVITY-WITH-CLADDING-CHANGE-CAVITY-pdf.jpg

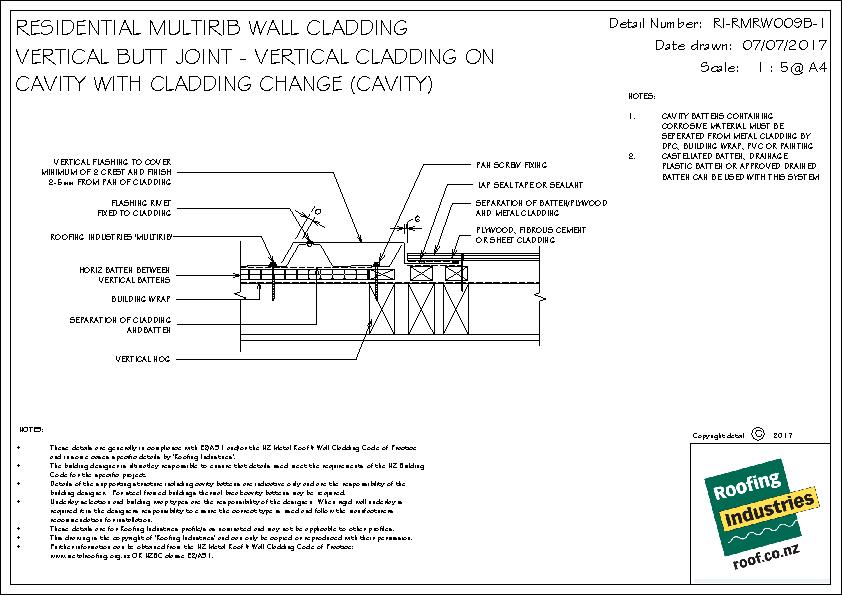

Multirib Vertical Butt Joint for Vertical Cladding on Cavity with Cladding Change (Cavity)

RI-RM-W009B-1

dwg
pdf

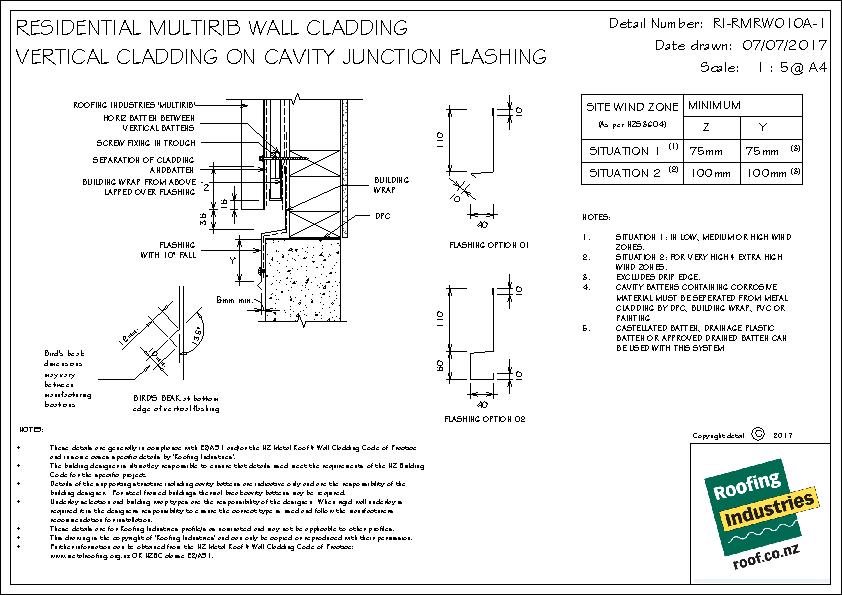

Multirib Vertical Cladding on Cavity Junction Flashing

RI-RM-W010A-1

dwg
pdf

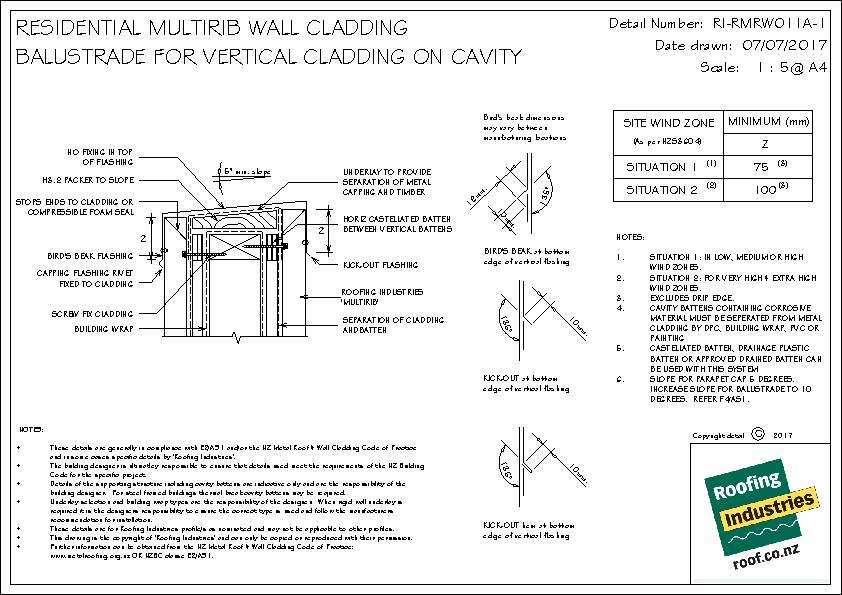

Multirib Balustrade for Vertical Cladding on Cavity

RI-RM-W011A-1

dwg
pdf
RI-RMRW012A-1-HEAD-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Mulitrib Head Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RM-W012A-1

dwg
pdf

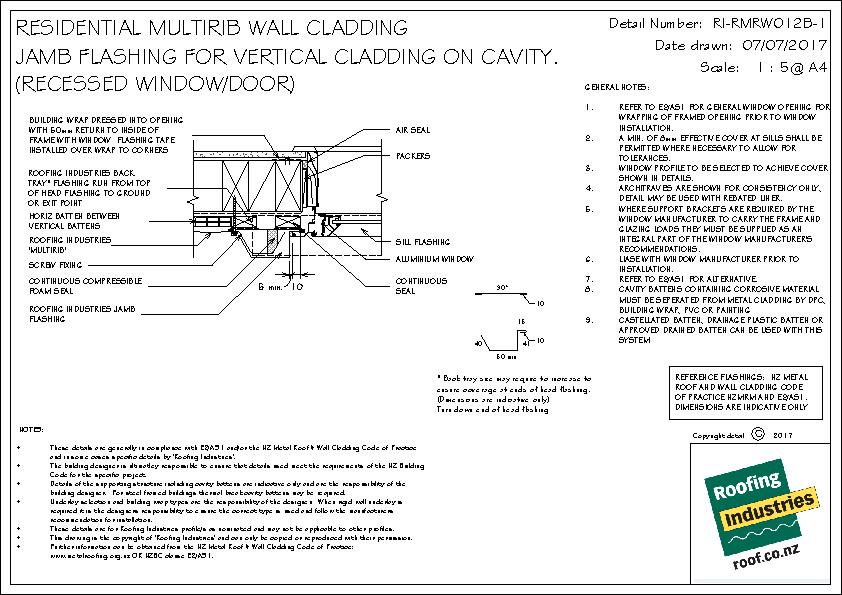

RI-RMRW012B-1-JAMB-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Multirib Jamb Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RM-W012B-1

dwg
pdf

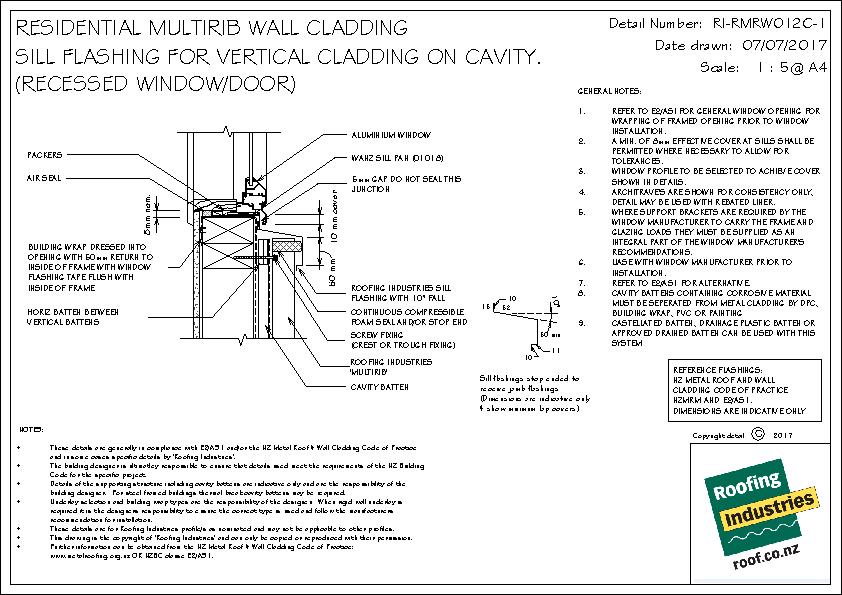

RI-RMRW012C-1-SILL-FLASHING-FOR-VERTICAL-CLADDING-ON-CAVITY-RECESSED-WINDOW-DOOR-pdf.jpg
Multirib Sill Flashing for Vertical Cladding on Cavity (Recessed Window/Door)

RI-RM-W012C-1

dwg
pdf

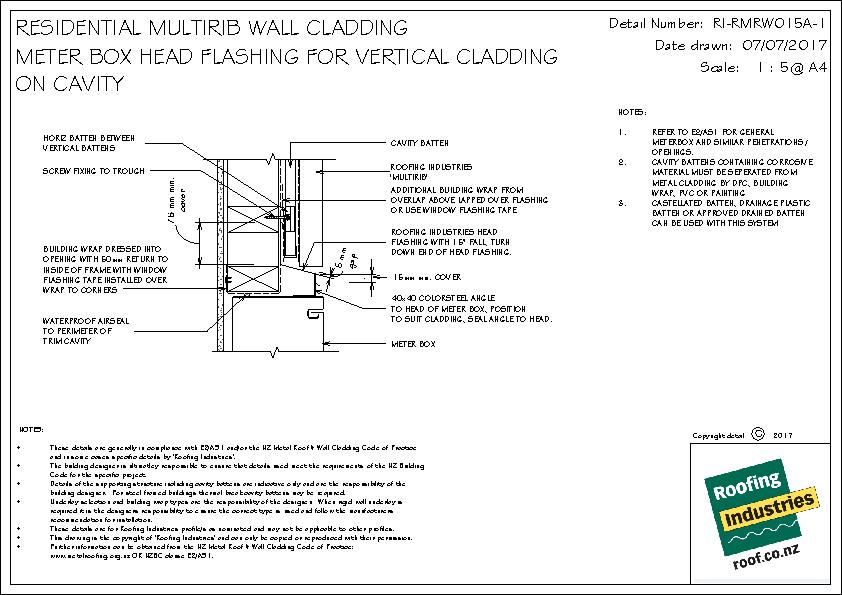

Multirib Meter Box Head Flashing for Vertical Cladding on Cavity

RI-RM-W015A-1

dwg
pdf

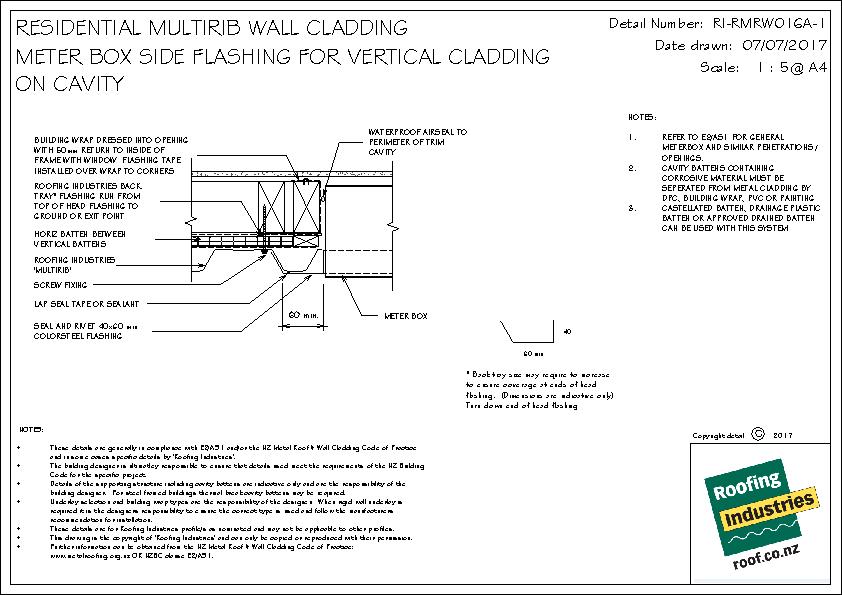

Multirib Meter Box Side Flashing for Vertical Cladding on Cavity

RI-RM-W016A-1

dwg
pdf

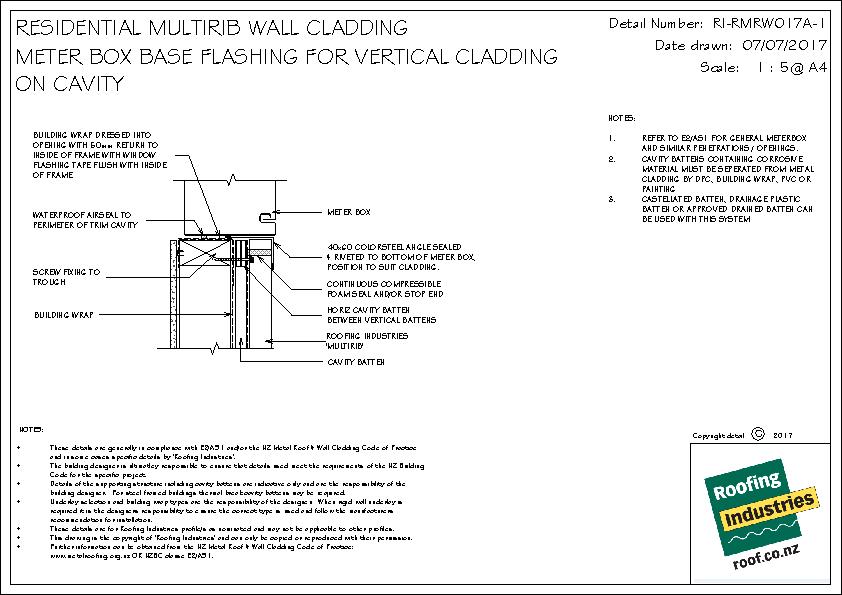

Multirib Meter Box Base Flashing for Vertical Cladding on Cavity

RI-RM-W017A-1

dwg
pdf

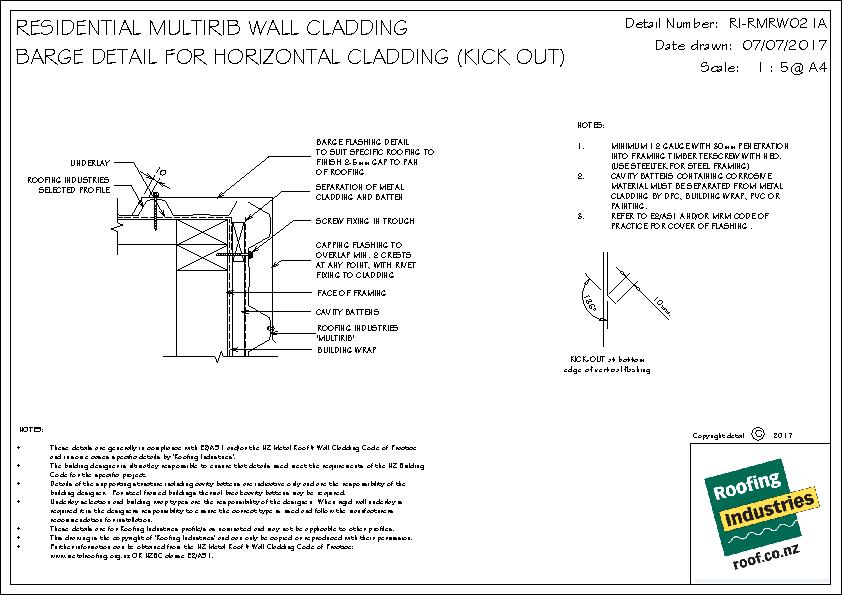

Multirib Barge Detail for Horizontal Cladding (Kick Out)

RI-RM-W021A

dwg
pdf

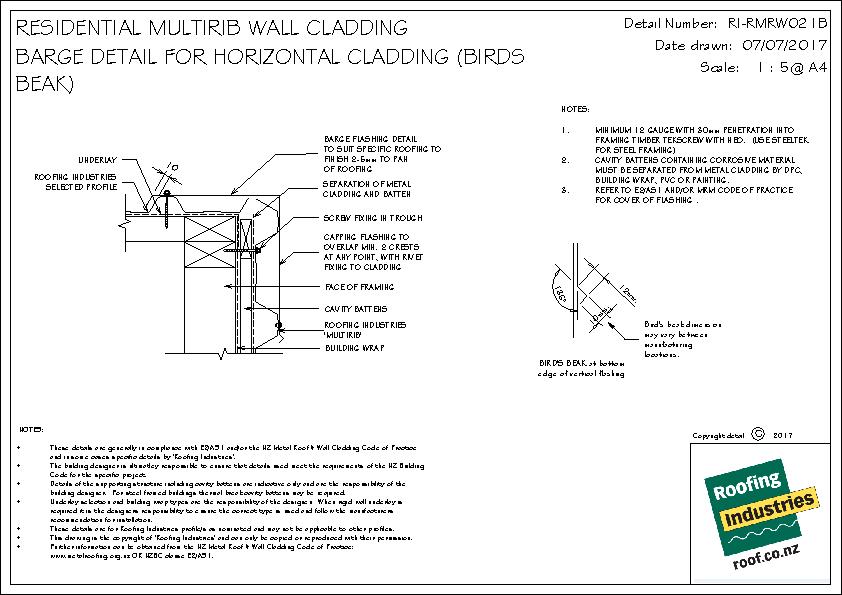

Mulitrib Barge Detail for Horizontal Claddng (Bird's Beak)

RI-RM-W021B

dwg
pdf
Multirib External Corner Flashing for Horizontal Cladding

RI-RM-W023A

dwg
pdf

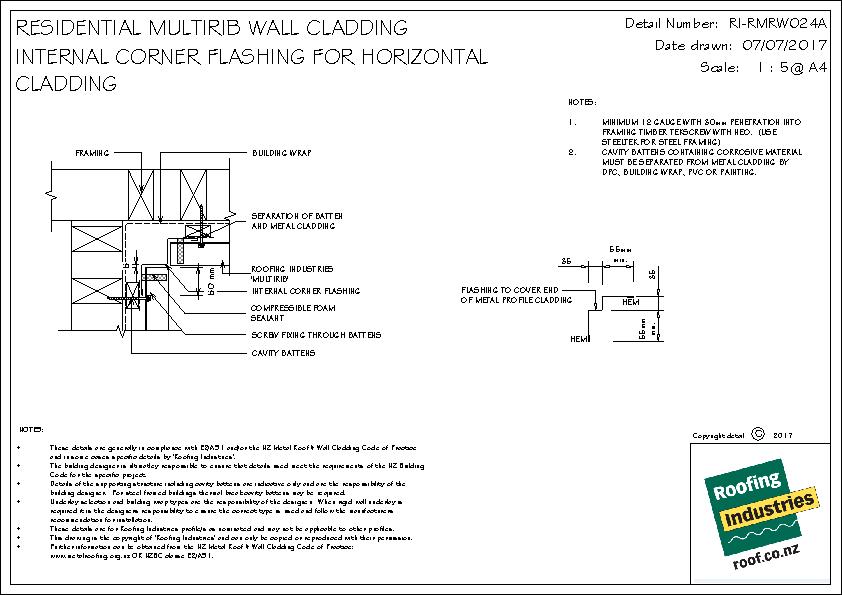

Multirib Internal Corner Flashing for Horizontal Cladding

RI-RM-W024A

dwg
pdf

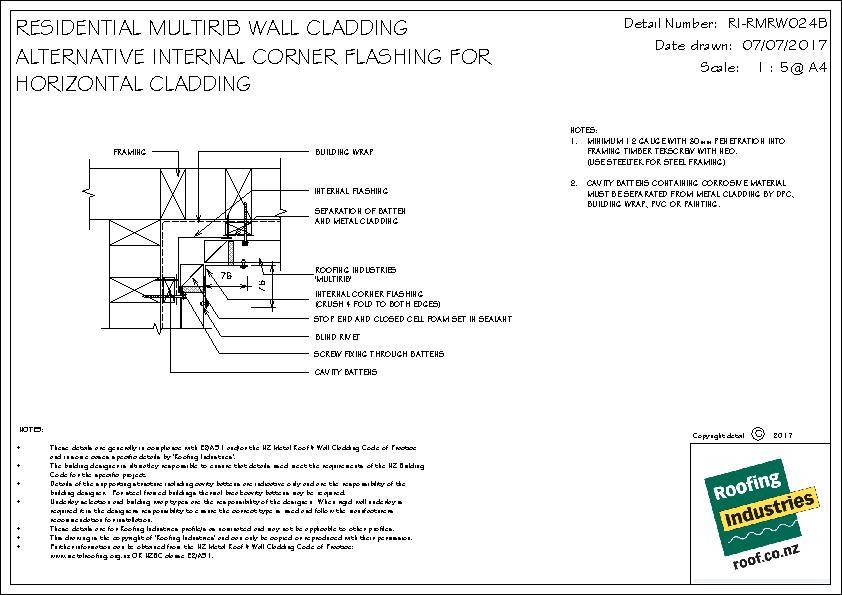

Mulitrib Alternative External Corner Flashing for Horizontal Cladding

RI-RM-W024B

dwg
pdf

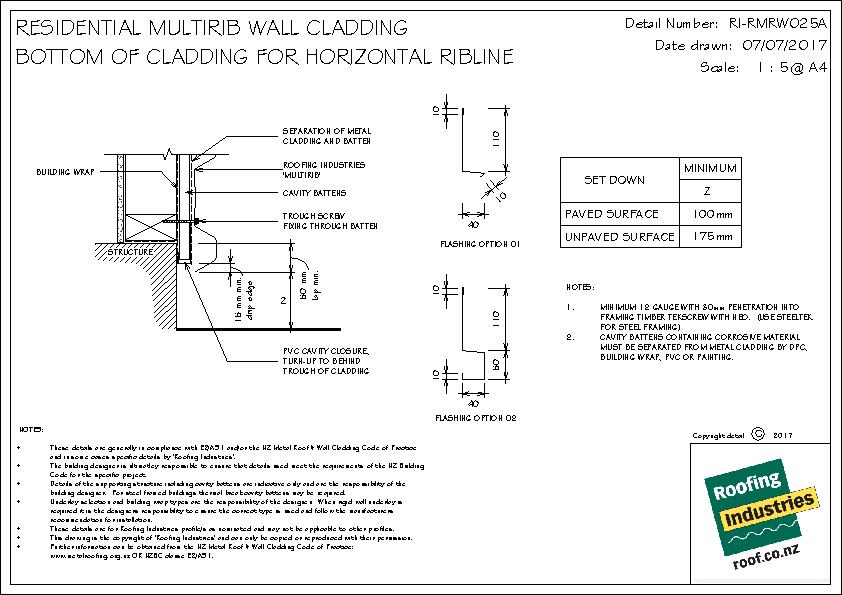

Mulitrib Bottom of Cladding for Horizontal

RI-RM-W025A

dwg
pdf

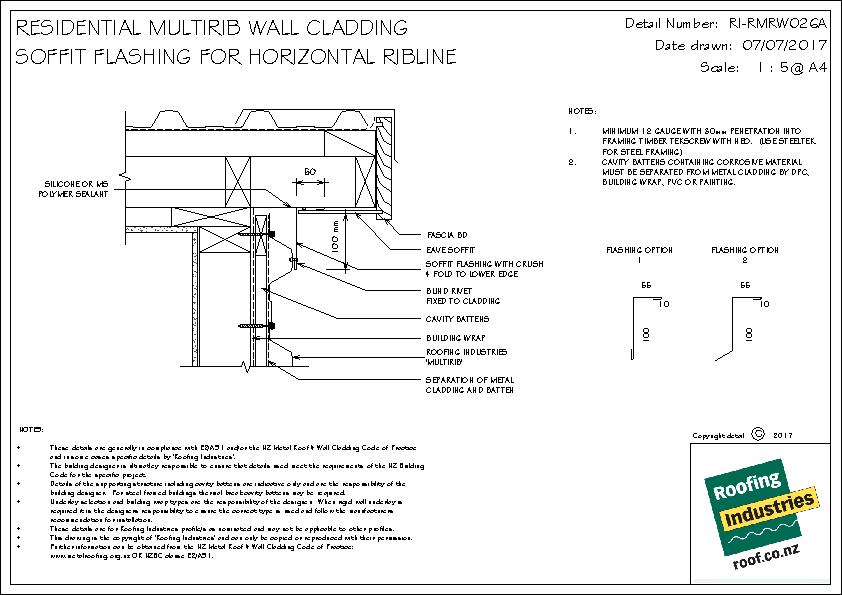

Multirib Soffit Flashing for Horizontal

RI-RM-W026A

dwg
pdf

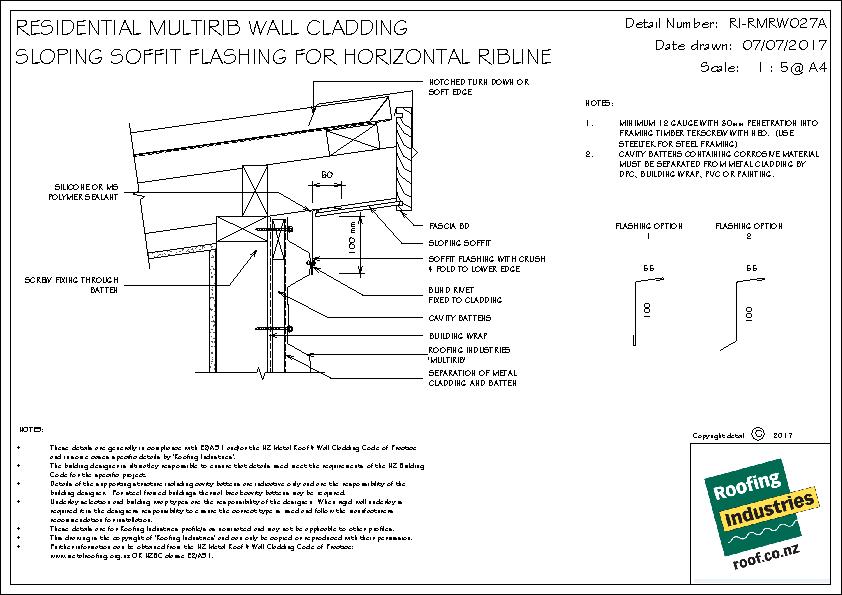

Multirib Sloping Soffit Flashing for Horizontal

RI-RM-W027A

dwg
pdf

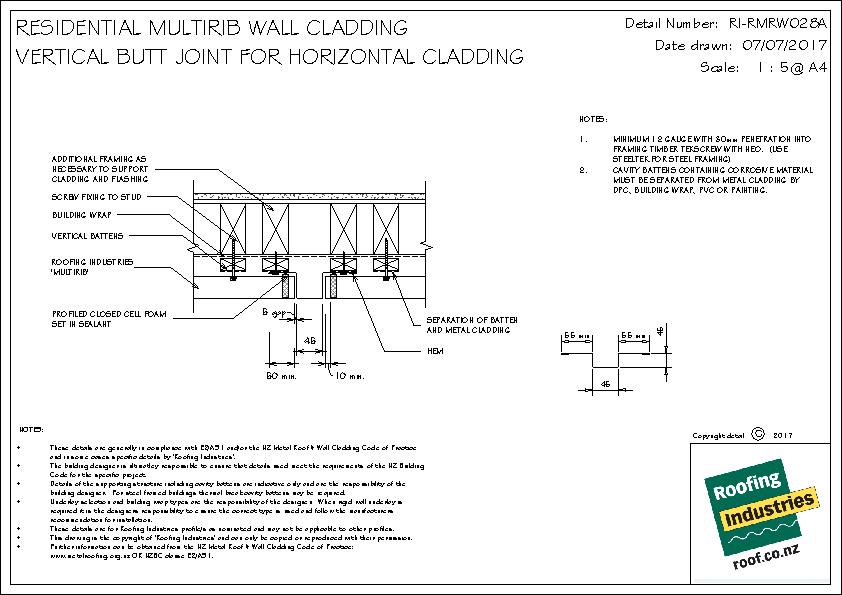

Multirib Vertical Butt Joint for Horizontal Cladding

RI-RM-W028A

dwg
pdf

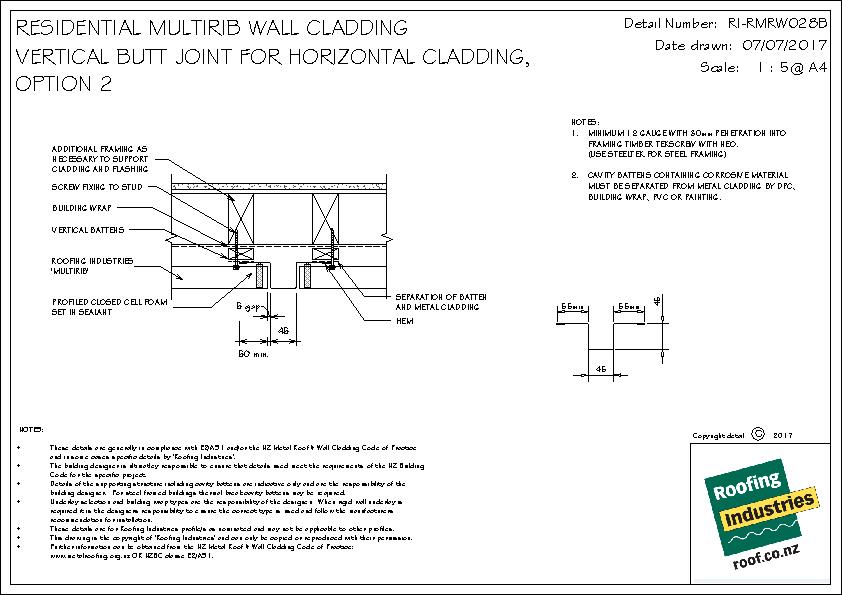

Multirib Vertical Butt Joint for Horizontal Cladding (Option 2)

RI-RM-W028B

dwg
pdf

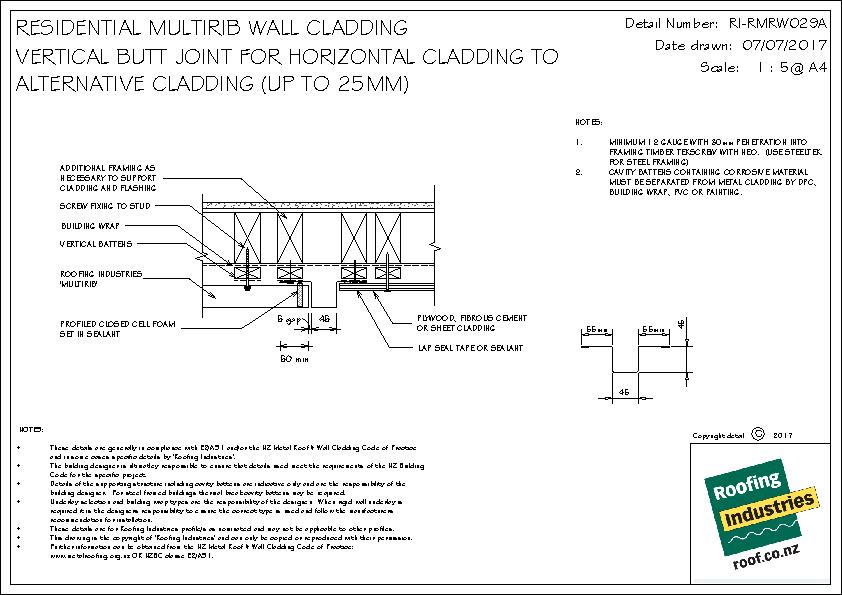

RI-RMRW029A-VERTICAL-BUTT-JOINT-FOR-HORIZONTAL-CLADDING-TO-ALTERNATIVE-CLADDING-UP-TO-25MM-pdf.jpg
Multirib Vertical Butt Joint for Horizontal Cladding to Alternative Cladding (up to 25m)

RI-RM-W029A

dwg
pdf

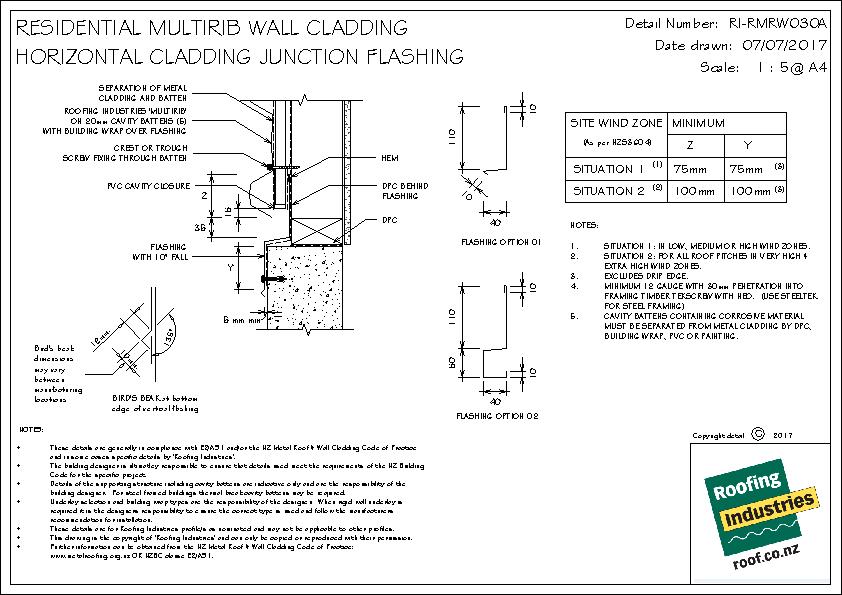

Multirib Horizontal Cladding Junction Flashing

RI-RM-W030A

dwg
pdf

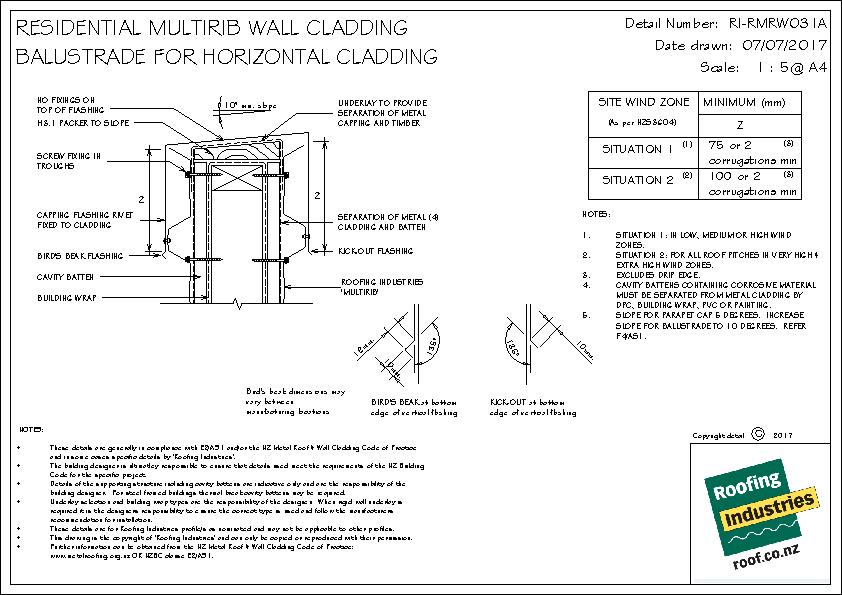

Multirib Balustrade for Horizontal Cladding

RI-RM-W031A

dwg
pdf

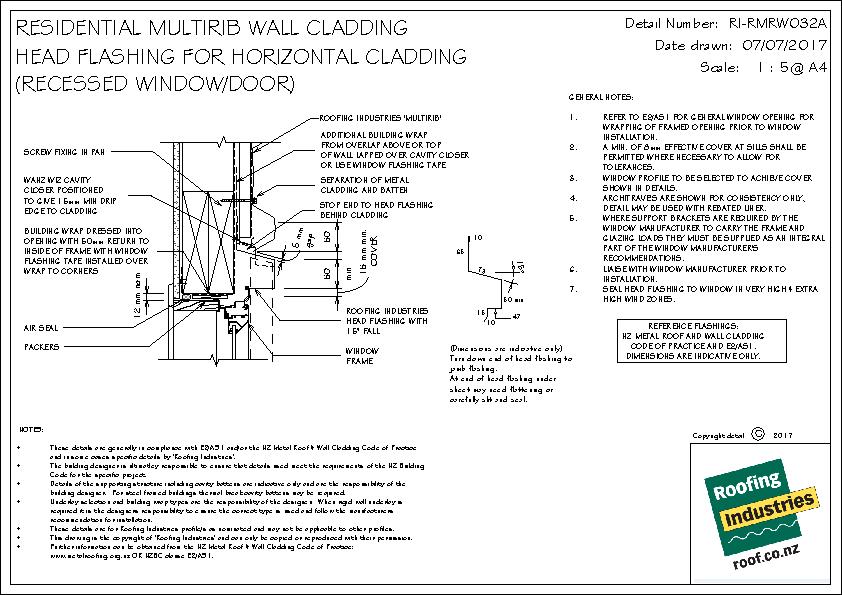

Multirib Head Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RM-W032A

dwg
pdf

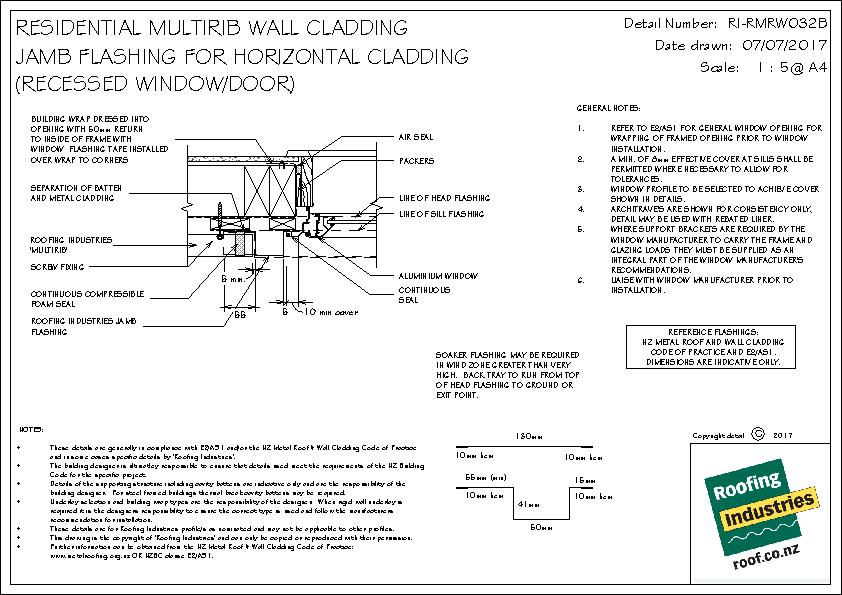

Mulitrib Jamb Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RM-W032B

dwg
pdf

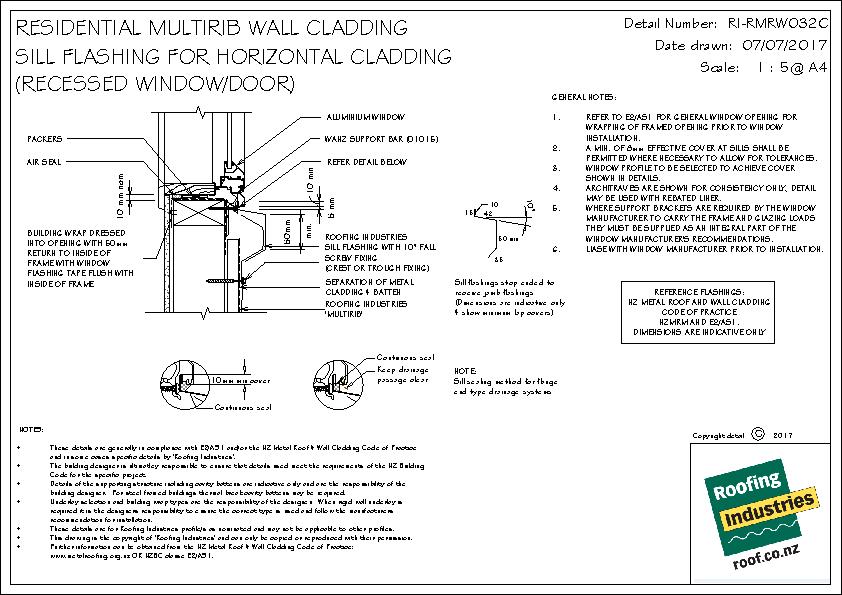

Multirib Sill Flashing for Horizontal Cladding (Recessed Window/Door)

RI-RM-W032C

dwg
pdf

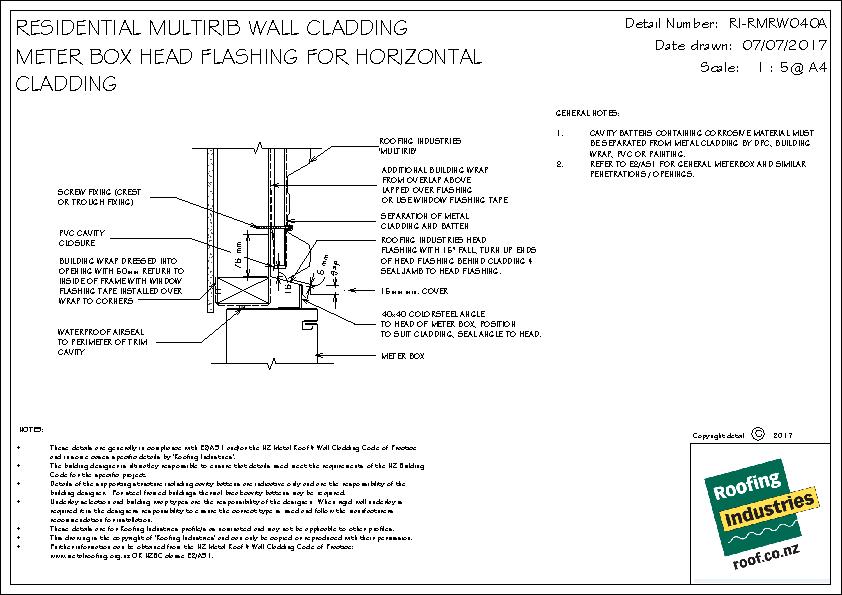

Multirib Meter Box Head Flashing for Horizontal Cladding

RI-RM-W040A

dwg
pdf

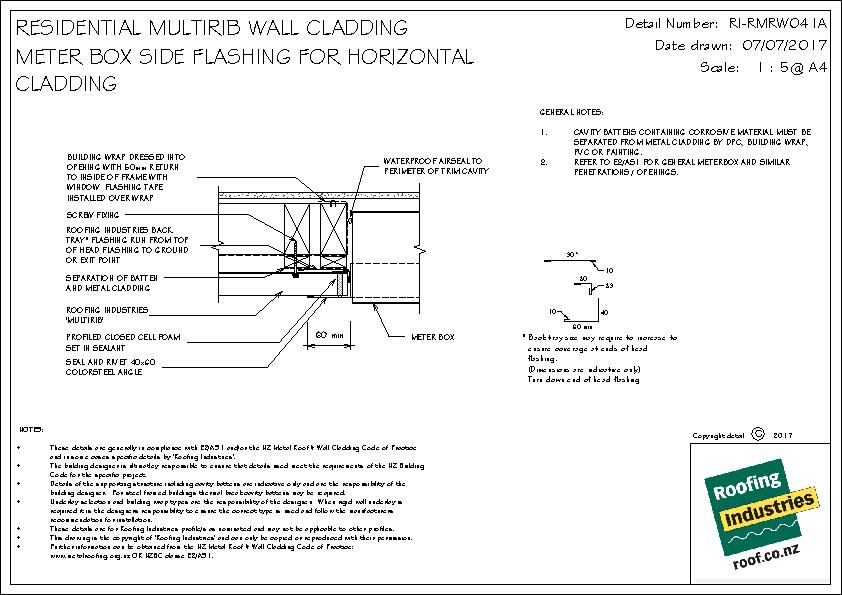

Multirib Meter Box Side Flashing for Horizontal Cladding

RI-RM-W041A

dwg
pdf

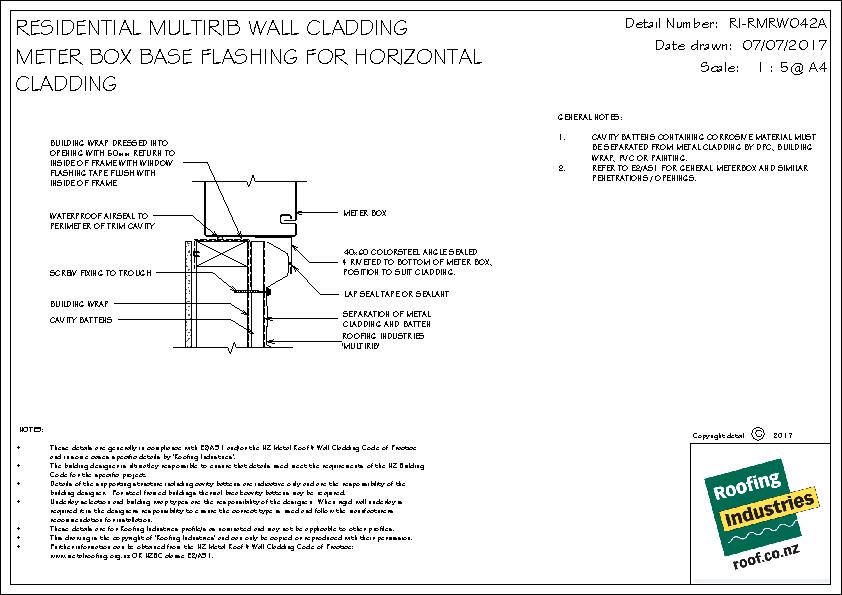

Multirib Meter Box Base Flashing for Horizontal Cladding

RI-RM-W042A

dwg
pdf
BIM
View full
Filters
Project Type
RVT Version
Clear filters
RI Fascia and gutters image
Fascia and Gutter Profiles

RI-AF01 2016

Revit 2016

rvt
RI RM 00C
Multirib Residential Details 2016

RI-RM 2016

Revit 2016

rvt
RI RM 00C
Multirib Residential Details 2019

RI-RM 2019

Revit 2019

rvt

Roofing Industries is a 100% New Zealand owned and operated metal roof and cladding manufacturing business.

Product Enquiries

News from Roofing Industries

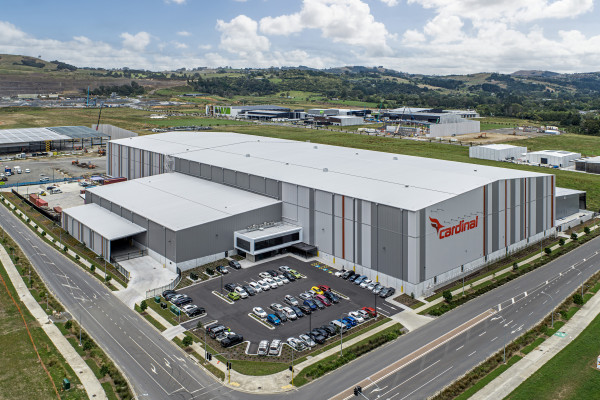

High Performance Roofing and Cladding for a 28m-High Logistics Facility
High Performance Roofing and Cladding for a 28m-High Logistics Facility
Roofing Industries
July 2024 Case Studies
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control NEW
New DRI-CLAD Roofing and Cladding Keeps Condensation Under Control
Roofing Industries
November 2023 New Products
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Multidek Cladding and Roofing Helps Bring Scandinavian-Inspired Design to Life
Roofing Industries
August 2023 Case Studies
View all news

Popular Products from Roofing Industries

Trimrib® Roofing and Cladding
Trimrib® Roofing and Cladding
Roofing Industries
Corrugate Roofing and Cladding
Corrugate Roofing and Cladding
Roofing Industries
Eurostyle® spanlok® Roofing and Cladding
Eurostyle® spanlok® Roofing and Cladding
Roofing Industries

View all products

Get a free weekly digest of essential news

New and updated architectural products, design solutions, inspiration, technical advice and more when you sign up for EBOSS.
