DONN Exposed Grid Ceiling System
Description

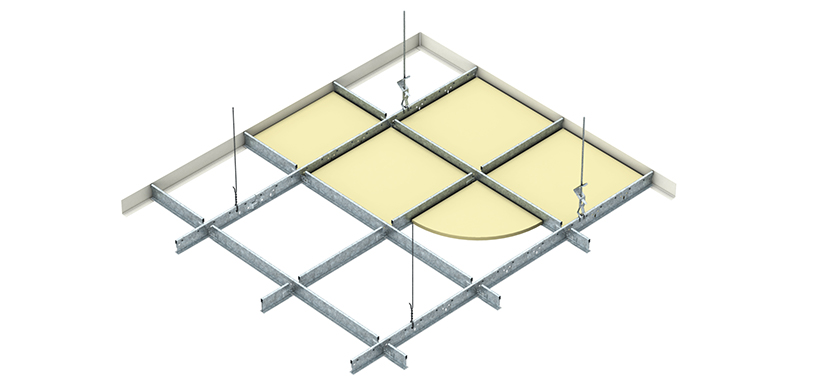

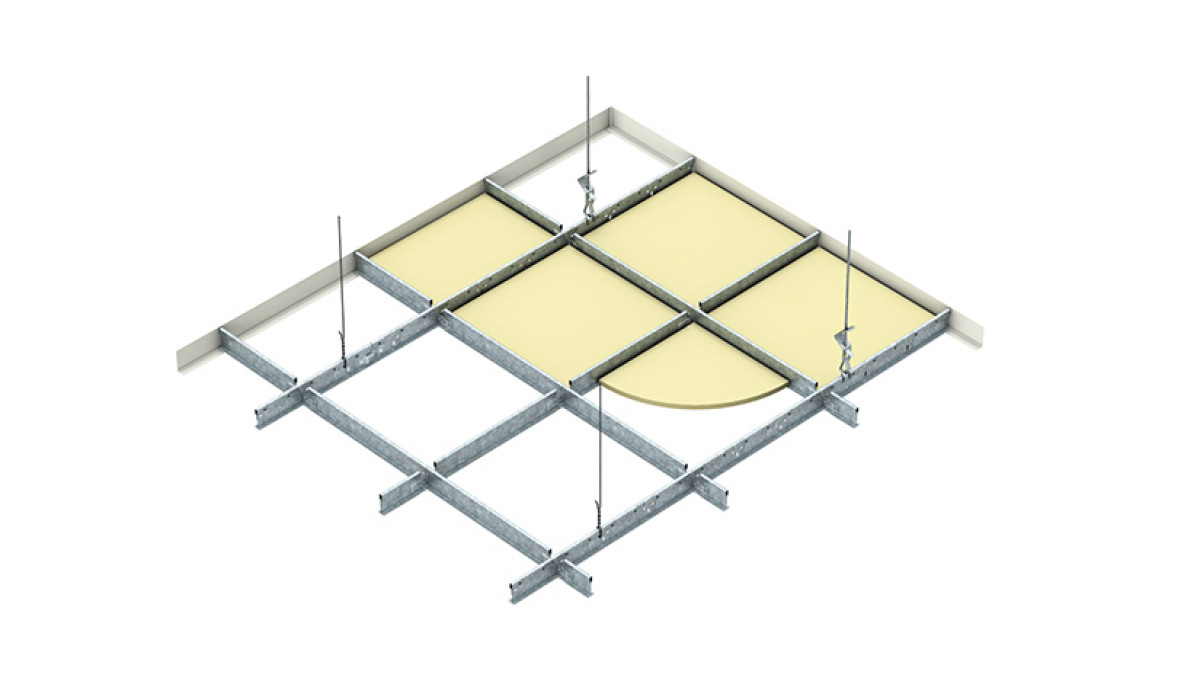

The Rondo DONN Exposed Grid Ceiling System provides the framework for a variety of lay-in tiles including; acoustic, perforated plasterboard, PVC laminated, and metal. The DONN System includes the popular 24mm grid, and also offers a more slimline 15mm grid option to give designers an alternative grid appearance.

The well-known DONN branded Quick Release Clips (QRC) are located on the ends of Rondo DONN Cross Tees to enable fast and easy installations without the need for mechanical tools.

Transitions between exposed and concealed grid ceilings are made possible with the DONN Grid Ceilings being fully compatible with the Rondo XPRESS Drywall Grid Ceiling.

Components:

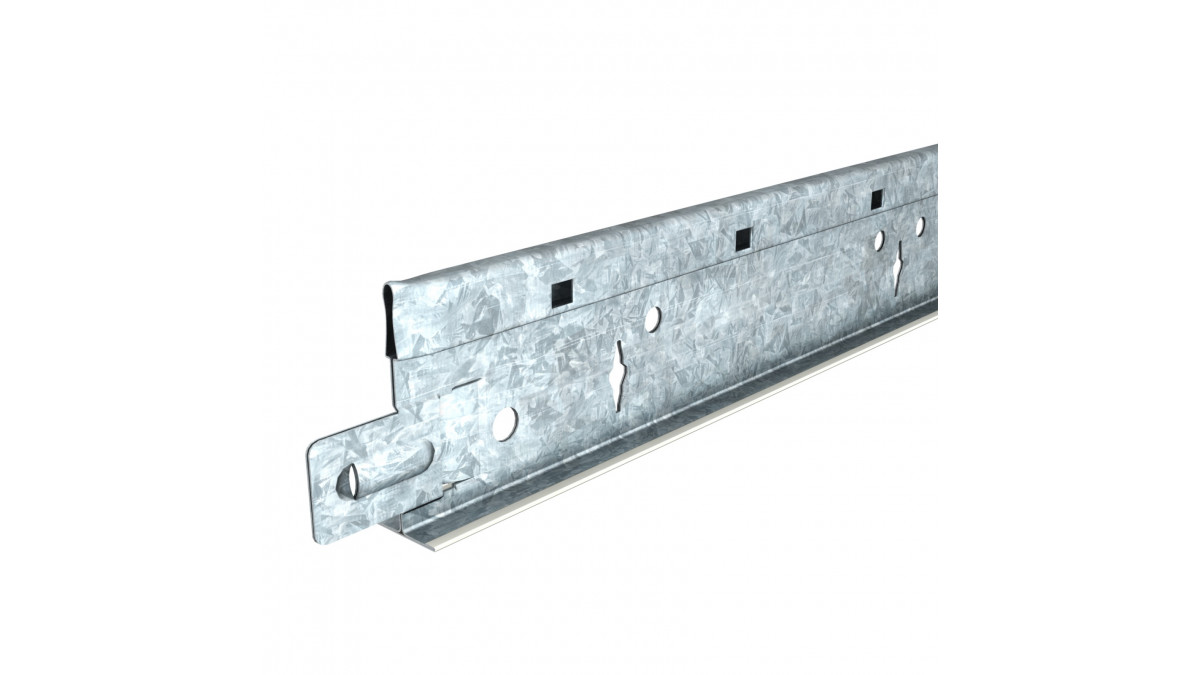

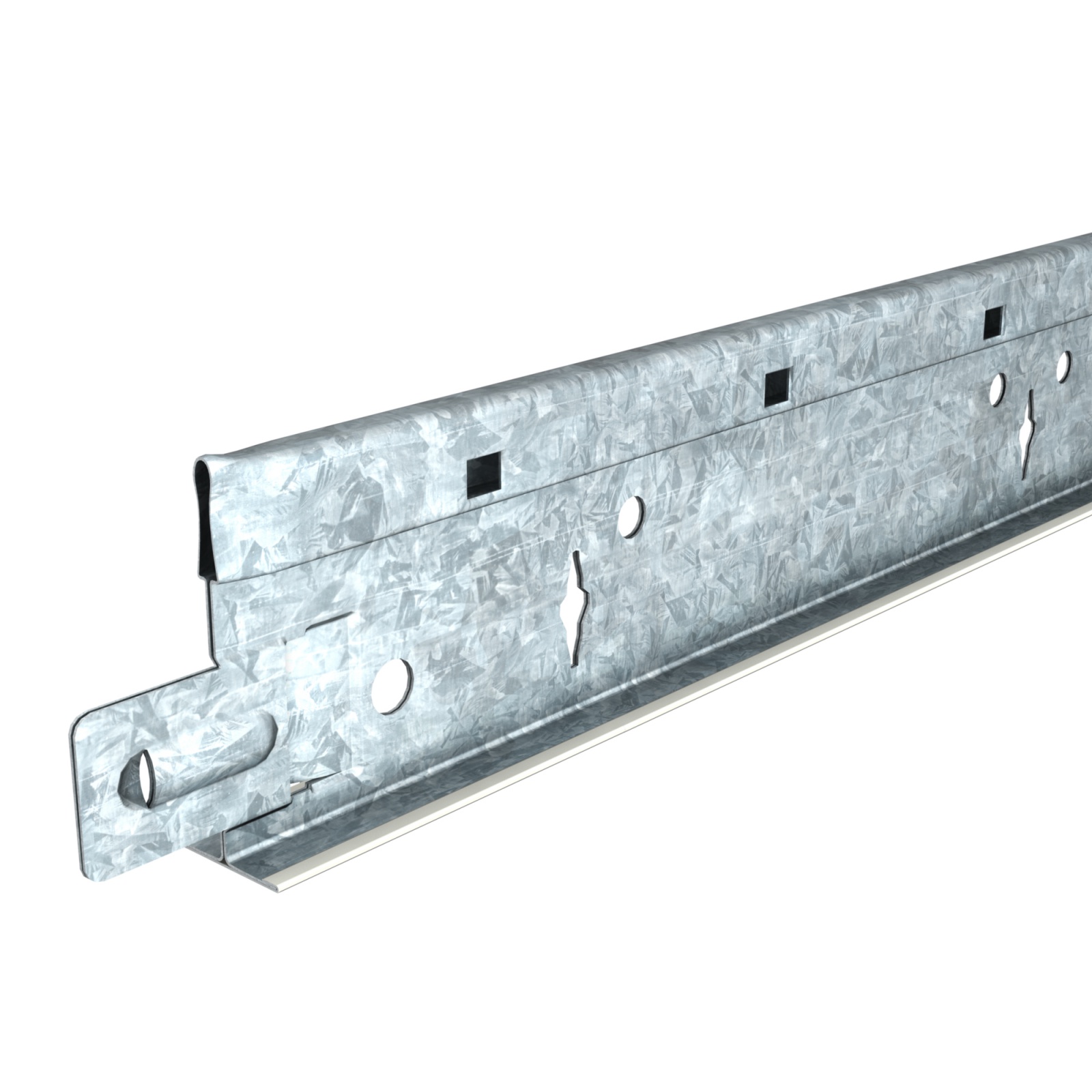

  • Main Tees

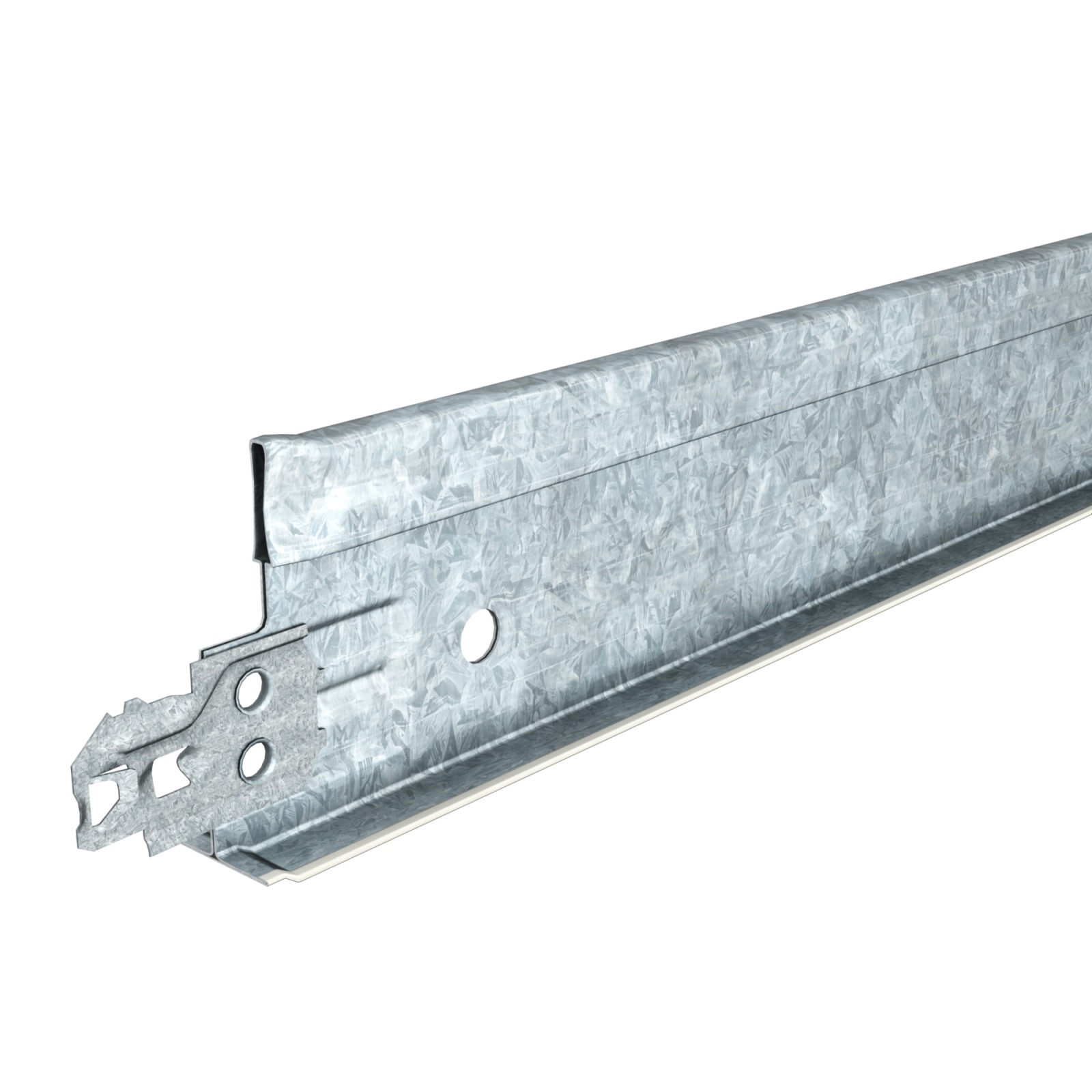

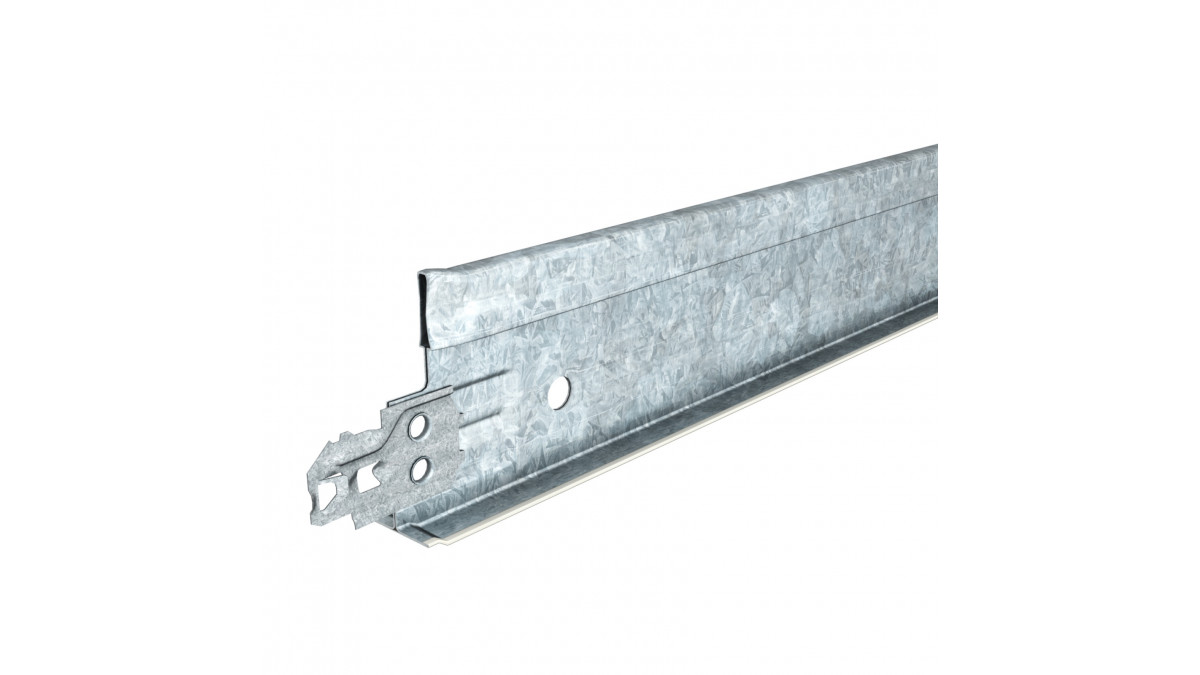

  • Cross Tees

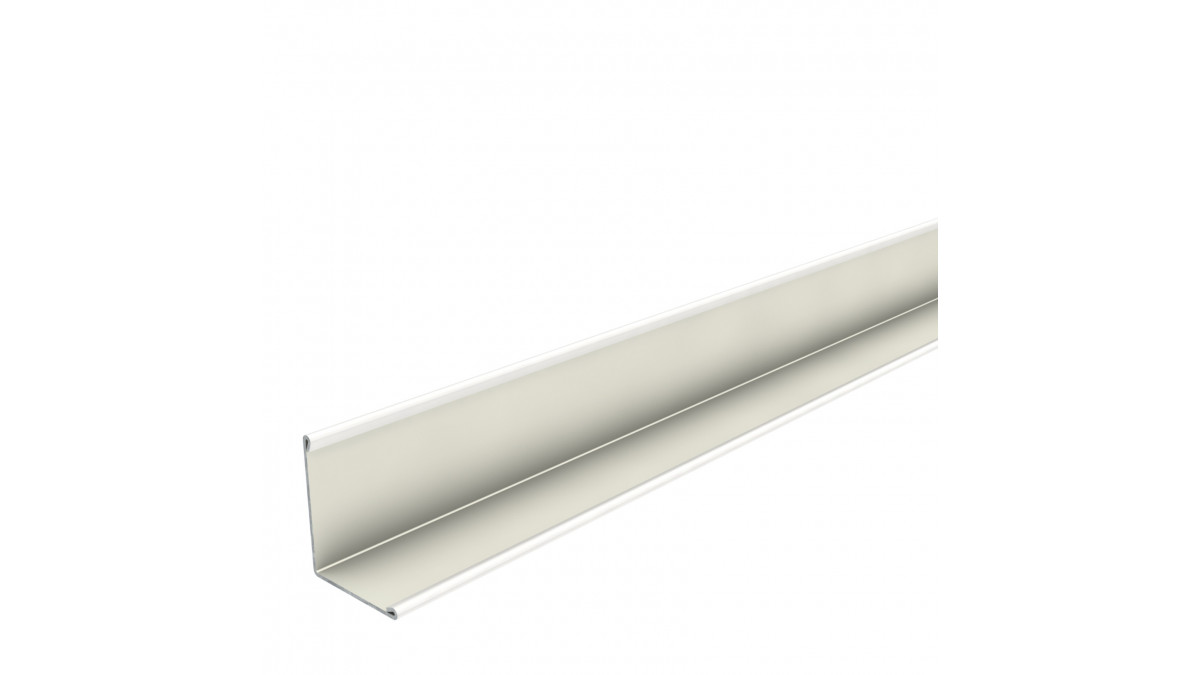

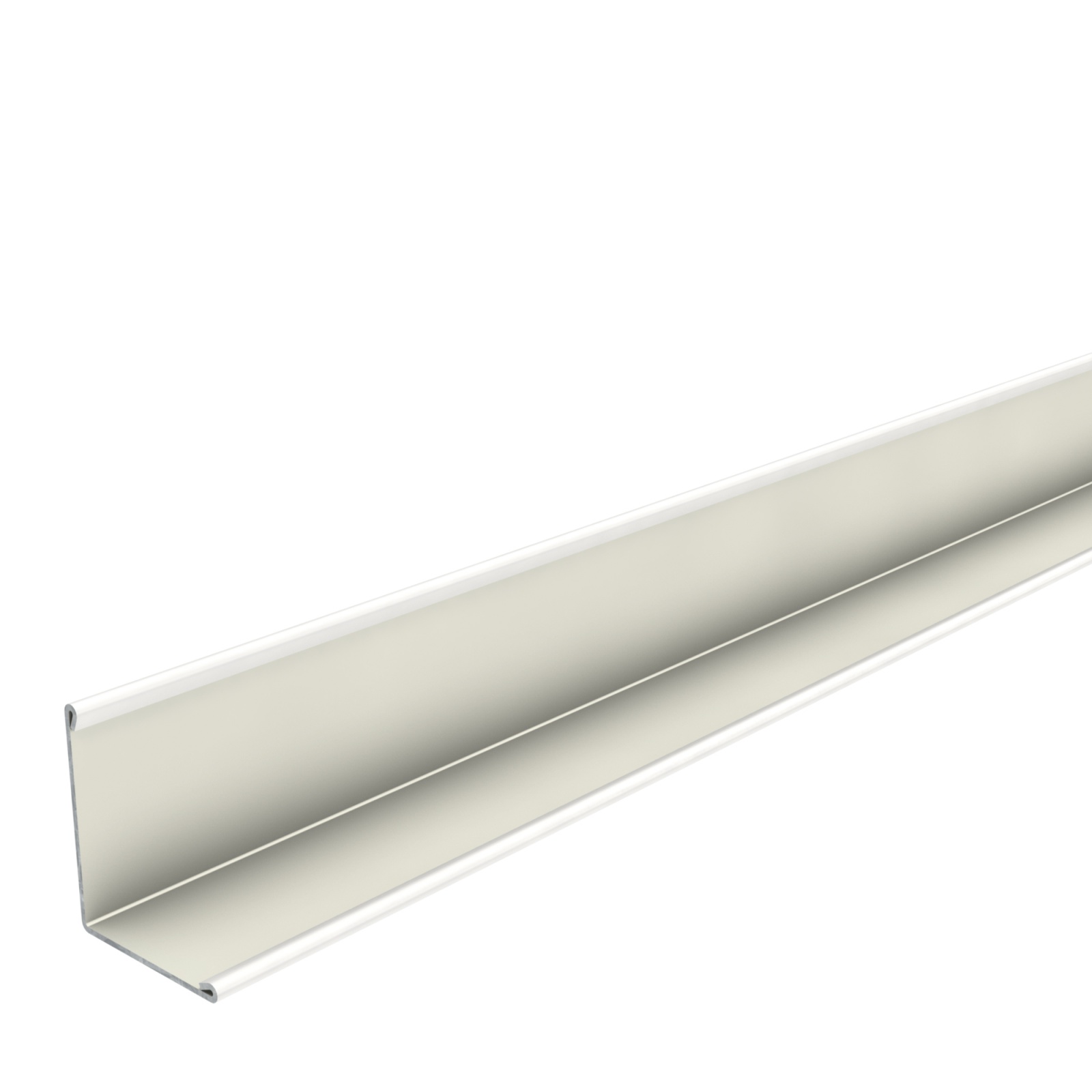

  • Wall Angles
Key Features
  • Quick Release Clips — high tensile, patented design, allows for quick and easy installations
  • Lay-on Cross Tees resist twist and gapping
  • Cross Tees can be cantilevered and will not drop out due to their positive connections
  • Positive lock between Main Tee and Cross Tee is achieved without the need for mechanical tools
  • The DONN 15mm Cross Tees includes a patented centring device to ensure rebated and square edge acoustic panels install square
  • The DONN 24mm Cross Tees come in three heights (38mm, 32mm and 24mm), two gauges (standard and heavy duty) and in two colours (white and black) — covering design possibilities
Categories
Suspended Ceilings
NZ Made
NZ Made
Scope of Use
  • Suitable for use with a variety of lay-in tiles including; acoustic, perforated plasterboard, PVC laminated, and metal
  • Standard 24mm grid, and slimline 15mm grid options
  • Integrates with Rondo XPRESS Drywall Grid Ceiling System allowing transitions between exposed and concealed grid ceilings
Limitations on Use
  • Rondo recommends its products and systems are installed by a qualified tradesperson and according to the relevant codes and standards
  • In addition to the information in the DONN Design Manual professional advice should be sought

Fire Rating:

  • A fire rated version of the Rondo DONN Exposed Ceiling Grid System has been tested and certified for varying Fire Resistant Ratings (FRR/FRL)
  • Rondo Building Services does not supply this specific product generally
  • Reference should be made to the ceiling tile manufacturer for further information

Seismic Design:

  • Seismic specific components of the Rondo DONN System are referred to in the DONN Design Manual
  • For seismic specific design specifications and advice, please speak with a Rondo Technical Representative
Statement of Building Code Compliance

Rondo Building Services uses the following Standards in its manufacturing, testing and marketing policies for compliance with the New Zealand Building Code:

  • NZS 2785 Suspended Ceilings, Design and Installation
  • NZS 4600 Cold Formed Steel Structures Code
  • NZS 1170 Structural Design Actions
  • NZS 1170.5 Earthquake Loads
  • NZS 4219 Specification for Seismic Resistance of Engineered Systems in Buildings

NZBC:

  • B1/VM1 NZ Building Code Verification Method
  • B1/VM1 Clause 2
  • B2 Durability: Rondo DONN 24 and 15mm Systems will have a minimum serviceable life of 15 years when installed in a dry, non-corrosive, interior installation
Other Performance Attributes
  • The DONN 15mm Cross Tees includes a patented centring device to ensure rebated and square edge acoustic panels install square
Documents
Complete Rondo Design Manual
Design Manual: Rondo DONN

April 2019

Rondo Design Wizards
BPIR Statement: DONN Exposed Grid Ceiling

2023

New Zealand Made Licence

2023

Sample Warranty
