Multicom Wall Lining
Description

Resco's Multicom wall panelling system is the smart solution for wet, damp or graffiti-prone high-use areas requiring superior levels of hygiene. Multicom is a cost effective, rugged, one panel walling system; panels are blind fixed with no need for a conventional impact resistant backing sheet.

Key Features
  • 6mm pre-finished compact laminate panels are blind fixed with no need for a conventional impact-resistant backing sheet
  • Wall panels are 6mm thick
  • Large panel sheet size (2450mm x 1850mm) minimises the number of jointers
  • Available in 12 stocked colours and 20 in the designer (12-week lead time)
  • Available in Resco Antibac panels that kill bacteria for the lifetime of the panel
  • Wide range of colours and finishes
  • Easy to clean and low maintenance
  • Available nationwide
Scope of Use

Suitable for interior use:

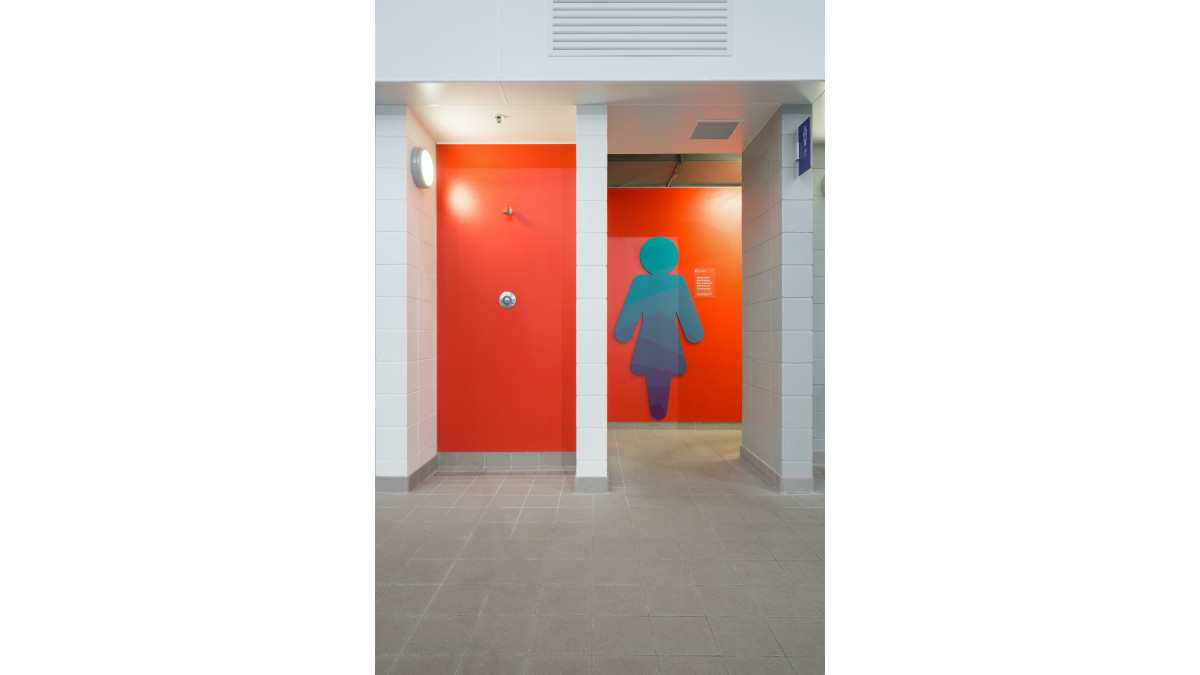

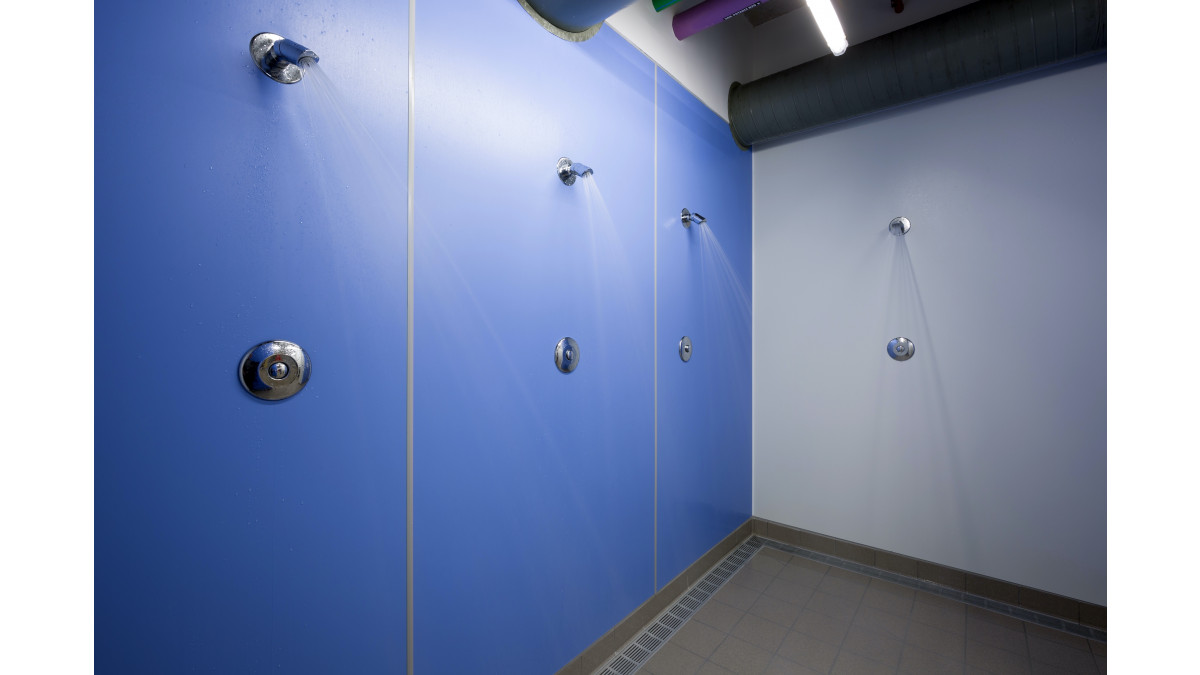

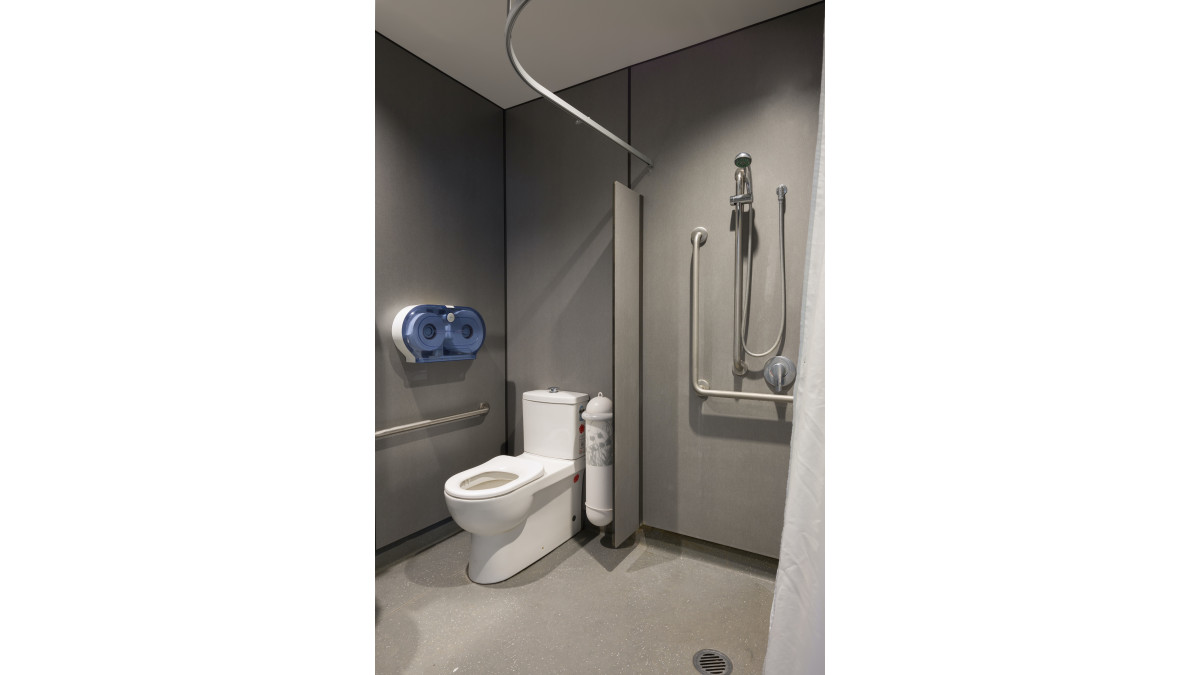

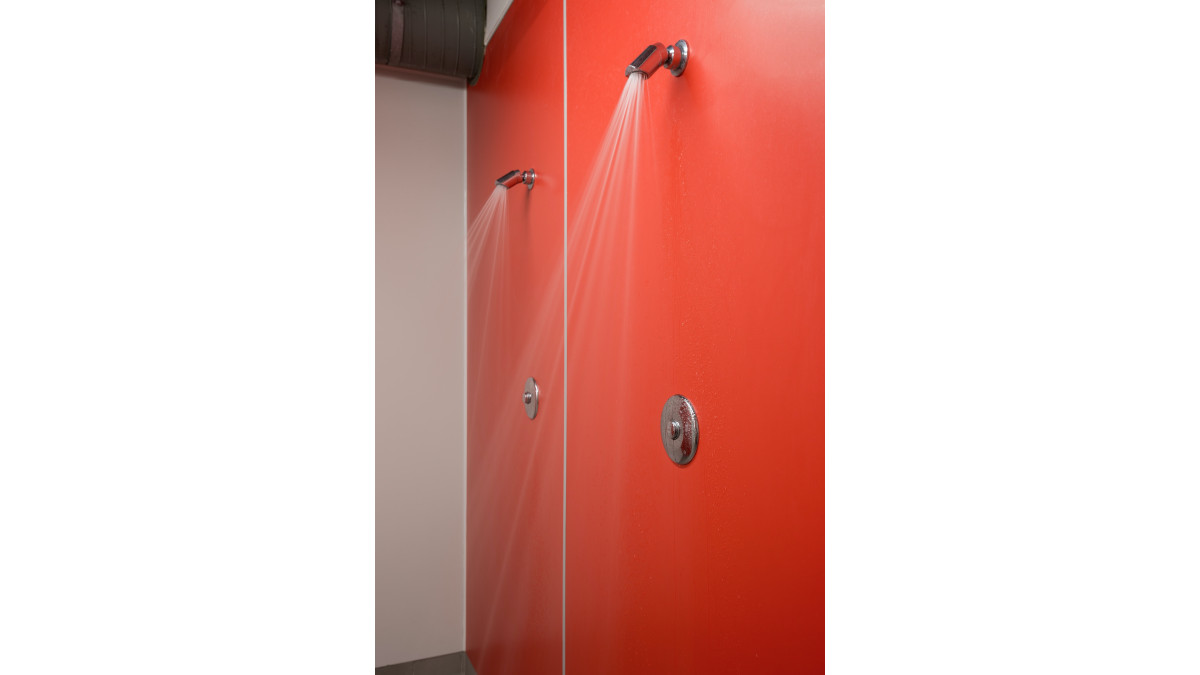

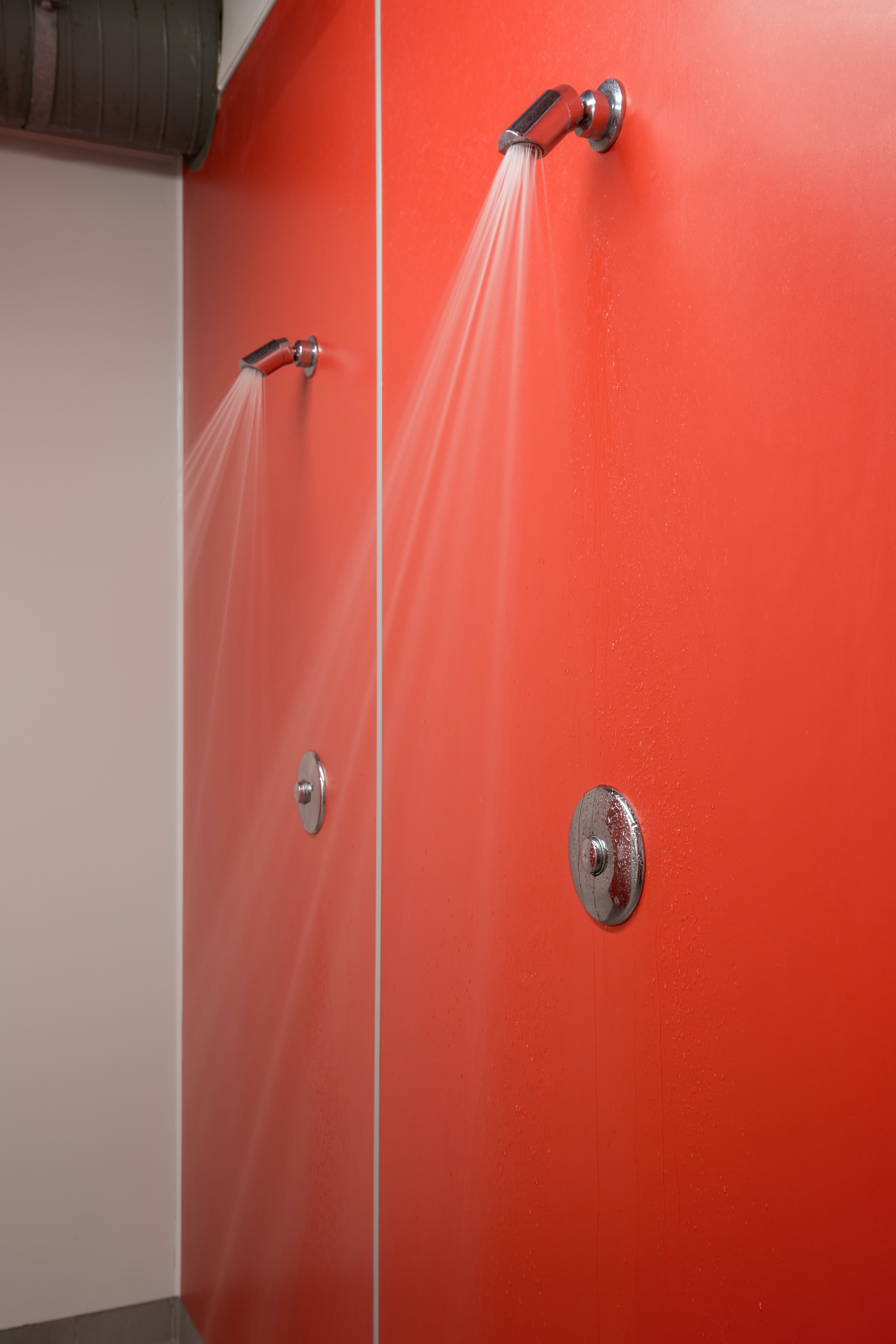

  • Wet or damp areas
  • Areas requiring high levels of hygiene, such as commercial kitchens

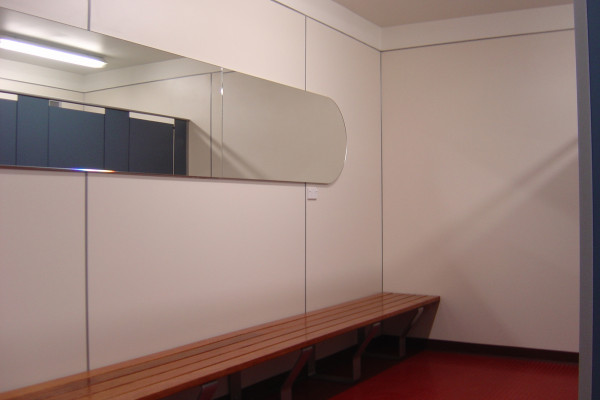

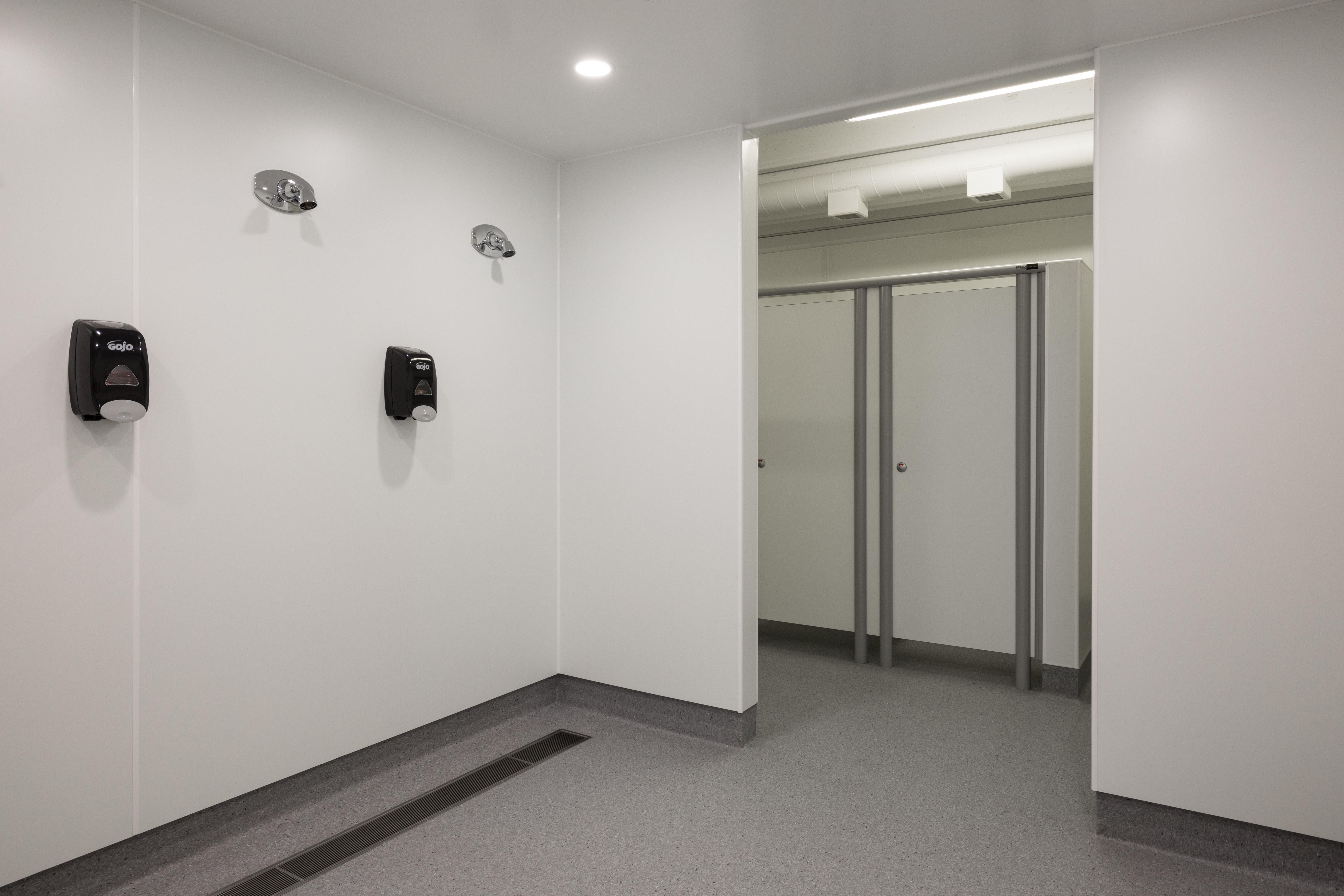

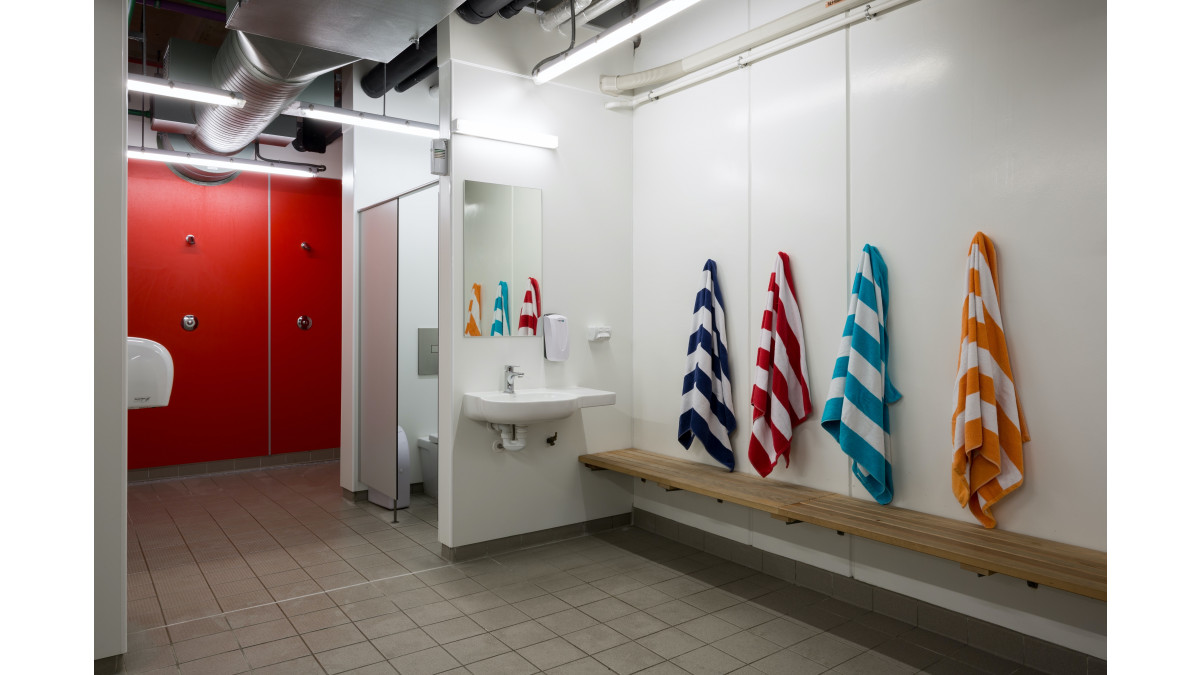

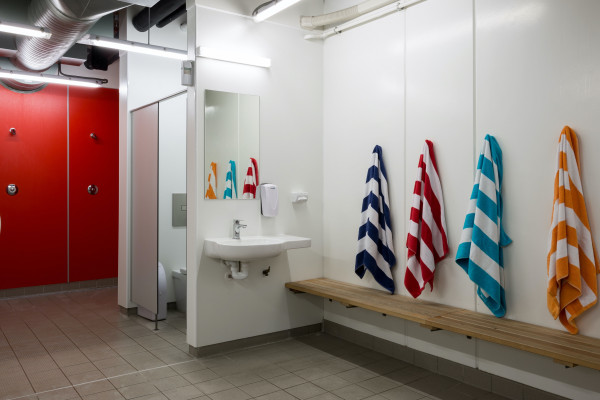

  • Changing rooms and high-use public areas
  • Vandalism prone sites — most graffiti can be easily removed
  • Available in Resco Antibac panels that kill bacteria for the lifetime of the panel

6mm pre-finished compact laminate panels are blind fixed with no need for a conventional impact-resistant backing sheet.

  • Large panel sheet size (2450mm x 1850mm) minimises the number of jointers
Limitations on Use
  • Multicom is meant for internal use — panels are not colourfast in New Zealand's UV conditions
  • As Multicom is BRANZ tested, it must be installed according to the instructions. If these are not followed issues with the system can arise
Statement of Building Code Compliance

Multicom meets the following provisions of the NZBC:

  • Clause B2 Durability: The code requires 5 years — Resco compact laminate has a 10 year guarantee on the panel.
  • Clause C Fire Safety: Resco compact laminate has a group rating of 3 which meets the surface finish requirements for C/AS1 — C/AS7.
  • Clause E3 Internal Moisture: Surfaces of building elements likely to be splashed must be impervious and easily cleaned — Resco compact laminate meets these requirements.
  • Clause F2 Hazardous Building Materials: The Multicom Wall Panel System meets this requirement and will not present a health hazard to people.
In-Service History

Resco has been at the forefront in New Zealand in introducing and innovating Ablution areas. Resco’s products have been installed over the last 20 years.

Other Performance Attributes

The use of Resco systems are a sound choice for the Greenstar rating system — they meet the requirements of IEQ-3 Indoor Air Quality due to low formaldehyde and VOC emissions.

B2 Durability compliant
Durability
C Protection from Fire compliant
Protection from Fire
E3 Internal Moisture compliant
Internal Moisture
F2 Hazardous Building Materials compliant
Hazardous Building Materials
BRANZ Appraised
BRANZ Appraised
Documents
Data Sheet
Anti-bacterial information
Anti-fungi information
Anti-termite information
Soudaseal - Material Data Sheet
Surface Activator - Material Safety Data Sheet
Product Technical Statement
Specification Clause/Guide
Accreditation
Accreditation
BRANZ Appraisal

869 [2019]

Environmental Information
Environmental Information
Environmental Information
Test Results
Installation and Operation
Maintenance Instructions
Warranty
Additional Information

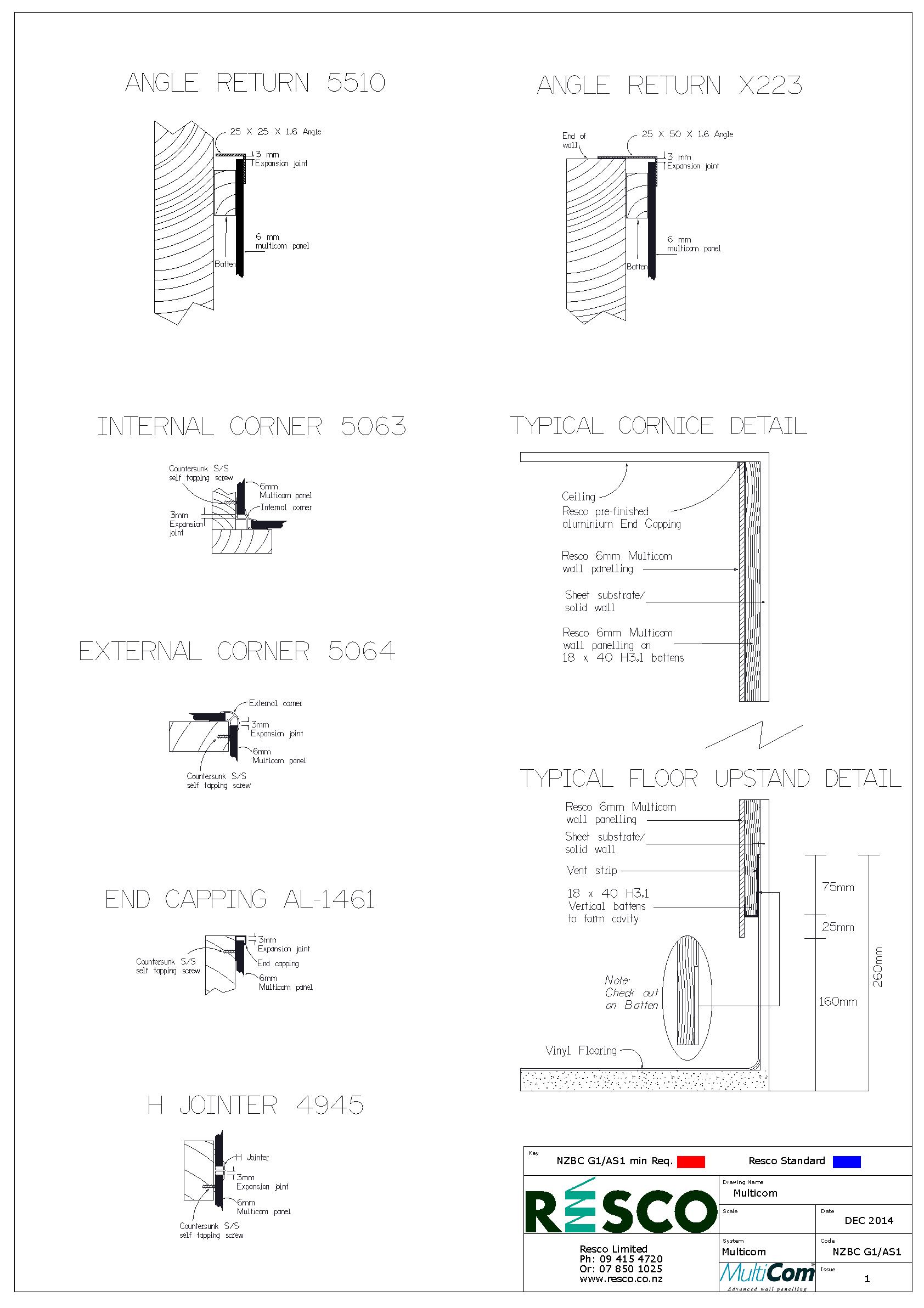

Installation Details
Mulitcom Layout

Resco custom manufacture a range of cubicles, wall linings, lab benches and screens perfect for wet, high traffic and high-abuse areas.
