Horizontal Cladding Profiles
Description

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity is a cavity-based, inter-locking powder-coated aluminium weatherboard system. Available in a wide range of profiles including flat and corrugated designs, and it is suitable for traditional, contemporary or modern aesthetics. Lightweight and weathertight, Nu-Wall Cladding combines durability with functional good-looks.

It is designed to be used as an external wall cladding system for residential and light commercial type buildings where domestic construction techniques are used.

The system includes horizontally fixed Nu-Wall weatherboards, cavity battens, internal and external corner mouldings, starter strip, board jointers, board locators, soffit caps, joinery flashings and accessories.

Horizontal Profiles

  • Louvre — Bevel back weatherboard (60, 120, 150)
  • Ripple — Lightly corrugated (150, 200)
  • Mono — Contemporary ultra flat (100, 200, 400)
  • E Series — Negative detail on flat cladding (100, 200, 70/130, Random)
  • Classique — Traditional weatherboard (136)
  • Shiplap — Modern twist on tradition (150)
  • Aero — Balanced convex curve (70, 115, 200)
Key Features
  • Designed, manufactured and fully supported in New Zealand
  • Tested and appraised by BRANZ — exceeds the quality standards and requirements of New Zealand Building Code
  • Cladding is guaranteed for 100 years, and performs in New Zealand's harshest locations including geothermal, alpine and coastal environments
  • Low maintenance, powder coat finishes are guaranteed for up to 20 years
  • Made from over 80% recycled aluminium, and fully recyclable
  • Lightweight, unquestionably weathertight, and non-combustible
  • Nu-Wall can be powder coated up to 8.3m long boards
Categories
Aluminium Cladding
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
Recycled Content (Pre-Consumer)
Pre-Consumer Recycled Content
Scope of Use

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has been appraised as an external wall cladding for buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • constructed with timber framing complying with the NZBC; and,
  • with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • situated in NZS 3604 Wind Zones up to, and including, Extra High.

The Nu-Wall Aluminium Cladding System — Horizontal on Cavity has also been appraised for weathertightness and structural wind loading when used as an external horizontally fixed wall cladding system for buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • constructed with timber and steel framing complying with the NZBC; and,
  • situated in specific design wind pressures up to a maximum design differential ultimate limit state (ULS) of 2.5 kPa.

See BRANZ Appraisal 550 for full information.

Limitations on Use
  • The Nu-Wall Aluminium Cladding System — Horizontal on Cavity must only be installed horizontally on vertical, flat surfaces
  • The tops of parapets and balustrades must have a minimum 5º slope and be waterproofed with metal cap flashings in accordance with the Technical Literature
  • The Nu-Wall Aluminium Cladding System — Horizontal on Cavity is appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills. (Note: The Appraisal relies on the joinery meeting the requirements of NZS 4211 for the relevant Wind Zone, or wind pressure)
Statement of Building Code Compliance

In the opinion of BRANZ, the Nu-Wall Aluminium Cladding System — Horizontal on Cavity, if designed, used, installed and maintained in accordance with the statements and conditions of Appraisal 550, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. — meets the requirements for loads arising from self-weight, wind and impact [i.e. B1.3.3 (a), (h) and (j)]
  • Clause B2 DURABILITY: Performance B2.3.1 (b), 15 years
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1

See BRANZ Appraisal 550 for full information.

Other Performance Attributes
  • Nu-Wall aluminium cladding is guaranteed for 100 years — won't rot, corrode, or warp
  • Performs in New Zealand’s harshest locations, including geothermal, alpine and coastal environments
  • Easy to maintain — requiring only an occasional wash down
  • Factory-applied powder coat finishes are guaranteed for up to 20 years
  • Ecologically responsible product — over 80% composed of recycled aluminium
  • After a guaranteed life-time of over a 100 years, Nu-Wall cladding can be fully recycled
BRANZ Appraised
BRANZ Appraised
Documents
Batten Layout

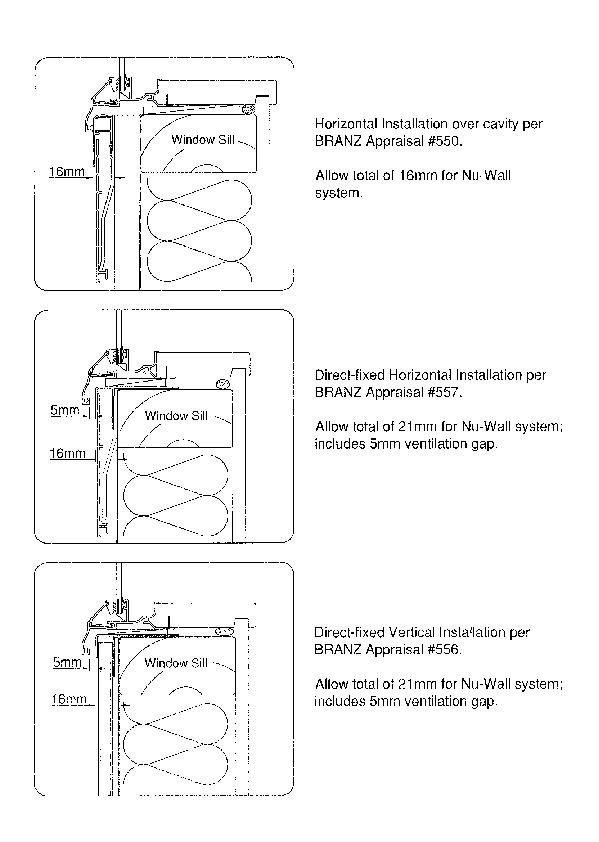

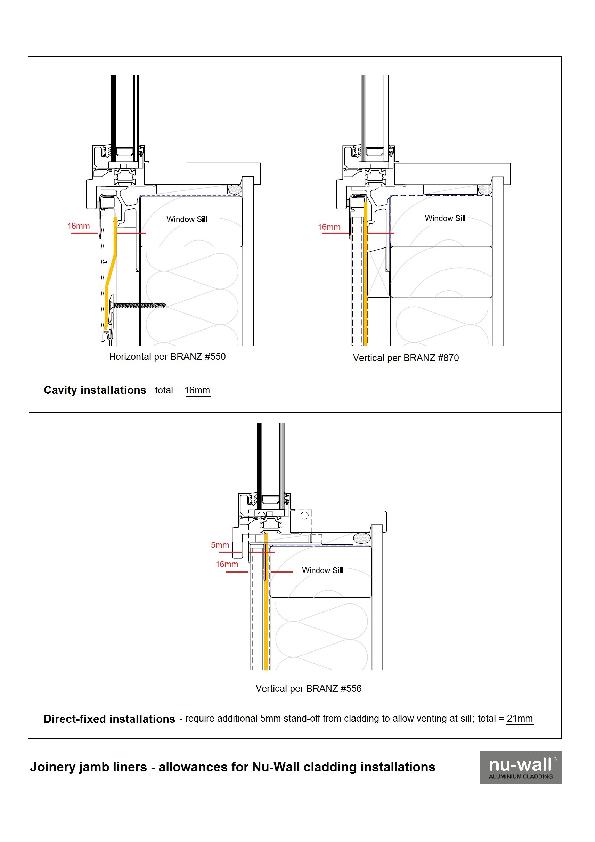

Full CAD Library
Horizontal Profiles Range

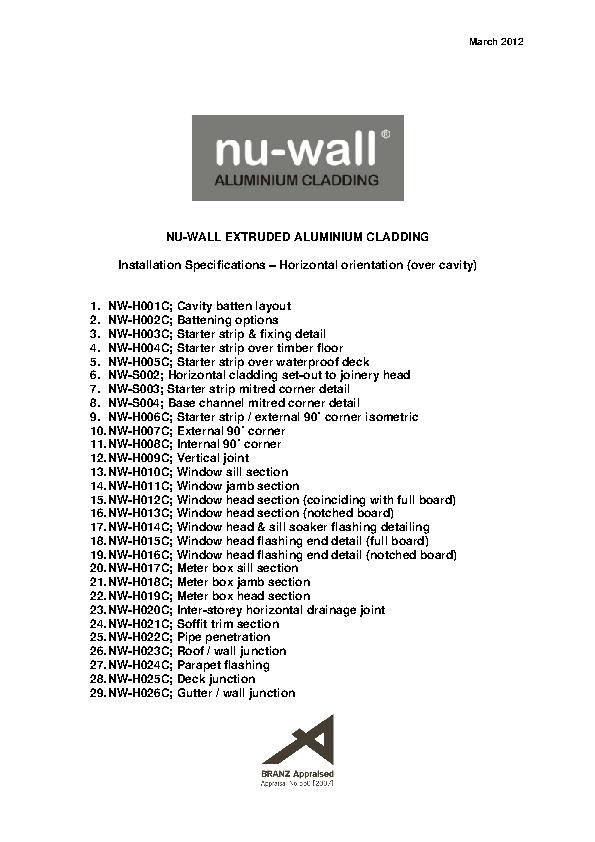

Technical Resources Library
BPIR Product Statement

July 2023

General Product Statement (GPS)
Nu-Wall General Product Statement

2022

Product Technical Statement (PTS) Horizontal on Cavity

September 2023

BRANZ Appraisal 550 — Horizontal On Cavity

550 (2019) Amended 10 May 2022

Care & Maintenance Overview
Brochure
Colour and Finishes Guide

Nu-Wall offer high performance, low maintenance and architect inspired cladding.
