End Fixed Louvres
Louvretec
All products

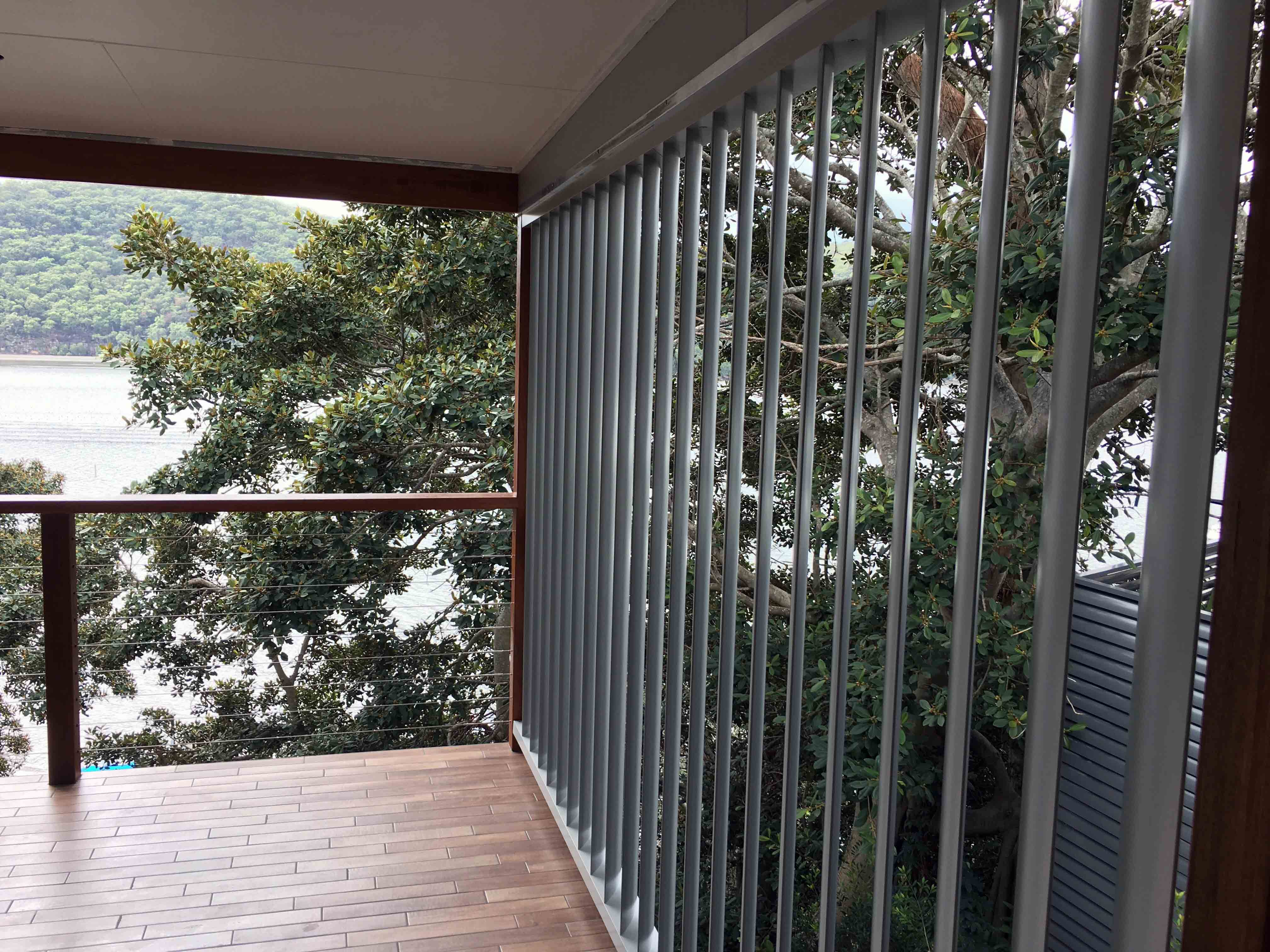

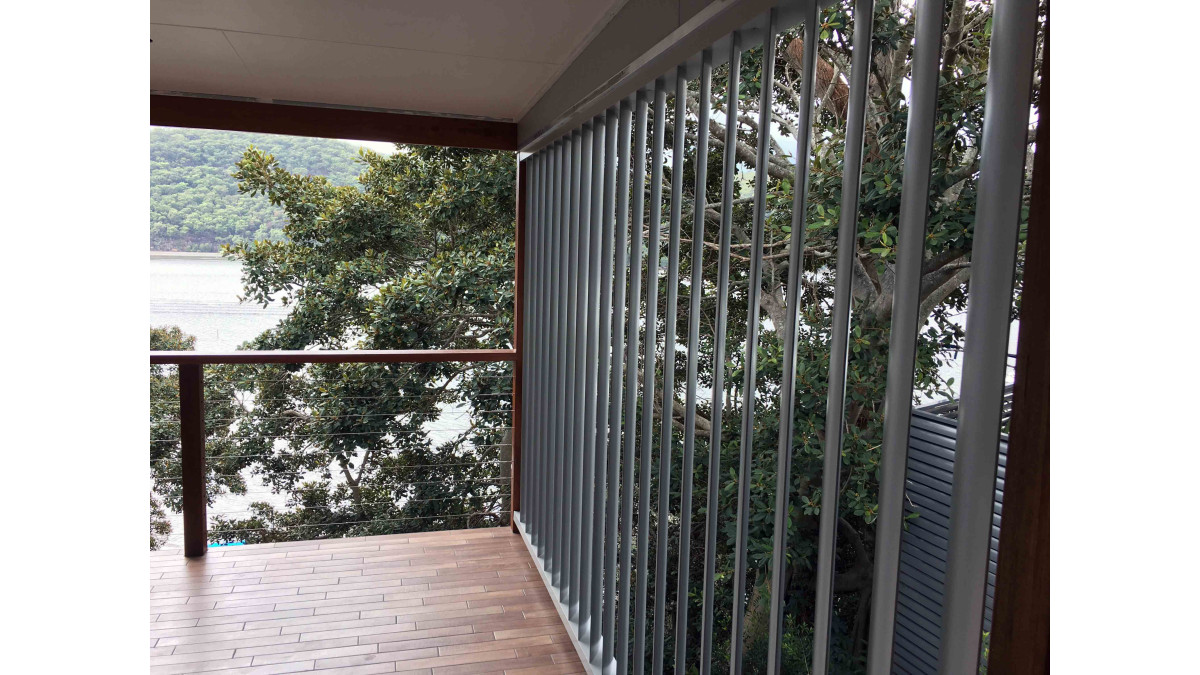

200mm Airfoil Vertical End Fixed Louvres
End Fixed 200mm Maxi Louvres
Description

Louvretec Sun Louvres are designed with internal screw fixing ports, allowing for versatile End Fixed installations, enabling you to customise the pitch and centre to your specifications – putting you in control of the amount of sunlight and shade, making a significant impact on the space and building.



Key Features
  • Louvres can be positioned either vertically or horizontally within a Louvretec Frame
  • Louvretec's End Fixing system features internal screw fixing ports
  • It's essential to consider blade pitch, as it greatly influences both shade and privacy
  • The standard options for Blade Pitch include; Blade Pitch Up (the louvres tilt upwards) | Blade Pitch Centred (the louvres are level) | Blade Pitch Down (the louvres tilt downwards)
  • End Fixed Louvres can fit seamlessly within a frame, eliminating the need for end caps
  • End Fixed Louvres  can extend beyond the frame, with add end caps to each of the blades
  • Louvres can also be End Fixed Overhead, allowing you to control the light and shade overhead while adding to the exterior appeal of the home or building
  • End Fixed Overhead Louvres can be installed horizontally in existing openings or within a dedicated structural sub-frame, often referred to as an 'Eyebrow' configuration
  • Compatible Louvres include Airfoil, Rectangular and RL Square End or Mitre End Louvres
  • Louvretec also offers chimney cowls comprising of either End Fixed or Bracket Fixed Louvre surrounds
  • Perfect for Louvre Screens and Panel
  • Suitable as Shutter Infills
  • Designed with engineering precision
  • Constructed from durable aluminium
  • Available in an extensive palette of powder coat colour
  • Anodising options are also available
  • Aluminium End Fixed Louvres can also be finished in a wood grain timber-look
  • Proven reliability backed by decades of performance
  • Offers control over sun, shade, and privacy
Categories
Louvres, Shutters, Screens, and Grilles
Ranges
Louvre Shutters Sun Louvres Airfoil Sun Louvres Rectangular
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For residential and commercial projects
  • Louvre spans in wind zones as set out in Louvretec Design Manual
Limitations on Use
  • Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual
In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are constructed of aluminium
  • Louvretec is in its 25th year of operation
Independent Assessment
Independent Assessment
Documents
Louvretec 2025 Design Manual - Full

Louvretec 2025 Design Manual

pdf
Louvretec 2025 Design Manual Section 10.2

2025

pdf
Louvretec 2025 Design Manual Section 10.4

2025

pdf
Maintenance and Warranty

Louvretec 2025 Sun Louvres Warranty

pdf
Brochure

Louvretec 2025 Sun Louvres Brochure

pdf
CAD/PDF Details
View full
Section 10d Sun Louvres End Fixed Louvretec DM 2025 FINAL Page 20
Typical Detail 180mm Airfoil End Fixed Louvres

10.4.21

Louvretec 2025 Design Manual

dwg

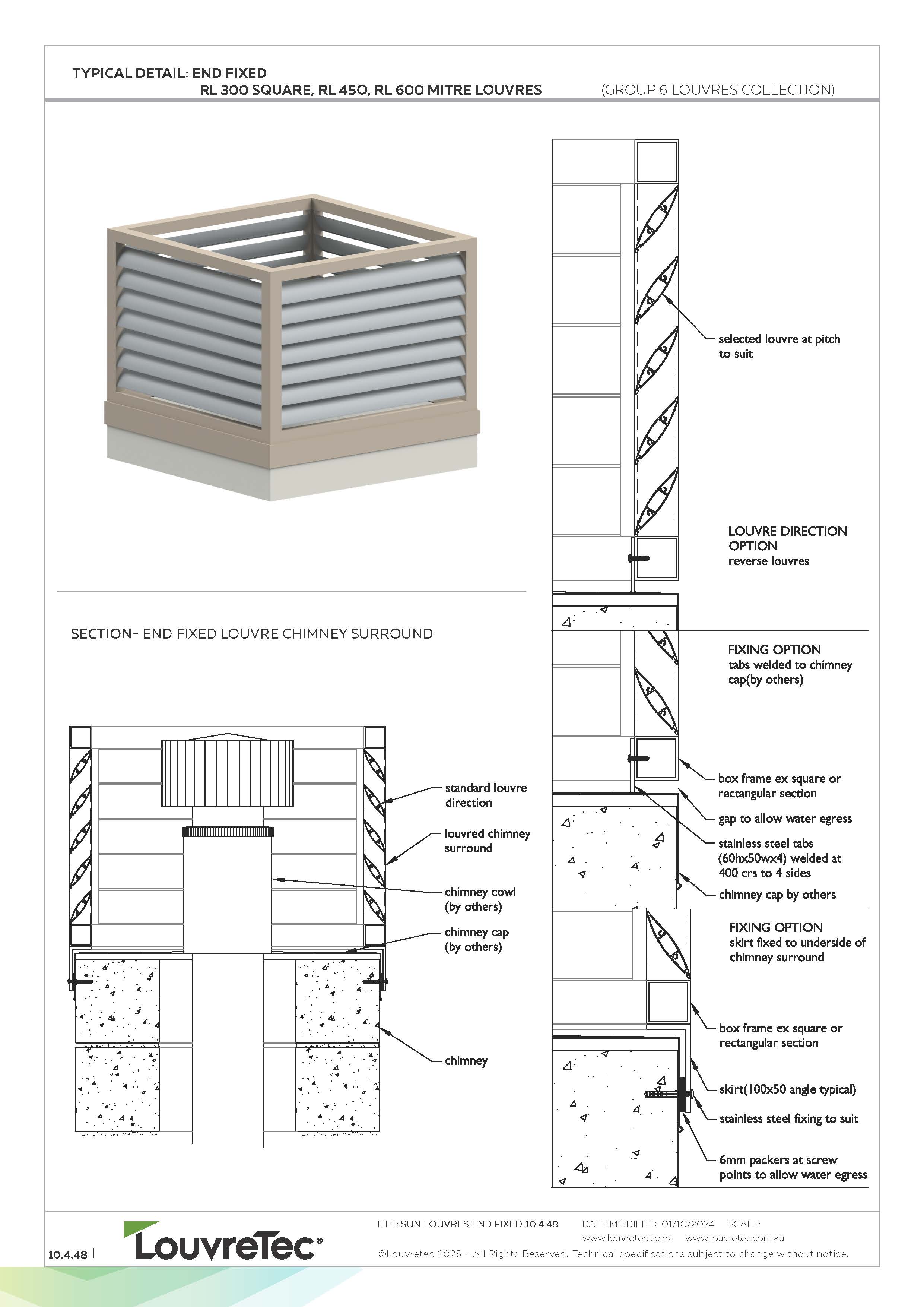

Section 10d Sun Louvres End Fixed Louvretec DM 2025 FINAL Page 49
Typical Detail Chimney Surround with End Fixed Louvres

10.4.48

Louvretec 2025 Design Manual

dwg
BIM
View full
200 MAXI END FIXED (HORIZONTAL PANEL
3D Model | 200mm Maxi Louvre End Fixed Horizontal Panel

Louvretec 2025 Design Manual

rfa
RL 600 MITRE LOUVRE END FIXED HORIZONTAL PANEL
3D Model | RL600 Mitred Louvre - End Fixed Horizontal Panel

Louvretec 2025 Design Manual

rfa
