Bracket Fixed Louvres
Description

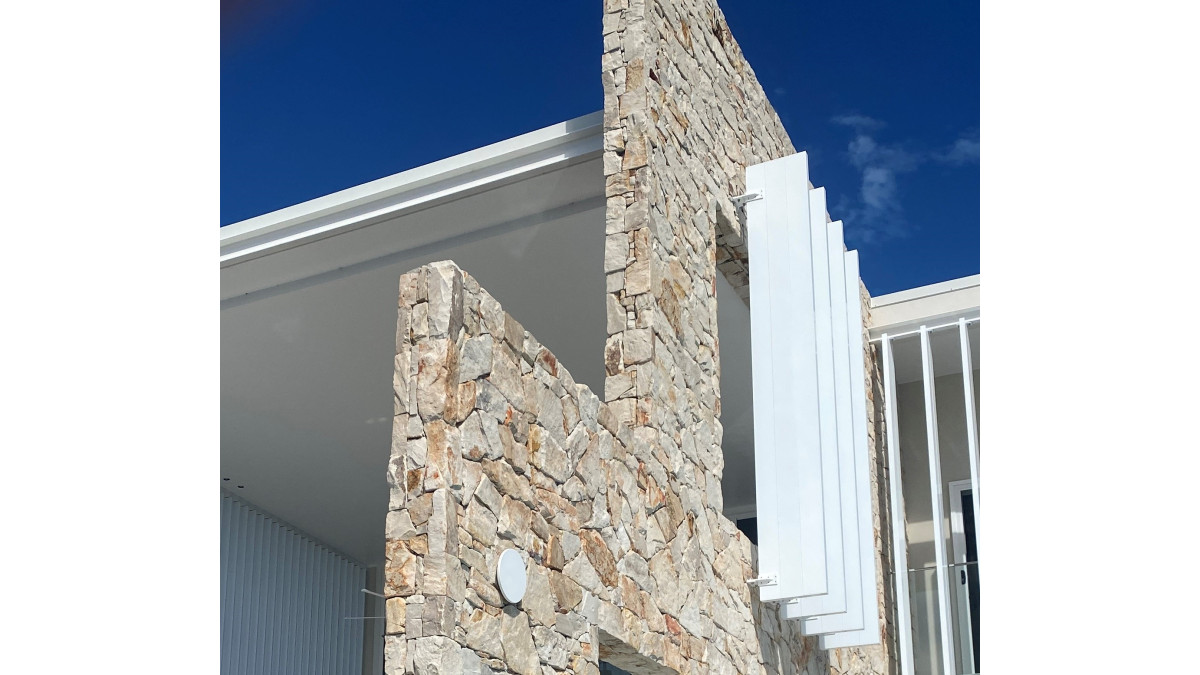

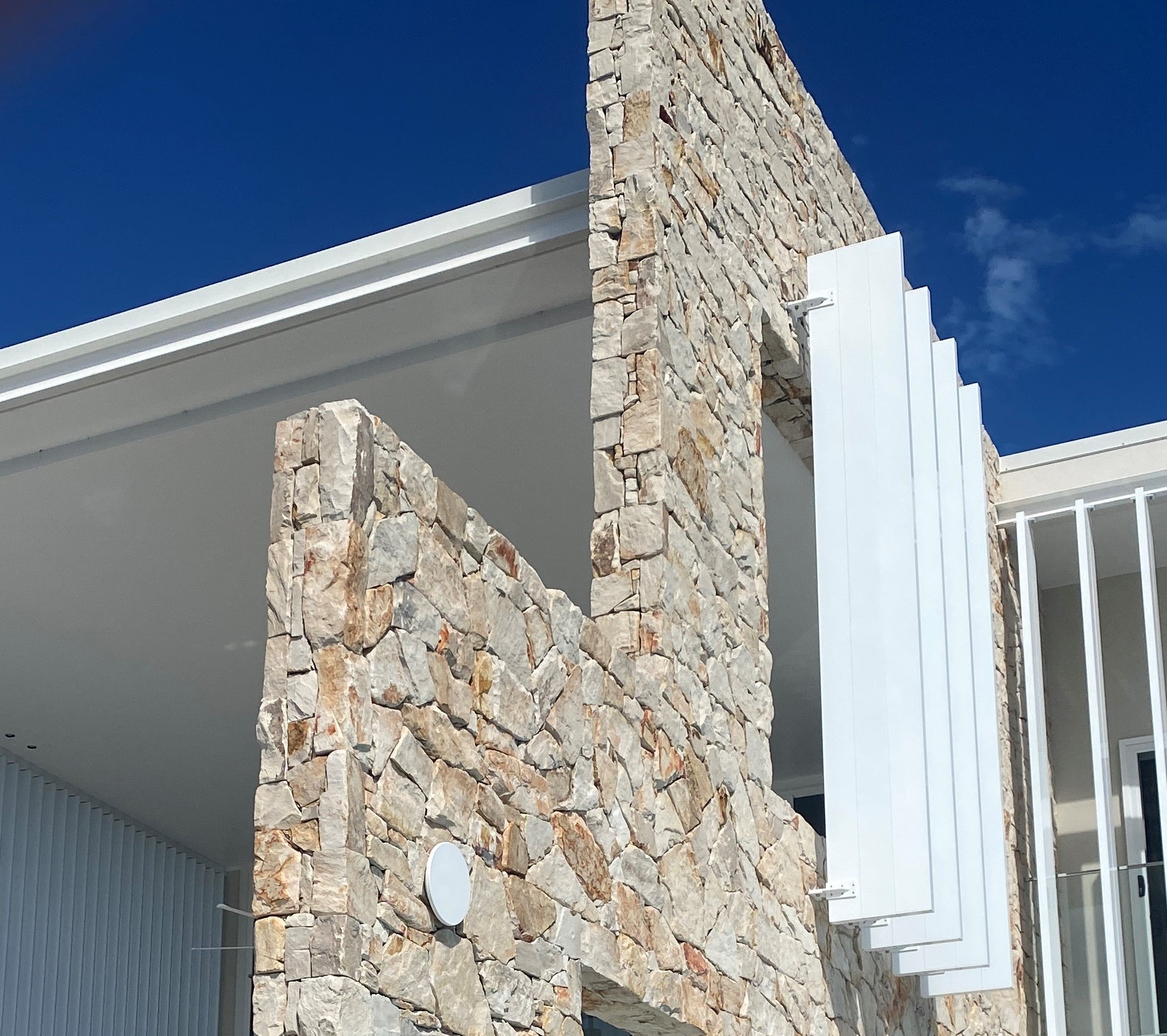

Bracket fixing enables louvres to be securely installed and aligned in extended runs, creating a contemporary and streamlined appearance while providing effective sun control and aesthetic. This installation method features an innovative Louvretec bracket system designed to accommodate long runs of louvres.

Bracket Fixed Louvres are designed to be non-adjustable, meaning they remain securely in place once installed. Louvretec can assist in determining the ideal angle for fixing the Louvres to meet your specific requirements.

A vast array of Louvretec Louvres can be fitted using the Bracket Fixing system, with powdercoat and anodised finishes available, including a woodgrain-timber-look finish.

Key Features

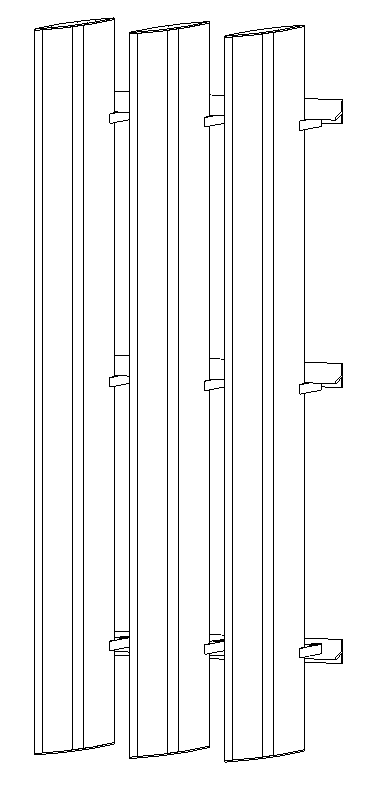

  • Features Louvretec's specially crafted bracket fixing system, along with custom-manufactured die-cast or extruded brackets, ensures complete control over pitch and spacing.

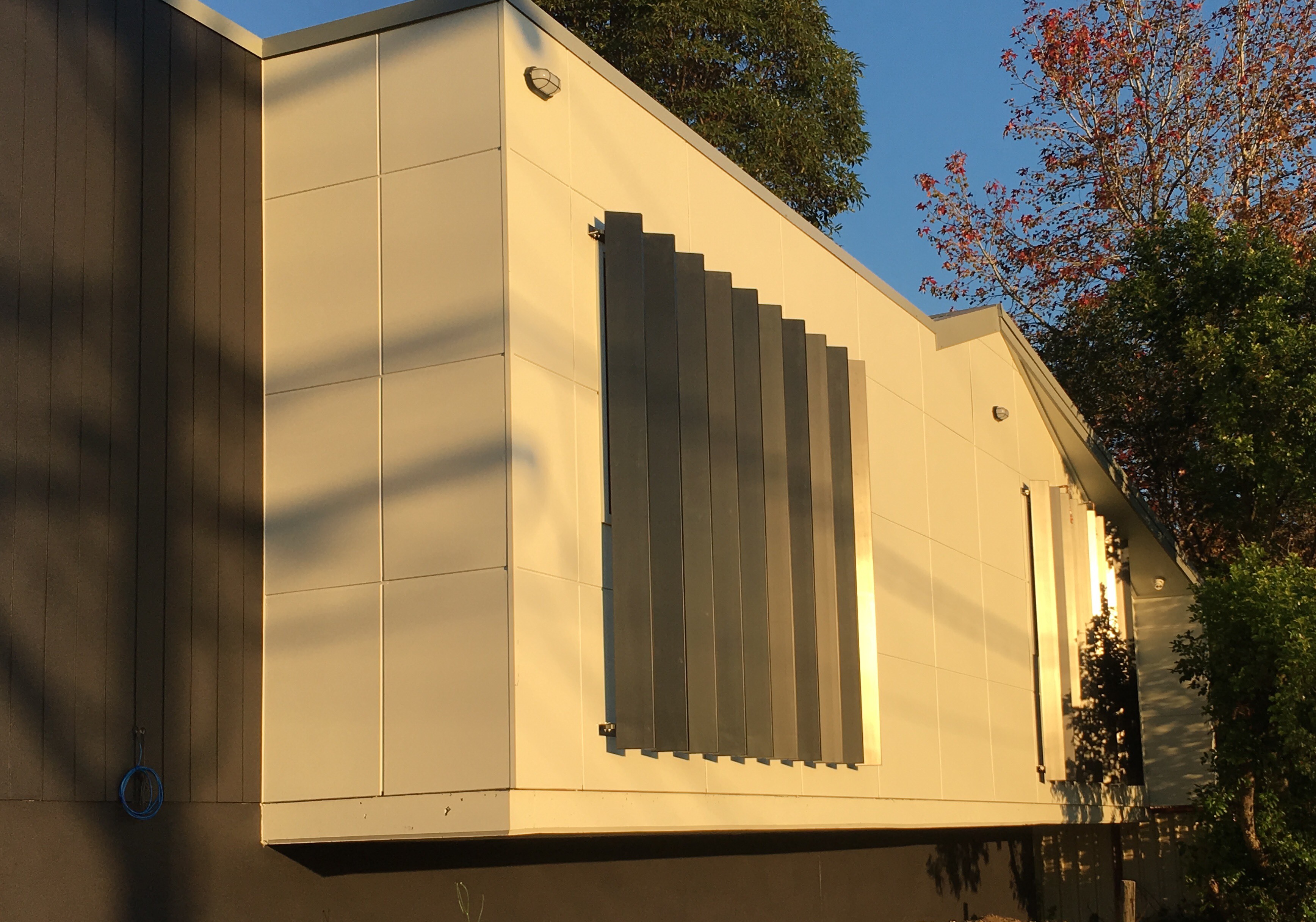

  • Louvretec Bracket Fixed Louvres can be oriented both vertically and horizontally
  • With Bracket Fixing Sun Louvres, the blades can be set at any desired pitch or spacing. Since the blades are fixed in position, this decision is crucial, and Louvretec can to help determine the best setup for the project's shading and privacy needs.
  • Internal screw fixing ports allow for end fixing of the blades
  • Selection of pitch angles available
  • Create Bracket Fixed Panels and Chimney Surrounds
  • Engineered for performance
  • Constructed from durable aluminium
  • Extensive range of powder coat colours offered
  • Anodising options available
  • Options for a wood grain finish
  • Reliable and effective, proven over many years
  • Enhances the aesthetic appeal of homes and buildings
  • Provides sun protection, shade, and privacy
  • Compatible Louvres for Bracket Fixing include: 90mm Midi, 120 Airfoil, 150 Midi, 180 Airfoil, 200 Maxi, 300 Maxi, 600 Maxi, Weatherboard Louvres, RL Louvres
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • For residential and commercial projects
  • Louvre spans in wind zones as set out in Louvretec Design Manual

Compatible Louvres for Bracket Fixing include:

  • 90mm Midi, 120 Airfoil, 150 Midi, 180 Airfoil, 200 Maxi, 300 Maxi, 600 Maxi, Weatherboard Louvres, RL Louvres
Limitations on Use
  • Any use outside of Louvretec's nominated Louvre spans for wind speeds over 55m/s as set out in the Louvretec 2025 Design Manual
In-Service History

Louvrecare is Louvretec's valet and maintenance division. Louvrecare 'Care and Maintenance Department' was established more than 15 years ago & exists to ensure your louvres remain in optimal condition.

Other Performance Attributes
  • Louvretec Louvres can be powdercoated, anodised or finished in a wood grain timber-look
  • Louvretec Louvres are constructed of aluminium
  • Louvretec is in its 25th year of operation
Independent Assessment
Independent Assessment
Documents
Louvretec 2025 Design Manual - Full

Louvretec 2025 Design Manual

Louvretec 2025 Design Manual Section 10.2

2025

Louvretec 2025 Design Manual Section 10.4

2025

Louvretec 2025 Design Manual Section 10.5

2025

Maintenance and Warranty

Louvretec 2025 Sun Louvres Warranty

Brochure

Louvretec 2025 Sun Louvres Brochure

CAD/PDF Details
Louvretec 150 Midi Bracket Fixed Louvres

10.5.15

Louvretec 2025 Design Manual

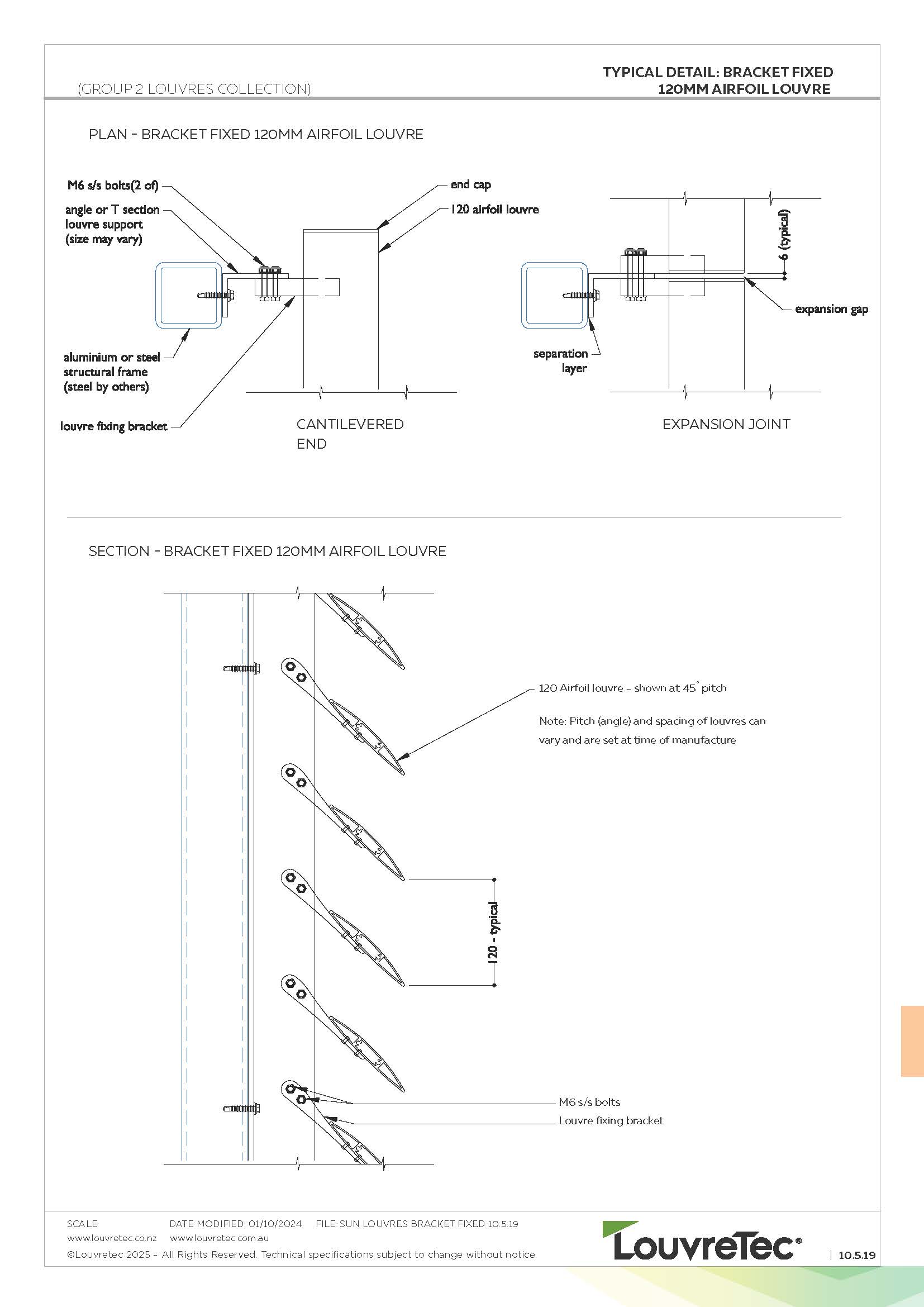

Louvretec 120mm Airfoil Bracket Fixed Louvres

10.5.19

Louvretec 2025 Design Manual

BIM
Louvretec Bracket Fixed Vertical Panel with Horizontal RL300 Square Louvres

Louvretec 2025 Design Manual

Louvretec Bracket Fixed Vertical Panel with Horizontal Louvres

10.5.18

Louvretec 2025 Design Manual
