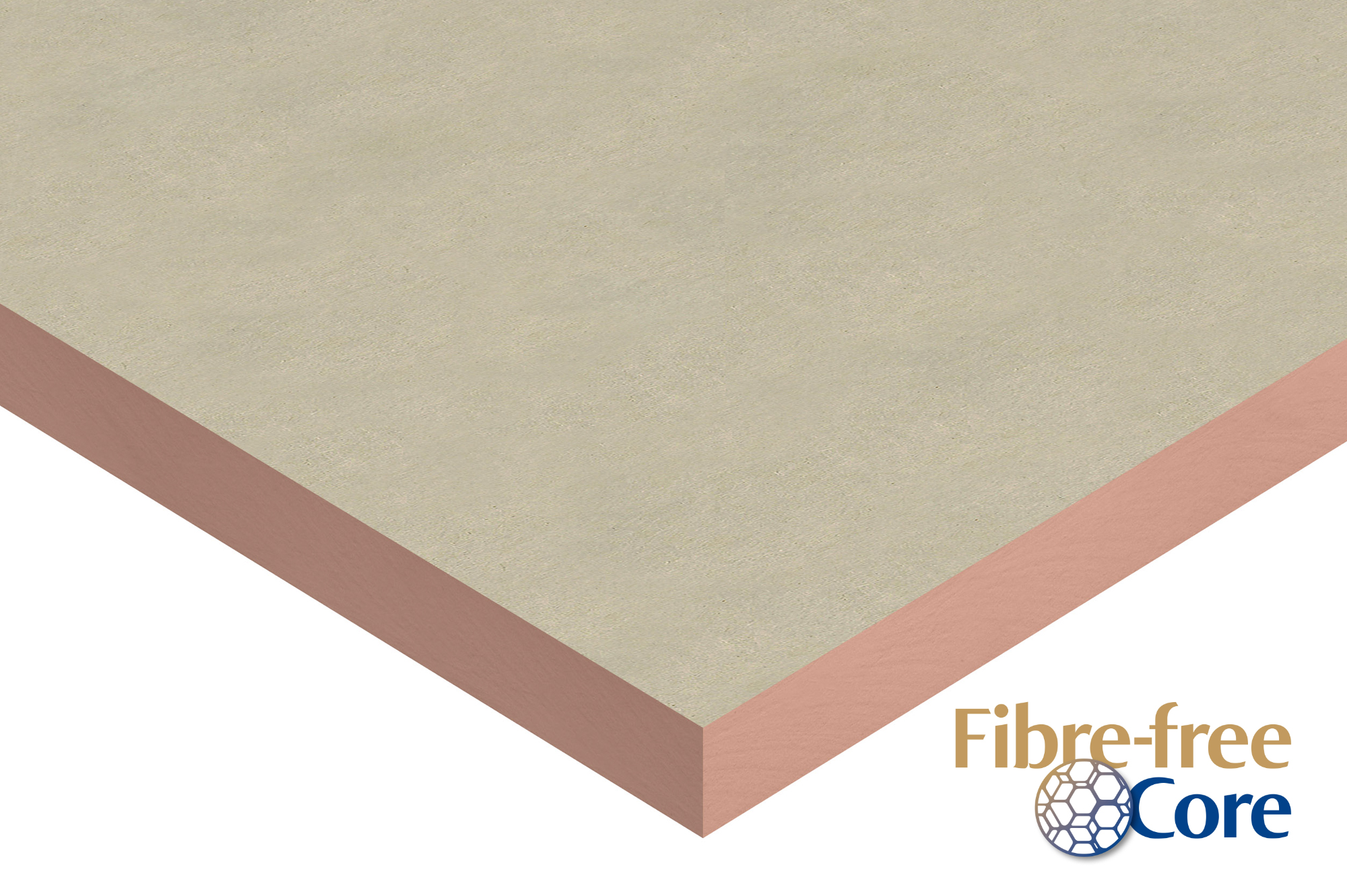

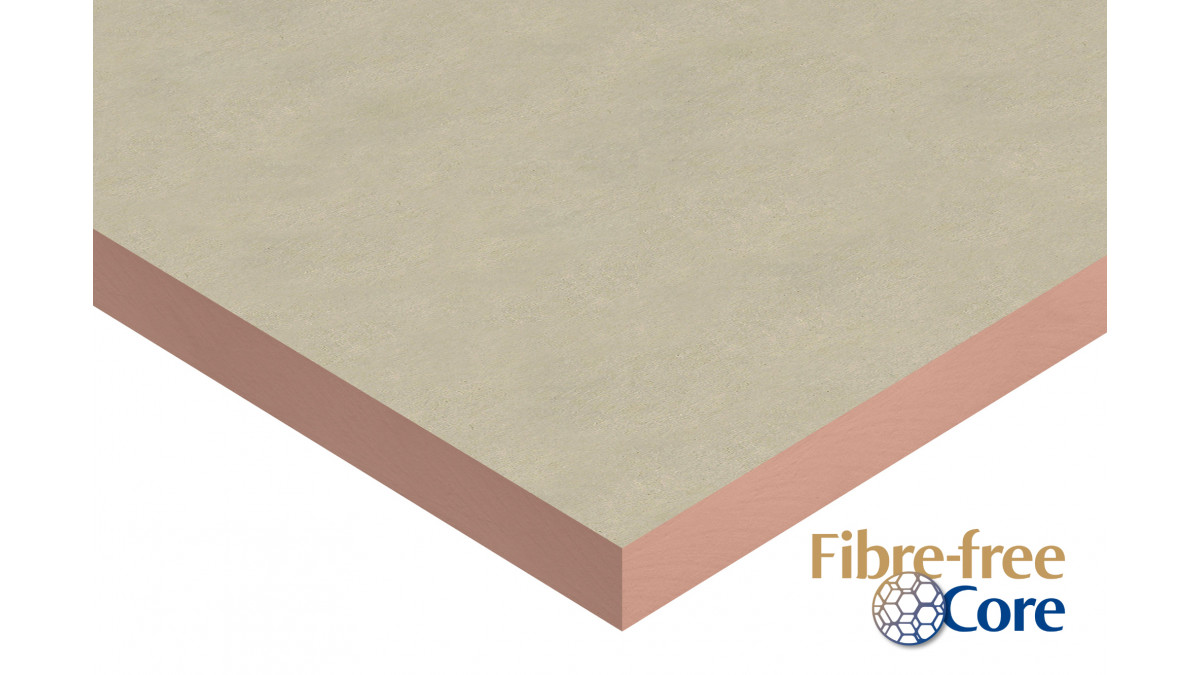

Kooltherm K5 External Wall Board
Description

Kingspan Kooltherm K5 External Wall Board is a high performance, fibre-free rigid thermoset phenolic insulation core, sandwiched between two layers of tissue based facing autohesively bonded to the insulation core during manufacture. Kingspan Kooltherm K5 External Wall Board is manufactured without the use of CFCs/HCFCs and has zero Ozone Depleting Potential (ODP) and low Global Warming Potential (GWP).

Key Features
  • Super high performance rigid thermoset phenolic insulation
  • Fibre-free, closed cell insulation core
  • Resistant to the passage of water vapour
  • Easy to handle and install
  • Ideal for new build and refurbishment
  • No CFC or HCFC used in manufacture
  • Has zero ODP and low GWP

Specifications

Product size:

  • 2400mm x 1200mm (2.88m²)

Product thickness and R-value:

  • 50mm (R 2.3)
  • 80mm (R 3.65)
Categories
Thermal Insulation
Ranges
Kooltherm
Scope of Use

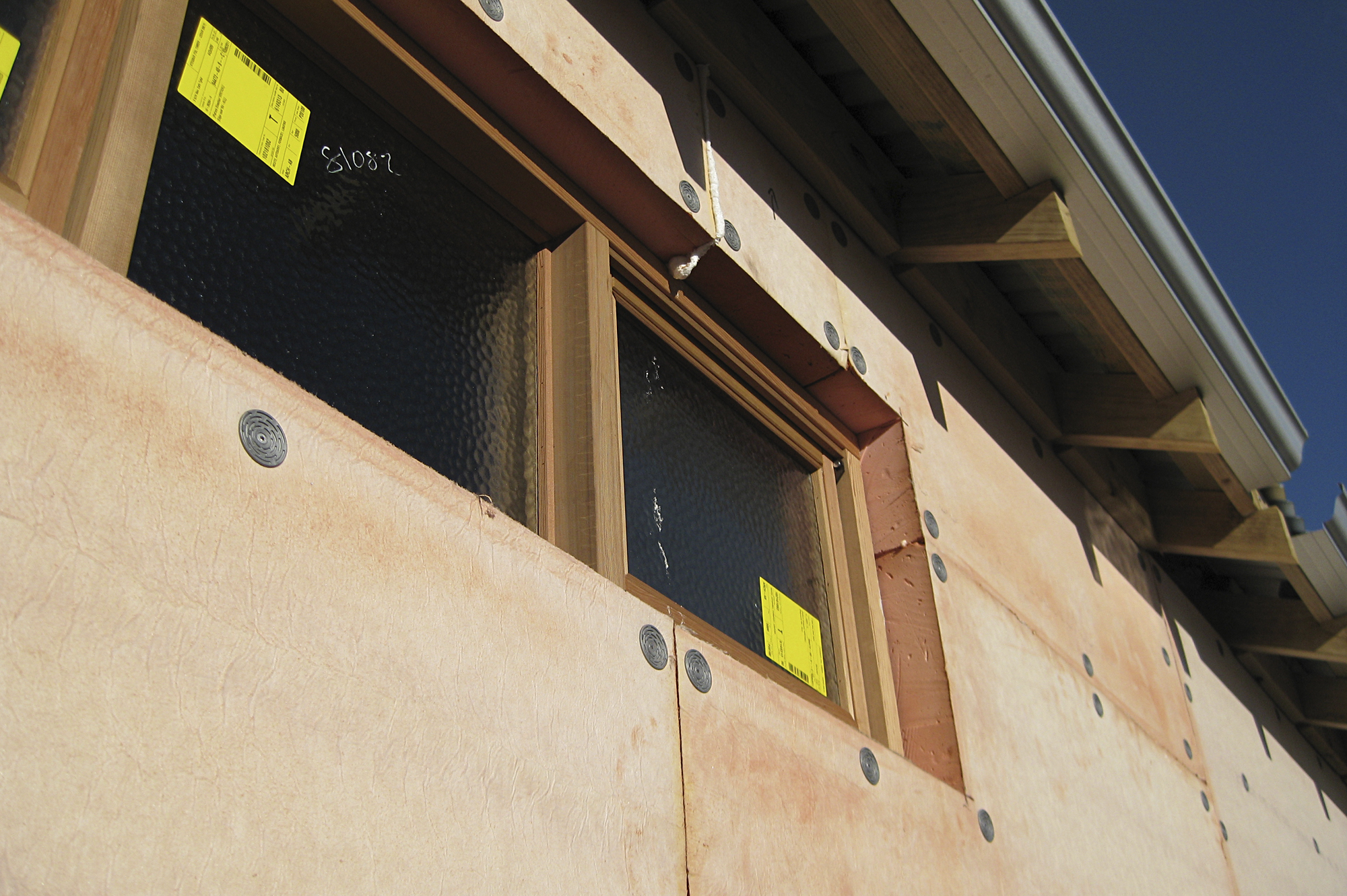

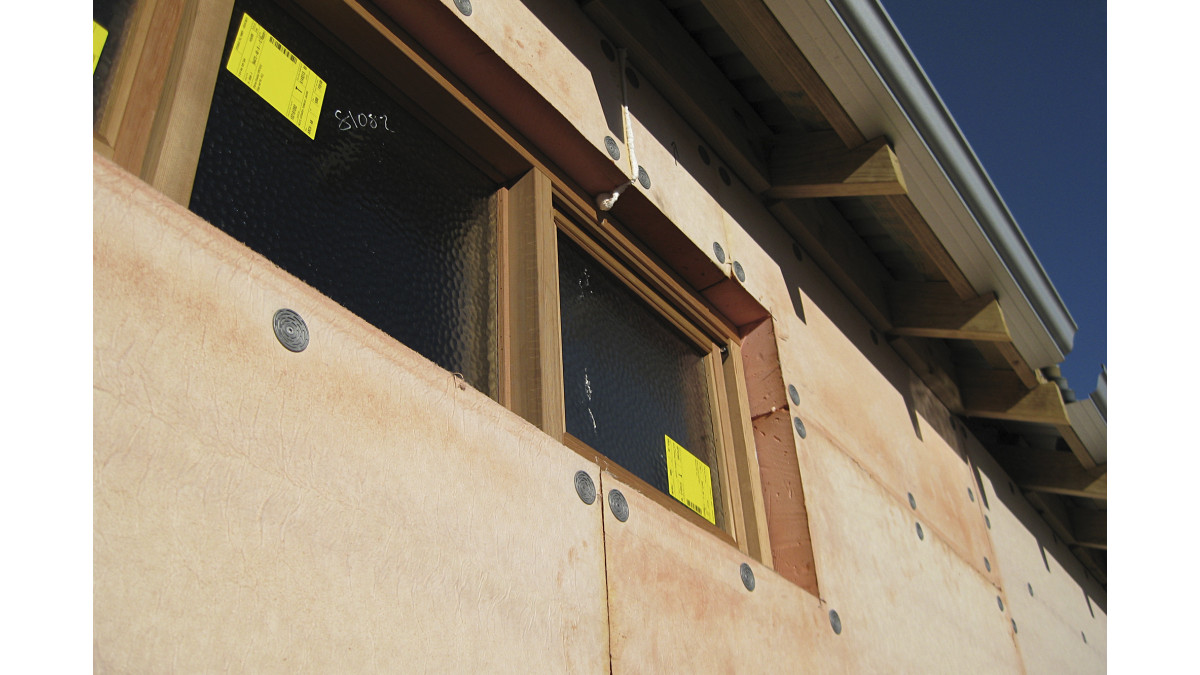

  • Suitable for use behind traditional and lightweight polymer modified renders
  • Transforms and upgrades the appearance of existing buildings
Limitations on Use
  • Must be used in accordance with the supplier Installation Guide
Statement of Building Code Compliance
  • NZBC & AS/NZS 4859.1 Compliant
Documents
Data Sheet

KINZ-K5DS v10.0 Apr 2024

Quick Reference Guide

KINZ-QRGPR-WEBv1.0 May 23

Needle Flame Test

PL1849-1 - 30/08/23

Installation Guide

KINZ-K5IG v10.0 Jun 2024

Kingspan Thermakraft Troldtekt Product Warranty Statement

Issue 4.0, Jun 2024

CAD/PDF Details

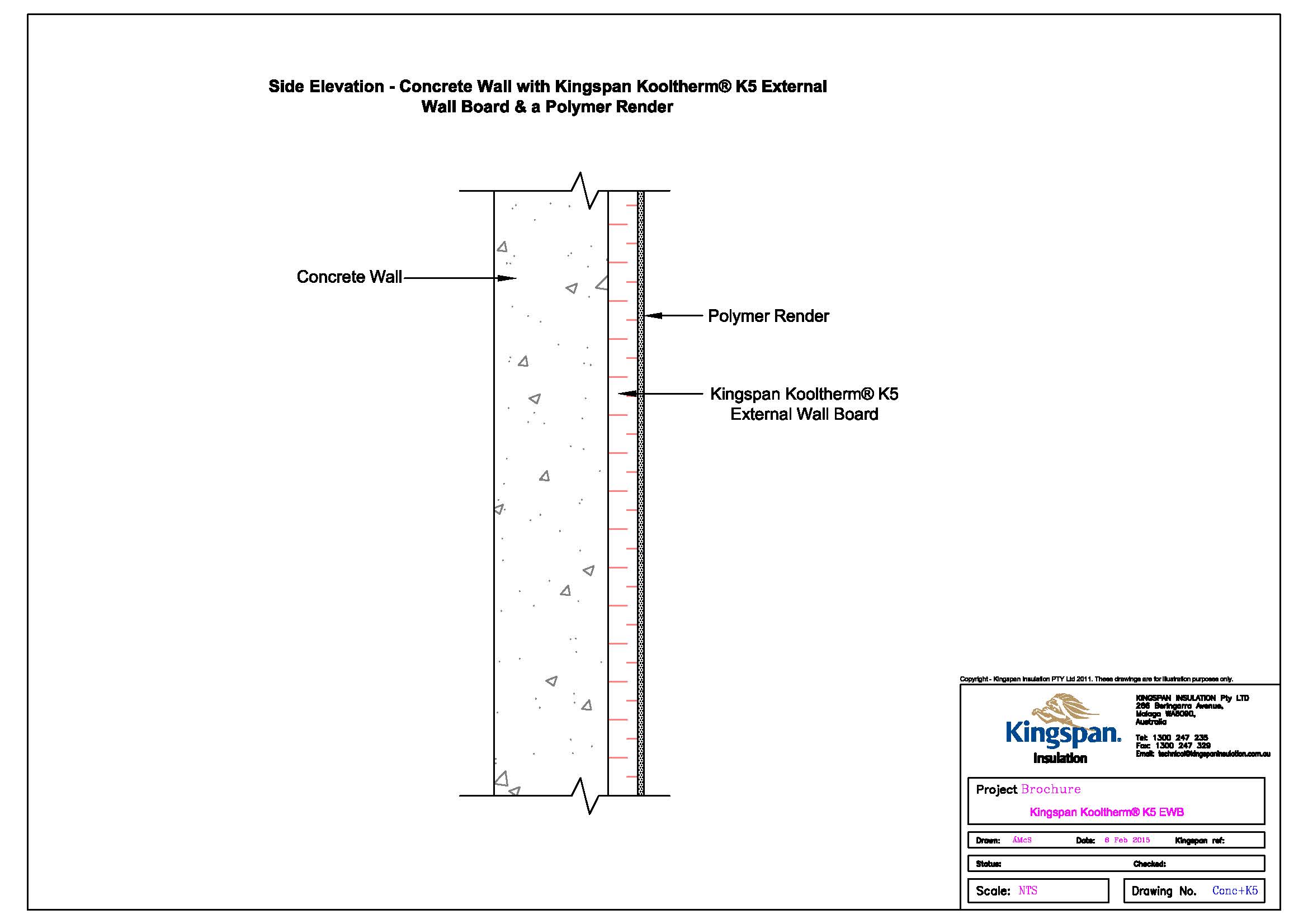

Concrete Wall - K5
Masonry Block Wall - K5

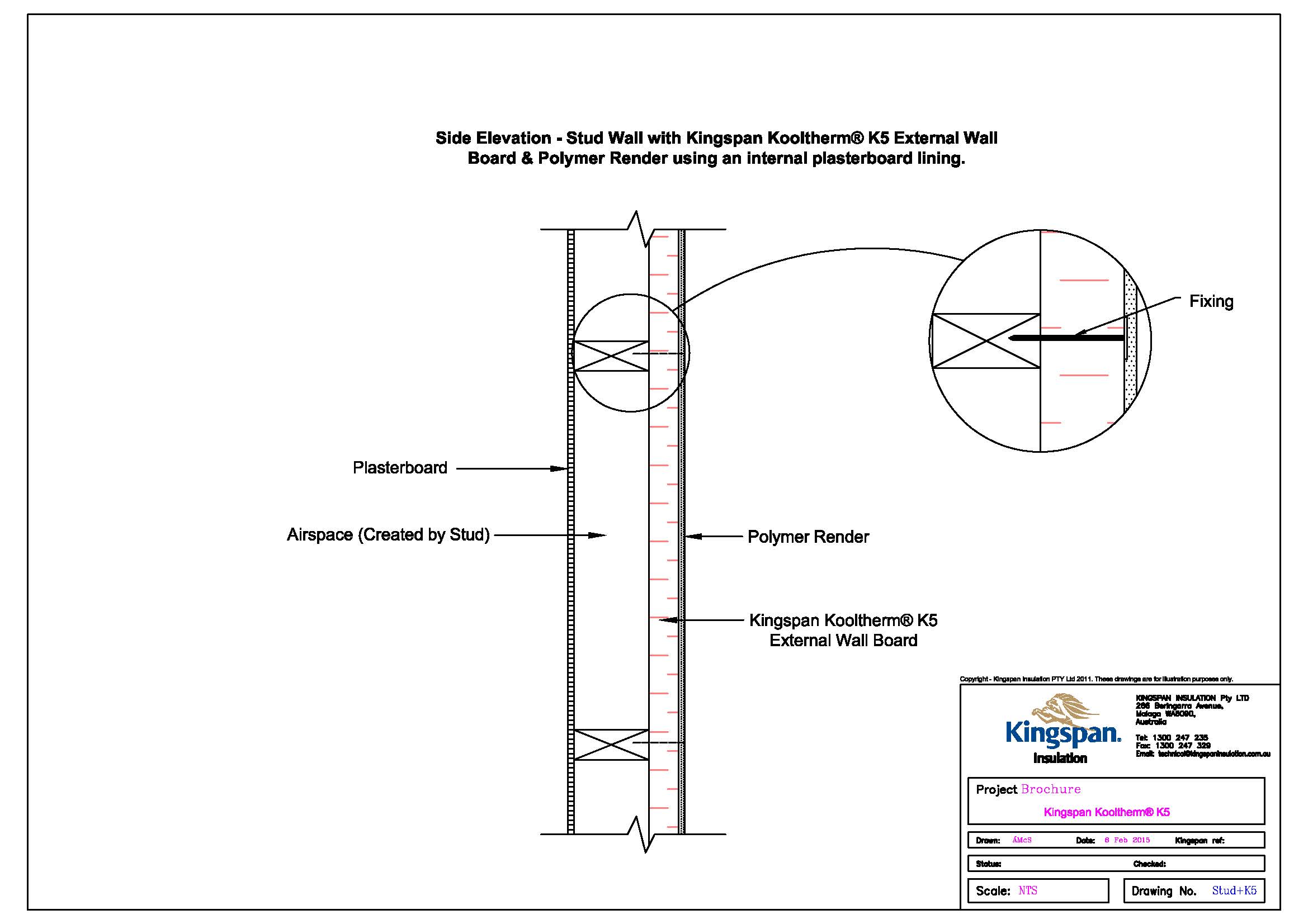

Timber Framed Wall - K5
