Juralco Edgetec Matador® Series I Mini Post Balustrade System
Juralco Aluminium
All products

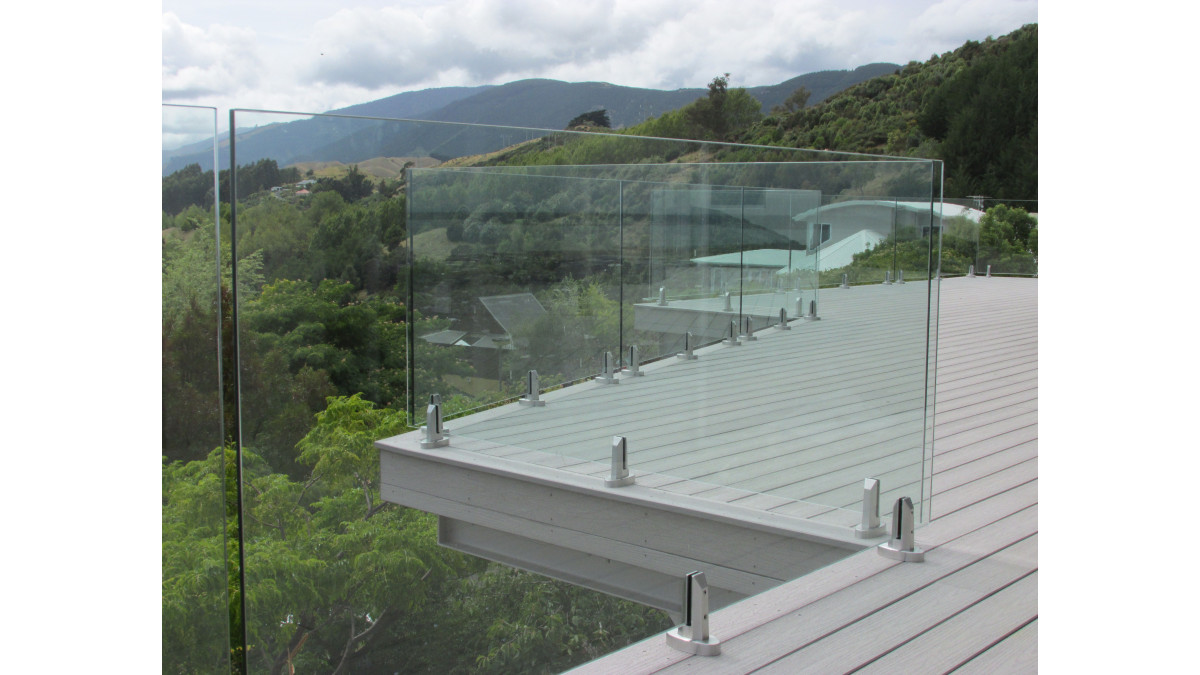

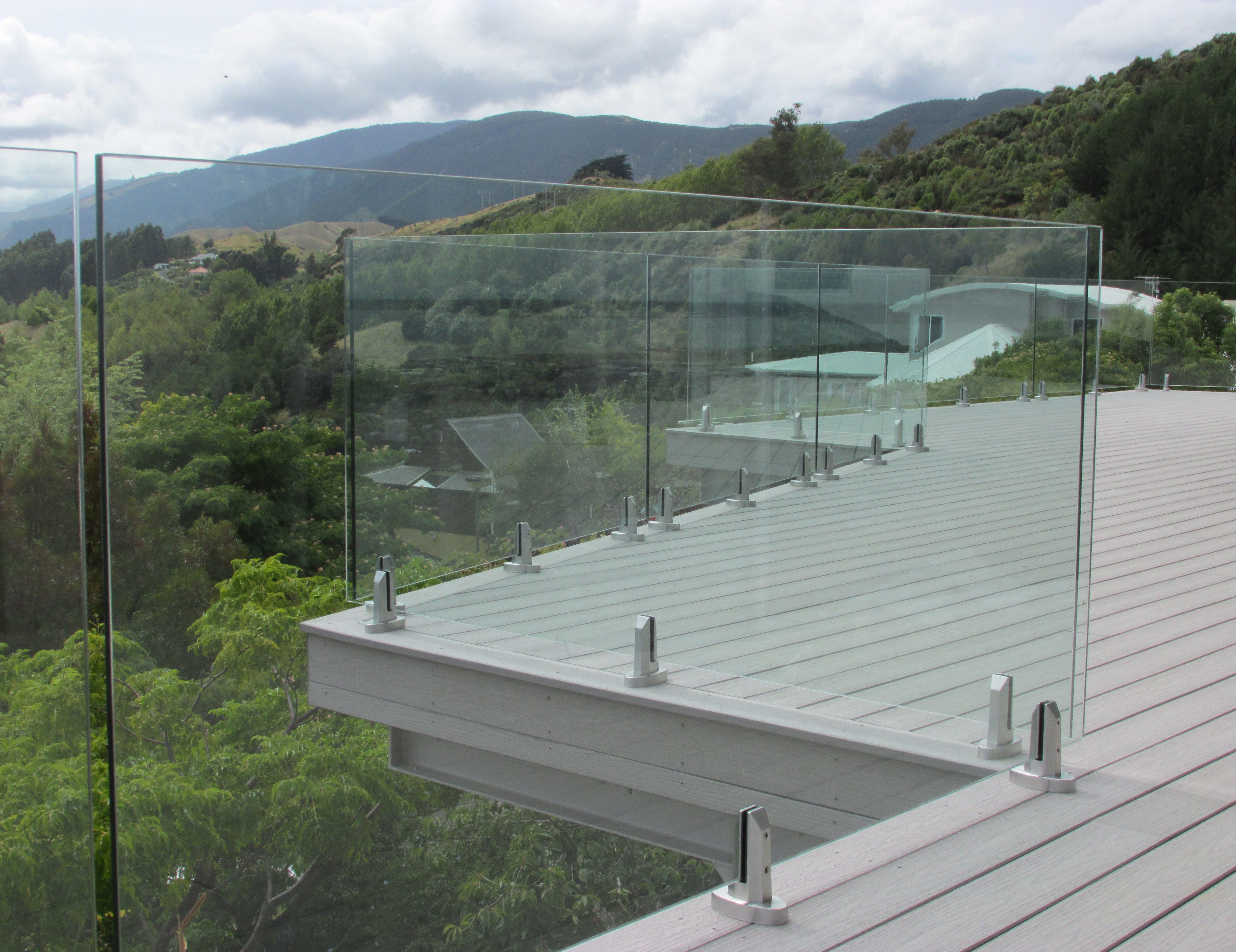

Edgetec Matador Middle ImageLR

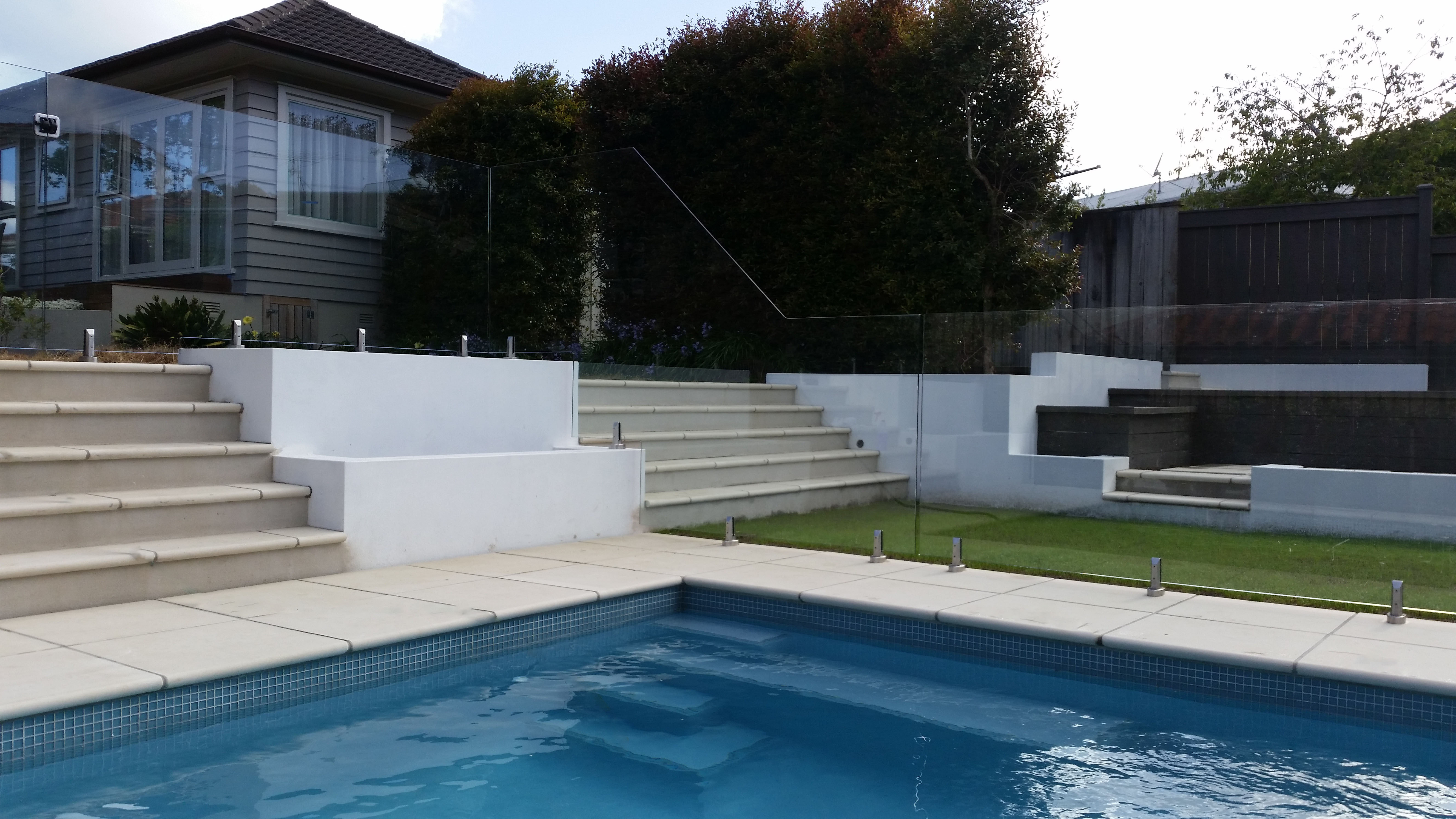

Edgetec Matador pool fencing landscapePSLR

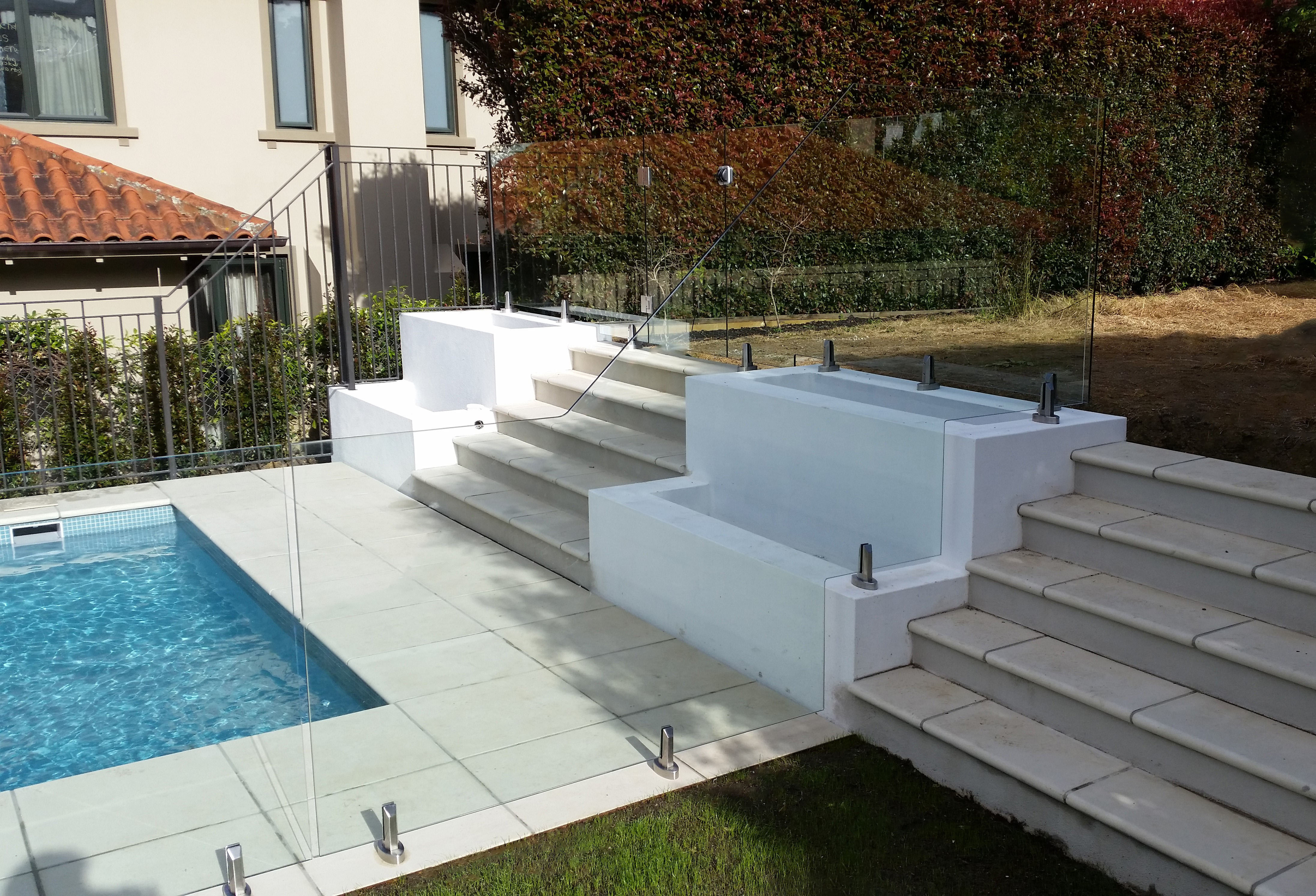

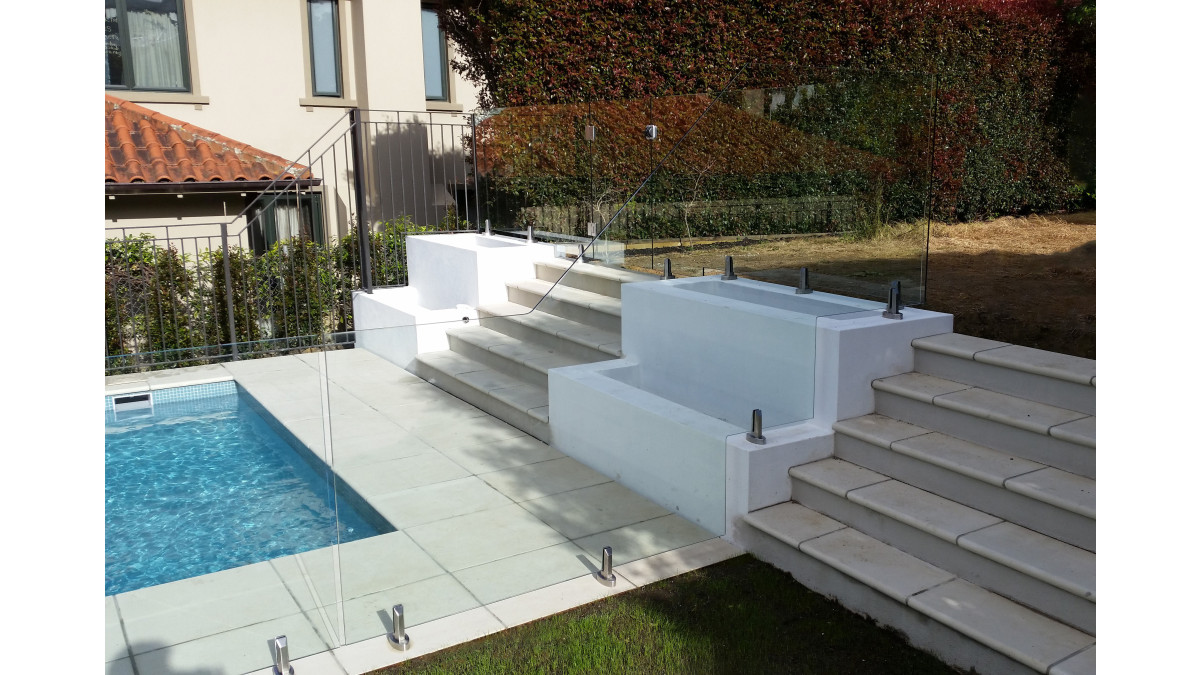

Edgetec Matador view of pool PS1LR

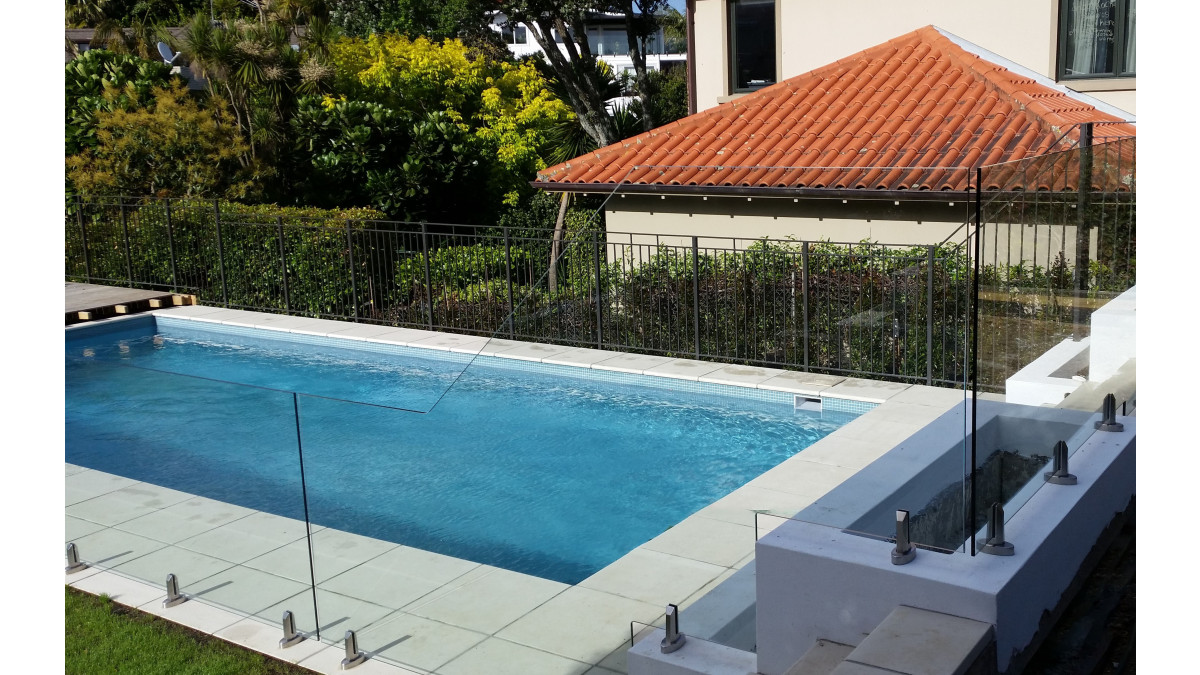

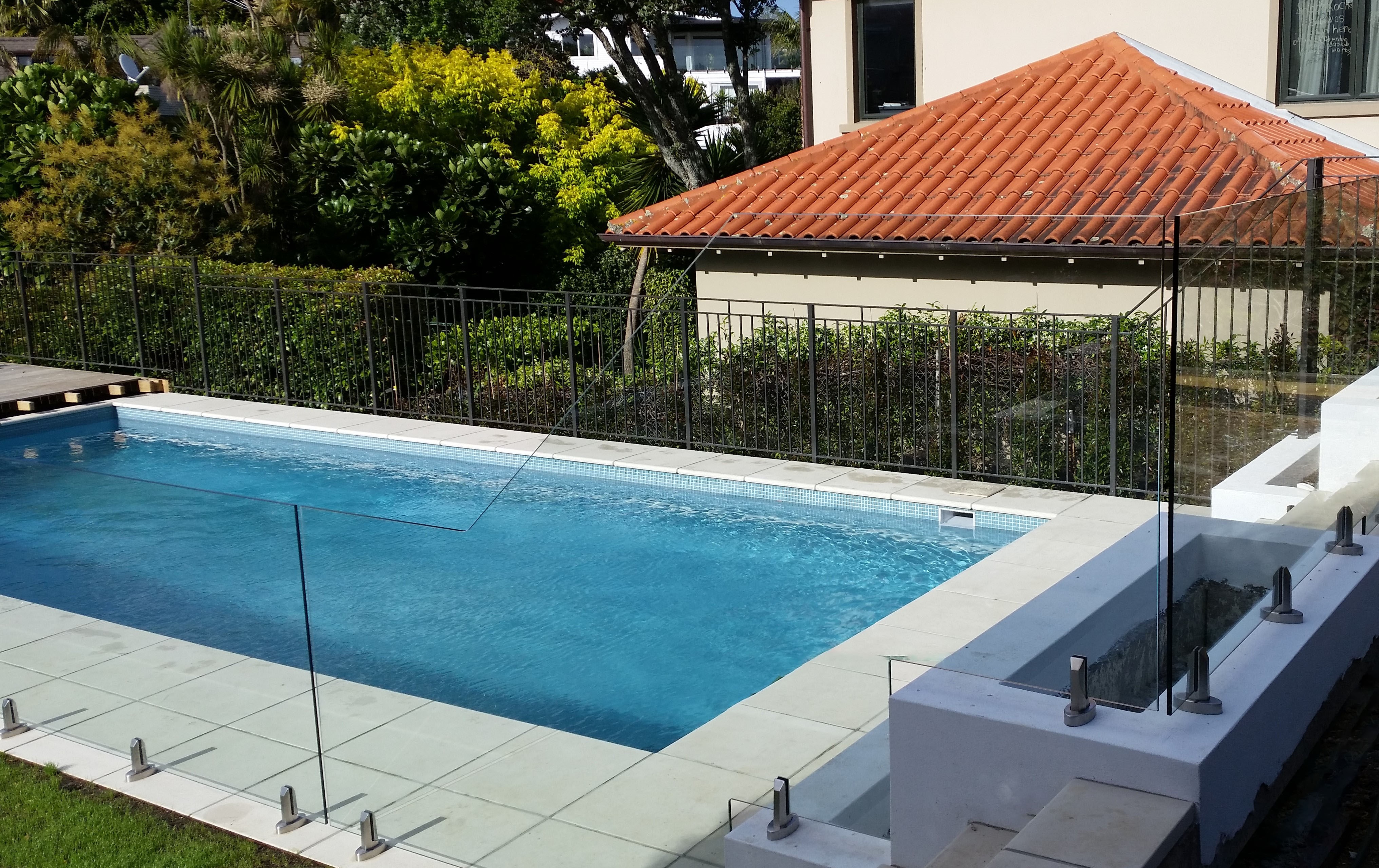

Edgetec Matador over pool PSLR

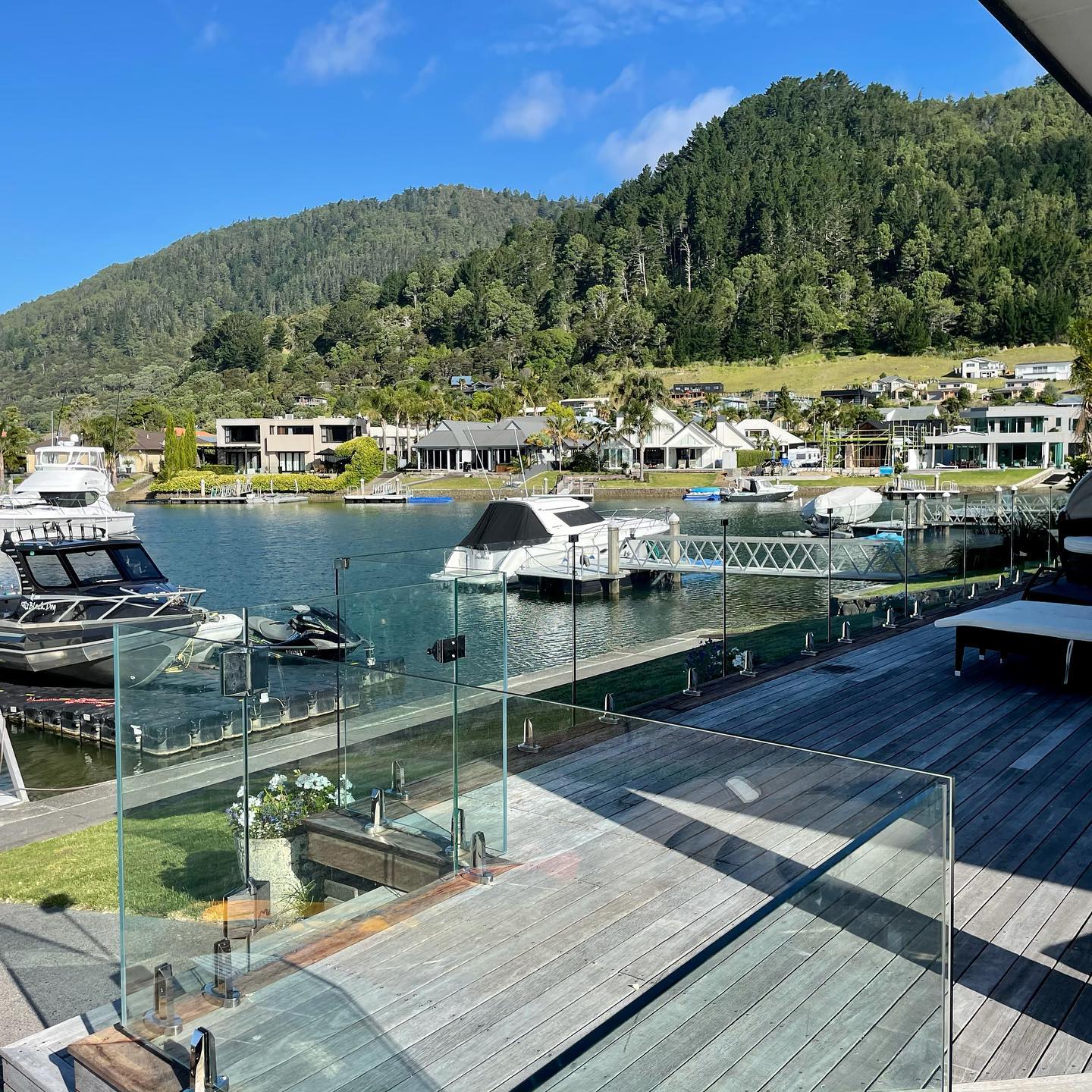

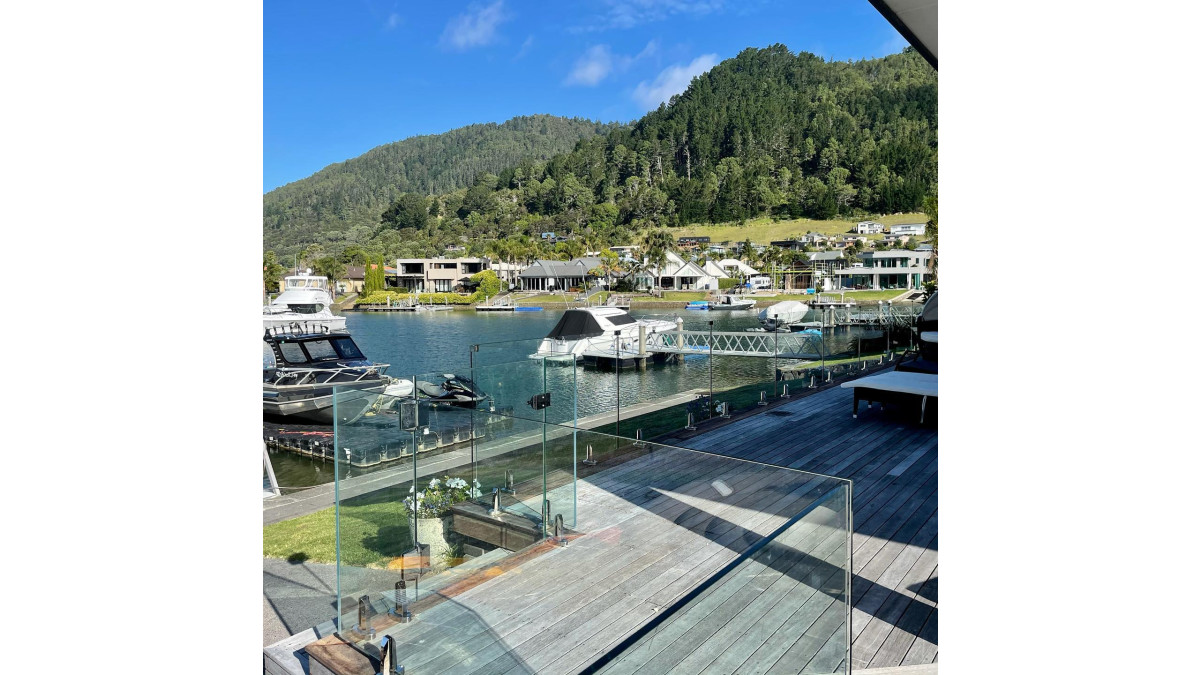

Sunset Spaces Matador CHECK
Description

Stainless Steel Strut Post for Glass

The Edgetec Matador Series I Mini Post balustrade is a top mounted frameless glass system using Duplex 2205 Stainless Steel posts capable of clamping 12mm Toughened Glass and 13.52mm SentryGlas®. Suitable for a wide range of applications, including stairways and pool fencing, Matador has a unique, premium design that utilises hidden fixings with a high range of adjustability to provide a premium product in all aspects.

Key Features
  • 2205 Duplex Stainless Steel
  • Corrosion resistant
  • Top fix
  • Hidden fixings
  • Can be installed with 12mm Toughened glass or 13.52mm SentryGlas™ panels
  • Designed as a structural barrier with or without a handrail
  • Compliant with Clause F4 for the purpose of preventing a fall of over 1m
  • Fast and easy installation
  • No holes required for installation of glass panels
  • At a touch, the glass panels tilt to allow inline adjustment using Juralco's patent-pending adjustment technology
  • Producer Statement available
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Fencing, Walling and Gates Pool Fencing
Ranges
Balustrade Systems Gates and Fencing
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Domestic and Residential applications
  • Occupancy Types A, A Other, and C3. Occupancy Types as per AS/NZ 1170.1.2002
  • Suitable for deck and balcony barriers, stairways and pool fencing
  • Balustrading and pool fencing
  • Up to Very Wind Zone
  • Fix to timber and concrete
Limitations on Use
  • The Juralco Edgetec Matador ® Mini Post Balustrade System manual details all extrusions and  components used for the fabrication and installation/fixing of the system
  • A Producer Statement 1(Design) is available. Copies of the above documents are available from: Juralco Aluminium Building Products Ltd 48 Bruce McLaren Rd, Henderson, Auckland Phone 09 478 8018 Fax 09 478 7883 Email [email protected]
  • Any deviation from the standard fabrication or installation/fixing must be accompanied by a site specific PS1 with site specific calculations and drawings
  • Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco Edgetec Matador® Mini Post Balustrade System
  • Aluminium extrusions, components and hardware – unless specified are manufactured to 6060 T5 specifications
  • Stainless Steel components, hardware, fixings – all components SS 316 or Duplex 2205 grades
  • Glass - all glass used in the Juralco Matador Mini Post Balustrade System must conform to the specifications as listed in the Juralco Edgetec Matador® Mini Post Balustrade System manual with each panel conforming to AS/NZS 2208 as confirmed Edgetec ® by the Safety Stamp detailing the manufacturer's description and licence number
Statement of Building Code Compliance
  • Complies With AS/NZS 1170:2002, NZS 4223.3.2016, 170:2002, NZS 4223.3.2016, NZ Building uilding Code B1, B2, F2, F4 and F9
  • The Juralco Edgetec Matador® Mini Post Balustrade System has been reviewed by Lautrec Technology Group Ltd  to demonstrate compliance with the structural requirements of the New Zealand Building Code and NZS 1170 : 2002 occupancy A, B, E, A Other and C3, NZS 3604 for Low, Medium, High, and up to Very High Wind Zones
  • The Structural Engineering design includes the requirements of B1 Structure, B2 Durability, F2 Hazardous material and F4 Safety from falling, all from the Building Code
  • Verification Method B1 / VM1, B2/AS1, F4 / AS1
  • All glass used in the Juralco Matador Mini Post Balustrade System must conform to AS/NZS 2208. Edgetec® ® Complies with NZS 4223.3.2016
  • Separation of dissimilar materials (as relates to B2 compliance) has been reviewed. For other combinations refer to NZS 3604:2011 Section 2.3.3 Separation and Section 4 Durability
In-Service History
  • The Juralco Edgetec Matador® Mini Post Balustrade range was introduced in 2021
  • Juralco has many decades of experience designing and installing balustrades throughout New Zealand
Other Performance Attributes
  • Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials
  • Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance. Residential buildings, 3 levels max. Warranty 10 yrs
  • Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max. Warranty 15 yrs
  • Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings. Warranty 25 yr
Documents
BPIR/PTS

09-23v1

pdf
Juralco Edgetec Matador Series I Technical Manual

9-23-v1

pdf
Balustrades Brochure
pdf
Matador Series I Flyer
pdf
