Juralco Edgetec Matador® Series II Mini Post Balustrade System
Juralco Aluminium
All products

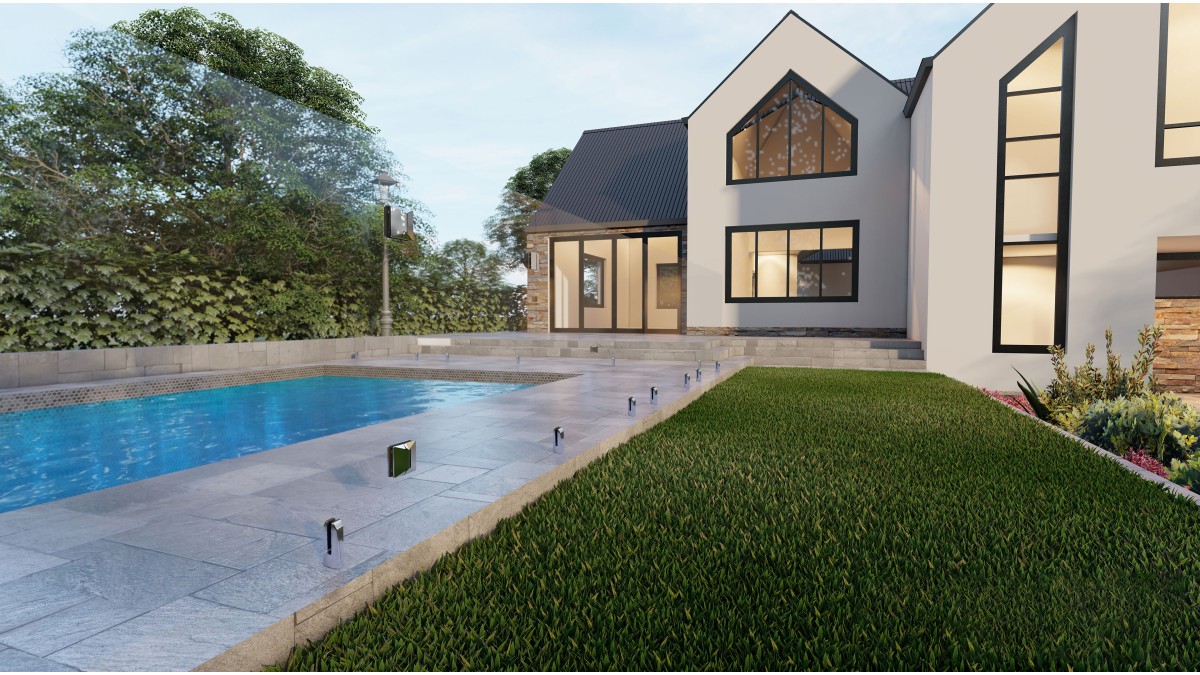

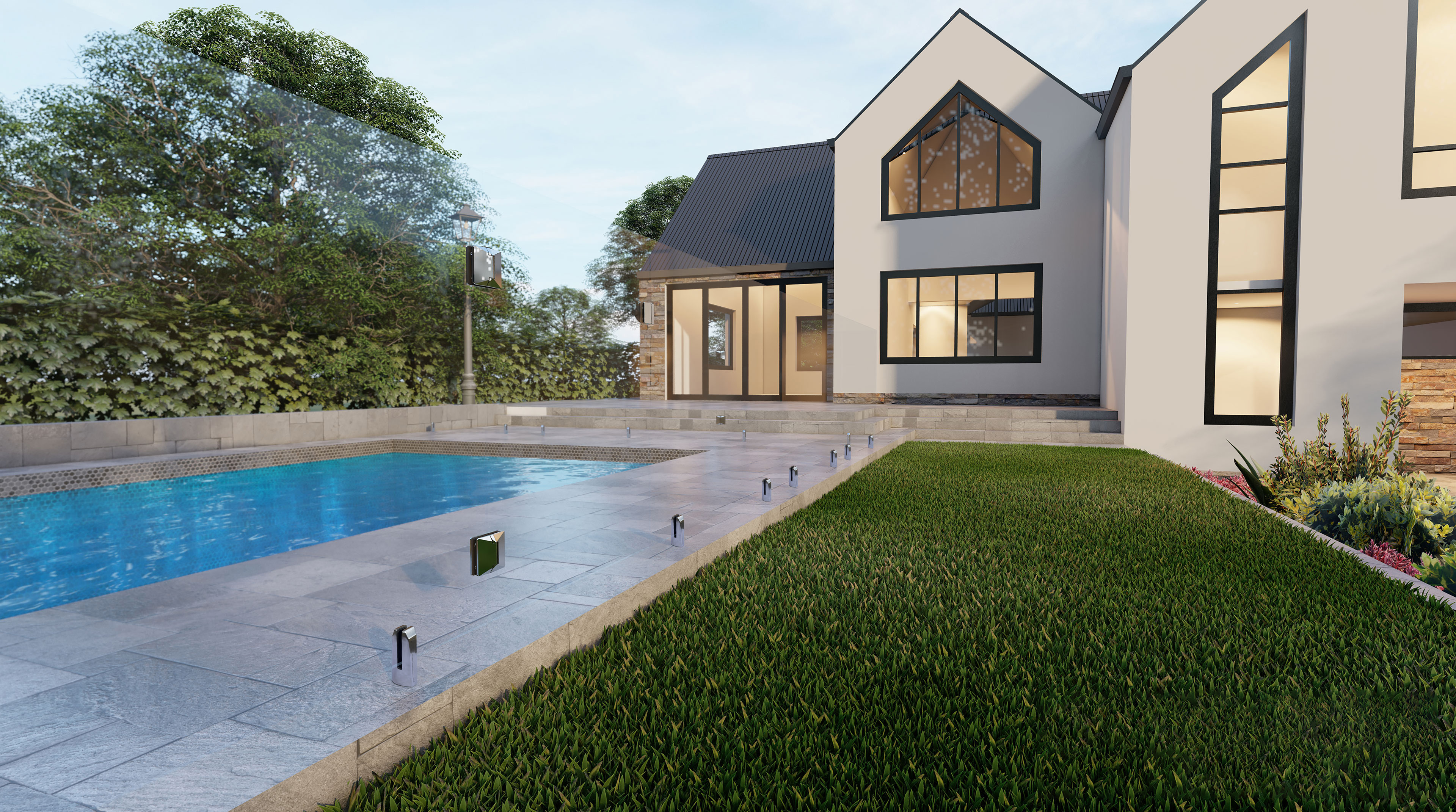

3d gate pool and home v2 Copy

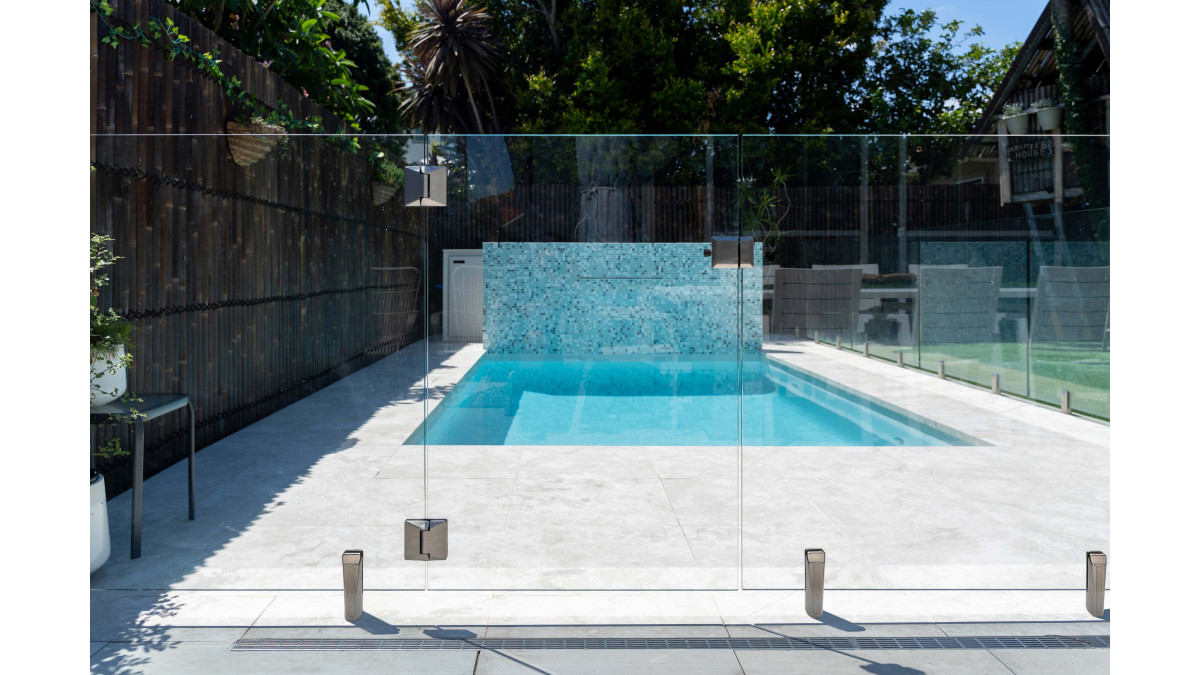

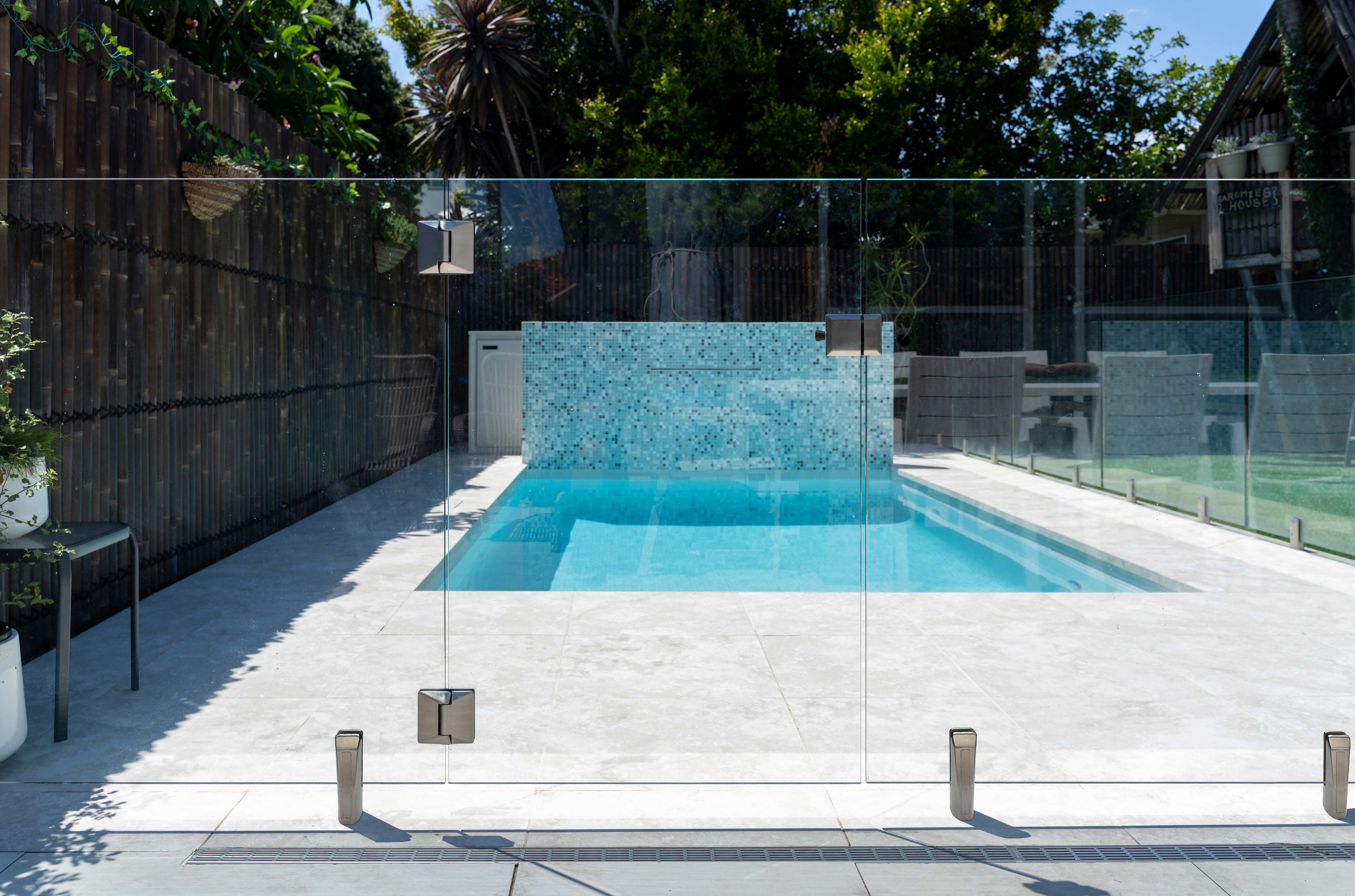

Atlantic hinge 530 satin HR

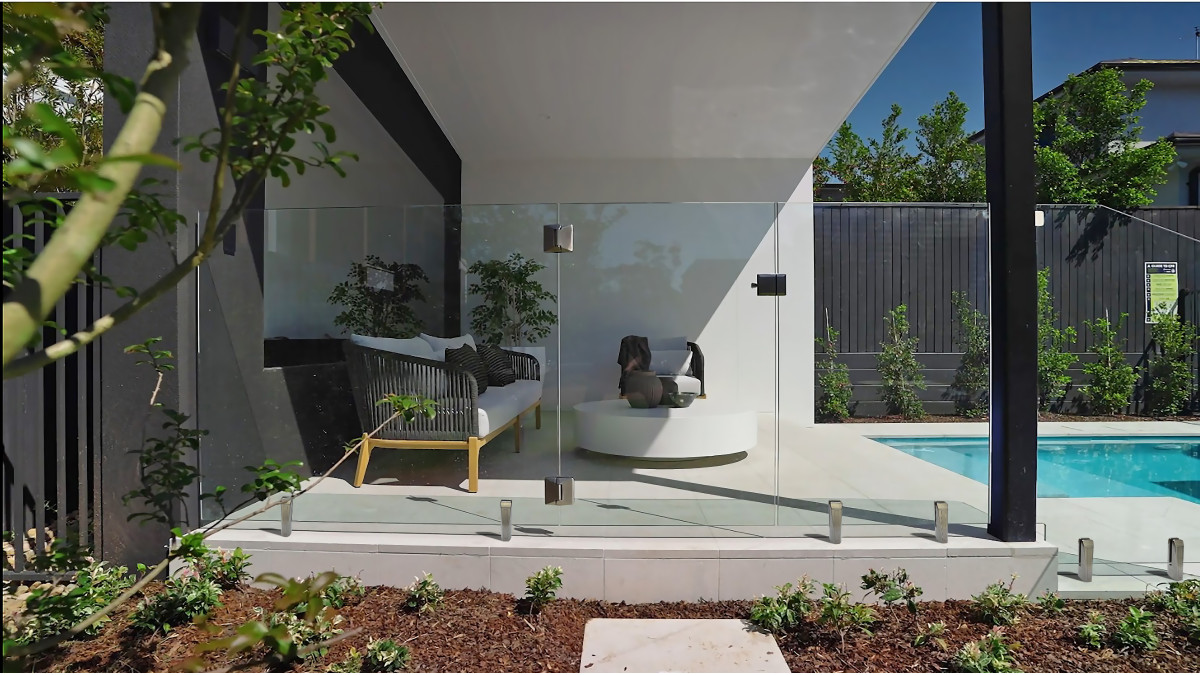

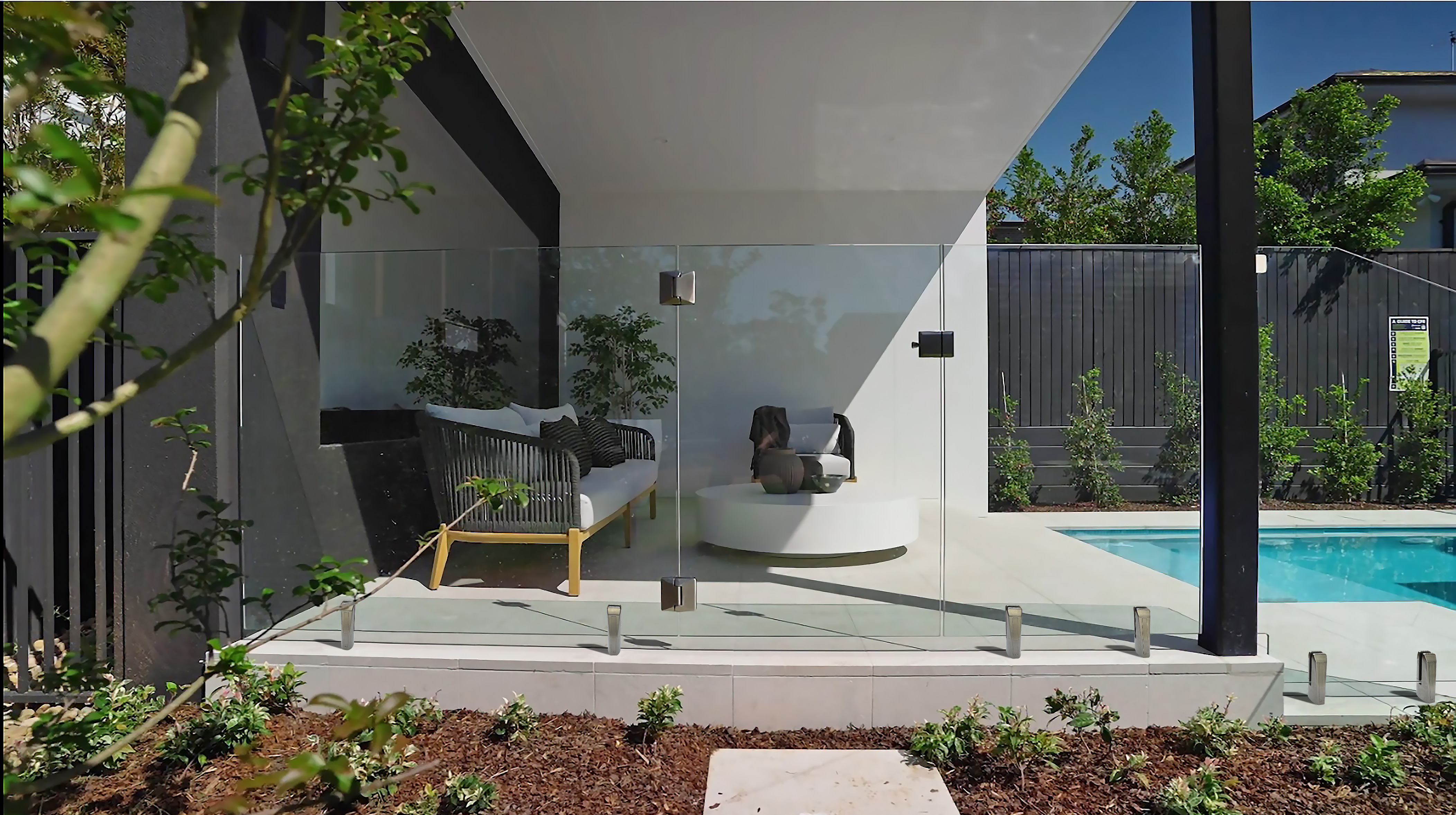

Atlantic hinge gate satinHR1 Black knob

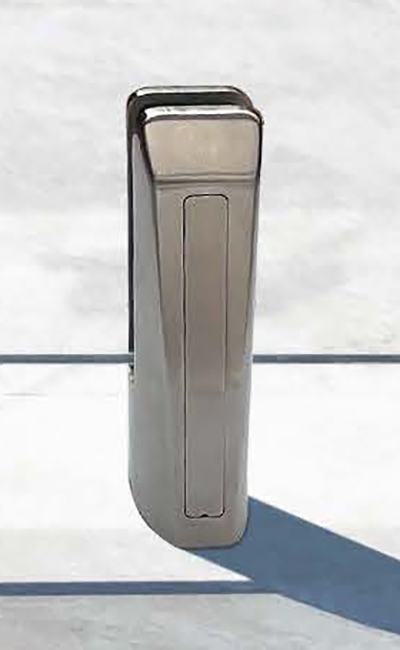

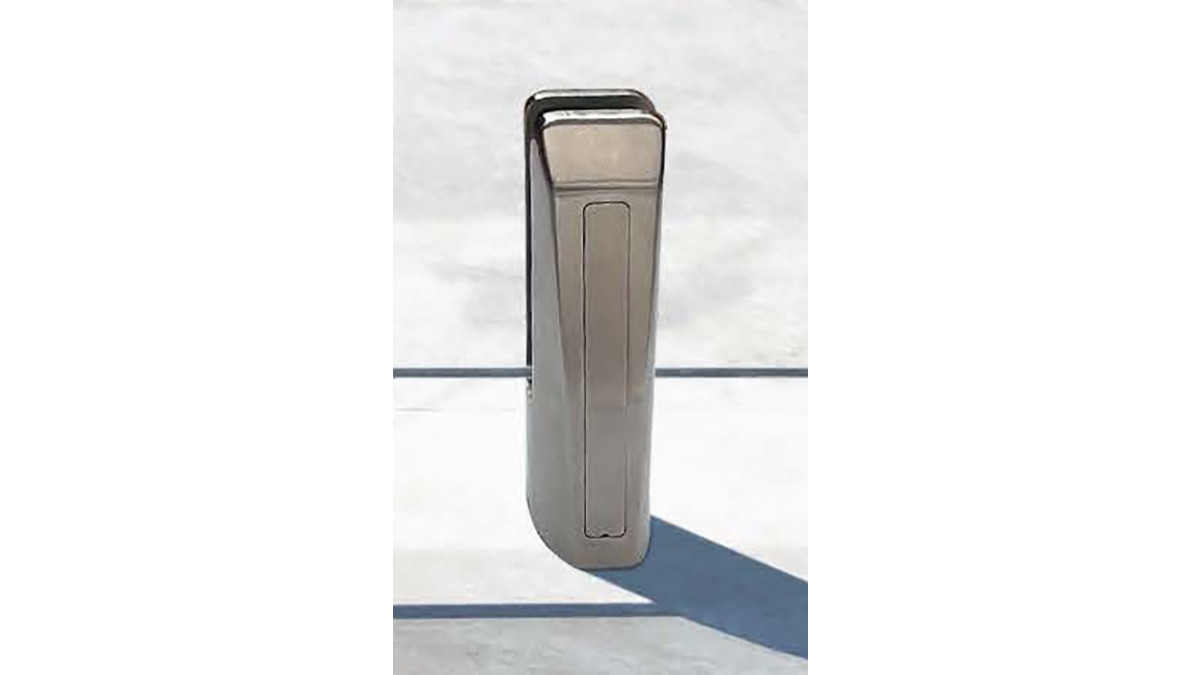

Matador Series II hidden fixing
Matador Series II manual cover V2
Description

The Edgetec Matador® Series II is a Mini Post Balustrade and Pool Fencing System using 2205 Duplex Stainless Steel Posts that are capable of clamping  up to 15mm Toughened Glass panels. Available  top or face fixed with or without a visible baseplate.

Suitable for a wide range of applications, including stairways and pool fencing, Matador® is a unique, premium design that utilises hidden fixings with a high range of adjustability to provide a premium product in all aspects.

Key Features
  • Made of corrosion-resistant Duplex 2205 stainless steel
  • Series II: Top Fix or Face Fix to timber and concrete
  • Glass: 12mm, 15mm Toughened & 13.52mm SentryGlas®
  • Finish: Polished and Satin Stainless or powder coated from the Dulux® range of colours
  • Hidden fixings
  • Patented adjustment system
  • Occupancy: Types A, A Other and C3 Domestic and Residential
  • Fast and easy installation
  • No holes required for installation of glass panels
  • Inline adjustment using Juralco's patent-pending adjustment technology
  • Interlinking top rail finished in range of powder colours
Categories
Enclosure Balustrades and Stairs Interior Balustrades, Stairs and Rails Fencing, Walling and Gates Pool Fencing
Ranges
Balustrade Systems Gates and Fencing
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Domestic and Residential applications
  • Occupancy Types A, A Other, B, C3 & E only. Occupancy Types as per AS/NZ 1170.1.2002
  • Suitable for deck and balcony barriers, stairways and pool fencing
  • Balustrading and pool fencing
  • Up to Extra High Wind Zone
  • Fix to timber and concrete
Limitations on Use
  • The Juralco Matador Series II Mini Post Balustrade System manual details all extrusions and ® Edgetec components used for the fabrication and installation/fixing of the system
  • A Producer Statement 1(Design) is available
  • Copies of the above documents are available from: Juralco Aluminium Building Products Ltd 48 Bruce McLaren Rd, Henderson, Auckland Phone 09 478 8018 Fax 09 478 7883 Email [email protected]
  • Any deviation from the standard fabrication or installation/fixing must be accompanied by a site specific PS1 with site specific calculations and drawings
  • Only extrusions, components and hardware supplied by or specified by JABP may be used in the Juralco Edgetec Matador® Series II Mini Post Balustrade System
  • Aluminium extrusions, components and hardware – unless specified are manufactured to 6060 T5 specifications
  • Stainless Steel components, hardware, fixings – all components SS 316 or Duplex 2205 grades
  • Glass - all glass used in the Juralco Edgetec Matador Series II Mini Post Balustrade System must conform to the specifications as listed in the Juralco Edgetec Matador Series II Mini Post Balustrade System manual with each panel conforming to AS/NZS 2208 as confirmed by the Safety Stamp detailing the manufacturer's description and licence number
  • The Juralco Edgetec® Matador Series II Mini Post Balustrade System must only be installed in accordance with the Juralco Edgetec® Matador Series II Mini Post Balustrade System manual
  • Any deviation from that specified in the Juralco Edgetec® Matador Series II Mini Post Balustrade System manual must only be in accordance with the site specific PS1 with site specific calculations and drawings listing the non standard details
  • The Juralco Edgetec® Matador Series II Mini Post Balustrade System must only be fabricated/installed by a Juralco approved fabricator
  • Upon completion of the installation, the fabricator must supply the owner with a PS3 (Construction)
Statement of Building Code Compliance
  • The Juralco Edgetec® Matador Series II Mini Post Balustrade System has been reviewed by Lautrec Technology Group Ltd to demonstrate compliance with the structural requirements of the New Zealand Building Code and NZS 1170 : 2002 occupancy A, B, E, A Other and C3, NZS 3604 for Low, Medium, High, Very High Wind Zones and up to Extra High Wind Zone max wind pressure 2.5KPa
  • The Structural Engineering design includes the requirements of B1 Structure, B2 Durability, F2 Hazardous material and F4 Safety from falling, F9 Restricting access to Residential Pools, all from the Building Code
  • Verification Method B1 / VM1, B2/AS1, F4 / AS, F9/AS1
  • All glass used in the Juralco Edgetec® Matador Series II Mini Post Balustrade System must conform to AS/NZS 2208. ® ® Edgetec Complies with NZS 4223.3.2016
  • Separation of dissimilar materials (as relates to B2 compliance) has been reviewed. For other combinations refer to NZS 3604:2011 Section 2.3.3 Separation and Section 4 Durability
In-Service History
  • The Edgetec Matador® Mini Post Balustrade range was introduced in 2021
  • Juralco has many decades of experience designing and installing balustrades throughout New Zealand and continues to focus on supporting and developing its dealer network
Other Performance Attributes
  • Juralco Aluminium Building Products Ltd is a Dulux Registered Applicator site, registration number 2101. JABP uses only Dulux branded powder coating materials
  • Dulux Duralloy® powder coating systems are suitable for properties greater than 100m from high tide level AAMA 2603 performance. Residential buildings, 3 levels max. Warranty 10 yrs
  • Dulux Duralloy Plus® powder coating systems are suitable for properties greater than 10m from high tide level. AAMA 2603 performance. Residential and Light commercial buildings, 3 levels max. Warranty 15 yrs
  • Dulux Duratec® powder coating systems are suitable for properties greater than 10m from high tide level AAMA2603 and 2604 performance. All Residential and Commercial buildings. Warranty 25 yr
Documents
BPIR Product Statement

09-23v1

pdf
Technical Manual
pdf
Maintenance Instructions
pdf
Warranty

Dec 2022

pdf
Balustrades Brochure
pdf
Matador Series II Flyer
pdf
