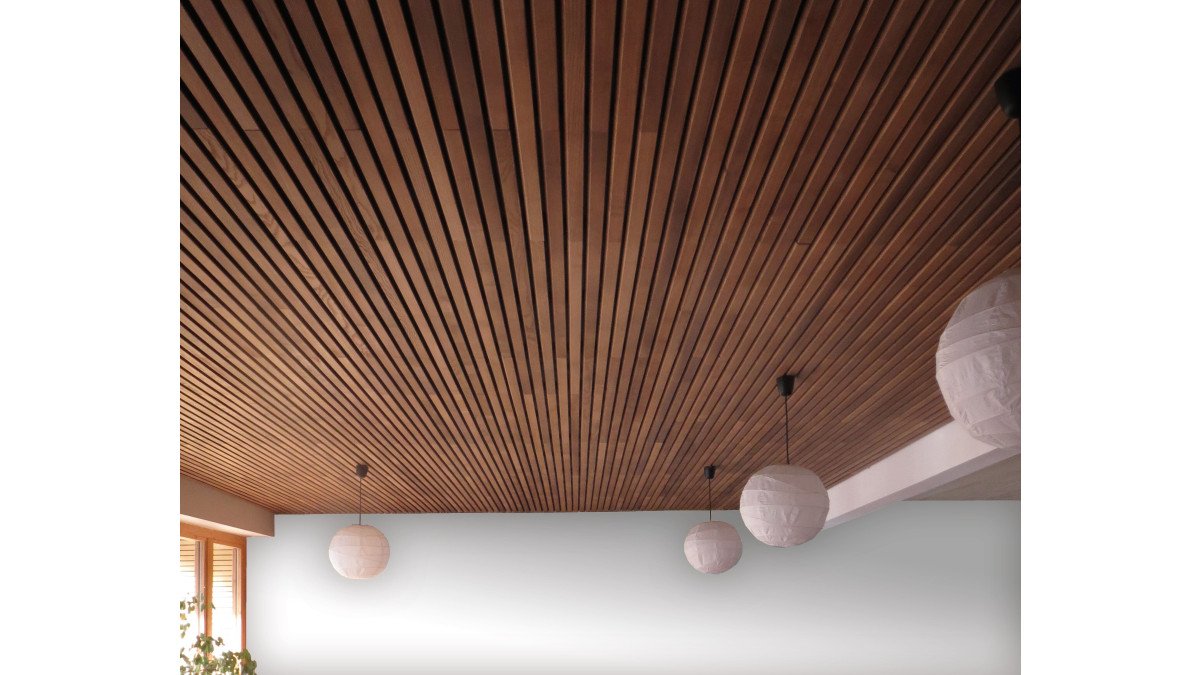

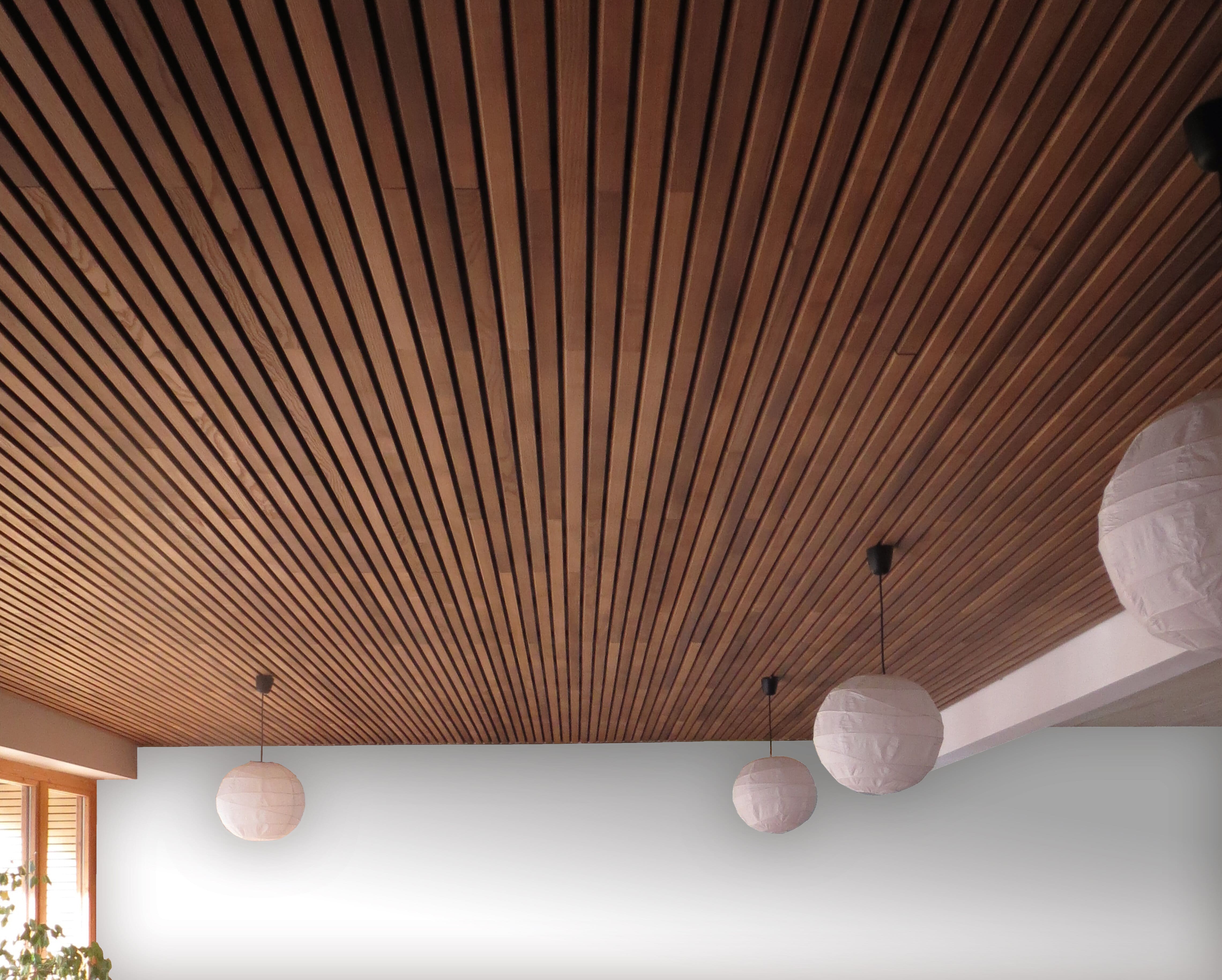

Bardage Th interieur 300 Credit photo grad 2019

Imagery supplied by Grad®

1 Hotel Belgium Tantimber Thermo Ash Vento Kruishoutem Grad 1

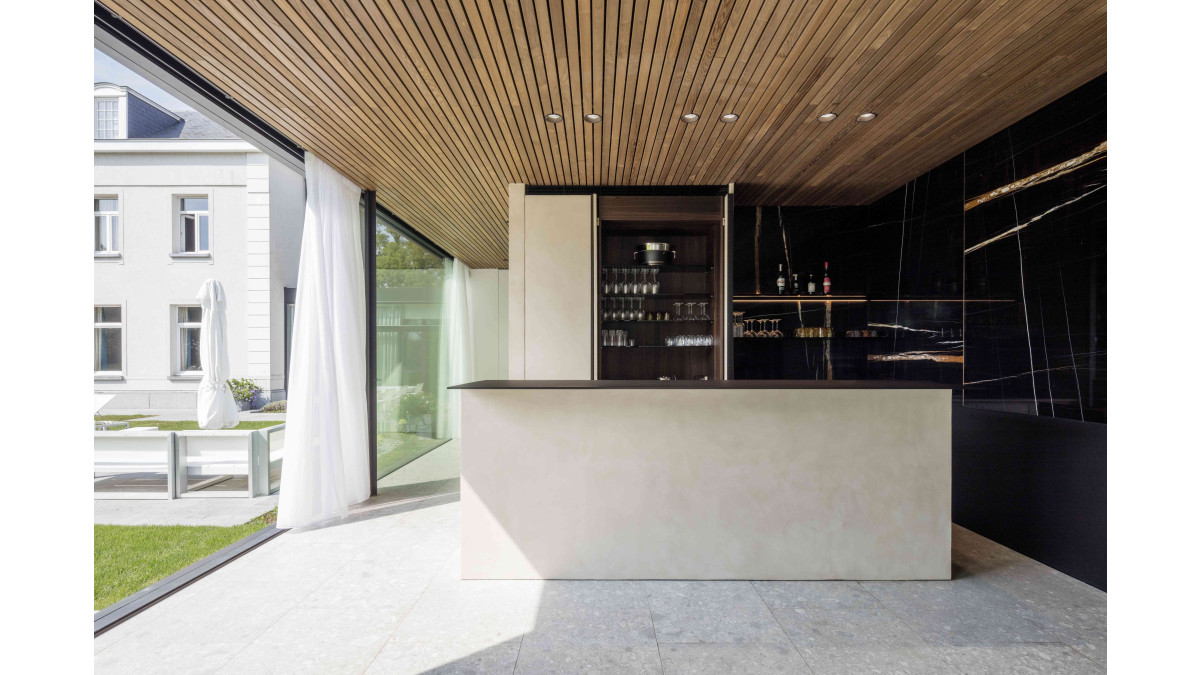

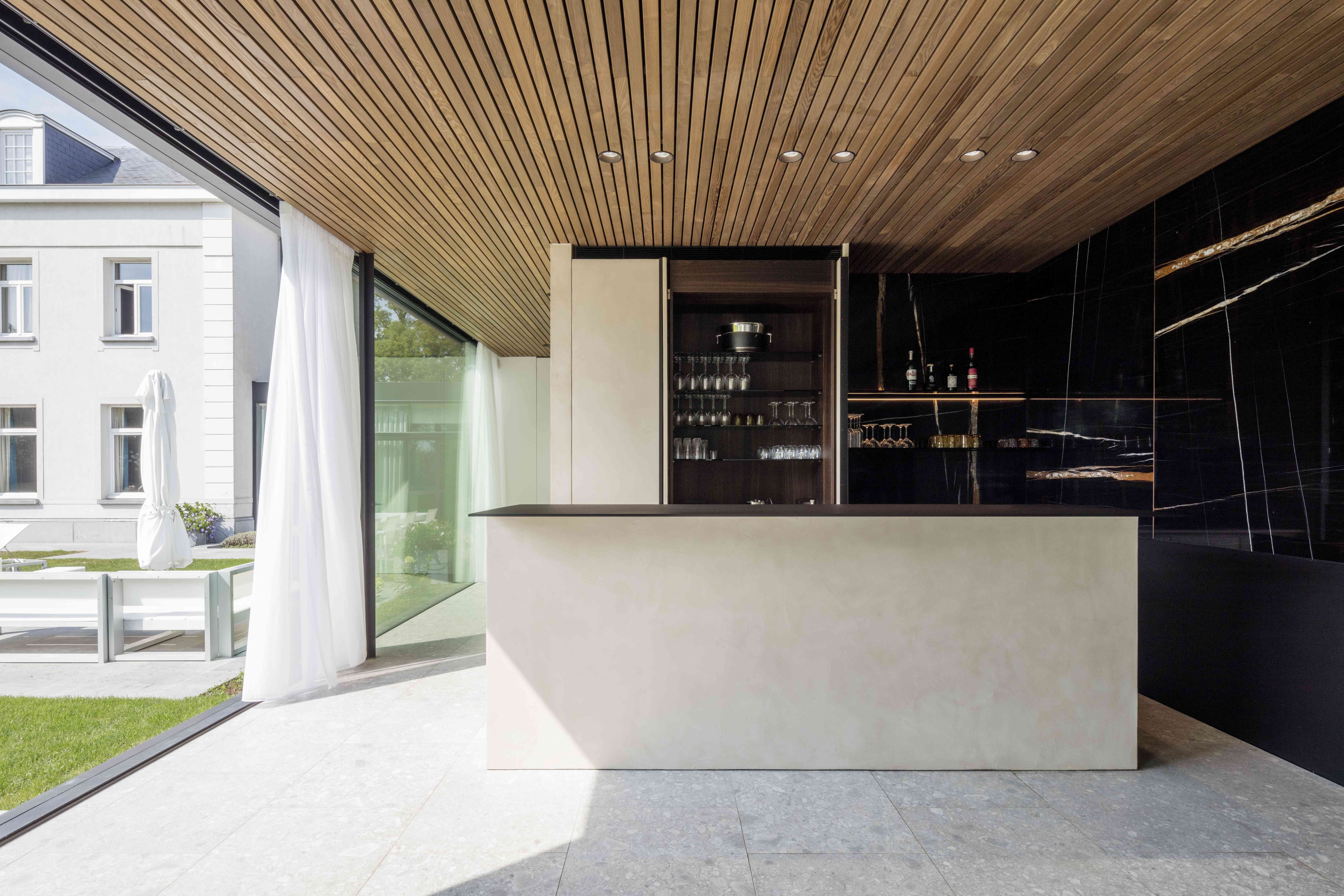

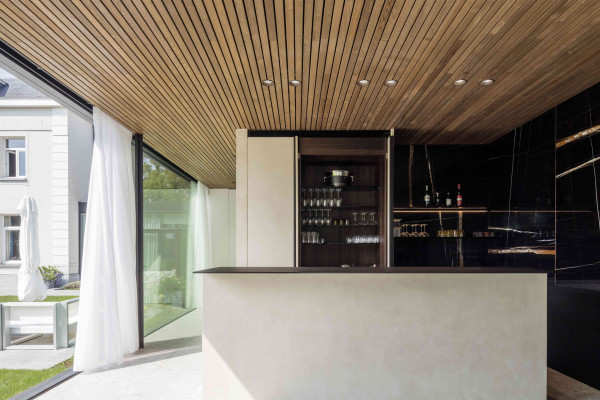

Hotel Belgium | Imagery supplied by Grad®

Product Enquiries

Description

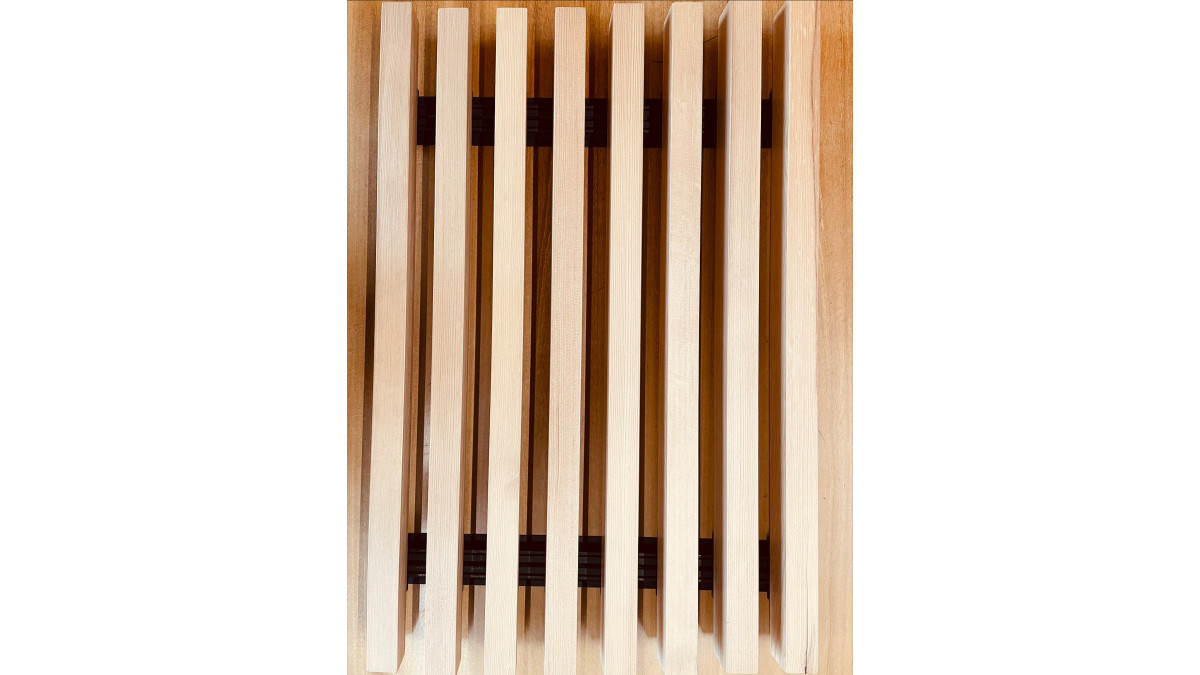

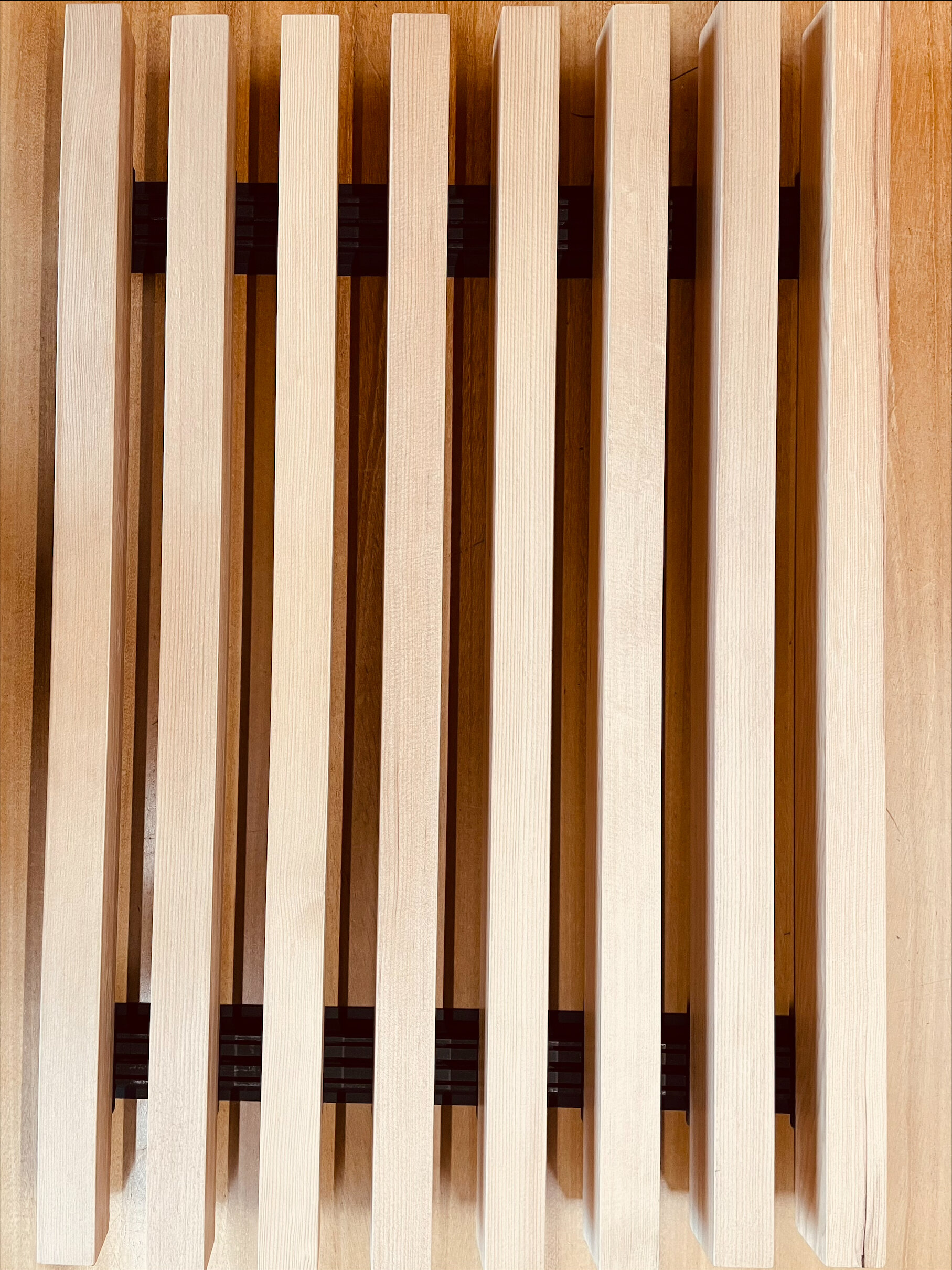

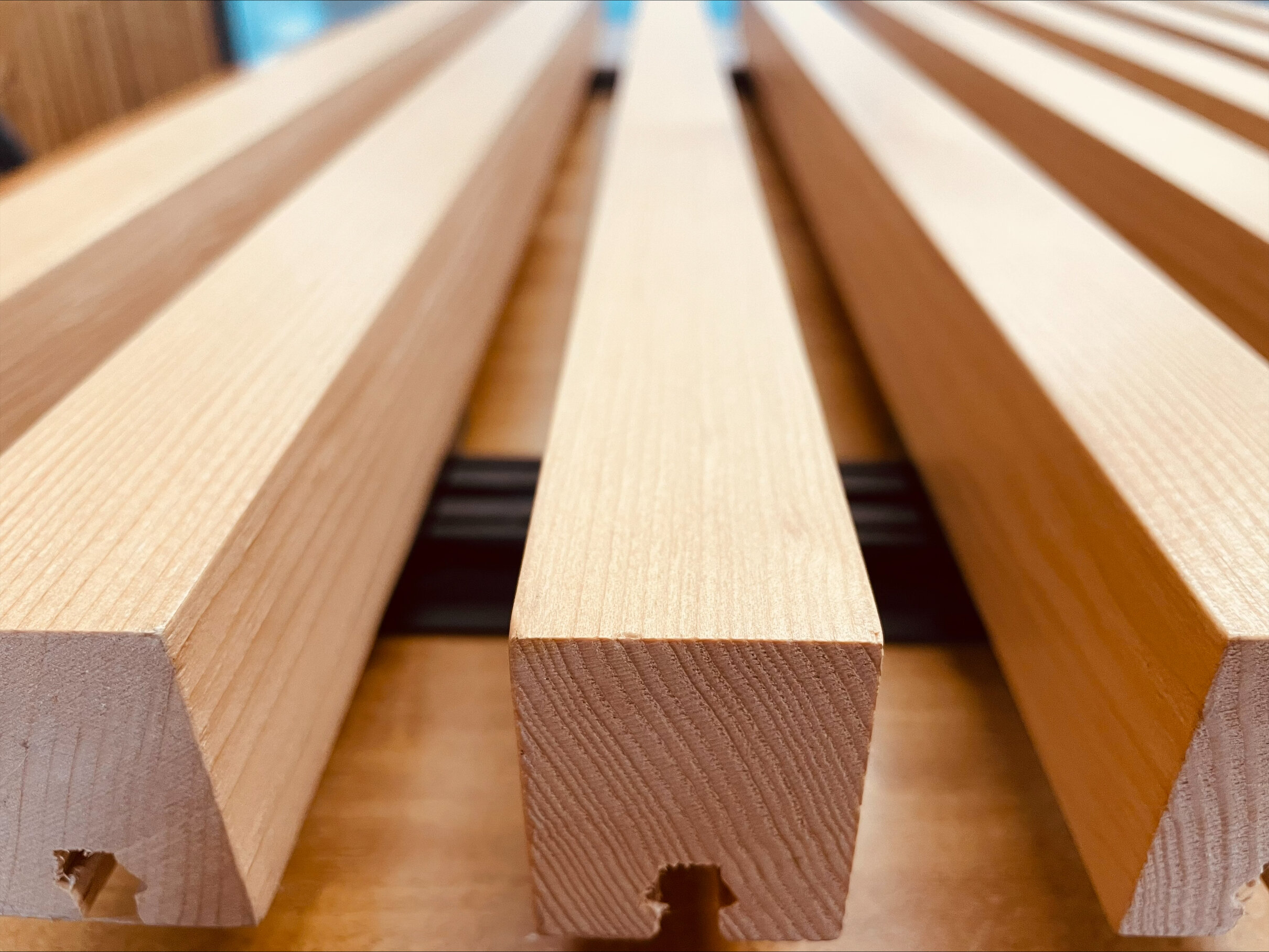

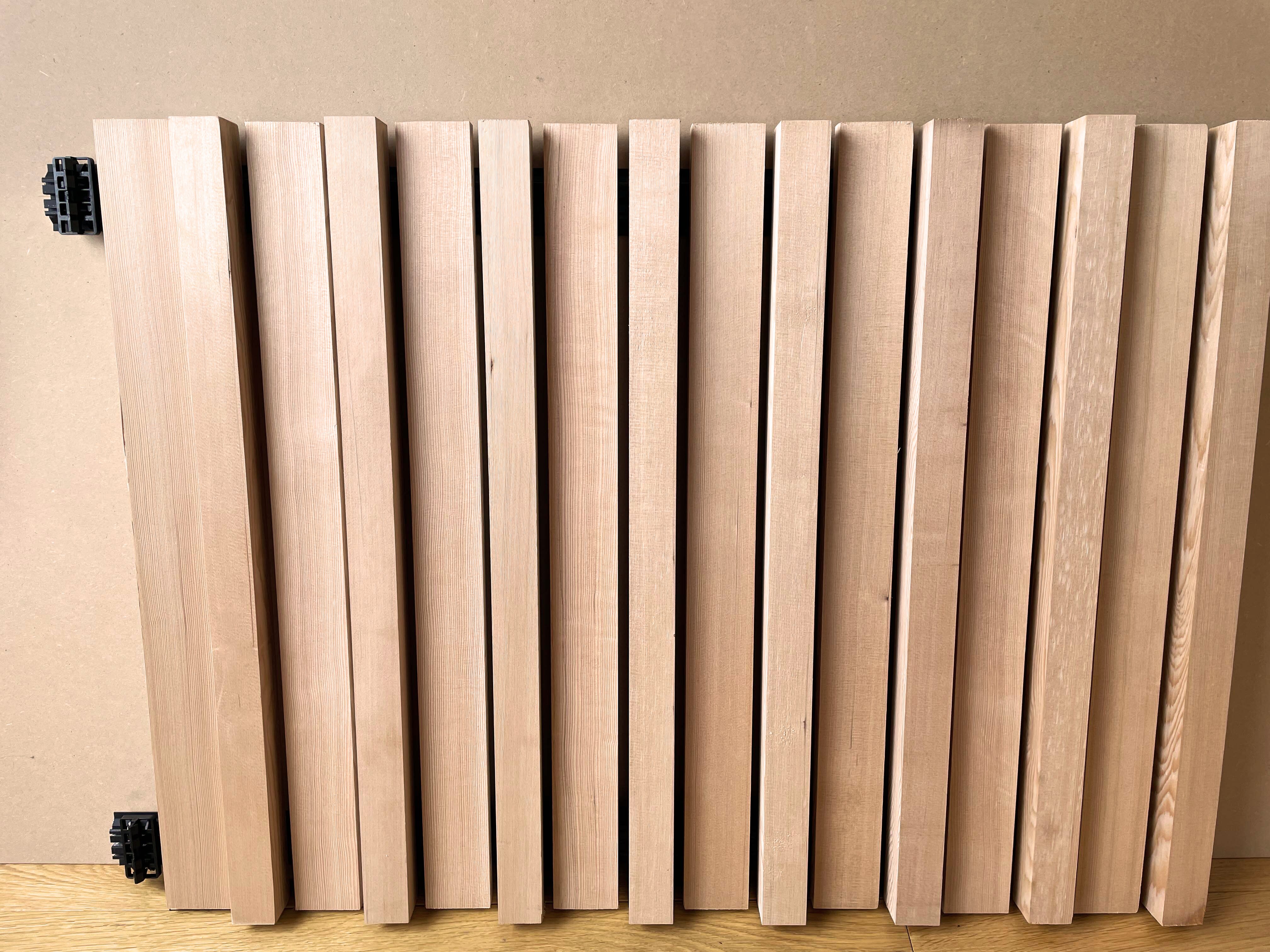

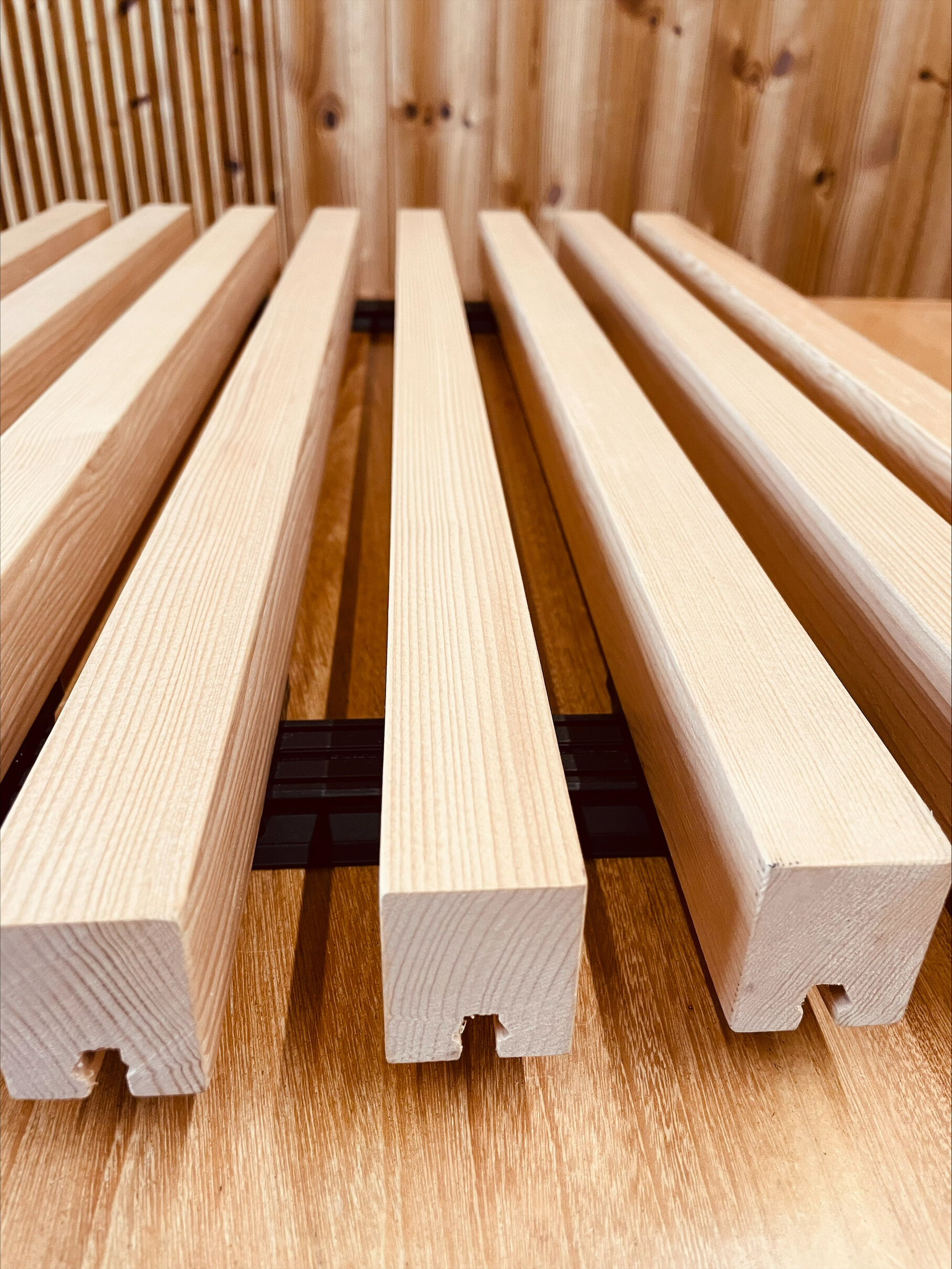

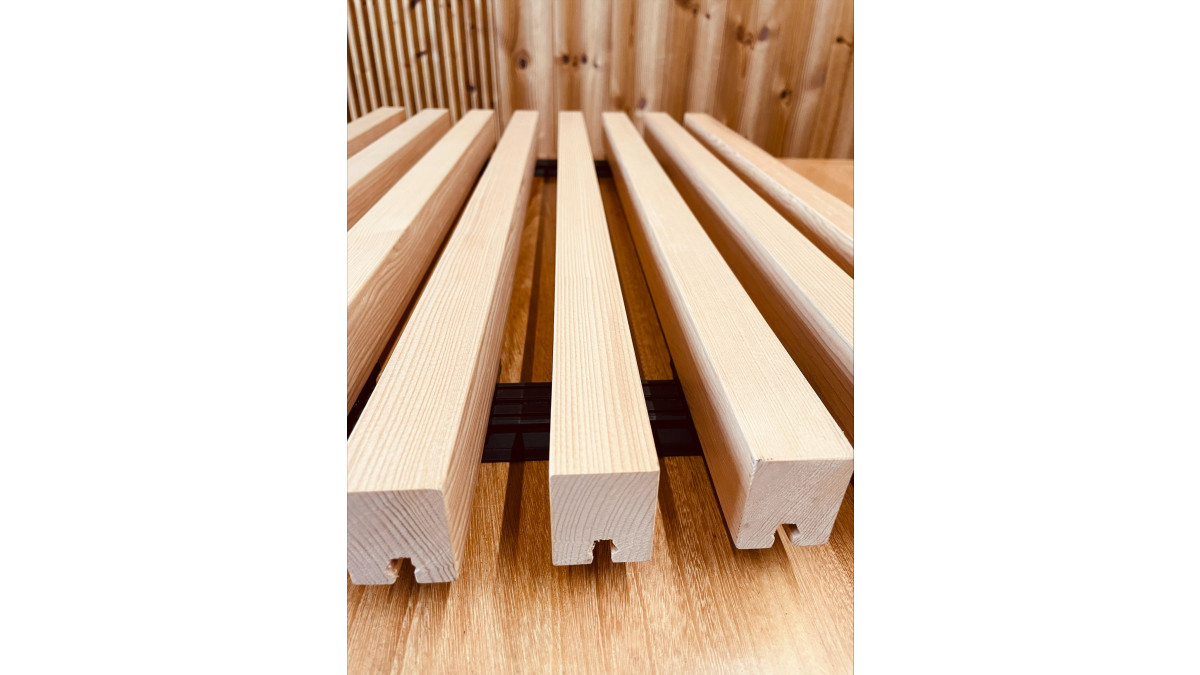

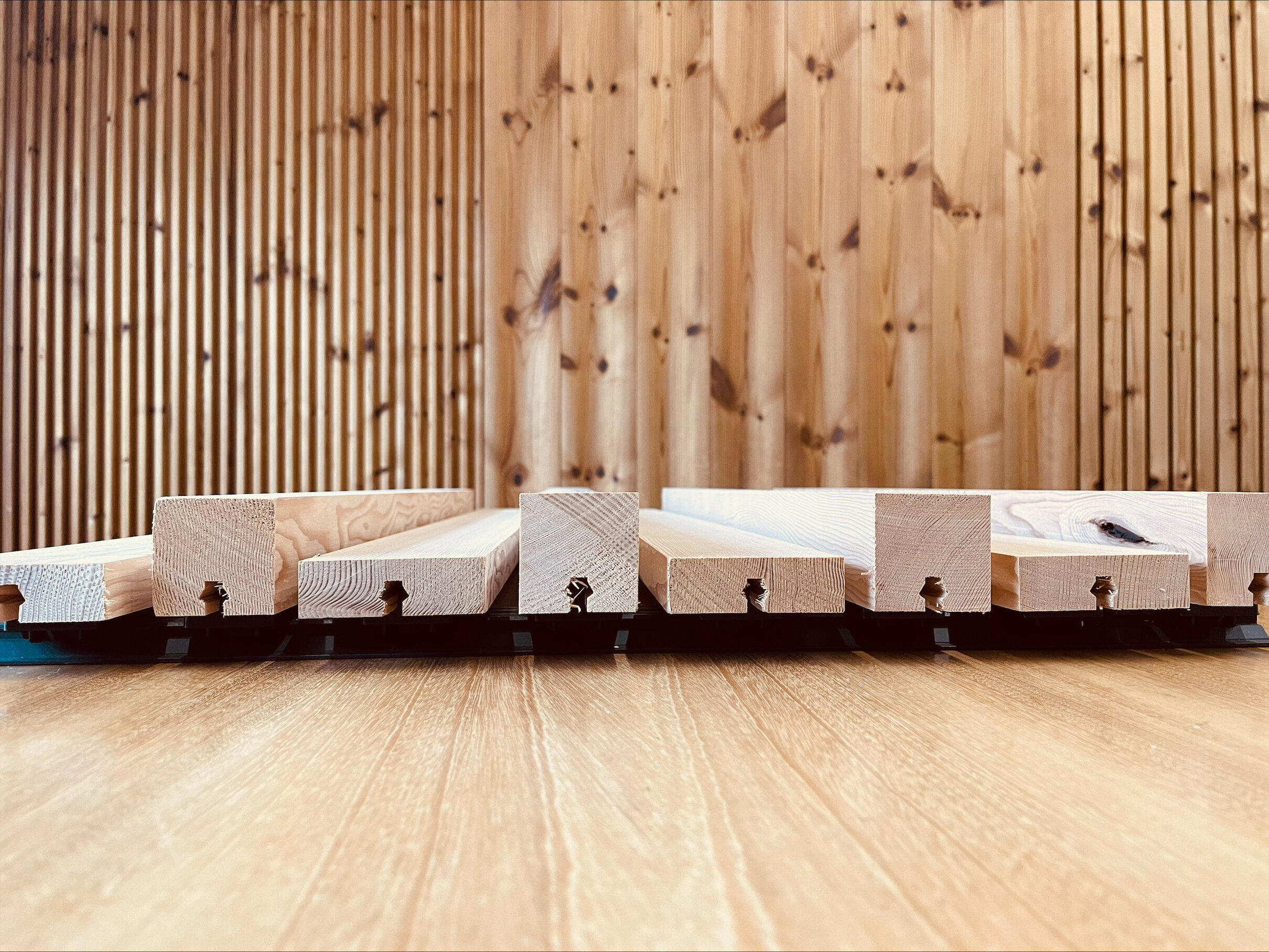

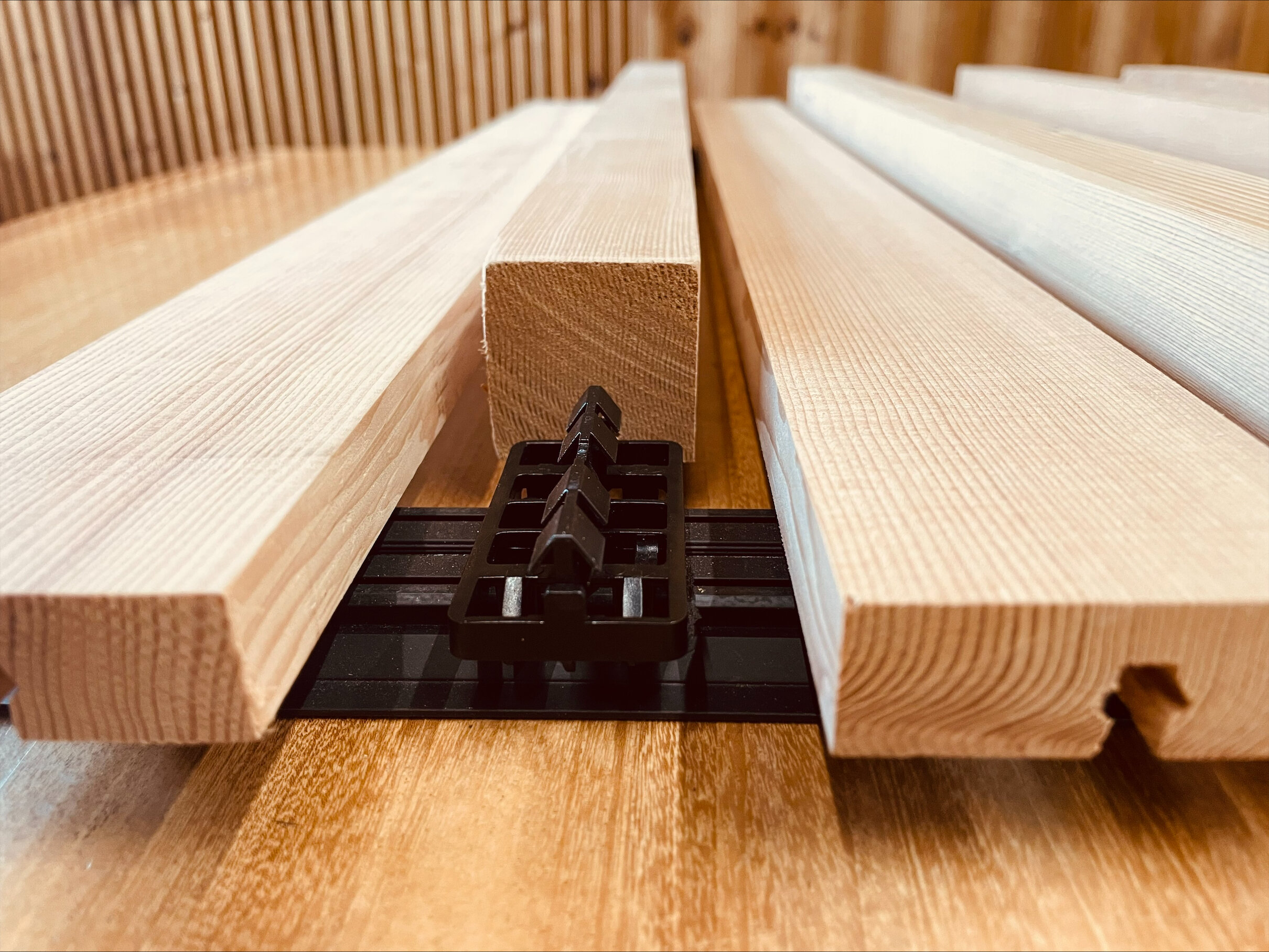

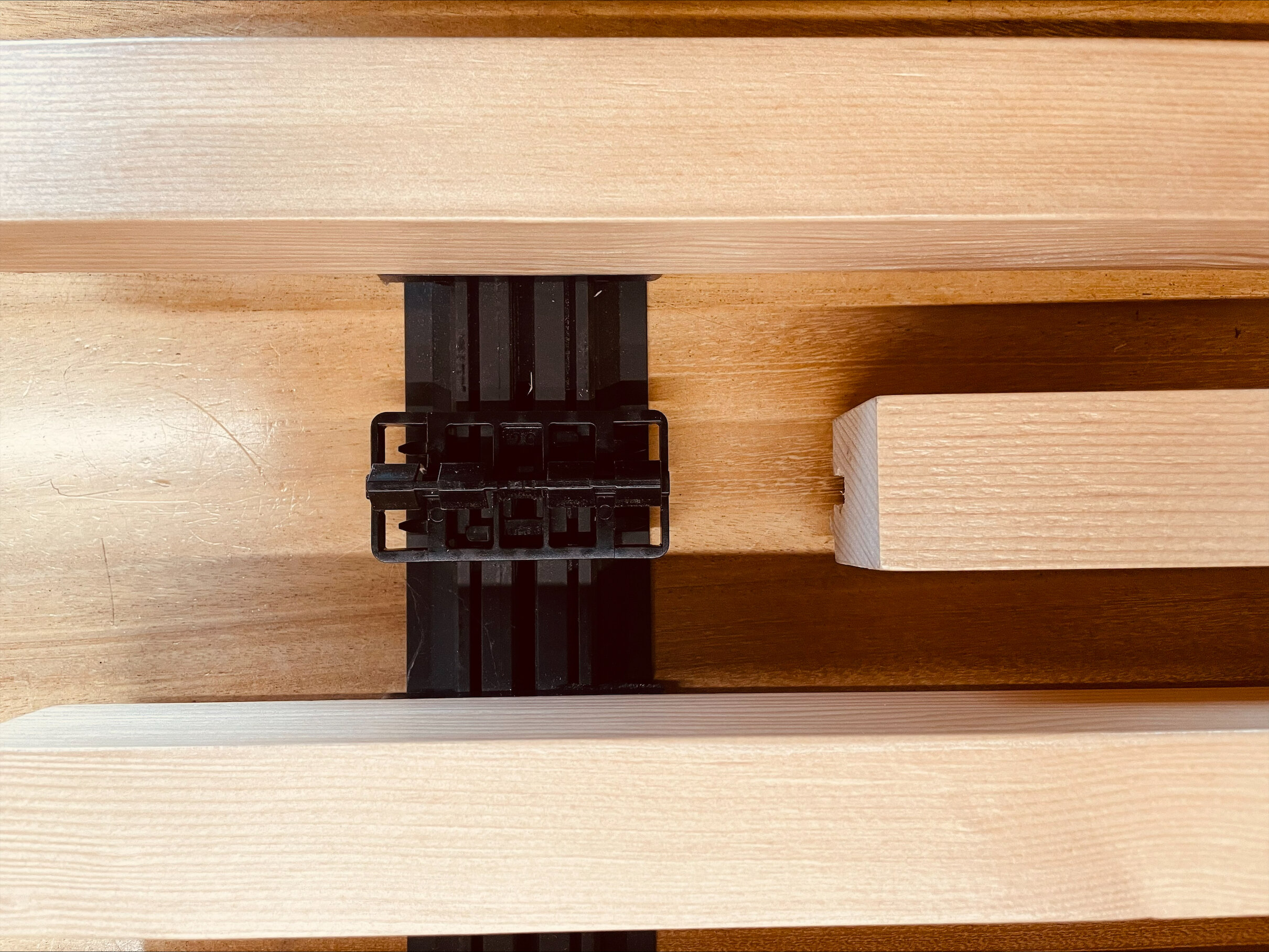

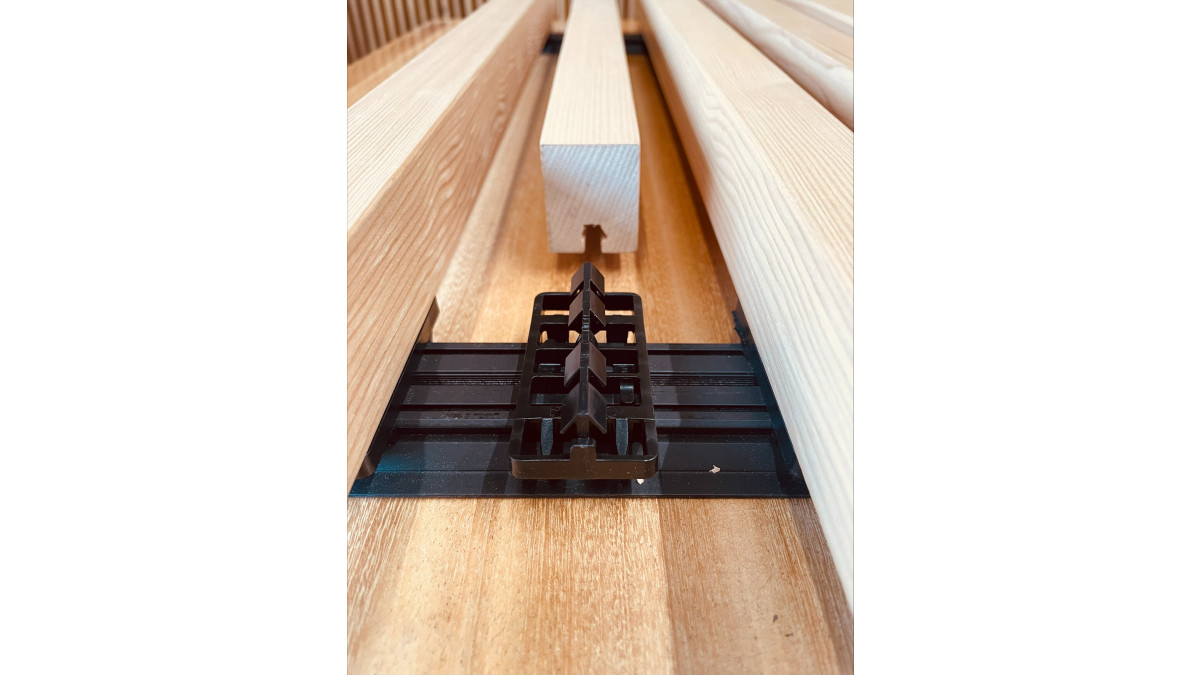

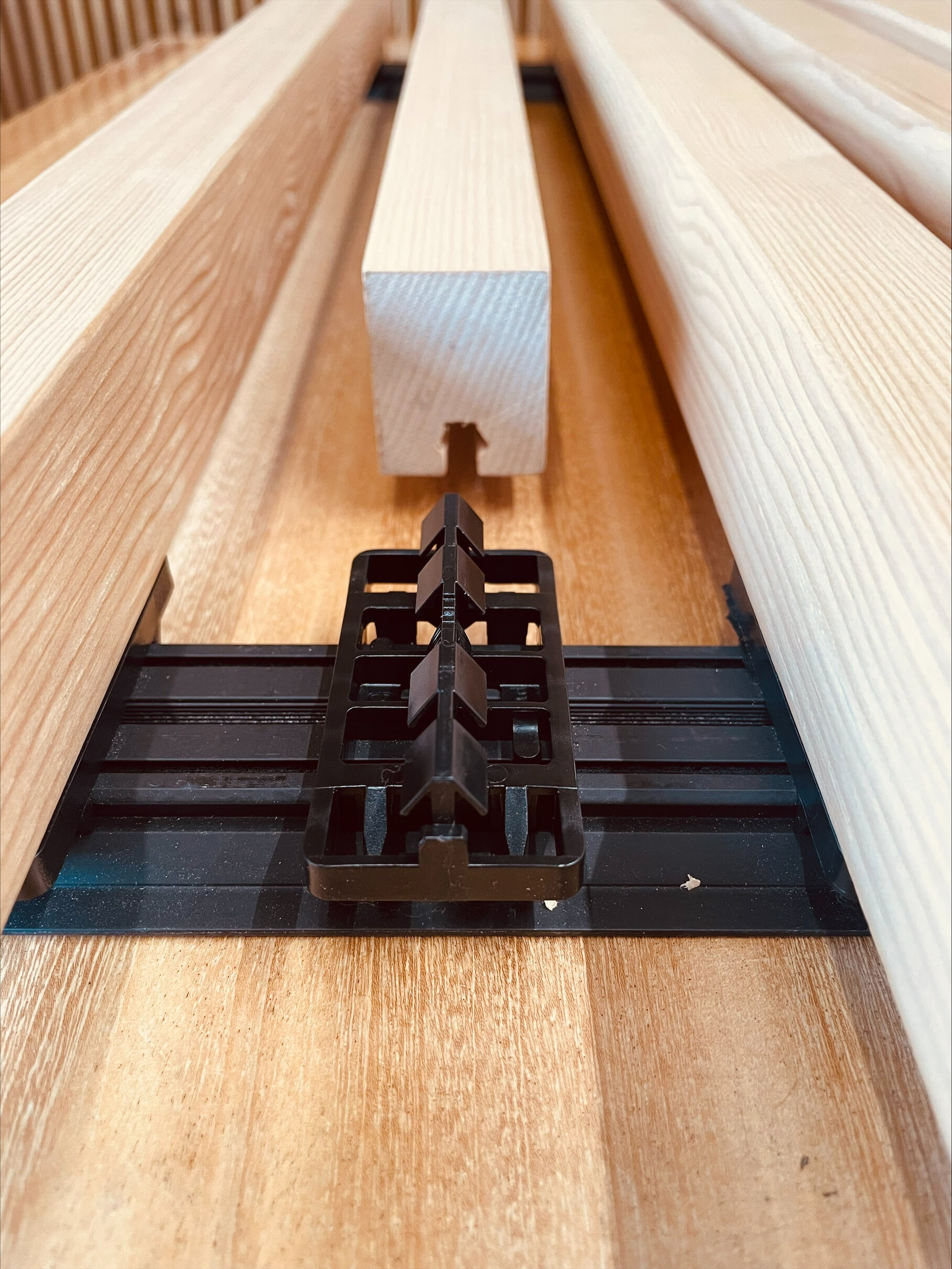

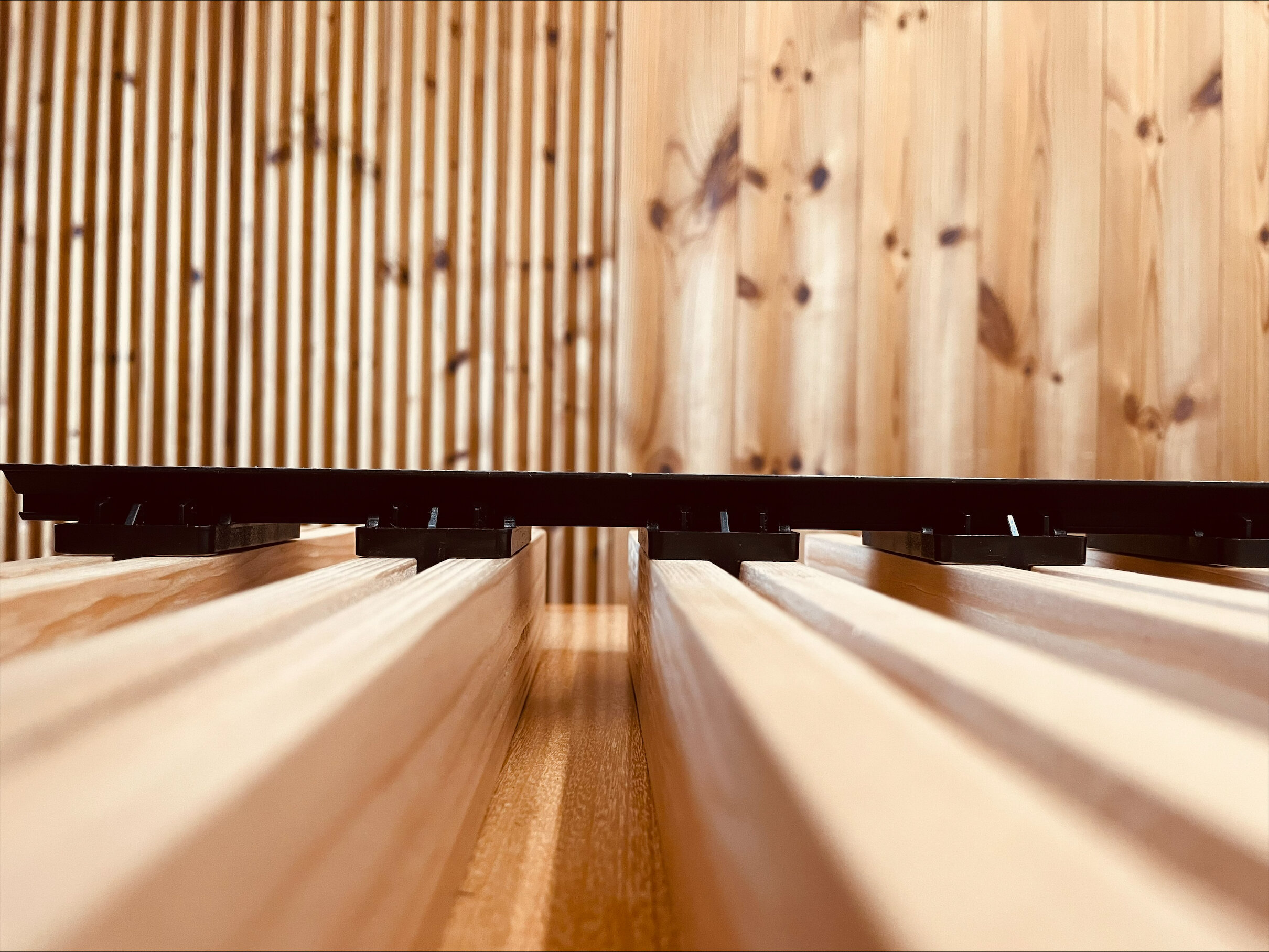

The JSC Clipp® Batten System integrates sustainable timber battens and the Grad® aluminium rail with a patented clipping system for easy installation and maintenance. Suitable for walls and ceilings with a fixture-free appearance, this solution offers a beautiful design aesthetic while drastically reducing installation timeframes compared to traditional timber batten systems.

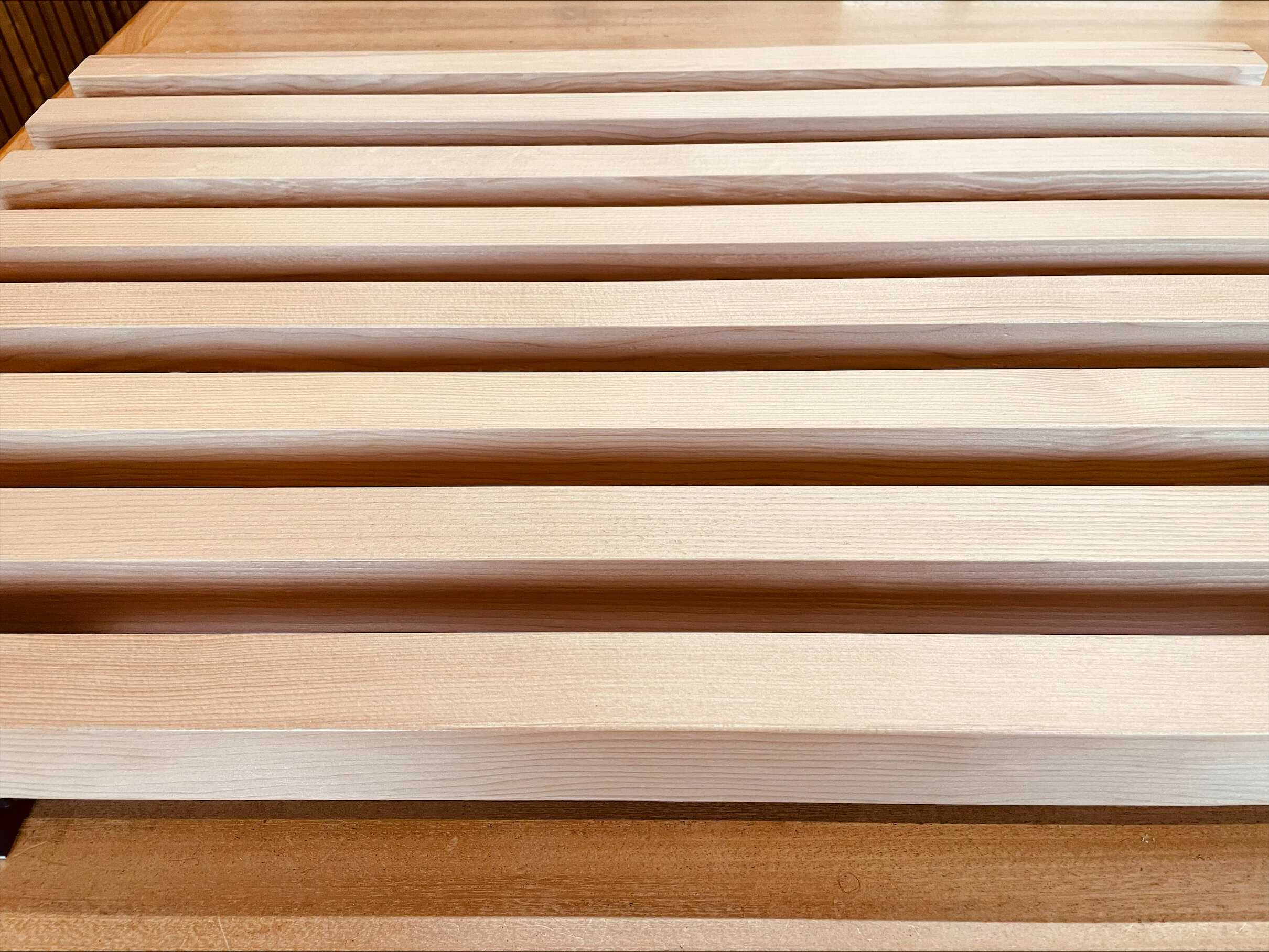

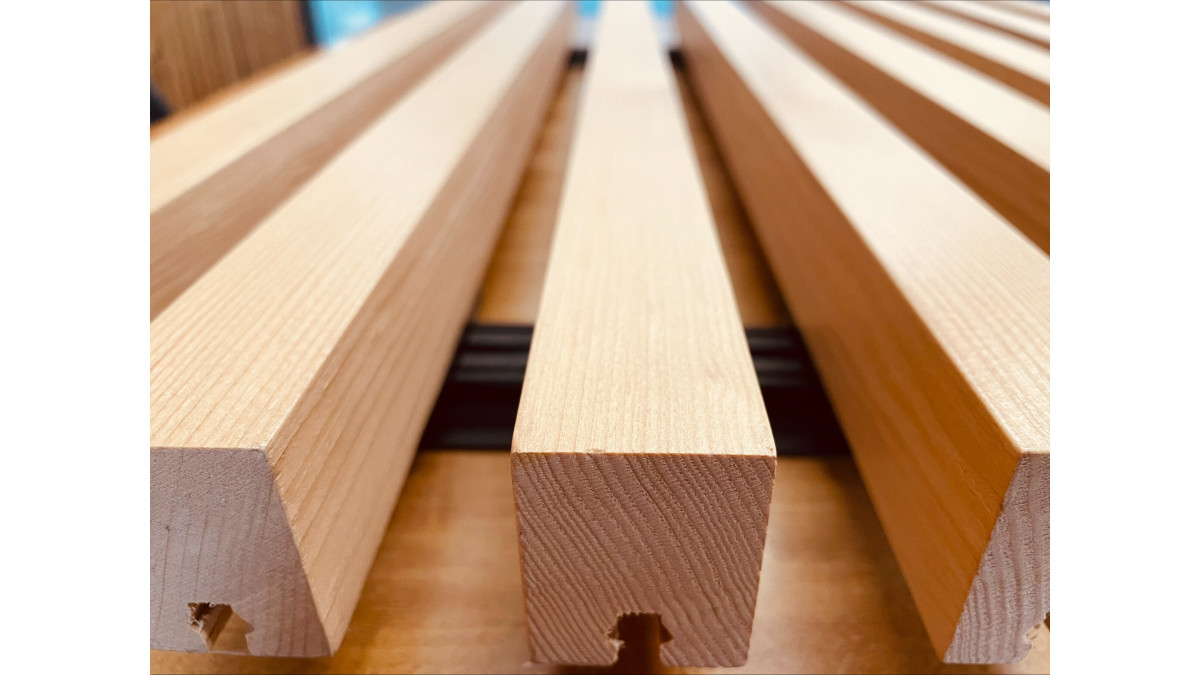

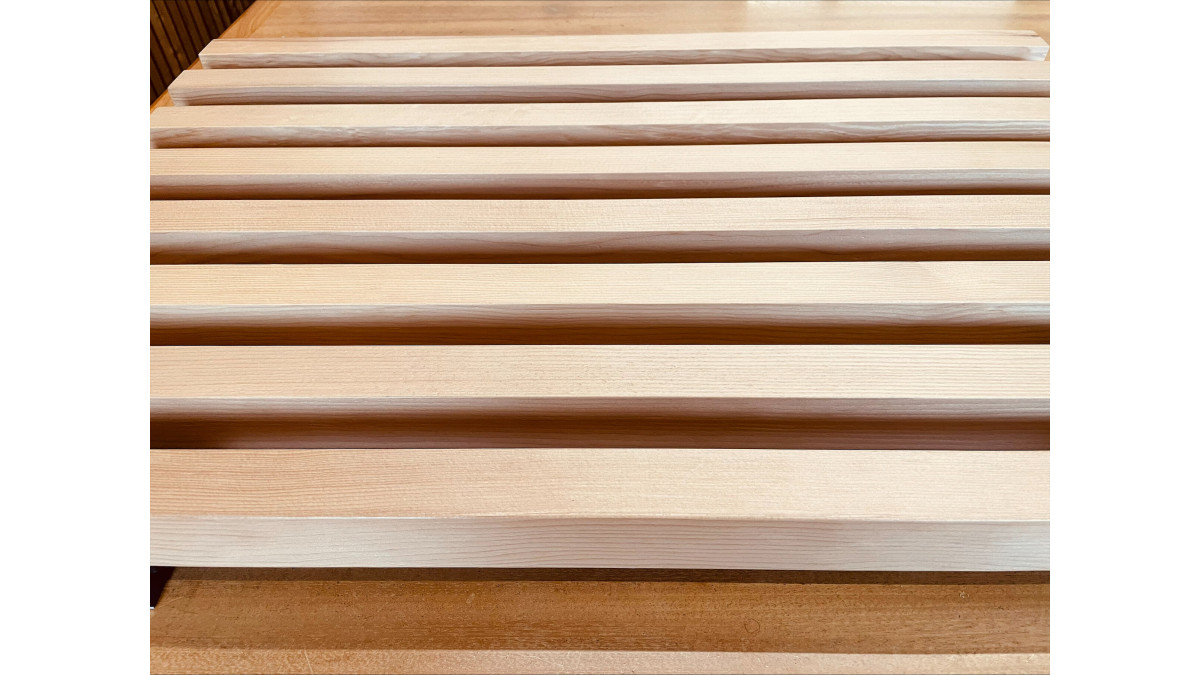

Timber battens are available in multiple species, including Western Red Cedar, Western Hemlock, and thermally modified species, providing options for superior durability, and aesthetic flexibility.

Key Features

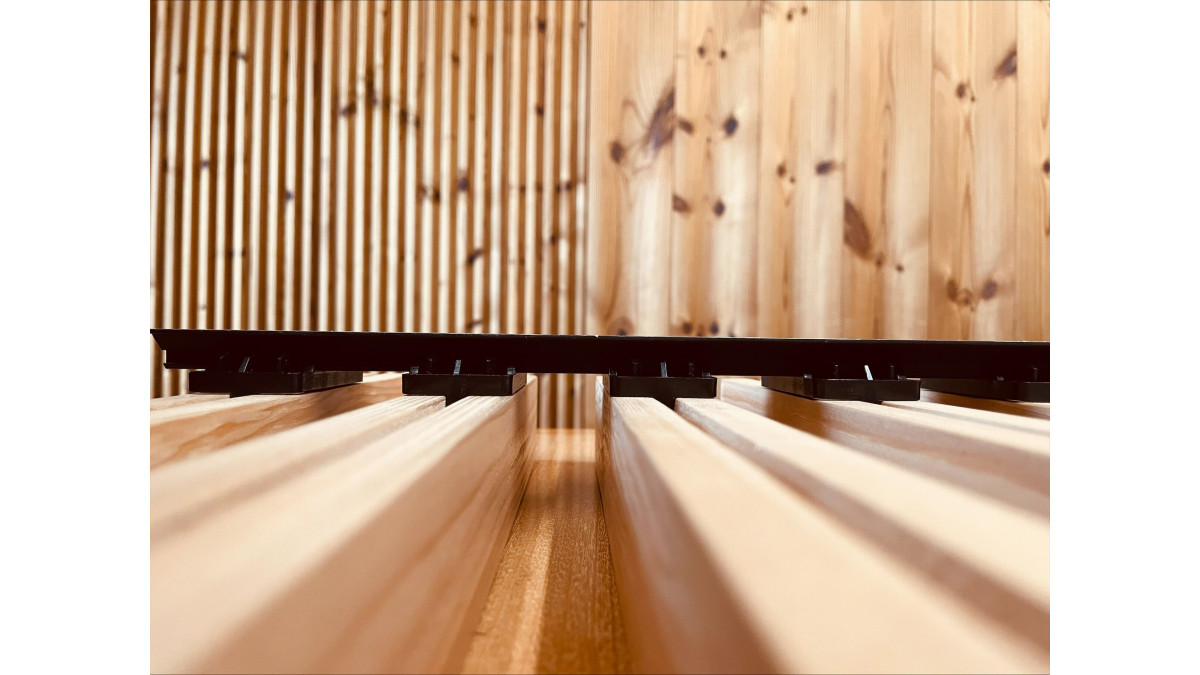

Easy installation and maintenance with the Grad® aluminium rail system

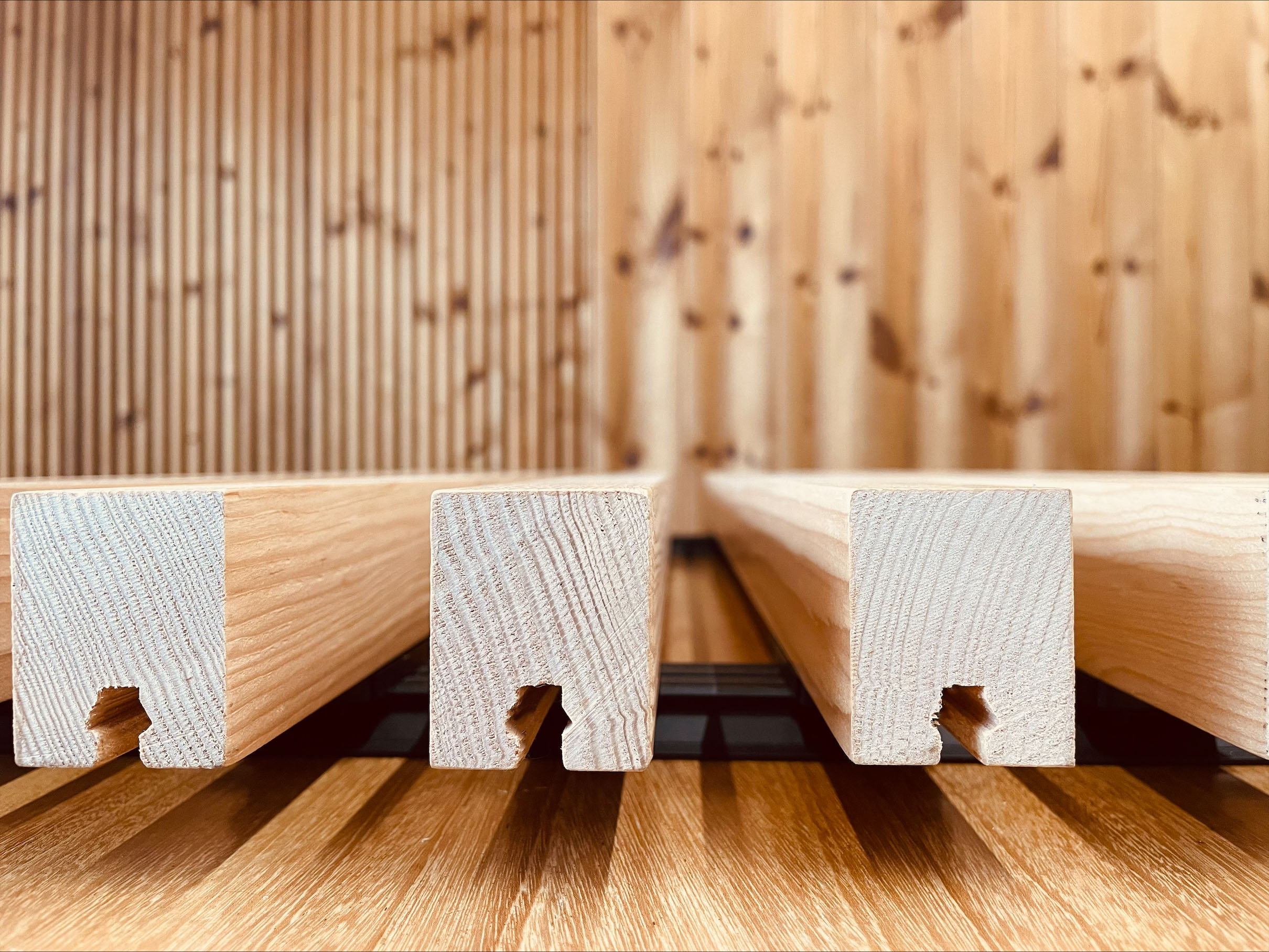

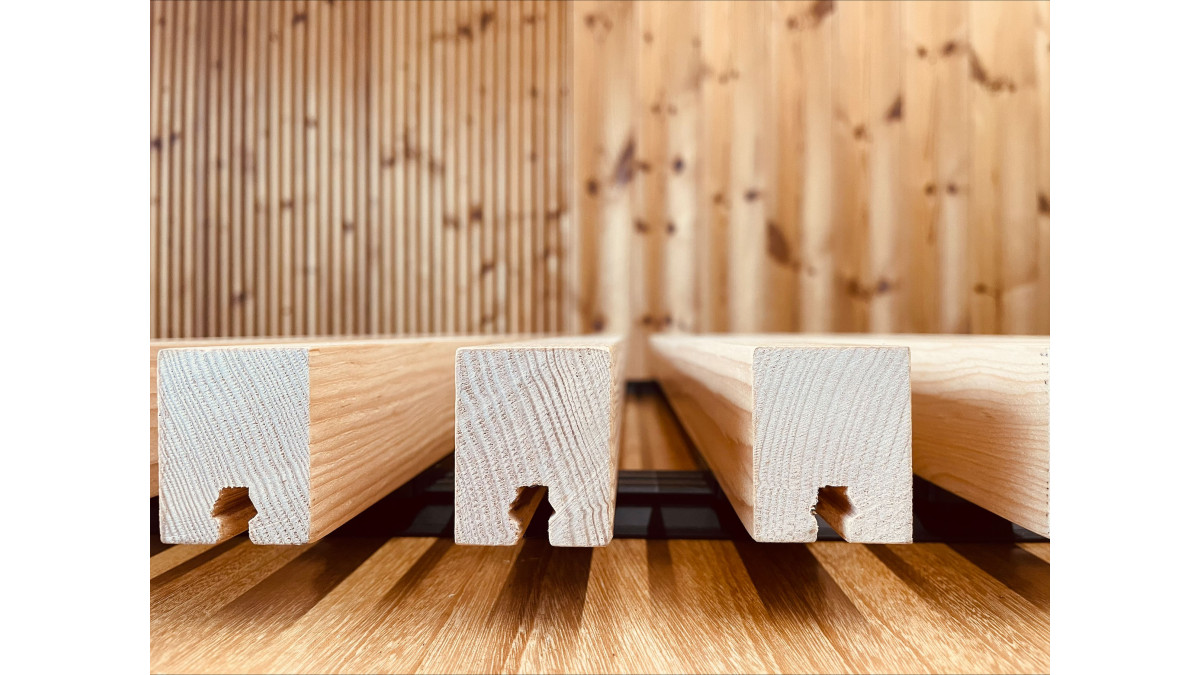

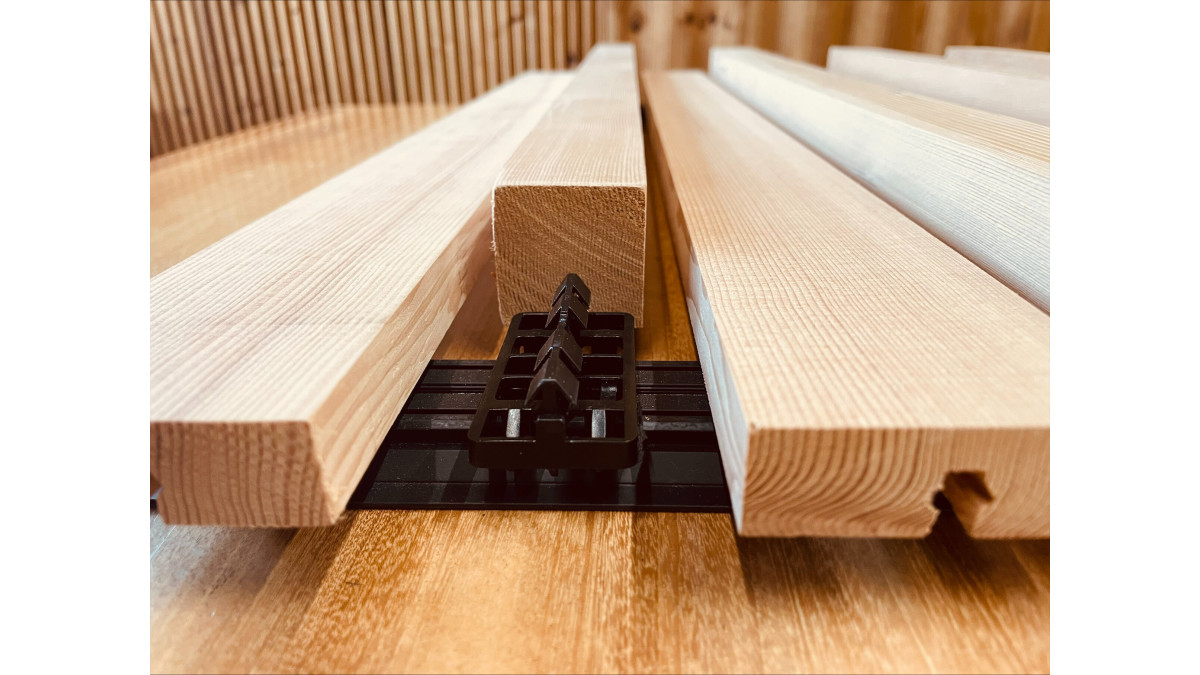

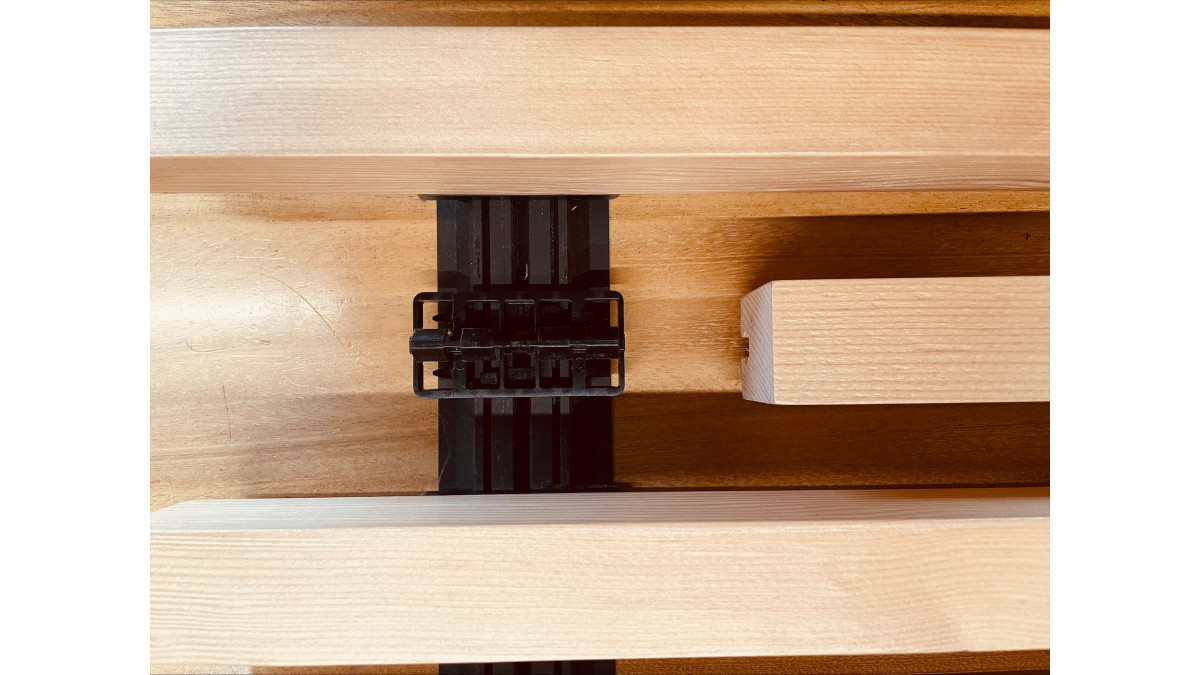

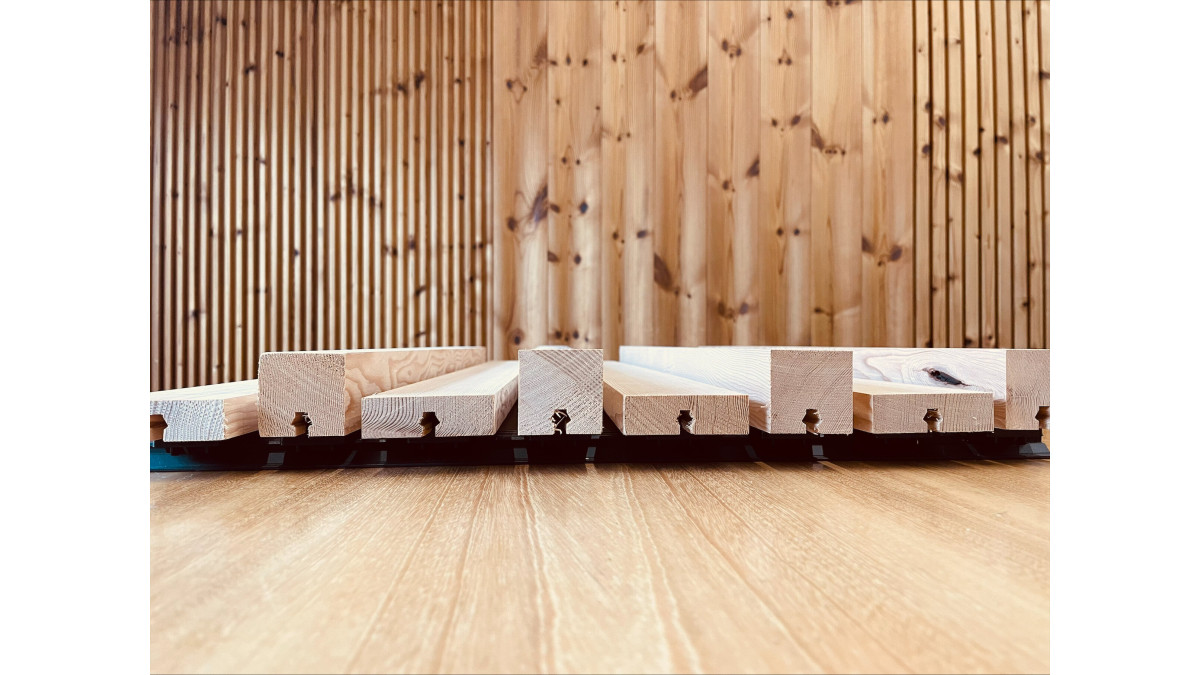

Patented Grad® clipping system with invisible clips for reliable and durable performance
Customisable batten and sizes for tailored aesthetics — 60mm or 80mm clip/batten spacing available

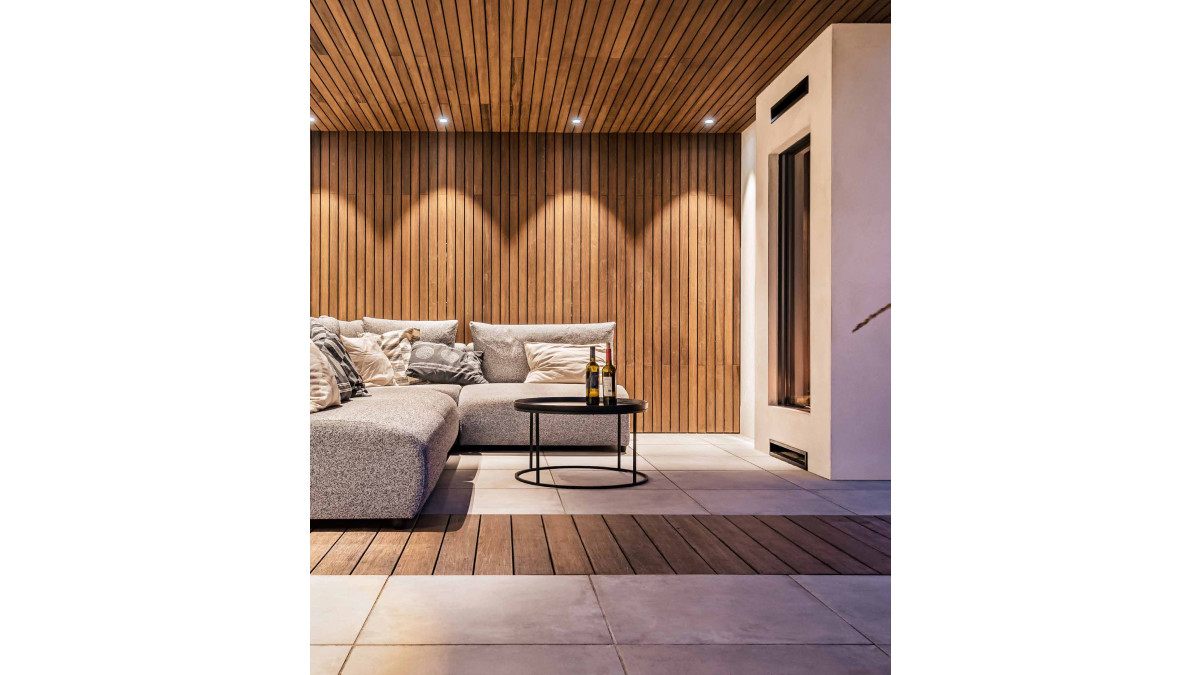

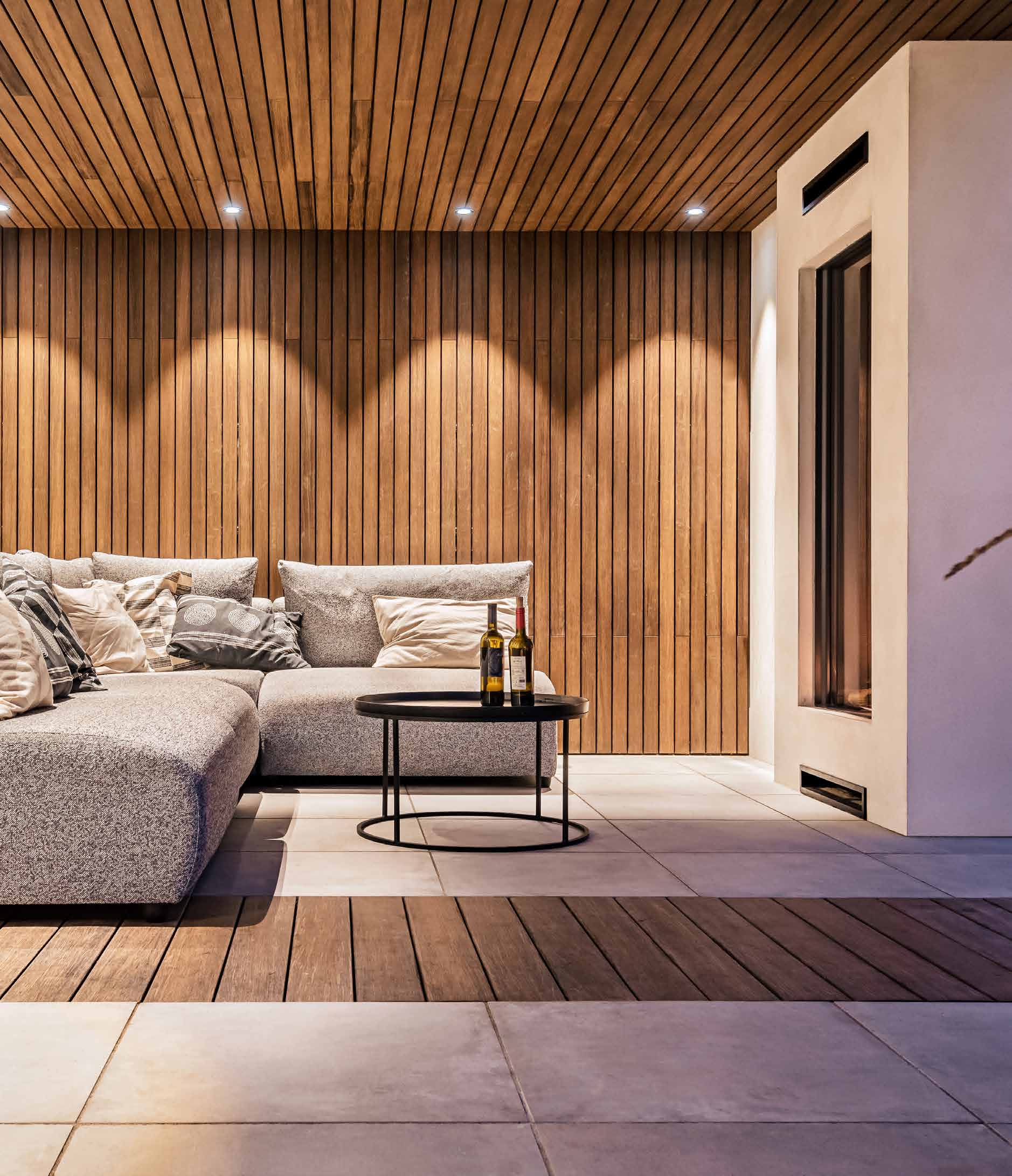

Suitable for walls and ceilings with a fixture-free appearance, ensuring a seamless finish
Sustainably sourced timber battens available in various species and finishes
Fire-retardant coating options available for these interior applications

Ranges

JSC Interior Lining

Scope of Use

Suitable for interior walls and ceilings in residential and commercial buildings
Compatible with timber-framed, steel-framed, and concrete substrates
Rail/timber batten can be fixed to timber framing, steel framing, and concrete walls as well as timber framed and steel rail ceilings
Customisable batten and sizes for tailored aesthetics — 60mm or 80mm clip/batten spacing available
Appropriate for use in areas with low imposed forces

Limitations on Use

Designed for non-structural applications with low imposed forces
Not suitable for sports areas or playgrounds due to potential impact forces
Ensure compatibility with the building’s moisture management requirements
Requires specific fixing methods depending on the substrate type
Consult with a structural engineer for applications involving high impact or load forces
For suspended ceiling applications, JSC recommends consulting your suspended ceiling manufacturer
The specifications of the system are determined by the weight of the selected timber battens and specific engineering requirements of the project

Statement of Building Code Compliance

The JSC Clipp® Batten System complies with the following NZ Building Code clauses:

Durability (B2)
Hazardous Building Materials (F2)

In-Service History

The JSC Clipp® Batten System is new to the New Zealand market, however, the Grad® patented clipping system has been used successfully in various residential and commercial projects internationally. The Grad® patented clipping system has over 20 years of proven performance in architectural applications internationally.

Other Performance Attributes

Retains colour and finish quality over time with minimal maintenance
Sustainably sourced timber battens available in various species and finishes
The system allows for easy removal and replacement of individual battens, ensuring long-term usability and adaptability
