Weathertex Weathergroove Panels
Description

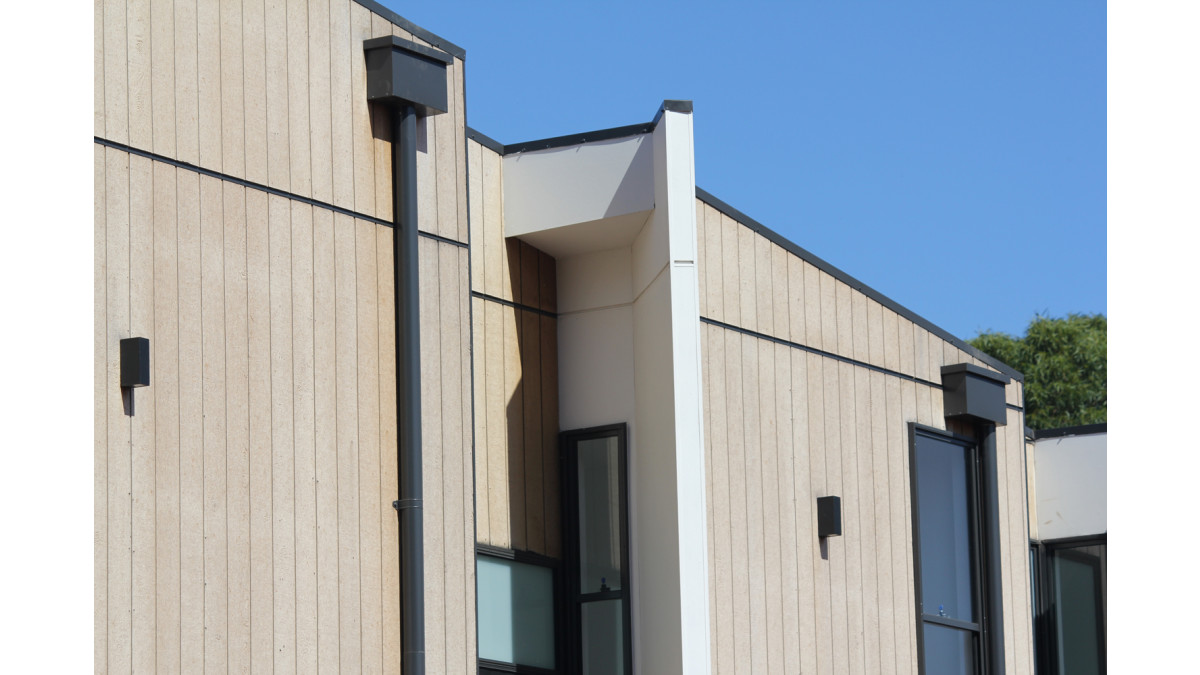

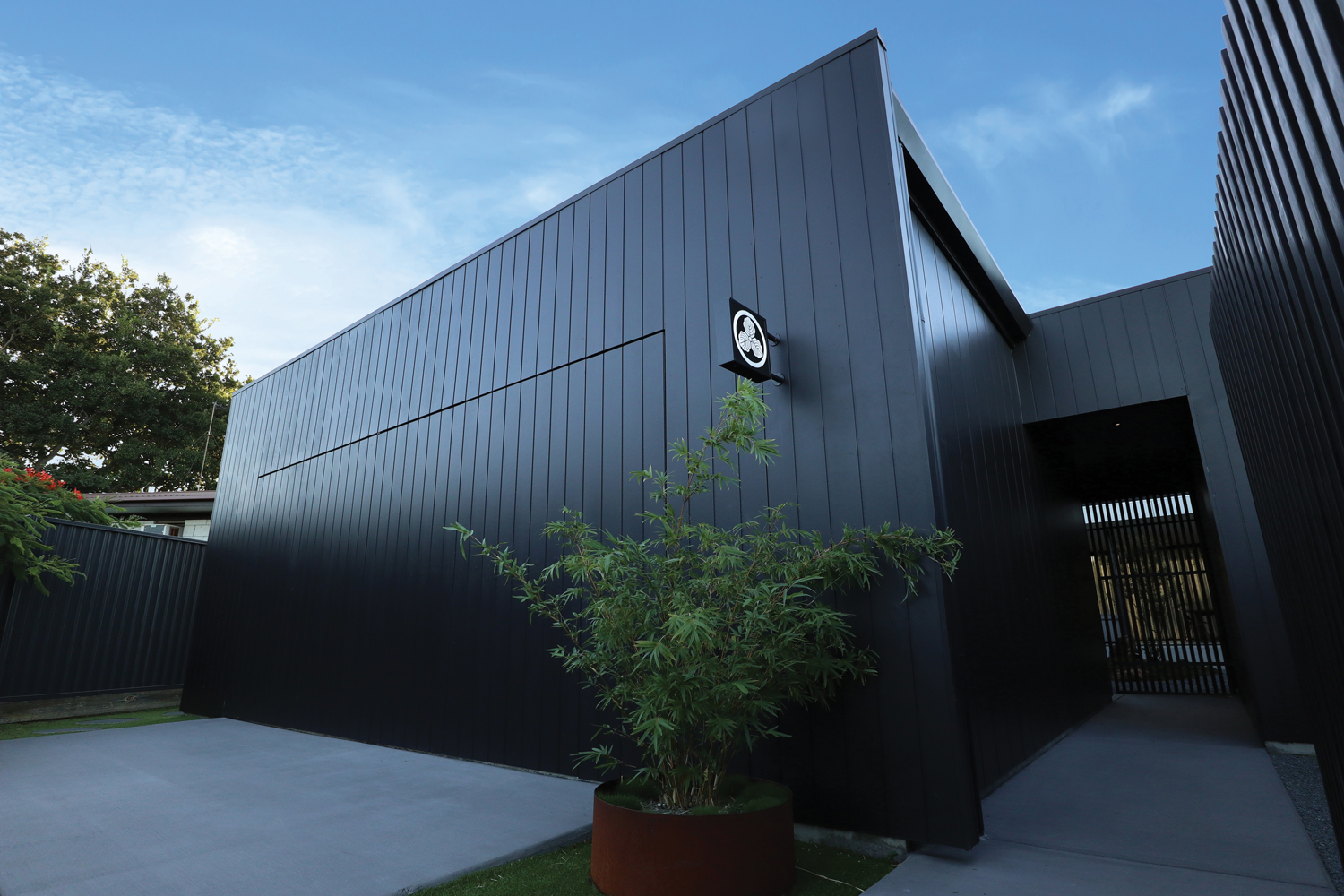

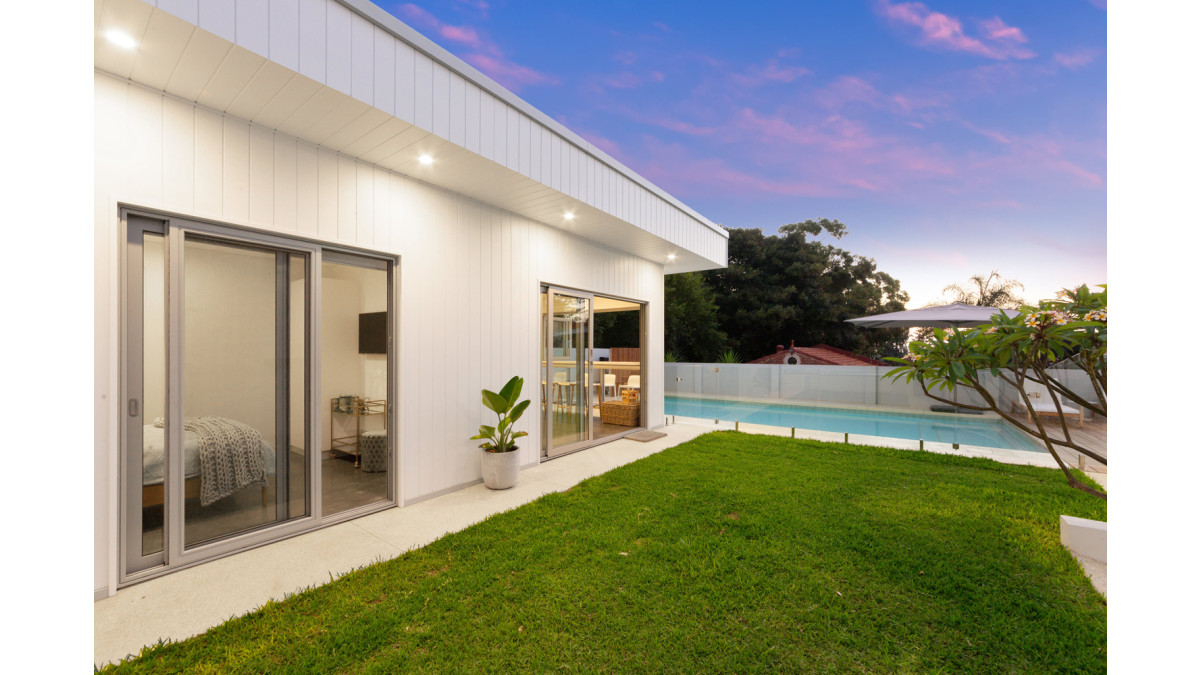

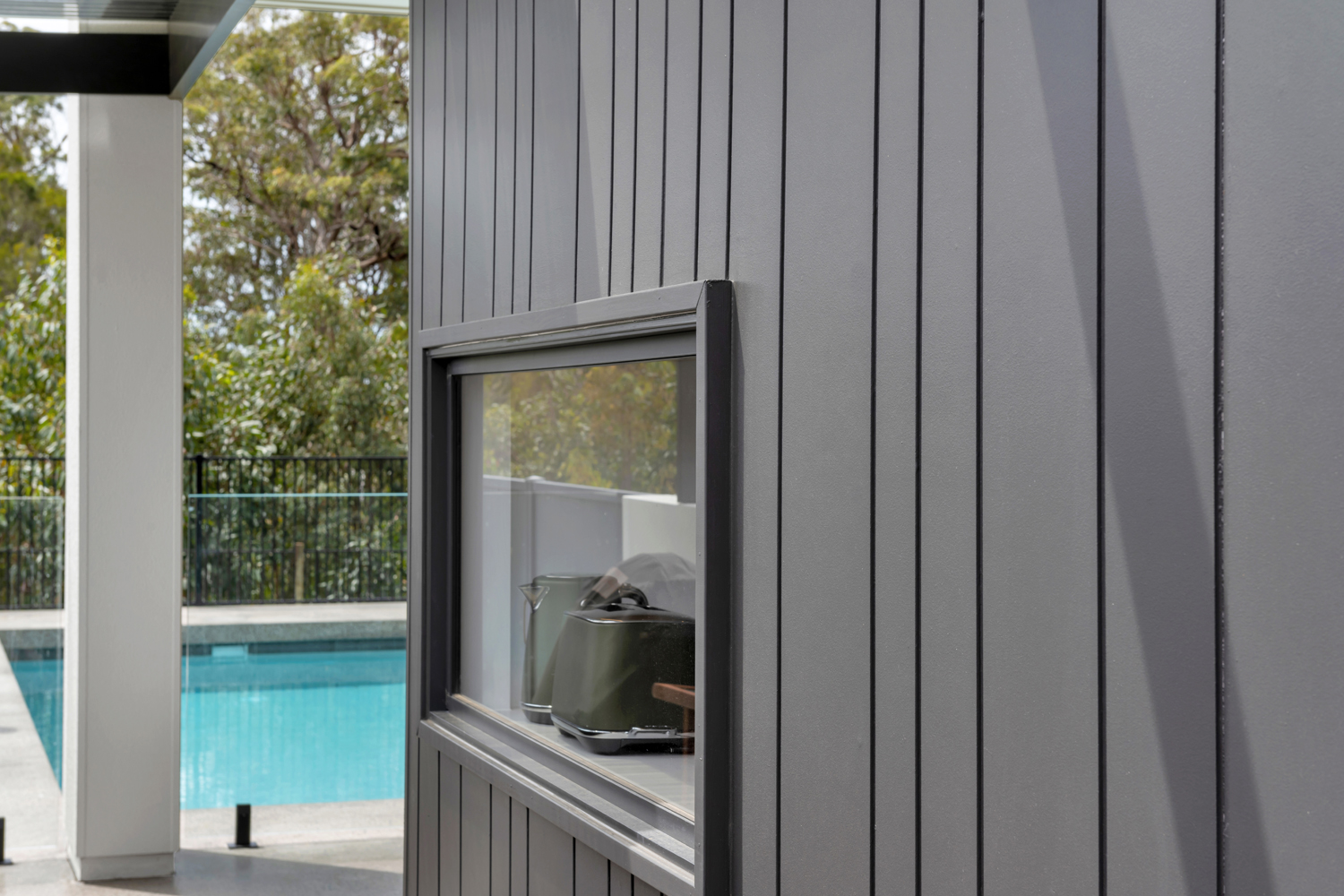

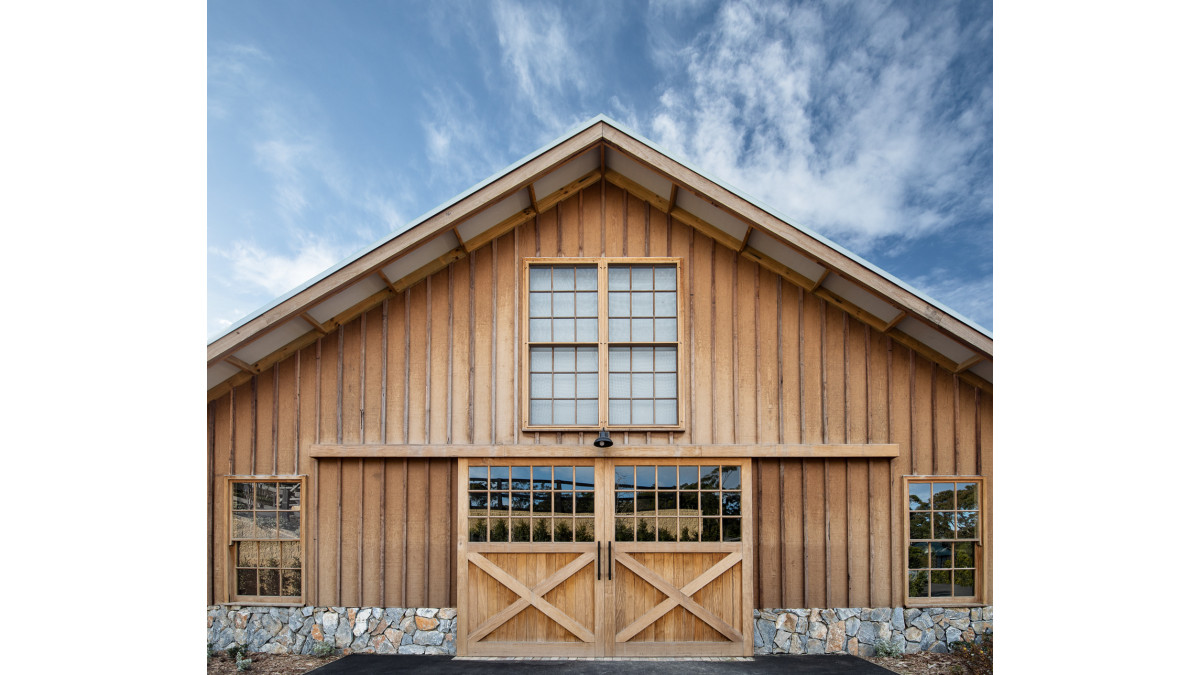

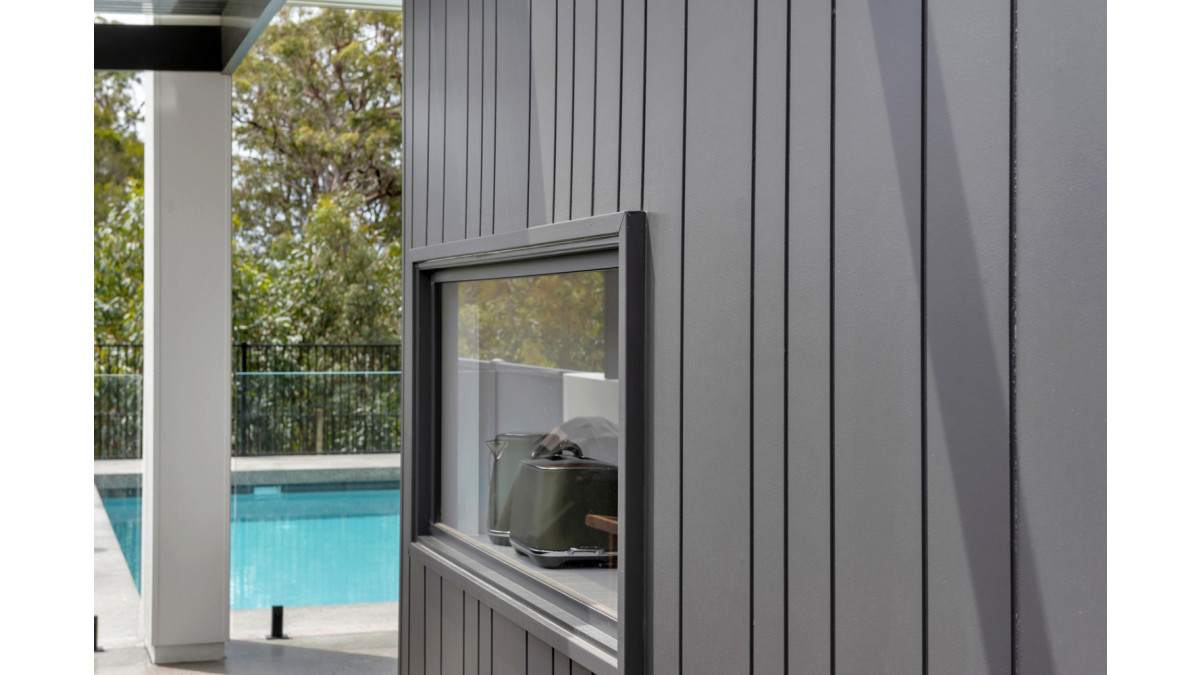

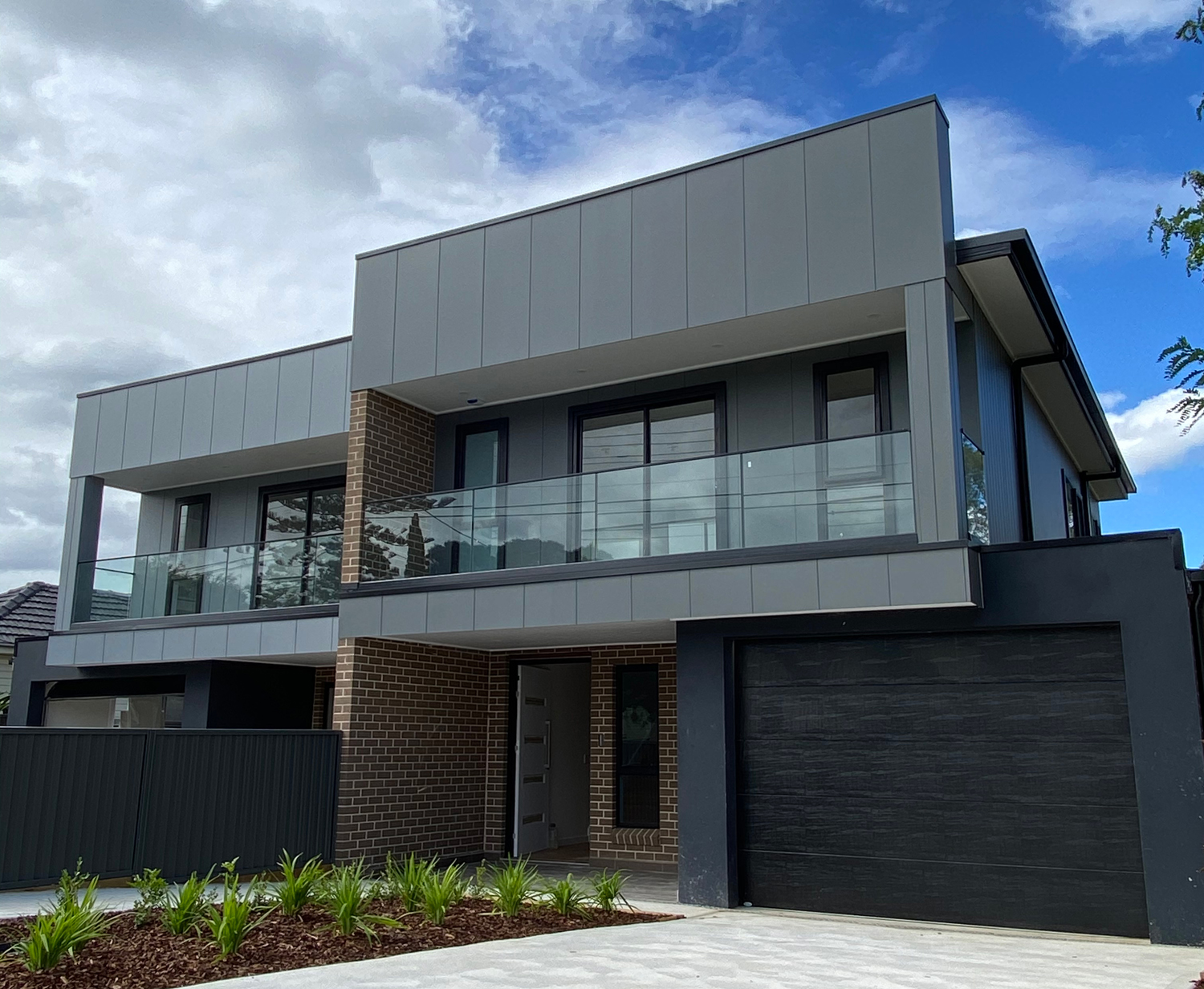

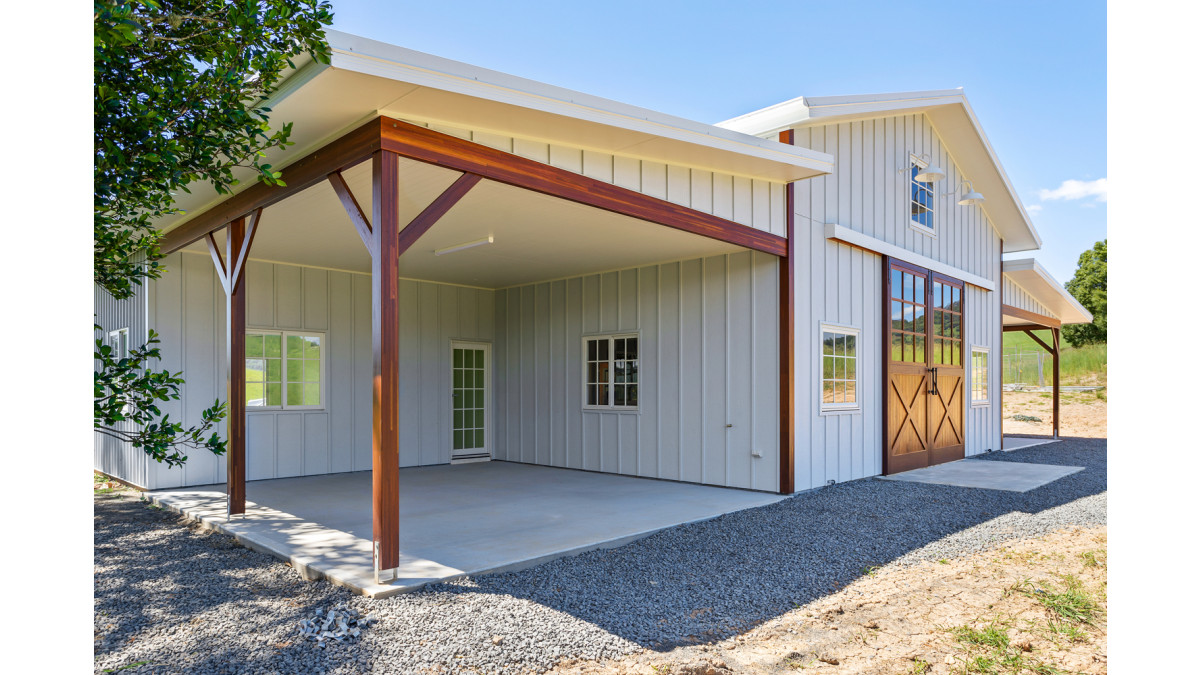

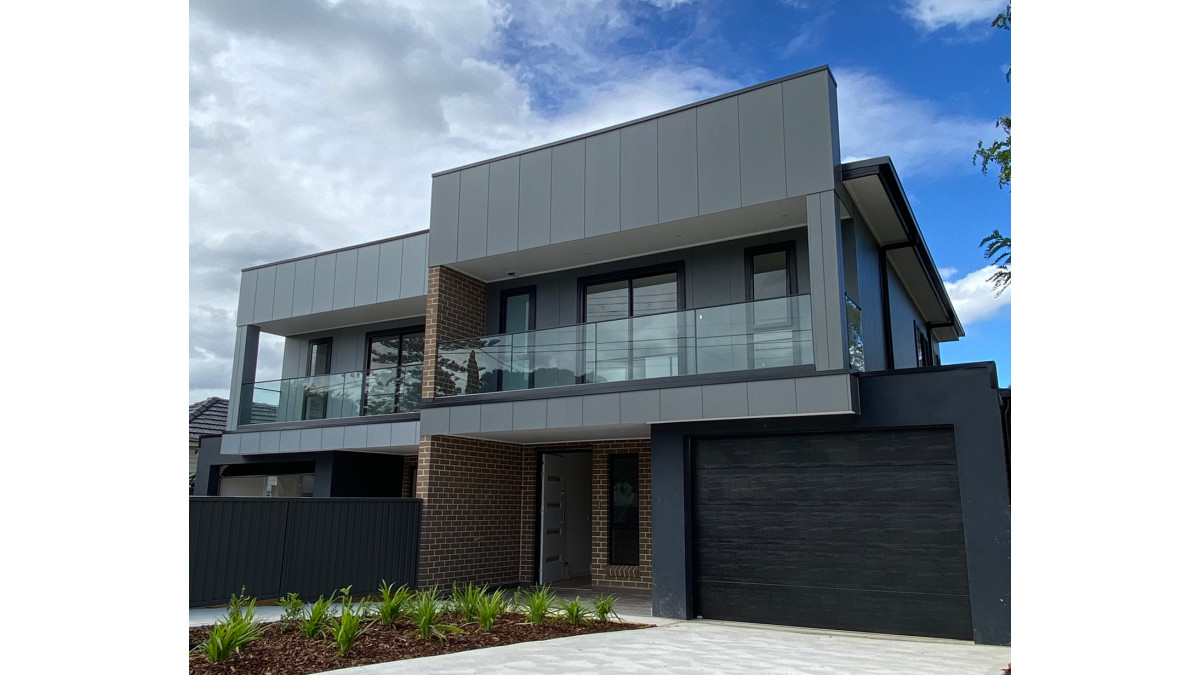

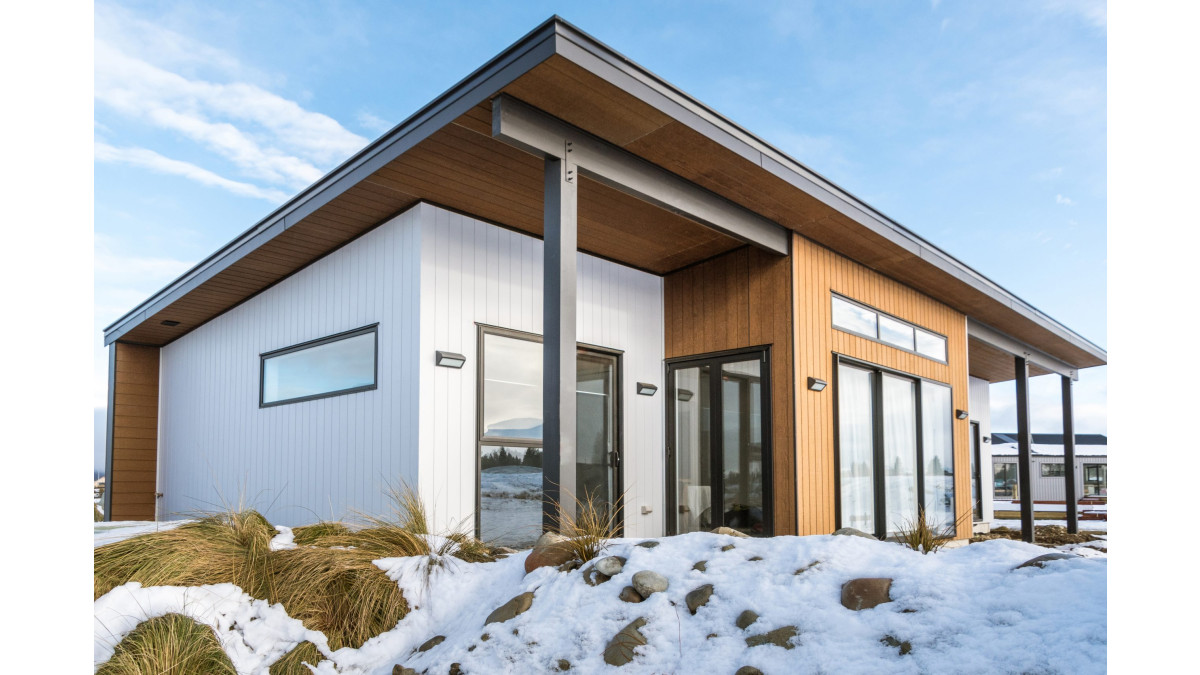

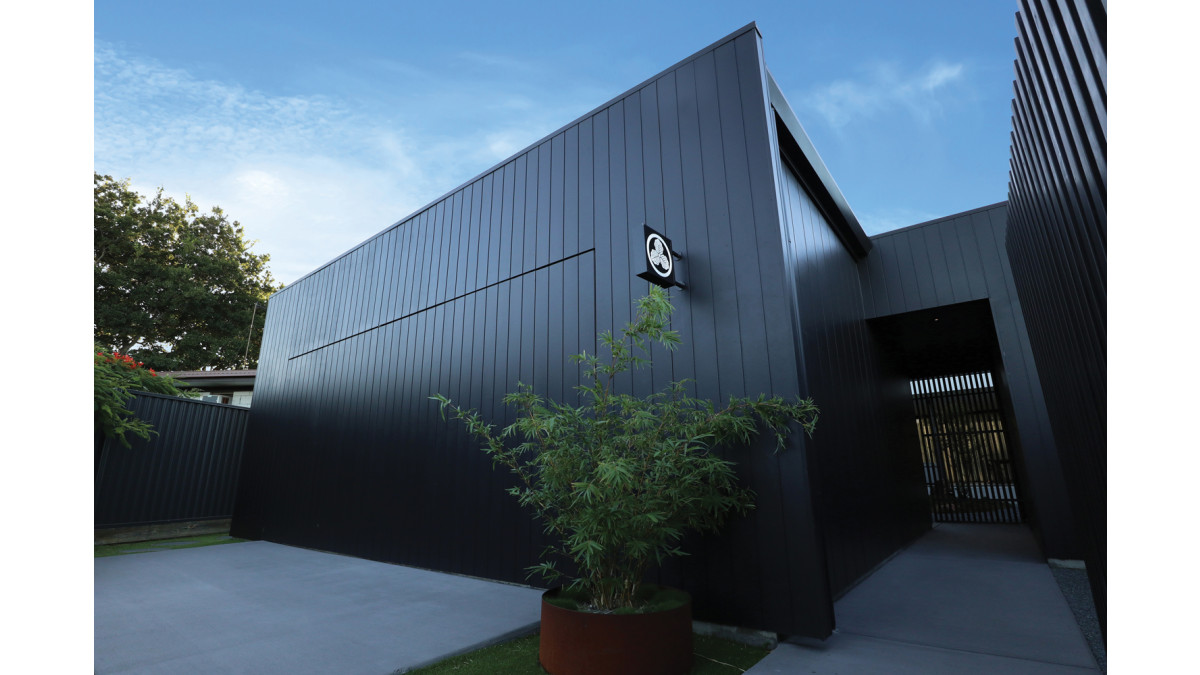

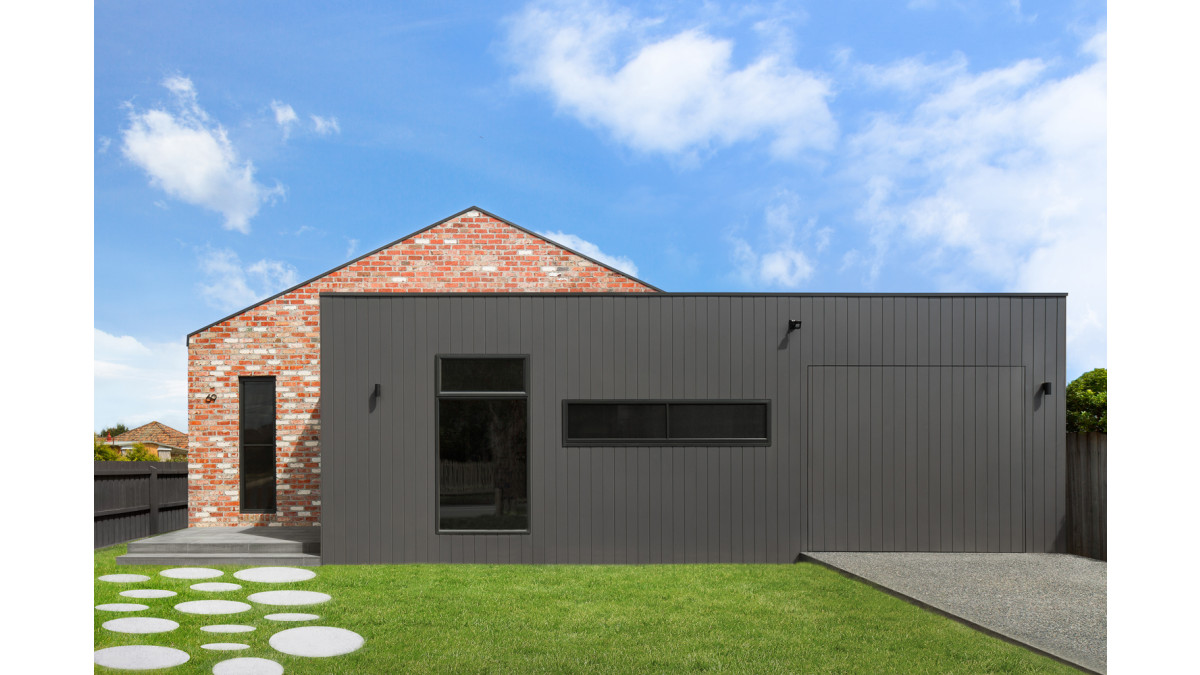

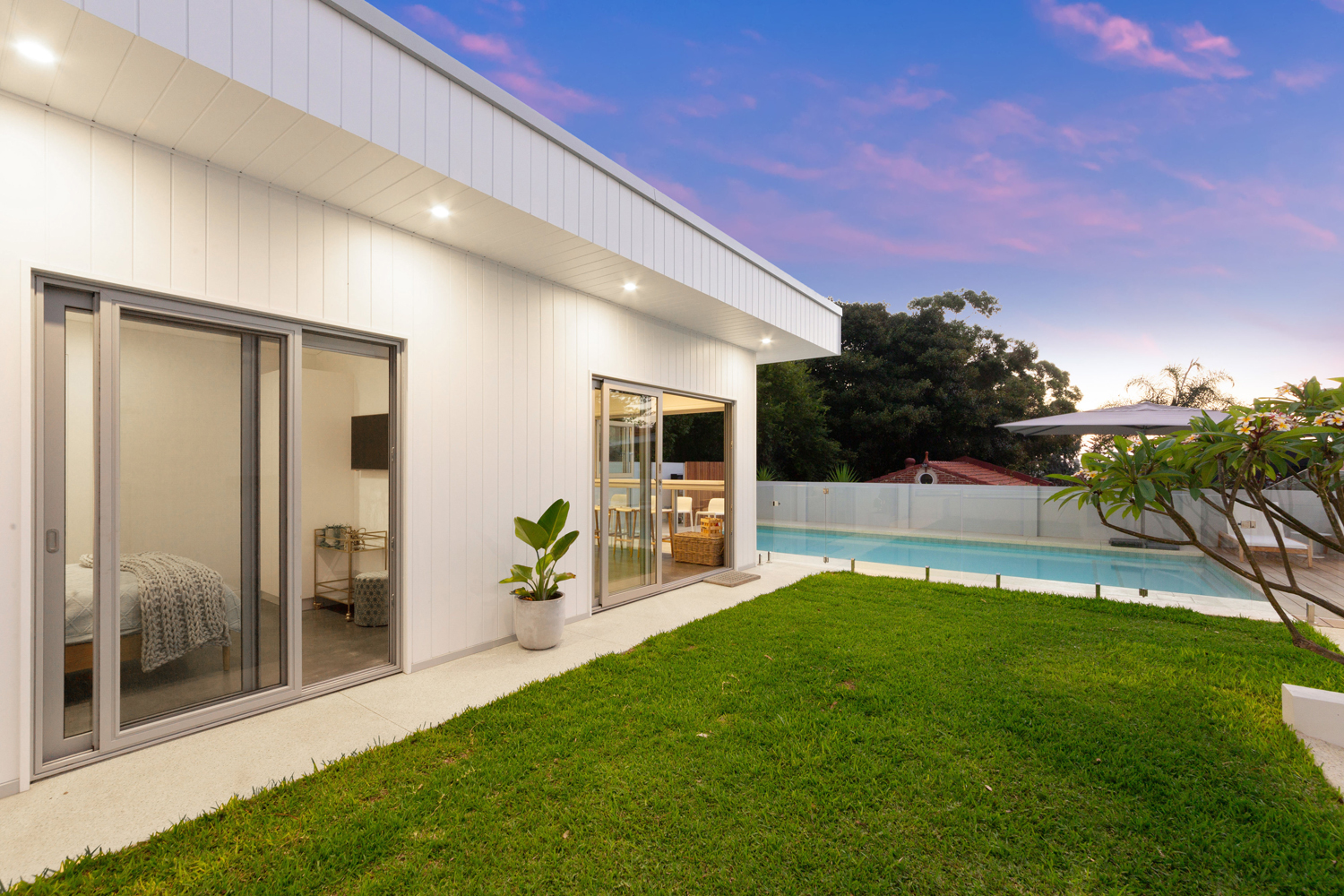

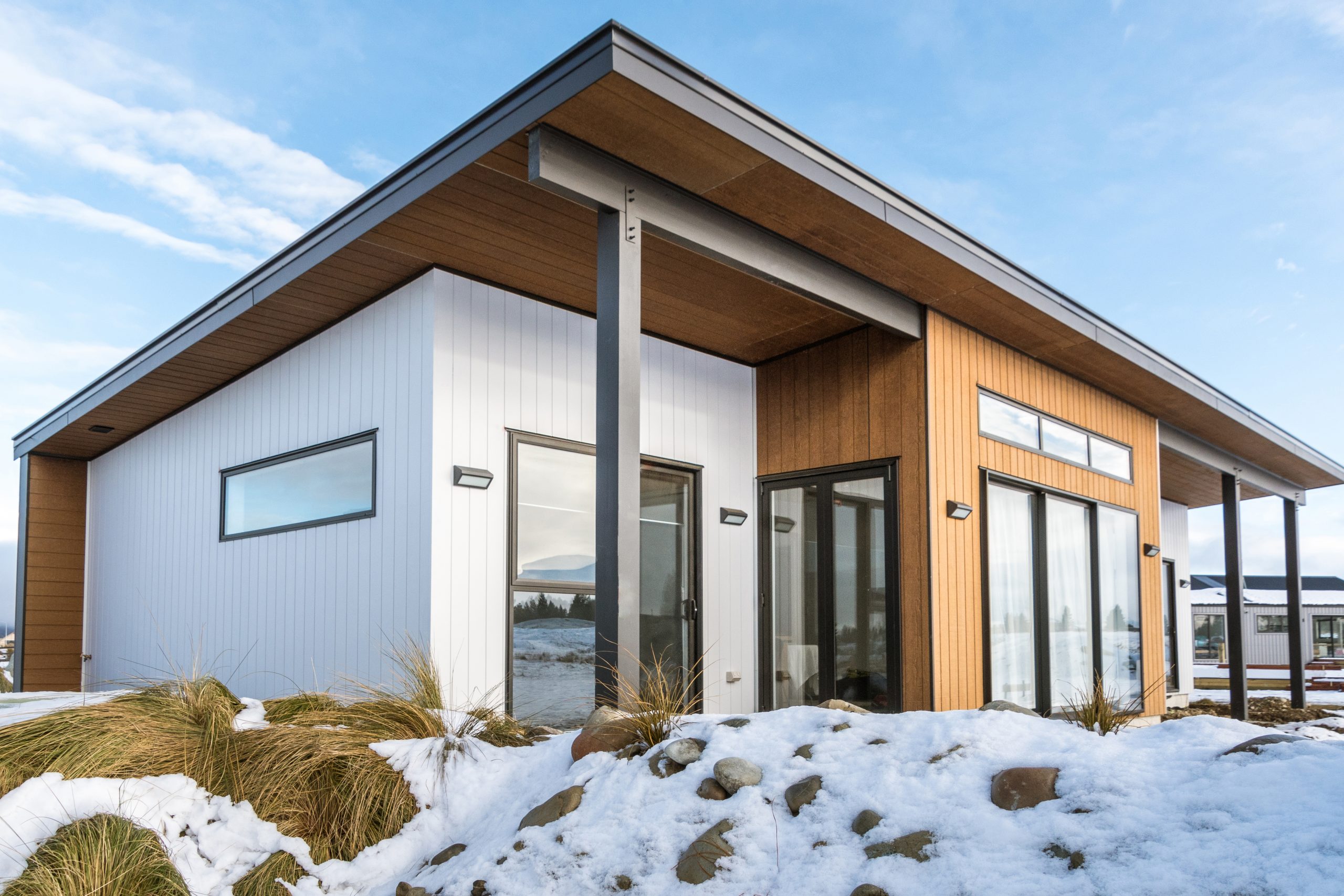

Weathergroove is a vertically grooved timber cladding system suited to both residential and light commercial applications. Produced from 97% natural hardwood timber, it offers strong durability, design flexibility, and a choice of Natural or pre-primed finishes (Ruff Sawn, Woodsman, and Smooth).

The system includes Weathergroove panels, flashings, and accessories, and may be installed either over a drained and vented cavity or via direct fix. Panels are 9.5 mm thick and come in:

  • 3660 x 1196mm
  • 2745 x 1196mm
  • 2440 x 1196mm
Key Features
  • Vertically grooved panel system for a modern aesthetic, in a range of profiles
  • Natural finish or pre-primed
  • BRANZ appraised for both cavity and direct fix installations
  • 25 year warranty on pre-primed panels and 15 year warranty for Natural finish
  • Made from 97% natural hardwood timber, free from silica, resins, and formaldehyde
  • PEFC certified and made from waste timber meaning no old growth hardwood is ever used
  • Better than zero carbon footprint
  • Lightweight and easy to handle for efficient installation
PEFC Certified
PEFC Certified
Scope of Use

Direct Fix

The Weathertex Direct Fixed Weathergroove Panel Cladding System has been appraised as external wall cladding systems to timber-framed buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1; and,
  • with a risk score of 0-6, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • situated in NZS 3604 Wind Zones up to, and including, Very High.

Cavity Fix — Timber Framing

The Weathertex Cavity Fixed Weathergroove Panel Cladding System has been appraised as external wall claddings for timber-framed buildings within the following scope:

  • the scope limitations of NZBC Acceptable Solution E2/AS1, Paragraph 1.1 for timber-framed buildings; and,
  • with a risk score of 0-20, calculated in accordance with NZBC Acceptable Solution E2/AS1, Table 2; and,
  • situated in NZS 3604 Wind Zones up to, and including, Extra High.

Cavity Fix — Steel Framing

The Weathertex Cavity Fixed Weathergroove Panel Cladding System has also been appraised as external wall claddings for steel-framed buildings within the following scope:

  • the scope limitations of NASH Building Envelope Solutions Paragraph 1.1 for steel-framed buildings; and,
  • with a risk score of 0-20, calculated in accordance with NASH Building Envelope Solutions; and,
  • situated in NASH Standard Part 2 Wind Zones up to, and including, Extra High.

See BRANZ Appraisals 513 and 514 for full information.

Limitations on Use
  • Must only be installed vertically on vertical surfaces
  • Design details must follow the Weathertex design and installation documents
  • Must be installed by a Licensed Building Practitioner (LBP)
  • Appraised for use with aluminium window and door joinery that is installed with vertical jambs and horizontal heads and sills
  • Joinery must meet the requirements of NZS 4211 for the relevant Wind Zone
Statement of Building Code Compliance

In the opinion of BRANZ, Weathertex Weathergroove Panel Cladding Systems, if designed, used, installed and maintained in accordance with the statements and conditions of BRANZ Appraisal 513 and 514, will meet the following provisions of the NZBC:

  • Clause B1 STRUCTURE: Performance B1.3.1, B1.3.2 and B1.3.4. Meets the requirement for loads arising from self-weight, earthquake, wind, impact and creep [i.e. B1.3.3 (a), (f), (h), (j) and (q)].
  • Clause B2 DURABILITY: Performance B2.3.1 (b) 15 years, B2.3.1 (c) 5 years and B2.3.2.
  • Clause E2 EXTERNAL MOISTURE: Performance E2.3.2.
  • Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1.

See BRANZ Appraisals 513 and 514 for full information.

In-Service History

Weathertex has been used in residential and commercial projects in New Zealand since 1980 and in Australia since 1930.

Notable projects include:

  • 150 Te Rapa Rd, Hamilton & 1 Hammond St, Waikato — town house developments by Assured Property
  • Green Homes Milldale Showhome — Auckland
Other Performance Attributes
  • Better than zero carbon footprint
  • PEFC-certified timber for sustainable sourcing
  • Green Tag Certified
  • No added silica, resins, or formaldehyde
  • Resistant to termites, rot, and fungal decay

Warranty

  • 25 year guarantee — pre-primed
  • 15 year guarantee — Natural
BRANZ Appraised
BRANZ Appraised
Documents
BPIR Product Statement: Weathertex Weathergroove

2024

BRANZ Appraisal 513 Weathertex Weathergroove — Direct Fix

No. 513 [2020]

BRANZ Appraisal 514 Weathertex Weathergroove — Cavity Fix

No. 514 [2020]

NZBC Fire Regulations and Acceptable Solutions
Installation Manual: Weathertex

2023

Technical Bulletin: Screw Hole Filler

2024

Weathertex Warranty

2019

Weathertex Product Catalogue

2022

Weathertex Case Studies
Weathertex Resources
Installation Details

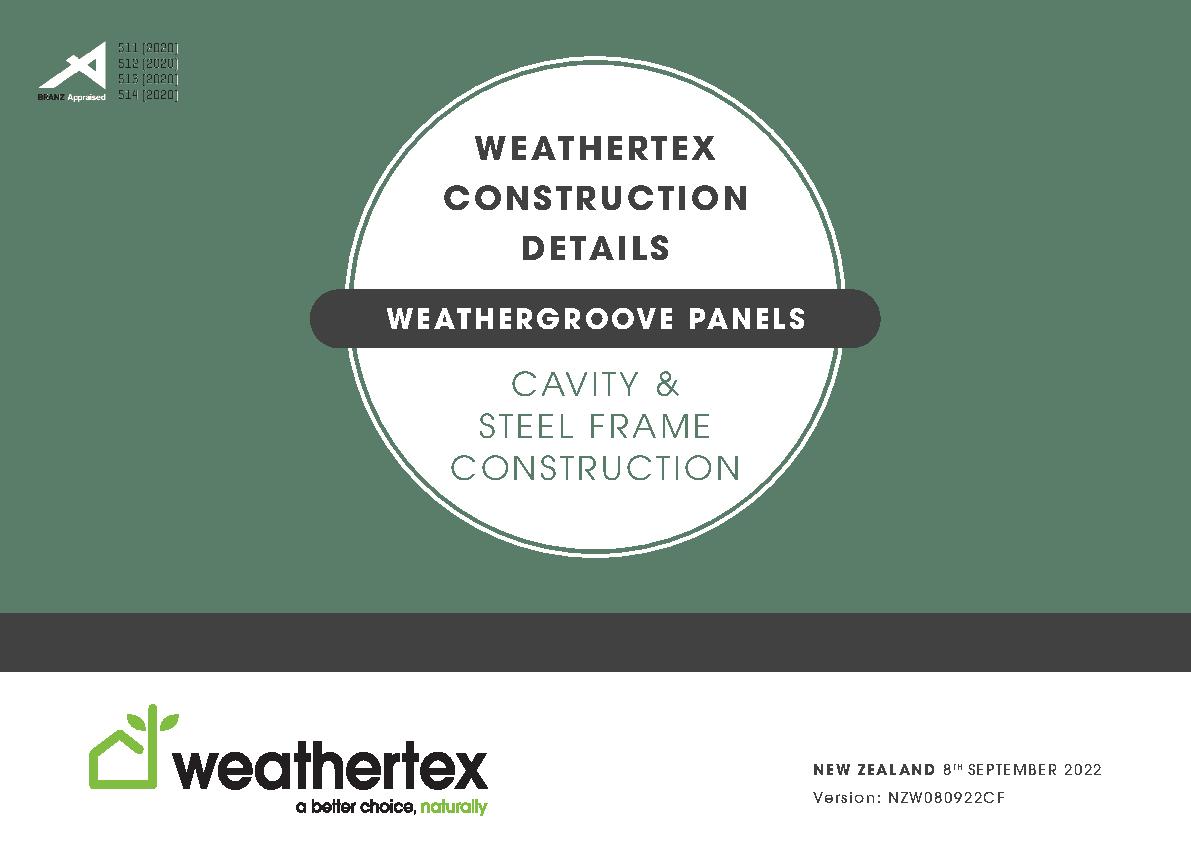

Construction Details: Weathergroove — Cavity Fix

2022

Construction Details: Weathergroove — Direct Fix

2022

ITI NZ is a leading timber supplier in New Zealand, offering sustainable, innovative solutions for residential, commercial, and community projects.

Product Enquiries

News from ITI NZ

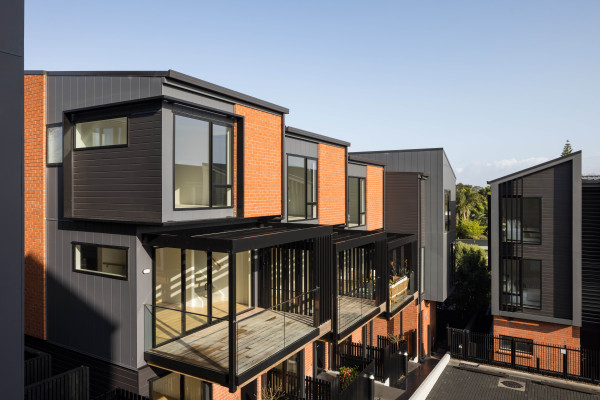

Striking Timber Cladding for a Multi-Unit Urban Development
