Hideaway Compact: 2 x 15L Floor Mounted Door Pull
Hideaway Bins
All products

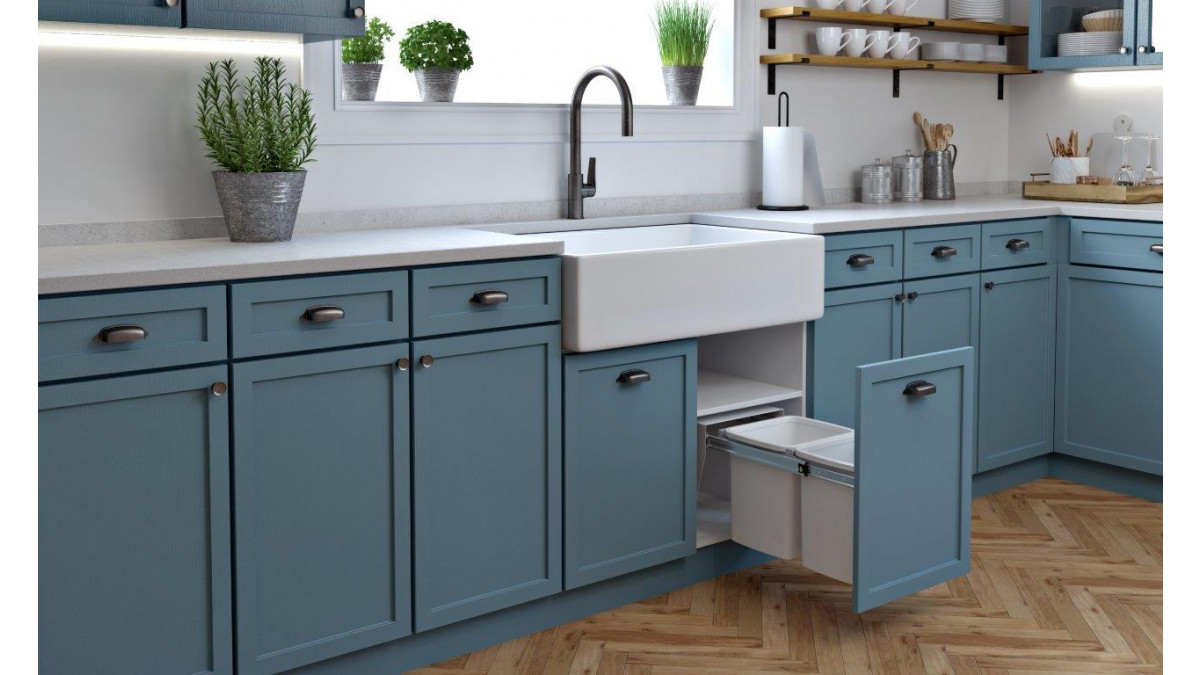

Cottage Style Kitchen KCF215 SCH opt2 new

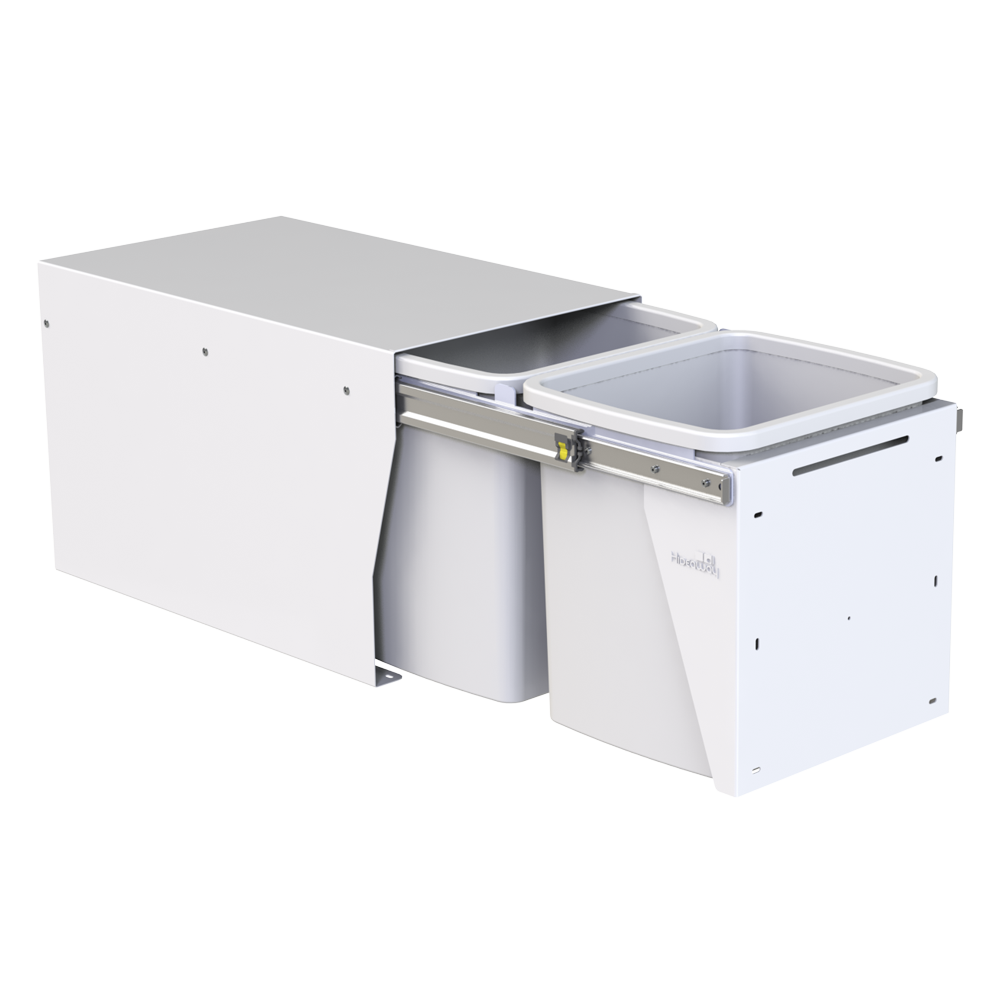

HideawayProdShots 1000pxsq KCF215SCDnew
Description

Hideaway Compact 2 x 15L Bins are compact in design making the range ideal for areas with limited space. The units are ideally suited to be installed on the base of a cabinet under the sink. The top panel acts as a cover for the bucket/s and can also be used as a shelf.

Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Colour — Arctic White
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bag in place
  • Door Pull — One step action. The front fascia of the cabinet is attached to the door bracket of the Hideaway Bin. The bin is accessible by simply pulling open the cabinet door
  • Floor Mounted  Steel frame enables the unit to be screwed to the base of the cupboard under the sink
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Hideaway Compact
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Quality robust under the sink solution
  • Ideal for areas with limited space
  • Fits a standard supermarket shopping bag
  • Width: 298mm, Height: 308mm, Depth: 510mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Floor Mounted — Steel frame enables the unit to be screwed to the base of the cupboard under the sink
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications. Its use in this application will void the warranty
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic
  • NZ Patent Number 530285
  • 2 year warranty (residential only)
  • Global GreenTag Certified — GreenRate Level C
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
KCF215220 Installation Instructions
pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
