Compact Bin Storage: 2 x 20L Bucket Door Pull — Cinder
Hideaway Bins
All products
KC40SCD cinderblack rgb sml
KC40SCD C
Description

Hideaway Compact bins are now available in Cinder — a sleek, modern colour to fit with design trends.

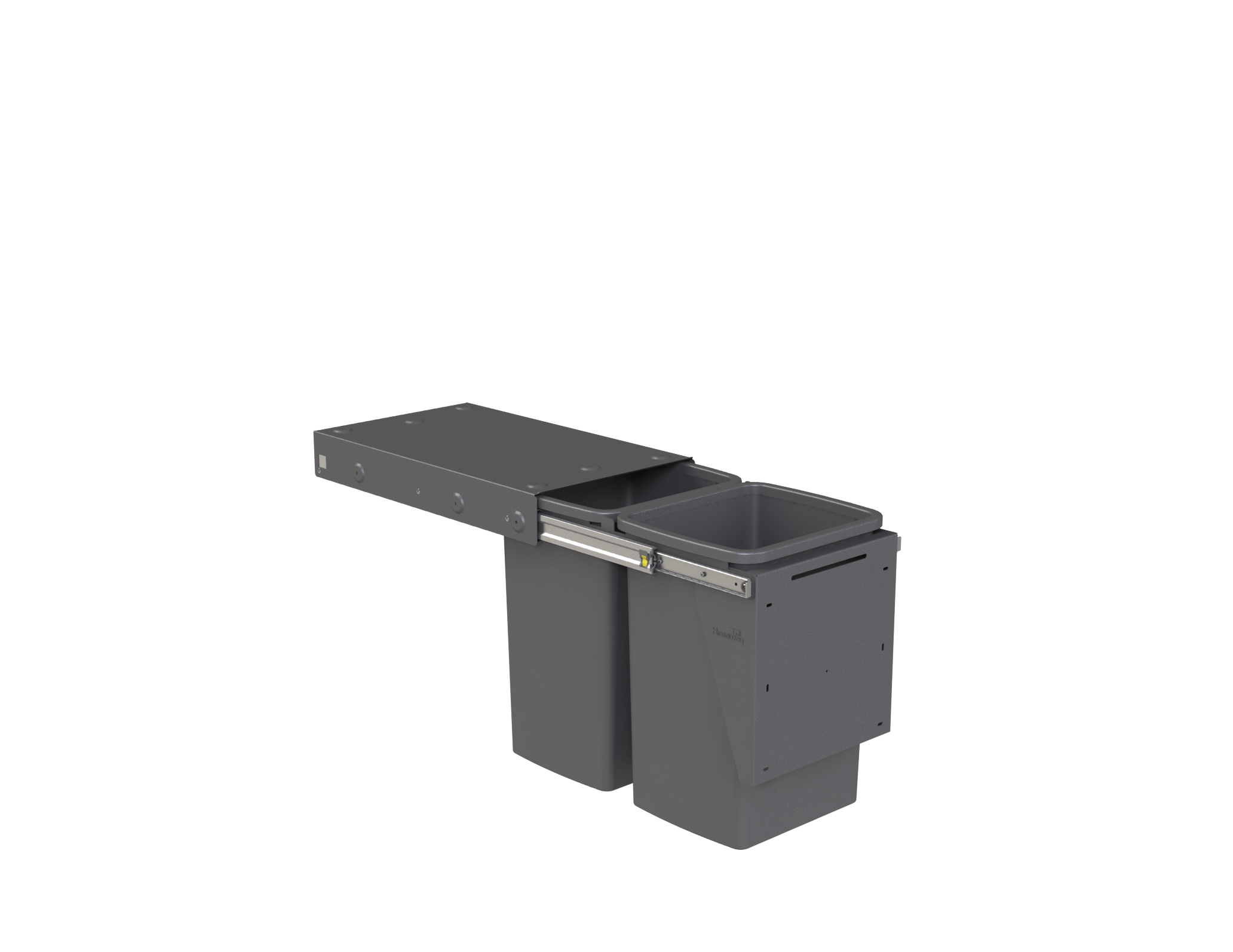

Hideaway Compact 2 x Door Pull Bins are available in 15; 20 and 40L sizes. They are compact in design, making the range ideal for areas with limited space. The units are top and/or side mounted and the mounting panel acts as a cover for the bucket/s.

Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Colour — Cinder
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold your bag in place
  • Mounting Options — Top mount and / or side mount

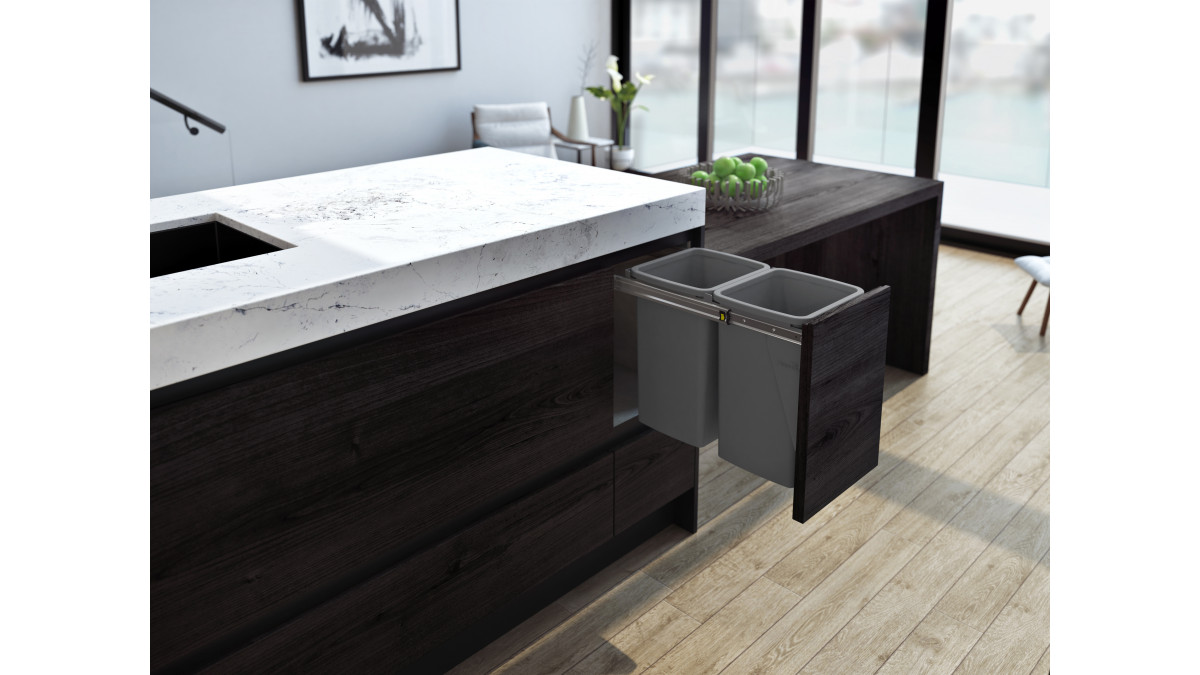

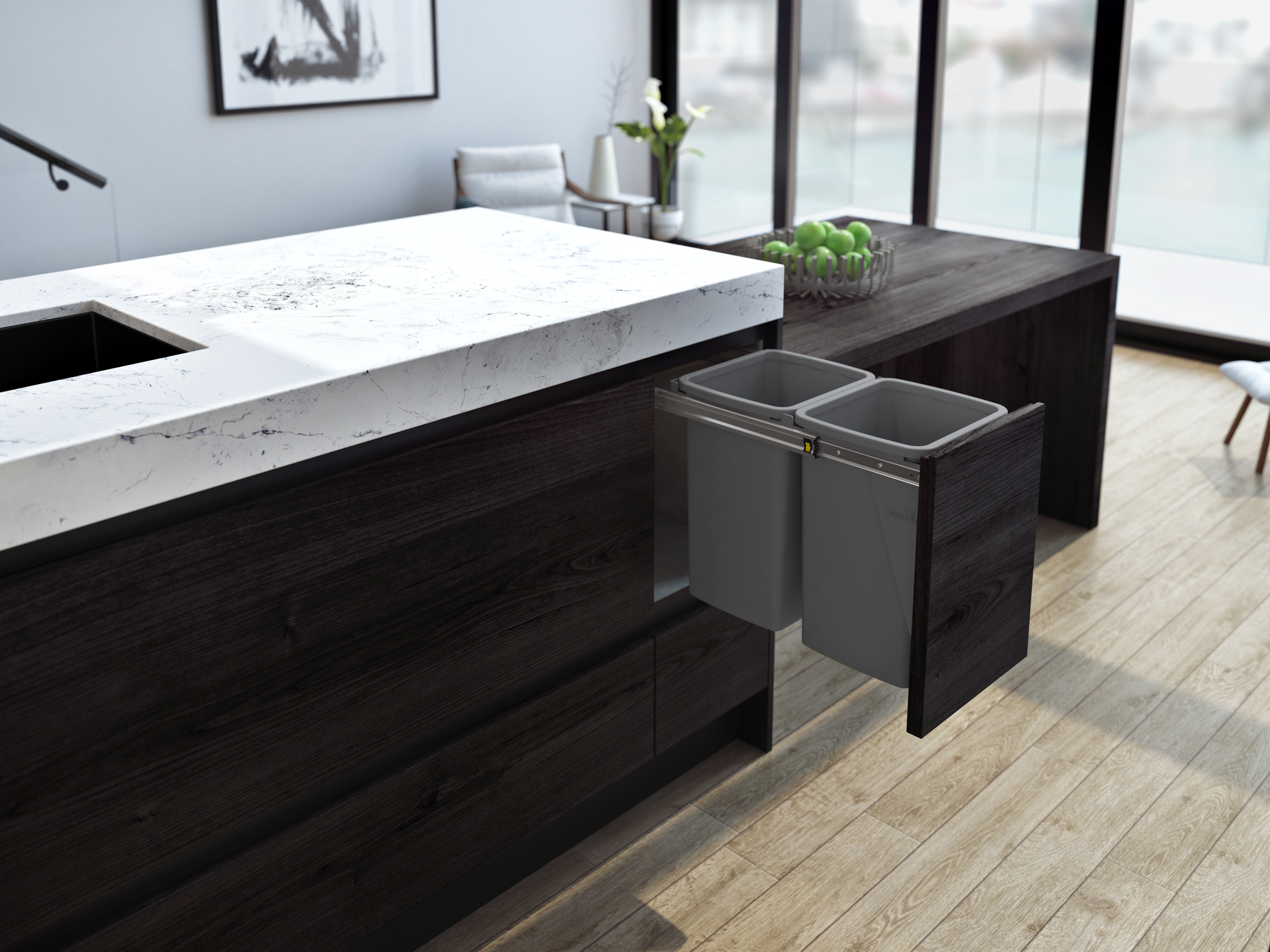

  • Door Pull — One step action. The front fascia of the cabinet is attached to the door bracket of the Hideaway Bin. The bin is accessible by simply pulling open the cabinet door
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Hideaway Compact
Green Tag Certified
Green Tag Certified
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Recycling solution for the average family
  • Ideal for areas with limited space
  • Width: 300mm, Height: 415mm, Depth: 510mm, 20L
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Mounting Options — Top mount and / or side mount
  • The Hideaway Compact range is not recommended for commercial applications. Its use in this application will void the warranty.
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications. Its use in this application will void the warranty
  • Bench Overhang Clearance — The KC40 has been designed with over extension drawer runners which allow for a bench overhang of up to 35mm, allowing the back bucket to come clear independent of the front bucket. If more bench overhang clearance is required, please mount the bin lower in the cabinet
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic
  • NZ Patent Number 530285
  • 2 year warranty (residential only)
  • Global GreenTag Certified — GreenRate Level C
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Installation and Operation
pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
