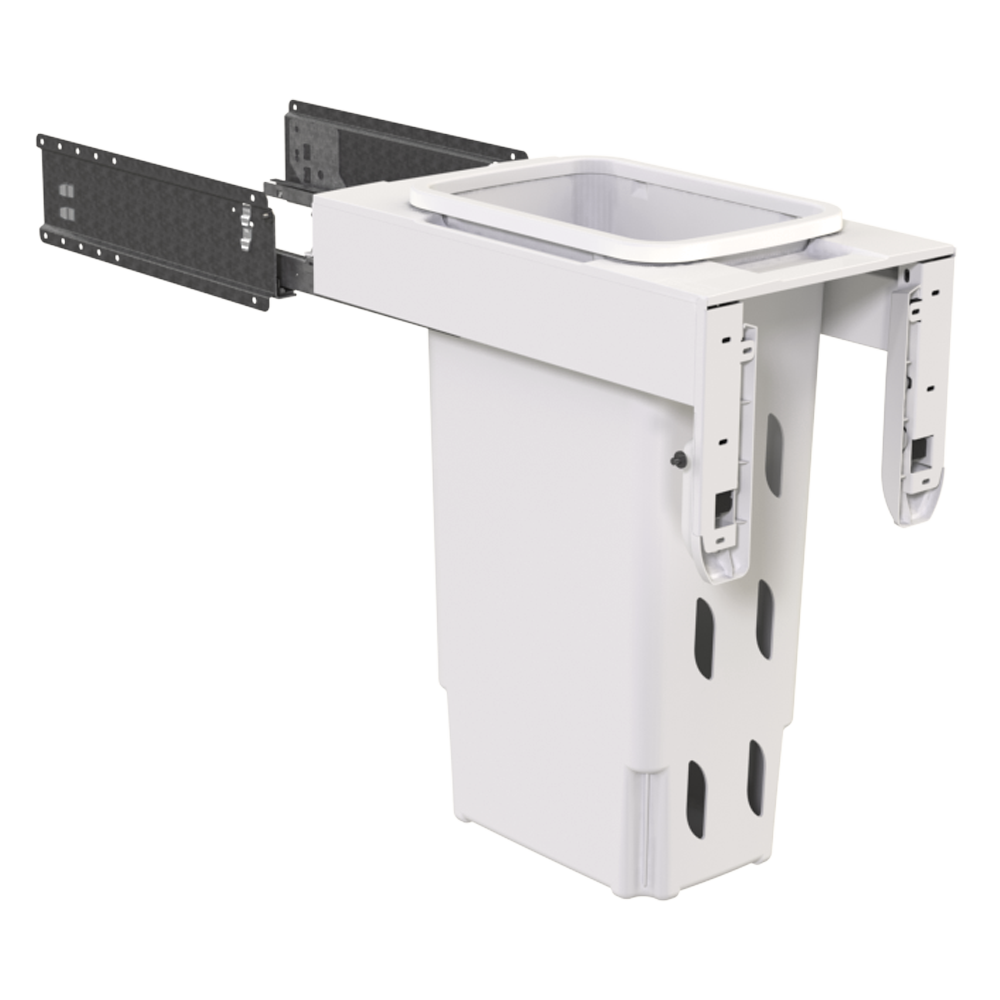

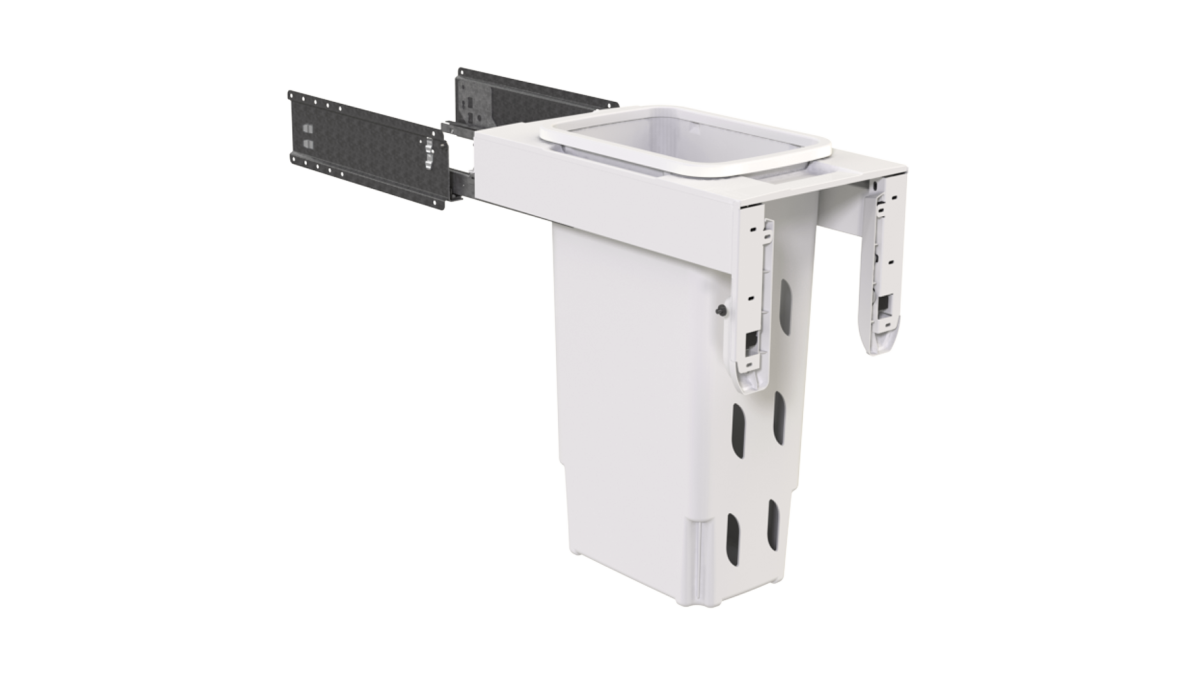

Concelo Laundry 1 x 35L Hamper — White
Description

Premium White 1 x 35L Laundry Hamper system for use in laundries, bathrooms or wardrobes, fits a 350mm cabinet.

  • Model: CRL350-135D-W
Key Features

Concelo Clip 'n' Clean Tray:

  • Tray designed for easy removal of the hamper and can be wiped clean effortlessly
  • Unique in the laundry hamper market
  • Allows the door front to be accessed and wiped. Eliminates risk of rust

6-Way Door Adjustment:

  • Precise door panel adjustment made simple using cams
  • Works with framed doors
  • Sleek covers clip over the adjustment
  • Fixed adjustment with the locking bolts
  • Horizontal adjustment +/- 2.5mm, Vertical +/- 2.5mm, Tilt/pitch;+/- 0.75°

Side Mounting:

  • To suit standard System 32 drilling positions

Häfele Matrix Runner:

  • Runs beautifully — the German made, Häfele Matrix runner is smooth, synchronised, and has over extension runners with fluid damper for seamless quiet closing action
  • 45kg dynamic weight loading
  • Equal running to premium drawers

Large 35L Moulded Hamper:

  • Hand grips for easy removal
  • Light weight and eliminates risk of rust
  • Ventilated sides with a solid base

Electronic Push-to-Open Compatible:

  • Concelo is warranted for use with Häfele Grass Sensomatic and Blum Servo-Drive systems
  • Refer to the technical guides on the Hideaway website for installation of electronic systems
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Concealed laundry hamper — 35L, large size suitable for family load
  • 45kg dynamic weight loading
  • Side Mounting: — To suit standard System 32 drilling positions
  • Electronic Push-to-Open Compatible — warranted for use with Häfele Grass Sensomatic and Blum Servo-Drive systems
  • Sizes:
    • Minimum cabinet width: 350mm — assumes 16mm carcass
    • Minimum internal width: 318mm
    • Minimum internal height: 605mm
    • Recommended minimum internal height: 670mm
    • Minimum internal depth: 525mm
Limitations on Use
  • Bench Overhang Clearance — The CRL350-135D has been designed with over extension drawer runners which allow for a bench overhang of up to 110mm, allowing the hamper to come clear of the bench top. If more bench overhang clearance is required, mount the bin lower in the cabinet



In-Service History

Concelo was launched in New Zealand and Australia in 2018, being used in both residential and commercial environments.

Other Performance Attributes
  • 10 year warranty (residential applications)
  • 2 year warranty (commercial applications)
  • Global GreenTag Certified — GreenRate Level C
Documents
Global GreenTag: GreenRate Level C

December 2023

Maintenance and Warranty
Brochure

June 2023

Hideaway IP

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
