Concelo 1 x 35L Bucket - Cinder
Hideaway Bins
All products
CR350 135D C
Kitchen Concelo 350mm CR350 135 Closeup
Concelo Waste Bin Features 2022
Concelo CleaningCircleDiagram Mar2019 GreyBins
CR350 135D C
Description

Premium Cinder 1 x 35L bin system for waste or recycling, fits a 350mm cabinet.

  • Model: CR350-135D-C

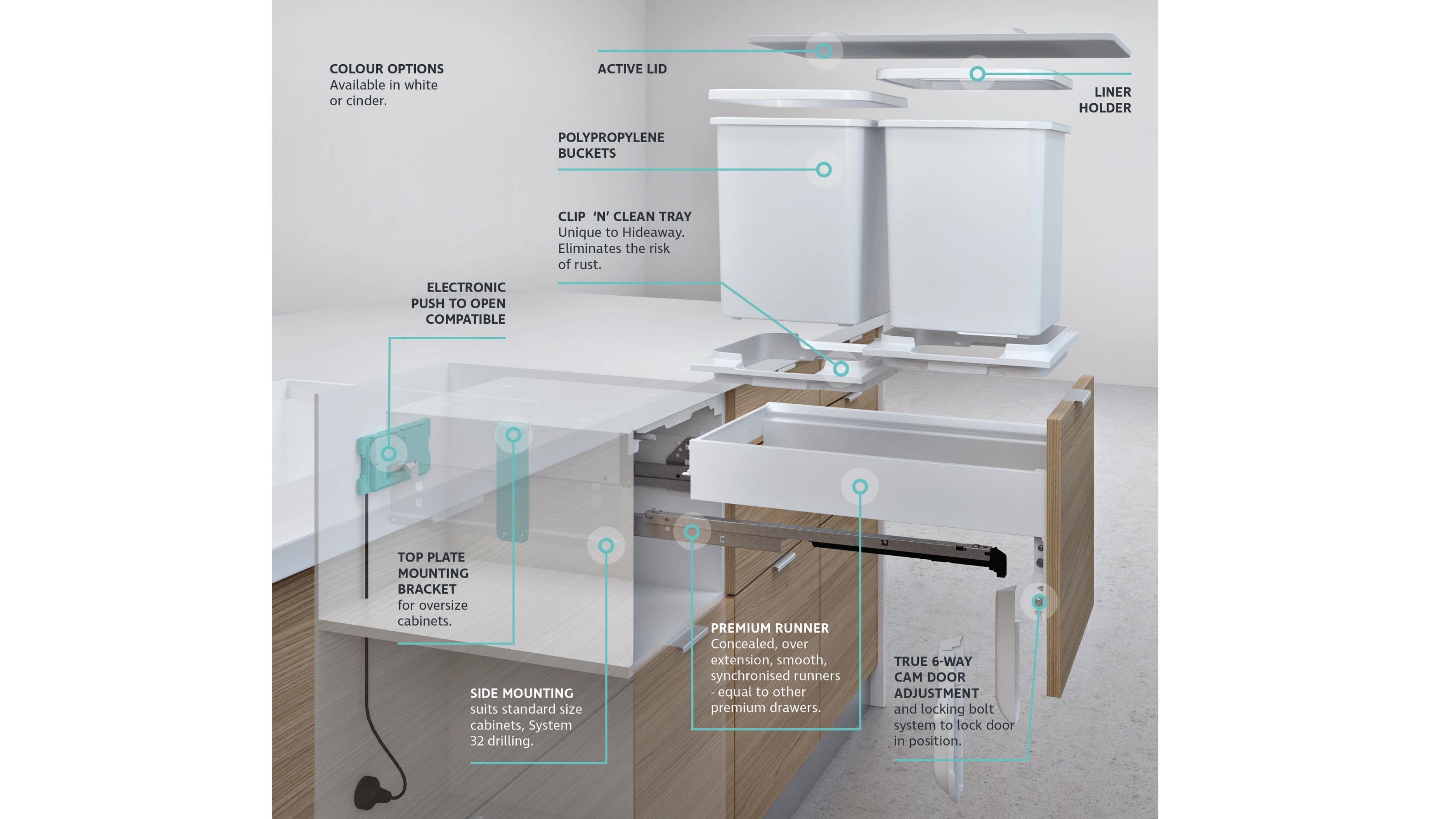

Key Features
  • Concelo by Hideaway Bins, winner of the prestigious international Red Dot design award, is the result of seven years of research, development and testing. Concelo has been designed to deliver a waste bin without compromise. Every element of the bin has been engineered and tested to ensure it delivers both the form and function that should be expected from a premium kitchen appliance

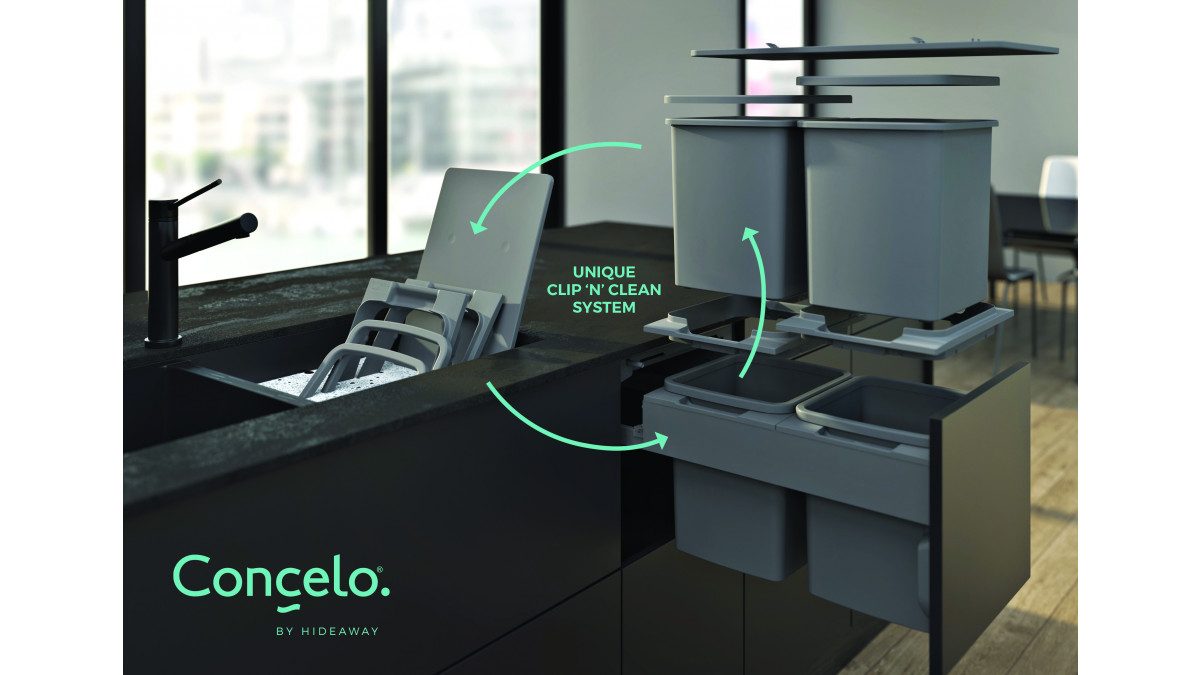

  • Clip 'n' Clean components — Simply remove the components and wash in warm soapy water, once dry, clip the components back into place. The result is a completely clean, more hygienic bin in seconds. No more dirt traps commonly found in other waste bin brands
  • Active Lid — The unique Active Lid stays in the cabinet upon opening, keeping hands free to simply drop waste into the bin. The Active Lid then covers back over the buckets upon closing for odour control
  • German synchronised over-extension runners — More than just buckets in a drawer, but smooth synchronised runners, with a fluid dampener for seamless quiet closing action. Runners are manufactured by Hafele Schneider Furniture division to provide a closing action equal to other premium kitchen drawer runners. Over-extension allows Concelo to be installed at bench height for enhanced ergonomics and allows the rear bucket to clear benchtop overhangs up to 110mm. German quality with a 45kg dynamic weight rating
  • Two mounting options — Side mount in standard 350mm cabinet, suits System 32 drilling pattern, or can be mounted to the Top plate of over width cabinets using additional CRBTM Brackets. Both mounting options allow the Concelo bin to be positioned at bench height which is the most ergonomic to easily dispose of waste
  • Colour options — Available in 2 colour options; Arctic White to match ever popular white drawers, or Cinder to suit the growing trend for darker coloured hardware
  • Electronic Push to Open — Concelo is also compatible with electronic push to open mechanisms. When combined with the Active Lid, this creates the perfect hands-free waste bin solution
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Concelo by Hideaway
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Kitchen waste and recycling bin
  • Width: 318mm — Height: 640mm — Depth: 525mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Side or Top Mounting options
  • Compatible with electronic 'push to open' mechanisms
  • 45kg dynamic weight rating
Limitations on Use

Bench Overhang Clearance — The CR350-135D-C has been designed with over extension drawer runners which allow for a bench overhang of up to 110mm, allowing the back bucket to come clear independent of the front bucket. If more bench overhang clearance is required, please mount the bin lower in the cabinet.

In-Service History

Concelo was launched in New Zealand and Australia in 2018, being used in both residential and commercial environments.

Other Performance Attributes
  • 10 year warranty (residential applications)
  • 2 year warranty (commercial applications)
  • Global GreenTag Certified — GreenRate Level C
  • News
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Installation and Operation

March 2022

pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf
Hideaway IP
URL

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
