Compact Bin Storage: 2 x 35L Bucket Door Pull — Cinder
Hideaway Bins
All products
KC235SCD cinderblack rgb sml
KC235SCD C
Description

Hideaway Compact bins are now available in Cinder — a sleek, modern colour to fit with design trends.

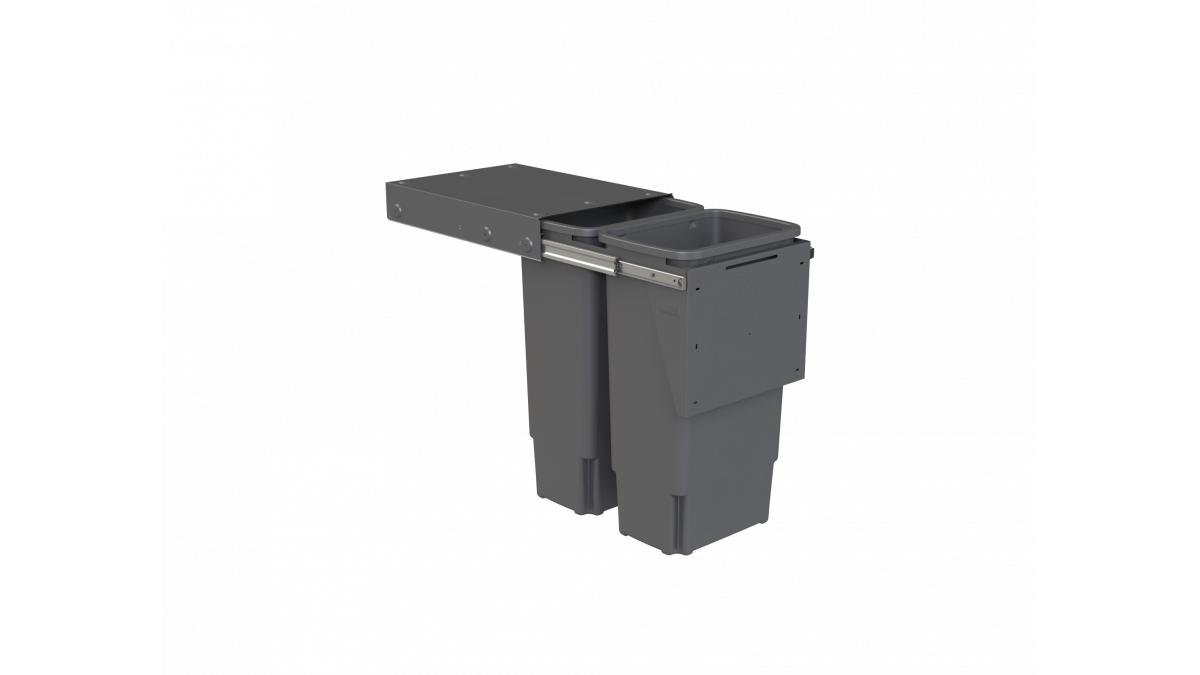

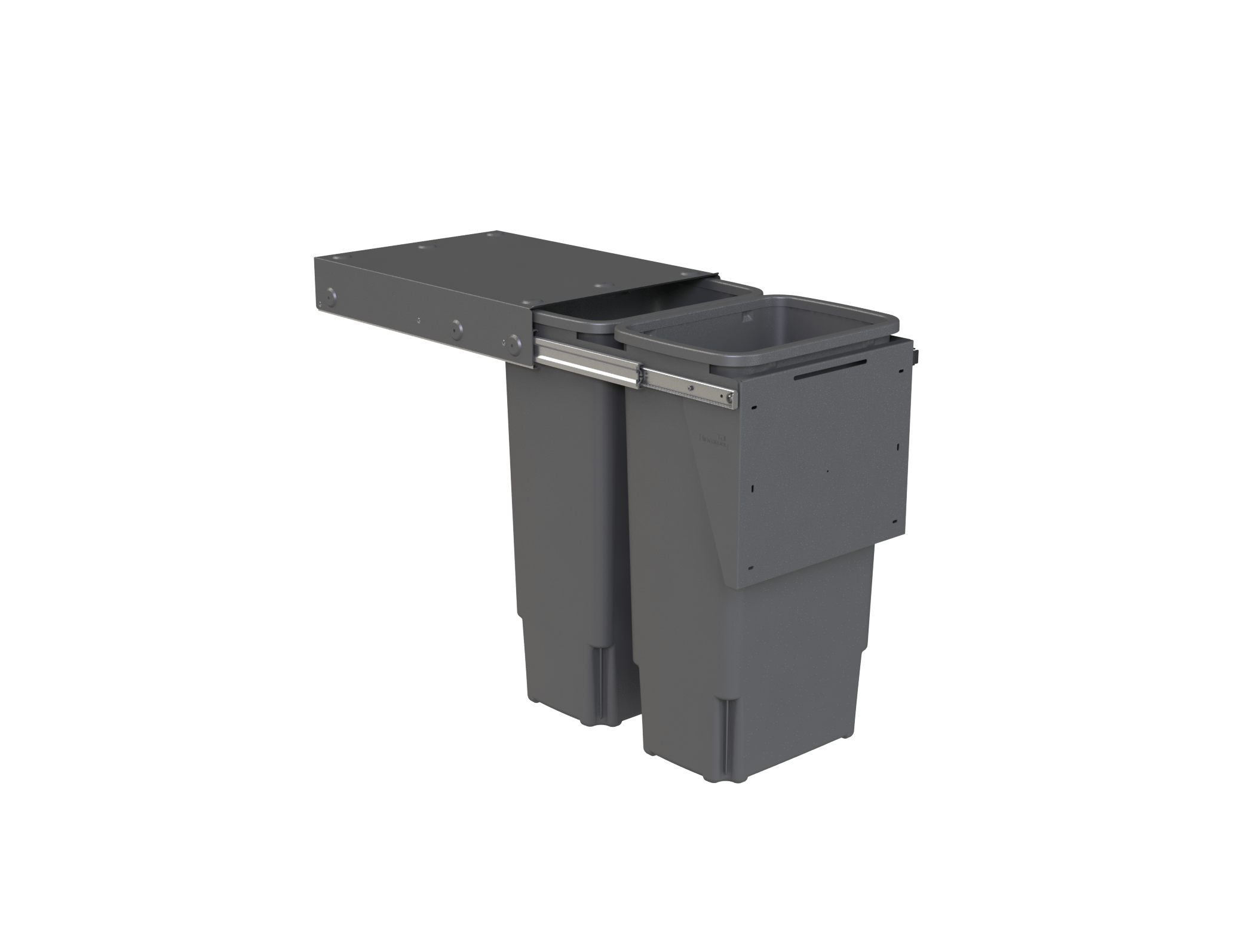

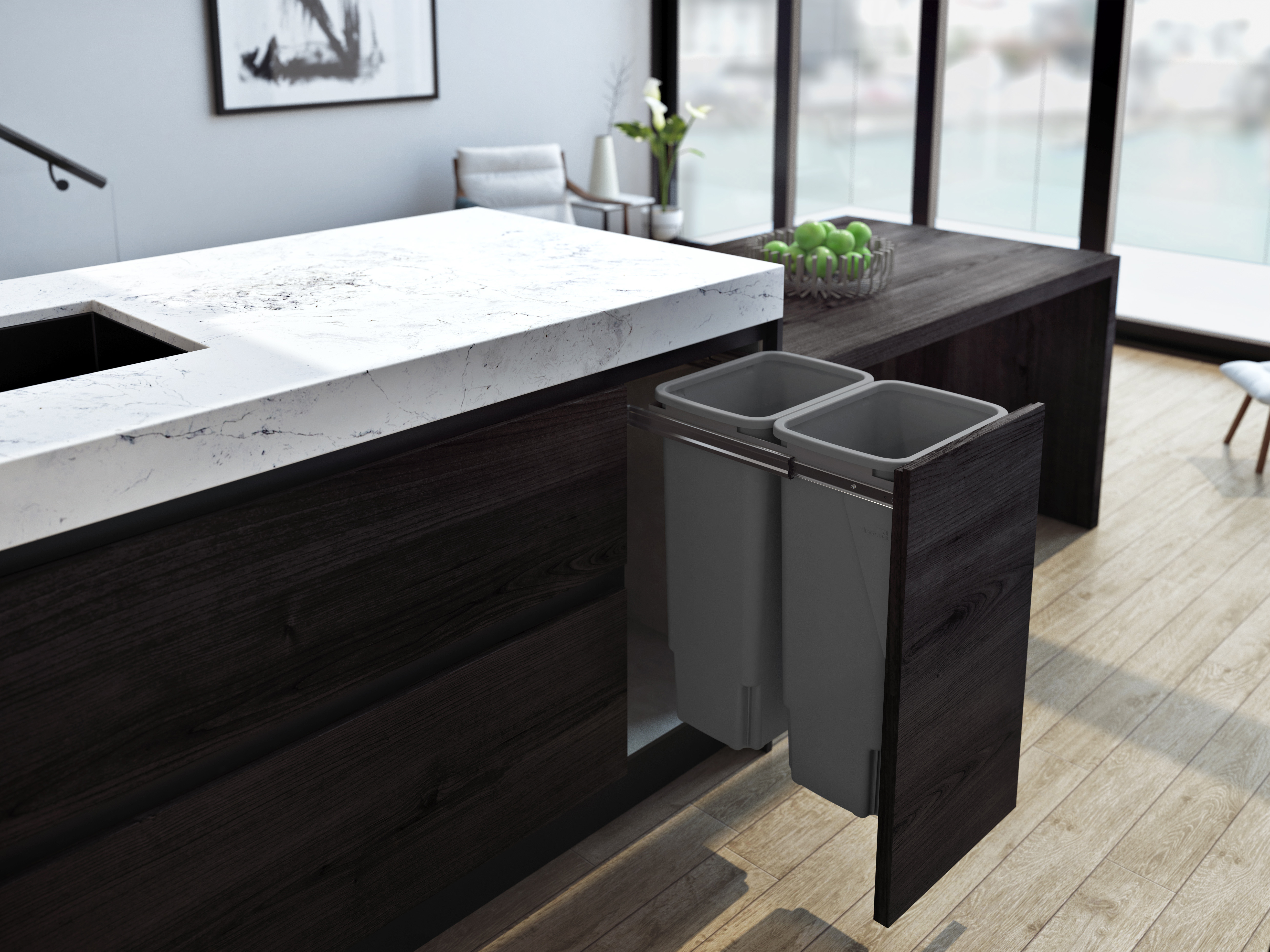

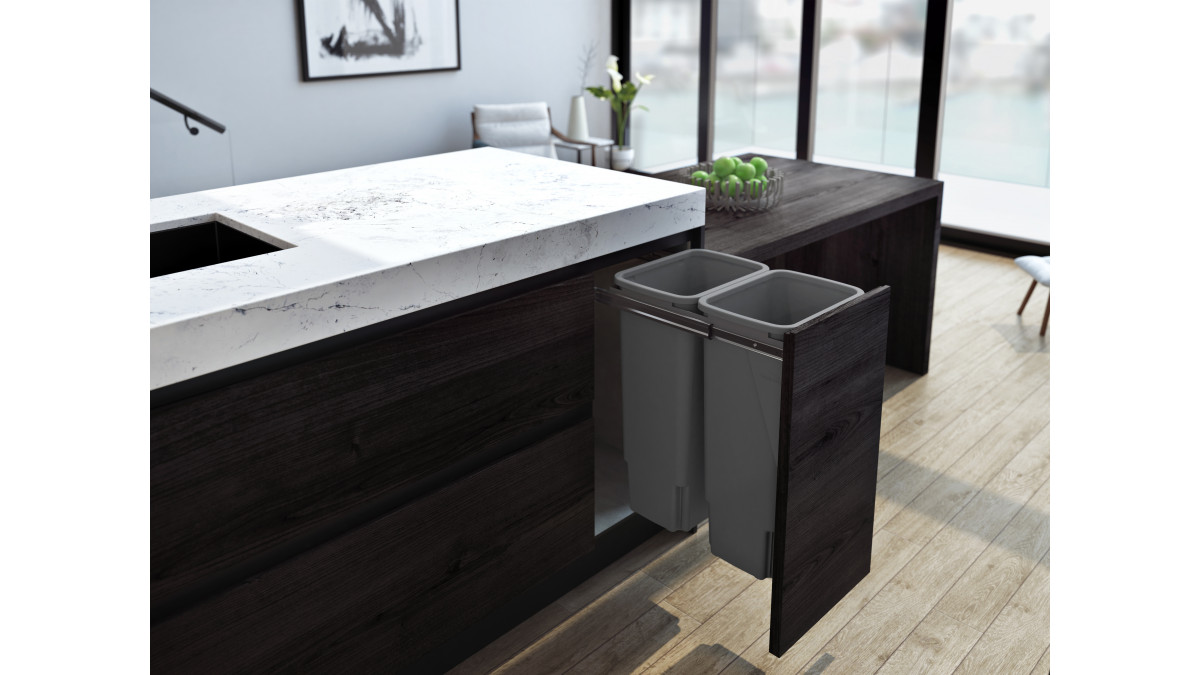

The Hideaway Compact twin 35-litre bucket model is a compact door-pull bin which allows for 70L of storage in a 400mm space.

Key Features
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 45kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic. All buckets come complete with a liner holder to hold bag in place
  • Mounting Options — Top mount and / or side mount
  • Colour — Cinder
  • Door Pull — One step action. The front fascia of the cabinet is attached to the door bracket of the Hideaway Bin. The bin is accessible by simply pulling open the cabinet door
Categories
Bathroom Joinery and Cabinetry Kitchen and Laundry Fixtures and Fittings
Ranges
Hideaway Compact
Green Tag Certified
Green Tag Certified
Recyclable Content (Post-Consumer)
Post-Consumer Recyclable Content
NZ Made
NZ Made
NZ-Owned Business
NZ-Owned Business
Scope of Use
  • Recommended use — Largest double bin solution for 400mm cabinets
  • Ideal for areas with limited space
  • Unit dimensions: 368 x 615 x 518mm
  • All measurements given are internal (wall to wall) and are the minimum required to fit each unit
  • Mounting options — Top mount and / or side mount
  • The Hideaway Compact range is not recommended for commercial applications. Its use in this application will void the warranty.
Limitations on Use
  • The Hideaway Compact Range is not recommended for commercial applications. Its use in this application will void the warranty
  • Bench Overhang Clearance — been designed with overextension drawer runners which allow for a bench overhang of up to 35mm, allowing the back bucket to come clear independent of the front bucket
Other Performance Attributes
  • Metal Gauge — 1.0mm zinc treated steel for strength and powder coated for durability
  • Runners — Soft Close ball bearing runners that over-extend, allowing easy removal of buckets from beneath the bench top and have a dynamic weight loading of 38kgs
  • Bucket — Made from a recyclable, food grade polypropylene plastic
  • NZ Patent Number 530285
  • 2 year warranty (residential only)
  • Global GreenTag Certified — GreenRate Level C
  • News
Documents
Global GreenTag: GreenRate Level C

December 2023

pdf
Installation and Operation
pdf
Maintenance and Warranty
pdf
Brochure

June 2023

pdf

Hideaway Bins are designed and manufactured in New Zealand by Kitchen King Ltd, a family owned and operated company who are renowned for manufacturing high quality innovative storage solutions.
