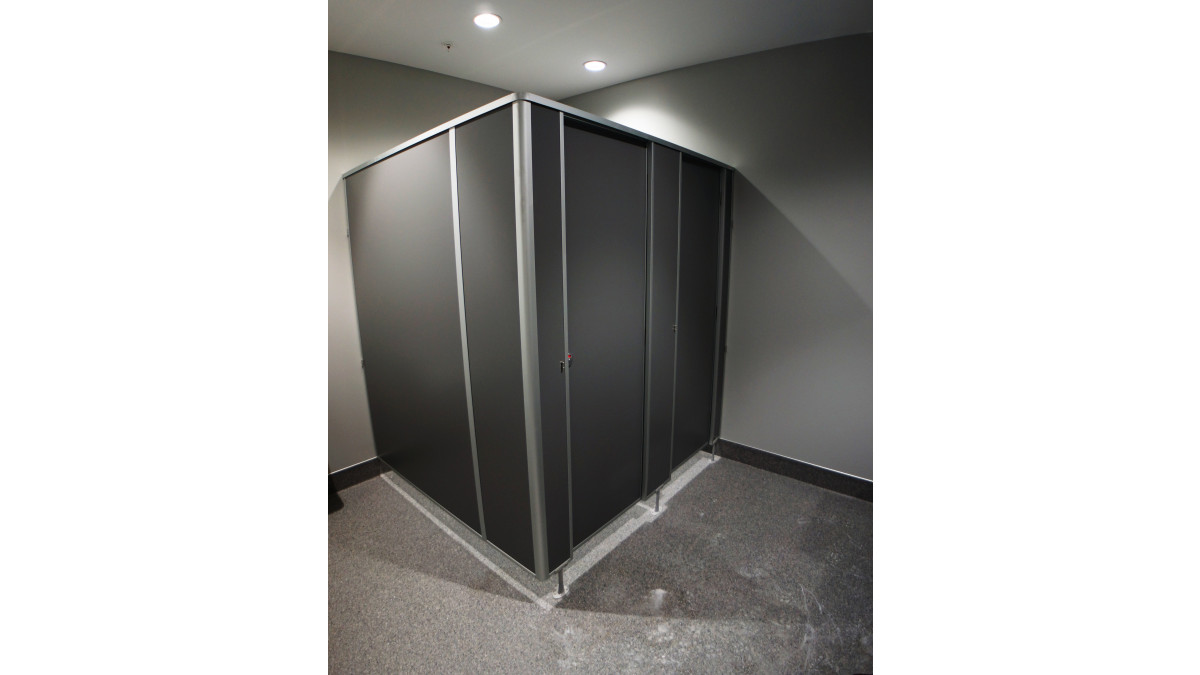

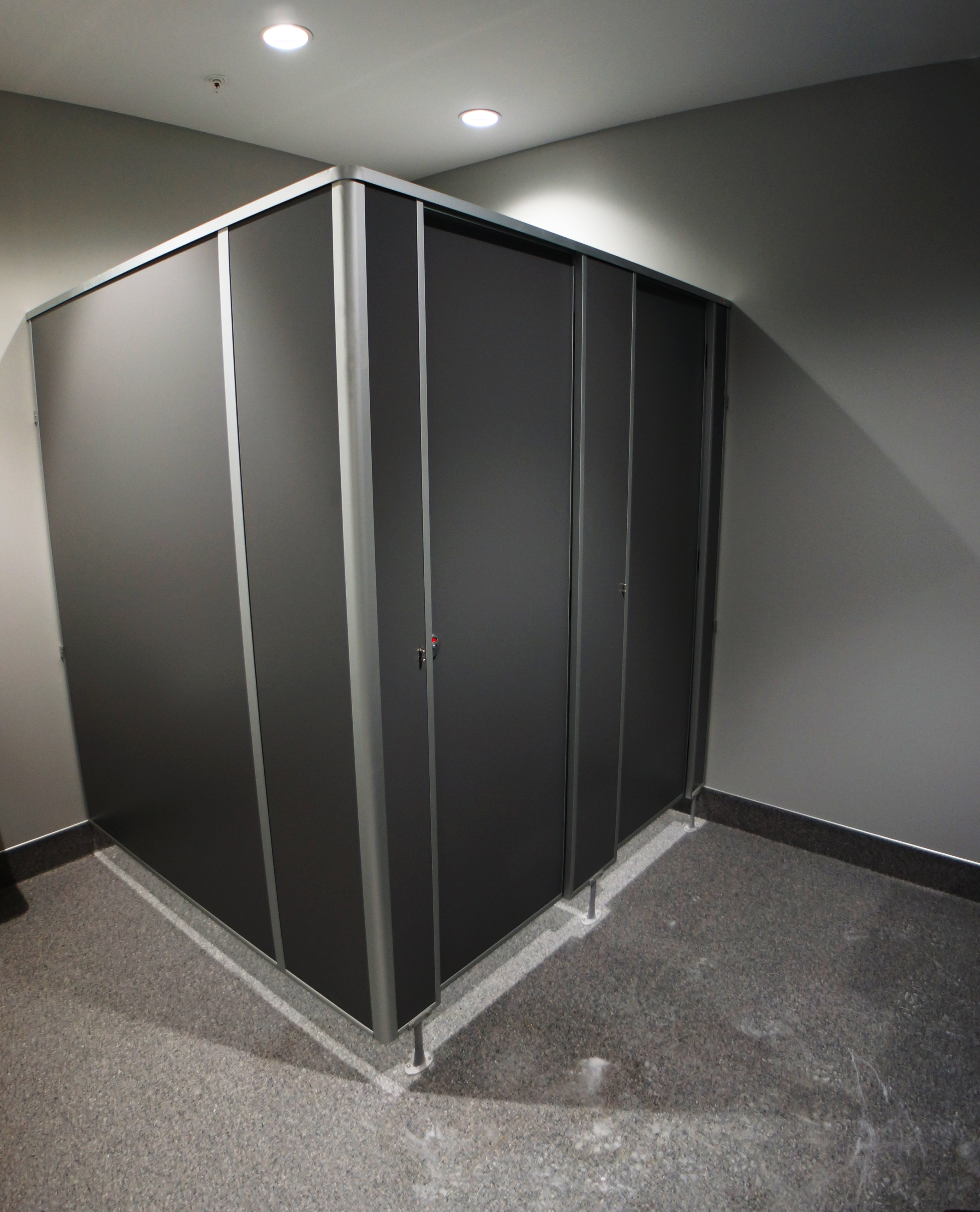

Hale Manufacturing Stratos LPL Partition System

Stratos LPL Partition System

Description

The Hale Stratos Low Pressure Laminate (LPL) Partitioning system is a budget alternative used in low abuse, dry areas. It is not suitable for areas subject to high impact or high levels of moisture. With a wide range of LPL colours to choose from and the aluminium edge trim to all edging providing excellent durability and protection against bumps and knocks, the Stratos LPL system is durable and cost effective.

Key Features

Group 3 Fire rating
18mm MDF core with factory applied low pressure laminate to the face
All panels have factory fitted natural anodised aluminium edge trim to all edges
Cast alloy powder coated standard 150mm pedestal legs or adjustable (80mm - 230mm) supplied as necessary
30mm x 25mm x 3mm silver anodised aluminium channel forming headrail and wall brackets
Devon Satin Chrome Plated indicator bolt with large turn lock inside of cubicle and red/green indication with coin operated emergency release to outside
Stainless Steel 75mm x 50mm hold open butt hinges
A system that has been tried and tested for many years in low abuse, dry areas
A system that is robust, durable and cost effective in its correct application
Aluminium edge trim to all edging, providing excellent durability and protection against bumps and knocks
Concealed fixed Avanti or Wave coat hook to all doors
2 year board warranty
Many colour options. If it is a low pressure laminate, it can be used!

Optional Extras:

Sliding door or open out door to comply with accessibility requirements
CF2 Stainless Steel bullet style feet
Octagonal headrail channel, providing extra strength
Powder coating to aluminium trim available
Full length channel at all junctions in lieu of wall brackets, providing extra strength
